engine TOYOTA SEQUOIA 2022 Owners Manual

5167-2. Steps to take in an emergency
SEQUOIA_OM_USA_OM0C047U
Add engine coolant if neces-
sary.
Water can be used in an emer-
gency if engine coolant is unavail-
able.
Start the engine to check that the radiator cooling fan operate and
to check for coolant leaks from the radiator or hoses.
If the fan are not operating:
Stop the engine immediately and contact your Toyota dealer.
If the fan are operating:
Have the vehicle inspected at the neare st Toyota dealer.
5
WARNING
■When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
● If steam is seen coming from under the hood, do not open the ho od until
the steam has subsided. The engine compartment may be very hot.
● Keep hands and clothing (especially a tie, a scarf or a muffler) away from
the fans and belts.
● Do not loosen the radiator cap and the coolant reservoir cap while the
engine and radiator are hot.
High temperature steam or coolant could spray out.
6
7

5177-2. Steps to take in an emergency
7
When trouble arises
SEQUOIA_OM_USA_OM0C047U
NOTICE
■When adding engine coolant
Wait until the engine has cooled down before adding engine cool ant.
When adding coolant, do so slowly. Adding cool coolant to a hot engine too
quickly can cause damage to the engine.
■ To prevent damage to the cooling system
Observe the following precautions:
● Avoid contaminating the coolant with foreign matter (such as sand or dust,
etc.).
● Do not use any coolant additives.

5187-2. Steps to take in an emergency
SEQUOIA_OM_USA_OM0C047U
If the vehicle becomes stuck
Stop the engine. Set the parking brake and shift the shift lever to P.
Remove the mud, snow or sand from around the stuck tire.
Place wood, stones or some other material under the tires to help
provide traction under the tires.
Restart the engine.
Lock the center differential. ( P. 318)
Shift the shift lever to D or R position and carefully apply th e accel-
erator to free the vehicle.
■ When it is difficult to free the vehicle
Turn off TRAC or VSC/Trailer Sway Control if these functions ar e hampering
your attempts to free the vehicle. ( P. 326)
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
Press to turn off TRAC or VSC/Trailer
Sway Control.
1
2
3
4
5
6

5238-1. Specifications
8
Vehicle specifications
SEQUOIA_OM_USA_OM0C047U
*1: The model code is indicated on the Certification Label. (P. 5 2 4 )
Weight
Model code*1EngineDriving
system
Vehicle capac- ity weight
(Occupants
+luggage)TWR*
(Trailer weight + cargo)
USK60L-
GKTSKA
5.7 L V8
(3UR-FE) engine 2WD
1320 lb.
(600 kg) 7400 lb.
(3357 kg)
USK60L-
GKTLKA 1305 lb.
(590 kg) 7200 lb.
(3266 kg)
USK60L-
GKTZKA 1320 lb.
(600 kg)
USK65L-
GKTSKA
4WD1290 lb.
(585 kg) 7100 lb.
(3220 kg)
USK65L-
GKTLKA 1250 lb.
(565 kg)
USK65L-
GKTZKA 1265 lb.
(575 kg) 7000 lb.
(3175 kg)
*:This model meets the tow-vehicle trailering requirement of
SAE International per SAE J2807.

5248-1. Specifications
SEQUOIA_OM_USA_OM0C047U■
Vehicle identification number
The vehicle identification number (VIN) is the legal identifier
for
your vehicle. This is the primary identification number for you r
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
This number is also on the Cer-
tification Label.
■Engine number
The engine number is stamped
on the engine block as shown.
Vehicle identification

5258-1. Specifications
8
Vehicle specifications
SEQUOIA_OM_USA_OM0C047U
Engine
Model3UR-FE
Ty p e8-cylinder V-type, 4-cycle, gasoline
Bore and stroke3.70  4.02 in. (94.0  102.0 mm)
Displacement345.6 cu.in. (5663 cm3)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tensionAutomatic adjustment
Fuel
Fuel type Unleaded gasoline only
Octane rating
(Unleaded gasoline)87 (Research Octane Number 91) or
higher
Fuel tank capacity
(Reference)
26.4 gal. (100.0 L, 22.0 lmp.gal.)

5268-1. Specifications
SEQUOIA_OM_USA_OM0C047U
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
■
Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to sat -
isfy the following grade and viscosity.
Oil grade: ILSAC GF-6A multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice
for good fuel economy and
good starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.

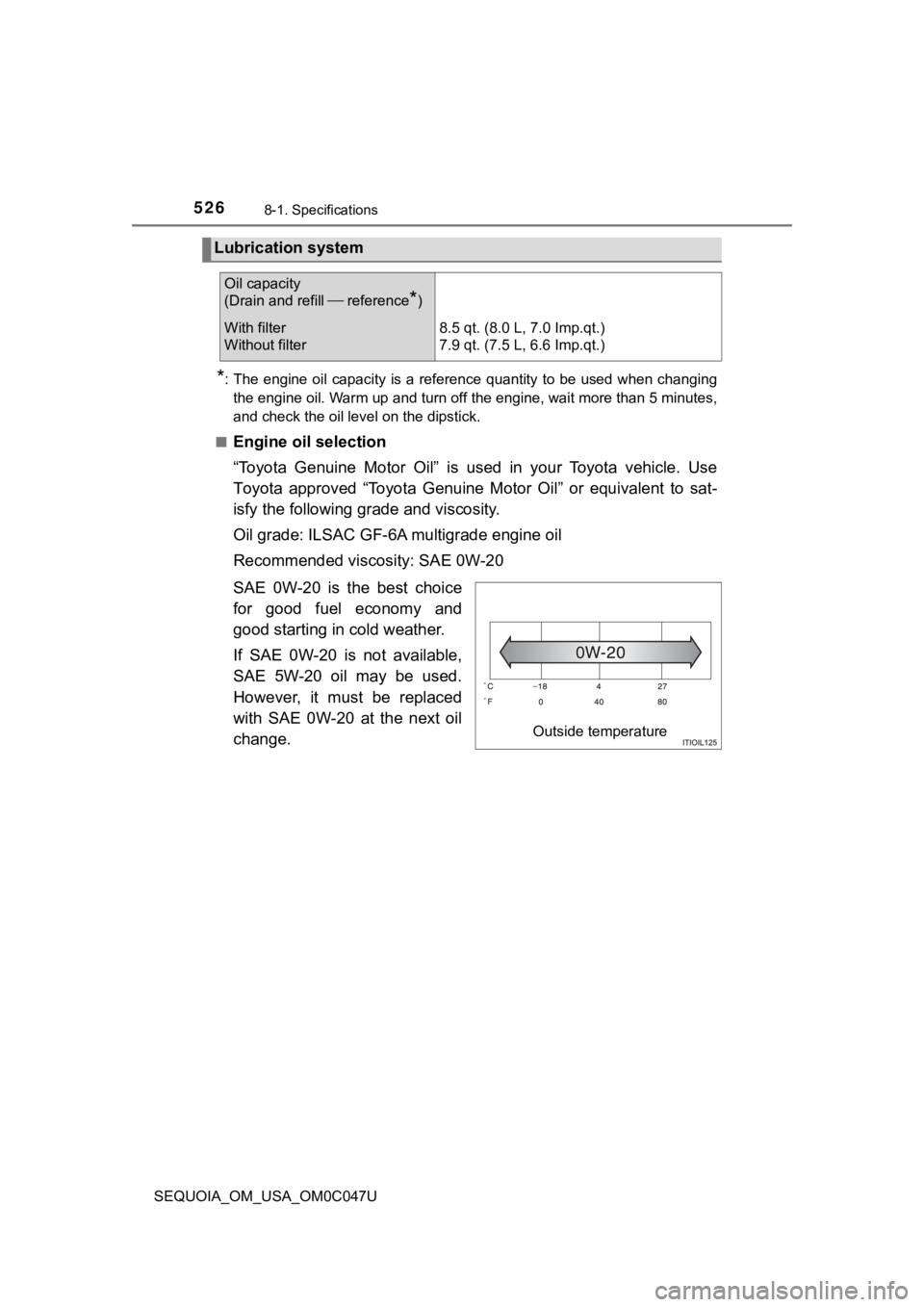

Lubrication system
Oil capacity
(Drain and refill  reference
*)
With filter
Without filter8.5 qt. (8.0 L, 7.0 Imp.qt.)
7.9 qt. (7.5 L, 6.6 Imp.qt.)
Outside temperature

5278-1. Specifications
8
Vehicle specifications
SEQUOIA_OM_USA_OM0C047U
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows cold startability. Oils wi th a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the vi scosity characteristic of the oil
when the oil is at high temperature. An oil with a higher visco sity
(one with a higher value) may be better suited if the vehicle i s
operated at high speeds, or un der extreme load conditions.

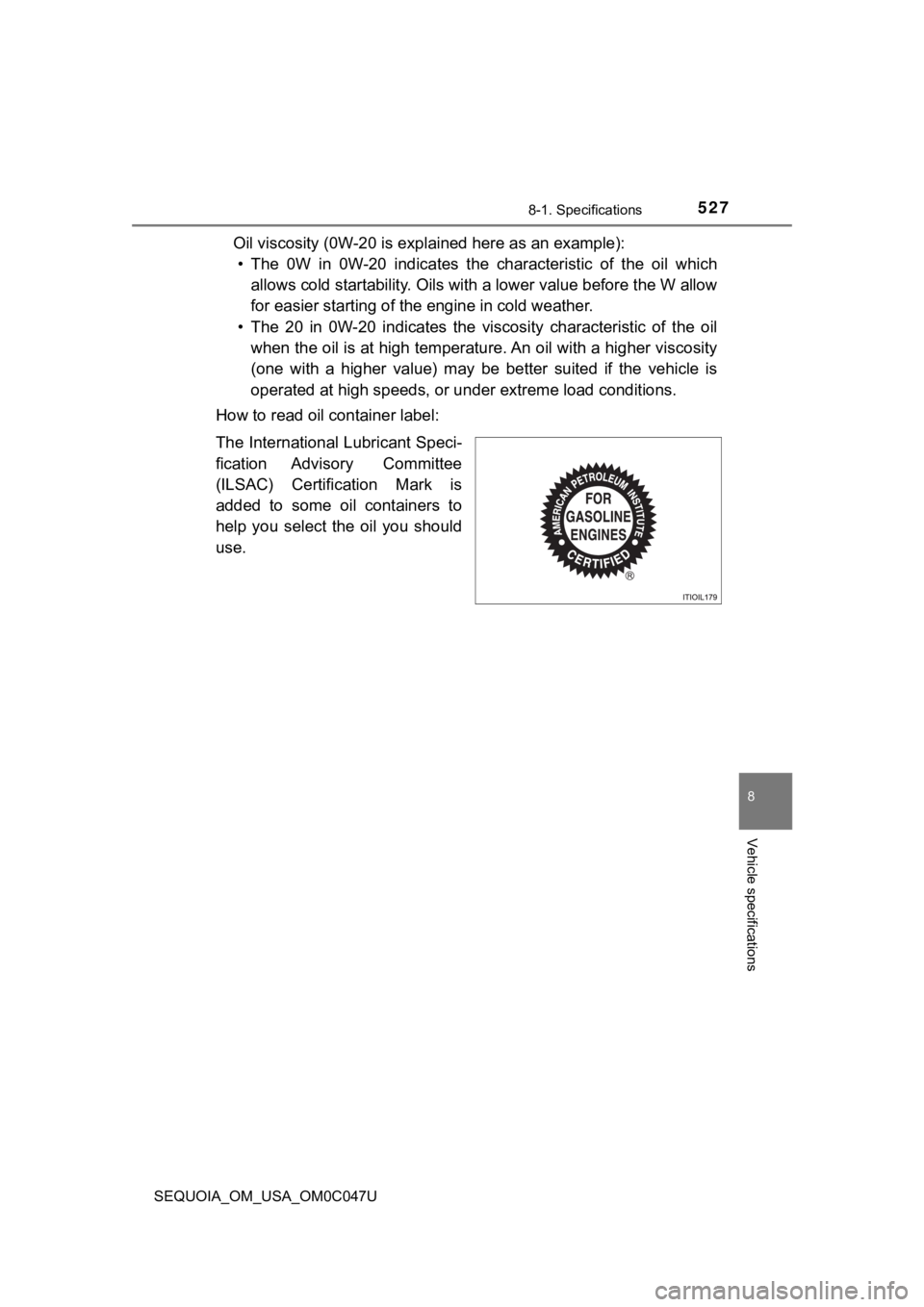

How to read oil container label:
The International Lubricant Speci-
fication Advisory Committee
(ILSAC) Certification Mark is
added to some oil containers to
help you select the oil you should
use.

5288-1. Specifications
SEQUOIA_OM_USA_OM0C047U

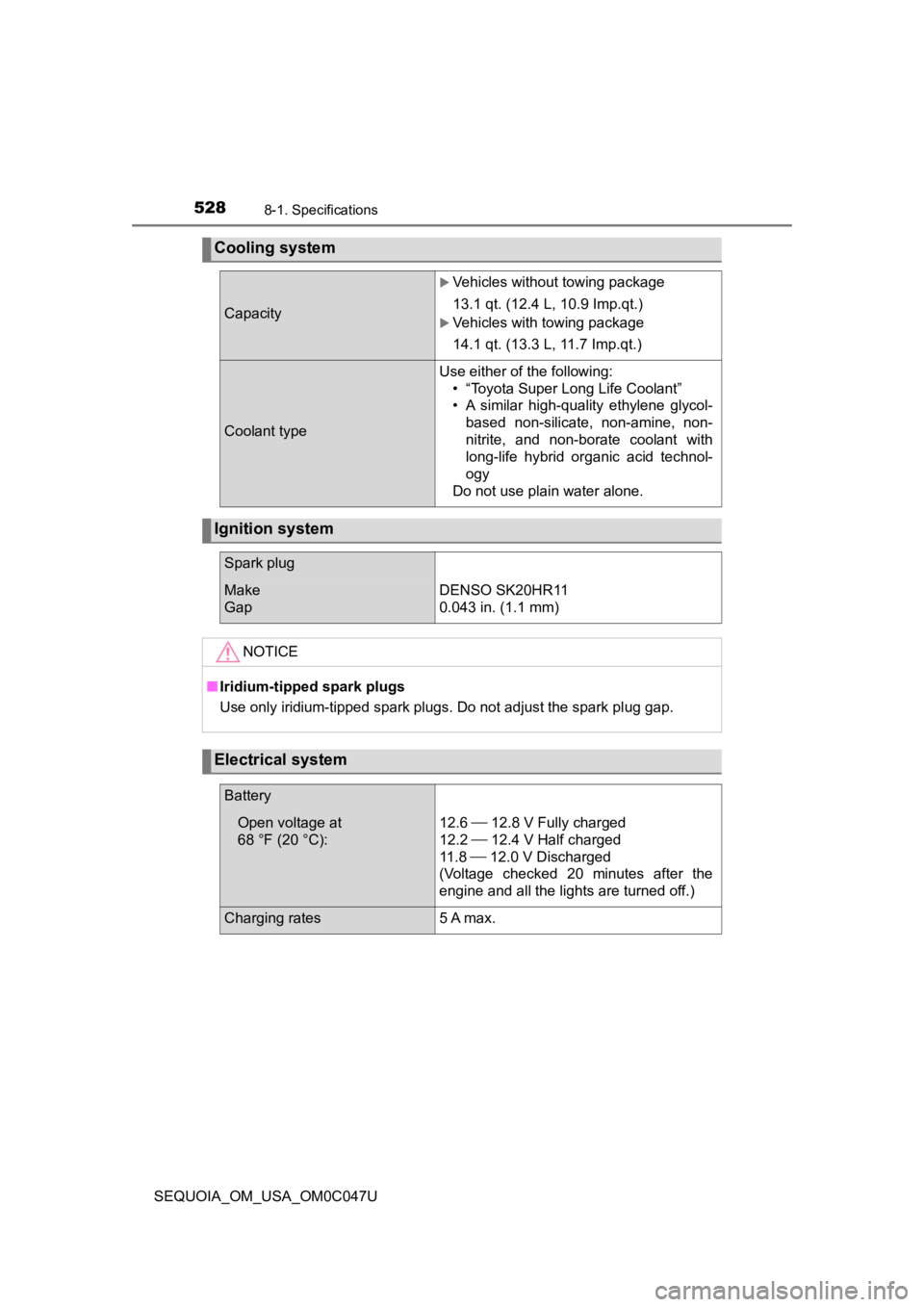

Cooling system
Capacity
Vehicles without towing package
13.1 qt. (12.4 L, 10.9 Imp.qt.)
Vehicles with towing package
14.1 qt. (13.3 L, 11.7 Imp.qt.)
Coolant type
Use either of the following:• “Toyota Super Long Life Coolant”
• A similar high-quality ethylene glycol-
based non-silicate, non-amine, non-
nitrite, and non-borate coolant with
long-life hybrid organic acid technol-
ogy
Do not use plain water alone.
Ignition system
Spark plug
Make
GapDENSO SK20HR11
0.043 in. (1.1 mm)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark pl ug gap.
Electrical system
Battery
Open voltage at
68 °F (20 °C):12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11.8  12.0 V Discharged
(Voltage checked 20 minutes after the
engine and all the lights are turned off.)
Charging rates5 A max.

5308-1. Specifications
SEQUOIA_OM_USA_OM0C047U
*1: Minimum pedal clearance when depressed with a force of 110 lbf (490 N,
50 kgf) while the engine is running.
*2: Parking brake pedal travel when depressed with a force of 67.1 lbf (300 N,
30.6 kgf).
Brakes
Pedal clearance*14.1 in. (104 mm) Min.
Pedal free play0.04  0.24 in. (1  6 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Parking brake lining wear limit0.04 in. (1.0 mm)
Parking brake pedal travel*26  9 clicks
Fluid typeFMVSS No.116 DOT 3 or SAE J1703
Steering
Free playLess than 1.2 in. (30 mm)
Power steering fluid typeAutomatic transmission fluid DEXRON® II
or III
