5338-1. Specifications
8
Vehicle specifications
SEQUOIA_OM_USA_OM0C047U
Fuel information
■Gasoline quality
In very few cases, driveability problems may be caused by the b rand of gaso-
line you are using. If driveability problems persist, try changing the brand of
gasoline. If this does not correct the problem, consult your To yota dealer.
■ Recommendation of the use of gaso line containing detergent additives
● Toyota recommends the use of gasoline that contains detergent a dditives to
avoid the build-up of engine deposits.
● All gasoline sold in the U.S.A. contains minimum detergent addi tives to
clean and/or keep clean intake systems, per EPA’s lowest additi ves concen-
tration program.
● Toyota strongly recommends the use of Top Tier Detergent Gasoli ne. For
more information on Top Tier Detergent Gasoline and a list of marketers,
please go to the official website www.toptiergas.com.
■ Recommendation of the use of low emissions gasoline
Gasolines containing oxygenates such as ethers and ethanol, as well as
reformulated gasolines, are available in some cities. These fue ls are typically
acceptable for use, providing they meet other fuel requirements .
Toyota recommends these fuels, since the formulations allow for reduced
vehicle emissions.
You must only use unleaded gasoline.
Select octane rating 87 (Research Octane Number 91) or higher.
Use of unleaded gasoline with an octane rating lower than 87
may result in engine knocking. Persistent knocking can lead to
engine damage.
At minimum, the gasoline you use should meet the specifications of
ASTM D4814 in the U.S.A.

5348-1. Specifications
SEQUOIA_OM_USA_OM0C047U■
Non-recommendation of the use of blended gasoline
●If you use gasohol in your vehicle, be sure that it has an octa ne rating no
lower than 87.
● Toyota does not recommend the use of gasoline containing methan ol.
■ Non-recommendation of the use of gasoline containing MMT
Some gasoline contains an octane enhancing additive called MMT (Methylcy-
clopentadienyl Manganese Tricarbonyl).
Toyota does not recommend the use of gasoline that contains MMT. If fuel
containing MMT is used, your emission control system may be adversely
affected.
The malfunction indicator lamp on the instrument cluster may come on. If this
happens, contact your Toyota dealer for service.
■ If your engine knocks
●Consult your Toyota dealer.
● You may occasionally notice light knocking for a short time whi le accelerat-
ing or driving uphill. This is normal and there is no need for concern.
●
Use only gasoline containing up to 15%
ethanol.
DO NOT use any flex-fuel or gasoline
that could contain more than 15% etha-
nol, including from any pump labeled
E30, E50, E85 (which are only some
examples of fuel containing more than
15% ethanol).
DO NOT use gasoline
containing more than
15% ethanol.
(30% ethanol)
(50% ethanol)
(85% ethanol)

5358-1. Specifications
8
Vehicle specifications
SEQUOIA_OM_USA_OM0C047U
NOTICE
■Notice on fuel quality
● Do not use improper fuels. If improper fuels are used, the engi ne will be
damaged.
● Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way ca talytic
converters causing the emission control system to malfunction.
● Do not use gasohol other than the type previously stated.
Other gasohol may cause fuel system damage or vehicle performance
problems.
● Using unleaded gasoline with an octane number or rating lower than the
level previously stated will cause persistent heavy knocking.
At worst, this will lead to engine damage.
■ Fuel-related poor driveability
If poor driveability (poor hot starting, vaporization, engine k nocking, etc.) is
encountered after using a different type of fuel, discontinue the use of that
type of fuel.
■ When refueling with gasohol
Take care not to spill gasohol. It can damage your vehicle’s paint.

5428-1. Specifications
SEQUOIA_OM_USA_OM0C047U

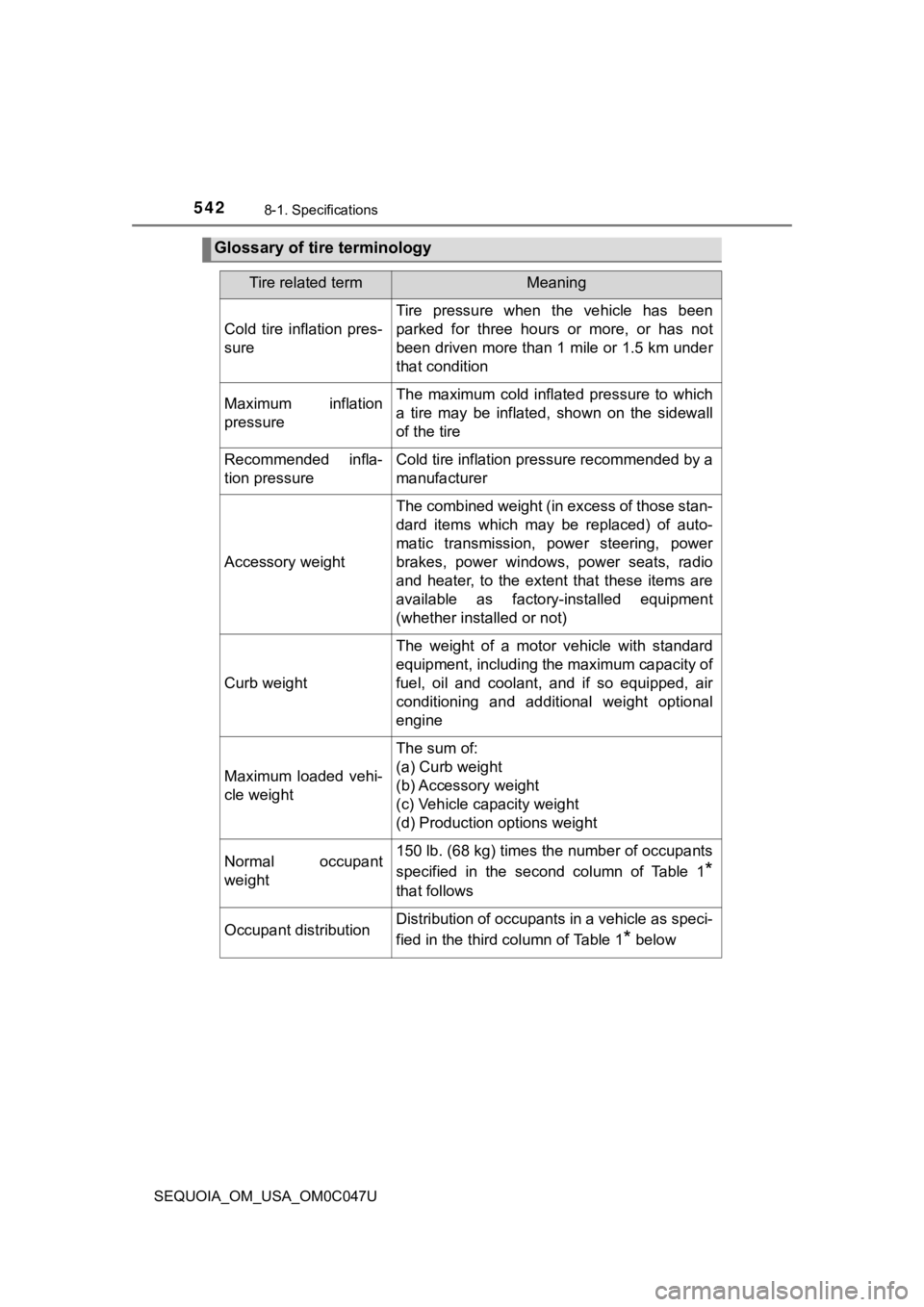

Glossary of tire terminology
Tire related termMeaning
Cold tire inflation pres-
sure
Tire pressure when the vehicle has been
parked for three hours or more, or has not
been driven more than 1 mile or 1.5 km under
that condition
Maximum inflation
pressureThe maximum cold inflated pressure to which
a tire may be inflated, shown on the sidewall
of the tire
Recommended infla-
tion pressureCold tire inflation pressure recommended by a
manufacturer
Accessory weight
The combined weight (in excess of those stan-
dard items which may be replaced) of auto-
matic transmission, power steering, power
brakes, power windows, power seats, radio
and heater, to the extent that these items are
available as factory-installed equipment
(whether installed or not)
Curb weight
The weight of a motor vehicle with standard
equipment, including the maximum capacity of
fuel, oil and coolant, and if so equipped, air
conditioning and additional weight optional
engine
Maximum loaded vehi-
cle weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
Normal occupant
weight150 lb. (68 kg) times the number of occupants
specified in the second column of Table 1
*
that follows
Occupant distributionDistribution of occupants in a vehicle as speci-
fied in the third column of Table 1
* below

5578-2. Customization
8
Vehicle specifications
SEQUOIA_OM_USA_OM0C047U■
Illumination (
P. 3 5 7 )
■Seat Belt Reminder Buzzer ( P. 474)
FunctionDefault settingCustomized
setting
Time elapsed before lights
turn off 15 secondsOff—O O7.5 seconds
30 seconds
Operation after the engine
is off On
Off
—— O
Operation when the doors
are unlocked On Off—— O
Time elapsed before the
exterior lights turn off15 secondsOff—O O7.5 seconds
30 seconds
FunctionDefault settingCustomized setting
Vehicle speed linked seat
belt reminder buzzerOnOff—— O

5588-2. Customization
SEQUOIA_OM_USA_OM0C047U
■In the following situations, customize mode in which the settings can be
changed through the multi-information display will automatically be
turned off
●A warning message appears after the customize mode screen is displayed.
● The engine switch is turned off.
● The vehicle begins to move while the customize mode screen is displayed.
WARNING
■ During customization
As the engine needs to be running during customization, ensure that the
vehicle is parked in a place with adequate ventilation. In a closed area such
as a garage, exhaust gases including harmful carbon monoxide (CO) may
collect and enter the vehicle. This may lead to death or seriou s health haz-
ard.
NOTICE
■ During customization
To prevent battery discharge, ensure that the engine is running while cus-
tomizing features.

574What to do if... (Troubleshooting)
SEQUOIA_OM_USA_OM0C047U
What to do if... (Troubleshooting)
●If you lose your mechanical keys, new genuine mechanical keys can be
made by your Toyota dealer. ( P. 109)
●If you lose your keys or electronic keys, the risk of vehicle t heft increases
significantly. Contact your Toyota dealer immediately. ( P. 112)
●Is the electronic key battery weak or depleted? (P. 448)
●Is the engine switch in ON?
When locking the doors, turn the engine switch off. ( P. 215)
●Is the electronic key left inside the vehicle?
When locking the doors, make sure that you have the electronic key on
your person.
●The function may not operate properly due to the condition of t he radio
wave. ( P. 110)
●Is the child-protector lock set?
The rear door cannot be opened from inside the vehicle when the lock is
set. Open the rear door from outside and then unlock the child-protector
lock. ( P. 115)
If you have a problem, check the following before contacting
your Toyota dealer.
The doors cannot be locked, unlocked, opened or closed
You lose your keys
The doors cannot be locked or unlocked
The rear door cannot be opened

575What to do if... (Troubleshooting)
SEQUOIA_OM_USA_OM0C047U
●Did you press the engine switch while firmly depressing the brake pedal?
( P. 214)
●Is the shift lever in P? ( P. 216)
●Is the electronic key anywhere detectable inside the vehicle? ( P. 129)
●Is the steering wheel unlocked? (P. 217)
●Is the electronic key battery weak or depleted?
In this case, the engine can be started in a temporary way. ( P. 509)
●Is the battery discharged? (P. 5 1 1 )
●Is the engine switch in ON?
If you cannot release the shift lever by depressing the brake p edal with the
engine switch in ON. ( P. 223)
●It is locked automatically to prevent theft of the vehicle. ( P. 2 1 7 )
●Is the window lock switch pressed?
The power window except for the one at the driver’s seat cannot be oper-
ated if the window lock switch is pressed. ( P. 165)
If you think something is wrong
The engine does not start
The shift lever cannot be shifted from P even if you depress
the brake pedal
The steering wheel cannot be turned after the engine is
stopped
The windows do not open or close by operating the power
window switches

576What to do if... (Troubleshooting)
SEQUOIA_OM_USA_OM0C047U
●The auto power off function will be operated if the vehicle is left in ACC or
ON (the engine is not running) for a period of time. ( P. 216)
●The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts?
(P. 474)
Depending on the situation, other types of warning buzzer may a lso sound.
( P. 472, 481)
●Did anyone inside the vehicle open a door during setting the al arm?
The sensor detects it and the alarm sounds. ( P. 84)
To stop the alarm, start the engine.
●Is the electronic key left inside the vehicle?
Check the message on the multi-information display. ( P. 481)
●When a warning light turns on, refer to P. 472.
●When a warning light turns on or a warning message or indicator is dis-
played, refer to P. 472, 481.
The engine switch is tur ned off automatically
A warning buzzer sounds during driving
An alarm is activated and the horn sounds
A warning buzzer sounds w hen leaving the vehicle
A warning light turns on or a warning message is displayed

580Alphabetical index
SEQUOIA_OM_USA_OM0C047U
Child safety ................................ 57Airbag precautions .................. 42
Back door precautions .......... 122
Battery precautions ....... 426, 514
Child restraint system ............. 58
How your child should
wear the seat belt ................. 34
Installing child restraints ......... 62
Moon roof precautions .......... 174
Power window lock switch .... 165
Power window precautions ... 167
Rear door child-protectors .... 115
Removed key battery precautions ......................... 449
Seat belt extender precautions ........................... 39
Seat belt precautions .............. 36
Seat heater precautions........ 354
Child-protectors....................... 115
Cleaning ........................... 400, 404 Aluminum wheels.................. 401
Exterior ................................. 400
Interior................................... 404
Seat belts .............................. 405
Climate control seat ................ 355
Compass .................................. 395
Condenser ................................ 422
Console box ..................... 363, 365
Cooling system Engine overheating ............... 515
Cruise control .......................... 276
Cup holders.............................. 368
Curtain shield airbags ............... 40
Customizable features ............ 548 Daytime running light
system.................................... 229
Defogger Outside rear view mirrors ..... 345
Rear window ......................... 345
Windshield ............................ 345
Dimension ................................ 522
Dinghy towing.......................... 213
Display Multi-information display ......... 98
Warning message................. 481
Do-it-yourself maintenance .... 413
Door courtesy lights ............... 357 Wattage ................................ 532
Doors Automatic door locking and
unlocking systems .............. 116
Back door ............................. 118
Door lock ...................... 113, 118
Door windows ....................... 165
Open door warning buzzer ... 484
Outside rear view mirrors ..... 161
Rear door child-protector ...... 115
Side doors ............................ 113
Drive information....................... 99
Driver’s seat position memory .................................. 149
Driving ...................................... 176 Break-in tips.......................... 178
Correct driving posture ........... 28
Driving assist systems .......... 324
Off-road precautions ............. 331
Procedures ........................... 176
Winter drive tips .................... 336D
