TOYOTA SIENNA 2007  Service Repair Manual 2GR-FE ENGINE CONTROL SYSTEM  –  SFI SYSTEMES–165
ES
HINT:
This DTC relates to the thermostat.
DESCRIPTION
This DTC is set when the Engine Coolant Temperature (ECT) does not reach 75C (167F) despi

Page 472 of 3000

TOYOTA SIENNA 2007  Service Repair Manual ES–1662GR-FE ENGINE CONTROL SYSTEM  –  SFI SYSTEM
ES
TYPICAL ENABLING CONDITIONS
TYPICAL MALFUNCTION THRESHOLDS
INSPECTION PROCEDURE
HINT:
Read freeze frame data using the intelligent tester. The

Page 473 of 3000

TOYOTA SIENNA 2007  Service Repair Manual 2GR-FE ENGINE CONTROL SYSTEM  –  SFI SYSTEMES–167
ES
Result
HINT:
If any DTCs other than P0128 are output, troubleshoot
those DTCs first.
B
A
(a) Check for defects in the cooling system that migh

Page 474 of 3000

TOYOTA SIENNA 2007  Service Repair Manual ES–1682GR-FE ENGINE CONTROL SYSTEM  –  SFI SYSTEM
ES
HINT:
Sensor 2 refers to the sensor mounted behind the Three-Way Catalytic Converter (TWC) and located far
from the engine assembly.
DESCRIPTI

Page 475 of 3000

TOYOTA SIENNA 2007  Service Repair Manual 2GR-FE ENGINE CONTROL SYSTEM  –  SFI SYSTEMES–169
ES
MONITOR DESCRIPTION
Active Air-Fuel Ratio Control
The ECM usually performs air-fuel ratio feedback control so that the Air-Fuel Ratio (A/F) sen

Page 476 of 3000

TOYOTA SIENNA 2007  Service Repair Manual ES–1702GR-FE ENGINE CONTROL SYSTEM  –  SFI SYSTEM
ES

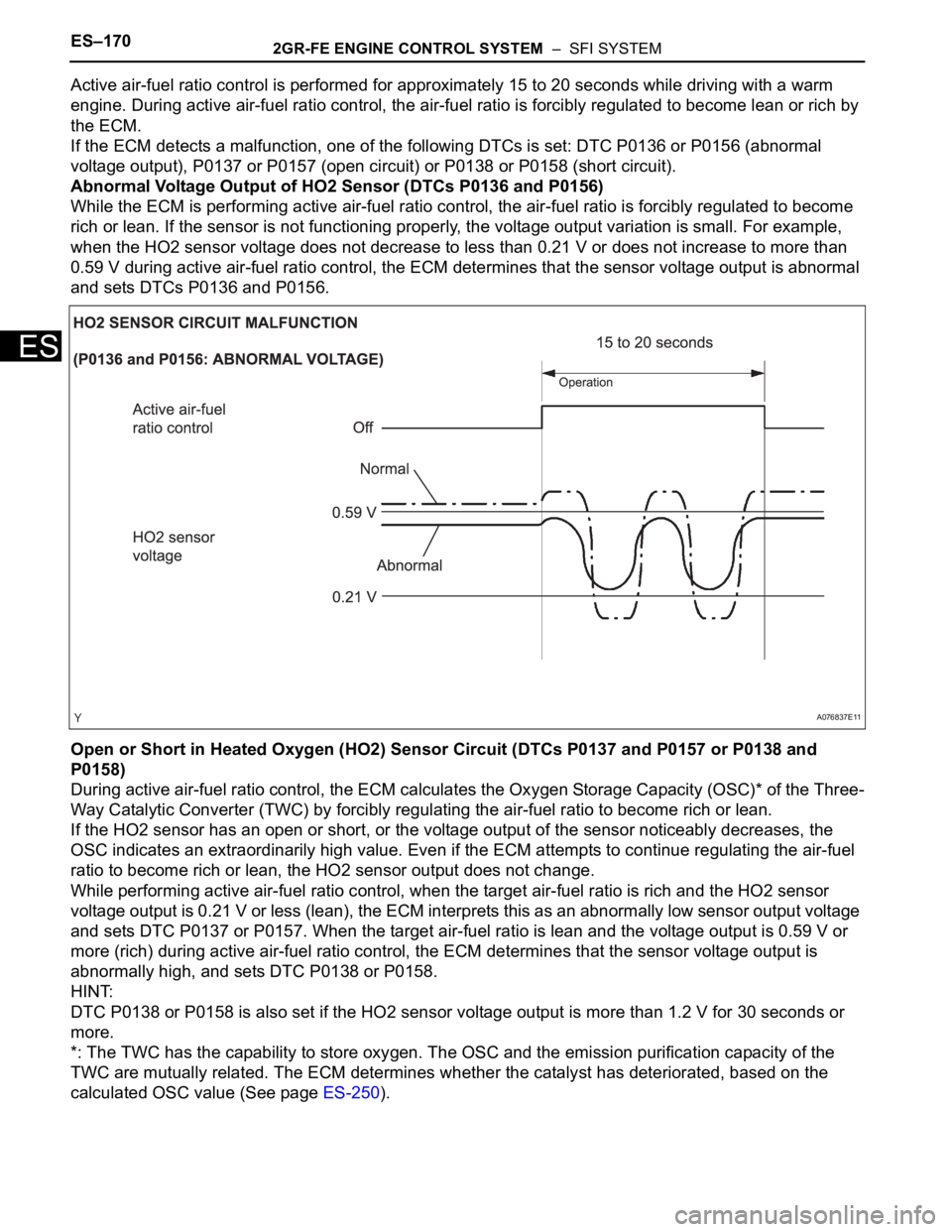

Active air-fuel ratio control is performed for approximately 15 to 20 seconds while driving with a warm
engine. During active air-fuel ratio c

Page 477 of 3000

TOYOTA SIENNA 2007  Service Repair Manual 2GR-FE ENGINE CONTROL SYSTEM  –  SFI SYSTEMES–171
ES
A080024E08

Page 478 of 3000

TOYOTA SIENNA 2007  Service Repair Manual ES–1722GR-FE ENGINE CONTROL SYSTEM  –  SFI SYSTEM
ES
High or Low Impedance of Heated Oxygen (HO2) Sensor (DTCs P0136 and P0156 or P0137 and
P0157)
During normal air-fuel ratio feedback control, t

Page 479 of 3000

TOYOTA SIENNA 2007  Service Repair Manual 2GR-FE ENGINE CONTROL SYSTEM  –  SFI SYSTEMES–173
ES
TYPICAL ENABLING CONDITIONS
All:
Heated Oxygen Sensor Output Voltage (Output Voltage, High Voltage and Low Voltage):
Heated Oxygen Sensor Imped

Page 480 of 3000

TOYOTA SIENNA 2007  Service Repair Manual ES–1742GR-FE ENGINE CONTROL SYSTEM  –  SFI SYSTEM
ES
Heated Oxygen Sensor Output Voltage (High output voltage):
Heated Oxygen Sensor Impedance (Low):
Heated Oxygen Sensor Impedance (High):
Heated
