TOYOTA SIENNA 2007 XL20 / 2.G Navigation Manual

101
1Indicates the condition of Bluetooth
connection.
“Blue” indicates an excellent connection to
Bluetooth.
“Yellow” indicates a bad connection to
Bluetooth, resulting in possible deterioration
of voice quality.
: no connection to Bluetooth.
2Indicates the amount of battery
charge left.
Empty Full
It is not displayed while the Bluetooth is con-
necting or the phone book data is being trans-
ferred.
The amount left does not always correspond
with the one of your cellular phone. This sys-
tem doesn’t have a charging function.
3Indicates the receiving area.
“Rm” is displayed when receiving in Roam-
ing area.
“Hm” is displayed when receiving in Home
area.
4Indicates the level of reception.

Too bad Excellent
The level of reception does not always corre-
spond with the one of your cellular phone.
INFORMATION
This system supports the following ser-
vice.
HFP (Hands Free Profile) Ver. 1.0
OPP (Object Push Profile) Ver. 1.1
If your cellular phone does not support
HFP, you cannot enter the Bluetooth
phone, and take OPP service individual-
ly.
An antenna for the Bluetooth connection
is built in the display. The indication of the
Bluetooth connection may turn yellow
and the system may not function when
you use the Bluetooth phone in the fol-
lowing conditions and places.
Your cellular phone is hiding behind the
display (behind the seat or in the glove box
and console box).
Your cellular phone touches or is covered
with metal materials.
Leave the Bluetooth phone on the place
where “Blue” indication is displayed.
Bluetooth is a trademark owned by Bluetooth
SIG, Inc.

102 When you sell your car:
A lot of personal data is registered when
you use the Handsfree system. When
you sell your car, initialize the system so
your personal information is no longer re-
corded. (See “(d) Delete personal data” on
page 148.)
If you initialize it, the former state will never
come back again. Be careful when initializing
data, because once the data is initialized it
can not be recovered.
You can initialize the following data in the sys-
tem.
Phone book data
Dialed numbers and received calls
Speed dial
Bluetooth phone data
Security code
FCC ID: HYQDNNS016
IC ID: 1551ADNNS016
MADE IN JAPAN
This device complies with Part 15 of the
FCC Rules and RSS−210. Operation is
subject to the following two conditions: (1)
This device may not cause harmful interfer-
ence, and (2) This device must accept any
interference received, including interfer-
ence that may cause undesired operation.
CAUTION
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s au-
thority to operate the equipment.
NOTE: This equipment has been tested
and found to comply with the limits for a
Class B digital device, pursuant to part 15
of the FCC Rules. These limits are de-
signed to provide reasonable protection
against harmful interference in a residen-
tial installation. This equipment gener-
ates, uses and can radiate radio frequen-
cy energy and, if not installed and used in
accordance with the instructions, may
cause harmful interference to radio com-
munications. However, there is no guar-
antee that interference will not occur in a
particular installation. If this equipment
does cause harmful interference to radio
or television reception, which can be de-
termined by turning the equipment off
and on, the user is encouraged to try to
correct the interference by one or more of
the following measures:
−Reorient or relocate the receiving an-
tenna.
−Increase the separation between the
equipment and receiver.
−Connect the equipment into an outlet on
a circuit different from that to which the re-
ceiver is connected.
−Consult the dealer or an experienced
radio/TV technician for help.

103

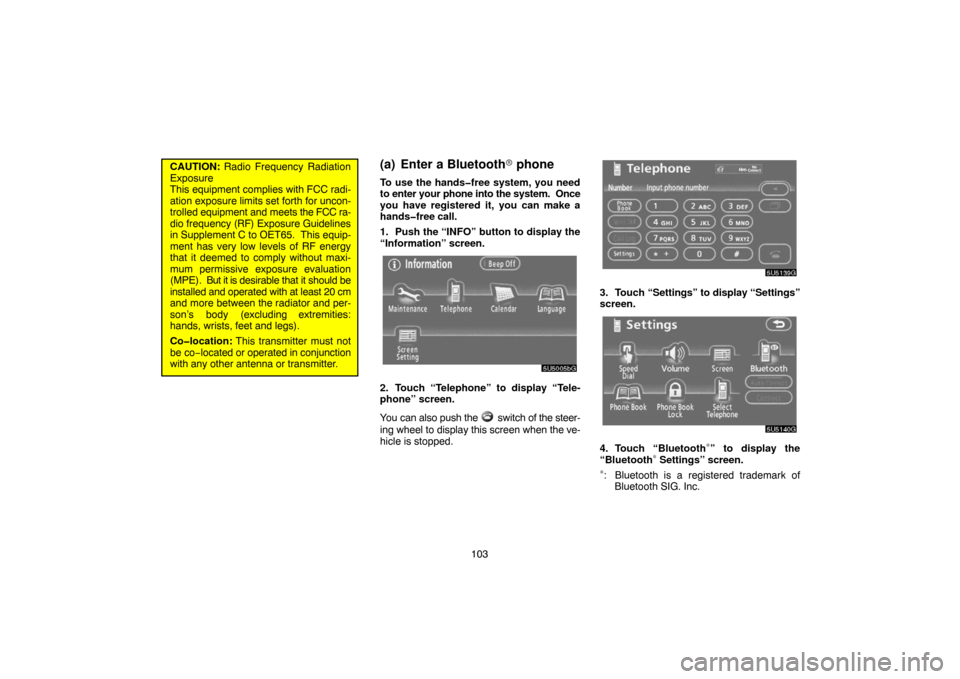

CAUTION: Radio Frequency Radiation
Exposure
This equipment complies with FCC radi-
ation exposure limits set forth for uncon-
trolled equipment and meets the FCC ra-
dio frequency (RF) Exposure Guidelines
in Supplement C to OET65. This equip-
ment has very low levels of RF energy
that it deemed to comply without maxi-
mum permissive exposure evaluation
(MPE). But it is desirable that it should be
installed and operated with at least 20 cm
and more between the radiator and per-
son’s body (excluding extremities:
hands, wrists, feet and legs).
Colocation: This transmitter must not
be co−located or operated in conjunction
with any other antenna or transmitter.(a) Enter a Bluetooth phone
To use the handsfree system, you need
to enter your phone into the system. Once
you have registered it, you can make a
handsfree call.
1. Push the “INFO” button to display the
“Information” screen.
2. Touch “Telephone” to display “Tele-
phone” screen.
You can also push the
switch of the steer-
ing wheel to display this screen when the ve-
hicle is stopped.
3. Touch “Settings” to display “Settings”
screen.
4. Touch “Bluetooth∗” to display the
“Bluetooth∗ Settings” screen.
∗: Bluetooth is a registered trademark of
Bluetooth SIG. Inc.

104

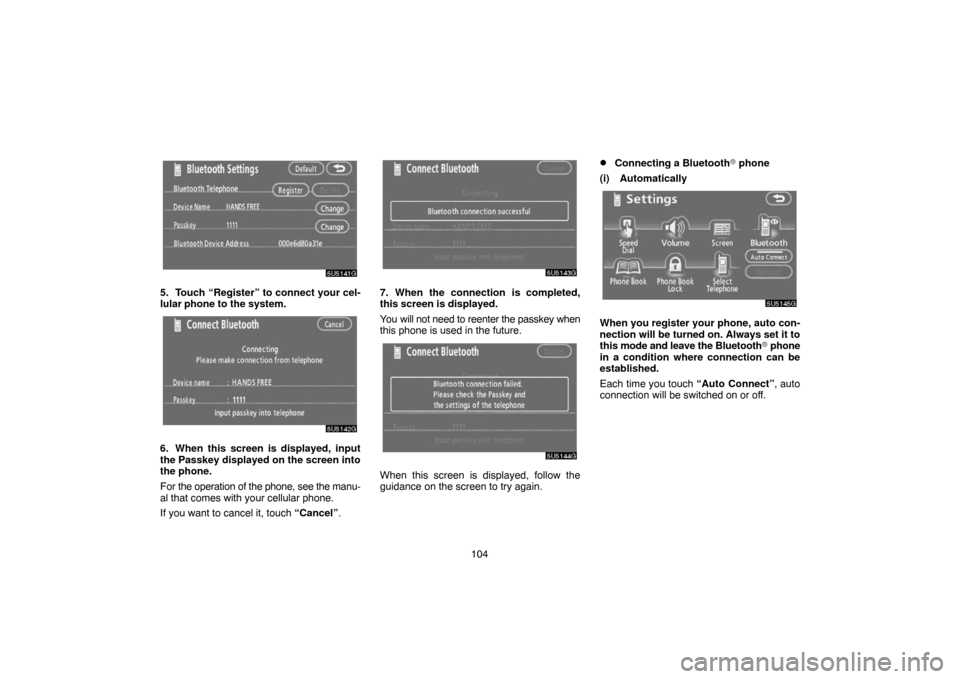

5. Touch “Register” to connect your cel-
lular phone to the system.
6. When this screen is displayed, input
the Passkey displayed on the screen into
the phone.
For the operation of the phone, see the manu-
al that comes with your cellular phone.
If you want to cancel it, touch “Cancel”.
7. When the connection is completed,
this screen is displayed.
You will not need to reenter the passkey when
this phone is used in the future.
When this screen is displayed, follow the
guidance on the screen to try again.
Connecting a Bluetooth phone
(i) Automatically
When you register your phone, auto con-
nection will be turned on. Always set it to
this mode and leave the Bluetooth phone
in a condition where connection can be
established.
Each time you touch “Auto Connect”, auto
connection will be switched on or off.

105

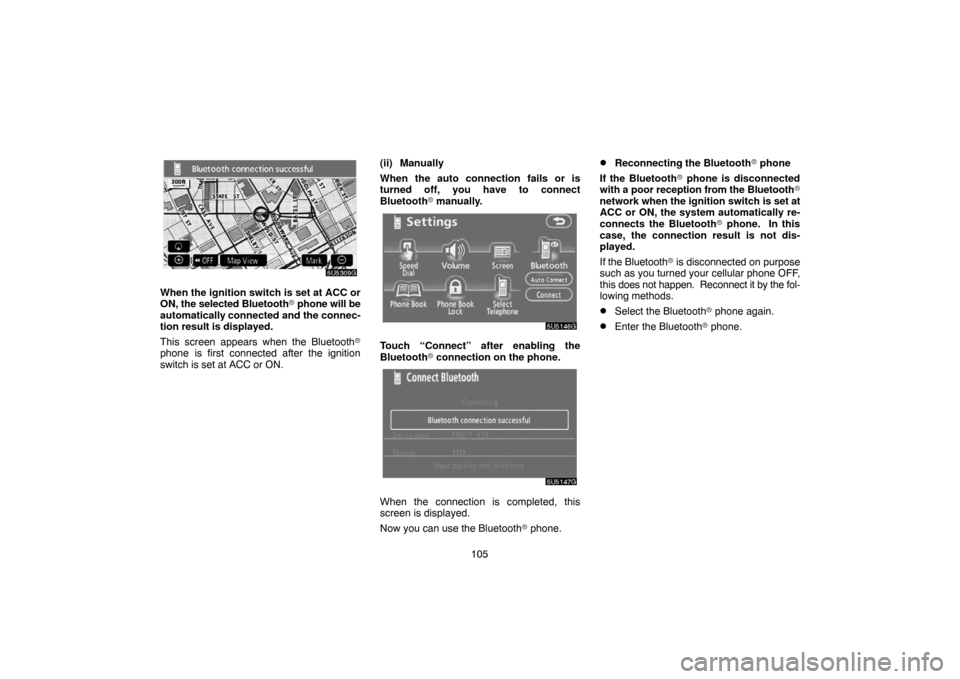

When the ignition switch is set at ACC or
ON, the selected Bluetooth phone will be
automatically connected and the connec-
tion result is displayed.
This screen appears when the Bluetooth
phone is first connected after the ignition
switch is set at ACC or ON.(ii) Manually
When the auto connection fails or is
turned off, you have to connect
Bluetooth manually.
Touch “Connect” after enabling the
Bluetooth connection on the phone.
When the connection is completed, this
screen is displayed.
Now you can use the Bluetooth phone.
Reconnecting the Bluetooth phone
If the Bluetooth phone is disconnected
with a poor reception from the Bluetooth
network when the ignition switch is set at
ACC or ON, the system automatically re-
connects the Bluetooth phone. In this
case, the connection result is not dis-
played.
If the Bluetooth is disconnected on purpose
such as you turned your cellular phone OFF,
this does not happen. Reconnect it by the fol-
lowing methods.
Select the Bluetooth phone again.
Enter the Bluetooth phone.

106

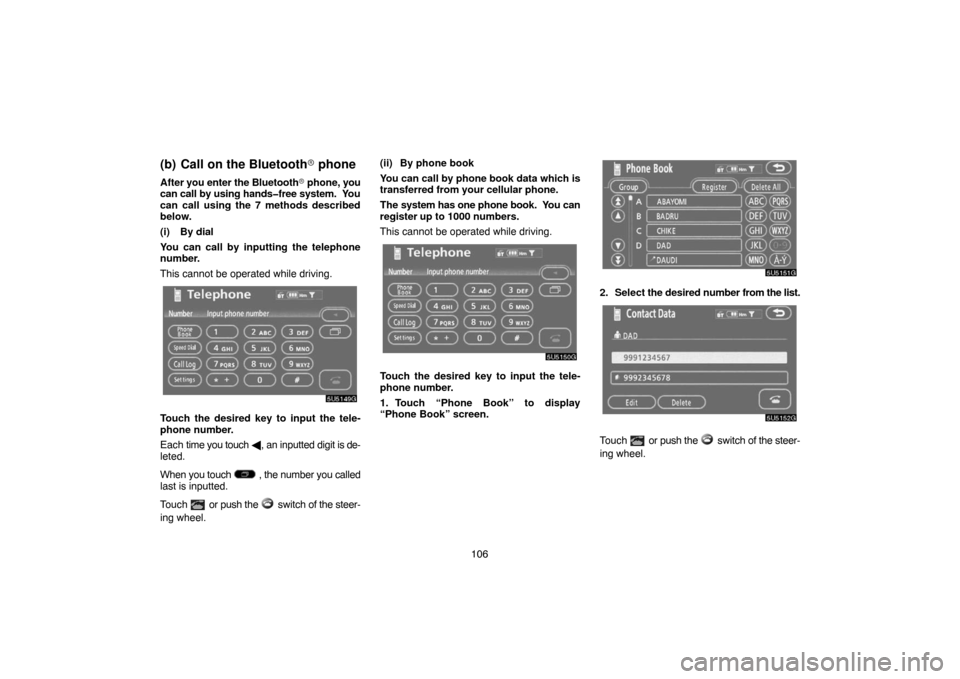

(b) Call on the Bluetooth phone
After you enter the Bluetooth phone, you
can call by using handsfree system. You
can call using the 7 methods described
below.
(i) By dial
You can call by inputting the telephone
number.
This cannot be operated while driving.
Touch the desired key to input the tele-
phone number.
Each time you touch , an inputted digit is de-
leted.
When you touch
, the number you called
last is inputted.
Touch
or push the switch of the steer-
ing wheel.(ii) By phone book
You can call by phone book data which is
transferred from your cellular phone.
The system has one phone book. You can
register up to 1000 numbers.
This cannot be operated while driving.
Touch the desired key to input the tele-
phone number.
1. Touch “Phone Book” to display
“Phone Book” screen.
2. Select the desired number from the list.
Touch or push the switch of the steer-
ing wheel.

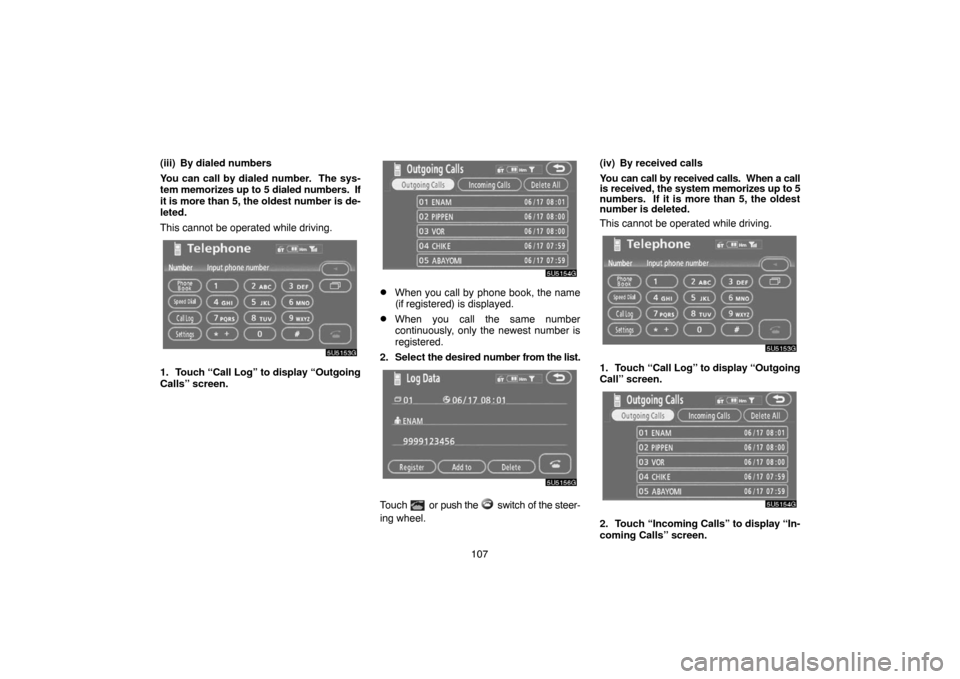

107 (iii) By dialed numbers
You can call by dialed number. The sys-
tem memorizes up to 5 dialed numbers. If
it is more than 5, the oldest number is de-
leted.
This cannot be operated while driving.
1. Touch “Call Log” to display “Outgoing
Calls” screen.
When you call by phone book, the name
(if registered) is displayed.
When you call the same number
continuously, only the newest number is
registered.
2. Select the desired number from the list.
Touch or push the switch of the steer-
ing wheel.(iv) By received calls
You can call by received calls. When a call
is received, the system memorizes up to 5
numbers. If it is more than 5, the oldest
number is deleted.
This cannot be operated while driving.
1. Touch “Call Log” to display “Outgoing
Call” screen.
2. Touch “Incoming Calls” to display “In-
coming Calls” screen.

108

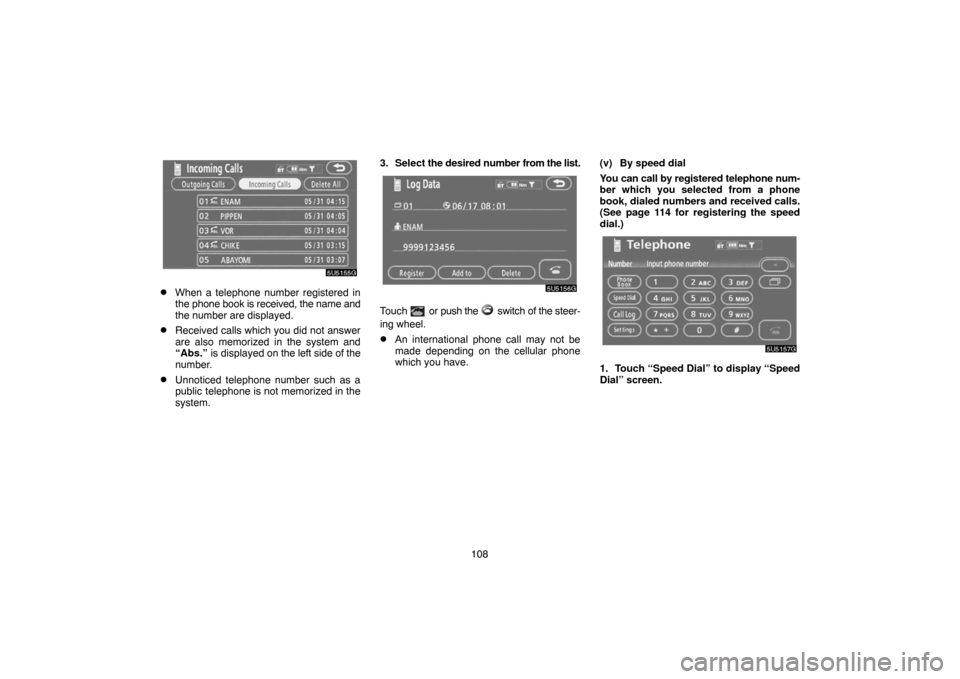

When a telephone number registered in
the phone book is received, the name and
the number are displayed.
Received calls which you did not answer
are also memorized in the system and
“Abs.” is displayed on the left side of the
number.
Unnoticed telephone number such as a
public telephone is not memorized in the
system.3. Select the desired number from the list.
Touch or push the switch of the steer-
ing wheel.
An international phone call may not be
made depending on the cellular phone
which you have.(v) By speed dial
You can call by registered telephone num-
ber which you selected from a phone
book, dialed numbers and received calls.
(See page 114 for registering the speed
dial.)
1. Touch “Speed Dial” to display “Speed
Dial” screen.

109
2. Touch the desired number to call. You
can change the page by touching “Speed
Dial 2” or “Speed Dial 3”.
When you push the telephone button while
driving, the screen above appears. Touch the
desired name to call. (The telephone number
is not displayed.)(vi) By voice recognition
You can call by giving a command. (For the
operation and command of voice recogni-
tion, see “Speech command system” on
page 142 and “Help screen” on page 144.)

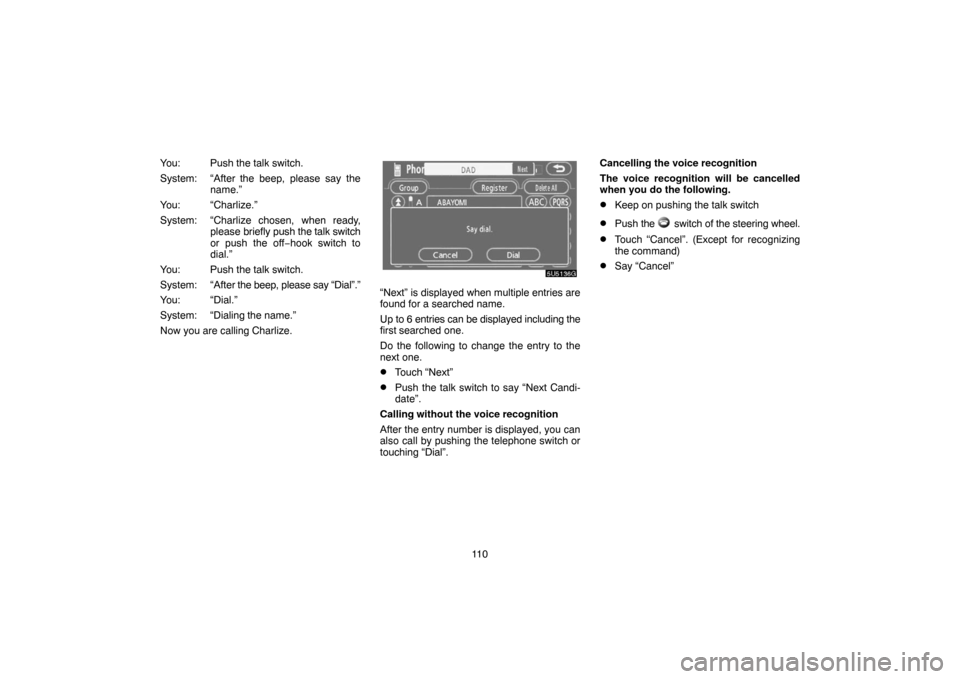

Dialing by name
You can call by giving a voice tag regis-
tered in the phone book. For setting the
voice recognition, see “Setting the voice
recognition” on page 126.
Example: Call Charlize

11 0 You: Push the talk switch.
System: “After the beep, please say the
name.”
You: “Charlize.”
System: “Charlize chosen, when ready,
please briefly push the talk switch
or push the off−hook switch to
dial.”
You: Push the talk switch.
System: “After the beep, please say “Dial”.”
You: “Dial.”
System: “Dialing the name.”
Now you are calling Charlize.
“Next” is displayed when multiple entries are
found for a searched name.
Up to 6 entries can be displayed including the
first searched one.
Do the following to change the entry to the
next one.
Touch “Next”
Push the talk switch to say “Next Candi-
date”.
Calling without the voice recognition
After the entry number is displayed, you can
also call by pushing the telephone switch or
touching “Dial”.Cancelling the voice recognition
The voice recognition will be cancelled
when you do the following.
Keep on pushing the talk switch
Push the switch of the steering wheel.
Touch “Cancel”. (Except for recognizing
the command)
Say “Cancel”
