TOYOTA SIENNA 2007 XL20 / 2.G Navigation Manual

131
3. Touch “Yes”.
Registering a group name
You can register 20 groups. “No Group”,
“Group 01” “Group 19” is registered by
default.
You can change “Group 01” “Group 19”
into desired names.
1. Touch “Register” of “Group Name”.
2. Select the group you want to register.
3. When you complete all the edit, touch
“OK”.

132
Selecting a group icon
1. Touch “Icon”.
2. Select the desired icon.
Editing a group name
1. Touch “Name”.
2. Use the software keyboard to input the
name.
Deleting a group name
You can delete the group names individu-
ally or all at once. If you delete a group
name, that group will return to the default
setting. (excluding “No Group”)
1. Touch “Delete” of “Group Name”.

133
2. Select the group you want to delete the
name of.
3. Touch “Yes”.
Deleting all the group name
1. Touch “Delete All” of “Group Name”.
2. Touch “Yes”.
Deleting the log data
You can delete the log data individually or
all at once.
When you release your car, delete all the
data on the system.
(a) Individually
1. Touch “Delete” on the “Log Data”
screen.
2. Touch “Yes”.

134 (b) All at once
1. Touch “Delete All” on the “Outgoing
Calls” or “Incoming Calls” screen.
2. Touch “Yes”.(vi) Setting the security
When you set the security, you can pre-
vent people from using some functions of
the Handsfree system. It is useful when
you leave your car with the hotel or you
don’t want others to see the data you reg-
istered.
When you set or unlock the security, you have
to input the security code. Be sure to change
the default code when you use the security for
the first time.

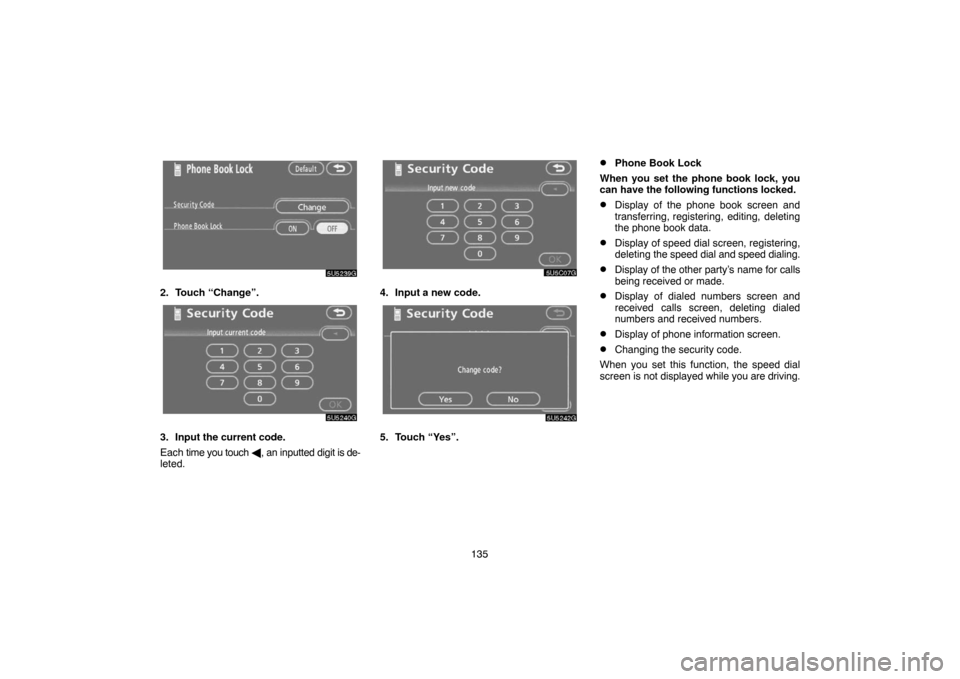

Changing the security code
The security code is 4 digits and the de-
fault is “0000”.
Change a new code that is hard for other
people to know.
When you change the security code, don’t for-
get the code. The dealers cannot unlock the
security when you forget it.
If you forget the security code, initialize your
personal data. When you initialize it, not only
the phonebook data but also the memory
points in the navigation system, etc. will be
deleted. (See “
 Initializing the security code”
on page 136.)
1. Touch “Phone Book Lock”.

135
2. Touch “Change”.
3. Input the current code.
Each time you touch , an inputted digit is de-
leted.
4. Input a new code.
5. Touch “Yes”.
Phone Book Lock
When you set the phone book lock, you
can have the following functions locked.
Display of the phone book screen and
transferring, registering, editing, deleting
the phone book data.
Display of speed dial screen, registering,
deleting the speed dial and speed dialing.
Display of the other party’s name for calls
being received or made.
Display of dialed numbers screen and
received calls screen, deleting dialed
numbers and received numbers.
Display of phone information screen.
Changing the security code.
When you set this function, the speed dial
screen is not displayed while you are driving.

136

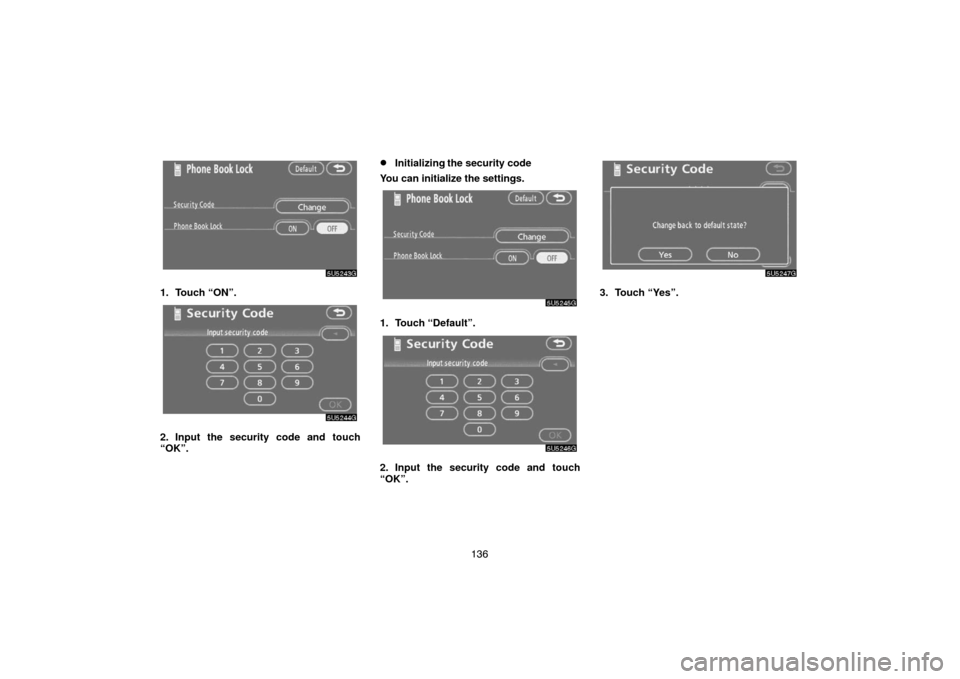

1. Touch “ON”.
2. Input the security code and touch
“OK”.
Initializing the security code
You can initialize the settings.
1. Touch “Default”.
2. Input the security code and touch
“OK”.
3. Touch “Yes”.

137
(f) Set a Bluetooth phone
Selecting a Bluetooth phone
In case you register more than one
Bluetooth phone, you need to choose a
favorite one.
1. Touch “Settings” to display “Settings”
screen.
2. Touch “Select Telephone” to display
“Select Telephone” screen. You can se-
lect the Bluetooth phone from a maxi-
mum of 6 numbers.
“Empty” is displayed when you have not reg-
istered a Bluetooth phone yet.
Bluetooth mark is displayed when you
choose the phone.
Although you can register up to 6 Bluetooth
phones in the system, only one Bluetooth
phone can function at a time.
3. Touch “OK”.
When the result message is displayed, you
can use the Bluetooth phone.

138 When another Bluetooth phone is trying to
connect, this screen is displayed.
Touch “Yes” or “No”.
Displaying Bluetooth information
You can see or set the information of the
Bluetooth phone on the system.
Device Name The name of Bluetooth . . . .
phone which is dis-
played on the screen.
You can change it into a
desired name.
Bluetooth
∗ Device Address
The address peculiar to . . . . . . . . . . . . .
the system. You cannot
change it.
1. Select the desired phone and touch
“Information”.
∗: Bluetooth is a registered trademark of
Bluetooth SIG. Inc.
2. Touch “Change”.
3. When you complete the setting, touch
.

139
Changing a Device Name
You can change a Device Name. If you
change a Device Name, the name regis-
tered in your cellular phone is not
changed.
1. Touch “Change”.
2. Use the software keyboard to input the
Device name.
Changing the Bluetooth settings
You can change the display and settings of
Bluetooth information on the system.
The information displays the following items.
Device Name The name in the. . . .
Bluetooth network. You
can change it.
Passkey The password when you . . . . . . . . .
register your cellular
phone in the system. You
can change it into the fig-
ure of 4−8 digits.
Bluetooth
∗ Device Address
The address peculiar to . . . . . . . . . . . . .
the system. You can not
change it. If you have
registered two
Bluetooth phones with
the same Device Name
or Passkey and you
cannot distinguish one
from the other, refer to it.When you change the Device Name or
Passkey, do the followings.1. Touch “Bluetooth∗”.
2. Touch “Change” of “Device Name” or
“Passkey”.
∗: Bluetooth is a registered trademark of
Bluetooth SIG. Inc.

140
3. Use the software keyboard to input the
Device Name.
You can input up to 20 characters.
4. Input a Passkey with 4 8 digits.
When you touch , the inputted number is
deleted.
5. When you complete the setting, touch
.
Initializing the Bluetooth settings.
You can initialize the settings.
1. Touch “Default”.
2. Touch “Yes”.
