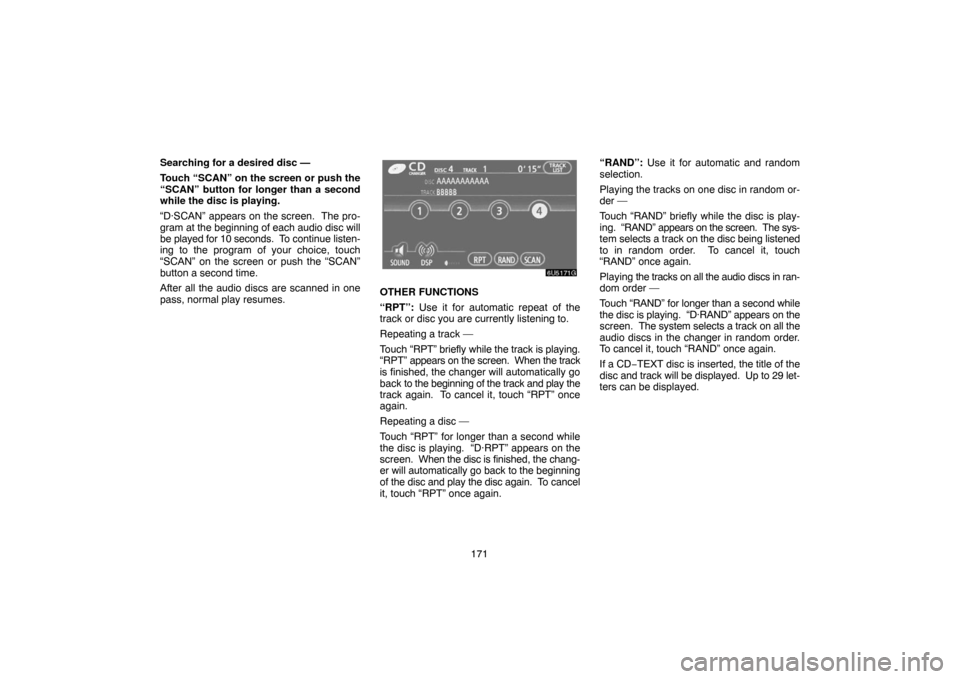

171 Searching for a desired disc —
Touch “SCAN” on the screen or push the
“SCAN” button for longer than a second
while the disc is playing.
“D·SCAN” appears on the screen. The pro-
gram at the beginning of each audio disc will
be played for 10 seconds. To continue listen-
ing to the program of your choice, touch
“SCAN” on the screen or push the “SCAN”
button a second time.
After all the audio discs are scanned in one
pass, normal play resumes.
OTHER FUNCTIONS
“RPT”: Use it for automatic repeat of the
track or disc you are currently listening to.
Repeating a track —
Touch “RPT” briefly while the track is playing.
“RPT” appears on the screen. When the track
is finished, the changer will automatically go
back to the beginning of the track and play the
track again. To cancel it, touch “RPT” once
again.
Repeating a disc —
Touch “RPT” for longer than a second while
the disc is playing. “D·RPT” appears on the
screen. When the disc is finished, the chang-
er will automatically go back to the beginning
of the disc and play the disc again. To cancel
it, touch “RPT” once again.“RAND”: Use it for automatic and random
selection.
Playing the tracks on one disc in random or-
der —
Touch “RAND” briefly while the disc is play-
ing. “RAND” appears on the screen. The sys-
tem selects a track on the disc being listened
to in random order. To cancel it, touch
“RAND” once again.
Playing the tracks on all the audio discs in ran-
dom order —
Touch “RAND” for longer than a second while
the disc is playing. “D·RAND” appears on the
screen. The system selects a track on all the
audio discs in the changer in random order.
To cancel it, touch “RAND” once again.
If a CD−TEXT disc is inserted, the title of the
disc and track will be displayed. Up to 29 let-
ters can be displayed.

172

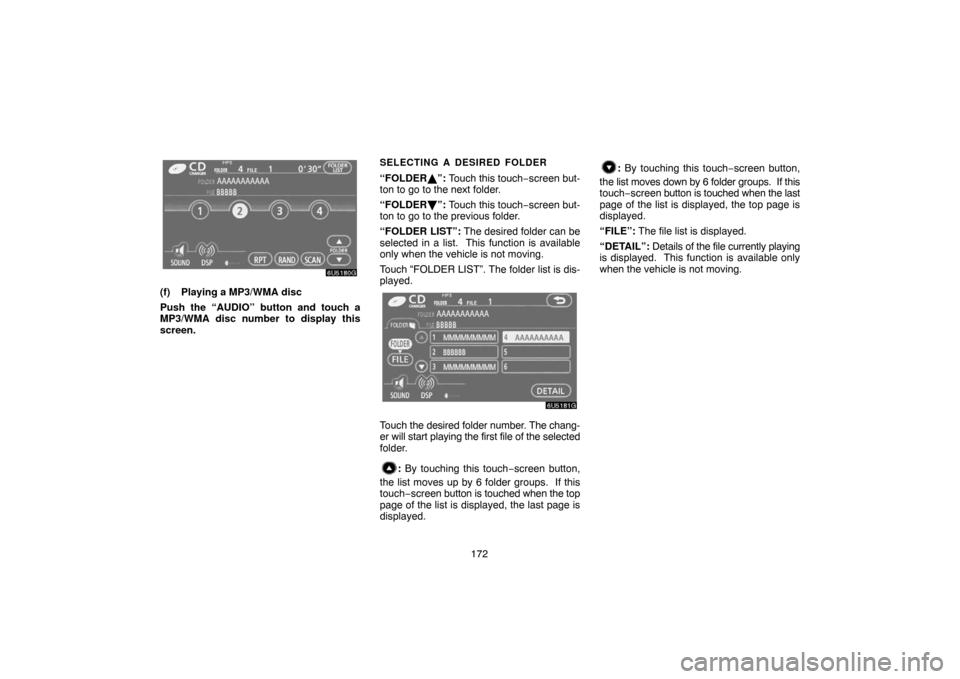

(f) Playing a MP3/WMA disc
Push the “AUDIO” button and touch a
MP3/WMA disc number to display this
screen.
SELECTING A DESIRED FOLDER
“FOLDER”: Touch this touch−screen but-
ton to go to the next folder.
“FOLDER ”: Touch this touch−screen but-
ton to go to the previous folder.
“FOLDER LIST”: The desired folder can be
selected in a list. This function is available
only when the vehicle is not moving.
Touch “FOLDER LIST”. The folder list is dis-
played.
Touch the desired folder number. The chang-
er will start playing the first file of the selected
folder.
: By touching this touch−screen button,
the list moves up by 6 folder groups. If this
touch−screen button is touched when the top
page of the list is displayed, the last page is
displayed.
: By touching this touch−screen button,
the list moves down by 6 folder groups. If this
touch−screen button is touched when the last
page of the list is displayed, the top page is
displayed.
“FILE”: The file list is displayed.
“DETAIL”: Details of the file currently playing
is displayed. This function is available only
when the vehicle is not moving.

173

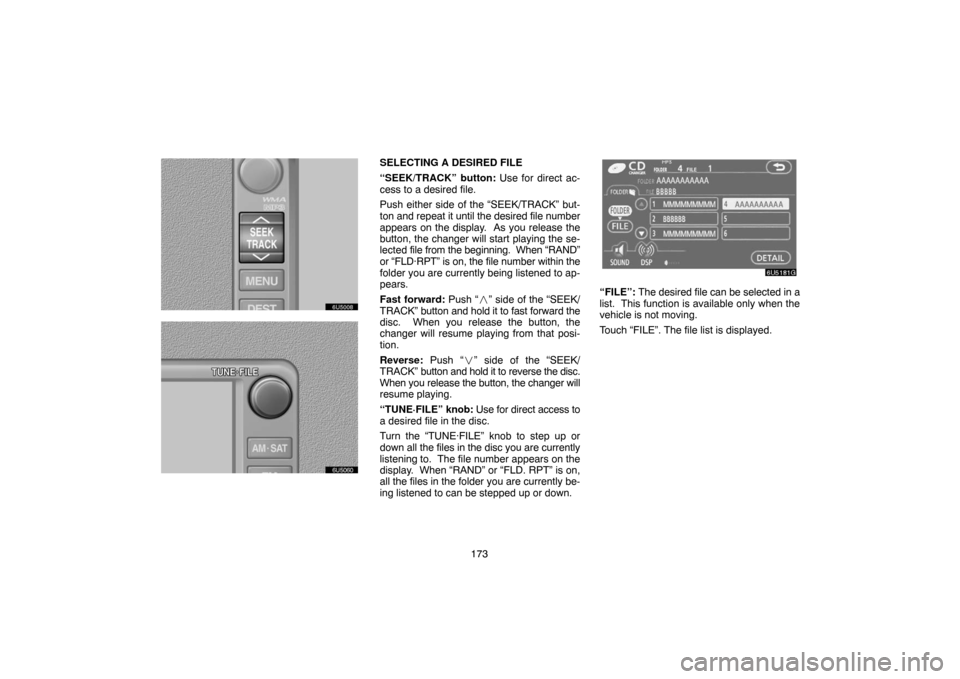

SELECTING A DESIRED FILE
“SEEK/TRACK” button: Use for direct ac-
cess to a desired file.
Push either side of the “SEEK/TRACK” but-
ton and repeat it until the desired file number
appears on the display. As you release the
button, the changer will start playing the se-
lected file from the beginning. When “RAND”
or “FLD·RPT” is on, the file number within the
folder you are currently being listened to ap-
pears.
Fast forward: Push “” side of the “SEEK/
TRACK” button and hold it to fast forward the
disc. When you release the button, the
changer will resume playing from that posi-
tion.
Reverse: Push “” side of the “SEEK/
TRACK” button and hold it to reverse the disc.
When you release the button, the changer will
resume playing.
“TUNE·FILE” knob: Use for direct access to
a desired file in the disc.
Turn the “TUNE·FILE” knob to step up or
down all the files in the disc you are currently
listening to. The file number appears on the
display. When “RAND” or “FLD. RPT” is on,
all the files in the folder you are currently be-
ing listened to can be stepped up or down.
“FILE”: The desired file can be selected in a
list. This function is available only when the
vehicle is not moving.
Touch “FILE”. The file list is displayed.

174
Touch the desired file number. The changer
will start playing the selected file from the be-
ginning.
: By touching this touch−screen button,
the list moves up by 6 file groups. If this
touch−screen button is touched when the top
page of the list is displayed, the last page is
displayed.
: By touching this touch−screen button,
the list moves down by 6 file groups. If this
touch−screen button is touched when the last
page of the list is displayed, the top page is
displayed.
“FOLDER”: The folder list is displayed.
“DETAIL”: Details of the file currently playing
is displayed. This function is available only
when the vehicle is not moving.
SEARCHING FOR A DESIRED FILE
Touch “SCAN” on the screen or push the
“SCAN” button briefly while the disc is
playing.
“SCAN” appears on the screen. The changer
will play the next file in the folder for 10 sec-
onds, then scan again. To select a file, touch
“SCAN” on the screen or push the “SCAN”
button a second time. If the changer reaches
the end of the folder, it will continue scanning
from file 1.
After all the files are scanned in one pass, nor-
mal play resumes.SEARCHING FOR A DESIRED FOLDER
Touch “SCAN” on the screen or push the
“SCAN” button for longer than a second
while the disc is playing.
“FLD.SCAN” appears on the screen. The
program at the beginning of each folder will be
played for 10 seconds. To continue listening
to the program of your choice, touch “SCAN”
on the screen or push the “SCAN” button a
second time.
After all the folders are scanned in one pass,
normal play resumes.

175

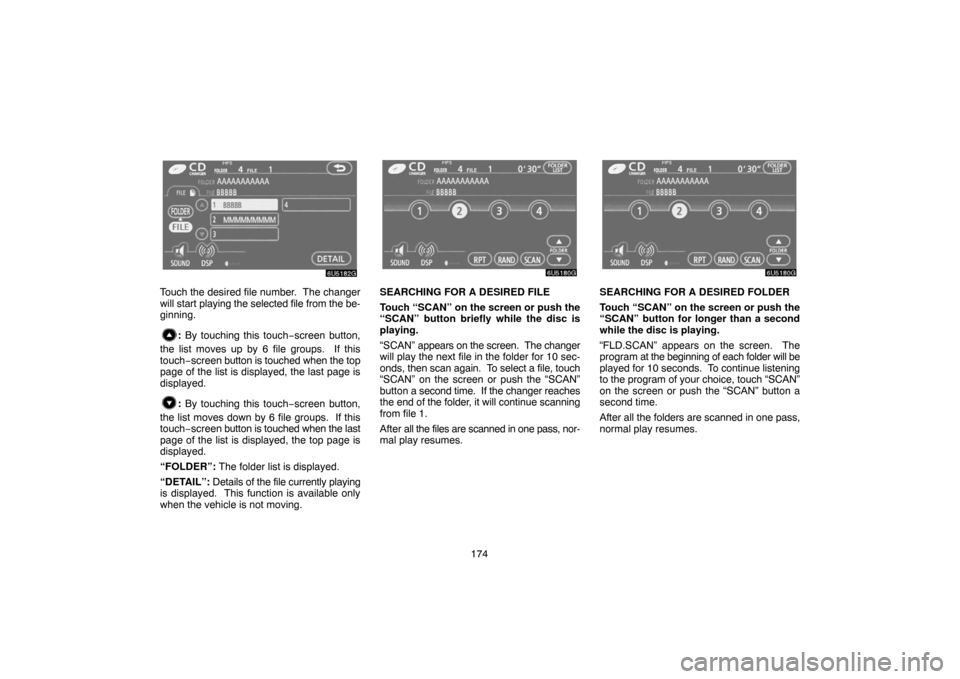

OTHER FUNCTIONS
“RPT”: Use it for automatic repeat of the file
or folder you are currently listening to.
Repeating a file —
Touch “RPT” briefly while the file is playing.
“RPT” appears on the screen. When the file
is finished, the changer will automatically go
back to the beginning of the file and play the
file again. To cancel it, touch “RPT” once
again.
Repeating a folder —
Touch “RPT” for longer than a second while
the folder is playing. “FLD.RPT” appears on
the screen. When the folder is finished, the
changer will automatically go back to the be-
ginning of the folder and play the folder again.
To cancel it, touch “RPT” once again.“RAND”: Use it for automatic and random
selection of the folder or the disc which you
are currently listening to.
Playing the files in one folder in random order
—
Touch “RAND” briefly while the disc is play-
ing. “RAND” appears on the screen. The sys-
tem selects a file in the folder you are current-
ly listening to. To cancel it, touch “RAND”
once again.
Playing the files in all the folders on one disc
in random order —
Touch “RAND” for longer than a second while
the disc is playing. “FLD.RAND” appears on
the screen. The system selects a file in all the
folders. To cancel it, touch “RAND” once
again.
When a file is skipped or the system is inop-
erative, touch “RAND” to reset.(g) If the player malfunctions
If “CD ERROR” appears on the screen, audio
signals of the disc cannot be read or the sys-
tem has trouble. Push the “DISC” button once
again.
If the changer does not operate, check that
the disc surface is not soiled or damaged. If
the disc is O.K., the temperature of the chang-
er’s internal mechanism may be raised be-
cause of high external temperature. Remove
the disc from the changer to cool it.
If the changer still does not operate, have it
checked by your dealer.
If an MP3/WMA disc contains CD−DA files,
only CD−DA files are played. If an MP3/WMA
disc contains files other than CD−DA, only
MP3/WMA files are played.

176
—DVD player operation
The DVD player can play DVD video, audio
CD, video CD, CD text, dtsCD or MP3 disc
only when a disc is loaded in the DVD play-
er. A WMA disc cannot be played.
Refer to “Rear seat entertainment system” for
details.
For appropriate discs for this player, see “Au-
dio/video system operating hints” on page
194.
(a) Inserting the disc
Insert the disc into the slot with the label
side up.
An adapter must be used for 8 cm (3 in.) discs
which are loaded in the same manner as for
12 cm (4.7 in.) discs.
The indicator light turns on while the disc is
loaded.
If the label faces forward, the disc cannot be
played. In this case, “DISC CHECK” appears
on the screen.
If a disc which is not playable is inserted,
“DISC CHECK” will also appear on the
screen. For appropriate discs for this player,
see “Audio/video system operating hints” on
page 194.
NOTICE
Never try to disassemble or oil any part
of the DVD player. Do not insert any-
thing other than a disc into the slot.
(b) Ejecting a disc
Push the
button.

177
(c) Playing a disc
Push the “DISC·AUX” button if a disc is al-
ready loaded in the player.
“DVD” appears on the screen. (If the CD
changer is turned on, push the “DISC” button
again to switch to the DVD player.)
(d) Operating an audio CD
PLAYING AN AUDIO CD
CD text only — The disc title and track title will
appear on the screen when pushing the
“DISC·AUX” button.
Push the “AUDIO” button to display this
screen.
SELECTING A DESIRED TRACK
“SEEK/TRACK” button: Use for direct ac-
cess to a desired track.
Push either side of the “SEEK/TRACK” but-
ton and repeat it until the desired track num-
ber appears on the display. As you release
the button, the player will start playing the se-
lected track from the beginning.
“TRACK LIST”: The desired track can be se-
lected from a list. This function is available
only when the vehicle is not moving.
Touch “TRACK LIST”. The track list is dis-
played.

178
Touch the desired track number. The player
will start playing the selected track from the
beginning.
: By touching this touch−screen button,
the list moves up by 6 track groups. If this
touch−screen button is touched when the top
page of the list is displayed, the last page is
displayed.
: By touching this touch−screen button,
the list moves down by 6 track groups. If this
touch−screen button is touched when the last
page of the list is displayed, the top page is
displayed.
Fast forward: Touch “” side of “SEEK/
TRACK” button and hold it to fast forward the
disc. When you release the button, the player
will resume playing from that position.Reverse: Touch “” side of the “SEEK/
TRACK” button and hold it to reverse the disc.
When you release the button, the player will
resume playing.
SEARCHING FOR A DESIRED TRACK
Touch “SCAN” on the screen or push the
“SCAN” button.
“SCAN” will be highlighted on the screen. The
player will play the next track for 10 seconds,
then scan again. To select a track, touch
“SCAN” on the screen or push the “SCAN”
button a second time. If the player reaches
the end of the disc, it will continue scanning at
track 1.
After all the tracks are scanned in one pass,
normal play resumes.

179
OTHER FUNCTIONS
“RPT”: Use it for automatic repeat of the
track you are currently listening to.
Touch “RPT” while the track is playing. When
the track is finished, the player will automati-
cally go back to the beginning of the track and
play the track again. To cancel it, touch “RPT”
once again.
“RAND”: Use it for automatic and random
selection of the disc which you are currently
listening to.
When “RAND” is touched, the system selects
a track in the disc you are currently listening
to. To cancel it, touch “RAND” once again.
If a CD−TEXT disc is inserted, the title of the
disc and track will be displayed. Up to 29 let-
ters can be displayed.(e) Operating a MP3 DISC
PLAYING A MP3 DISC
Push the “AUDIO” button to display this
screen.
SELECTING A DESIRED FOLDER
“FOLDER”: Touch this touch−screen but-
ton briefly to go to the next folder.
“FOLDER ”: Touch this touch−screen but-
ton briefly to go to the previous folder. To jump
up to the first folder, touch and hold this
touch−screen button until the beep sounds.
“FOLDER LIST”: The desired folder can be
selected in a list. This function is available
only when the vehicle is not moving.
Touch “FOLDER LIST”. The folder list is dis-
played.
Touch the desired folder number. The player
will start playing the first file of the selected
folder.

180
: By touching this touch−screen button,
the list moves up by 6 folder groups. If this
touch−screen button is touched when the top
page of the list is displayed, the last page is
displayed.
: By touching this touch−screen button,
the list moves down by 6 folder groups. If this
touch−screen button is touched when the last
page of the list is displayed, the top page is
displayed.
“FILE”: The file list is displayed.
“DETAIL”: Details of the file currently playing
is displayed. This function is available only
when the vehicle is not moving.
SELECTING A DESIRED FILE
“SEEK/TRACK” button: Use for direct ac-
cess to a desired file.
Push either side of the “SEEK/TRACK” but-
ton and repeat it until the desired file number
appears on the display. As you release the
button, the player will start playing the se-
lected file from the beginning.
Fast forward: Push “” side of the “SEEK/
TRACK” button and hold it to fast forward the
disc. When you release the button, the player
will resume playing from that position.
Reverse: Push “” side of the “SEEK/
TRACK” button and hold it to reverse the disc.
When you release the button, the player will
resume playing.
“FILE”: The desired file can be selected in a
list. This function is available only when the
vehicle is not moving.
Touch “FILE”. The file list is displayed.
