BASIC FUNCTIONS
24

Maintenance information
This system informs about when to replace
certain parts or components and shows
dealer information (if registered) on the
screen.
When the vehicle reaches a previously set
driving distance or date specified for a
scheduled maintenance check, the “Infor-
mation” screen will be displayed when the
navigation system is in operation.
To disable this screen, touch “Do Not
Display This Message Again.”. This
screen goes off if the screen is not op-
erated for several seconds.
To prevent this information screen from be-
ing displayed again, touch “Do Not
Display This Message Again.” .
To register “Maintenance information”, see
“Maintenance information” on page 120.
Memo information
This system notifies about a memo entry.
At the specified date, the memo informa-
tion will be displayed when the navigation
system is in operation. The memo informa-
tion screen will be displayed every time the
system is turned on.
The memo of the current date can be
viewed by touching “Memo”. (See “ —
Editing a memo” on page 127.)
To disable this screen, touch “Do Not
Display This Message Again.”. This
screen goes off if the screen is not op-
erated for several seconds.
To prevent this information screen from be-
ing displayed again, touch “Do Not
Display This Message Again.” .
To register a memo information, see “Cal-
endar with memo” on page 124.

BASIC FUNCTIONS
29
Explanations for the functions of the “Des-
tination”, “Setup”, and “Menu” screens can
be viewed.
Touch “?”.
: To view the previous page.
:To view the next page.
:To return to the previous screen. When starting the navigation system, the
current position is displayed first.
This screen displays the current vehicle
position
and a map of the surrounding local
area.
The current vehicle position mark (1) ap-
pears in the center or bottom center of the
map screen.
A street name will appear on the bottom of
the screen, depending on the scale of the
map (
2).
You can return to this map screen that
shows your current position at any time
from any screen by pushing the “MAP/
VOICE” button.
While driving, the current vehicle position
mark is fixed on the screen and the map
moves.
The current position is automatically set as
the vehicle receives signals from the GPS
(Global Positioning System). If the current
position is not correct, it is automatically
corrected after the vehicle receives sig-
nals from the GPS.
Function help
Map screen operation —
— Current position display

DESTINATION SEARCH
58
1. Push the “DEST” button.
2. Touching “Emergency” on the
“Destination” screen.
The display changes to a screen to select
police stations, dealers, hospitals or fire
stations. While driving, only nearby police
stations, dealers, hospitals, or fire stations
are shown. The current position is shown
with an address, and the latitude and the
longitude at the top of the screen.
3. Touch the desired emergency cate-
gory.
The selected emergency category list is
displayed.
4. Touch the touch screen button of
the desired destination.
The screen changes and displays the map
location of the selected destination and the
route preference. (See
“Starting route
guidance” on page 63.)
INFORMATION
The navigation system does not
guide in areas where route guidance
is unavailable. (See page 259.)
1. Push the “DEST” button.
2. Touch “Memory” on the “Destina-
tion” screen.
A list of registered memory points is dis-
played. (To register or edit memory points,
see “My places” on page 94.)
3. Touch the touch screen button of
your desired memory point.
The screen changes and displays the map
location of the selected destination and the
route preference. (See “Starting route
guidance” on page 63.)
— Destination search by
“Emergency”
— Destination search by
“Memory”

ADVANCED FUNCTIONS
88

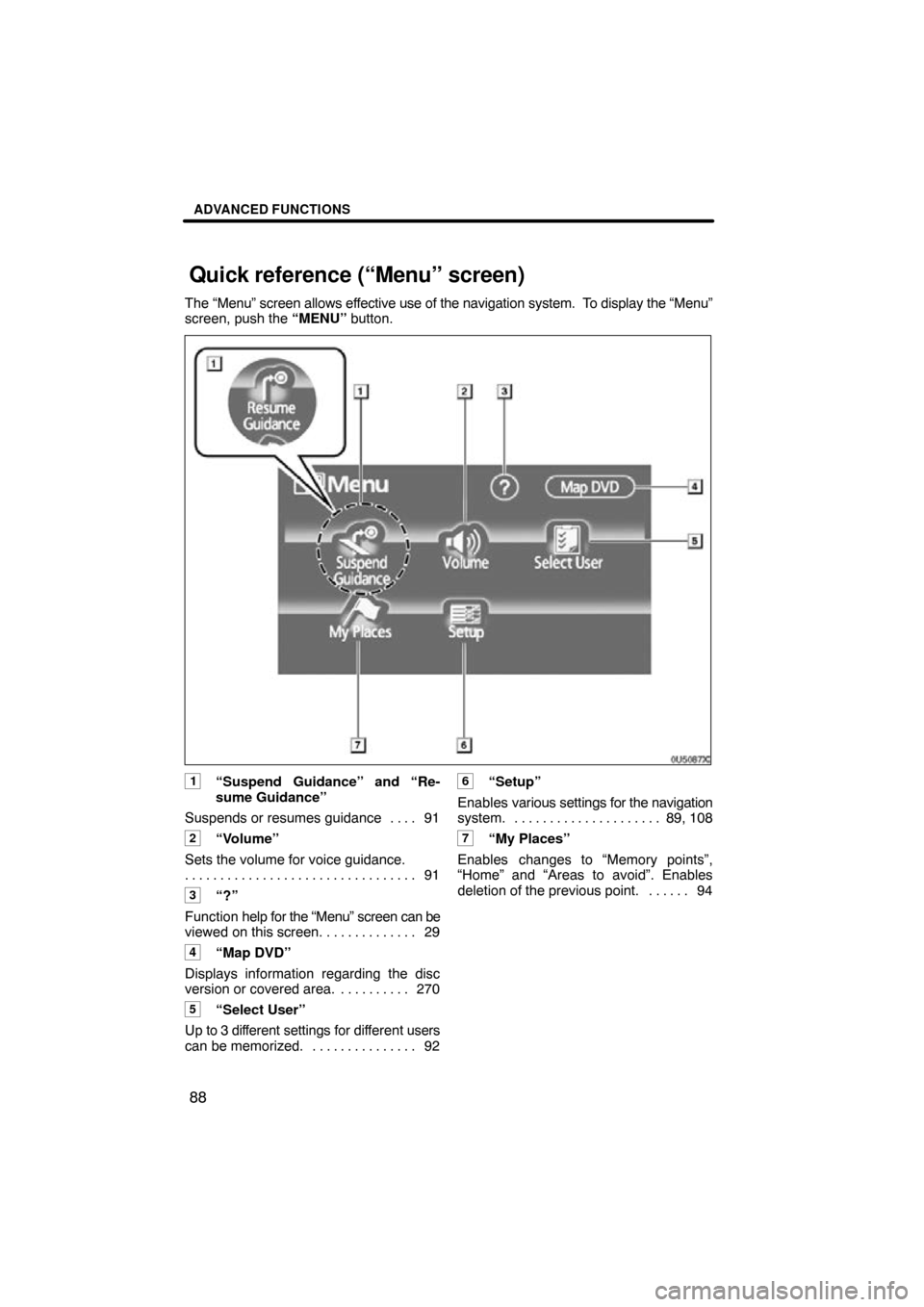

The “Menu” screen allows effective use of the navigation system. To display the “Menu”
screen, push the “MENU” button.
1“Suspend Guidance” and “Re-
sume Guidance”
Suspends or resumes guidance 91 . . . .
2“Volume”
Sets the volume for voice guidance. 91
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3“?”
Function help for the “Menu” screen can be
viewed on this screen. 29 . . . . . . . . . . . . .
4“Map DVD”
Displays information regarding the disc
version or covered area. 270 . . . . . . . . . .
5“Select User”
Up to 3 different settings for dif ferent users
can be memorized. 92 . . . . . . . . . . . . . . .
6“Setup”
Enables various settings for the navigation
system. 89, 108 . . . . . . . . . . . . . . . . . . . . .
7“My Places”
Enables changes to “Memory points”,
“Home” and “Areas to avoid”. Enables
deletion of the previous point. 94 . . . . . .
Quick reference (“Menu” screen)

ADVANCED FUNCTIONS
11 7

Current
position/tire change calibra-
tion
The current vehicle position mark can be
adjusted manually. Miscalculation of the
distance caused by tire replacement can
also be adjusted.
1. Push the “MENU” button.
2. Touch “Setup” on the “Menu”
screen.
Then touch
twice to display page 3 of
the “Setup” screen.
3. Touch “Adjust” of “Calibration”.
4. Touch the desired touch screen but-
ton.
INFORMATION
For additional information on the ac-
curacy of a current vehicle position,
see “Limitations of the navigation
system” on page 258.
POSITION/DIRECTION CALIBRATION
When driving, the current vehicle position
mark will be automatically corrected by
GPS signals. If GPS reception is poor due
to location, you can manually adjust the
current vehicle position mark.
1. Touch “Position/Direction”.
2. Touch the scroll arrows to move the
cursor
to your desired location.
3. Touch “Enter”.

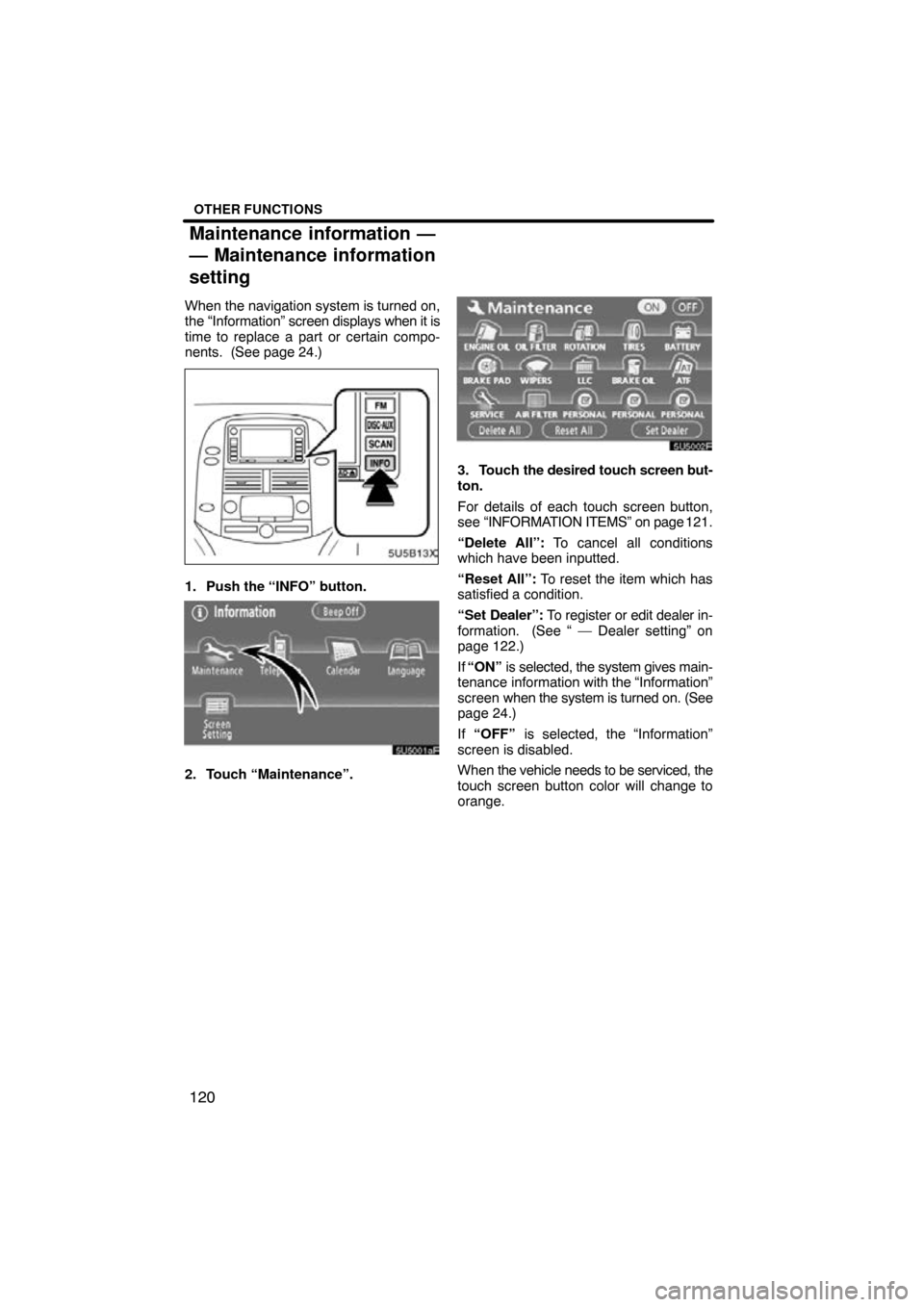

OTHER FUNCTIONS
120
When the navigation system is turned on,
the “Information” screen displays when it is
time to replace a part or certain compo-
nents. (See page 24.)
1. Push the “INFO” button.
2. Touch “Maintenance”.
3. Touch the desired touch screen but-
ton.
For details of each touch screen button,
see “INFORMATION ITEMS” on page 121.
“Delete All”: To cancel all conditions
which have been inputted.
“Reset All”: To reset the item which has
satisfied a condition.
“Set Dealer”: To register or edit dealer in-
formation. (See “ — Dealer setting” on
page 122.)
If “ON” is selected, the system gives main-
tenance information with the “Information”
screen when the system is turned on. (See
page 24.)
If “OFF” is selected, the “Information”
screen is disabled.
When the vehicle needs to be serviced, the
touch screen button color will change to
orange.
Maintenance information —
— Maintenance information
setting

OTHER FUNCTIONS
129
Handsfree system allows you to make
or receive a call without taking your
hands off the steering wheel by con-
necting your cellular phone.
This system supports Bluetooth .
Bluetooth  is a wireless data system by
which you can call without your cellular
phone being connected with a cable or
placed on a cradle.
If your cellular phone does not support
Bluetooth , this system can not function.
CAUTION
While you are driving, do not use a
cellular phone or connect the
Bluetooth  phone.
NOTICE
Do not leave your cellular phone in
the car. The temperature indoor may
be high and damage the phone.
INFORMATION
In the following conditions, the sys-
tem may not function.
 The cellular phone is turned OFF.
 The current position is outside the
communication area.
 The cellular phone is not con-
nected.
 The cellular phone has a low bat-
tery.
By pushing the telephone switch
above, you can receive a call or hang up
without taking your hands off the steer-
ing wheel.
 Microphone
You can use the microphone above
when talking on the phone.
The other party’s voice outputs from the
driver’s speaker. When the received calls
or received voice outputs, the audio from
the Audio/video system or voice guidance
from the Navigation system will be muted.
Handsfree system
(for cellular phone)

OTHER FUNCTIONS
167

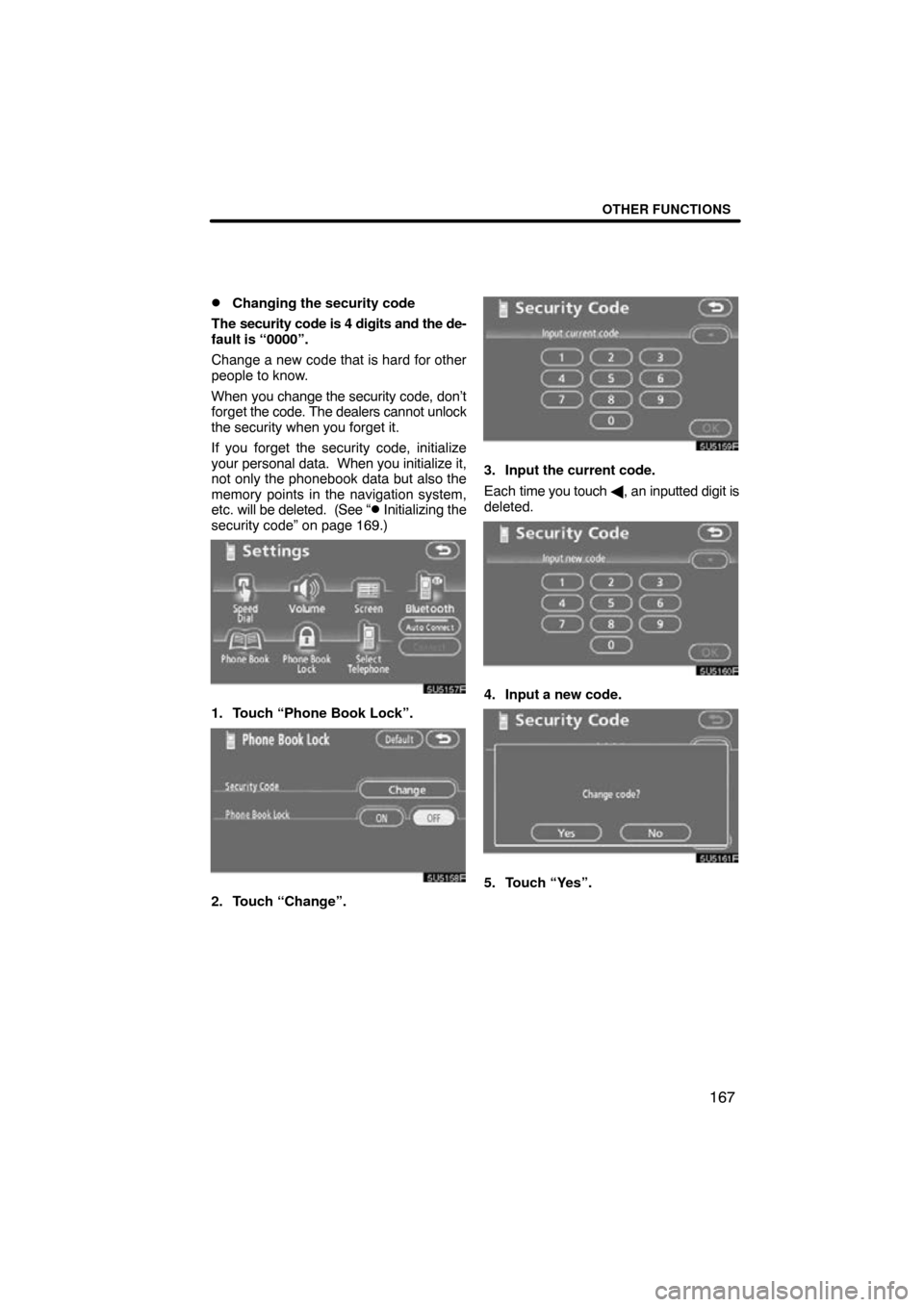

Changing the security code
The security code is 4 digits and the de-
fault is “0000”.
Change a new code that is hard for other
people to know.
When you change the security code, don’t
forget the code. The dealers cannot unlock
the security when you forget it.
If you forget the security code, initialize
your personal data. When you initialize it,
not only the phonebook data but also the
memory points in the navigation system,
etc. will be deleted. (See “
 Initializing the
security code” on page 169.)
1. Touch “Phone Book Lock”.
2. Touch “Change”.
3. Input the current code.
Each time you touch , an inputted digit is
deleted.
4. Input a new code.
5. Touch “Yes”.

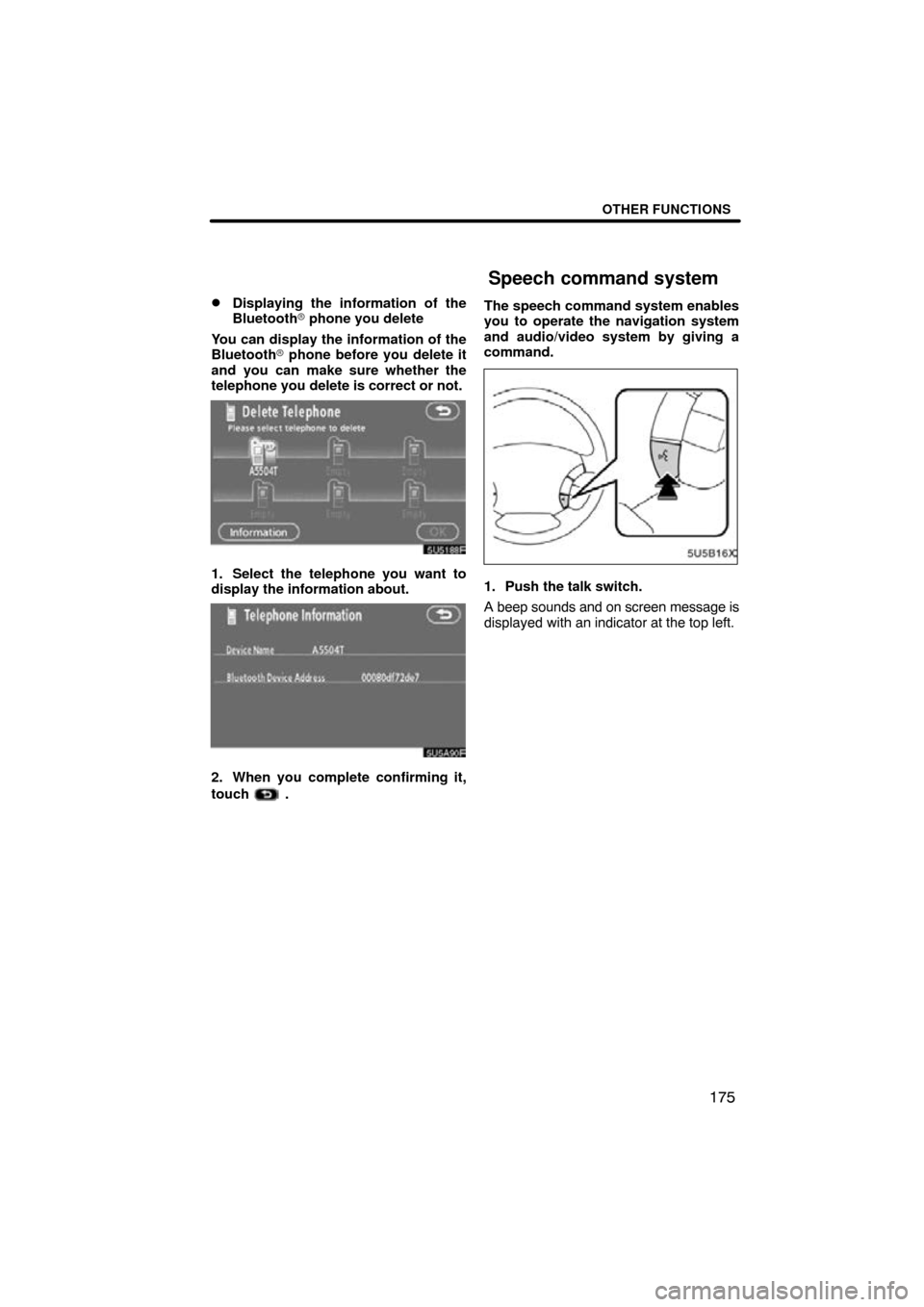

OTHER FUNCTIONS
175

Displaying the information of the
Bluetooth
 phone you delete
You can display the information of the
Bluetooth  phone before you delete it
and you can make sure whether the
telephone you delete is correct or not.
1. Select the telephone you want to
display the information about.
2. When you complete confirming it,
touch
. The speech command system enables
you to operate the navigation system
and audio/video system by giving a
command.
1. Push the talk switch.
A beep sounds and on screen message is
displayed with
an indicator at the top left.
Speech command system

OTHER FUNCTIONS
176

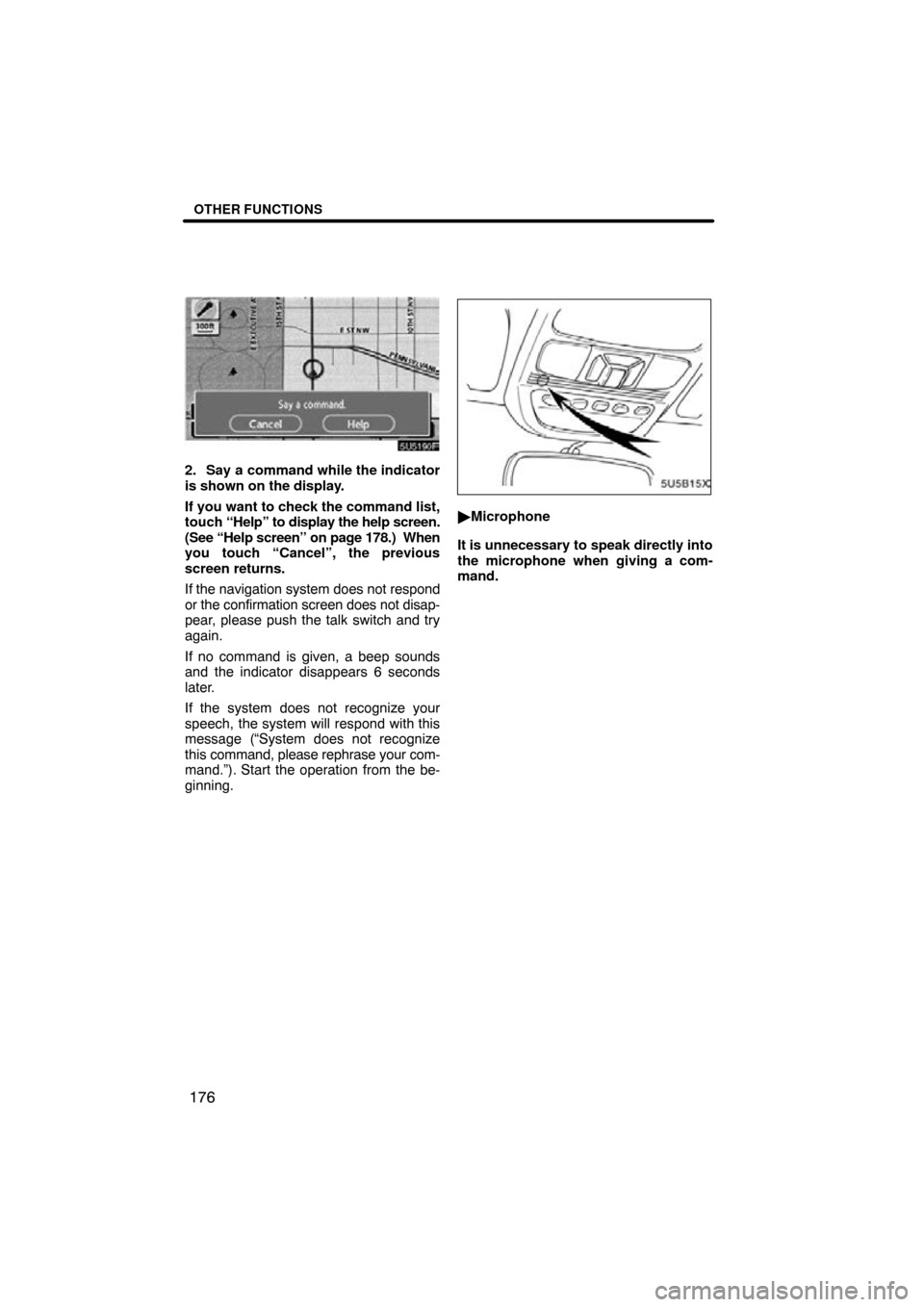

2. Say a command while the indicator
is shown on the display.
If you want to check the command list,
touch “Help” to display the help screen.
(See “Help screen” on page 178.) When
you touch “Cancel”, the previous
screen returns.
If the navigation system does not respond
or the confirmation screen does not disap-
pear, please push the talk switch and try
again.
If no command is given, a beep sounds
and the indicator disappears 6 seconds
later.
If the system does not recognize your
speech, the system will respond with this
message (“System does not recognize
this command, please rephrase your com-
mand.”). Start the operation from the be-
ginning.
 Microphone
It is unnecessary to speak directly into
the microphone when giving a com-
mand.
