OTHER FUNCTIONS
185
The language of the touch screen but-
tons, popup messages and the voice
guidance can be changed.
1. Push the “INFO” button.
2. Touch “Language”.
3. Touch “English”, “Français” or “Es-
pañol” to select a language. If a screen other than for the navigation
system is displayed, the current screen
would
change to the “CAUTION” screen by
pushing the “MAP/VOICE” , “DEST” or
“MENU” button.
4. Touch “OK”.
The language is changed and the screen
returns to the map display.
Select language

REAR VIEW MONITOR SYSTEM
252
The rear view monitor system assists
the driver by displaying an image of the
view behind the vehicle while backing
up. The image is displayed in reverse
on the screen. This allows the image to
appear in the same manner as that of
the rear view mirror.
To display the rear view image on the
screen, place the shift lever in the “R”
position when the engine switch is in
the “ON” position.
If you move the shift lever out of the “R”
position, the screen returns to the previous
screen. Operating another function of the
navigation system will display another
screen.
The rear view monitor system is a supple-
ment device intended to assist back up.
When backing up, be sure to check behind
and all around the vehicle visually.
CAUTION
Never depend on the rear view
monitor system entirely when
backing up. Always make sure
your intended path is clear.
Use caution, just as you would
when backing up any vehicle.
Never back up while looking only at
the screen. The image on the
screen is different from actual
conditions. Depicted distances
between objects and flat surfaces
will differ from actual distance. If
you back up while looking only at
the screen, you may hit a vehicle, a
person or an object. When backing
up, be sure to check behind and all
around the vehicle visually and
with mirrors before proceeding.
Do not use the system when the
back door is not completely
closed.
If the back of the vehicle is hit, the
position and mounting angle of the
camera may change. Be sure to
have the camera’s position and
mounting angle checked at your
Toyota dealer.
As the camera has a water proof
construction, do not detach, disas-
semble or modify it. This may
cause incorrect operation.
If the temperature changes rapidly,
such as when hot water is poured
on the vehicle in cold weather, the
system may not operate normally.
Rear view monitor system

SECTION 8
APPENDIX
257
APPENDIX
Limitations of the navigation system 258 . . . . . . . . . . . . . . . . . . . . .
 Map database information and updates 260
. . . . . . . . . . . . . . . . . .
Appendix

APPENDIX
258
This navigation system calculates the
current vehicle position using satellite
signals, various vehicle signals, map
data, etc. However, the accurate posi-
tion may not be shown depending on
the satellite condition, road configura-
tion, vehicle condition or other circum-
stances.
The Global Positioning System (GPS) de-
veloped and operated by the U.S. Depart-
ment of Defense provides an accurate cur-
rent vehicle position, normally using 4 or
more satellites, and in some cases 3 satel-
lites. The GPS system has a certain level
of inaccuracy. While the navigation sys-
tem will compensate for this most of the
time, occasional positioning errors of up to
300 feet (100 m) can and should be expec-
ted. Generally, position errors will be cor-
rected within a few seconds.
When your vehicle is receiving signals
from the satellites, the “GPS” mark ap-
pears at the top left of the screen.
The GPS signal may be physically ob-
structed, leading to inaccurate vehicle
position on the map display. Tunnels, tall
buildings, trucks, or even the placement of
objects on the instrument panel may ob-
struct the GPS signals.
The GPS satellites may not send signals
due to repairs or improvements being
made to them.
Even when the navigation system is re-
ceiving clear GPS signals, the vehicle
position may not be shown accurately or
inappropriate route guidance may occur in
some cases.
NOTICE
The installation of window tinting
may obstruct the GPS signals. Most
window tinting contains some metal-
lic content that will interfere with GPS
signal reception of the antenna in the
instrument panel. We advise against
the use of window tinting on vehicles
equipped with navigation systems.
Limitations of the
navigation system

APPENDIX
259
(a) Accurate current vehicle position
may not be shown in the following
cases:
When driving on a small angled Y−
shaped road.
When driving on a winding road.
When driving on a slippery road such
as in sand, gravel, snow, etc.
When driving on a long straight road.
When freeway and surface streets run
in parallel.
After moving by ferry or vehicle carrier.
When a long route is searched during
high speed driving.
When driving without setting the cur-
rent position calibration correctly.
After repeating a change of direction by
going forward and backward, or turning
on a turntable in the parking lot.
When leaving a covered parking lot or
parking garage.
When a roof carrier is installed.
When driving with tire chains installed.
When the tires are worn.
After replacing a tire or tires.
When using tires that are smaller or
larger than the factory specifications.
When the tire pressure in any of the
four tires is not correct.
INFORMATION
If your vehicle cannot receive GPS
signals, you can correct the current
position manually. For information
on setting the current position cal-
ibration, see “
 Current position/tire
change calibration” on page 117.
(b) Inappropriate route guidance may
occur in the following cases:
When turning at an intersection off the
designated route guidance.
If you set more than one destination but
skip any of them, auto reroute will dis-
play a route returning to the destination
on the previous route.
When turning at an intersection for
which there is no route guidance.
When passing through an intersection,
there is no route guidance.
During auto reroute, the route guid-
ance may not be available for the next
turn to the right or left.
It may take a long time to operate auto
reroute during high speed driving. In
auto reroute, a detour route may be
shown.
After auto reroute, the route may not be
changed.
An unnecessary U −turn may be shown
or announced.
A location may have multiple names
and the system will announce one or
more.
Some routes may not be searched.
If the route to your destination includes
gravel, unpaved roads or alleys, the
route guidance may not be shown.
Your destination point might be shown
on the opposite side of the street.
When a portion of the route has regula-
tions prohibiting the entry of the vehicle
that vary by time or season or other
reasons.
The road and map data stored in your
navigation system may not be com-
plete or may not be the latest version.

APPENDIX
260
After replacing the tire, implement the
operation described in the “ Current
position/tire change calibration”. (See
page 117.)
This navigation system uses tire turning
data and is designed to work with factory −
specified tires for your vehicle. Installing
tires that are larger or smaller than the orig-
inally equipped diameter may cause inac-
curate display of the vehicle’s position.
The tire pressure also affects the diameter
of the tires so please make sure the tire
pressure of all four tires is correct. This system uses the maps of DENSO.
©
2008 DENSO CORPORATION
© 2007 NAVTEQ. All rights reserved.
© 2007 Tele Atlas North America, Inc.
All rights reserved. This material is
proprietary and the subject of copyright
protection and other intellectual prop-
erty rights owned by or licensed to Tele
Atlas North America, Inc. The use of
this material is subject to the terms of
a license agreement. You will be held
liable for any unauthorized copying or
disclosure of this material.
Data by infoUSA Copyright © 2007, All
Rights Reserved.
© 2007 VISA Corporation
Copyright © CoStar Realty Informa-
tion, Inc.
The Bullseye Design is a registered
trademark of Target Brands, Inc.
Map database information
and updates

APPENDIX
261
END USER LICENSE AGREEMENTPLEASE READ THIS AGREEMENTCAREFULLY BEFORE USING THE NAVIGATION SYSTEM
THIS IS A LICENSE AGREEMENT
FOR YOUR COPY OF THE SPATIAL
MAP DATABASE, INCLUDING LOCA-
TION CODES AND RELATED PROD-
UCTS (COLLECTIVELY, THE “DATA-
BASE”), USED IN THE NAVIGATION
SYSTEM. BY USING THE NAVIGA-
TION SYSTEM AND THE DATA-
BASE, YOU ACCEPT AND AGREE
TO BE BOUND BY ALL TERMS AND
CONDITIONS SET FORTH BELOW.
LICENSE GRANT
DENSO CORPORATION (“DENSO”),
as a licensed distributor of the
DATABASE, grants to you a
non−exclusive, non− perpetual license
to use your copy of the DATABASE for
your personal use or for your use in
your business’ internal operations and
not for any other purpose. This license
does not include the right to grant
sub−licenses.
OWNERSHIP
The DATABASE and the copyrights
and intellectual property and
neighboring rights therein are owned
by Tele Atlas North America, Inc.
(“TANA”) and its licensors. This
Agreement does not transfer any title
or interest in the DATABASE, except
for the license to use the DATABASE
according and subject to the terms and
conditions of this Agreement. You
shall not alter, obscure or remove any
copyright notices, trademark notices or
other restrictive legends relating to the
DATABASE.The DATABASE comprises confiden-
tial and proprietary information and
materials of TANA. Accordingly, you
shall hold the DATABASE in confi-
dence and trust. You shall take rea-
sonable steps to protect the DATA-
BASE from misappropriation or mis-
use. You shall not extract stand −alone
data from or publish any part of the DA-
TABASE without the prior written con-
sent of TANA and its licensors.
LIMITATIONS ON USE
The DATABASE is restricted for use in
the specific system for which it was
created. Except to the extent explicitly
permitted by mandatory laws, you may
not extract or reutilize any portion of
the contents of the DATABASE, nor
reproduce, copy, duplicate, modify,
adapt, translate, disassemble,
decompile, or reverse engineer any
portion of the DATABASE.
TRANSFER
You may not transfer the DATABASE
to third parties, except together with
the system for which it was created,
provided that you do not retain any
copy of the DATABASE, and provided
that the transferee agrees to all terms
and conditions of this AGREEMENT.

APPENDIX
267

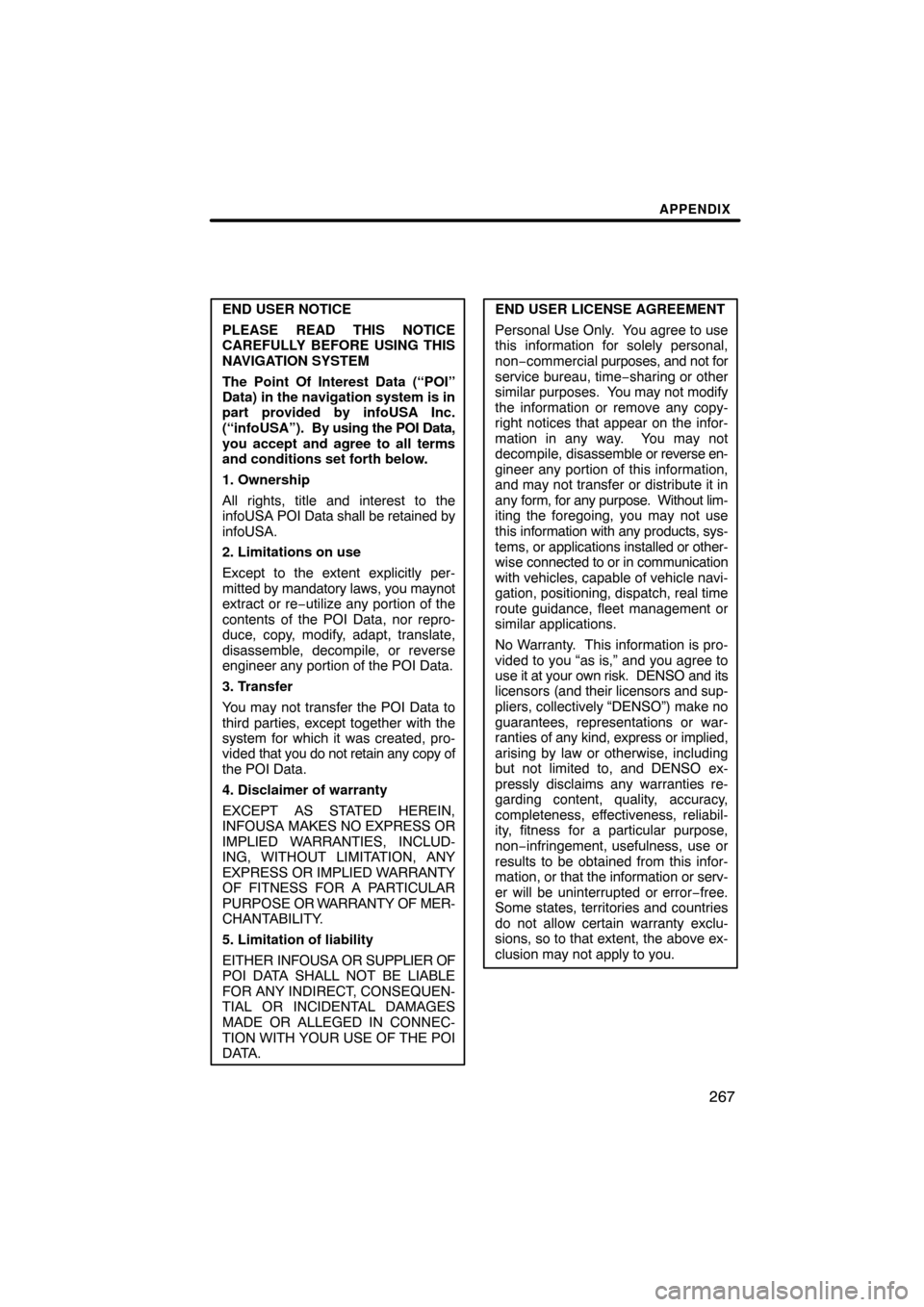

END USER NOTICE
PLEASE READ THIS NOTICE
CAREFULLY BEFORE USING THIS
NAVIGATION SYSTEM
The Point Of Interest Data (“POI”
Data) in the navigation system is in
part provided by infoUSA Inc.
(“infoUSA”). By using the POI Data,
you accept and agree to all terms
and conditions set forth below.
1. Ownership
All rights, title and interest to the
infoUSA POI Data shall be retained by
infoUSA.
2. Limitations on use
Except to the extent explicitly per-
mitted by mandatory laws, you maynot
extract or re−utilize any portion of the
contents of the POI Data, nor repro-
duce, copy, modify, adapt, translate,
disassemble, decompile, or reverse
engineer any portion of the POI Data.
3. Transfer
You may not transfer the POI Data to
third parties, except together with the
system for which it was created, pro-
vided that you do not retain any copy of
the POI Data.
4. Disclaimer of warranty
EXCEPT AS STATED HEREIN,
INFOUSA MAKES NO EXPRESS OR
IMPLIED WARRANTIES, INCLUD-
ING, WITHOUT LIMITATION, ANY
EXPRESS OR IMPLIED WARRANTY
OF FITNESS FOR A PARTICULAR
PURPOSE OR W ARRANTY OF MER-
CHANTABILITY.
5. Limitation of liability
EITHER INFOUSA OR SUPPLIER OF
POI DATA SHALL NOT BE LIABLE
FOR ANY INDIRECT, CONSEQUEN-
TIAL OR INCIDENTAL DAMAGES
MADE OR ALLEGED IN CONNEC-
TION WITH YOUR USE OF THE POI
DATA.END USER LICENSE AGREEMENT
Personal Use Only. You agree to use
this information for solely personal,
non−commercial purposes, and not for
service bureau, time −sharing or other
similar purposes. You may not modify
the information or remove any copy-
right notices that appear on the infor-
mation in any way. You may not
decompile, disassemble or reverse en-
gineer any portion of this information,
and may not transfer or distribute it in
any form, for any purpose. Without lim-
iting the foregoing, you may not use
this information with any products, sys-
tems, or applications installed or other-
wise connected to or in communication
with vehicles, capable of vehicle navi-
gation, positioning, dispatch, real time
route guidance, fleet management or
similar applications.
No Warranty. This information is pro-
vided to you “as is,” and you agree to
use it at your own risk. DENSO and its
licensors (and their licensors and sup-
pliers, collectively “DENSO”) make no
guarantees, representations or war-
ranties of any kind, express or implied,
arising by law or otherwise, including
but not limited to, and DENSO ex-
pressly disclaims any warranties re-
garding content, quality, accuracy,
completeness, effectiveness, reliabil-
ity, fitness for a particular purpose,
non−infringement, usefulness, use or
results to be obtained from this infor-
mation, or that the information or serv-
er will be uninterrupted or error −free.
Some states, territories and countries
do not allow certain warranty exclu-
sions, so to that extent, the above ex-
clusion may not apply to you.

INDEX
Index
INDEX
271
For navigation system function, please also refer to the
“Navigation system function index” on page 18.

INDEX
274
K
Key layout
110
. . . . . . . . . . . . . . . . . . . . . . . . .
Keyboard layout 89
. . . . . . . . . . . . . . . . . . . .
L
Last 5 cities 50,53
. . . . . . . . . . . . . . . . . . . . . .
Limitations of the navigation
system 258
. . . . . . . . . . . . . . . . . . . . . . . . .
List 27
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
List all categories button 54,57
. . . . . . . . . . .
List screen operation 25
. . . . . . . . . . . . . . . .
Listening to satellite radio 201
. . . . . . . . . . .
Listening to the radio 195
. . . . . . . . . . . . . . .
LOAD·EJECT button 188,207
. . . . . . . . . . . .
Local POI list 81
. . . . . . . . . . . . . . . . . . . . . . .
M
Maintenance in formation 24,120
. . . . . . . . . .
Maintenance information setting 120 . . . . . .
Map button 42
. . . . . . . . . . . . . . . . . . . . . . . .
Map database information and
updates 260
. . . . . . . . . . . . . . . . . . . . . . . .
Map DVD button 88
. . . . . . . . . . . . . . . . . . . .
Map scale 37
. . . . . . . . . . . . . . . . . . . . . . . . .
Map screen operation 29
. . . . . . . . . . . . . . .
Map view 80
. . . . . . . . . . . . . . . . . . . . . . . . . .
Map View button 10
. . . . . . . . . . . . . . . . . . . .
MAP/VOICE button 10,29,30
. . . . . . . . . . . .
Mark button 10
. . . . . . . . . . . . . . . . . . . . . . . .
Memo inform ation 24
. . . . . . . . . . . . . . . . . . .
Memo list 127
. . . . . . . . . . . . . . . . . . . . . . . . .
Memory button 42
. . . . . . . . . . . . . . . . . . . . .
Memory point information 33
. . . . . . . . . . . .
Memory point names 100
. . . . . . . . . . . . . . .
Memory point screen 95
. . . . . . . . . . . . . . . .
MENU button 10,88,89
. . . . . . . . . . . . . . . . .
Menu screen 88
. . . . . . . . . . . . . . . . . . . . . . .
Message 197
. . . . . . . . . . . . . . . . . . . . . . . . .
Microphone 129,175
. . . . . . . . . . . . . . . . . . . .
MID 192
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
MP3/WMA 212
. . . . . . . . . . . . . . . . . . . . . . . .
MSG button 197
. . . . . . . . . . . . . . . . . . . . . . .
My places 94
. . . . . . . . . . . . . . . . . . . . . . . . .
My places button 88
. . . . . . . . . . . . . . . . . . .
N
Names of areas to be avoided 106. . . . . . .
Nearest 5 cities 50,53 . . . . . . . . . . . . . . . . . . .
North−up 10
. . . . . . . . . . . . . . . . . . . . . . . . . .
North−up symbol 39
. . . . . . . . . . . . . . . . . . .
Notifying traffic restriction 114
. . . . . . . . . . . .
Numbers and symbols 26
. . . . . . . . . . . . . . .
O
Off function 10,89,112
. . . . . . . . . . . . . . . . . .
On route button 57 . . . . . . . . . . . . . . . . . . . . .
One−touch scroll 30
. . . . . . . . . . . . . . . . . . .
Operating a DVD video disc 227
. . . . . . . . .
Operating a MP3 disc 223
. . . . . . . . . . . . . .
Operating a MP3/WMA disc 212
. . . . . . . . .
Operating a video CD 237
. . . . . . . . . . . . . .
Operating an audio CD 220
. . . . . . . . . . . . .
Operating g uide 178
. . . . . . . . . . . . . . . . . . .
OPP (Object Push Profile) 129
. . . . . . . . . .
Orientation of the map 39
. . . . . . . . . . . . . . .
Outgoing calls 137
. . . . . . . . . . . . . . . . . . . . .
Overview buttons and
guidance screen 10
. . . . . . . . . . . . . . . . . .
P
Parental lock 232
. . . . . . . . . . . . . . . . . . . . . .
Phone # button 42
. . . . . . . . . . . . . . . . . . . . .
Phone book 155,156,159,160
. . . . . . . . . . . .
Phone book lock 168
. . . . . . . . . . . . . . . . . . .
Playing a disc 208,220
. . . . . . . . . . . . . . . . . .
Playing a DVD disc 228
. . . . . . . . . . . . . . . .
Playing a MP3 disc 223
. . . . . . . . . . . . . . . . .
Playing a MP3/WMA disc 212
. . . . . . . . . . .
Playing a video CD 237
. . . . . . . . . . . . . . . . .
Playing an audio CD 220
. . . . . . . . . . . . . . .
Playing an audio disc 209
. . . . . . . . . . . . . . .
POI as a destination 82
. . . . . . . . . . . . . . . . .
POI Category button 42
. . . . . . . . . . . . . . . .
POI category change 112
. . . . . . . . . . . . . . . .
POI information 33
. . . . . . . . . . . . . . . . . . . . .
POI Name button 42
. . . . . . . . . . . . . . . . . . .
POIs near the search point 57
. . . . . . . . . . .
POIs to be displayed 80
. . . . . . . . . . . . . . . .
Pop−up message 89,116
. . . . . . . . . . . . . . . .
Portable audio players 195
. . . . . . . . . . . . . .
Position/direction c alibration 117
. . . . . . . . . .
Preset memory points 14
. . . . . . . . . . . . . . .
Presetting a satellite radio channel 202 . . .
Presetting a station 196
. . . . . . . . . . . . . . . .
Previous button 42
. . . . . . . . . . . . . . . . . . . . .
PWR·VOL knob 188
. . . . . . . . . . . . . . . . . . .
