TOYOTA SIENNA 2012 XL30 / 3.G Owners Manual
Manufacturer: TOYOTA, Model Year: 2012, Model line: SIENNA, Model: TOYOTA SIENNA 2012 XL30 / 3.GPages: 860, PDF Size: 15.08 MB
Page 701 of 860

701
4-3. Do-it-yourself maintenance
4
Maintenance and care
SIENNA_U (OM45477U)
FuseAmpereCircuit
24 FAN 60 A Electric cooling fans
25 HAZ 15 A Turn signal lights, gauges and
meters
26 RSE 15 A Rear seat entertainment system
27 MIRROR
*310 A Outside rear view mirror control,
outside rear view mirror heaters
28 AMP 30 A Audio system
29 VSC NO.2 30 A Vehicle dynamics integrated man-
agement, ABS, vehicle stability
control
30 ST 30 A Starting system
31 P/I 40 A Horn, left-hand headlight (low
beam), right-hand headlight (low
beam)
32 H-LP MAIN
*140 A Discharge headlight
SPARE
*430 A Spare-fuse
33 AM2
*530 A “ST NO.2”, “GAUGE NO.2” and
“IG2” fuses
34 VSC NO.1 50 A Vehicle dynamics integrated man-
agement, ABS, vehicle stability
control
Page 702 of 860

702 4-3. Do-it-yourself maintenance
SIENNA_U (OM45477U)
FuseAmpereCircuit
35 ALT 140 A Charging system, horn, left-hand
headlight (low beam), right-hand
headlight (low beam), fog light, out-
side rear view mirror heaters, rear
window defoggers, windshield
wiper de-icer
36 RAD NO.1 15 A Audio system
37 DOME 7.5 A Vanity lights, personal/interior
lights, personal lights, engine
switch light, rear ceiling lights, door
courtesy lights, luggage compart-
ment light, gauges and meters,
clock
38 ECU-B 10 A Main body ECU, smart key system,
wireless remote control, power
back door, power sliding door, rear
view monitor, multi information dis-
play, power window, outside rear
view mirror control, steering angle
sensor, auto-anti glare inside rear
view mirror, AUTO ACCESS SEAT
remote control, front passenger
occupant classification system
39 ETCS 10 A Multiport fuel injection system/
sequential multiport fuel injection
system
40 A/F 20 A Multiport fuel injection system/
sequential multiport fuel injection
system
41 STRG LOCK
*620 A Steering lock system
42 ALT-S 7.5 A Charging system
Page 703 of 860

703
4-3. Do-it-yourself maintenance
4
Maintenance and care
SIENNA_U (OM45477U)
*1: Vehicles with discharge headlights only
*2: Vehicles with a 1AR-FE engine only
*3: Vehicles with a 2GR-FE engine only
*4: Vehicles without discharge headlights only
*5: Vehicles without a smart key system only
*6: Vehicles with a smart key system only
FuseAmpereCircuit
43 INJ 25 A Multiport fuel injection system/
sequential multiport fuel injection
system, “IG NO.2” and “IG2” fuses
44 ECU-B NO.2 7.5 A Air conditioning system
45 AM2 NO.2
*67.5 A Multiplex communication system,
starting system
46 EFI NO.1 25 A Multiport fuel injection system/
sequential multiport fuel injection
system, “ECT” and “EFI NO.2”
fuses
47 SMART
*65 A Smart key system
48 DRL 30 A Daytime running light system, “H-
LP LH (HI)” and “H-LP RH (HI)”
fuses
49 EPS 60 A Electric power steering
Page 704 of 860

704 4-3. Do-it-yourself maintenance
SIENNA_U (OM45477U)■

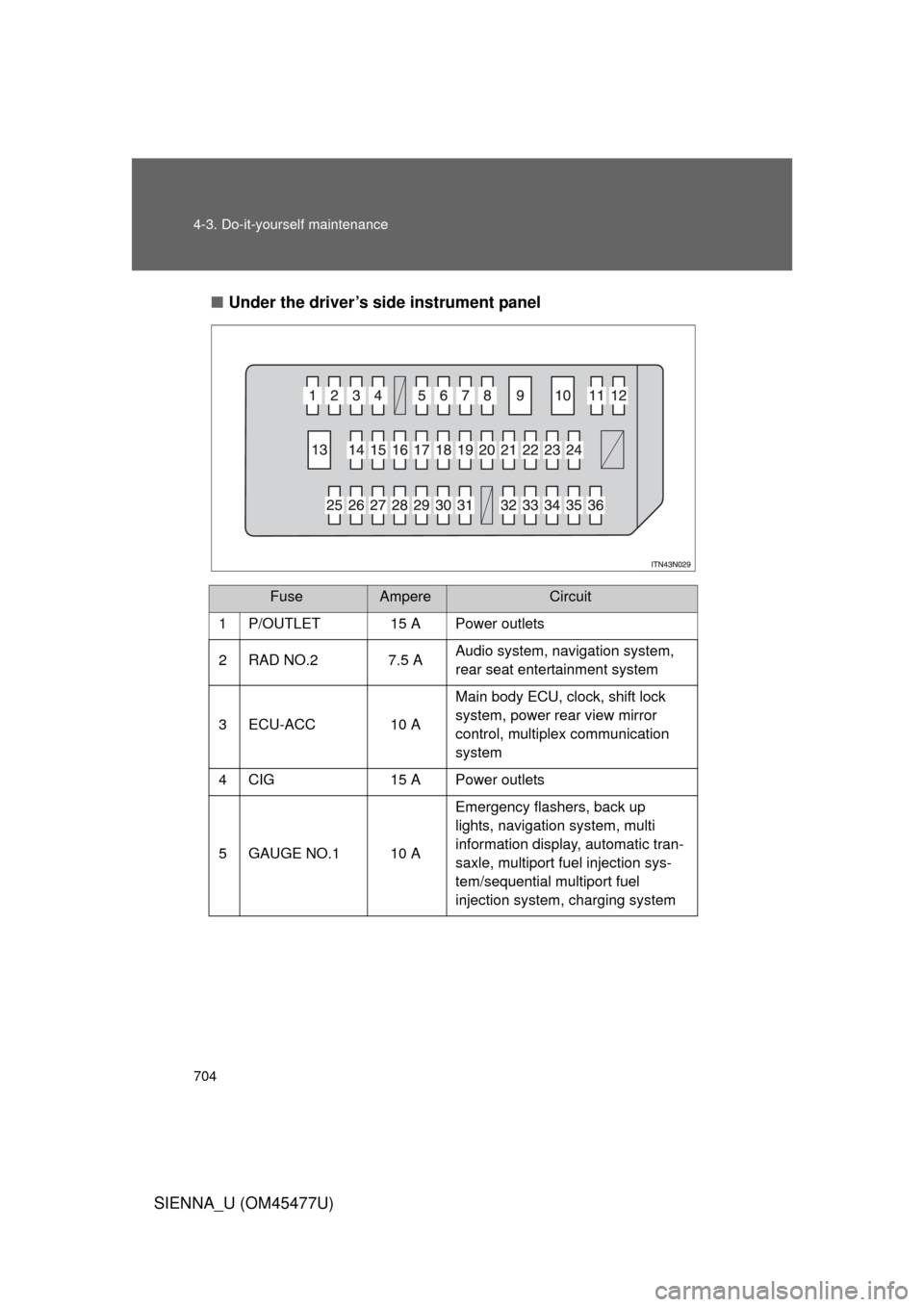

Under the driver’s side instrument panel
FuseAmpereCircuit
1P/OUTLET15 APower outlets
2 RAD NO.2 7.5 A Audio system, navigation system,
rear seat entertainment system
3 ECU-ACC 10 A Main body ECU, clock, shift lock
system, power rear view mirror
control, multiplex communication
system
4 CIG 15 A Power outlets
5 GAUGE NO.1 10 A Emergency flashers, back up
lights, navigation system, multi
information display, automatic tran-
saxle, multiport fuel injection sys-
tem/sequential multiport fuel
injection system, charging system
Page 705 of 860

705
4-3. Do-it-yourself maintenance
4
Maintenance and care
SIENNA_U (OM45477U)
FuseAmpereCircuit
6 ECU-IG NO.1 10 A Multiplex communication system,
stop lights, navigation system,
vehicle stability control system,
Active Torque Control 4WD, intui-
tive parking assist, auto anti-glare
inside rear view mirror, pre-collision
seat belt, outside rear view mirror,
seat heater, TPMS, yaw rate & G
sensor, steering angle sensor,
AUTO ACCESS SEAT, main body
ECU
7 P/W RL 20 A Rear power windows (left-side)
8 D/L 15 A Power door lock system
9 P/SEAT FR 30 A Power front seat (right-side)
10 S/ROOF 30 A Moon roof 11 P/W RR 20 A Rear power windows (right-side)
12 P/W FR 20 A Front power windows (right-side)
13 P/SEAT FL 30 A Power front seat (left-side), driving
position memory system
14 STOP 10 A Stop lights, ABS, vehicle stability
control system, rear combination
light, high mounted stop light, auto-
matic transaxle, shift lock system,
multiplex communication system,
power third seat switch, multiport
fuel injection system/sequential
multiport fuel injection system,
trailer lights (stop lights)
15 P/W FL 20 A Front power windows (left-side)
Page 706 of 860

706 4-3. Do-it-yourself maintenance
SIENNA_U (OM45477U)
FuseAmpereCircuit
16 PSD LH 25 A Power sliding door (left-side)
17 4WD 7.5 A Active Torque Control 4WD
18 AM1 10 A Starting system
19 GAUGE NO.2 7.5 A Gauges and meters, multi informa-
tion display
20 IG2 7.5 A Automatic transaxle, multiport fuel
injection system/sequential multi-
port fuel injection system, SRS air-
bag system, front passenger
occupant classification system,
steering lock system, smart key
system, starting system, fuel pump
21 PANEL 10 A Air conditioning system, navigation
system, front passenger’s seat belt
reminder light, audio system, steer-
ing switch, intuitive parking assist
switch, personal/interior light main
switch, shift lever light, headlight
levering switch, power door lock
main switch, clock, power quarter
window switch, seat heater switch,
emergency flashers, rear window
defogger switch, vehicle stability
control off switch, console box light,
power slide switch light
Page 707 of 860

707
4-3. Do-it-yourself maintenance
4
Maintenance and care
SIENNA_U (OM45477U)
FuseAmpereCircuit
22 TAIL 10 A Tail lights, trailer lights (tail lights),
license plate light, rear combination
lights
23 WIP ECU 7.5 A Windshield wiper and rear window
wiper
24 P/VENT 15 A Power quarter windows
25 AFS 10 A Automatic High Beam
26 WIP 30 A Windshield wiper
27 WASHER 20 A Windshield washer
28 WIP RR 20 A Rear window wiper
29 WASHER RR 15 A Rear window washer
30 HTR-IG 10 A Air conditioning system
31 SHIFT LOCK 7.5 A Shift lock system, multiport fuel
injection system/sequential multi-
port fuel injection system
32 ECU-IG NO.2 10 A Pre-collision system, pre-collision
seat belt, dynamic radar cruise
control, electric power steering,
rain-sensing windshield wipers,
driving position memory system,
power sliding door, power third
seat, power back door, multiplex
communication system
33 PSD RH 25 A Power sliding door (right-side)
34 OBD 7.5 A On-board diagnosis system
35 S-HTR FL 15 A Seat heater (left-side)
36 S-HTR FR 15 A Seat heater (right-side)
Page 708 of 860

708 4-3. Do-it-yourself maintenance
SIENNA_U (OM45477U)
■After a fuse is replaced
● If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. (P. 709)
● If the replaced fuse blows again, have the vehicle inspected by your
Toyota dealer.
■ If there is an overload in the circuit
The fuses are designed to blow, protecting the wiring harness from damage.
■ When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle. Because certain bulbs are connected to circuits designed to prevent
overload, non-genuine parts or parts not designed for this vehicle may be
unusable.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
● Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
● Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer as soon as possible.
Page 709 of 860

709
4-3. Do-it-yourself maintenance
4
Maintenance and care
SIENNA_U (OM45477U)

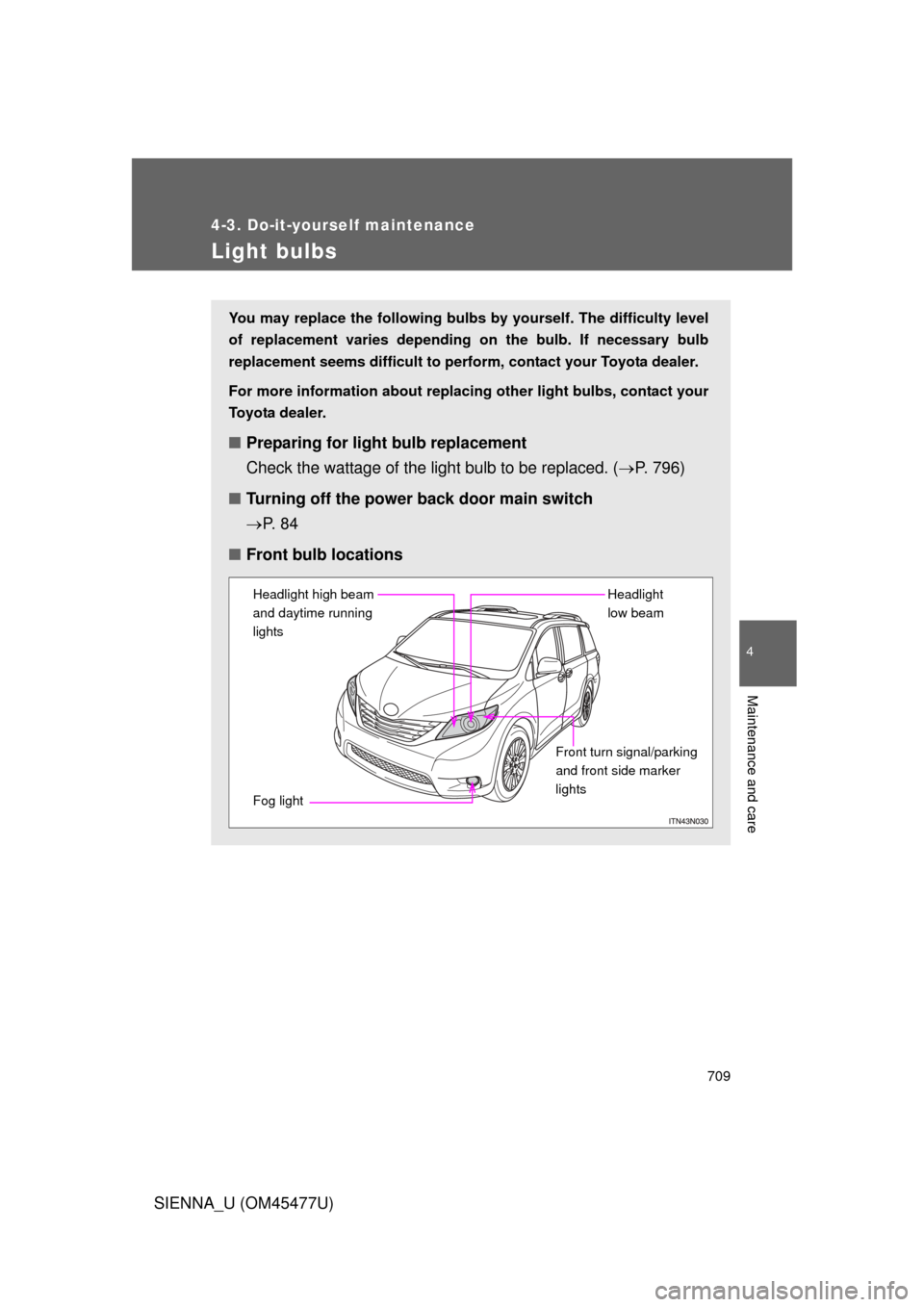

Light bulbs
You may replace the following bulbs by yourself. The difficulty level
of replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perfor m, contact your Toyota dealer.
For more information about replacing other light bulbs, contact your
Toyota dealer.
■ Preparing for light bulb replacement
Check the wattage of the light bulb to be replaced. ( P. 796)
■ Turning off the power back door main switch
P. 8 4
■ Front bulb locations
Fog light Headlight high beam
and daytime running
lights Headlight
low beam
Front turn signal/parking
and front side marker
lights
Page 710 of 860

710 4-3. Do-it-yourself maintenance
SIENNA_U (OM45477U)
Replacing light bulbs■ Headlight low beams (halogen bulb)
For left side only:
Open the fuse box cover. ( P. 696)
Unplug the connector while
pushing the lock release.
■ Rear bulb locations
Back-up lightRear turn
signal light
License plate
lightsTail light
STEP1
STEP2
