4-3. Do-it-yourself maintenance
4
Maintenance and care
SIENNA_U (OM45477U)
Turn the bulb base counterclock-
wise.

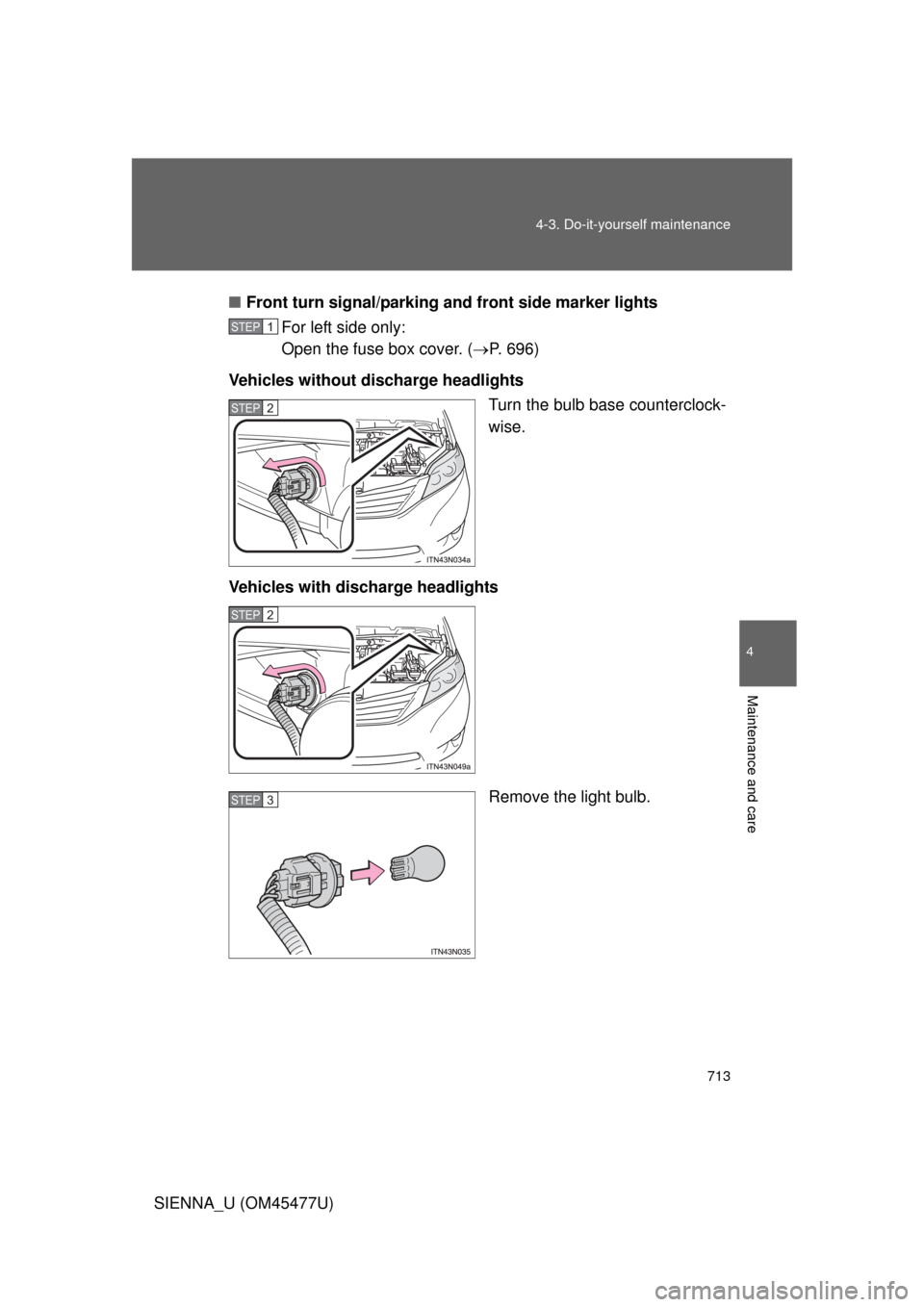

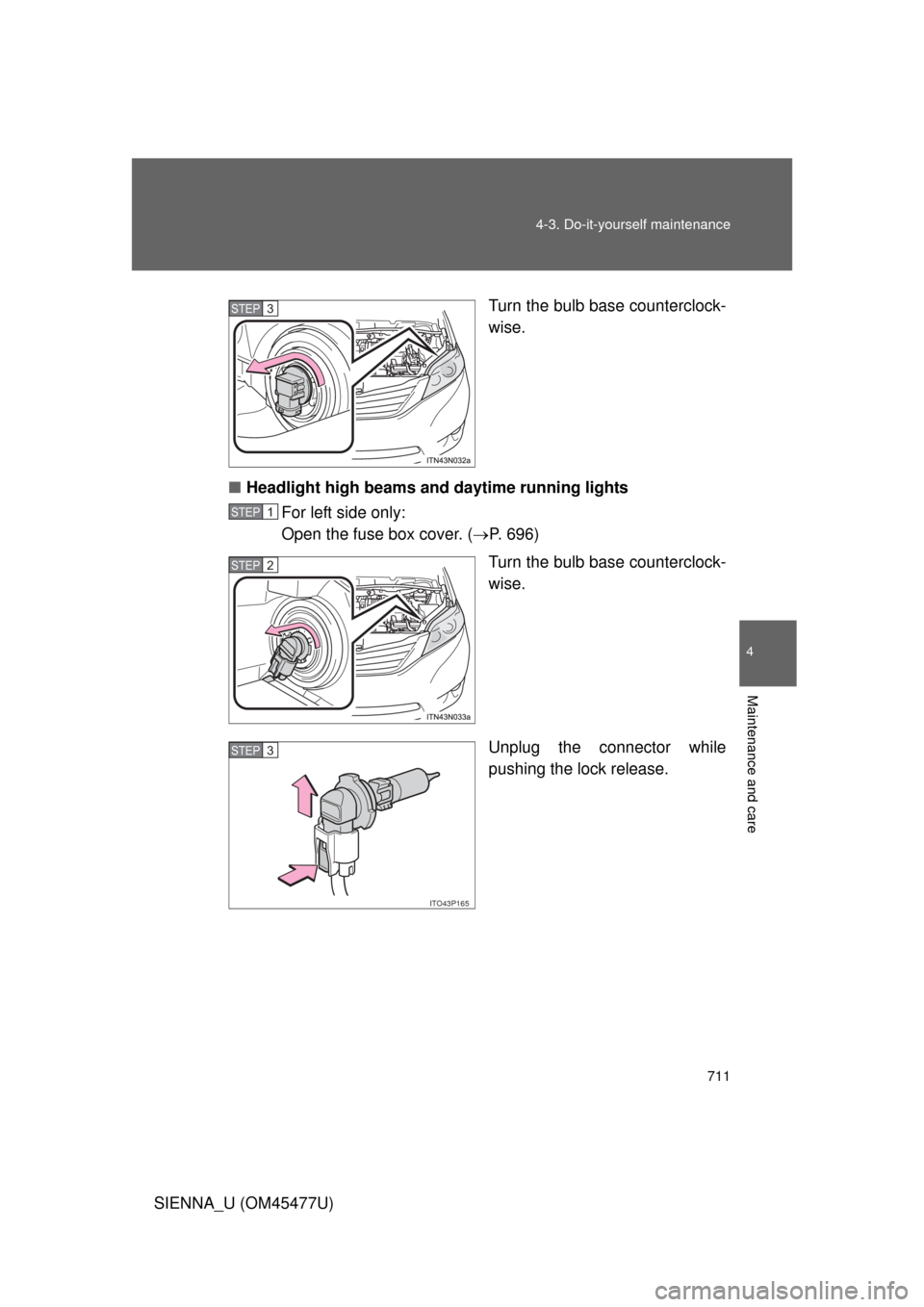

■ Headlight high beams and daytime running lights
For left side only:
Open the fuse box cover. ( P. 696)
Turn the bulb base counterclock-
wise.
Unplug the connector while
pushing the lock release.
STEP3
STEP1
STEP2
ITO43P165
STEP3
Page 712 of 860
712 4-3. Do-it-yourself maintenance
SIENNA_U (OM45477U)■

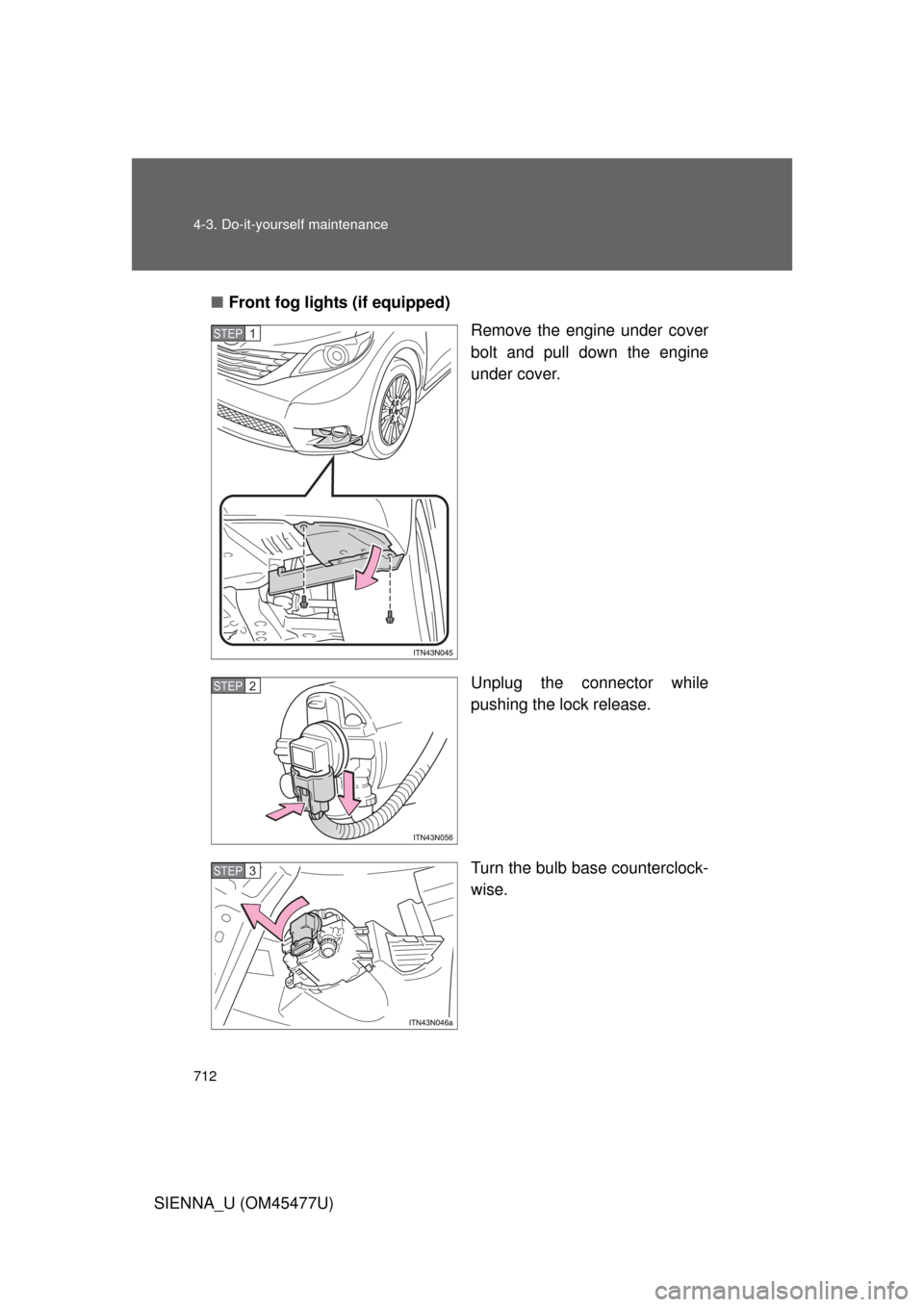

Front fog lights (if equipped)
Remove the engine under cover
bolt and pull down the engine
under cover.
Unplug the connector while
pushing the lock release.
Turn the bulb base counterclock-
wise.
STEP1
STEP2
STEP3
Page 713 of 860
713
4-3. Do-it-yourself maintenance
4
Maintenance and care
SIENNA_U (OM45477U)
■
Front turn signal/parking and front side marker lights
For left side only:
Open the fuse box cover. ( P. 696)
Vehicles without discharge headlights Turn the bulb base counterclock-
wise.
Vehicles with discharge headlights
Remove the light bulb.
STEP1
STEP2
STEP2
STEP3
Page 714 of 860
714 4-3. Do-it-yourself maintenance
SIENNA_U (OM45477U)■
Rear turn signal lights
Remove the securing bolts and
remove the unit.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP1
STEP2
STEP3
Page 715 of 860
715
4-3. Do-it-yourself maintenance
4
Maintenance and care
SIENNA_U (OM45477U)
■

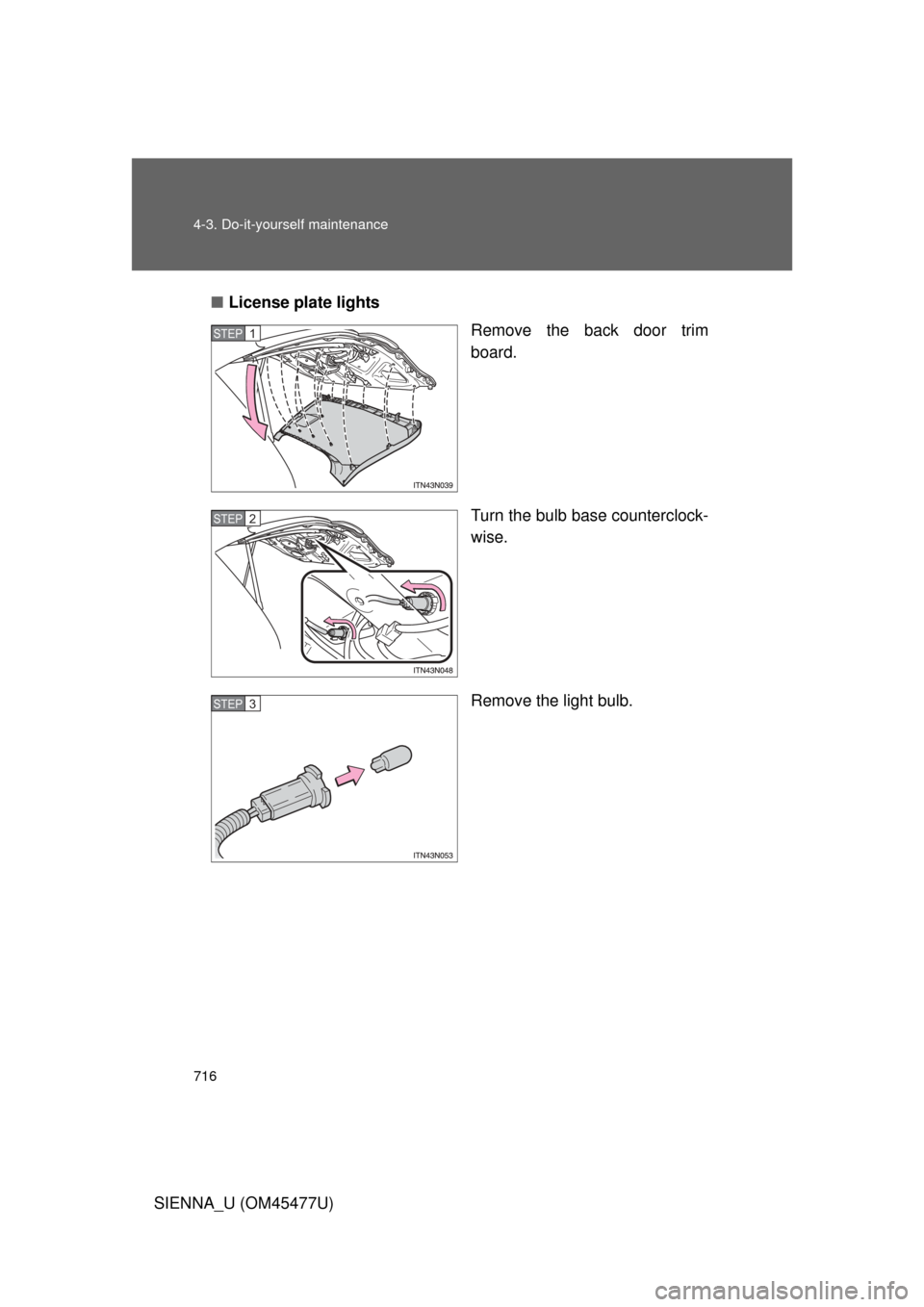

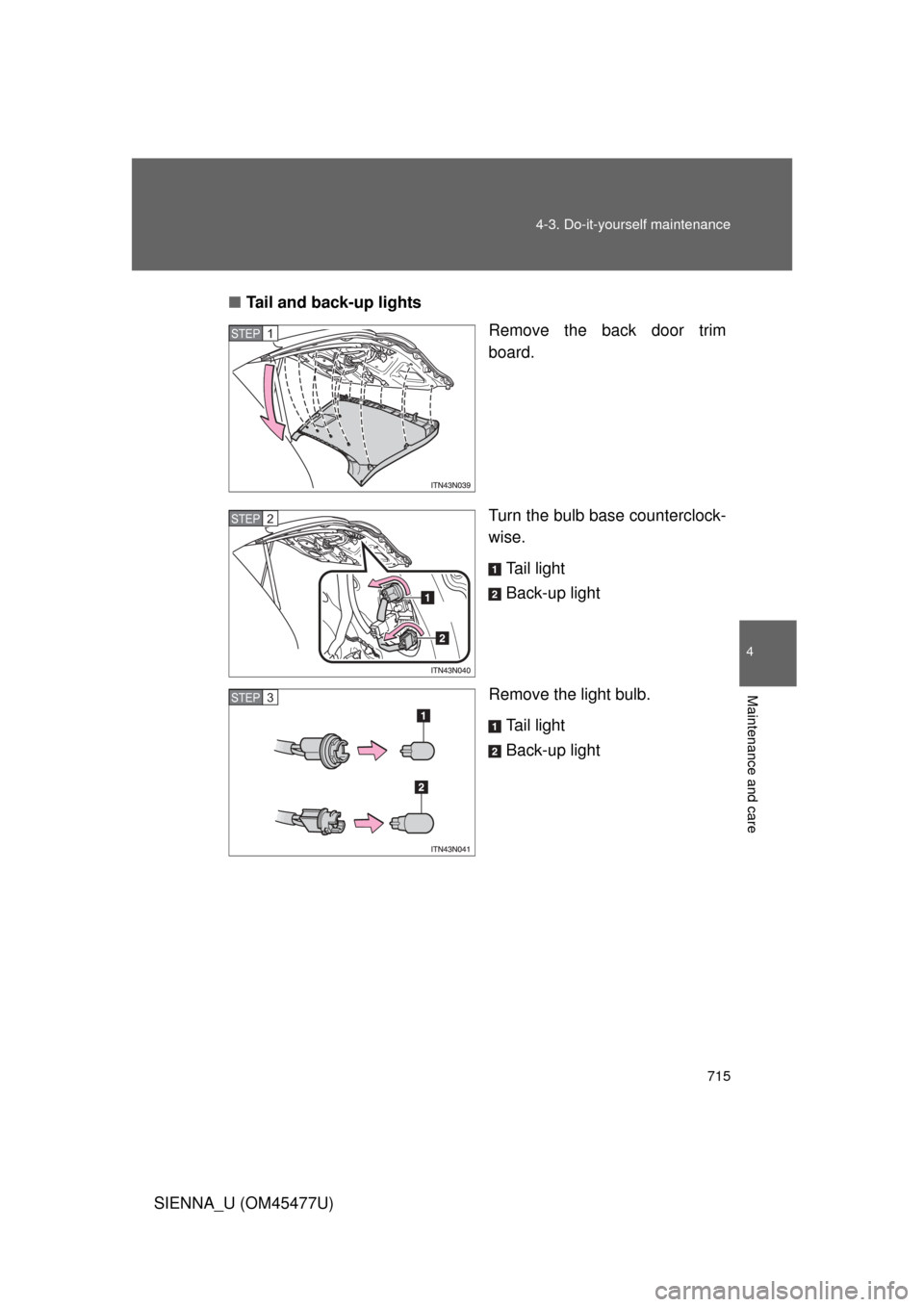

Tail and back-up lights
Remove the back door trim
board.
Turn the bulb base counterclock-
wise.
Tail light
Back-up light
Remove the light bulb. Tail light
Back-up light
STEP1
STEP2
STEP3
Page 716 of 860
716 4-3. Do-it-yourself maintenance
SIENNA_U (OM45477U)■
License plate lights
Remove the back door trim
board.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP1
STEP2
STEP3
Page 717 of 860

717
4-3. Do-it-yourself maintenance
4
Maintenance and care
SIENNA_U (OM45477U)
■
Lights other than the above
If any of the lights listed below has burnt out, have it replaced by
your Toyota dealer.
● Headlight low beams (discharge bulbs)
● High mounted stoplight
● Stop/tail and rear side marker lights
● Outer foot lights (if equipped)
■Discharge headligh ts (if equipped)
If voltage to the discharge bulbs is insufficient, the bulbs may not come on,
or may go out temporarily. The discharge bulbs will come on when normal
power is restored.
■ LED lights
The stop/tail and rear side marker lights and high mounted stoplight consists
of a number of LEDs. If any of the LEDs burn out, take your vehicle to your
Toyota dealer to have the light replaced.
■ Condensation build-up on th e inside of the lens
Contact your Toyota dealer for more information in the following situations.
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
● Large drops of water have built up on the inside of the lens.
● Water has built up inside the headlight.
■ When replacing light bulbs
P. 708
Page 718 of 860
718 4-3. Do-it-yourself maintenance
SIENNA_U (OM45477U)
CAUTION
■Replacing light bulbs
● Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. Hold the
bulb by the plastic or metal portion.
If the bulb is scratched or dropped it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.

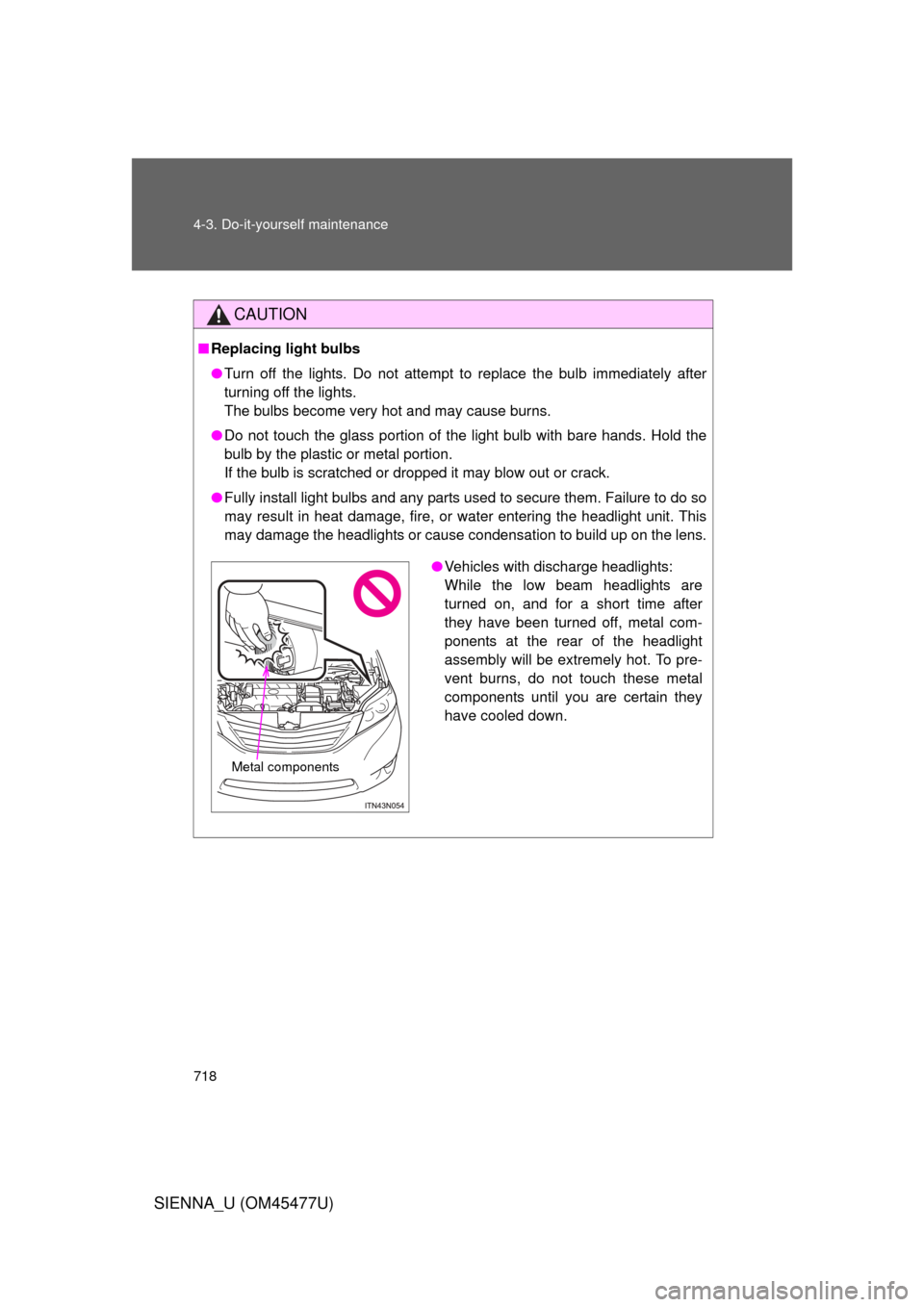

●Vehicles with discharge headlights:
While the low beam headlights are
turned on, and for a short time after
they have been turned off, metal com-
ponents at the rear of the headlight
assembly will be extremely hot. To pre-
vent burns, do not touch these metal
components until you are certain they
have cooled down.
Metal components
Page 719 of 860
719
4-3. Do-it-yourself maintenance
4
Maintenance and care
SIENNA_U (OM45477U)
CAUTION
■
Discharge headligh ts (if equipped)
● Contact your Toyota dealer before replacing discharge headlights (includ-
ing light bulbs).
● Do not touch the discharge headlight’s high voltage socket when the head-
lights are turned on.
An extremely high voltage of 30000 V will be discharged and could result
in serious injury or death by electric shock.
● Do not attempt to take apart or repair the low beam headlight bulbs, con-
nectors, power supply circuits, or related components.
Doing so could result in electric shock and serious injury or death.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.
NOTICE
■When installing the back door trim
To prevent damage, be careful not to pinch any of the wire harnesses or
connectors with the back door trim.
Page 720 of 860
720 4-3. Do-it-yourself maintenance
SIENNA_U (OM45477U)
