Page 691 of 860
691
4-3. Do-it-yourself maintenance
4
Maintenance and care
SIENNA_U (OM45477U)

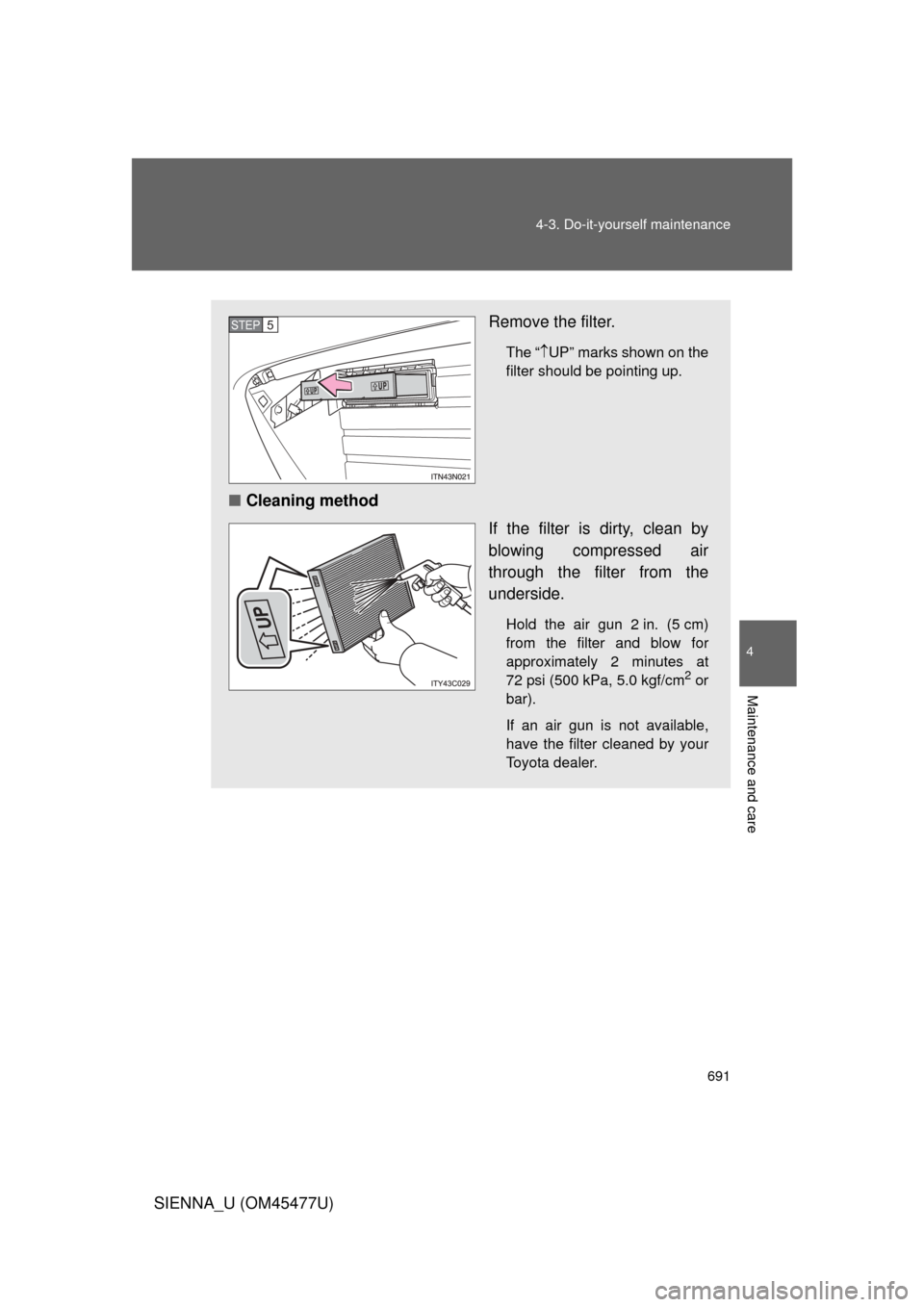

Remove the filter.
The
“ UP” marks shown on the
filter should be pointing up.
■ Cleaning method
If the filter is dirty, clean by
blowing compressed air
through the filter from the
underside.
Hold the air gun 2 in. (5 cm)
from the filter and blow for
approximately 2 minutes at
72 psi (500 kPa, 5.0 kgf/cm
2 or
bar).
If an air gun is not available,
have the filter cleaned by your
Toyota dealer.
STEP5
Page 692 of 860
692 4-3. Do-it-yourself maintenance
SIENNA_U (OM45477U)
■Checking interval
Inspect, clean and replace the air conditioning filter according to the mainte-
nance schedule. In dusty areas or areas with heavy traffic flow, more fre-
quent cleaning or early replacement may be required. (For scheduled
maintenance information, please refer to the “Scheduled Maintenance
Guide” or “Owner’s Manual Supplement”.)
■ If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace it if necessary.
NOTICE
■To prevent damage to the system
● When using the air conditioning system, make sure that a filter is always
installed.
● When cleaning the filter, do not clean with water.
Page 693 of 860
693
4-3. Do-it-yourself maintenance
4
Maintenance and care
SIENNA_U (OM45477U)

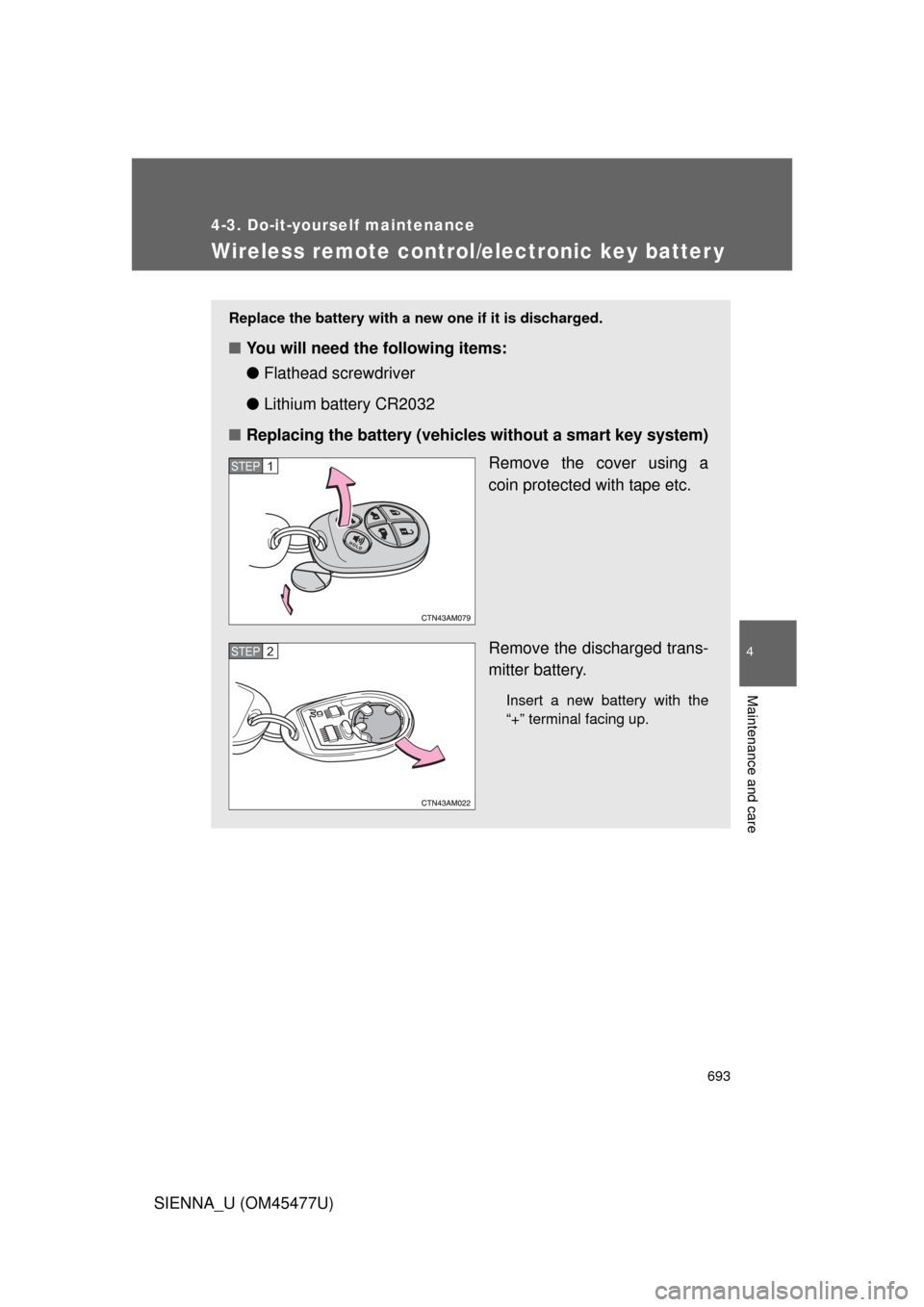

Wireless remote control/electronic key batter y
Replace the battery with a new one if it is discharged.
■You will need the following items:
●Flathead screwdriver
● Lithium battery CR2032
■ Replacing the battery (vehicles without a smart key system)
Remove the cover using a
coin protected with tape etc.
Remove the discharged trans-
mitter battery.
Insert a new battery with the
“+” terminal facing up.
STEP1
STEP2
Page 694 of 860
694 4-3. Do-it-yourself maintenance
SIENNA_U (OM45477U)

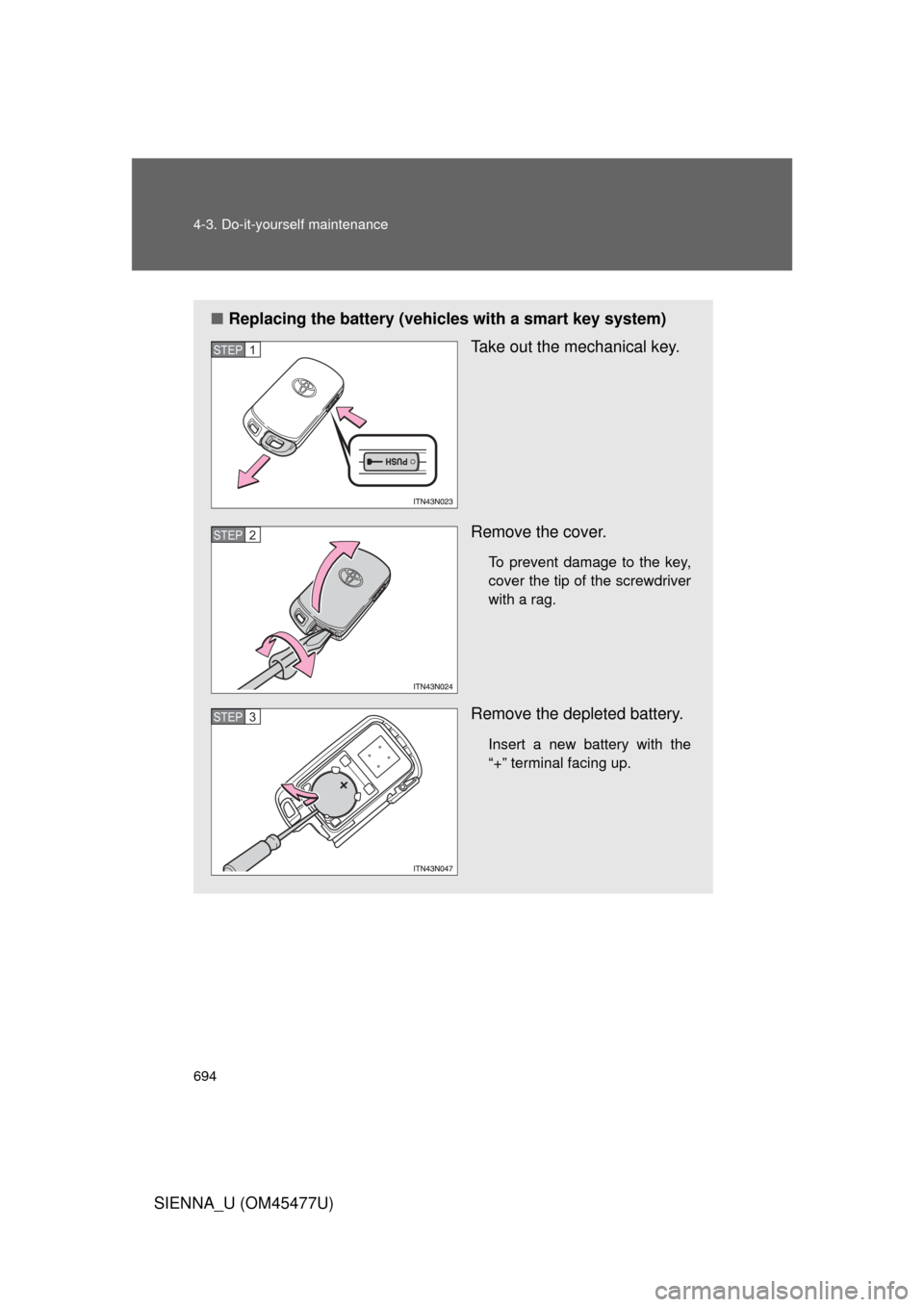

■Replacing the battery (vehicles with a smart key system)
Take out the mechanical key.
Remove the cover.
To prevent damage to the key,
cover the tip of the screwdriver
with a rag.
Remove the depleted battery.
Insert a new battery with the
“+” terminal facing up.
STEP1
STEP2
STEP3
Page 695 of 860

695
4-3. Do-it-yourself maintenance
4
Maintenance and care
SIENNA_U (OM45477U)
■
Use a CR2032 lithium battery
● Batteries can be purchased at your Toyota dealer, local electrical appli-
ance shops or camera stores.
● Replace only with the same or equivalent type recommended by the
manufacturer.
● Dispose of used batteries according to local laws.
■ If the key battery is depleted
The following symptoms may occur.
● The smart key system (if equipped) and wireless remote control will not
function properly.
● The operational range will be reduced.
CAUTION
■Removed battery and other parts
Keep away from children. These parts are small and if swallowed by a child,
they can cause choking. Failure to do so could result in death or serious
injury.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents.
● Always work with dry hands.
Moisture may cause the battery to rust.
● Do not touch or move any other components inside the remote control.
● Do not bend either of the battery terminals.
Page 696 of 860
696
4-3. Do-it-yourself maintenance
SIENNA_U (OM45477U)

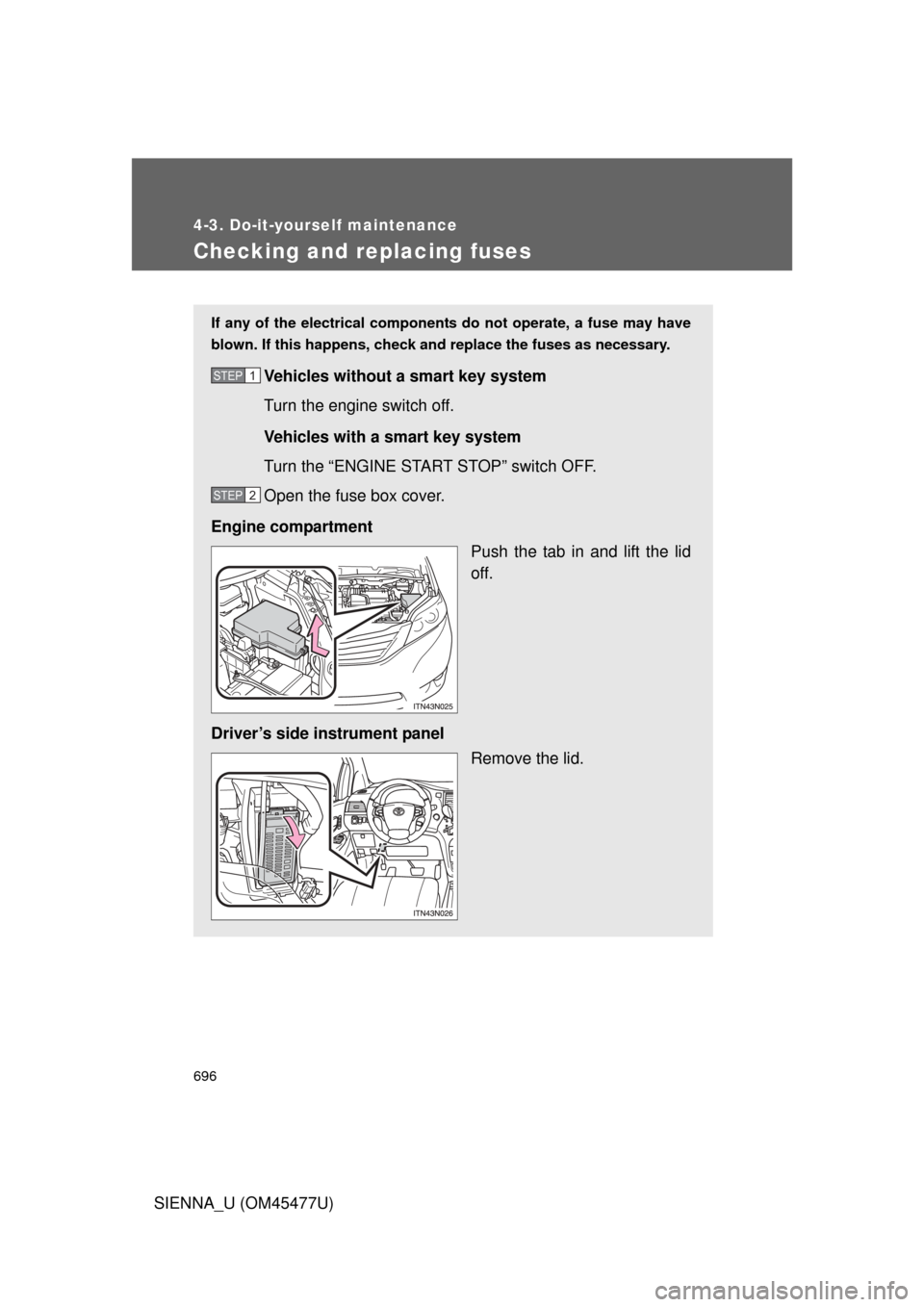

Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Vehicles without a smart key system
Turn the engine switch off.
Vehicles with a smart key system
Turn the “ENGINE START STOP” switch OFF.
Open the fuse box cover.
Engine compartment Push the tab in and lift the lid
off.
Driver’s side instrument panel Remove the lid.STEP1
STEP2
Page 697 of 860
697
4-3. Do-it-yourself maintenance
4
Maintenance and care
SIENNA_U (OM45477U)

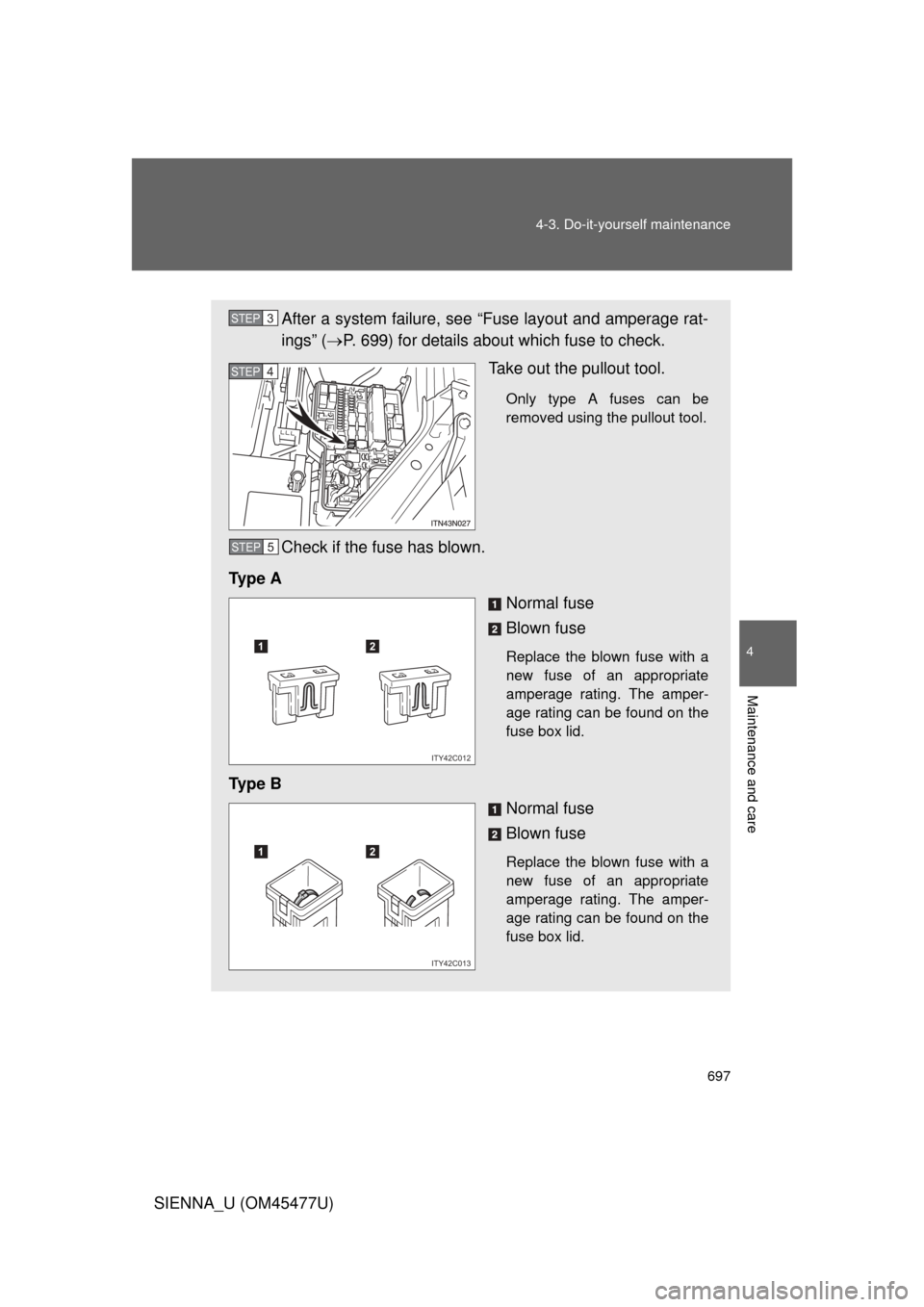

After a system failure, see “Fuse layout and amperage rat-
ings” (
P. 699) for details about which fuse to check.
Take out the pullout tool.
Only type A fuses can be
removed using the pullout tool.
Check if the fuse has blown.
Ty p e A Normal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
Ty p e BNormal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
STEP3
STEP4
STEP5
12
ITY42C012
12
ITY42C013
Page 698 of 860
698 4-3. Do-it-yourself maintenance
SIENNA_U (OM45477U)

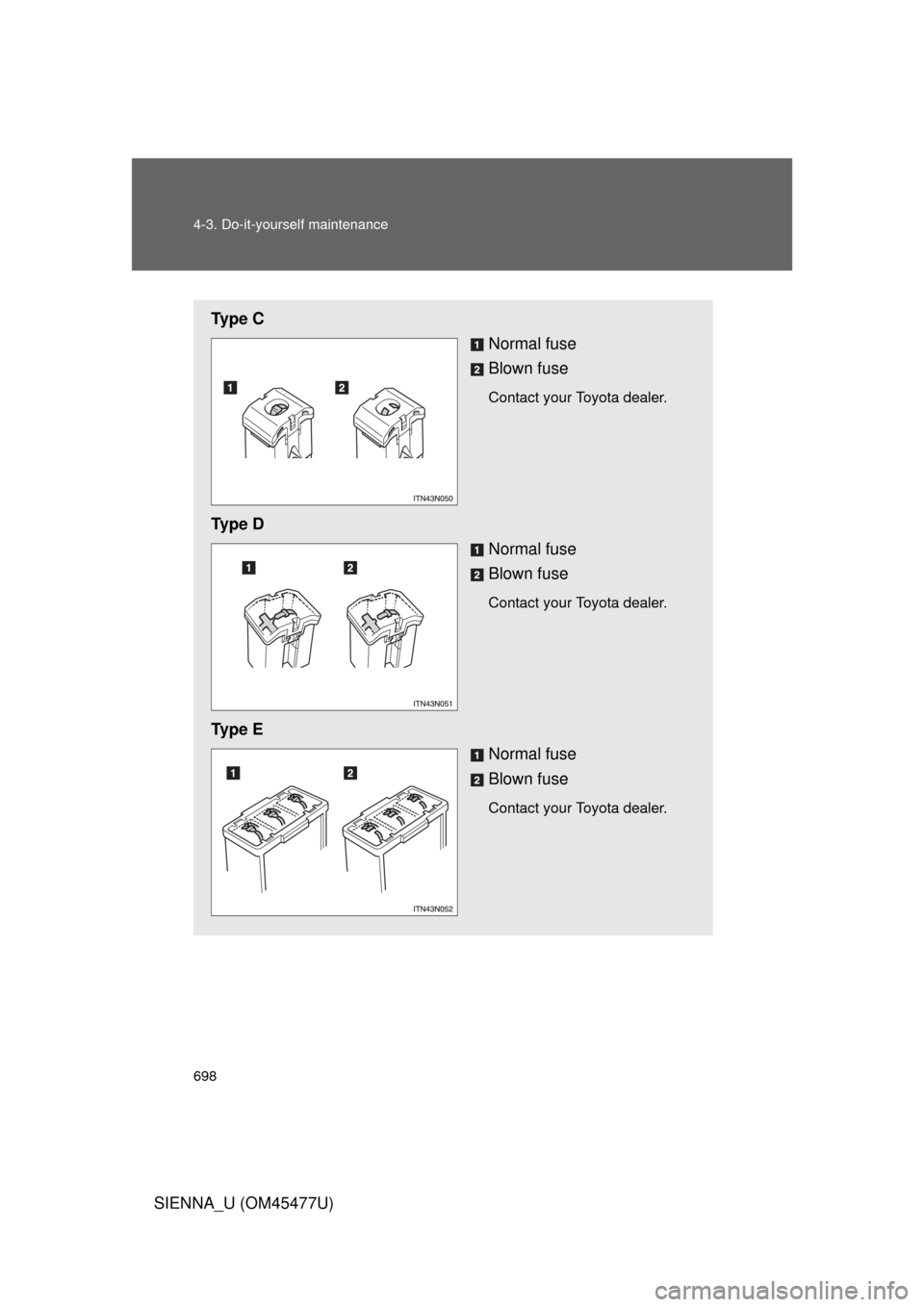

Ty p e CNormal fuse
Blown fuse
Contact your Toyota dealer.
Ty p e DNormal fuse
Blown fuse
Contact your Toyota dealer.
Ty p e ENormal fuse
Blown fuse
Contact your Toyota dealer.
Page 699 of 860
699
4-3. Do-it-yourself maintenance
4
Maintenance and care
SIENNA_U (OM45477U)

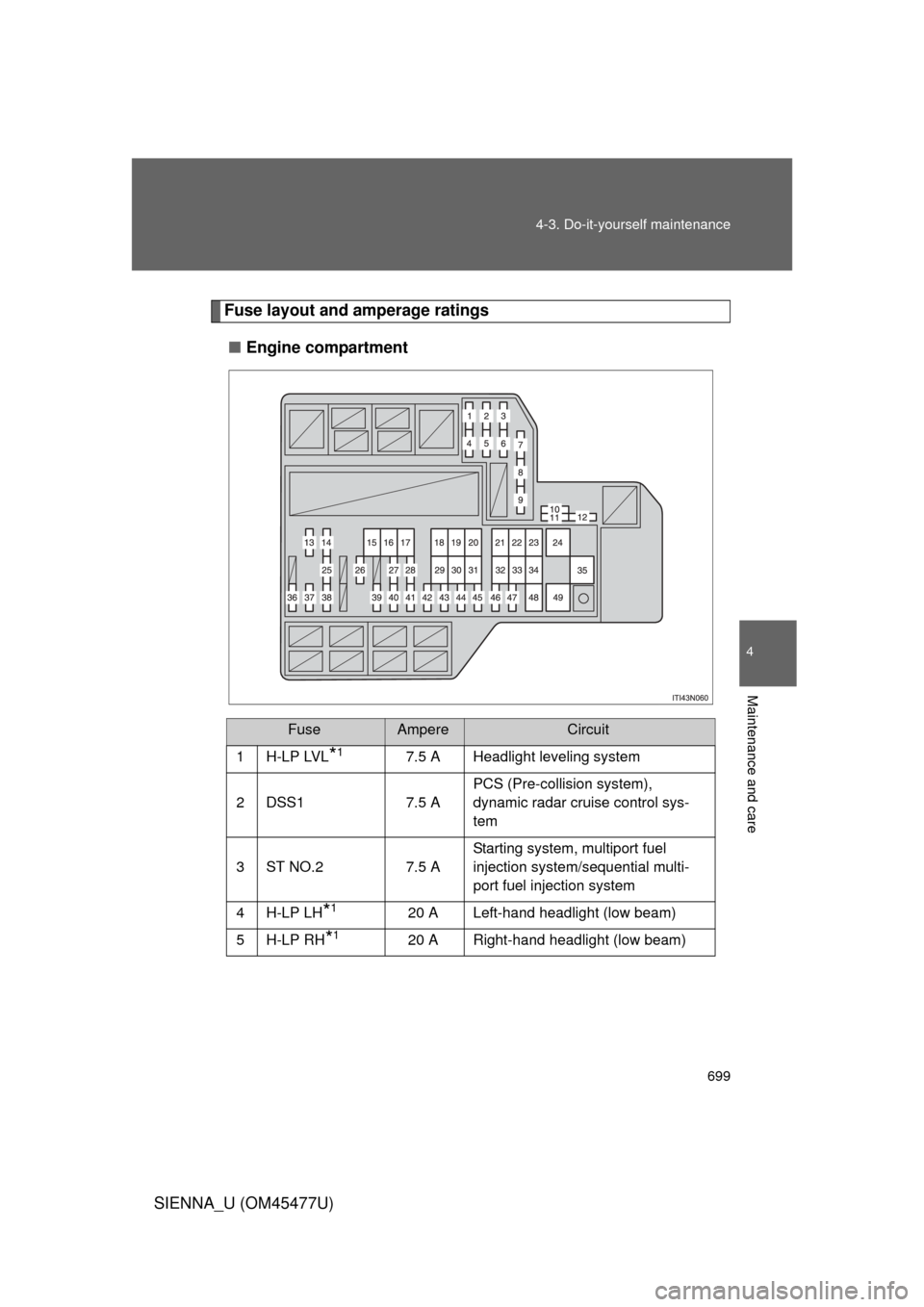

Fuse layout and amperage ratings
■ Engine compartment
FuseAmpereCircuit
1H-LP LVL
*17.5 A Headlight leveling system
2DSS1 7.5 A PCS (Pre-collision system),
dynamic radar cruise control sys-
tem
3 ST NO.2 7.5 A Starting system, multiport fuel
injection system/sequential multi-
port fuel injection system
4H-LP LH
*120 A Left-hand headlight (low beam)
5H-LP RH
*120 A Right-hand headlight (low beam)
Page 700 of 860
700 4-3. Do-it-yourself maintenance
SIENNA_U (OM45477U)
FuseAmpereCircuit
6 ECT 7.5 A Multiport fuel injection system/
sequential multiport fuel injection
system, automatic transaxle
7 EFI NO.2 10 A Multiport fuel injection system/
sequential multiport fuel injection
system
8 H-LP RH HI 10 A Right-hand headlight (high beam)
9 H-LP LH HI 10 A Left-hand headlight (high beam)
10 SPARE 10 A Spare-fuse 11 SPARE 15 A Spare-fuse
12 SPARE 20 A Spare-fuse
13 MG CLT 7.5 A A/C magnetic clutch
14 INV 20 A Inverter
15 PTC HTR
NO.1
*250 A PTC heater
16 PTC HTR
NO.2
*230 A PTC heater
17 PTC HTR
NO.3
*230 A PTC heater
18 A/C RR 40 A Rear air conditioning system
19 PBD 30 A Power back door
20 FOLD SEAT
*330 A Power third seat
21 HTR 50 A Air conditioning system
22 PSB
*330 A Pre-collision seat belt
23 A/A SEAT 30 A AUTO ACCESS SEAT
