display TOYOTA SIENNA 2013 XL30 / 3.G Owners Manual

574 3-5. Using the hands-free phone system (for cellular phone)
SIENNA_OM_OM45472U_(U)Inputting a phone number using
STEP2-1: Select “Manual Input” using .
STEP2-2: Input a phone number using , and press once again.
Input the phone number 1 digit at a time.
Selecting a phone number from outgoing or incoming call his-
torySTEP2-1: Select “Call History” using a voice command or
.
STEP2-2: Select “Outgoing” or “Incoming” using a voice com-
mand or .
STEP2-3: Select the data to be re gistered by either of the fol-
lowing methods:
a. Say “Previous” or “Go back” until the desired data is displayed, and select “Confirm” using a
voice command.
b. Select the desired data using .

606
3-8. Other interior features
SIENNA_OM_OM45472U_(U)
Clock
: If equipped
■The clock is displayed when
Vehicles without a smart key system
The engine switch is in the “ACC” or “ON” position.
Vehicles with a smart key system
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON
mode.
■ When disconnecting and reco nnecting battery terminals
The time display will automatically be set to 1:00.
Vehicles with multi-information display
 P. 254
Vehicles without multi-information display Adjusts the hours.
Adjusts the minutes.

632
3-8. Other interior features
SIENNA_OM_OM45472U_(U)

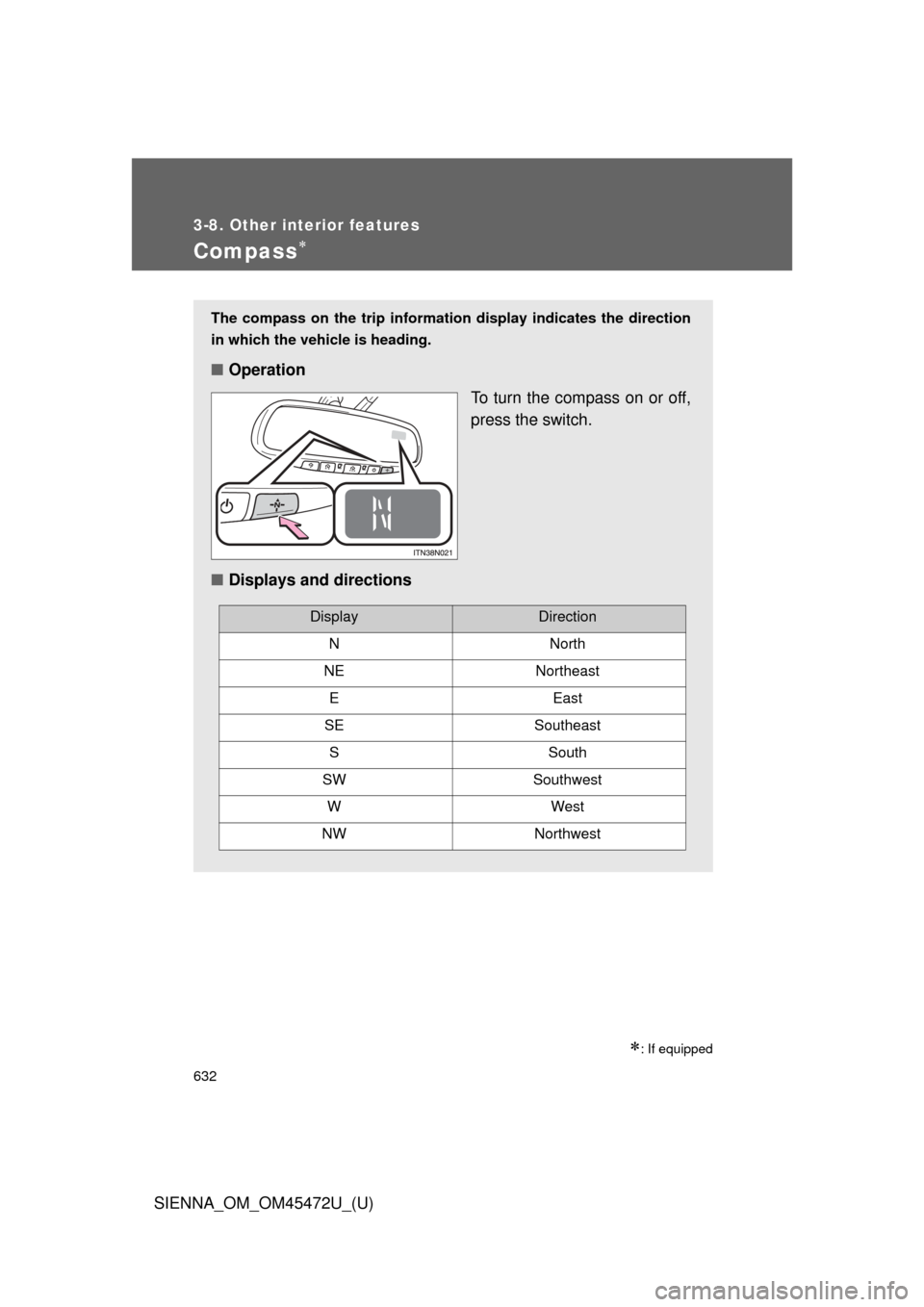

Compass
: If equipped
The compass on the trip information display indicates the direction
in which the vehicle is heading.
■Operation
To turn the compass on or off,
press the switch.
■ Displays and directions
DisplayDirection
NNorth
NENortheast
EEast
SESoutheast
SSouth
SWSouthwest
WWest
NWNorthwest

633
3-8. Other interior features
3
Interior features
SIENNA_OM_OM45472U_(U)
Calibrating the compass
The direction display deviates fr om the true direction determined by
the earth’s magnetic field. The amoun t of deviation varies according
to the geographic position of the vehicle.
If you cross over a map boundary shown in illustration, the compass will
deviate.
To obtain higher precision or perfect calibration, refer to the following.
Samoa: 5 Guam: 8 Saipan: 8

634 3-8. Other interior features
SIENNA_OM_OM45472U_(U)■
Deviation calibration
Stop the vehicle where it is safe to drive in a circle.
Press and hold the switch.
A number (1 to 15) appears on
the compass display.
Referring to the map above, pres s the switch to select the
number of the zone you are in.
If the direction is displayed several seconds after adjustment, the
calibration is complete.
■ Circling calibration
When “C” appears on the dis-
play, drive the vehicle at 5 mph
(8 km/h) or less in a circle until a
direction is displayed.
If there is not enough space to
drive in a circle, drive around the
block until the direction is dis-
played.
STEP1
STEP2
STEP3

635
3-8. Other interior features
3
Interior features
SIENNA_OM_OM45472U_(U)
■
Conditions unfavorable to correct operation
The compass may not show the correct direction in the following conditions:
● The vehicle is stopped immediately after turning.
● The vehicle is on an inclined surface.
● The vehicle is in a place where the earth’s magnetic field is subject to
interference by artificial magnetic fields (underground car park/parking
lot, under a steel tower, between buildings, roof car park/parking lot, near
an intersection, near a large vehicle, etc.).
● The vehicle has become magnetized.
(There is a magnet or metal object near the trip information display.)
● The battery has been disconnected.
● A door is open.
CAUTION
■While driving the vehicle
Do not adjust the display. Be sure to adjust the display only when the vehicle
is stopped.
■ When doing the circling calibration
Be sure to secure a wide space, and watch out for people and vehicles in the
neighborhood. Do not violate any local traffic rules while performing circling
calibration.

647
4-1. Maintenance and care
4
Maintenance and care
SIENNA_OM_OM45472U_(U)
■
High pressure car washes
● Do not allow the nozzles of the car wash to come within close proximity
of the windows.
● Before using car wash, check that the fuel filler door on your vehicle is
closed properly.
■ Aluminum wheels
● Remove any dirt immediately by using a neutral detergent. Do not use
hard brushes or abrasive cleaners. Do not use strong or harsh chemical
cleaners.
Use the same mild detergent and wax as used on the paint.
● Do not use detergent on the wheels when they are hot, for example after
driving for long distance in the hot weather.
● Wash detergent from the wheels immediately after use.
■ Bumpers and side moldings
Do not scrub with abrasive cleaners.
■ Notes for vehicles with a smar t key system (if equipped)
● If the door handle becomes wet while the electronic key is within the
effective range, the door may lock and unlock repeatedly. Place the key
in a position 6 ft. (2 m) or more separate from the vehicle while the vehi-
cle is being washed. (Take care to ensure that the key is not stolen.)
● If the electronic key is inside the vehicle and a door handle becomes wet
during a car wash, a message may be shown on the multi-information
display and a buzzer will sound outside the vehicle. To turn off the alarm,
lock all the doors.

656 4-2. Maintenance
SIENNA_OM_OM45472U_(U)
■Allow inspection and repairs to be performed by a Toyota dealer
● Toyota technicians are well-trained specialists and are kept up to date
with the latest service information. They are well informed about the
operations of all systems on your vehicle.
● Keep a copy of the repair order. It proves that the maintenance that has
been performed is under warranty coverage. If any problem should arise
while your vehicle is under warranty, your Toyota dealer will promptly
take care of it.
■ Reset the maintenance data (U.S.A. only)
After the required maintenance is preformed according to the maintenance
schedule, please reset the maintenance data.
To reset the data, follow the procedures described below:
Vehicles without a smart key system
Switch the display to the trip meter A ( P. 244) and then turn the
engine switch off.
Vehicles with a smart key system
Switch the display to the trip meter A ( P. 244) and then turn the
“ENGINE START STOP” switch off.
Vehicles without a smart key system
While pressing the trip meter reset button ( P. 244), turn the
engine switch to the “ON” position.
Vehicles with a smart key system
While pressing the trip meter reset button ( P. 244), turn the
“ENGINE START STOP” switch to IGNITION ON mode.
Vehicles without a multi-information display
Continue to press and hold the button until the trip meter A displays
“000000”.
Vehicles with a multi-information display
Continue to press and hold the button until “COMPLETE” appears
on the multi-information display.
STEP1
STEP2
STEP3

699
4-3. Do-it-yourself maintenance
4
Maintenance and care
SIENNA_OM_OM45472U_(U)

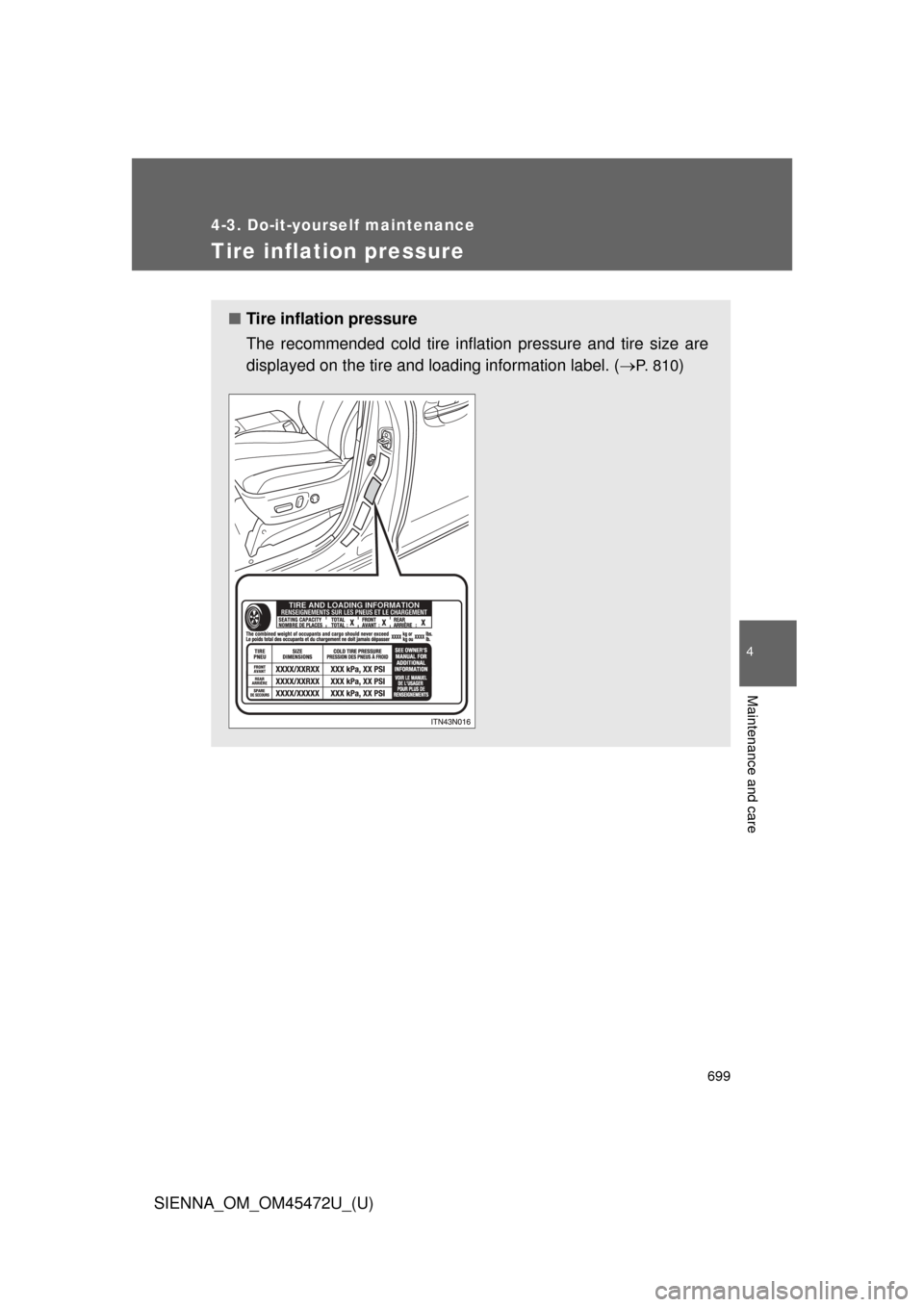

Tire inflation pressure
■Tire inflation pressure
The recommended cold tire inflation pressure and tire size are
displayed on the tire and loading information label. ( 
P. 8 1 0)

720 4-3. Do-it-yourself maintenance
SIENNA_OM_OM45472U_(U)■

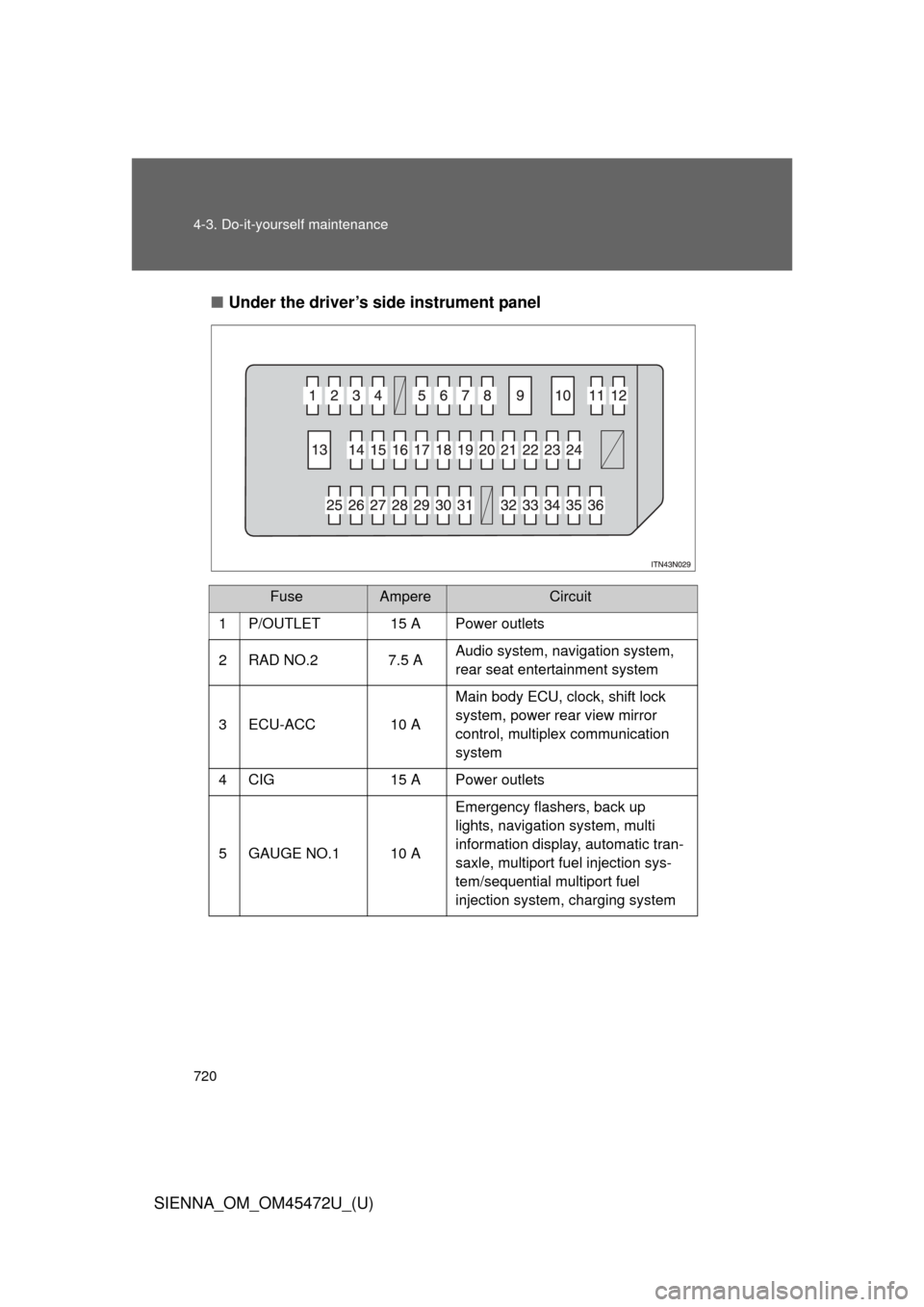

Under the driver’s side instrument panel
FuseAmpereCircuit
1P/OUTLET15 APower outlets
2 RAD NO.2 7.5 A Audio system, navigation system,
rear seat entertainment system
3 ECU-ACC 10 A Main body ECU, clock, shift lock
system, power rear view mirror
control, multiplex communication
system
4 CIG 15 A Power outlets
5 GAUGE NO.1 10 A Emergency flashers, back up
lights, navigation system, multi
information display, automatic tran-
saxle, multiport fuel injection sys-
tem/sequential multiport fuel
injection system, charging system
