722 4-3. Do-it-yourself maintenance
SIENNA_OM_OM45472U_(U)
FuseAmpereCircuit
16 PSD LH 25 A Power sliding door (left-side)
17 4WD 7.5 A Active Torque Control 4WD
18 AM1 10 A Starting system
19 GAUGE NO.2 7.5 A Gauges and meters, multi informa-
tion display
20 IG2 7.5 A Automatic transaxle, multiport fuel
injection system/sequential multi-
port fuel injection system, SRS air-
bag system, front passenger
occupant classification system,
steering lock system, smart key
system, starting system, fuel pump
21 PANEL 10 A Air conditioning system, navigation
system, front passenger’s seat belt
reminder light, audio system, steer-
ing switch, intuitive parking assist
switch, personal/interior light main
switch, shift lever light, headlight
levering switch, power door lock
main switch, clock, power quarter
window switch, seat heater switch,
emergency flashers, rear window
defogger switch, vehicle stability
control off switch, console box light,
power slide switch light

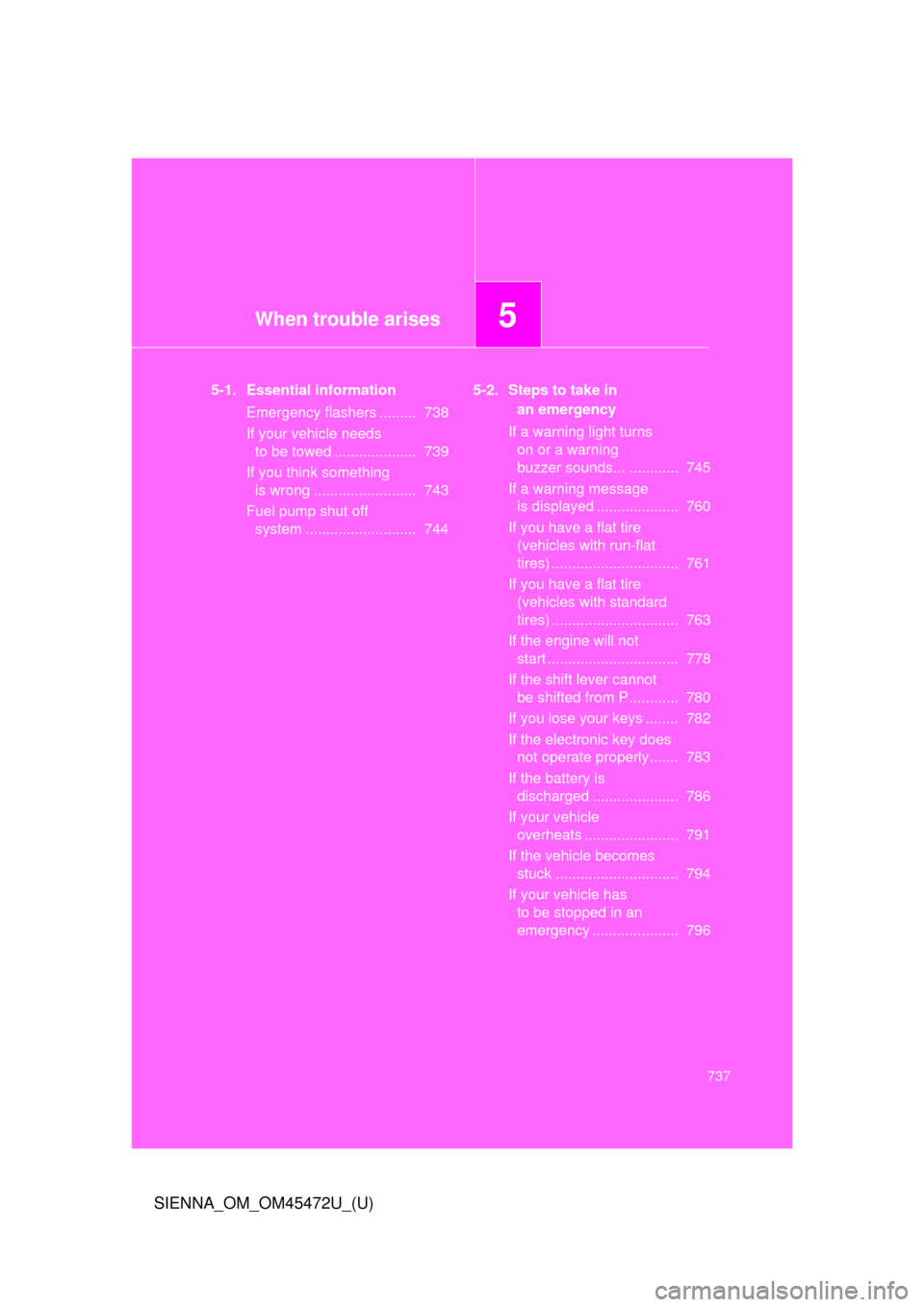

When trouble arises5
737
SIENNA_OM_OM45472U_(U)
5-1. Essential informationEmergency flashers ......... 738
If your vehicle needs to be towed .................... 739
If you think something is wrong ......................... 743
Fuel pump shut off system ........................... 744 5-2. Steps to take in
an emergency
If a warning light turns on or a warning
buzzer sounds... ............ 745
If a warning message is displayed .................... 760
If you have a flat tire (vehicles with run-flat
tires) ............................... 761
If you have a flat tire (vehicles with standard
tires) ............................... 763
If the engine will not start ................................ 778
If the shift lever cannot be shifted from P ............ 780
If you lose your keys ........ 782
If the electronic key does not operate properly....... 783
If the battery is discharged ..................... 786
If your vehicle overheats ....................... 791
If the vehicle becomes stuck .............................. 794
If your vehicle has to be stopped in an
emergency ..................... 796

760
5-2. Steps to take in an emergency
SIENNA_OM_OM45472U_(U)

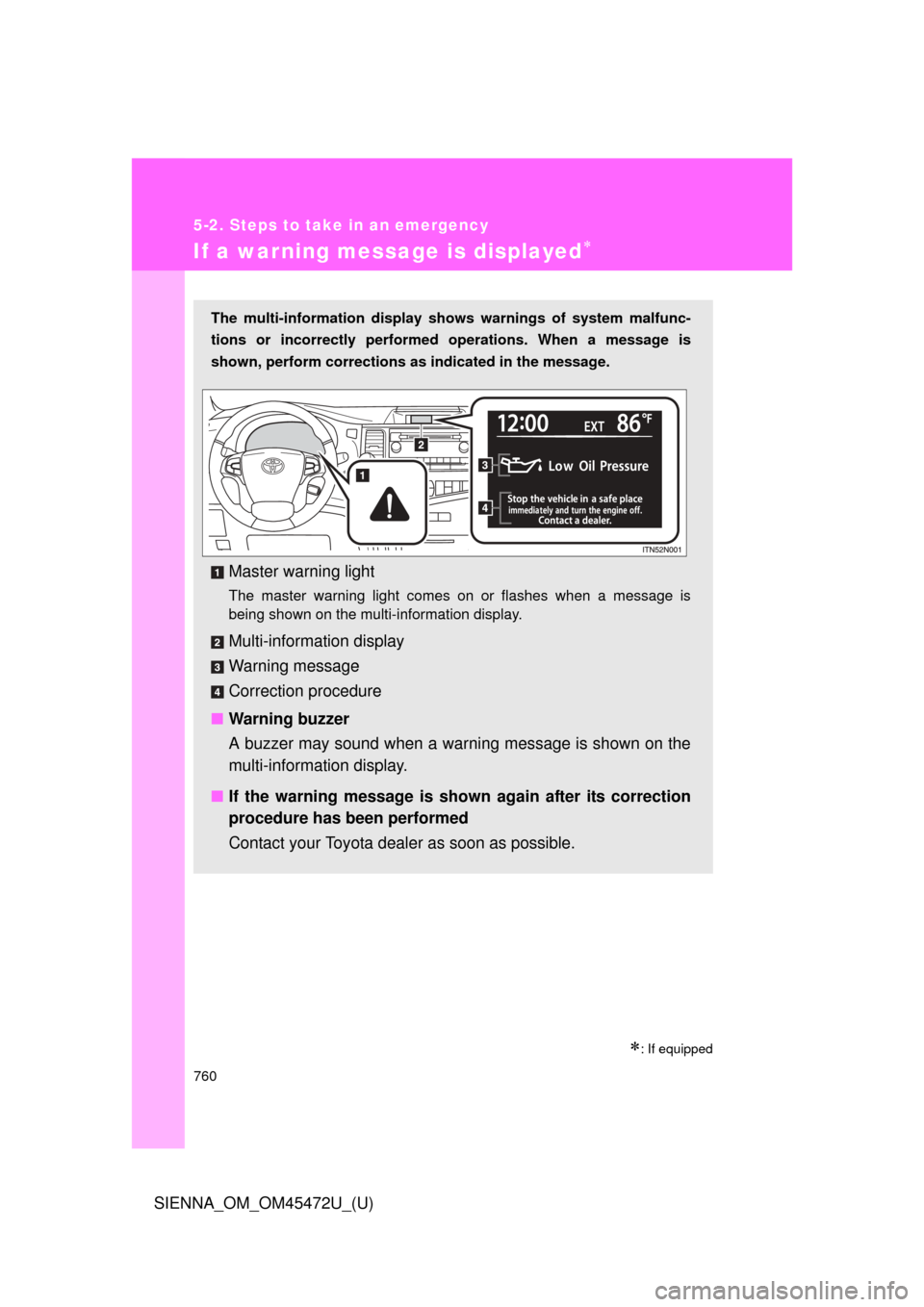

If a warning message is displayed
: If equipped
The multi-information display shows warnings of system malfunc-
tions or incorrectly performed operations. When a message is
shown, perform corrections as indicated in the message.
Master warning light
The master warning light comes on or flashes when a message is
being shown on the multi-information display.
Multi-information display
Warning message
Correction procedure
■ Warning buzzer
A buzzer may sound when a warning message is shown on the
multi-informat ion display.
■ If the warning message is shown again after its correction
procedure has been performed
Contact your Toyota dealer as soon as possible.

834 6-2. Customization
SIENNA_OM_OM45472U_(U)
ItemFunctionDefault settingCustomizedsetting
Power
sliding door
(if equipped)
(
P. 67) Operation signal
(buzzer)
Off On
Opening and closing
operation One short push Push and hold
Automatic
light control
system
( P. 268) Time elapsed before
headlights automati-
cally turn off after doors
are closed
*
30 seconds
0 second
60 seconds
90 seconds
Daytime running light
system (U.S.A. only) On Off
Light sensor sensitivity Level 3 Level 1 to 5
Automatic High Beam
(if equipped)
*On Off
Alarm
system
( P. 162) Time elapsed before
the alarm is set
14 seconds 30 seconds
Multi-
information
display
( P. 254) Language selection
*English
French
Spanish

835
6-2. Customization
6
Vehicle specifications
SIENNA_OM_OM45472U_(U)
*: For vehicles with the multi-information display, the setting can be changed by
operating the multi-information display. (
P. 836)
ItemFunctionDefault settingCustomized setting
Illumination
(
P. 580) Time elapsed before
lights turn off
15 seconds7.5 seconds
30 seconds
Operation when the
doors are unlocked On Off
Operation after the
engine switch is turned
to the “LOCK” position On Off
Rear ceiling light On Off
Outer foot lights On Off
Intuitive
parking
assist
(
P. 316) Buzzer volume Max. Min. to Max.
Seat belt
reminder
(
P. 749) Vehicle speed linked
seat belt reminder
buzzer
On Off

836 6-2. Customization
SIENNA_OM_OM45472U_(U)
Customizing the features by using the multi-information display
Press the “SETUP” button while
the vehicle is stopped.
The “Custom Settings” screen is
displayed on the multi-information
display.
If left idle for approximately 20
seconds, the display will return to
the previous screen.
Select the setting you wish to
change by pressing the “INFO”
or “SETUP” button, then press
the “SELECT RESET” button to
select.
If you select “Exit” and press the
“SELECT RESET” button, the
display will return to the previous
screen.
Select the setting you wish to
change by pressing the “INFO”
or “SETUP” button, and press
the “SELECT RESET” button.
The illustration assumes that
“Door” was chosen in .
The current setting is indicated by
yellow text.
If you select “Return” and press
the “SELECT RESET” button, the
display will return to the “Custom
Settings” screen.
STEP1
STEP2
STEP3
STEP2

837
6-2. Customization
6
Vehicle specifications
SIENNA_OM_OM45472U_(U)
Choose a desired setting by
pressing the “INFO” or “SETUP”
button, then press the “SELECT
RESET” button to select.
If any settings are changed, the
display will revert to the previous
screen.
The illustration assumes that
“Auto Locking” was chosen in
.
The current setting is indicated by
yellow text.
If you select “Return” and press
the “SELECT RESET” button, the
display will revert to the previous
screen.
■ Restoring default settings
Press the “SETUP” button while
the vehicle is stopped.
The “Custom Settings” screen is
displayed on the multi-information
display.
If left idle for approximately 20
seconds, the display will revert to
the previous screen.
STEP4
STEP3
STEP1

838 6-2. Customization
SIENNA_OM_OM45472U_(U)Select “Default Settings” by
pressing the “INFO” or “SETUP”
button, and press the “SELECT
RESET” button.
If you select “Exit” and press the
“SELECT RESET” button, the
display will revert to the previous
screen.
Select “Yes” by pressing the
“INFO” or “SETUP” button, and
press the “SELECT RESET” but-
ton.
“Default Settings Restored” is dis-
played, and the default settings
are restored.
If you select “No” and press the
“SELECT RESET” button, the
display will revert to the “Custom
Settings” screen without restor-
ing the default settings.
STEP2
STEP3
■
If the vehicle is moved while setti ngs are being changed on the multi-
information display
 P. 265

862 Alphabetical index
SIENNA_OM_OM45472U_(U)
CleaningExterior .................................. 646
Interior ...................................651
Seat belts ..............................652
Clock ................................. 254, 606
Compass ...................................632
Condenser ................................680
Console box ............................. 589
Conversation mirror ................607
Cooling system Engine overheating ............... 791
Cruise control
Cruise control ....................... 295
Dynamic radar cruise control .................................300
Cup holders ..............................593
Curtain shield airbags ............. 168
Customizable features............. 831 Daytime running light
system .................................... 272
Defogger
Rear window ......................... 419
Side mirrors........................... 419
Dimension ................................ 800
Dinghy towing .......................... 391
Display Dynamic radar cruise
control ................................. 300
Multi-information display ....... 254
Trip information ..................... 254
Warning messages ............... 760
Do-it-yourself maintenance .... 663
Door courtesy lights Door courtesy lights .............. 580
Wattage................................. 812
Door lock
Back door ................................ 82
Front door ............................... 60
Sliding door ............................. 67
Wireless remote control key ........................................ 53
Doors Back door ................................ 82
Door lock ..................... 53, 60, 68
Front doors.............................. 60
Side mirrors........................... 140
Sliding doors ........................... 67
Driver’s seat belt reminder light ......................................... 749
Driving Break-in tips .......................... 214
Correct posture ..................... 166
Procedures............................ 212
Winter driving tips ................. 367
Driving position memory ........ 120
DVD player........ 513, 523, 527, 528D

863
Alphabetical index
SIENNA_OM_OM45472U_(U)
Electric power steering........... 329
Electronic key
If your electronic key
does not operate
properly .............................. 783
Emergency, in case of
If the back door opener is inoperative ........................... 86
If the electronic key
does not operate
properly .............................. 783
If the engine will not start...... 778
If the shift lever cannot be
shifted ................................ 780
If the vehicle has
discharged battery ............. 786
If the warning buzzer sounds... ........................... 745
If the warning light turns on .............................. 745
If the warning message is displayed ............................ 760
If you have a flat tire .... 761, 763
If you lose your keys............. 782
If you think something is wrong ................................. 743
If your vehicle becomes stuck................................... 794
If your vehicle has to be stopped in an emergency ................ 796
If your vehicle needs to be
towed ................................. 739
If your vehicle overheats ...... 791
Emergency flashers ................ 738 Engine
Accessory mode....................231
Compartment ........................671
Engine switch ................226, 229
Hood......................................667
How to start the engine .........................226, 229
Identification number .............801
If the engine will not start ......778
Ignition switch................226, 229
Overheating...........................791
Engine coolant
Capacity ................................806
Checking ...............................678
Preparing and checking before winter .......................367
Engine coolan t temperature
gauge ......................................244
Engine immobilizer system.....159
Engine oil Capacity ................................804
Checking ...............................673
Preparing and checking before winter .......................367
Engine switch ...................226, 229
EPS ............................................329
Event data recorder ...................27E
