TOYOTA SIENNA 2013 XL30 / 3.G Owners Manual

611
3-8. Other interior features
3
Interior features
SIENNA_OM_OM45472U_(U)
NOTICE
■
To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short cir-
cuit.
■ To prevent blown fuse
12 V
Do not use an accessory that uses more than 12 V 10 A.
120 V AC
Do not use a 120 V AC appliance that requires more than 100 W.
If a 120 V AC appliance that consumes more than 100 W is used, the protec-
tion circuit may cut the power supply.
■ To prevent battery discharge
Do not use the power outlet longer than necessary when the engine is not\
running.
■ Appliances that may not operate properly (120 V AC)
The following 120 V AC appliances may not operate properly even if their
power consumption is under 100 W:
● Appliances with high initial peak wattage
● Measuring devices that process precise data
● Other appliances that require an extremely stable power supply

612
3-8. Other interior features
SIENNA_OM_OM45472U_(U)
Seat heaters
: If equipped
■The seat heaters can be used when
Vehicles without a smart key system
The engine switch is in the “ON” position.
Vehicles with a smart key system
The “ENGINE START STOP” switch is in IGNITION ON mode.
■ When not in use
Move the dial fully downward. The indicator light turns off.
For driver’s seat
For front passenger’s seat
On
The indicator light comes on.
Adjusts the seat tempera-
ture
The further you move the dial
upward, the warmer the seat
becomes.

613
3-8. Other interior features
3
Interior features
SIENNA_OM_OM45472U_(U)
CAUTION
■
Burns
● Use caution when seating the following persons in a seat with the seat
heater on to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the physically chal-
lenged
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping drugs, cold remedies, etc.)
● Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature
of the seat and may lead to overheating.
● Do not use the seat heater more than necessary. Doing so may cause
minor burns or overheating.
NOTICE
■To prevent seat heater damage
Do not put heavy objects that have an uneven surface on the seat and do
not stick sharp objects (needles, nails, etc.) into the seat.
■ To prevent battery discharge
Turn the seat heaters off when the engine is not running.

614
3-8. Other interior features
SIENNA_OM_OM45472U_(U)

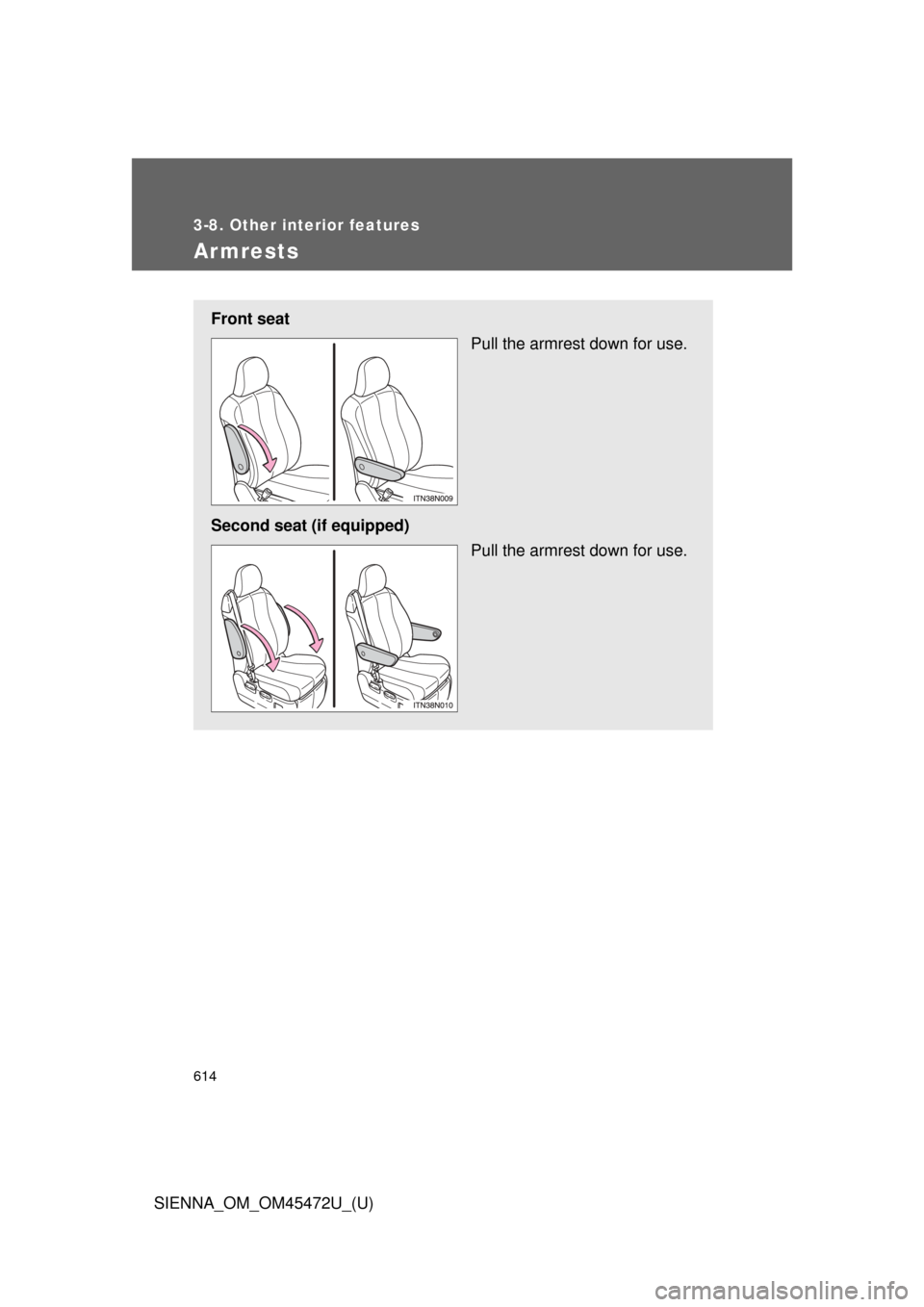

Armrests
Front seatPull the armrest down for use.
Second seat (if equipped) Pull the armrest down for use.

615
3-8. Other interior features
3
Interior features
SIENNA_OM_OM45472U_(U)
■
Adjusting the armrests (if equipped)
NOTICE
■To prevent damage to the armrest
Do not place too much strain on the armrest.
Push the armrest down while pressing
the button.

616
3-8. Other interior features
SIENNA_OM_OM45472U_(U)
Assist grips
CAUTION
■Assist grip (Type A)
Do not use the assist grip (Type A) when getting in or out of the vehicle or
rising from your seat.
NOTICE
■To prevent damage of the assist grip
Do not hang any heavy object or put a heavy load on the assist grip.
An assist grip (Type A) installed on the ceiling can be used to sup-
port your body while sitting on the seat.
An assist grip (Type B) installed on the pillar can be used when get-
ting in or out of the vehicle and others.
Assist grip (Type A)
Assist grip (Type B)

617
3-8. Other interior features
3
Interior features
SIENNA_OM_OM45472U_(U)
Rear side sunshades
: If equipped
NOTICE
■To ensure normal operation of the sunshade
Observe the following precautions.
● Do not place anything where it may hinder the opening/closing of the sun-
shade.
● Do not place anything on the sunshade.
Rear door window
Pull the tab up.
Secure the sunshade using
the hooks.
To retract the sunshade, pull
the tab up slightly to unhook
the sunshade, and lower the
sunshade slowly.
Rear quarter windowPull the tab up.
Secure the sunshade using
the hooks.
To retract the sunshade, pull
the tab up slightly to unhook
the sunshade, and lower the
sunshade slowly.

618
3-8. Other interior features
SIENNA_OM_OM45472U_(U)

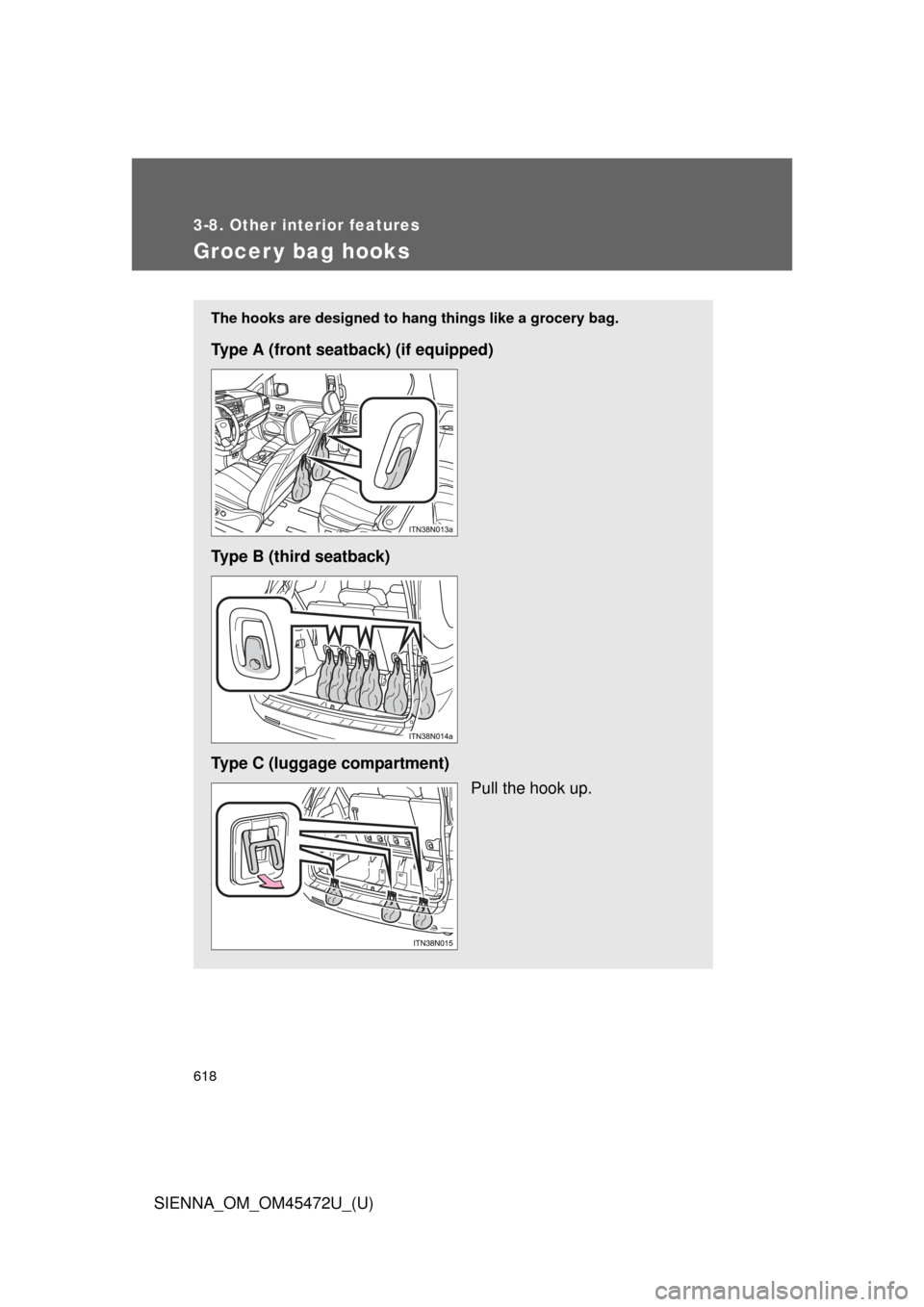

Grocer y bag hooks
The hooks are designed to hang things like a grocery bag.
Type A (front seatback) (if equipped)
Type B (third seatback)
Type C (luggage compartment)
Pull the hook up.

619
3-8. Other interior features
3
Interior features
SIENNA_OM_OM45472U_(U)
CAUTION
■
When not in use (type C)
Keep the grocery bag hook stowed.
Injuries may result in the event of sudden braking, sudden swerving or an
accident.
NOTICE
■Grocery bag hook weight capacity (type A and B)
Do not hang any object heavier than 8.8 lb. (4 kg) on the grocery bag hook.
Type D (luggage compartment)
ITN38N036

620
3-8. Other interior features
SIENNA_OM_OM45472U_(U)

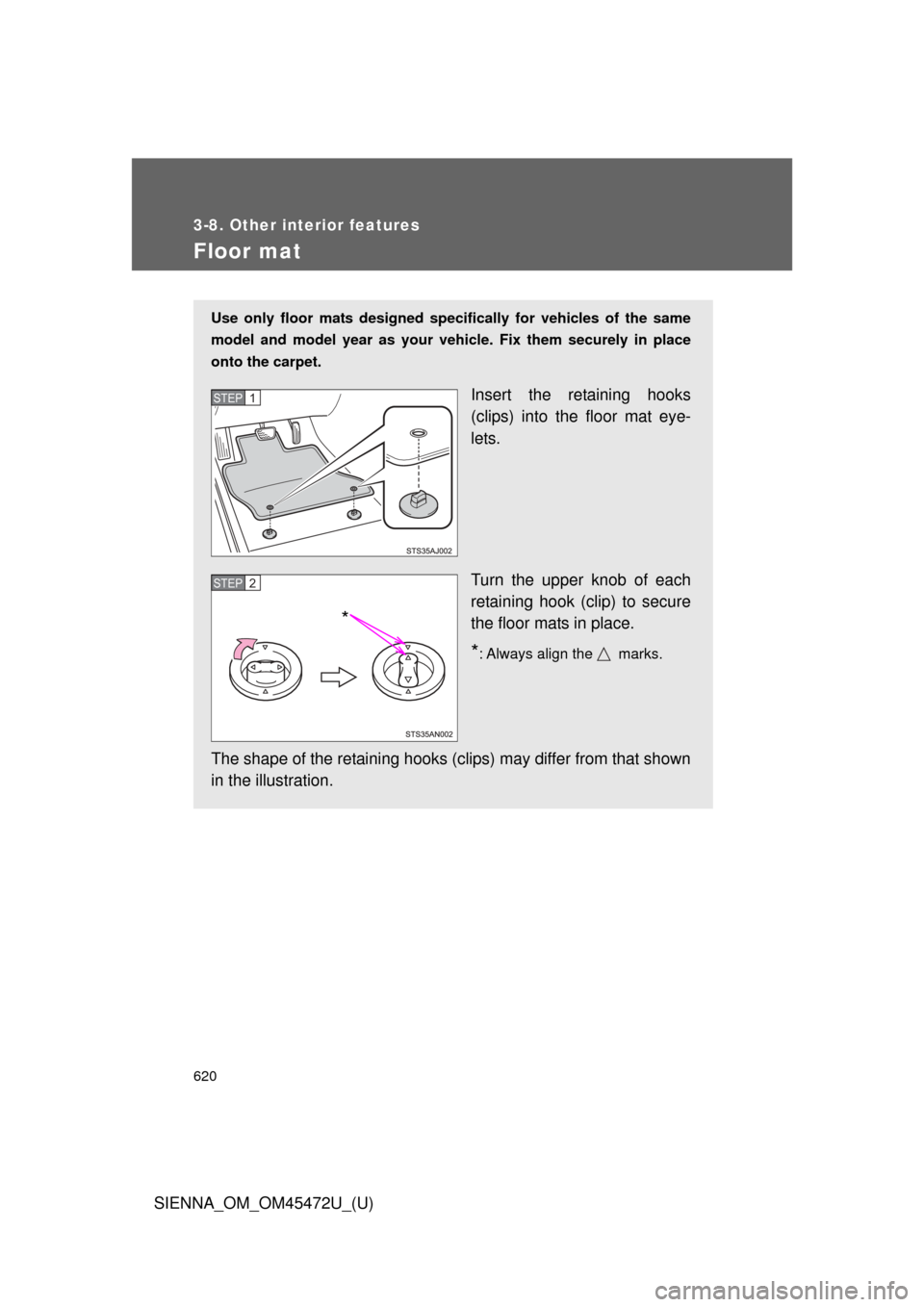

Floor mat
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.
Insert the retaining hooks
(clips) into the floor mat eye-
lets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clip s) may differ from that shown
in the illustration.
STEP1
STEP2
*
