TOYOTA SIENNA 2013 XL30 / 3.G Owners Manual

581
3-6. Using the interior lights
3
Interior features
SIENNA_OM_OM45472U_(U)
Personal/interior light main switch (vehicles with overhead
console)
Ty p e A On
Push to activate the inte-
rior lights.
The personal/interior lights can-
not be individually turned off with
this switch.
Door position
When door mode is active it will
be indicated by a green light on
the button. In door mode, interior
lights will turn on when a door is
opened. The personal/interior
lights cannot be individually
turned off with this switch.Ty p e B
Personal/interior light main switch

582 3-6. Using the interior lights
SIENNA_OM_OM45472U_(U)
Personal/interior lights (vehicles with overhead console)
Front type A On/off
Front type B
Personal/interior lights

583
3-6. Using the interior lights
3
Interior features
SIENNA_OM_OM45472U_(U)
Rear
On/off
Rear personal/interior lights turn
on when the personal/interior
main switch is in door position.
Personal/interior lights can also
be turned on/off from each indi-
vidual light. When an individual
light is activated it must be turned
off at its location. It will not turn off
immediately once the doors are
closed. To conserve your battery
any interior lights left on will turn
off 20 minutes after engine off.
These lights will come back on
with engine on.
Personal/interior lights

584 3-6. Using the interior lights
SIENNA_OM_OM45472U_(U)
Personal lights (vehicles without overhead console)
Front On/off
Rear On/off
Rear ceiling lights (if equipped)
On/off
Personal lights and rear ceiling lights

585
3-6. Using the interior lights
3
Interior features
SIENNA_OM_OM45472U_(U)
■
Adjusting the rear person al/interior lights angle
■ Illuminated entry system (if equipped)
Vehicles without a smart key system
The lights automatically turn on/off according to the engine switch position,
whether the doors are locked/ unlocked, and whether the doors are open/
closed.
Vehicles with a smart key system
The lights automatically turn on/off according to “ENGINE START STOP”
switch mode, the presence of the electronic key, whether the doors are
locked/unlocked, and whether the doors are open/closed.
■ To prevent battery discharge
If the lights remain on when a door is not fully closed and the personal/inte-
rior light main switch is in door position, the lights will go off automatically
after 30 seconds.
■ Customization that can be co nfigured at Toyota dealer
Settings (e.g. the time elapsed before lights turn off) can be changed.
(Customizable features P. 831)
NOTICE
■Rear ceiling lights (if equipped)
Do not hang anything on the gap between the ceiling light cover and the ceil-
ing or pull the ceiling light cover strongly.
Doing so may cause damage.
Push the edge of the light lens.

586
SIENNA_OM_OM45472U_(U)
3-7. Using the storage features

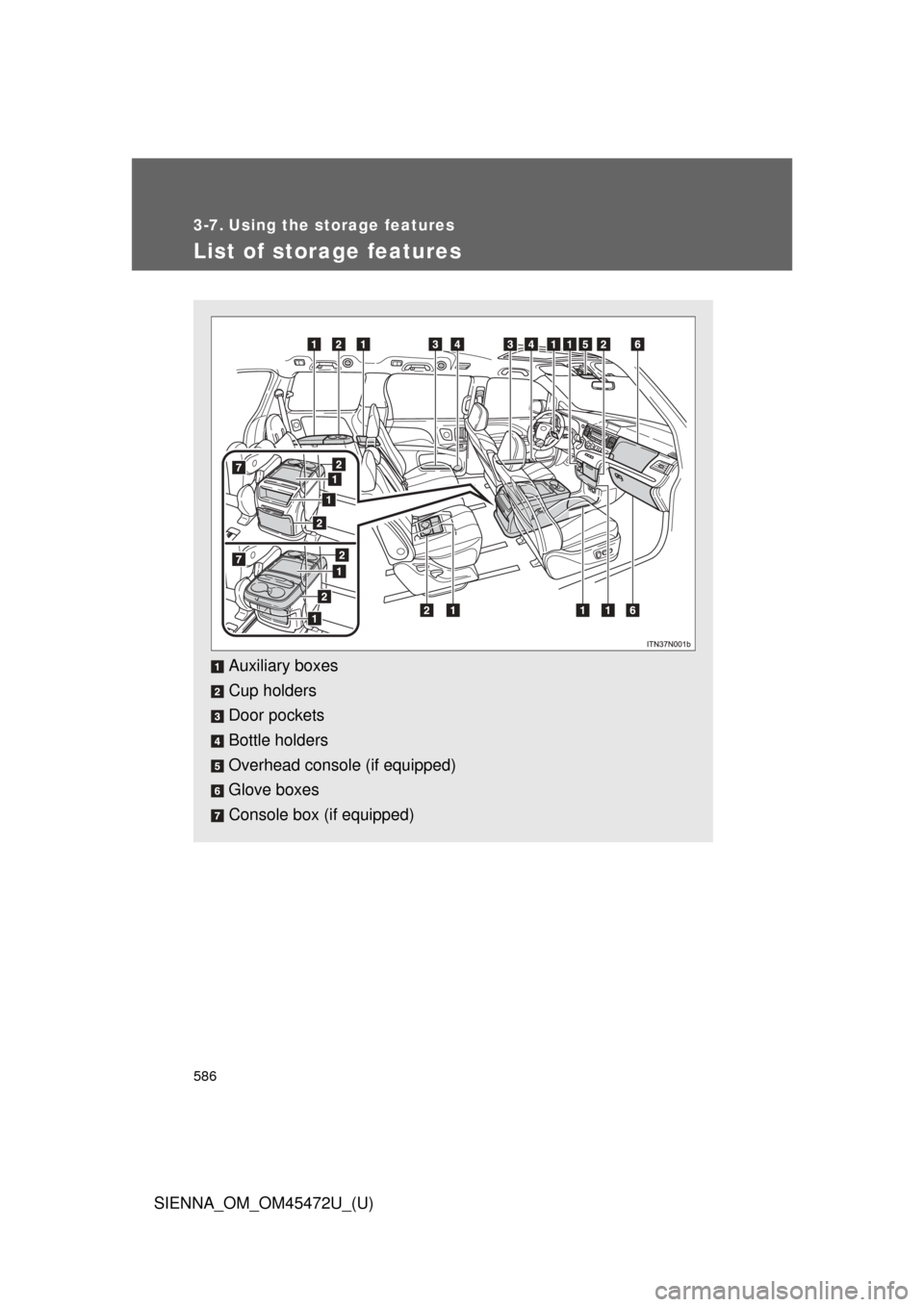

List of storage features
Auxiliary boxes
Cup holders
Door pockets
Bottle holders
Overhead console (if equipped)
Glove boxes
Console box (if equipped)

587
3-7. Using the
storage features
3
Interior features
SIENNA_OM_OM45472U_(U)
Glove boxes
Upper glove box Push the button.
CAUTION
■Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this
may cause the following when cabin temperature becomes high:
● Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
● Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release gas,
causing a fire hazard.
Glove boxes

588 3-7. Using the storage features
SIENNA_OM_OM45472U_(U)Lower glove box
The lower glove box can be opened by pulling the lever and can be
locked and unlocked by using the
master key (vehicles without a
smart key) or the mechanical key (vehicles with a smart key system).
Unlock
Lock
Open
■Removing the separate tray (upper glove box)
CAUTION
■Caution while driving
Keep the glove box closed when not in use. In the event of sudden braking
or sudden swerving, an accident may occur due to an occupant being struck
by the open glove box or the items stored inside.
Pull out the separate tray.
Glove boxes

589
3-7. Using the
storage features
3
Interior features
SIENNA_OM_OM45472U_(U)
Console box (if equipped)
■ Using the console box
Ty p e A Press the tab.
Ty p e B Press the tab.
Console box

590 3-7. Using the storage features
SIENNA_OM_OM45472U_(U)
■Sliding the console box (type B)
From front
From rear
■ Console box light
The console box light turns on when the headlight switch is on.
Press the tab and slide the console box.
Pull up the lever and slide the console
box.
Console box
