Page 711 of 872
711
4-3. Do-it-yourself maintenance
4
Maintenance and care
SIENNA_OM_OM45483U_(U)

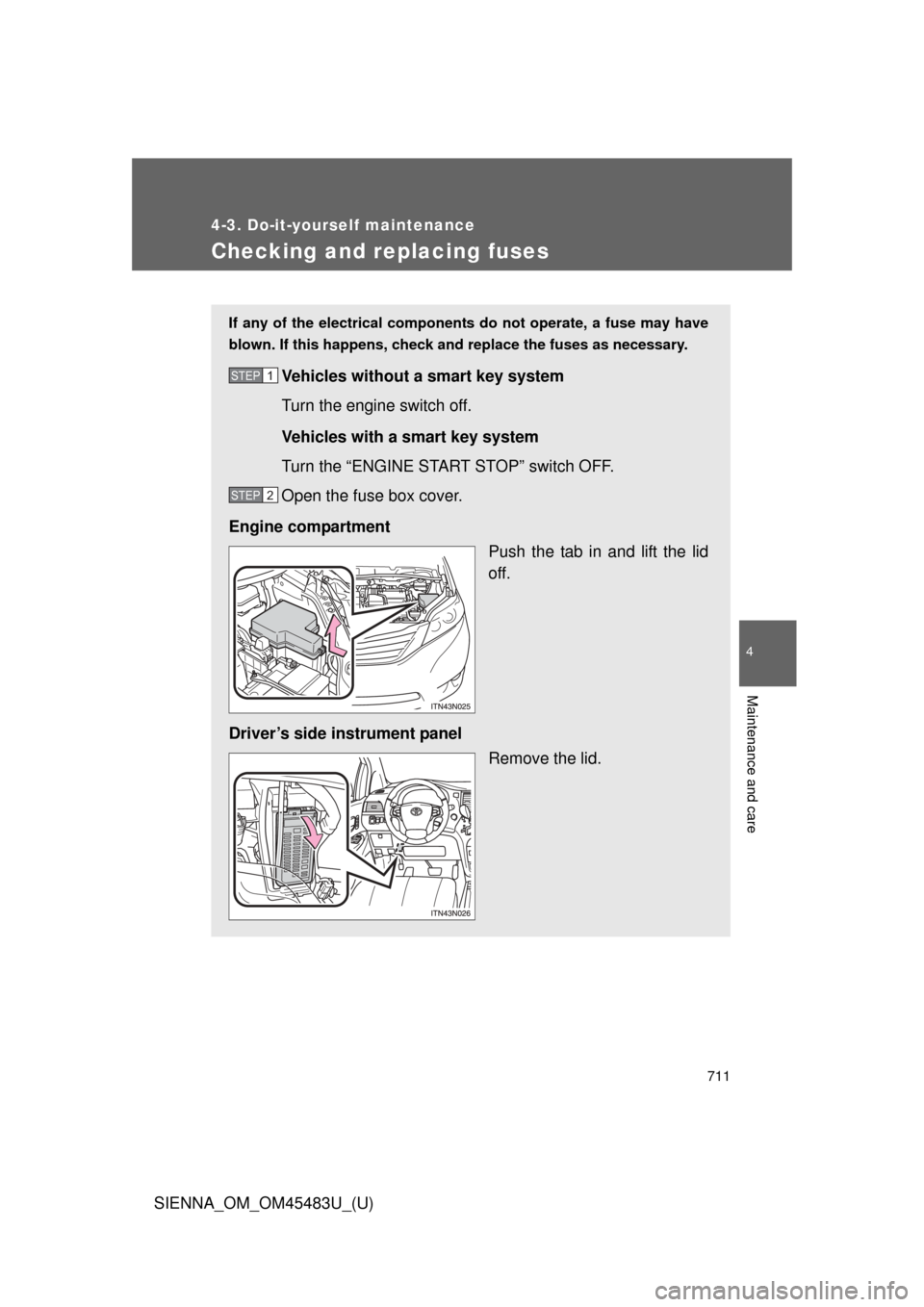

Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Vehicles without a smart key system
Turn the engine switch off.
Vehicles with a smart key system
Turn the “ENGINE START STOP” switch OFF.
Open the fuse box cover.
Engine compartment Push the tab in and lift the lid
off.
Driver’s side instrument panel Remove the lid.STEP1
STEP2
Page 712 of 872
712 4-3. Do-it-yourself maintenance
SIENNA_OM_OM45483U_(U)

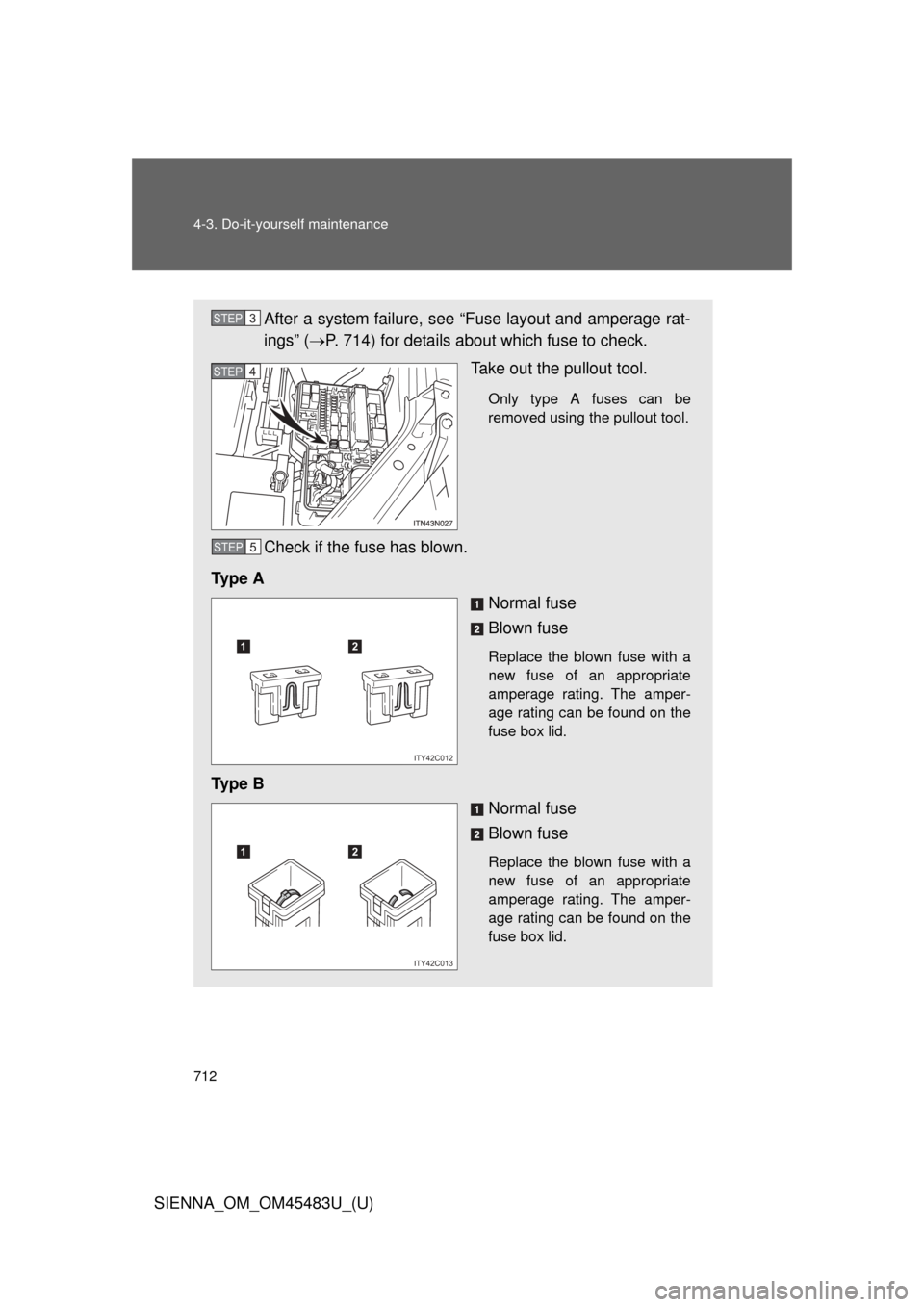

After a system failure, see “Fuse layout and amperage rat-
ings” (P. 714) for details about which fuse to check.
Take out the pullout tool.
Only type A fuses can be
removed using the pullout tool.
Check if the fuse has blown.
Ty p e A Normal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
Ty p e BNormal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
STEP3
STEP4
STEP5
12
ITY42C012
12
ITY42C013
Page 713 of 872
713
4-3. Do-it-yourself maintenance
4
Maintenance and care
SIENNA_OM_OM45483U_(U)

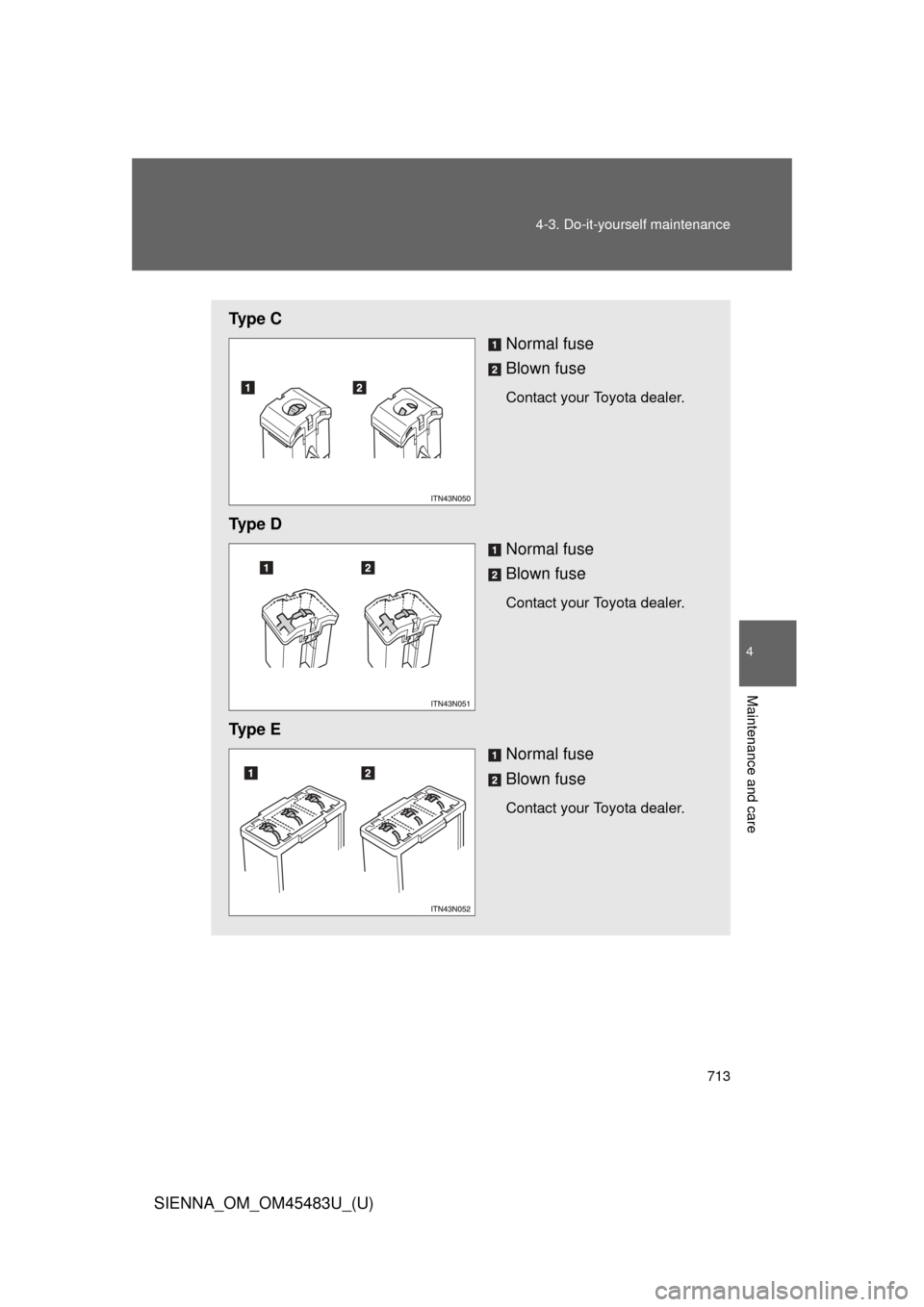

Ty p e C
Normal fuse
Blown fuse
Contact your Toyota dealer.
Ty p e DNormal fuse
Blown fuse
Contact your Toyota dealer.
Ty p e ENormal fuse
Blown fuse
Contact your Toyota dealer.
Page 714 of 872
714 4-3. Do-it-yourself maintenance
SIENNA_OM_OM45483U_(U)

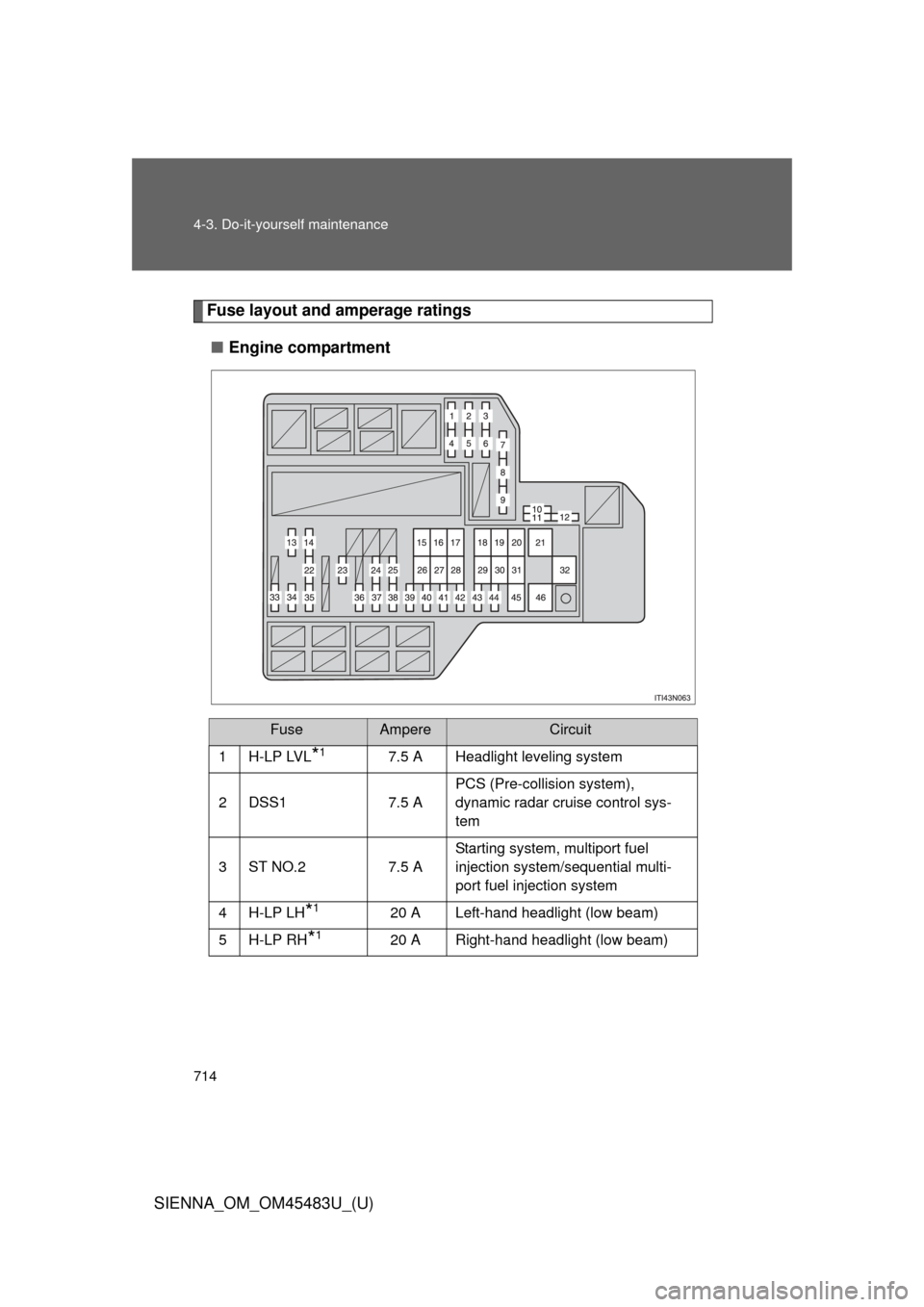

Fuse layout and amperage ratings■ Engine compartment
FuseAmpereCircuit
1H-LP LVL
*17.5 A Headlight leveling system
2 DSS1 7.5 A PCS (Pre-collision system),
dynamic radar cruise control sys-
tem
3 ST NO.2 7.5 A Starting system, multiport fuel
injection system/sequential multi-
port fuel injection system
4H-LP LH
*120 A Left-hand headlight (low beam)
5H-LP RH
*120 A Right-hand headlight (low beam)
Page 715 of 872
715
4-3. Do-it-yourself maintenance
4
Maintenance and care
SIENNA_OM_OM45483U_(U)
FuseAmpereCircuit
6 ECT 7.5 A Multiport fuel injection system/
sequential multiport fuel injection
system, automatic transaxle
7 EFI NO.2 10 A Multiport fuel injection system/
sequential multiport fuel injection
system
8 H-LP RH HI 10 A Right-hand headlight (high beam)
9 H-LP LH HI 10 A Left-hand headlight (high beam)
10 SPARE 10 A Spare-fuse
11 SPARE 15 A Spare-fuse
12 SPARE 20 A Spare-fuse
13 MG CLT 7.5 A A/C magnetic clutch
14 INV 20 A Inverter
15 A/C RR 40 A Rear air conditioning system
16 PBD 30 A Power back door
17 FOLD SEAT 30 A Power third seat
18 HTR 50 A Air conditioning system
19 PSB 30 A Pre-collision seat belt
20 A/A SEAT 30 A AUTO ACCESS SEAT
Page 716 of 872
716 4-3. Do-it-yourself maintenance
SIENNA_OM_OM45483U_(U)
FuseAmpereCircuit
21 FAN 60 A Electric cooling fans
22 HAZ 15 ATurn signal lights, gauges and
meters
23 RSE 15 A Rear seat entertainment system
24 MIRROR 10 AOutside rear view mirror control,
outside rear view mirror heaters
25 AMP 30 A Audio system
26 VSC NO.2 30 A Vehicle dynamics integrated man-
agement, ABS, vehicle stability
control
27 ST 30 A Starting system
28 P/I 40 AHorn, left-hand headlight (low
beam), right-hand headlight (low
beam)
29 H-LP MAIN
*140 A Discharge headlight
SPARE
*230 A Spare-fuse
30 AM2
*330 A “ST NO.2”, “GAUGE NO.2” and
“IG2” fuses
31 VSC NO.1 50 A Vehicle dynamics integrated man-
agement, ABS, vehicle stability
control
Page 717 of 872
717
4-3. Do-it-yourself maintenance
4
Maintenance and care
SIENNA_OM_OM45483U_(U)
FuseAmpereCircuit
32 ALT 140 A Charging system, horn, left-hand
headlight (low beam), right-hand
headlight (low beam), fog light, out-
side rear view mirror heaters, rear
window defoggers, windshield
wiper de-icer
33 RAD NO.1 15 A Audio system
34 DOME 7.5 AVanity lights, personal/interior
lights, personal lights, engine
switch light, rear ceiling lights, door
courtesy lights, luggage compart-
ment light, gauges and meters,
clock
35 ECU-B 10 AMain body ECU, smart key system,
wireless remote control, power
back door, power sliding door, rear
view monitor, multi information dis-
play, power window, outside rear
view mirror control, steering angle
sensor, auto-anti glare inside rear
view mirror, AUTO ACCESS SEAT
remote control, front passenger
occupant classification system
36 ETCS 10 AMultiport fuel injection system/
sequential multiport fuel injection
system
37 A/F 20 AMultiport fuel injection system/
sequential multiport fuel injection
system
38 STRG LOCK
*420 A Steering lock system
39 ALT-S 7.5 A Charging system
Page 718 of 872
718 4-3. Do-it-yourself maintenance
SIENNA_OM_OM45483U_(U)
*1: Vehicles with discharge headlights only
*2: Vehicles without discharge headlights only
*3: Vehicles without a smart key system only
*4: Vehicles with a smart key system only
FuseAmpereCircuit
40 INJ 25 A Multiport fuel injection system/
sequential multiport fuel injection
system, “IG NO.2” and “IG2” fuses
41 ECU-B NO.2 7.5 A Air conditioning system
42 AM2 NO.2
*47.5 A Multiplex communication system,
starting system
43 EFI NO.1 25 A Multiport fuel injection system/
sequential multiport fuel injection
system, “ECT” and “EFI NO.2”
fuses
44 SMART
*45 A Smart key system
45 DRL 30 A Daytime running light system, “H-
LP LH (HI)” and “H-LP RH (HI)”
fuses
46 EPS 60 A Electric power steering
Page 719 of 872
719
4-3. Do-it-yourself maintenance
4
Maintenance and care
SIENNA_OM_OM45483U_(U)
■
Under the driver’s side instrument panel
FuseAmpereCircuit
1P/OUTLET15 APower outlets
2 RAD NO.2 7.5 A Audio system, navigation system,
rear seat entertainment system
3 ECU-ACC 10 A Main body ECU, clock, shift lock
system, power rear view mirror
control, multiplex communication
system
4 CIG 15 A Power outlets
5 GAUGE NO.1 10 A Emergency flashers, back up
lights, navigation system, multi
information display, automatic tran-
saxle, multiport fuel injection sys-
tem/sequential multiport fuel
injection system, charging system
Page 720 of 872
720 4-3. Do-it-yourself maintenance
SIENNA_OM_OM45483U_(U)
FuseAmpereCircuit
6 ECU-IG NO.1 10 A Multiplex communication system,
stop lights, navigation system,
vehicle stability control system,
Active Torque Control 4WD, intui-
tive parking assist, auto anti-glare
inside rear view mirror, pre-collision
seat belt, outside rear view mirror,
seat heater, TPMS, yaw rate & G
sensor, steering angle sensor,
AUTO ACCESS SEAT, main body
ECU, Blind Spot Monitor
7 P/W RL 20 A Rear power windows (left-side)
8 D/L 15 A Power door lock system
9 P/SEAT FR 30 A Power front seat (right-side)
10 S/ROOF 30 A Moon roof 11 P/W RR 20 A Rear power windows (right-side)
12 P/W FR 20 A Front power windows (right-side)
13 P/SEAT FL 30 A Power front seat (left-side), driving
position memory system
14 STOP 10 A Stop lights, ABS, vehicle stability
control system, rear combination
light, high mounted stop light, auto-
matic transaxle, shift lock system,
multiplex communication system,
power third seat switch, multiport
fuel injection system/sequential
multiport fuel injection system,
trailer lights (stop lights)
15 P/W FL 20 A Front power windows (left-side)
