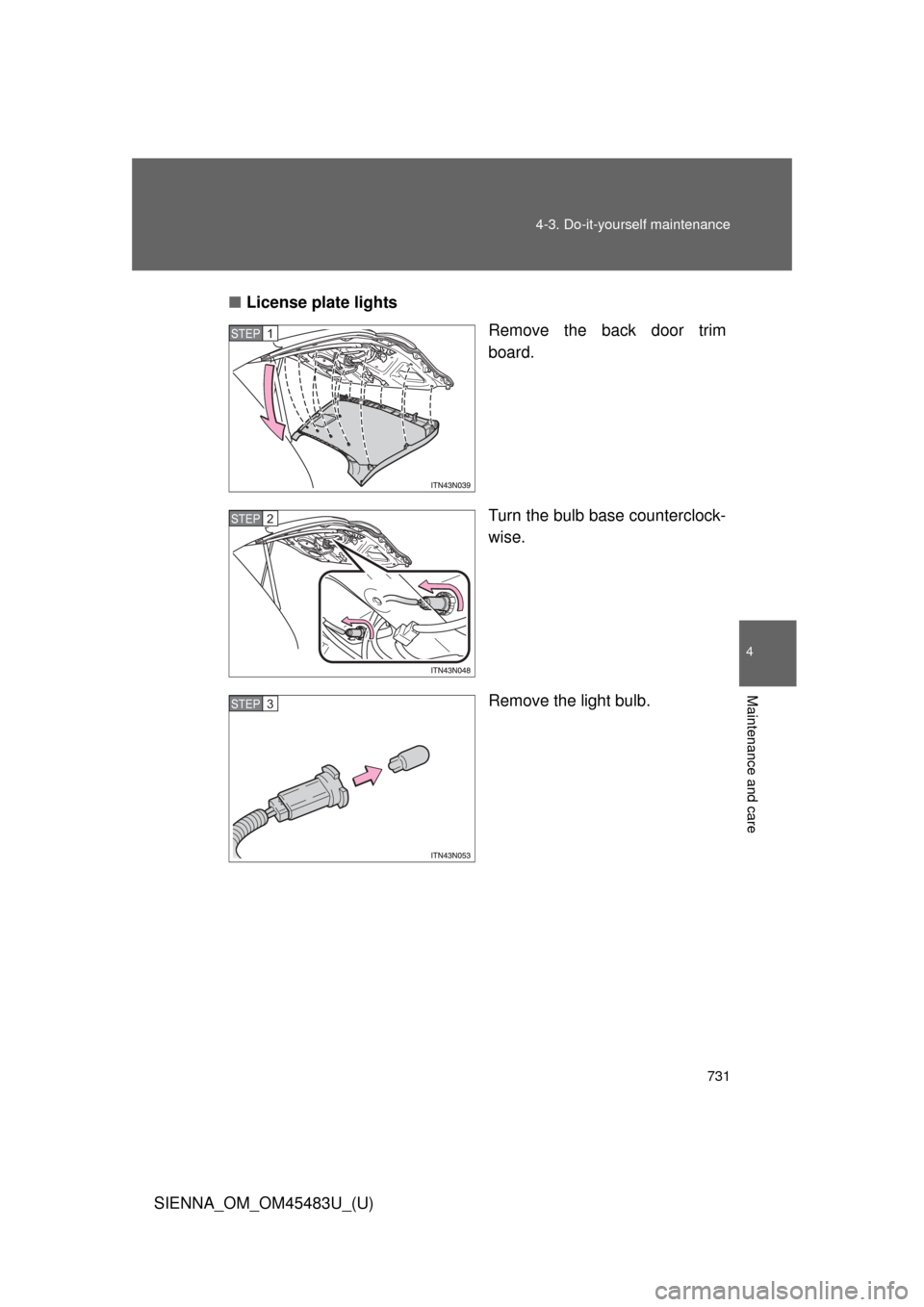

License plate lights
Remove the back door trim
board.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP1
STEP2
STEP3

732 4-3. Do-it-yourself maintenance
SIENNA_OM_OM45483U_(U)■
Lights other than the above
If any of the lights listed below has burnt out, have it replaced by
your Toyota dealer.
● Headlight low beams (discharge bulbs)
● High mounted stoplight
● Side turn signal light (if equipped)
● Stop/tail and rear side marker lights
● Outer foot lights (if equipped)
■Discharge headligh ts (if equipped)
If voltage to the discharge bulbs is insufficient, the bulbs may not come on,
or may go out temporarily. The discharge bulbs will come on when normal
power is restored.
■ LED lights
The stop/tail, side turn signal light, rear side marker lights and high mounted
stoplight consists of a number of LEDs. If any of the LEDs burn out, take
your vehicle to your Toyota dealer to have the light replaced.
■ Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction. Contact your Toyota dealer for more information
in the following situations:
● Large drops of water have built up on the inside of the lens.
● Water has built up inside the headlight.
■ When replacing light bulbs
P. 723

733
4-3. Do-it-yourself maintenance
4
Maintenance and care
SIENNA_OM_OM45483U_(U)

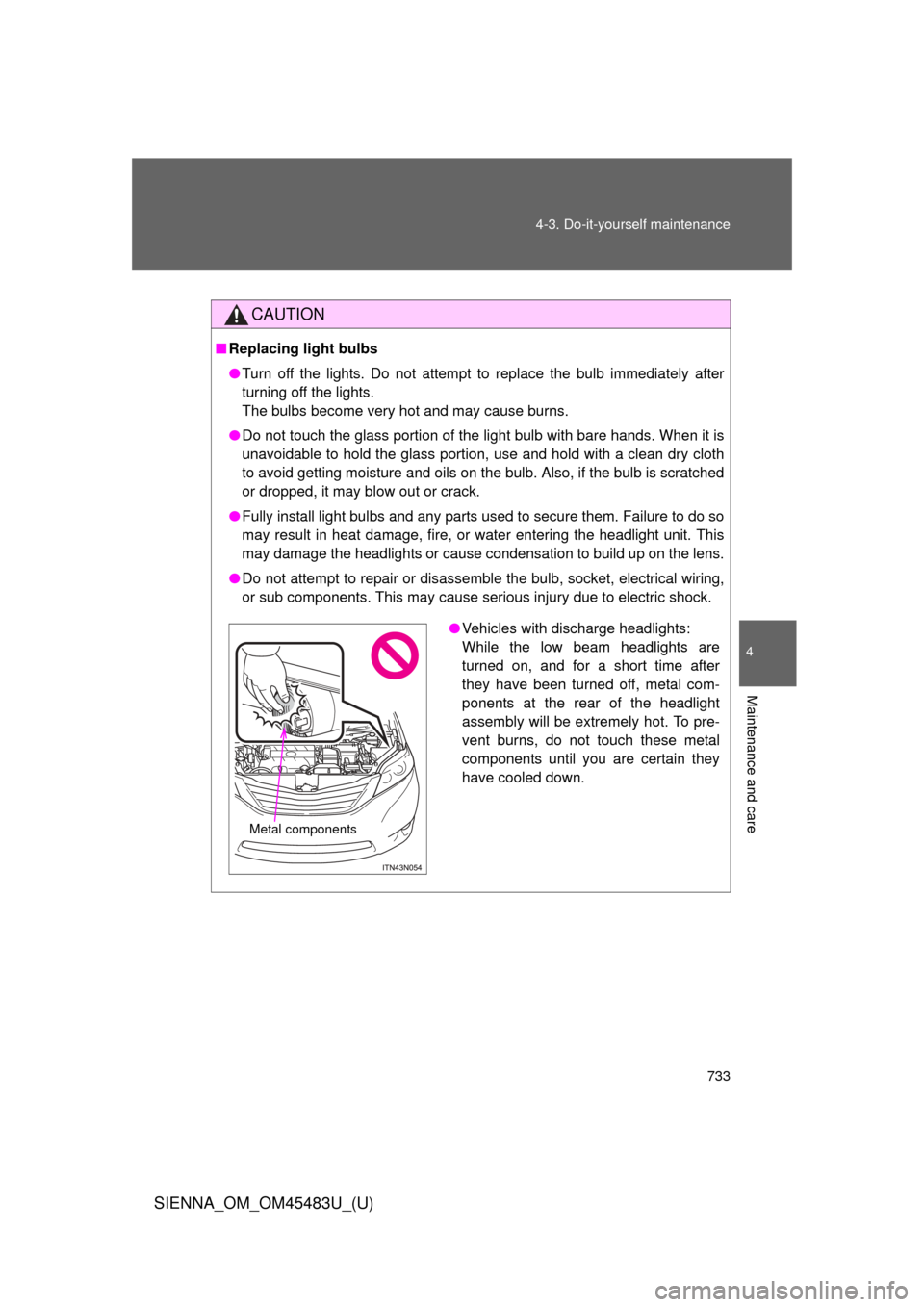

CAUTION
■
Replacing light bulbs
●Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. When i\
t is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb. Also, if the bulb is scratched
or dropped, it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
● Do not attempt to repair or disassemble the bulb, socket, electrical wiring,
or sub components. This may cause serious injury due to electric shock.
●Vehicles with discharge headlights:
While the low beam headlights are
turned on, and for a short time after
they have been turned off, metal com-
ponents at the rear of the headlight
assembly will be extremely hot. To pre-
vent burns, do not touch these metal
components until you are certain they
have cooled down.
Metal components

734 4-3. Do-it-yourself maintenance
SIENNA_OM_OM45483U_(U)
CAUTION
■Discharge headligh ts (if equipped)
● Contact your Toyota dealer before replacing discharge headlights (includ-
ing light bulbs).
● Do not touch the discharge headlight’s high voltage socket when the head-
lights are turned on.
An extremely high voltage of 30000 V will be discharged and could result
in serious injury or death by electric shock.
● Do not attempt to take apart or repair the low beam headlight bulbs, con-
nectors, power supply circuits, or related components.
Doing so could result in electric shock and serious injury or death.
■ When replacing the rear turn signal lights
Inspect the gasket for any damage (rip, tear, hole, etc.). If there is any dam-
age, please contact your Toyota dealer and have the gasket replaced.
Improper installation of the gasket may result in water entering the rear light
unit.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.
NOTICE
■When installing the back door trim
To prevent damage, be careful not to pinch any of the wire harnesses or
connectors with the back door trim.

When trouble arises5
735
SIENNA_OM_OM45483U_(U)

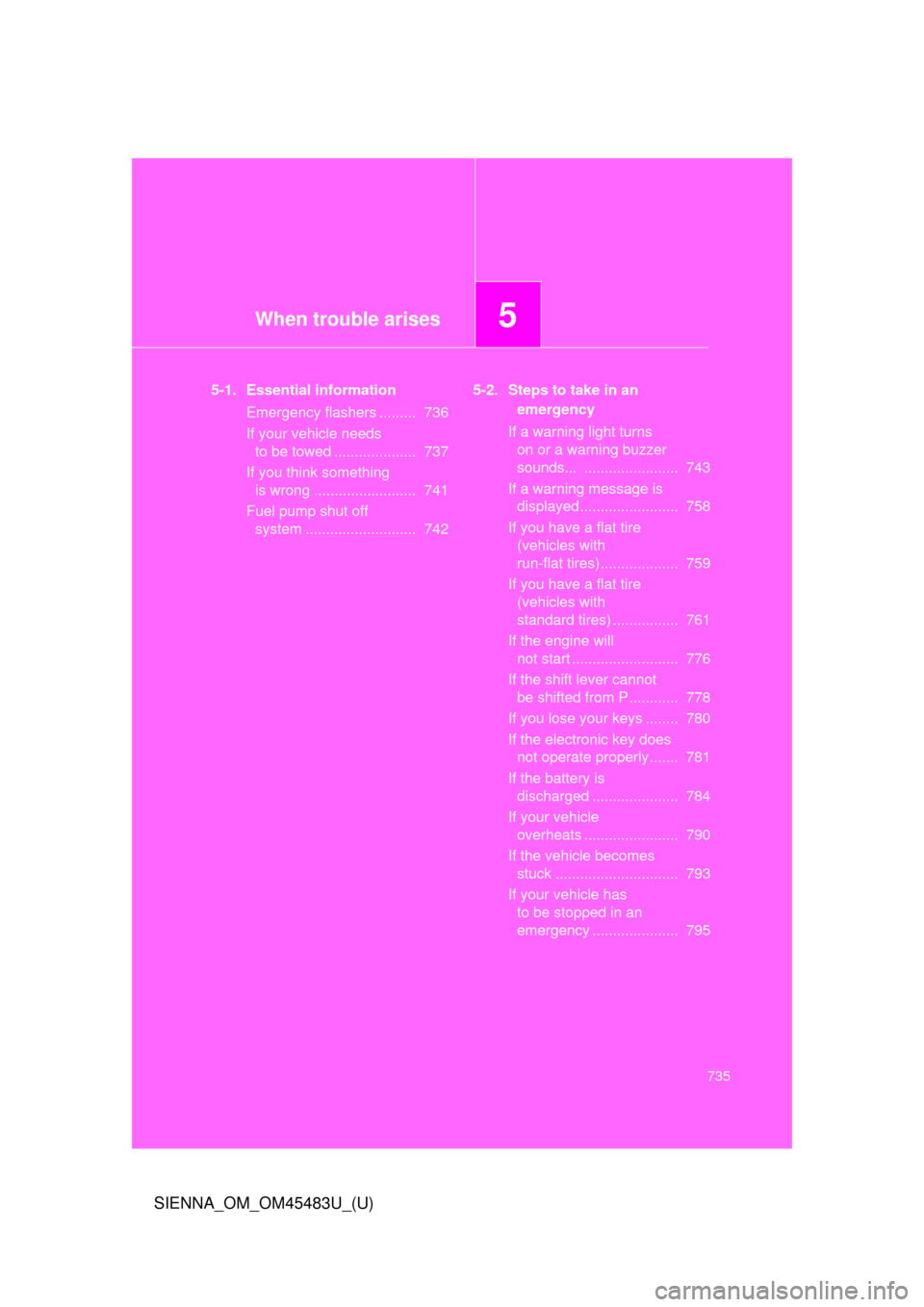

5-1. Essential informationEmergency flashers ......... 736
If your vehicle needs to be towed .................... 737
If you think something is wrong ......................... 741
Fuel pump shut off system ........................... 742 5-2. Steps to take in an
emergency
If a warning light turns on or a warning buzzer
sounds... ....................... 743
If a warning message is displayed........................ 758
If you have a flat tire (vehicles with
run-flat tires)................... 759
If you have a flat tire (vehicles with
standard tires) ................ 761
If the engine will not start .......................... 776
If the shift lever cannot be shifted from P............ 778
If you lose your keys ........ 780
If the electronic key does not operate properly....... 781
If the battery is discharged ..................... 784
If your vehicle overheats ....................... 790
If the vehicle becomes stuck .............................. 793
If your vehicle has to be stopped in an
emergency ..................... 795

736
SIENNA_OM_OM45483U_(U)
5-1. Essential information
Emergency flashers
NOTICE
■To prevent battery discharge
Do not leave the emergency flashers on longer than necessary when the
engine is not running.

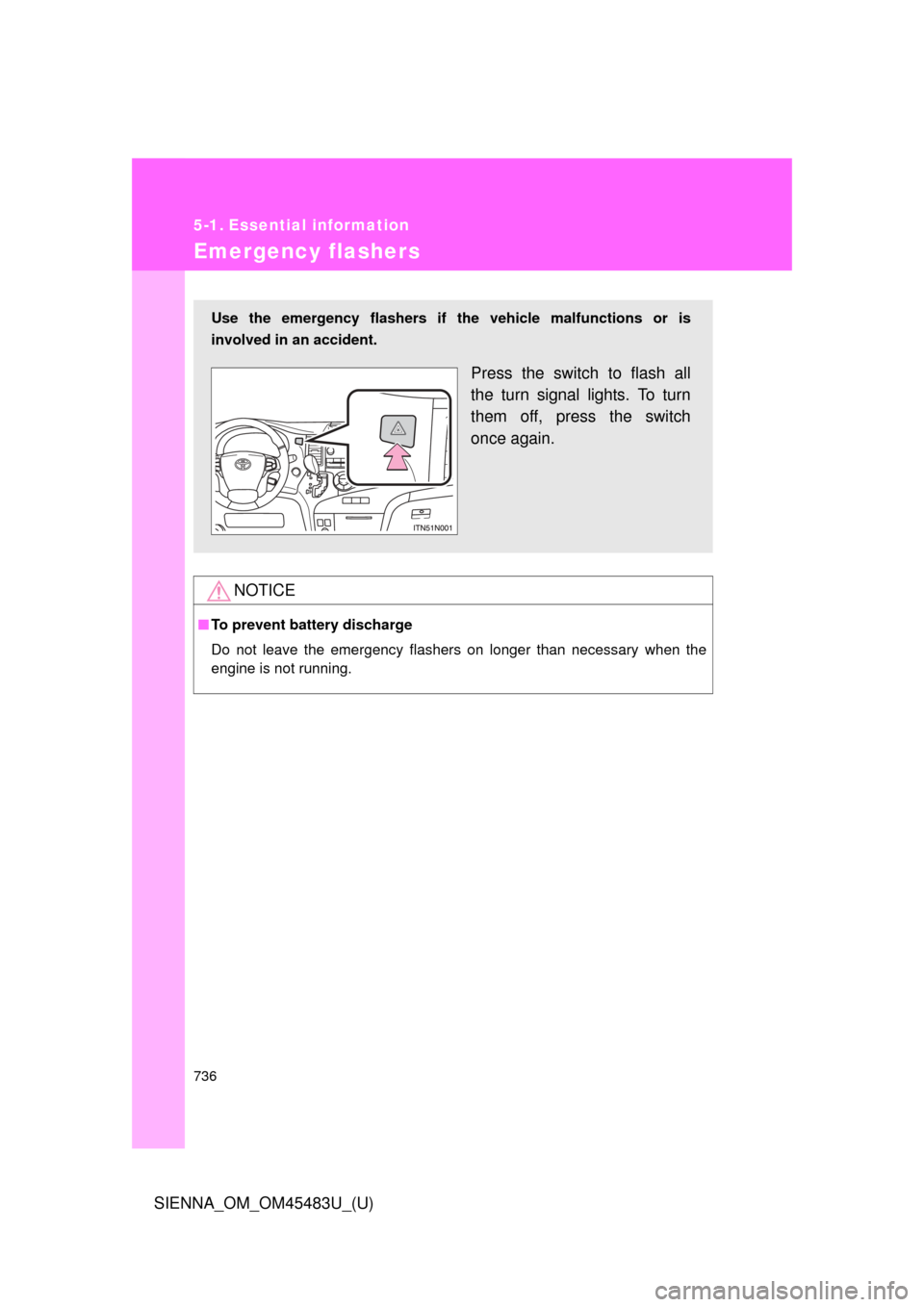

Use the emergency flashers if th e vehicle malfunctions or is
involved in an accident.
Press the switch to flash all
the turn signal lights. To turn
them off, press the switch
once again.

5
When trouble arises
737
5-1. Essential information
SIENNA_OM_OM45483U_(U)

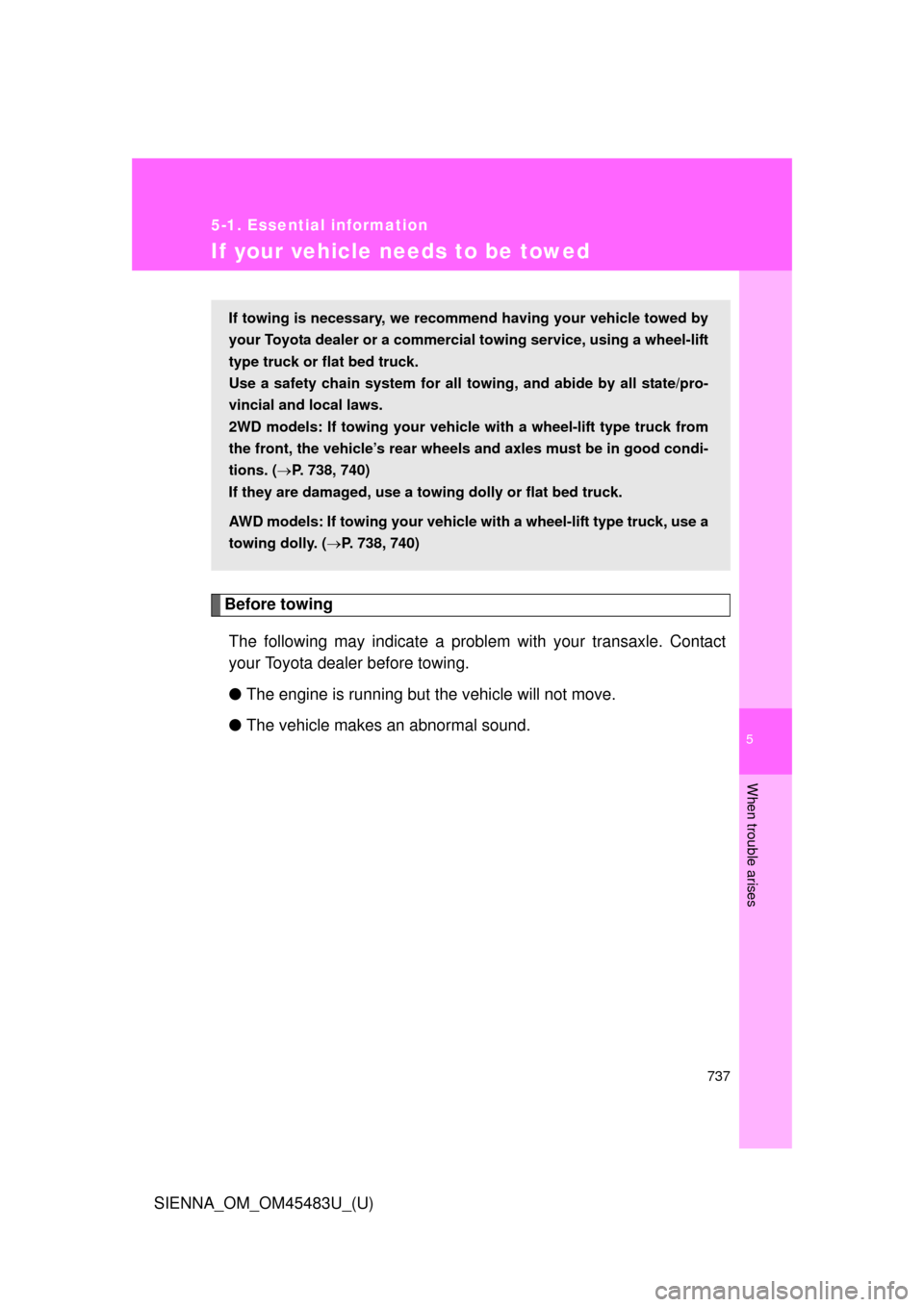

If your vehicle needs to be towed
Before towingThe following may indicate a problem with your transaxle. Contact
your Toyota dealer before towing.
● The engine is running but the vehicle will not move.
● The vehicle makes an abnormal sound.
If towing is necessary, we recommend having your vehicle towed by
your Toyota dealer or a commercial towing service, using a wheel-lift
type truck or flat bed truck.
Use a safety chain system for all to wing, and abide by all state/pro-
vincial and local laws.
2WD models: If towing your vehicle with a wheel-lift type truck from
the front, the vehicle’s rear wheels and axles must be in good condi-
tions. ( P. 738, 740)
If they are damaged, use a towing dolly or flat bed truck.
AWD models: If towing your vehicle with a wheel-lift type truck, use a
towing dolly. ( P. 738, 740)

738 5-1. Essential information
SIENNA_OM_OM45483U_(U)

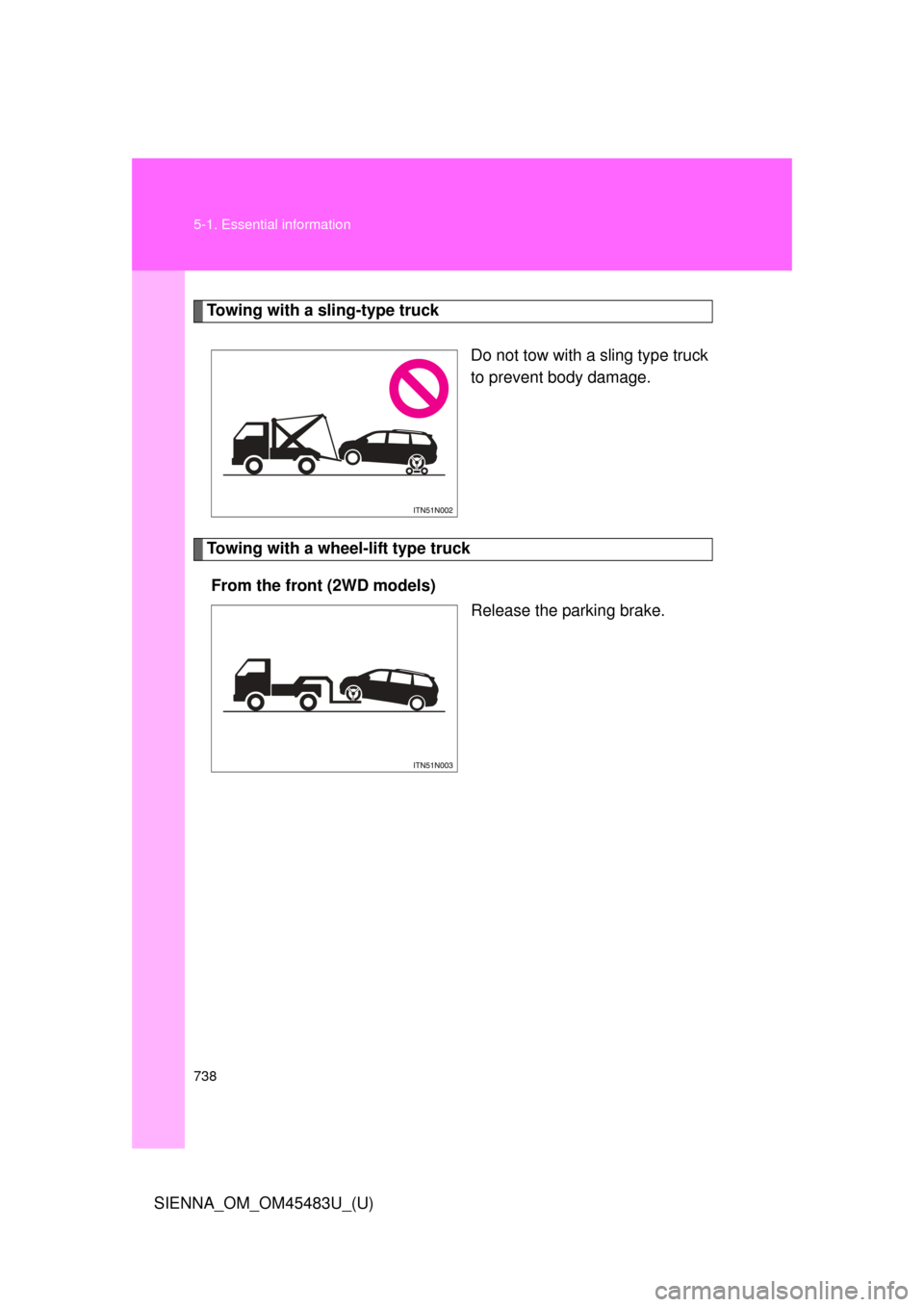

Towing with a sling-type truckDo not tow with a sling type truck
to prevent body damage.

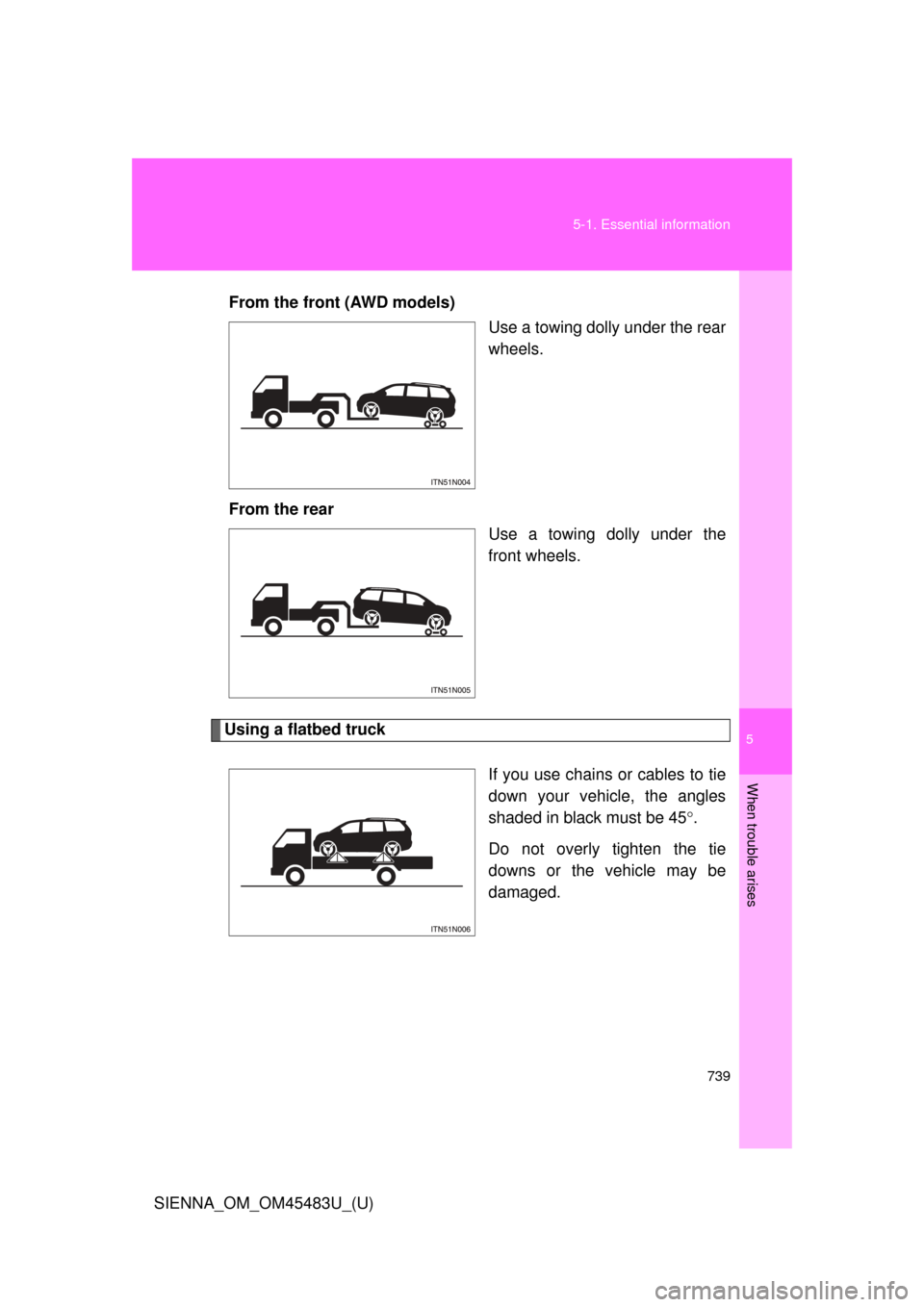

Towing with a wheel-lift type truckFrom the front (2WD models) Release the parking brake.

5
When trouble arises
739
5-1. Essential information
SIENNA_OM_OM45483U_(U)
From the front (AWD models)
Use a towing dolly under the rear
wheels.
From the rear Use a towing dolly under the
front wheels.
Using a flatbed truck
If you use chains or cables to tie
down your vehicle, the angles
shaded in black must be 45.
Do not overly tighten the tie
downs or the vehicle may be
damaged.

740 5-1. Essential information
SIENNA_OM_OM45483U_(U)
NOTICE

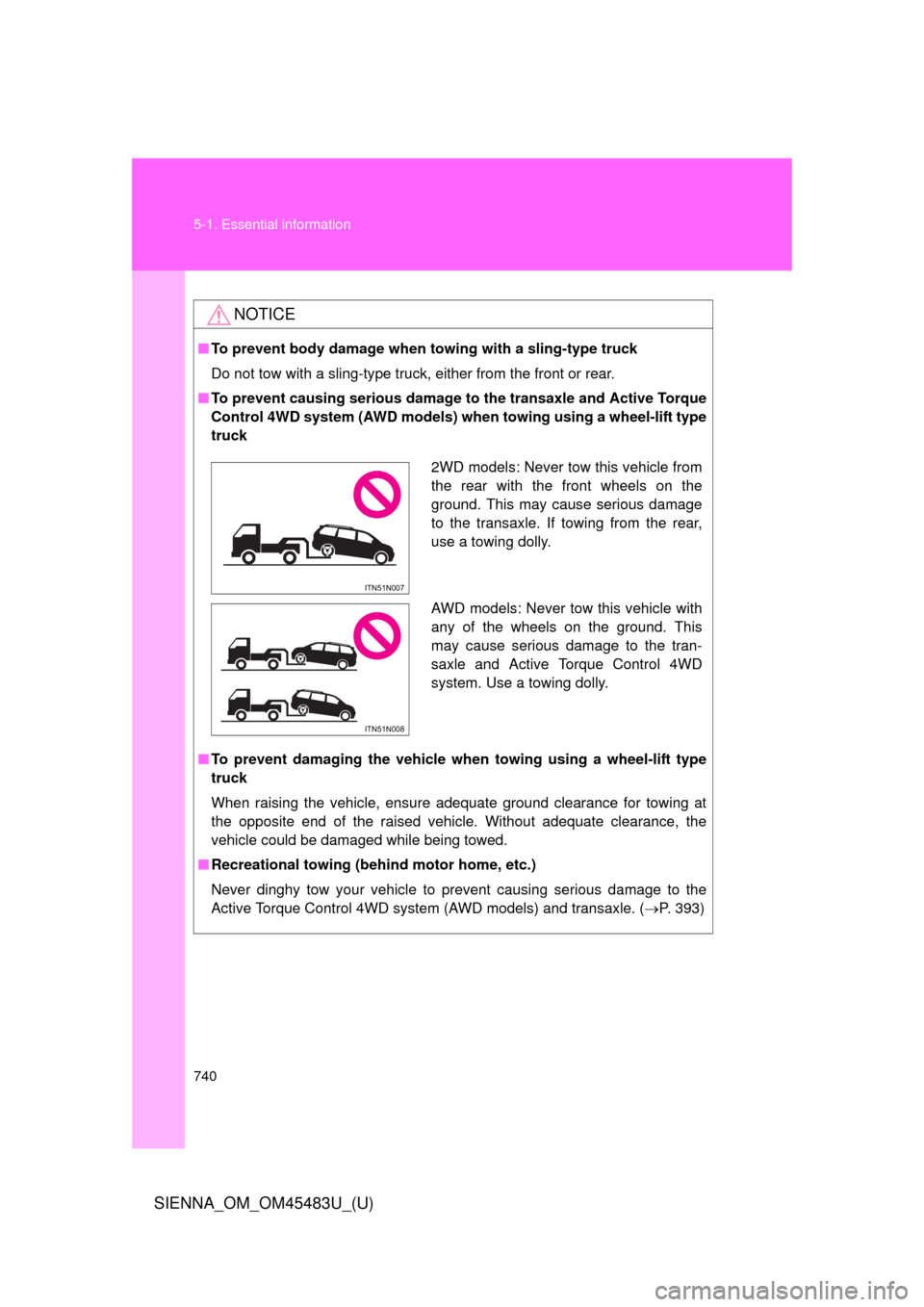

■To prevent body damage when towing with a sling-type truck
Do not tow with a sling-type truck, either from the front or rear.
■ To prevent causing serious damage to the transaxle and Active Torque
Control 4WD system (AWD models) wh en towing using a wheel-lift type
truck
■ To prevent damaging the vehicle wh en towing using a wheel-lift type
truck
When raising the vehicle, ensure adequate ground clearance for towing at
the opposite end of the raised vehicle. Without adequate clearance, the
vehicle could be damaged while being towed.
■ Recreational towing (beh ind motor home, etc.)
Never dinghy tow your vehicle to prevent causing serious damage to the
Active Torque Control 4WD system (AWD models) and transaxle. ( P. 393)
2WD models: Never tow this vehicle from
the rear with the front wheels on the
ground. This may cause serious damage
to the transaxle. If towing from the rear,
use a towing dolly.
AWD models: Never tow this vehicle with
any of the wheels on the ground. This
may cause serious damage to the tran-
saxle and Active Torque Control 4WD
system. Use a towing dolly.
ITN51N007
