TOYOTA SIENNA 2014 XL30 / 3.G Owners Manual

5
When trouble arises
761
5-2. Steps to take in an emergency
SIENNA_OM_OM45483U_(U)

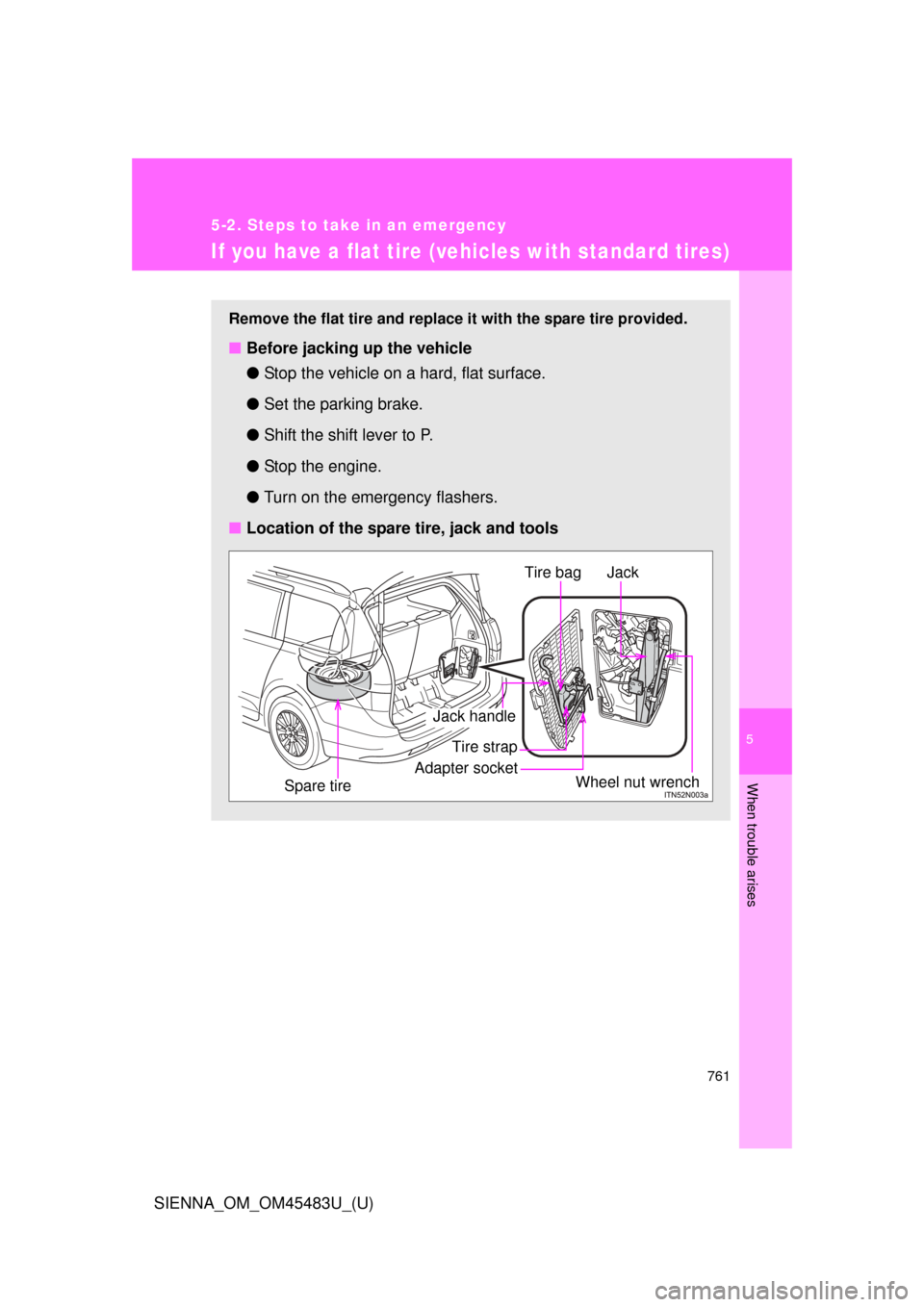

If you have a flat tire (vehicles with standard tires)
Remove the flat tire and replace it with the spare tire provided.
■Before jacking up the vehicle
●Stop the vehicle on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to P.
● Stop the engine.
● Turn on the emergency flashers.
■ Location of the spare tire, jack and tools
Spare tire Jack
Wheel nut wrench
Jack handle Tire bag
Adapter socket
Tire strap

762 5-2. Steps to take in an emergency
SIENNA_OM_OM45483U_(U)

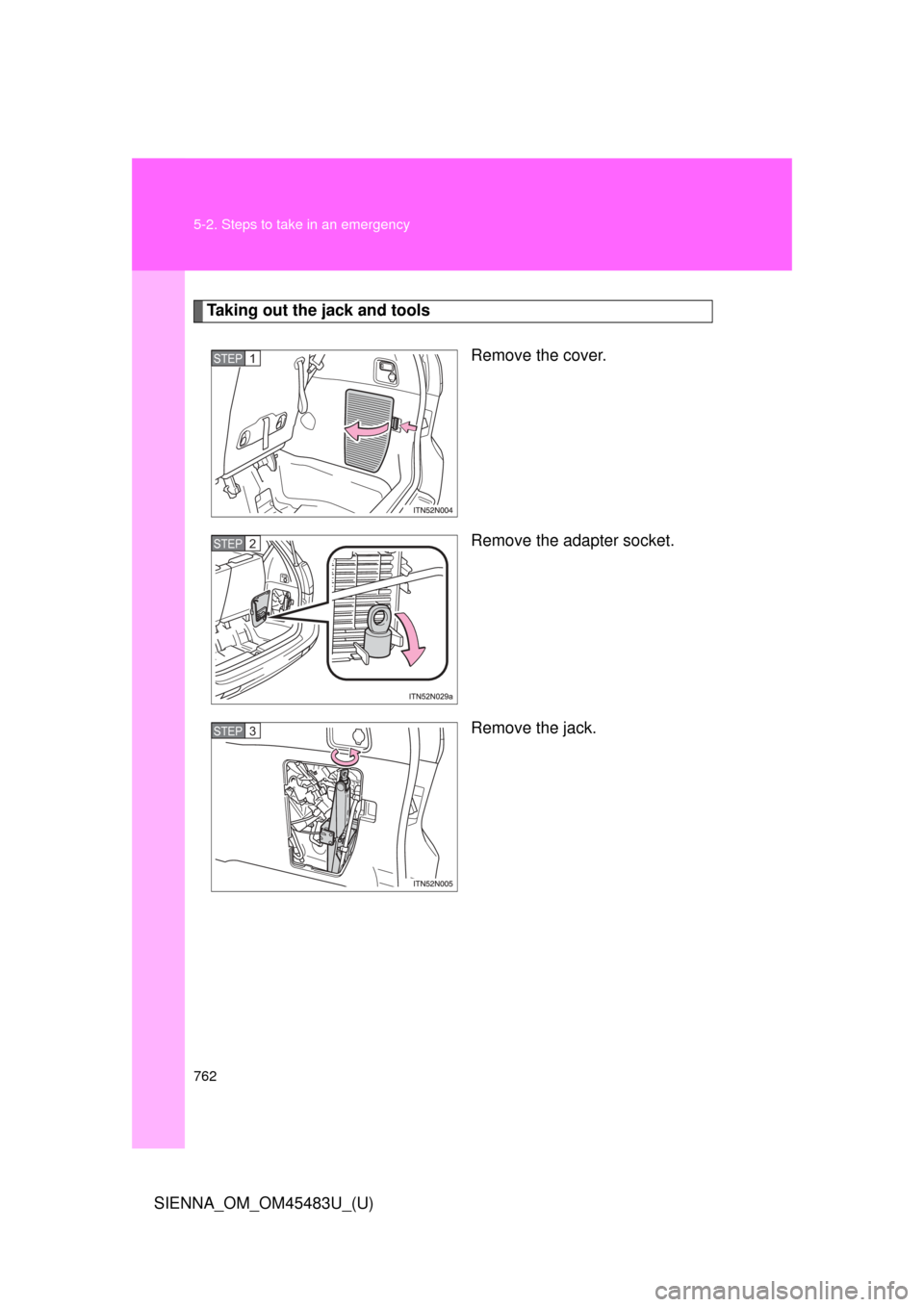

Taking out the jack and toolsRemove the cover.
Remove the adapter socket.
Remove the jack.
STEP1
STEP2
STEP3

5
When trouble arises

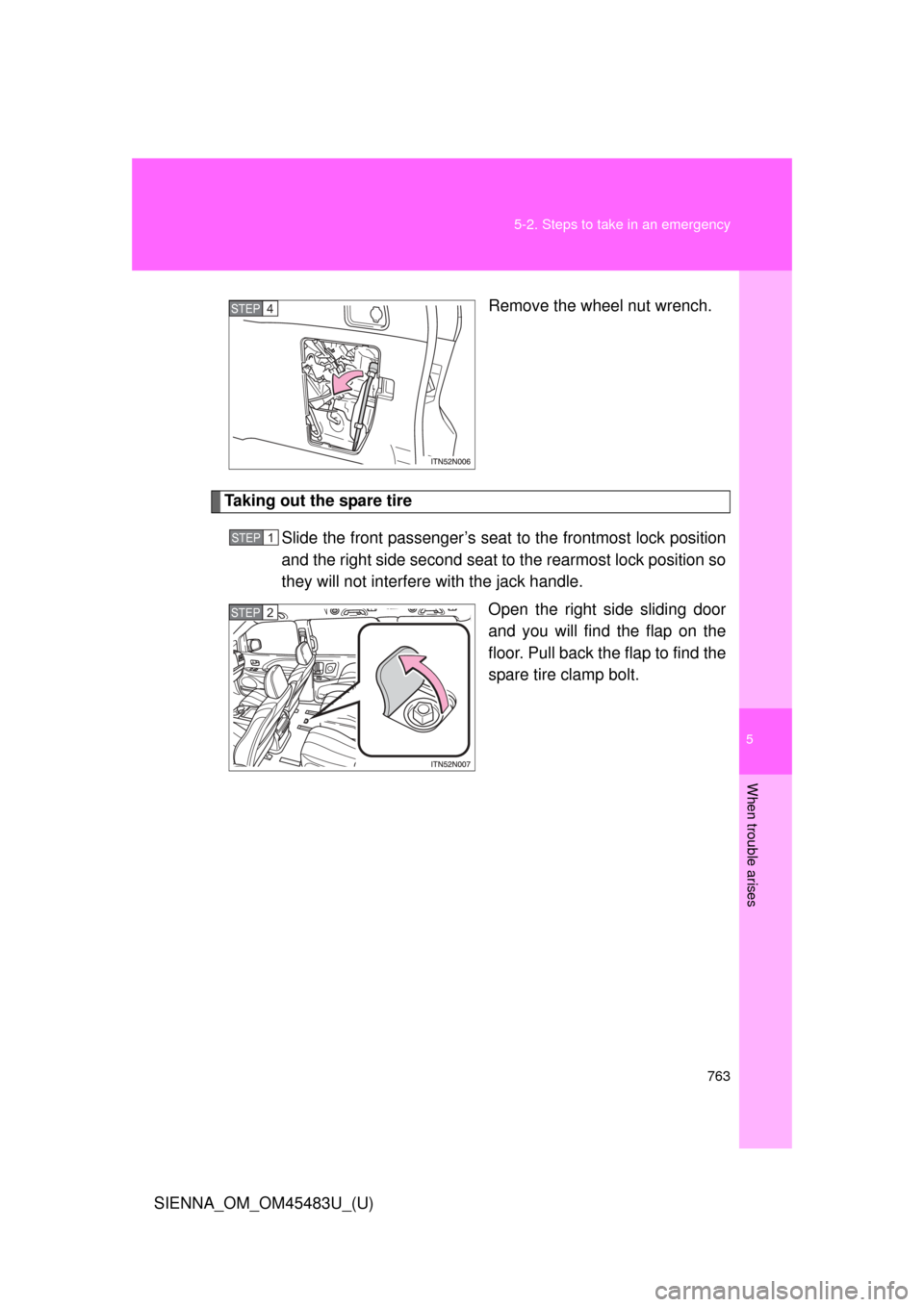

763
5-2. Steps to take in an emergency
SIENNA_OM_OM45483U_(U)
Remove the wheel nut wrench.
Taking out the spare tire
Slide the front passenger’s seat to the frontmost lock position
and the right side second seat to the rearmost lock position so
they will not interfere with the jack handle.
Open the right side sliding door
and you will find the flap on the
floor. Pull back the flap to find the
spare tire clamp bolt.
STEP4
STEP1
STEP2

764 5-2. Steps to take in an emergency

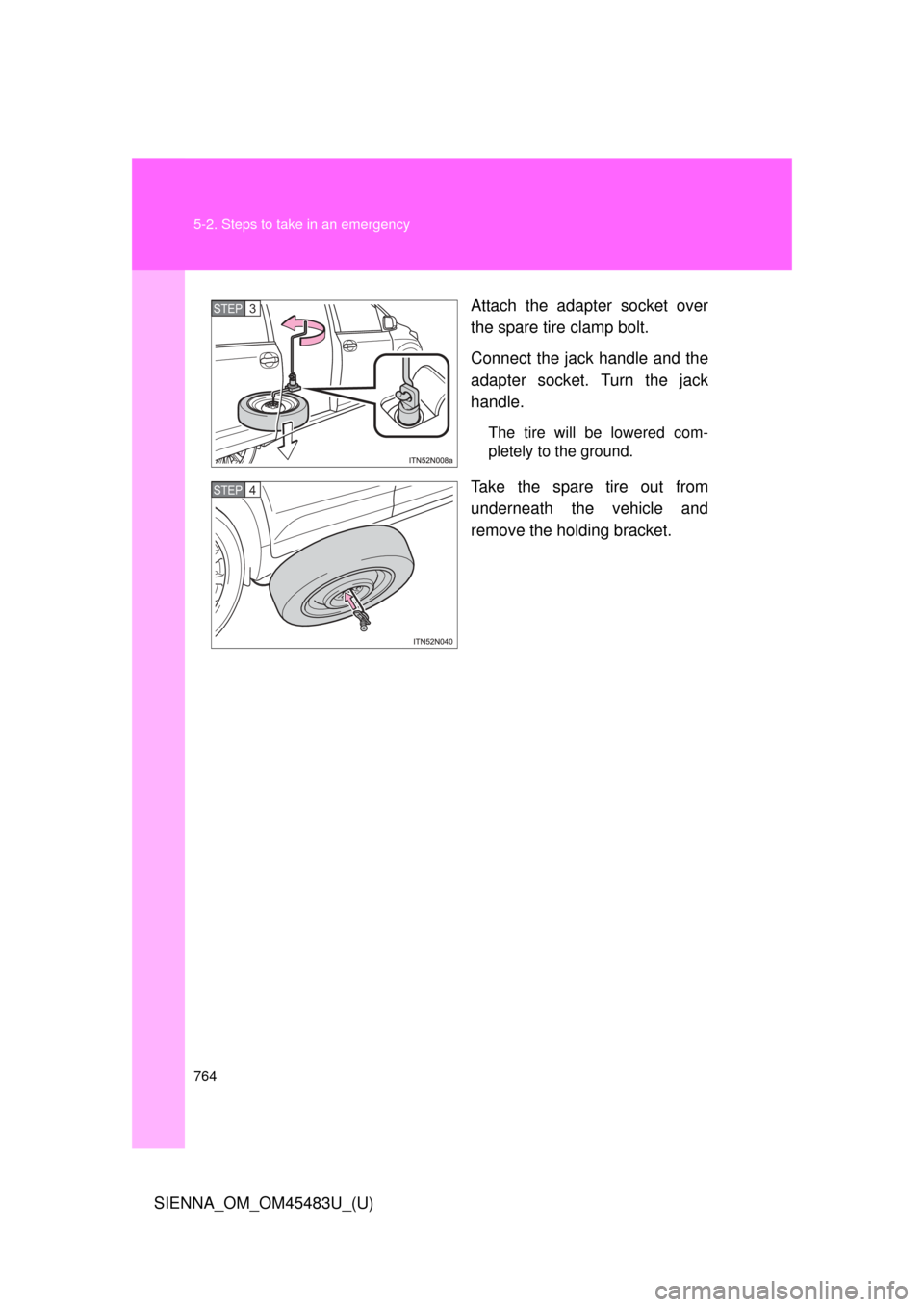

SIENNA_OM_OM45483U_(U)Attach the adapter socket over
the spare tire clamp bolt.
Connect the jack handle and the
adapter socket. Turn the jack
handle.
The tire will be lowered com-
pletely to the ground.
Take the spare tire out from
underneath the vehicle and
remove the holding bracket.
STEP3
STEP4

5
When trouble arises
765
5-2. Steps to take in an emergency
SIENNA_OM_OM45483U_(U)

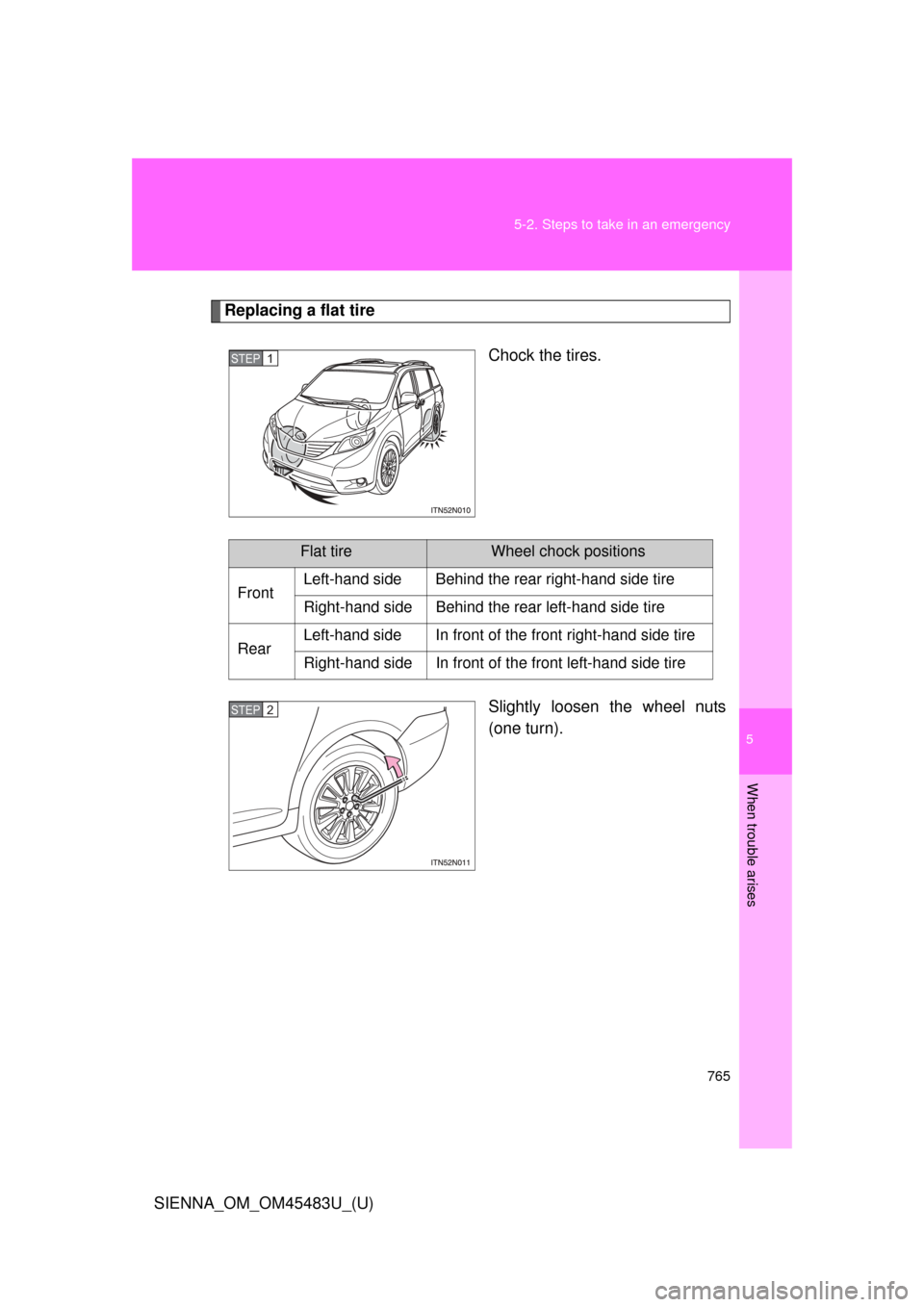

Replacing a flat tire
Chock the tires.
Slightly loosen the wheel nuts
(one turn).
STEP1
Flat tireWheel chock positions
Front Left-hand side Behind the rear right-hand side tire
Right-hand side Behind the rear left-hand side tire
Rear Left-hand side In front of the front right-hand side tire
Right-hand side In front of the front left-hand side tire
STEP2

766 5-2. Steps to take in an emergency

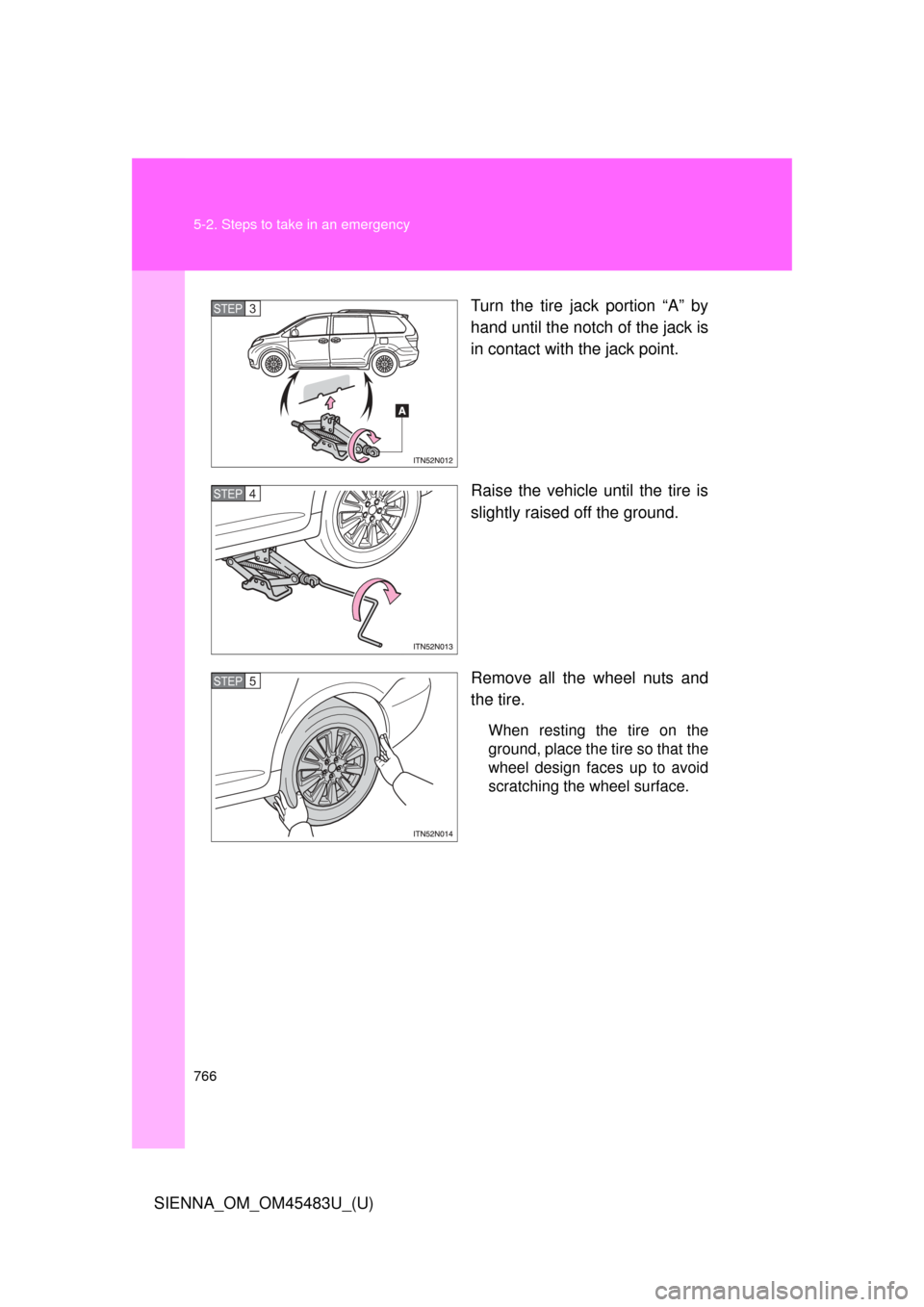

SIENNA_OM_OM45483U_(U)Turn the tire jack portion “A” by
hand until the notch of the jack is
in contact with the jack point.
Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
STEP3
STEP4
STEP5

5
When trouble arises
767
5-2. Steps to take in an emergency
SIENNA_OM_OM45483U_(U)

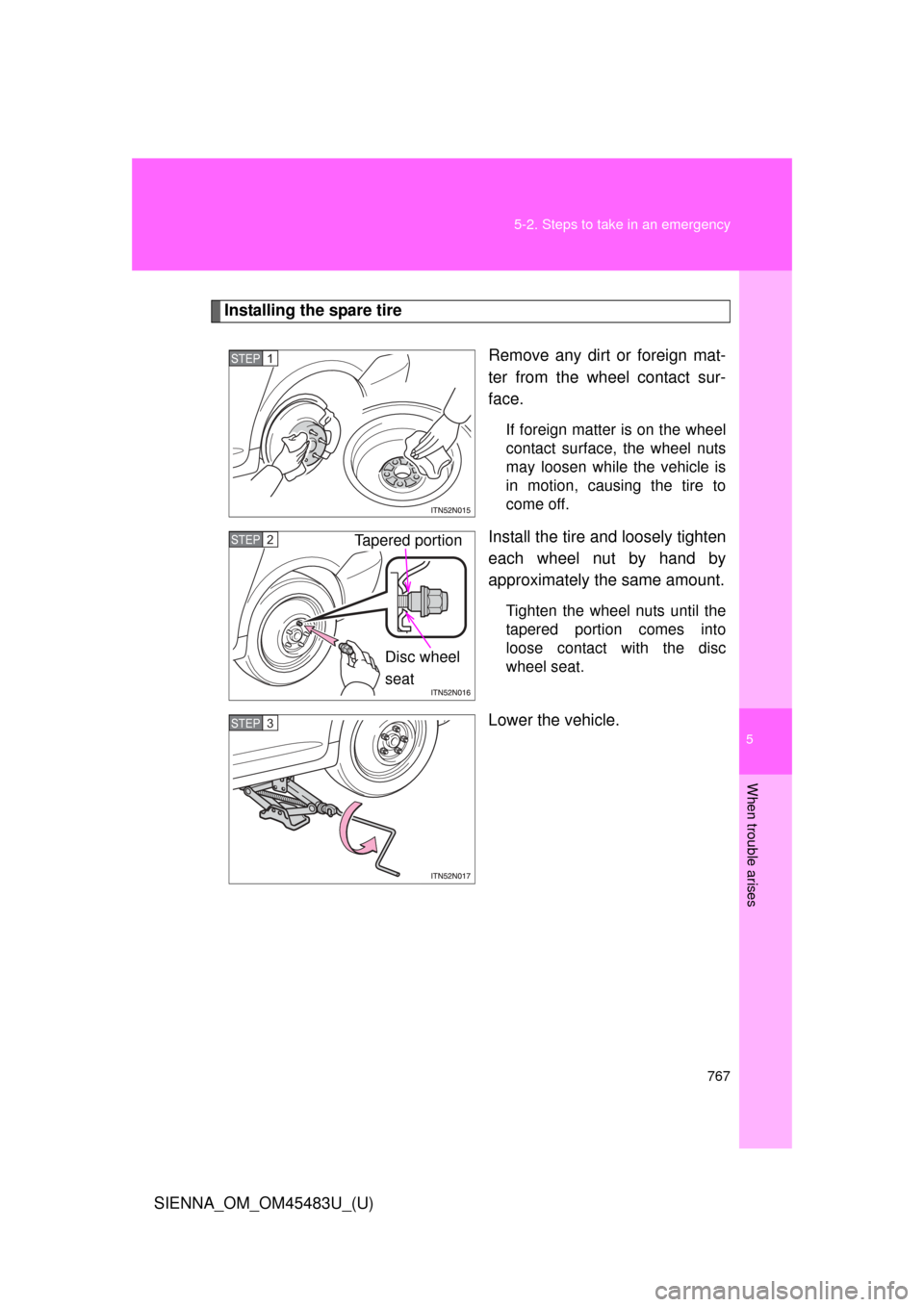

Installing the spare tire
Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is
in motion, causing the tire to
come off.
Install the tire and loosely tighten
each wheel nut by hand by
approximately the same amount.
Tighten the wheel nuts until the
tapered portion comes into
loose contact with the disc
wheel seat.
Lower the vehicle.
STEP1
Tapered portion
Disc wheel
seatSTEP2
STEP3

768 5-2. Steps to take in an emergency

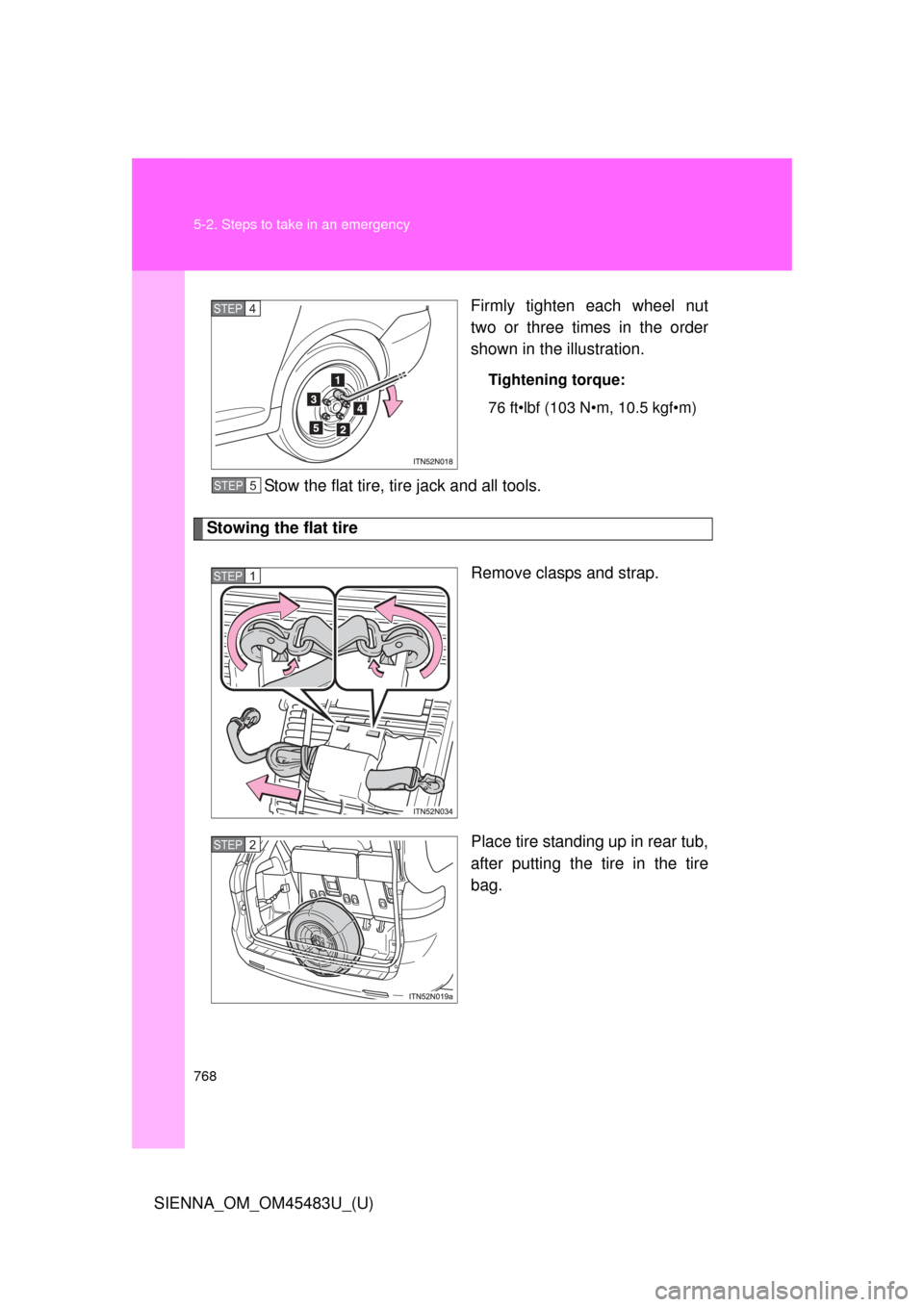

SIENNA_OM_OM45483U_(U)Firmly tighten each wheel nut
two or three times in the order
shown in the
illustration.
Tightening torque:
76 ft•lbf (103 N•m, 10.5 kgf•m)
Stow the flat tire, tire jack and all tools.
Stowing the flat tire
Remove clasps and strap.
Place tire standing up in rear tub,
after putting the tire in the tire
bag.
STEP4
STEP5
STEP1
STEP2

5
When trouble arises
769
5-2. Steps to take in an emergency
SIENNA_OM_OM45483U_(U)

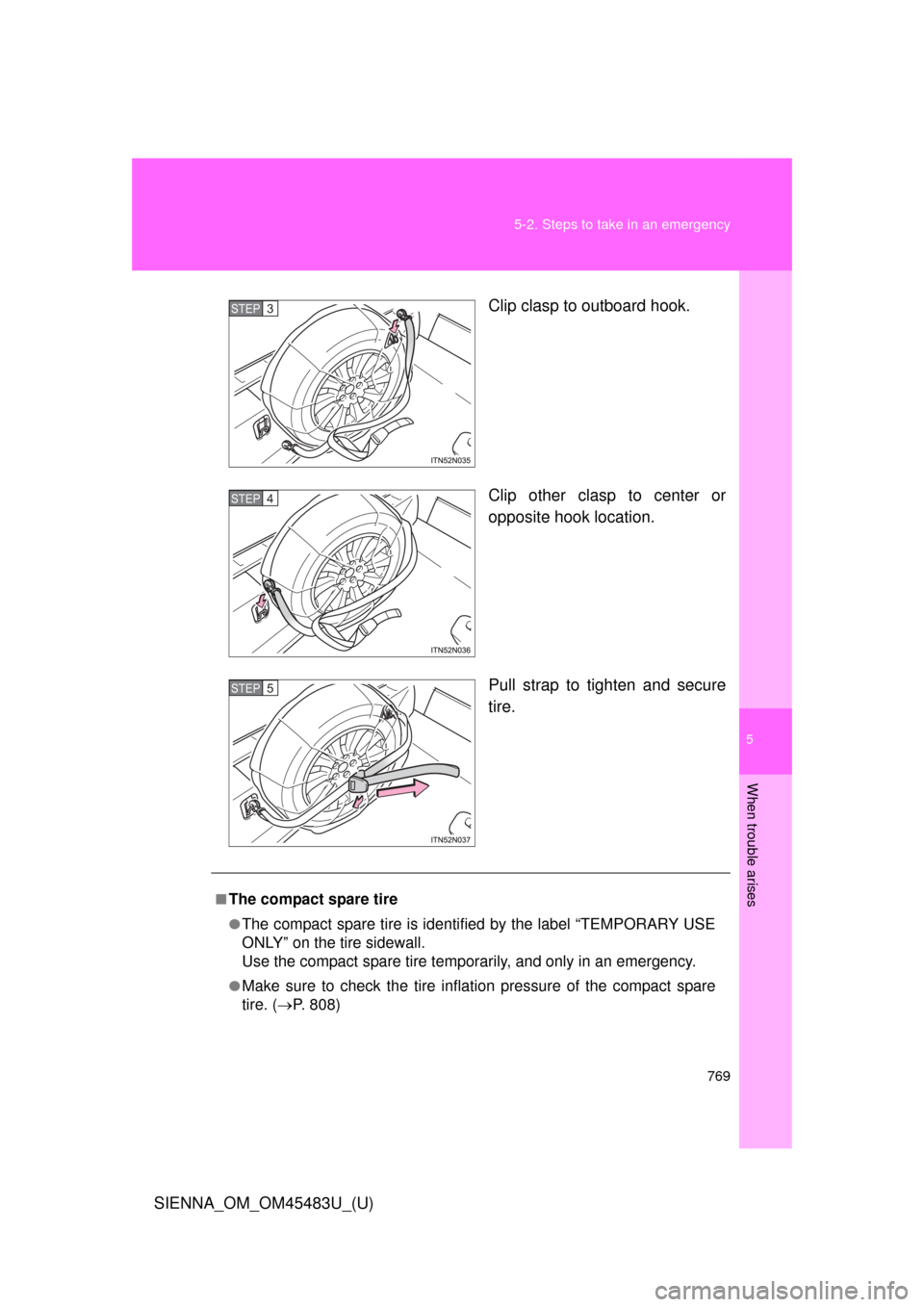

Clip clasp to outboard hook.
Clip other clasp to center or
opposite hook location.
Pull strap to tighten and secure
tire.
STEP3
STEP4
STEP5
■The compact spare tire
●The compact spare tire is identifi
ed by the label “TEMPORARY USE
ONLY” on the tire sidewall.
Use the compact spare tire temporarily, and only in an emergency.
●Make sure to check the tire inflation pressure of the compact spare
tire. ( P. 808)

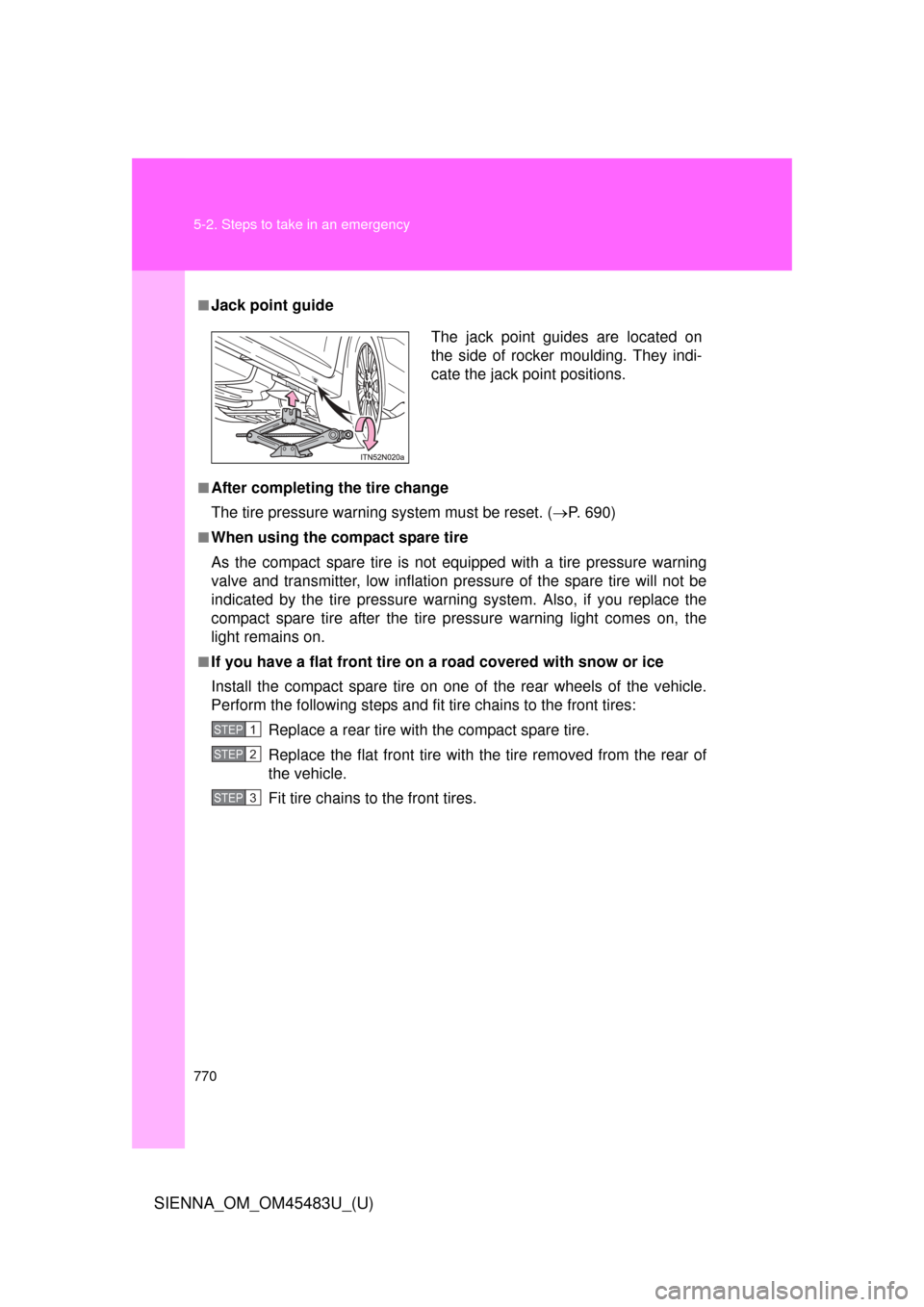

770 5-2. Steps to take in an emergency
SIENNA_OM_OM45483U_(U)
■Jack point guide
■After completing the tire change
The tire pressure warning system must be reset. ( P. 690)
■When using the compact spare tire
As the compact spare tire is not equipped with a tire pressure warning
valve and transmitter, low inflation pressure of the spare tire will not be
indicated by the tire pressure warn ing system. Also, if you replace the
compact spare tire after the tire pressure warning light comes on, the
light remains on.
■If you have a flat front tire on a road covered with snow or ice
Install the compact spare tire on one of the rear wheels of the vehicle.
Perform the following steps and fit tire chains to the front tires:
Replace a rear tire with the compact spare tire.
Replace the flat front tire with the tire removed from the rear of
the vehicle.
Fit tire chains to the front tires.
The jack point guides are located on
the side of rocker moulding. They indi-
cate the jack point positions.
STEP1
STEP2
STEP3
