When trouble arises
791
5-2. Steps to take in an emergency
SIENNA_OM_OM45483U_(U)
The coolant level is satisfactory if
it is between the “FULL” and
“LOW” lines on the reservoir.
Reservoir
“FULL”
“LOW”
Radiator cap
Add coolant if necessary.
Water can be used in an emer-
gency if coolant is unavailable.
Start the engine and turn the air conditioning system on to
check that the radiator cooling fans operate and to check for
coolant leaks from the radiator or hoses.
The fans operate when the air conditioning system is turned on
immediately after a cold start. Conf irm that the fans are operating by
checking the fan sound and air flow. If it is difficult to check these,
turn the air conditioning system on and off repeatedly. (The fans may
not operate in freezing temperatures.)
If the fans are not operating:
Stop the engine immediately and contact your Toyota
dealer.
If the fans are operating: Have the vehicle inspected at the nearest Toyota dealer.
STEP4
STEP5
STEP6
STEP7

792 5-2. Steps to take in an emergency
SIENNA_OM_OM45483U_(U)
CAUTION
■To prevent an accident or injury when inspecting under the hood of
your vehicle
● If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot, caus-
ing serious injuries such as burns.
● Keep hands and clothing (especially a tie, a scarf or a muffler) away from
the fan and belts. Failure to do so may cause the hands or clothing to be
caught, resulting in serious injury.
● Do not loosen the radiator cap or the coolant reservoir cap while the
engine and radiator are hot. Serious injury, such as burns, may result from
hot coolant and steam released under pressure.
NOTICE
■When adding engine coolant
Wait until the engine has cooled down before adding engine coolant.
When adding coolant, do so slowly. Adding cool coolant to a hot engine too
quickly can cause damage to the engine.
■ To prevent damage to the cooling system
Observe the following precautions:
●Avoid contaminating the coolant with foreign matter (such as sand or dust
etc.).
● Do not use commercially available coolant additives.

5
When trouble arises
793
5-2. Steps to take in an emergency
SIENNA_OM_OM45483U_(U)

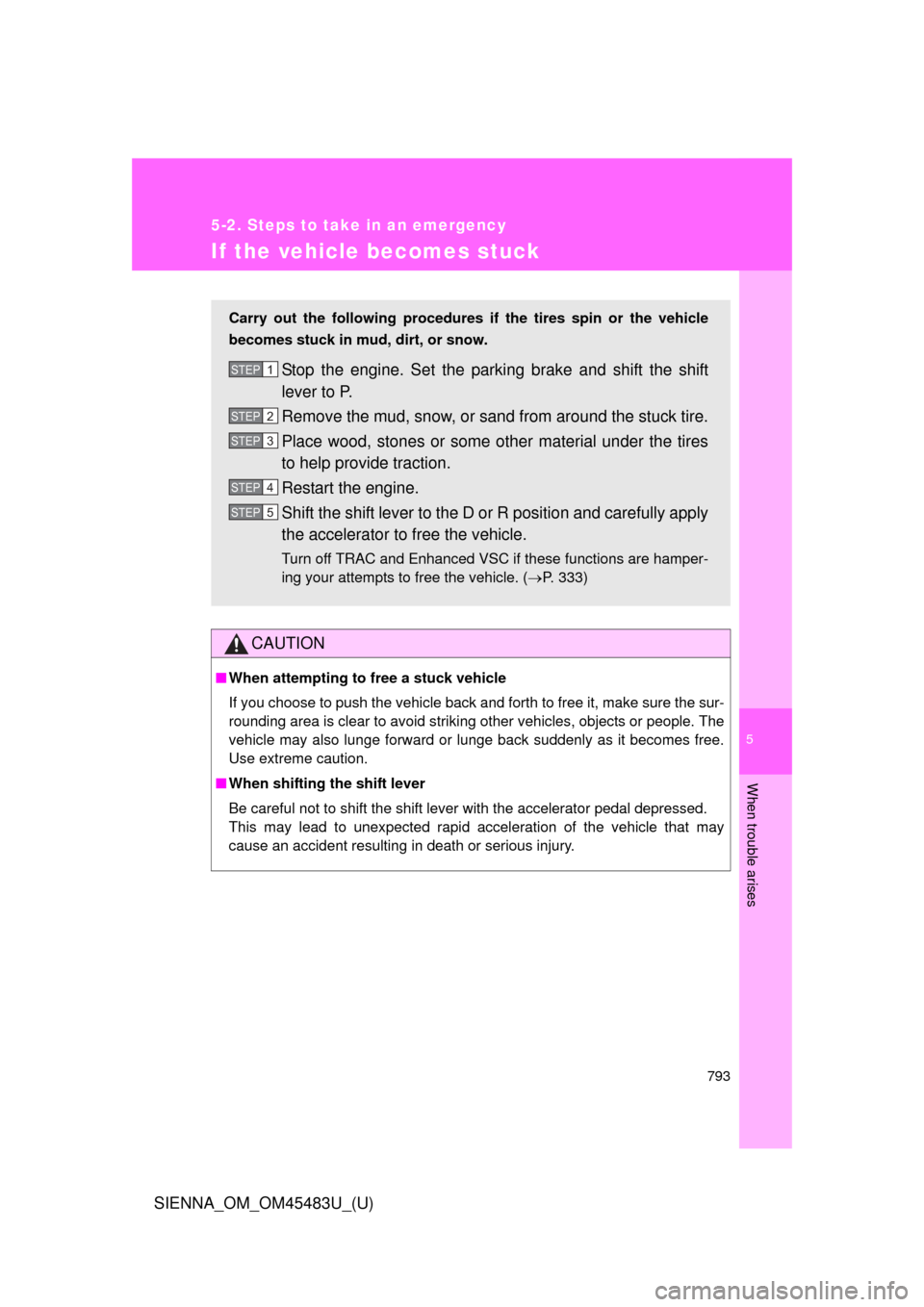

If the vehicle becomes stuck
CAUTION
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the sur-
rounding area is clear to avoid striki ng other vehicles, objects or people. The
vehicle may also lunge forward or lu nge back suddenly as it becomes free.
Use extreme caution.
■ When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt, or snow.
Stop the engine. Set the parki ng brake and shift the shift
lever to P.
Remove the mud, snow, or sand from around the stuck tire.
Place wood, stones or some other material under the tires
to help provide traction.
Restart the engine.
Shift the shift lever to the D or R position and carefully apply
the accelerator to free the vehicle.
Turn off TRAC and Enhanced VSC if these functions are hamper-
ing your attempts to free the vehicle. (P. 333)
STEP1
STEP2
STEP3
STEP4
STEP5

794 5-2. Steps to take in an emergency
SIENNA_OM_OM45483U_(U)
NOTICE
■To avoid damaging the transaxle and other components
●Avoid spinning the wheels and pressing the accelerator pedal more than
necessary.
● If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.

5
When trouble arises
795
5-2. Steps to take in an emergency
SIENNA_OM_OM45483U_(U)

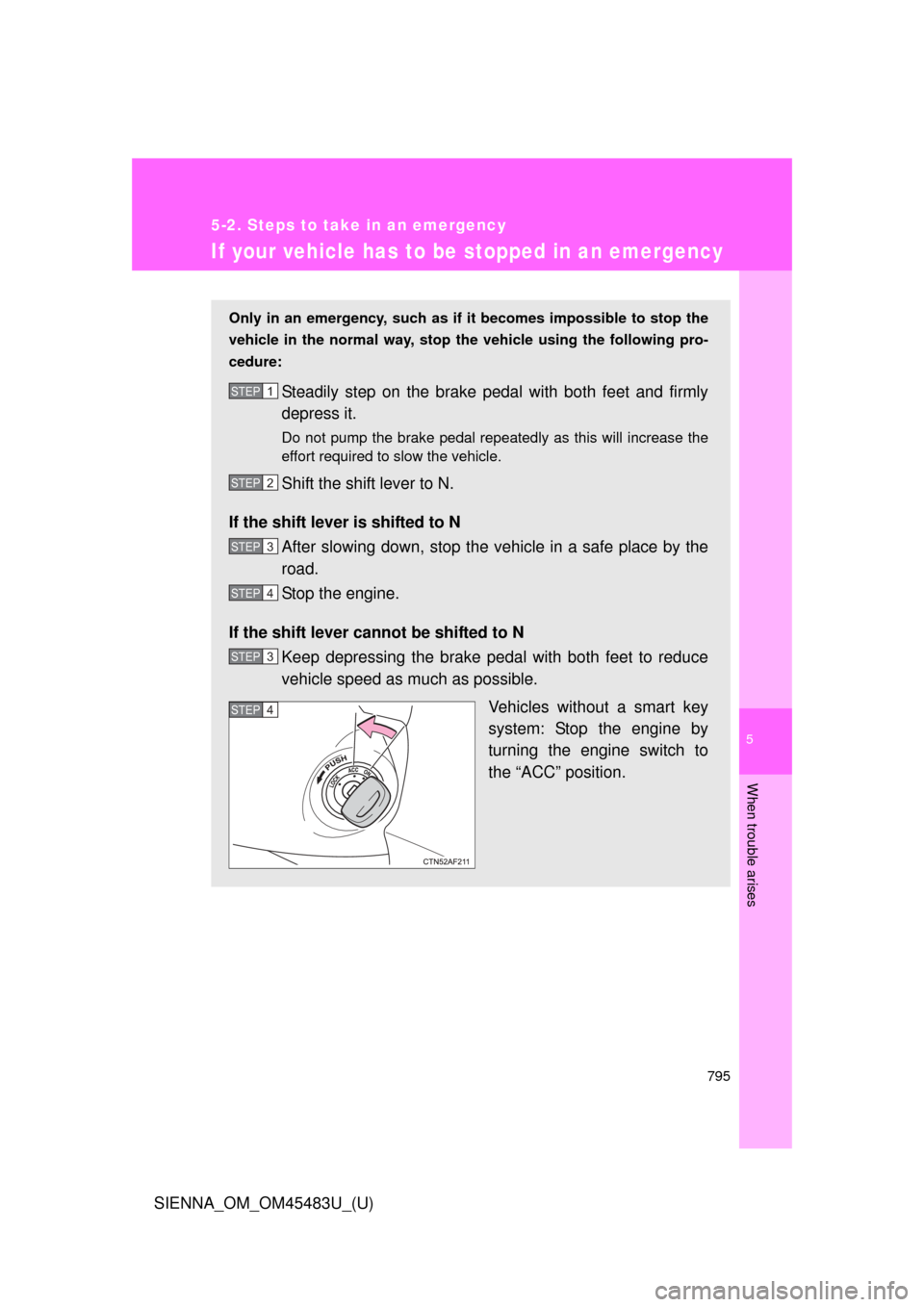

If your vehicle has to be stopped in an emergency
Only in an emergency, such as if it becomes impossible to stop the
vehicle in the normal way, stop the vehicle using the following pro-
cedure:
Steadily step on the brake pedal with both feet and firmly
depress it.
Do not pump the brake pedal repeatedly as this will increase the
effort required to slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N After slowing down, stop the vehi cle in a safe place by the
road.
Stop the engine.
If the shift lever cannot be shifted to N Keep depressing the brake pedal with both feet to reduce
vehicle speed as much as possible.
Vehicles without a smart key
system: Stop the engine by
turning the engine switch to
the “ACC” position.
STEP1
STEP2
STEP3
STEP4
STEP3
STEP4

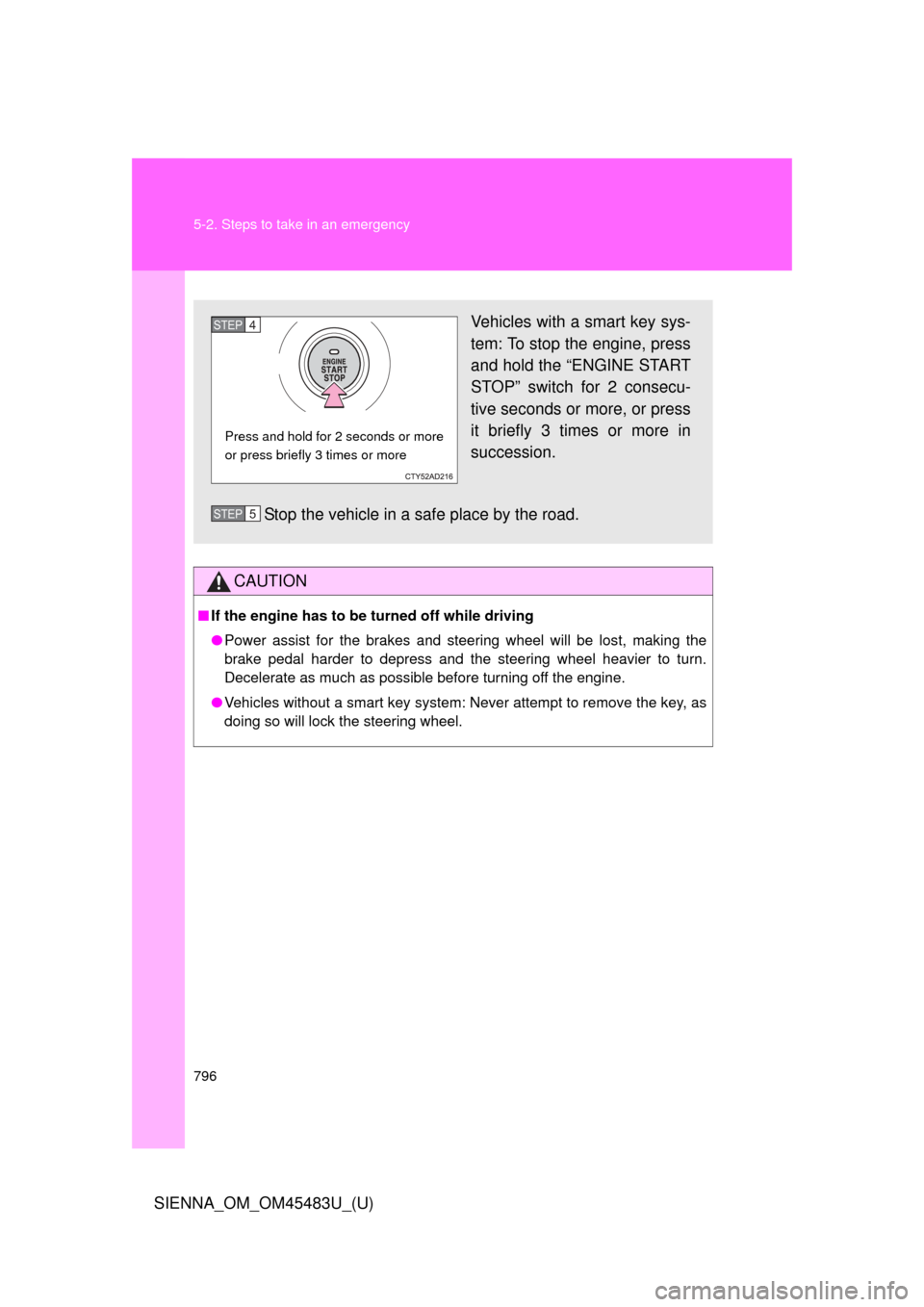

796 5-2. Steps to take in an emergency
SIENNA_OM_OM45483U_(U)
CAUTION
■If the engine has to be turned off while driving
●Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
● Vehicles without a smart key system: Never attempt to remove the key, as
doing so will lock the steering wheel.
Vehicles with a smart key sys-
tem: To stop the engine, press
and hold the “ENGINE START
STOP” switch for 2 consecu-
tive seconds or more, or press
it briefly 3 times or more in
succession.
Stop the vehicle in a safe place by the road.
Press and hold for 2 seconds or more
or press briefly 3 times or more
STEP4
STEP5

Vehicle specifications6
797
SIENNA_OM_OM45483U_(U)
6-1. SpecificationsMaintenance data (fuel, oil level, etc.) ......... 798
Fuel information ............... 810
Tire information ................ 814
6-2. Customization Customizable features ..... 828
6-3. Initialization Items to initialize .............. 836

798
SIENNA_OM_OM45483U_(U)

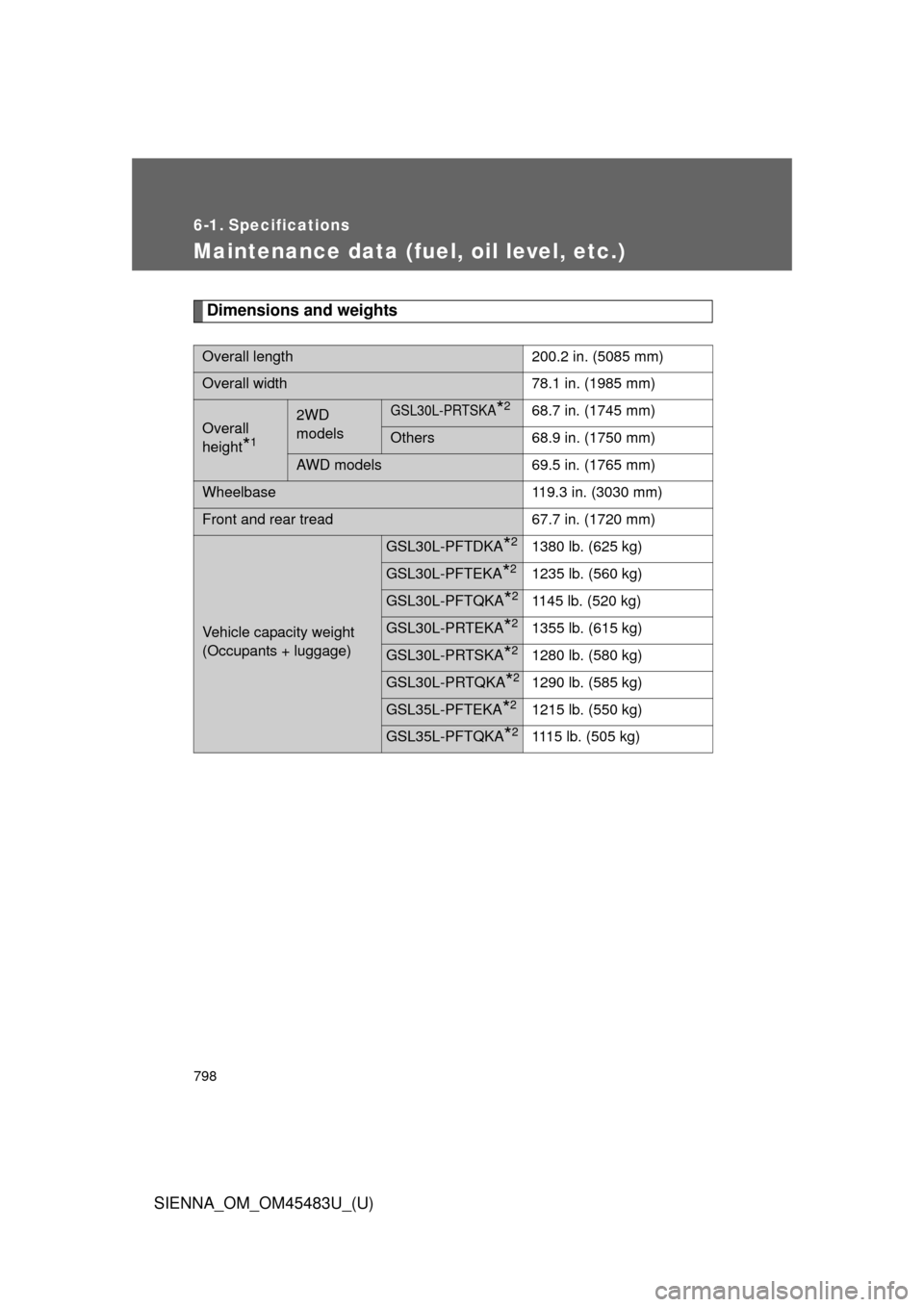

6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall length200.2 in. (5085 mm)
Overall width78.1 in. (1985 mm)
Overall
height
*1
2WD
modelsGSL30L-PRTSKA*268.7 in. (1745 mm)
Others68.9 in. (1750 mm)
AWD models 69.5 in. (1765 mm)
Wheelbase 119.3 in. (3030 mm)
Front and rear tread 67.7 in. (1720 mm)
Vehicle capacity weight
(Occupants + luggage)
GSL30L-PFTDKA*21380 lb. (625 kg)
GSL30L-PFTEKA*21235 lb. (560 kg)
GSL30L-PFTQKA*21145 lb. (520 kg)
GSL30L-PRTEKA*21355 lb. (615 kg)
GSL30L-PRTSKA*21280 lb. (580 kg)
GSL30L-PRTQKA*21290 lb. (585 kg)
GSL35L-PFTEKA*21215 lb. (550 kg)
GSL35L-PFTQKA*21115 lb. (505 kg)

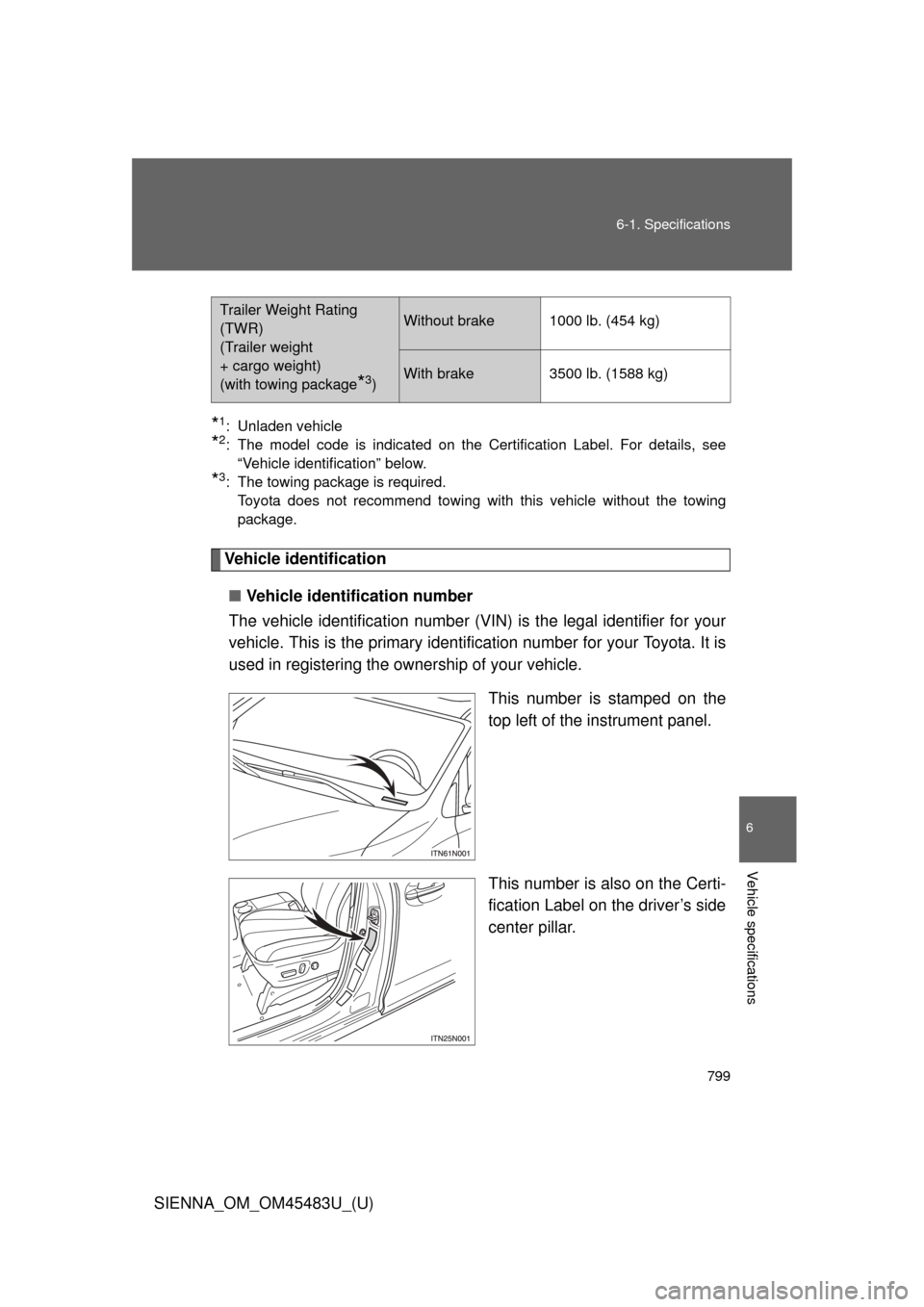

799
6-1. Specifications
6
Vehicle specifications
SIENNA_OM_OM45483U_(U)
*1: Unladen vehicle
*2: The model code is indicated on the Certification Label. For details, see
“Vehicle identification” below.
*3: The towing package is required.Toyota does not recommend towing with this vehicle without the towing
package.
Vehicle identification
■ Vehicle identification number
The vehicle identificati on number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Toyota. It is
used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
This number is also on the Certi-
fication Label on the driver’s side
center pillar.
Trailer Weight Rating
(TWR)
(Trailer weight
+ cargo weight)
(with towing package
*3)
Without brake 1000 lb. (454 kg)
With brake3500 lb. (1588 kg)

800 6-1. Specifications

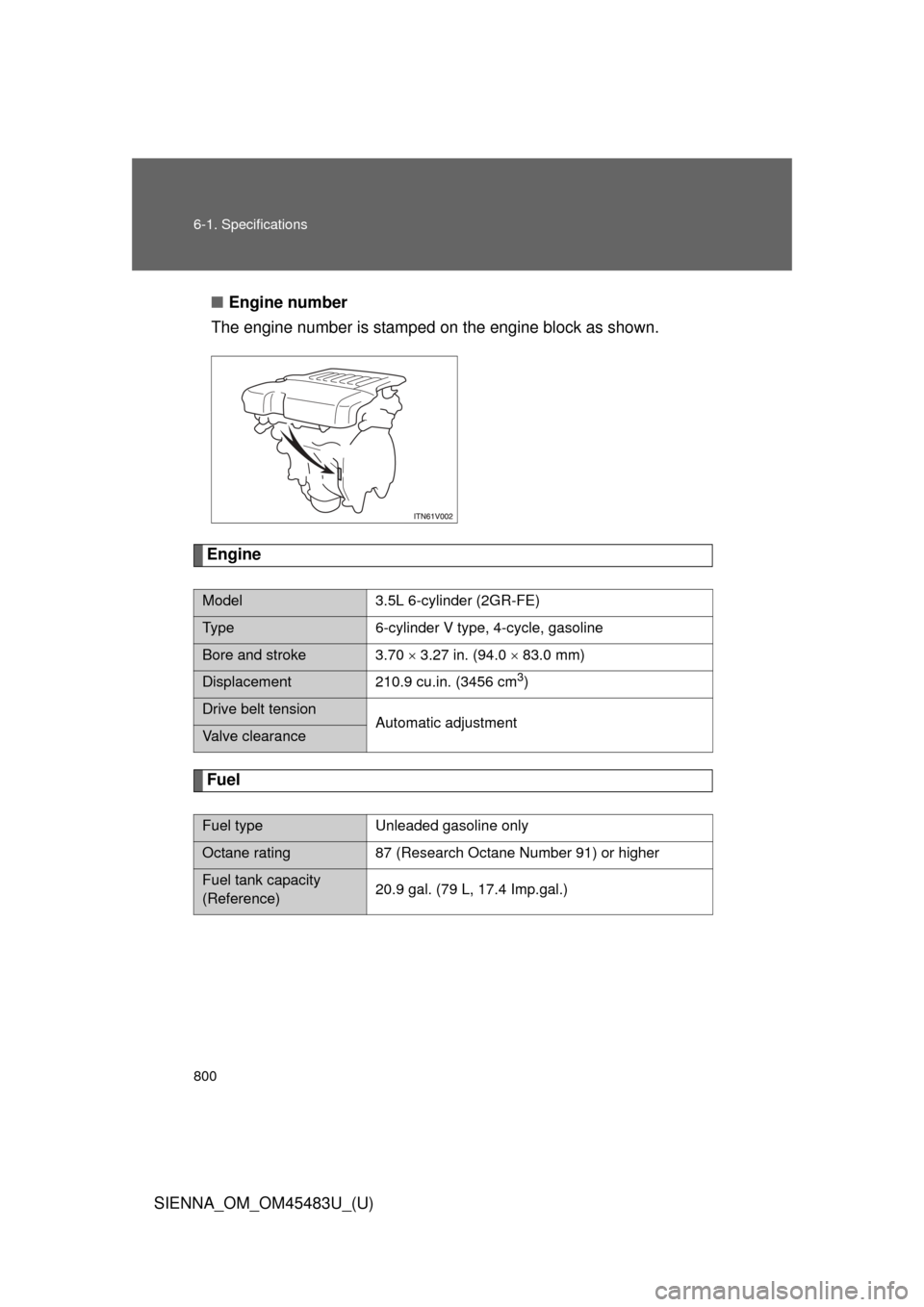

SIENNA_OM_OM45483U_(U)■
Engine number
The engine number is stamped on the engine bl ock as shown.
Engine
Fuel
Model3.5L 6-cylinder (2GR-FE)
Type 6-cylinder V type, 4-cycle, gasoline
Bore and stroke 3.70  3.27 in. (94.0  83.0 mm)
Displacement 210.9 cu.in. (3456 cm3)
Drive belt tension
Automatic adjustment
Valve clearance
Fuel typeUnleaded gasoline only
Octane rating 87 (Research Octane Number 91) or higher
Fuel tank capacity
(Reference) 20.9 gal. (79 L, 17.4 Imp.gal.)
