TOYOTA SIENNA 2014 XL30 / 3.G Owners Manual

831
6-2. Customization
6
Vehicle specifications
SIENNA_OM_OM45483U_(U)
Power
sliding
door
*1
(
P. 6 7 ) Operation signal
(buzzer)
Off On
Opening and closing
operation Press and holdPress twice
One short press
Automatic
light control
system
*1
( P. 270) Time elapsed before
headlights automati-
cally turn off after doors
are closed
*2
30 seconds
0 second
60 seconds
90 seconds
Daytime running light
system (U.S.A. only) On Off
Light sensor sensitivity Level 3 Level 1 to 5
Automatic High Beam*1, 2On Off
Multi-
information
display
*1
( P. 256) Language selection*2English
French
Spanish
ItemFunctionDefault settingCustomized setting

832 6-2. Customization
SIENNA_OM_OM45483U_(U)
*1: If equipped
*2: For vehicles with the multi-information display, the setting can be changedby operating the multi-information display. (
P. 833)
Illumination
(
P. 582)
Time elapsed before
lights turn off
15 seconds7.5 seconds
30 seconds
Operation when the
doors are unlocked On Off
Operation after the
engine switch is turned
to the “LOCK” position
(vehicles without a
smart key system) or
the “ENGINE START
STOP” switch is turned
to OFF (vehicles with a
smart key system) On Off
Rear ceiling light
*1On Off
Outer foot lights
*1On Off
Intuitive
parking
assist
*1
(
P. 318) Buzzer volume Max. Min. to Max.
Seat belt
reminder
(
P. 747) Vehicle speed linked
seat belt reminder
buzzer
On Off
ItemFunctionDefault settingCustomized
setting

833
6-2. Customization
6
Vehicle specifications
SIENNA_OM_OM45483U_(U)
Customizing the features by usi
ng the multi-information display
Press the “SETUP” button while
the vehicle is stopped.
The “Custom Settings” screen is
displayed on the multi-information
display.
If left idle for approximately 20
seconds, the display will return to
the previous screen.
Select the setting you wish to
change by pressing the “INFO”
or “SETUP” button, then press
the “SELECT RESET” button to
select.
If you select “Exit” and press the
“SELECT RESET” button, the
display will return to the previous
screen.
Select the setting you wish to
change by pressing the “INFO”
or “SETUP” button, and press
the “SELECT RESET” button.
The illustration assumes that
“Door” was chosen in .
The current setting is indicated by
yellow text.
If you select “Return” and press
the “SELECT RESET” button, the
display will return to the “Custom
Settings” screen.
STEP1
STEP2
STEP3
STEP2

834 6-2. Customization
SIENNA_OM_OM45483U_(U)Choose a desired setting by
pressing the “INFO” or “SETUP”
button, then press the “SELECT
RESET” button to select.
If any settings are changed, the
display will revert to the previous
screen.
The illustration assumes that
“Auto Locking” was chosen in
.
The current setting is indicated by
yellow text.
If you select “Return” and press
the “SELECT RESET” button, the
display will revert to the previous
screen.
■ Restoring default settings
Press the “SETUP” button while
the vehicle is stopped.
The “Custom Settings” screen is
displayed on the multi-information
display.
If left idle for approximately 20
seconds, the display will revert to
the previous screen.
STEP4
STEP3
STEP1

835
6-2. Customization
6
Vehicle specifications
SIENNA_OM_OM45483U_(U)
Select “Default Settings” by
pressing the “INFO” or “SETUP”
button, and press the “SELECT
RESET” button.
If you select “Exit” and press the
“SELECT RESET” button, the
display will revert to the previous
screen.
Select “Yes” by pressing the
“INFO” or “SETUP” button, and
press the “SELECT RESET” but-
ton.
“Default Settings Restored” is dis-
played, and the default settings
are restored.
If you select “No” and press the
“SELECT RESET” button, the
display will revert to the “Custom
Settings” screen without restor-
ing the default settings.
STEP2
STEP3
■
If the vehicle is moved while setti ngs are being changed on the multi-
information display
P. 267

836
SIENNA_OM_OM45483U_(U)
6-3. Initialization
Items to initialize
ItemWhen to initializeReference
Power sliding door
(if equipped) After reconnecting or changing the
battery
P. 7 4
Power back door
(if equipped) After reconnecting or changing the
battery
P. 8 7
Maintenance data
(U.S.A. only) After the maintenance is performed P. 658
Tire pressure warning
system When changing the tire size P. 690
The following items must be init
ialized for normal system operation
after such cases as the battery being reconnected, or maintenance
being performed on the vehicle.

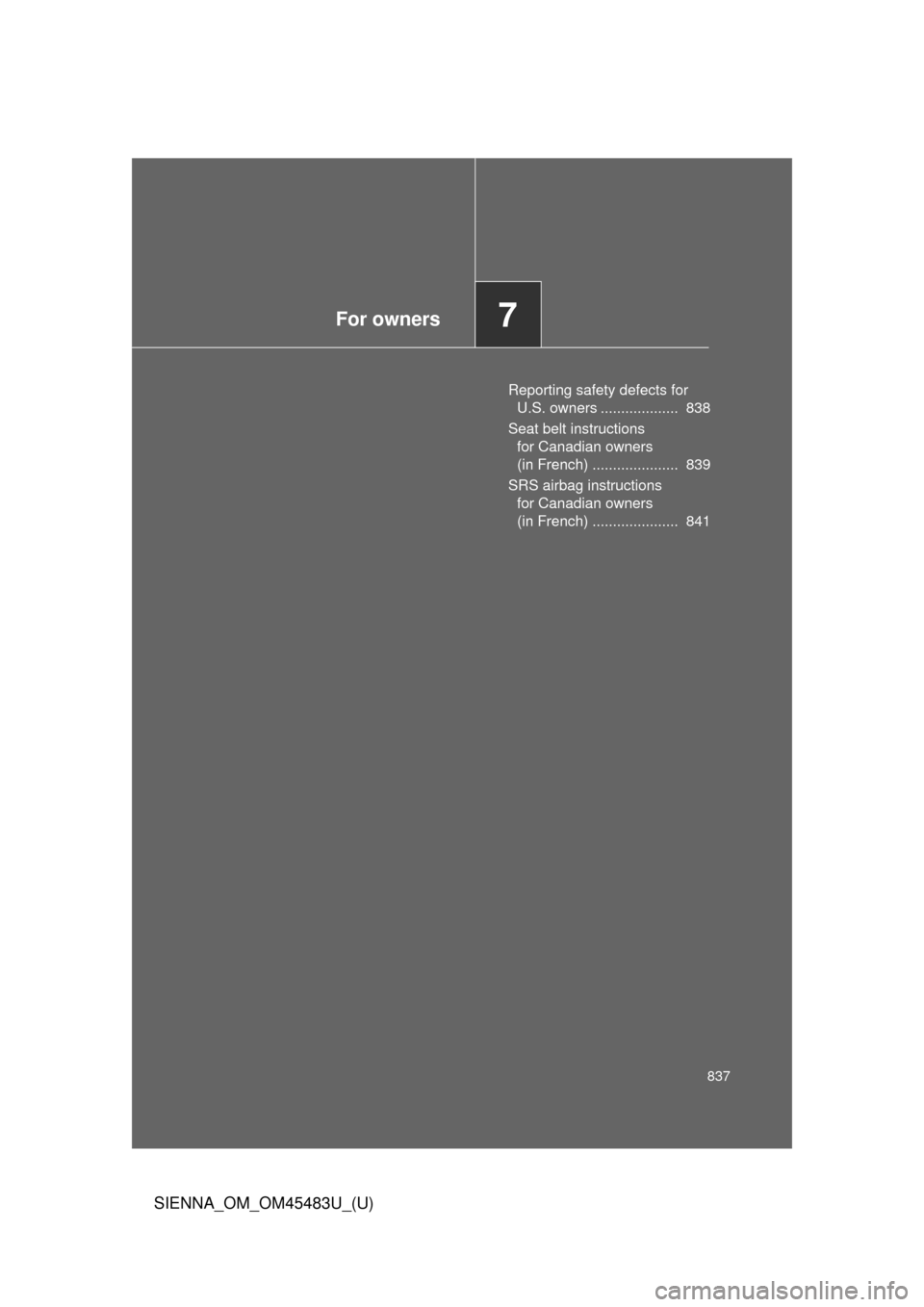

For owners7
837
SIENNA_OM_OM45483U_(U)
Reporting safety defects for U.S. owners ................... 838
Seat belt instructions for Canadian owners
(in French) ..................... 839
SRS airbag instructions for Canadian owners
(in French) ..................... 841

838
SIENNA_OM_OM45483U_(U)

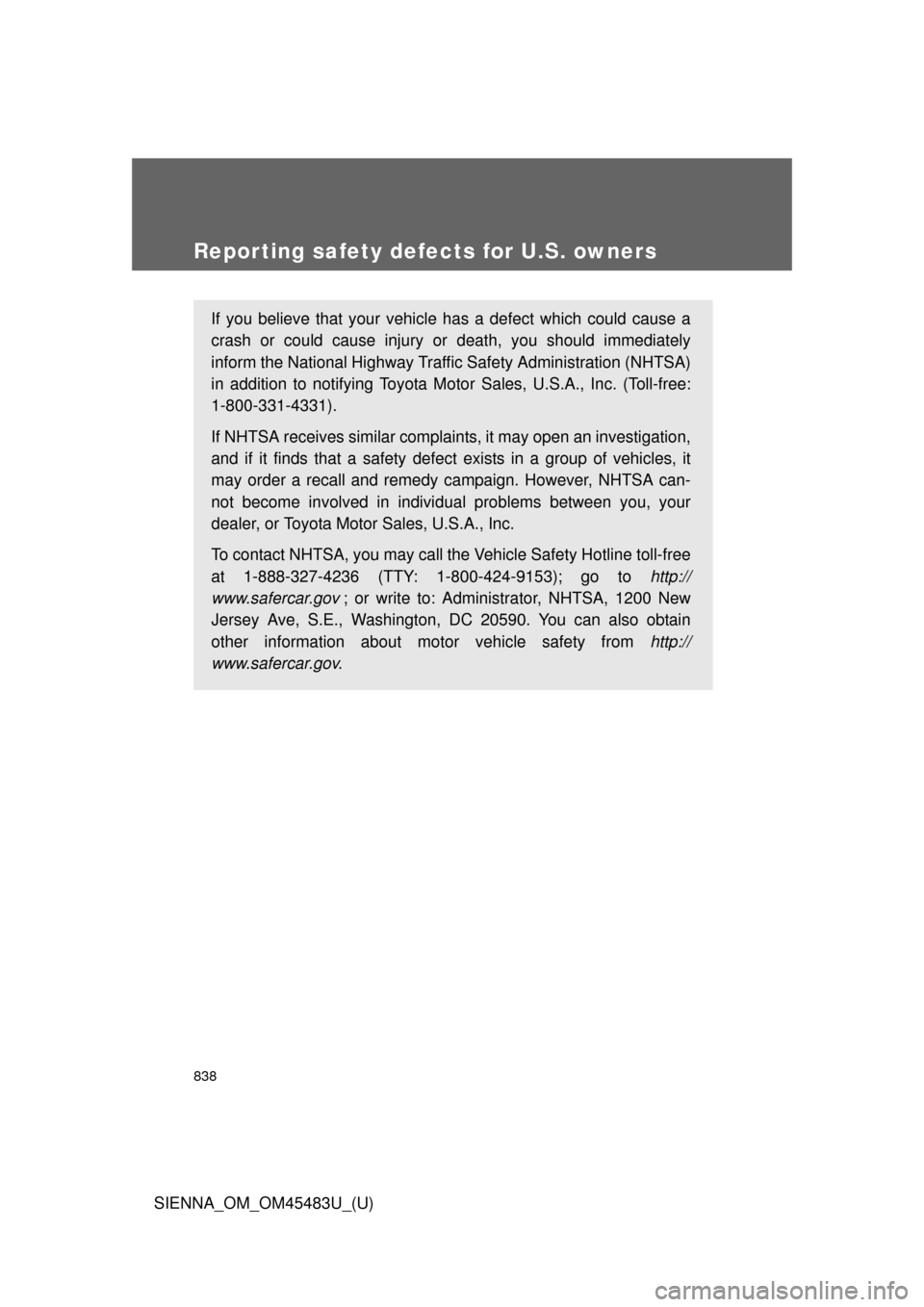

Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a
crash or could cause injury or death, you should immediately
inform the National Highway Traffi c Safety Administration (NHTSA)
in addition to notifying Toyota Motor Sales, U.S.A., Inc. (Toll-free:
1-800-331-4331).
If NHTSA receives similar complaints, it may open an investigation,
and if it finds that a safety defec t exists in a group of vehicles, it
may order a recall and remedy campaign. However, NHTSA can-
not become involved in individ ual problems between you, your
dealer, or Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free
at 1-888-327-4236 (TTY: 1-800-424-9153); go to http://
www.safercar.gov
; or write to: Administrator, NHTSA, 1200 New
Jersey Ave, S.E., Washington, DC 20590. You can also obtain
other information about motor vehicle safety from http://
www.safercar.gov .

839
7
SIENNA_OM_OM45483U_(U)
For owners

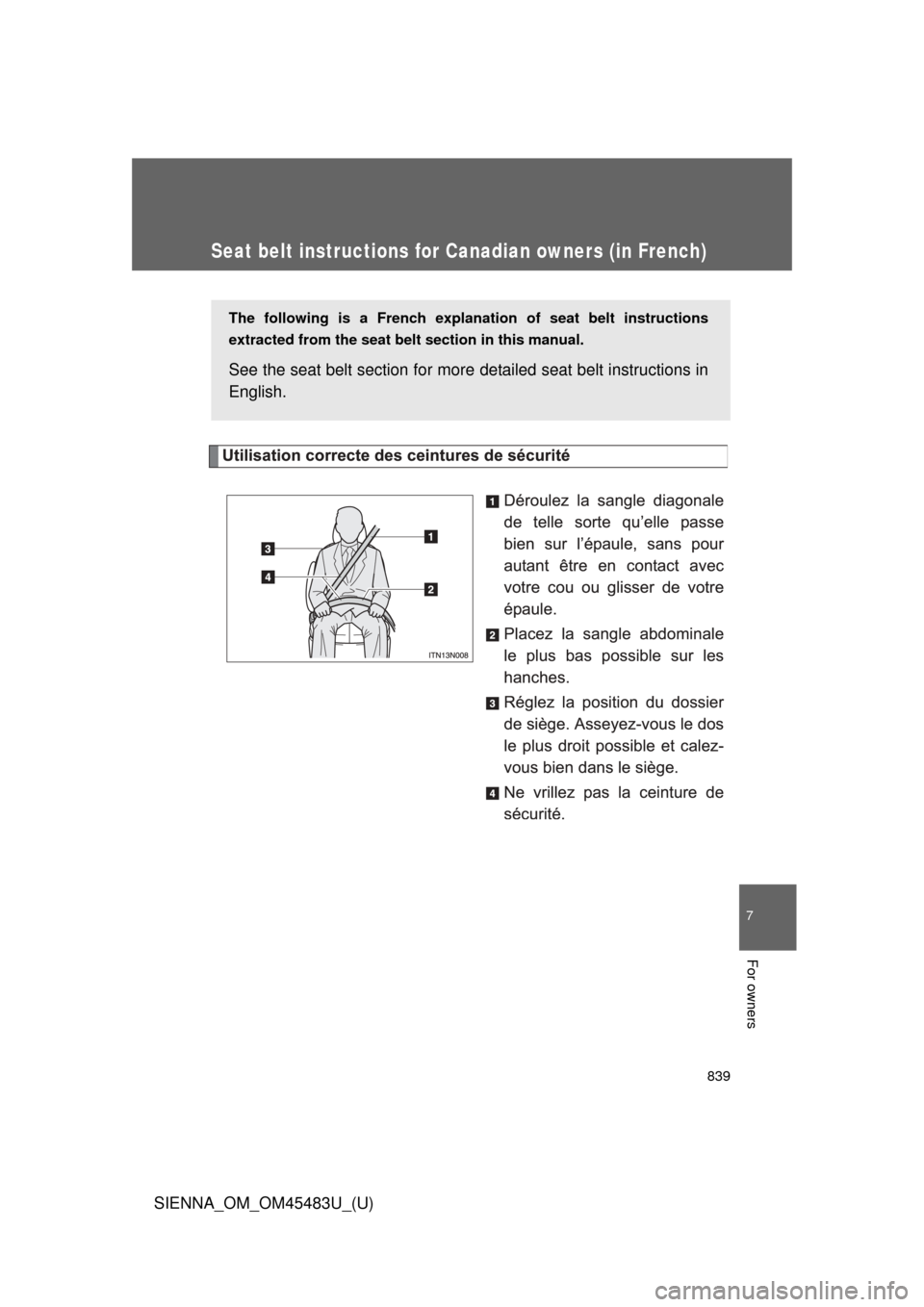

Seat belt instructions for Canadian owners (in French)
The following is a French explanation of seat belt instructions
extracted from the seat belt section in this manual.
See the seat belt section for more detailed seat belt instructions in
English.

840
