Page 501 of 664
501
SIENNA_OM_01999-08001_(U)
7-3. Do-it-yourself maintenance
7
Maintenance and care
Air conditioning filter
Turn the engine switch to the “LOCK” position (vehicles without a
smart key system) or off (vehic les with a smart key system).
Open the glove box. Slide off
the damper.
Push in each side of the glove
box to disconnect the claws.
Remove the filter cover.
The air conditioning filter must be changed regularly to maintain
air conditioning efficiency.
Removal method
1
2
3
4
Page 502 of 664
502
SIENNA_OM_01999-08001_(U)
7-3. Do-it-yourself maintenance
Remove the filter and replace it
with a new one.
The“ UP” marks shown on the fil-
ter should be pointing up.
■ Checking interval
Replace the air conditioning filter according to the maintenance schedule. In
dusty areas or areas with heavy traffic flow, more frequent cleaning or early
replacement may be required. (For scheduled maintenance information,
please refer to the “Scheduled Maintenance Guide” or “Owner’s Manual
Supplement”.)
■ If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace it if necessary.
5
NOTICE
■When using the ai r conditioning system
Make sure that a filter is always installed.
Using the air conditioning system without a filter may cause damage to the
system.
Page 503 of 664
503
SIENNA_OM_01999-08001_(U)
7-3. Do-it-yourself maintenance
7
Maintenance and care
Wireless remote control/electronic key
batter y
●Flathead screwdriver
● Lithium battery CR2032
Vehicles without a smart key system
Remove the cover using a coin
protected with tape etc.
Remove the depleted battery.
Insert a new battery with the “+”
terminal facing up.
Replace the battery with a new one if it is depleted.
You will need the following items:
Replacing the battery
1
2
Page 504 of 664
504
SIENNA_OM_01999-08001_(U)
7-3. Do-it-yourself maintenance
Vehicles with a smart key system
Take out the mechanical key.
Remove the cover.
To prevent damage to the key,
cover the tip of the screwdriver with
a rag.
Remove the depleted battery.
Insert a new battery with the “+”
terminal facing up.
■Use a CR2032 lithium battery
●Batteries can be purchased at your Toyota dealer, local electrical appliance
shops or camera stores.
● Replace only with the same or equivalent type recommended by the manu-
facturer.
● Dispose of used batteries according to local laws.
■ If the key battery is depleted
The following symptoms may occur.
●The smart key system (if equipped) and wireless remote control will not
function properly.
● The operational range will be reduced.
1
2
3
Page 505 of 664
SIENNA_OM_01999-08001_(U)
5057-3. Do-it-yourself maintenance
7
Maintenance and care
WARNING
■Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking.
Keep away from children. Failure to do so could result in death or serious
injury.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents.
● Always work with dry hands.
Moisture may cause the battery to rust.
● Do not touch or move any other components inside the remote control.
● Do not bend either of the battery terminals.
Page 506 of 664
506
SIENNA_OM_01999-08001_(U)
7-3. Do-it-yourself maintenance
Checking and replacing fuses
Turn the engine switch to the “LOCK” position (vehicles without a
smart key system) or off (vehic les with a smart key system).
Open the fuse box cover.
Remove the fuse.
Only type A fuses can be removed
using the pullout tool.
If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.
1
2
Engine compartmentDriver’s side instrument panel
Push the tab in and lift the lid off. Remove the lid.
3
Page 507 of 664
SIENNA_OM_01999-08001_(U)
5077-3. Do-it-yourself maintenance
7
Maintenance and care
Check if the fuse has blown.Normal fuse
Blown fuse
Type A and B
Replace the blown fuse with a new fuse of an appropriate amper-
age rating. The amperage rating c an be found on the fuse box lid.
Type C, D and E
Contact your Toyota dealer.4
1
2
Ty p e AType B
Ty p e CType D
Ty p e E
Page 508 of 664

508
SIENNA_OM_01999-08001_(U)
7-3. Do-it-yourself maintenance
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. ( P. 509)
● If the replaced fuse blows again, have the vehicle inspected by your Toyota
dealer.
■ If there is an overload in the circuit
The fuses are designed to blow, protecting the wiring harness from damage.
■ When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle. Because certain bulbs are connected to circuits designed to prevent
overload, non-genuine parts or parts not designed for this vehicle may be
unusable.
WARNING
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage to the vehicle, and possibly a fire or
injury.
● Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Toy-
ota dealer as soon as possible.
Page 509 of 664
509
SIENNA_OM_01999-08001_(U)
7-3. Do-it-yourself maintenance
7
Maintenance and care
Light bulbs
Check the wattage of the light bulb to be replaced. (P. 602)
P. 1 3 5
You may replace the following bulbs by yourself. The difficulty
level of replacement varies de pending on the bulb. If necessary
bulb replacement seems difficult to perform, contact your Toy-
ota dealer.
For more information about repl acing other light bulbs, contact
your Toyota dealer.
Preparing for light bulb replacement
Turning off the power back door main switch
Page 510 of 664
510
SIENNA_OM_01999-08001_(U)
7-3. Do-it-yourself maintenance
■Front
Vehicles without daytime running lights or with bulb type daytime
running lights
Vehicles with LED type daytime running lights

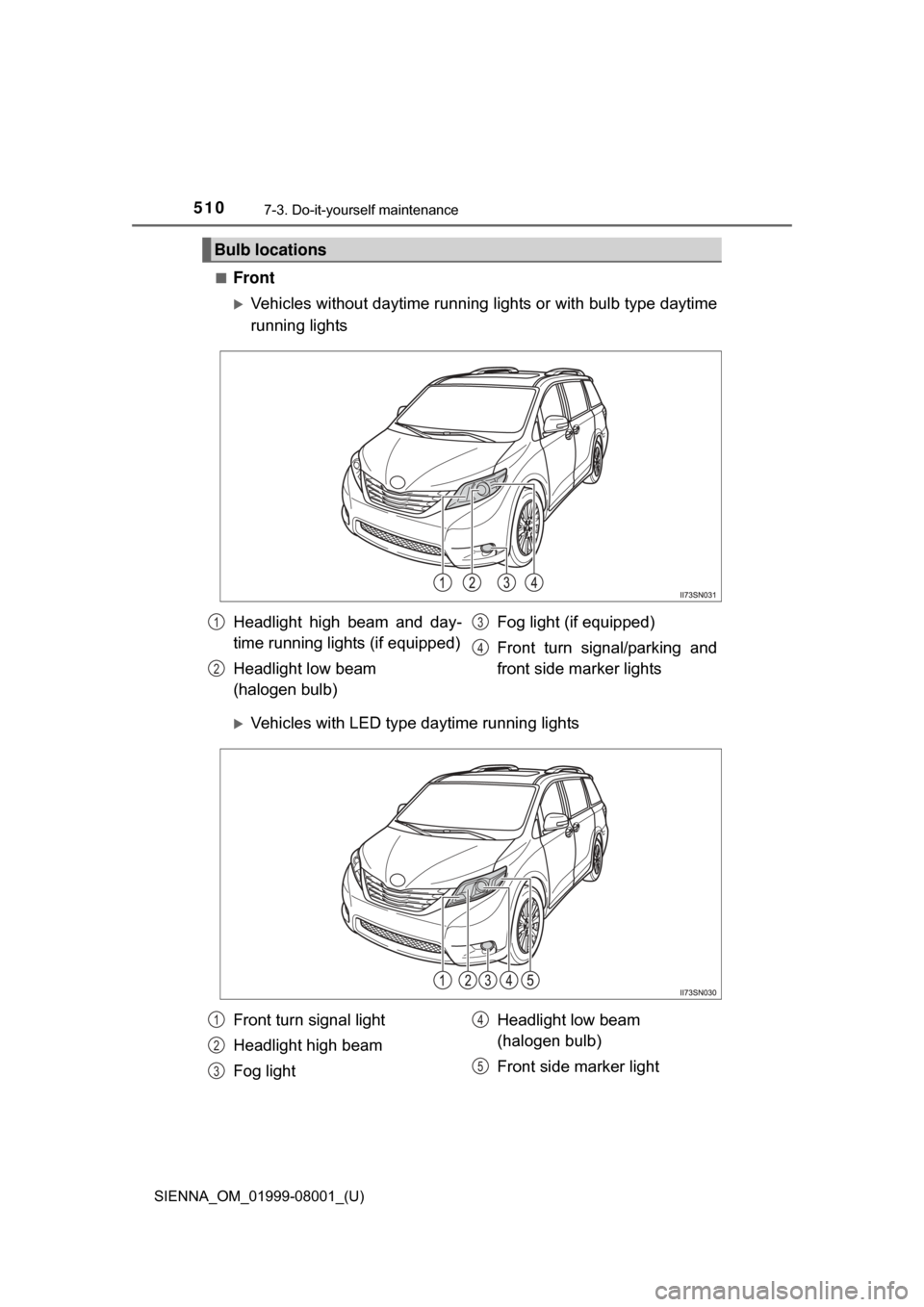

Bulb locations
Headlight high beam and day-
time running lights (if equipped)
Headlight low beam
(halogen bulb) Fog light (if equipped)
Front turn signal/parking and
front side marker lights1
2
3
4
Front turn signal light
Headlight high beam
Fog light
Headlight low beam
(halogen bulb)
Front side marker light1
2
3
4
5
