Page 521 of 664

SIENNA_OM_01999-08001_(U)
5217-3. Do-it-yourself maintenance
7
Maintenance and care

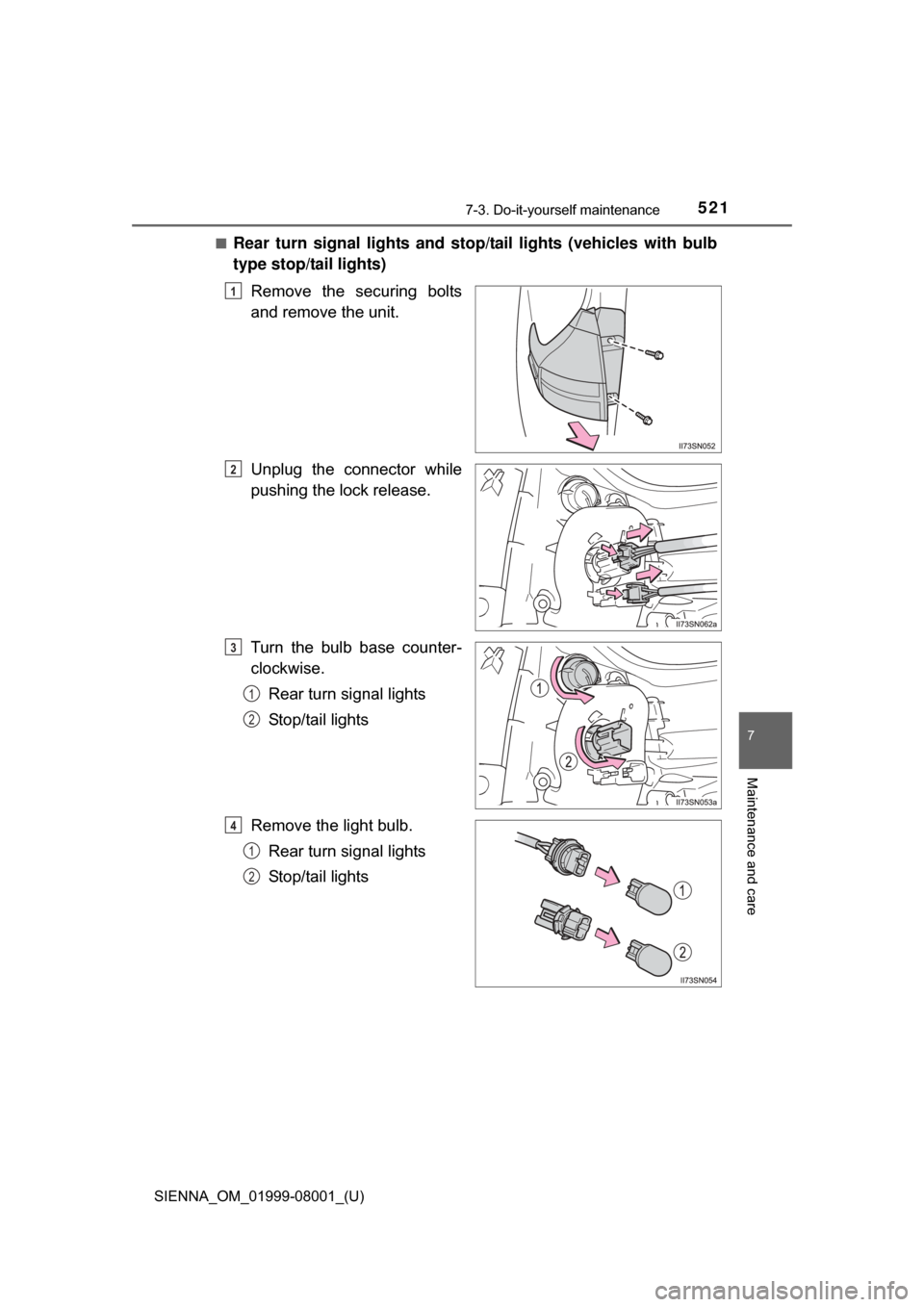

■Rear turn signal lights and stop/tail lights (vehicles with bulb
type stop/tail lights)
Remove the securing bolts
and remove the unit.
Unplug the connector while
pushing the lock release.
Turn the bulb base counter-
clockwise.Rear turn signal lights
Stop/tail lights
Remove the light bulb. Rear turn signal lights
Stop/tail lights
1
2
3
1
2
4
1
2
Page 522 of 664

522
SIENNA_OM_01999-08001_(U)
7-3. Do-it-yourself maintenance

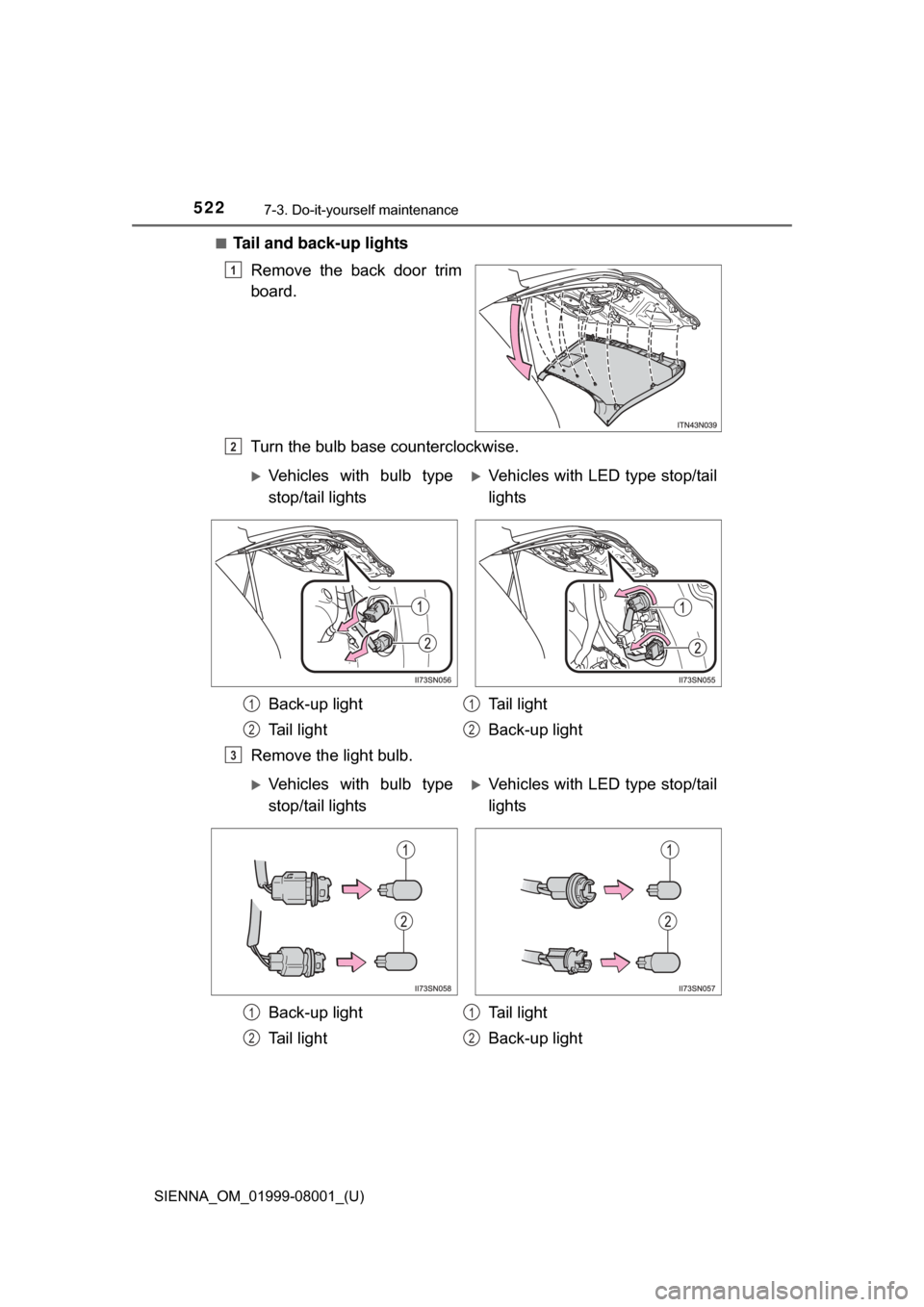

■Tail and back-up lightsRemove the back door trim
board.
Turn the bulb base counterclockwise.
Remove the light bulb.
1
2
Vehicles with bulb type
stop/tail lightsVehicles with LED type stop/tail
lights
Back-up light
Tail light Tail light
Back-up light
1
2
1
2
3
Vehicles with bulb type
stop/tail lightsVehicles with LED type stop/tail
lights
Back-up light
Tail light Tail light
Back-up light
1
2
1
2
Page 523 of 664

SIENNA_OM_01999-08001_(U)
5237-3. Do-it-yourself maintenance
7
Maintenance and care

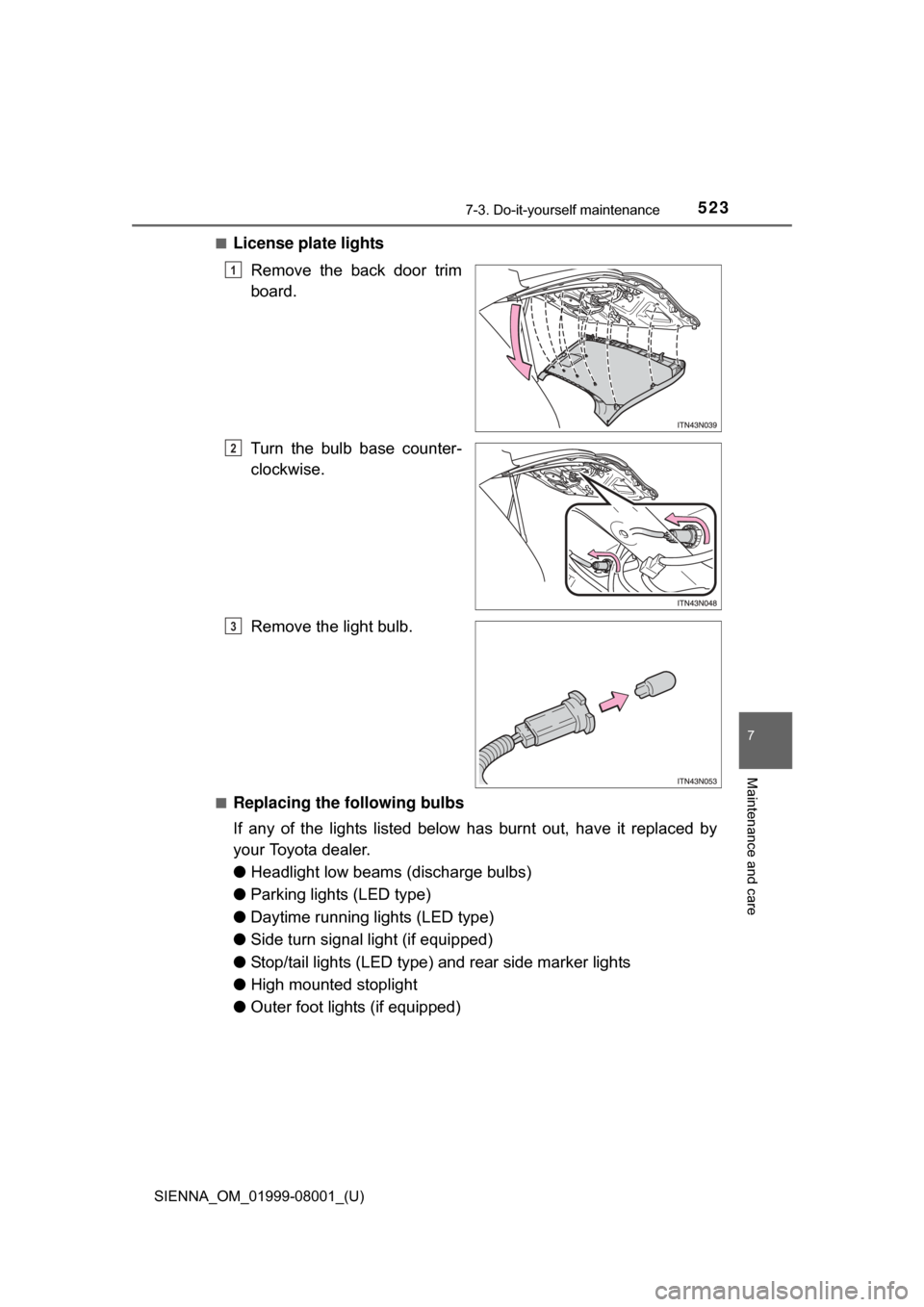

■License plate lightsRemove the back door trim
board.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
■Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
your Toyota dealer.
● Headlight low beams (discharge bulbs)
● Parking lights (LED type)
● Daytime running lights (LED type)
● Side turn signal light (if equipped)
● Stop/tail lights (LED type) and rear side marker lights
● High mounted stoplight
● Outer foot lights (if equipped)
1
2
3
Page 524 of 664

524
SIENNA_OM_01999-08001_(U)
7-3. Do-it-yourself maintenance
■Discharge headlights (if equipped)
If voltage to the discharge bulbs is insufficient, the bulbs may not come on, or
may go out temporarily. The discharge bulbs will come on when normal
power is restored.
■ LED lights
The daytime running lights (LED type), parking lights (LED type), stop/tail
(LED type), side turn signal light, r ear side marker lights and high mounted
stoplight consists of a number of LEDs. If any of the LEDs burn out, take your
vehicle to your Toyota dealer to have the light replaced.
■ Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not
indicate a malfunction. Contact your Toyota dealer for more information in the
following situations:
●Large drops of water have built up on the inside of the lens.
● Water has built up inside the headlight.
■ When replacing light bulbs
P. 508
Page 525 of 664

SIENNA_OM_01999-08001_(U)
5257-3. Do-it-yourself maintenance
7
Maintenance and care

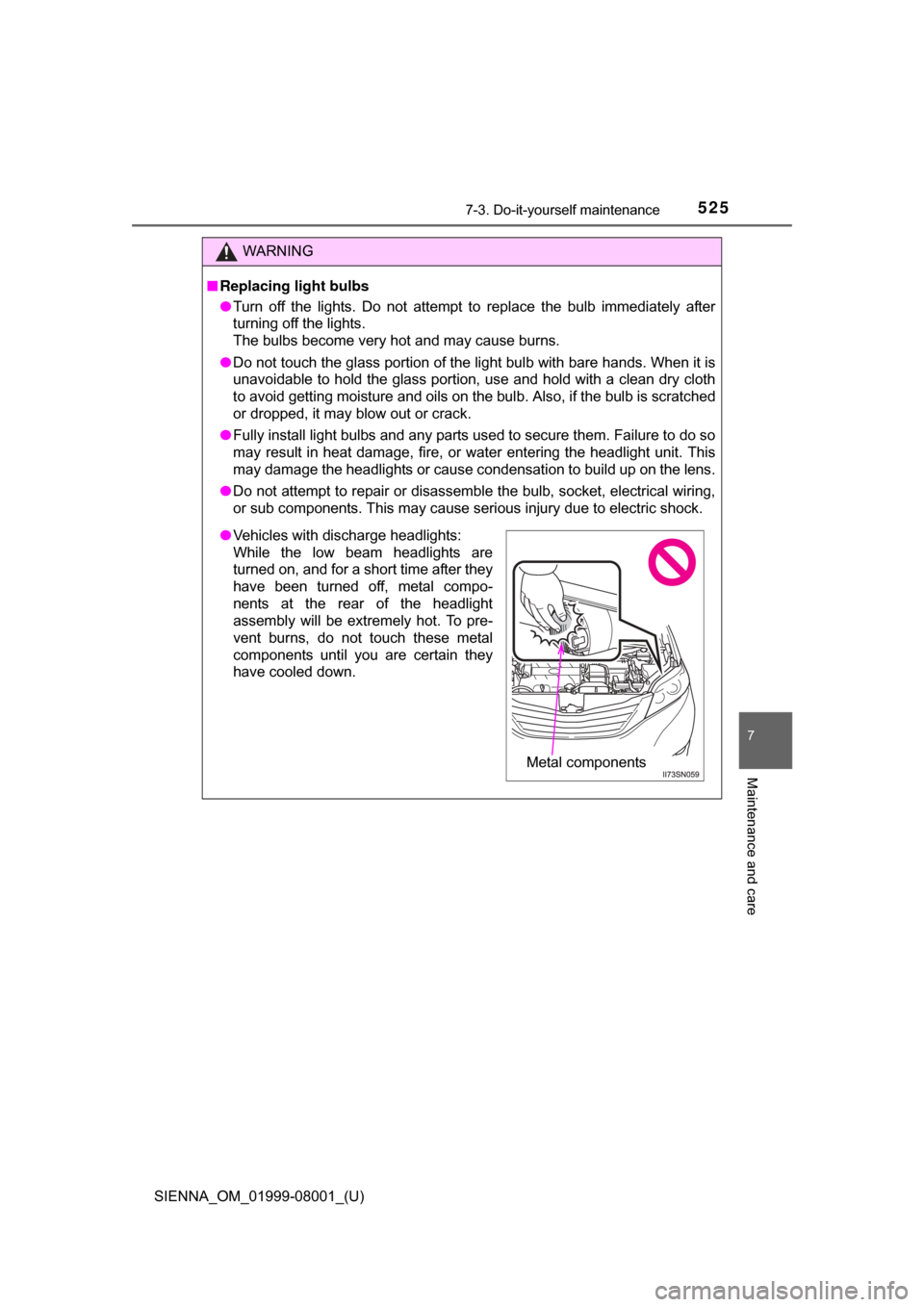

WARNING
■Replacing light bulbs
● Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb. Also, if the bulb is scratched
or dropped, it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
● Do not attempt to repair or disassemble the bulb, socket, electrical wiring,
or sub components. This may cause serious injury due to electric shock.
●Vehicles with discharge headlights:
While the low beam headlights are
turned on, and for a short time after they
have been turned off, metal compo-
nents at the rear of the headlight
assembly will be extremely hot. To pre-
vent burns, do not touch these metal
components until you are certain they
have cooled down.
Metal components
Page 526 of 664

526
SIENNA_OM_01999-08001_(U)
7-3. Do-it-yourself maintenance
WARNING
■Discharge headlights (if equipped)
● Contact your Toyota dealer before replacing the discharge headlights
(including light bulbs).
● Do not touch the discharge headlight’s high voltage socket when the head-
lights are turned on.
An extremely high voltage of 30000 V will be discharged and could result
in serious injury or death by electric shock.
● Do not attempt to take apart or repair the low beam headlight bulbs, con-
nectors, power supply circuits, or related components.
Doing so could result in electric shock and death or serious injury.
■ When replacing the rear turn signal lights or stop/tail lights
Inspect the gasket for any damage (rip, tear, hole, etc.). If there is any dam-
age, please contact your Toyota dealer and have the gasket replaced.
Improper installation of the gasket may result in water entering the rear light
unit.
■ To prevent damage or fire
● Make sure bulbs are fully seated and locked.
● Check the wattage of the bulb before installing to prevent heat damage.
NOTICE
■When installing the back door trim
To prevent damage, be careful not to pinch any of the wire harnesses or
connectors with the back door trim.
Page 527 of 664

527
SIENNA_OM_01999-08001_(U)
8When trouble arises
8-1. Essential informationEmergency flashers .......... 528
If your vehicle has to be stopped in an
emergency ...................... 529 8-2. Steps to take in an
emergency
If your vehicle needs to be towed ......................... 531
If you think something is wrong .............................. 535
Fuel pump shut off system ............................ 536
If a warning light turns on or a warning buzzer
sounds ............................ 537
If a warning message is displayed......................... 546
If you have a flat tire (vehicles with
run-flat tires).................... 562
If you have a flat tire (vehicles with a compact
spare tire)........................ 564
If the engine will not start ................................. 578
If the shift lever cannot be shifted from P............. 580
If the electronic key does not operate properly
(vehicles with a smart
key system)..................... 581
If the battery is discharged ...................... 583
If your vehicle overheats ... 587
If the vehicle becomes stuck ............................... 590
Page 528 of 664

528
SIENNA_OM_01999-08001_(U)
8-1. Essential information

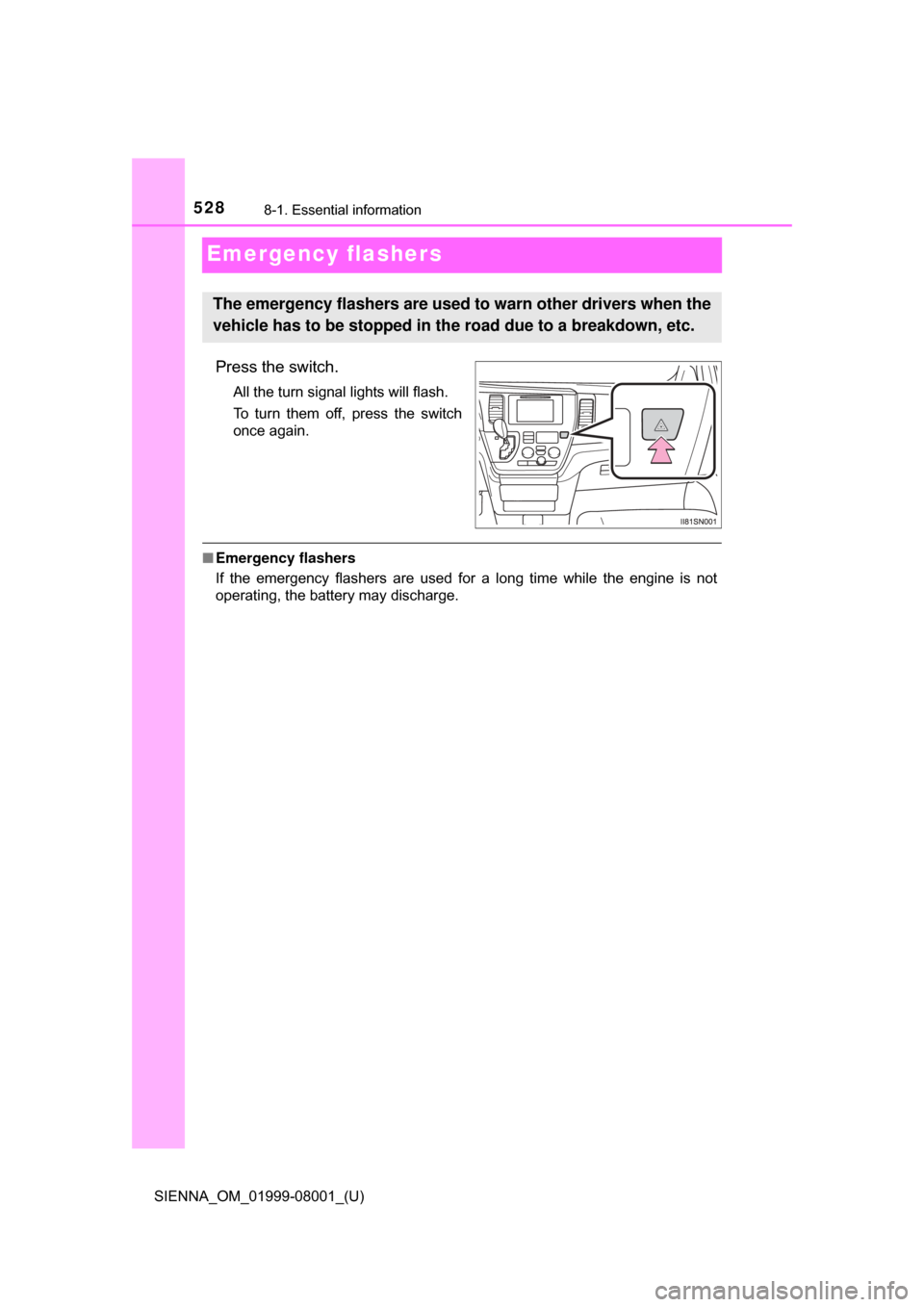

Emergency flashers
Press the switch.
All the turn signal lights will flash.
To turn them off, press the switch
once again.
■Emergency flashers
If the emergency flashers are used for a long time while the engine is not
operating, the battery may discharge.
The emergency flashers are used to warn other drivers when the
vehicle has to be stopped in th e road due to a breakdown, etc.
Page 529 of 664

529
SIENNA_OM_01999-08001_(U)
8
When trouble arises
8-1. Essential information

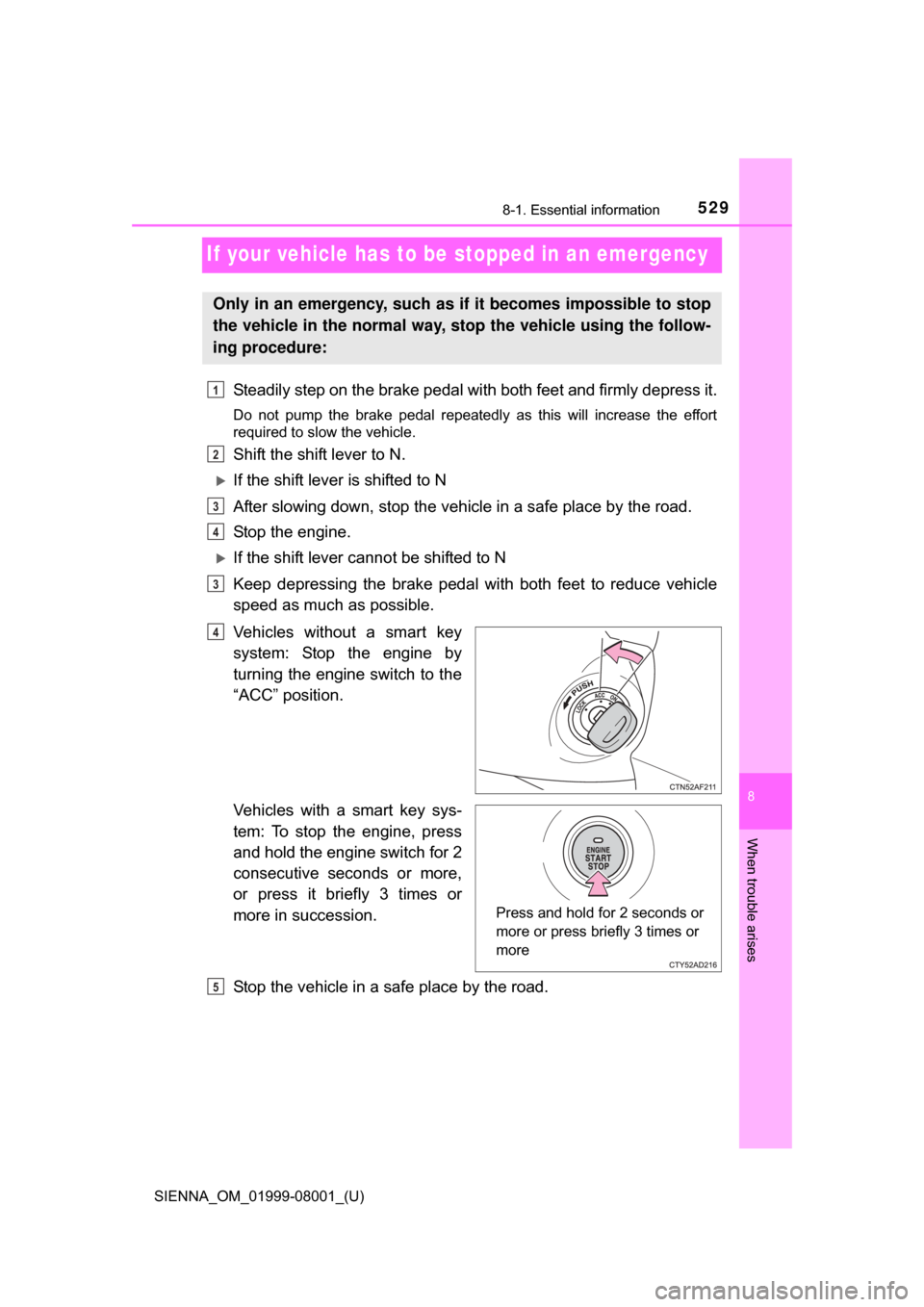

If your vehicle has to be stopped in an emergency
Steadily step on the brake pedal with both feet and firmly depress it.
Do not pump the brake pedal repeatedly as this will increase the effort
required to slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the road.
Stop the engine.
If the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce vehicle
speed as much as possible.
Vehicles without a smart key
system: Stop the engine by
turning the engine switch to the
“ACC” position.
Vehicles with a smart key sys-
tem: To stop the engine, press
and hold the engine switch for 2
consecutive seconds or more,
or press it briefly 3 times or
more in succession.
Stop the vehicle in a safe place by the road.
Only in an emergency, such as if it becomes impossible to stop
the vehicle in the normal way, st op the vehicle using the follow-
ing procedure:
1
2
3
4
3
4
Press and hold for 2 seconds or
more or press briefly 3 times or
more
R
Page 530 of 664

5308-1. Essential information
SIENNA_OM_01999-08001_(U)
WARNING
■If the engine has to be turned off while driving
● Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
● Vehicles without a smart key system: Never attempt to remove the key, as
doing so will lock the steering wheel.
