TOYOTA SIENNA 2016 XL30 / 3.G Navigation Manual

261
3. WHAT TO DO IF...
SIENNA_Navi+MM_OM08015U_(U)
15.09.16 18:08
PHONE
7
When using the Bluetooth® message function
SymptomLikely causeSolution
Page
Cellular
phoneThis
system
Messages cannot be
viewed.
Message transfer is
not enabled on the
cellular phone.
Enable message trans-
fer on the cellular
phone (approve mes-
sage transfer on the
phone).

Automatic transfer
function on this sys-
tem is set to off.Set automatic transfer
function on this system
to on.
254
New message notifi-
cations are not dis-
played.
Notification of SMS/
MMS/E-mail recep-
tion on this system
is set to off.Set notification of SMS/
MMS/E-mail reception
on this system to on.
254
Automatic message
transfer function is
not enabled on the
cellular phone.Enable automatic
transfer function on the
cellular phone.


262
3. WHAT TO DO IF...
SIENNA_Navi+MM_OM08015U_(U)
15.09.16 18:08
In other situations
SymptomLikely causeSolution
Page
Cellular
phoneThis
system
The Bluetooth® con-
nection status is dis-
played at the top of
the screen each time
the engine switch is in
following.
Vehicles without
a smart key sys-
tem
The engine switch is
turned to the “ACC” or
“ON” position.
Vehicles with a
smart key system
The engine switch is
turned to ACCESSO-
RY or IGNITION ON
mode.
Connection confir-
mation display on
this system is set to
on.To turn off the display,
set connection confir-
mation display on this
system to off.
57

263
3. WHAT TO DO IF...
SIENNA_Navi+MM_OM08015U_(U)
15.09.16 18:08
PHONE
7
: For details, refer to the owner’s manual that came with the cellular phone.
Even though all con-
ceivable measures
have been taken, the
symptom status does
not change.
The cellular phone
is not close enough
to this system.Bring the cellular
phone closer to this
system.
The cellular phone
is the most likely
cause of the symp-
tom.
Turn the cellular phone
off, remove and rein-
stall the battery pack,
and then restart the
cellular phone.

Enable the cellular
phone’s Bluetooth®
connection.

Stop the cellular
phone’s security soft-
ware and close all ap-
plications.

Before using an appli-
cation installed on the
cellular phone, careful-
ly check its source and
how its operation might
affect this system.

SymptomLikely causeSolution
Page
Cellular
phoneThis
system

264
3. WHAT TO DO IF...
SIENNA_Navi+MM_OM08015U_(U)
15.09.16 18:08

8
265
SIENNA_Navi+MM_OM08015U_(U)
15.09.04 16:56
1
2
3
4
5
6
7
8
9
1. QUICK REFERENCE .................. 268
MAP SCREEN ..................................... 268
NAVIGATION OPTIONS SCREEN ...... 270
2. MAP SCREEN OPERATION....... 271
CURRENT POSITION DISPLAY ......... 271
MAP SCALE ........................................ 272
ORIENTATION OF THE MAP ............. 272
SWITCHING THE MAP MODE............ 273
SCREEN SCROLL OPERATION ........ 275
ADJUSTING LOCATION IN SMALL
INCREMENTS................................... 276
3. MAP SCREEN
INFORMATION ......................... 277
DISPLAYING MAP INFORMATION .... 277
DISPLAYING INFORMATION
ABOUT THE ICON WHERE THE
CURSOR IS SET .............................. 279
STANDARD MAP ICONS .................... 280
4. TRAFFIC INFORMATION ........... 281
DISPLAYING TRAFFIC
INFORMATION ON THE MAP .......... 283
1BASIC OPERATION
NAVIGATION SYSTEM*
*: Entune Premium Audio only

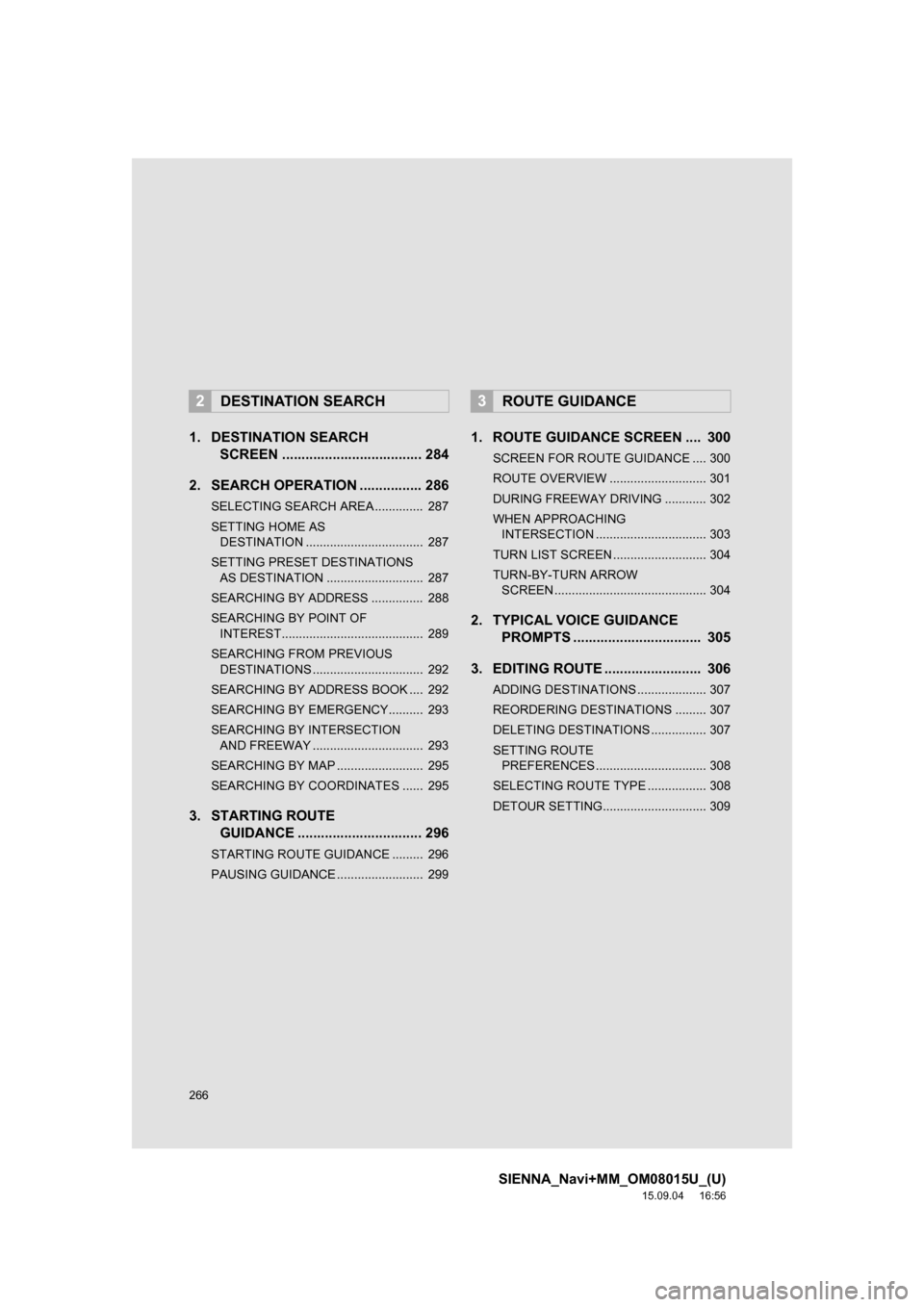

266
SIENNA_Navi+MM_OM08015U_(U)
15.09.04 16:56
1. DESTINATION SEARCH
SCREEN .................................... 284
2. SEARCH OPERATION ................ 286
SELECTING SEARCH AREA .............. 287
SETTING HOME AS
DESTINATION .................................. 287
SETTING PRESET DESTINATIONS
AS DESTINATION ............................ 287
SEARCHING BY ADDRESS ............... 288
SEARCHING BY POINT OF
INTEREST......................................... 289
SEARCHING FROM PREVIOUS
DESTINATIONS ................................ 292
SEARCHING BY ADDRESS BOOK .... 292
SEARCHING BY EMERGENCY.......... 293
SEARCHING BY INTERSECTION
AND FREEWAY ................................ 293
SEARCHING BY MAP ......................... 295
SEARCHING BY COORDINATES ...... 295
3. STARTING ROUTE
GUIDANCE ................................ 296
STARTING ROUTE GUIDANCE ......... 296
PAUSING GUIDANCE ......................... 299
1. ROUTE GUIDANCE SCREEN .... 300
SCREEN FOR ROUTE GUIDANCE .... 300
ROUTE OVERVIEW ............................ 301
DURING FREEWAY DRIVING ............ 302
WHEN APPROACHING
INTERSECTION ................................ 303
TURN LIST SCREEN ........................... 304
TURN-BY-TURN ARROW
SCREEN ............................................ 304
2. TYPICAL VOICE GUIDANCE
PROMPTS ................................. 305
3. EDITING ROUTE ......................... 306
ADDING DESTINATIONS .................... 307
REORDERING DESTINATIONS ......... 307
DELETING DESTINATIONS ................ 307
SETTING ROUTE
PREFERENCES ................................ 308
SELECTING ROUTE TYPE ................. 308
DETOUR SETTING.............................. 309
2DESTINATION SEARCH3ROUTE GUIDANCE

267
SIENNA_Navi+MM_OM08015U_(U)
15.09.04 16:56
1
2
3
4
5
6
7
8
9
1. MEMORY POINTS SETTINGS .... 311
SETTING UP HOME ........................... 312
SETTING UP PRESET
DESTINATIONS................................ 313
SETTING UP ADDRESS BOOK ......... 315
SETTING UP AREAS TO AVOID ........ 317
DELETING PREVIOUS
DESTINATIONS................................ 319
1. DETAILED NAVIGATION
SETTINGS ................................. 320
SCREENS FOR NAVIGATION
SETTINGS ........................................ 320
2. TRAFFIC SETTINGS ................... 324
SCREEN FOR TRAFFIC
SETTINGS ........................................ 324
AUTO AVOID TRAFFIC ...................... 325
MY TRAFFIC ROUTES ....................... 326
1. GPS (GLOBAL
POSITIONING SYSTEM) .......... 330
LIMITATIONS OF THE
NAVIGATION SYSTEM..................... 330
2. MAP DATABASE VERSION
AND COVERED AREA ............. 333
MAP INFORMATION ........................... 333
ABOUT THE MAP DATA ..................... 334
4MEMORY POINTS
5SETUP
6TIPS FOR THE NAVIGATION
SYSTEM

268
SIENNA_Navi+MM_OM08015U_(U)
15.09.16 18:08
1. BASIC OPERATION
1. QUICK REFERENCE
MAP SCREEN
To display this screen, press the “APPS” button, then select “Navigation” on the
“Apps” screen.
No.NameFunctionPage
2D North-up, 2D
heading-up or 3D
heading-up sym-
bolIndicates whether the map orientation is set to
north-up or heading-up. The letter(s) beside this
symbol indicate the vehicle’s heading direction
(e.g. N for north). In 3D map, only a heading-up
view is available.
272
Options buttonSelect to display the “Navigation Options” screen.270
“GPS” mark
(Global
Positioning
System)Shows that the vehicle is receiving signals from
the GPS.330

269
1. BASIC OPERATION
SIENNA_Navi+MM_OM08015U_(U)
15.09.16 18:08
NAVIGATION SYSTEM
8
Traffic indicator
Shows that traffic information is received. Select
to start voice guidance for traffic information.
When traffic information is received via HD Radio
broadcast, HD mark is displayed on the right.
281
Scale indicatorThis figure indicates the map scale.272
Zoom in/out but-
tonSelect to magnify or reduce the map scale. When
either button is selected, the map scale indicator
bar appears at the bottom of the screen.
272
Current position
button/voice
guidance buttonSelect to display the current position address.
Select to repeat voice guidance.305
Destination but-
tonSelect to display the “Destination” screen.284
Speed limit iconIndicates the speed limit on the current road. The
display of the speed limit icon can be set to on/off.277
Route informa-
tion bar
Displays the current street name, or the distance
with the estimated travel time/arrival time to the
destination. The route information bar fills from
left to right as the vehicle progresses on the
route.
300
Route informa-
tion buttonSelect to change the display between the current
street name and the distance with the estimated
travel/arrival time.
300
No.NameFunctionPage

270
1. BASIC OPERATION
SIENNA_Navi+MM_OM08015U_(U)
15.09.16 18:08
NAVIGATION OPTIONS SCREEN
The navigation options allow you to change map configurations, display/hide POI
icons, and edit the navigation routes. To display the “Navigation Options” screen,
press the “APPS” button, select “Navigation” on the “Apps” screen, and select
“Options” on the map screen.
No.FunctionPage
Select to change the map configuration.273
Select to change the displayed map information such as POI icons,
route trace, speed limit, etc.277
Select to display the map version and coverage area.333
Select to edit the set route.306
Select to pause or resume route guidance.299
Select to display the overview of the entire route.301
