TOYOTA SIENNA 2018 Accessories, Audio & Navigation (in English)

21
2. QUICK REFERENCE
SIENNA_Navi+MM_OM08021U_(U)
17.08.16 10:05
QUICK GUIDE
1No.FunctionPage
Select to change the selected language, operation sound settings,
etc.61
Select to set Bluetooth® device and Bluetooth® system settings.48
Select to set audio settings.120
Select to set the phone sound, contacts, message settings, etc.305
Select to set the voice settings.67
Select to set vehicle information such as maintenance information.68
*1, 2Select to set Wi-Fi® connection settings.57
*2Select to set Toyota Entune App Suite Connect settings.402
Select to set memory points (home, favorites entries, areas to avoid),
or navigation details.366, 373
*2Select to set traffic information settings.377
*2Select to set data services settings.218
*
1: Vehicles with DCM
*2: This function is not made availabl e in some countries or areas.

22
SIENNA_Navi+MM_OM08021U_(U)
17.08.16 10:05
3. NAVIGATION OPERATION
1. REGISTERING HOME*
Vehicles without a smart key system
Turn the engine switch to the
“ACC” or “ON” position.
 Vehicles with a smart key system
Turn the engine switch to AC-
CESSORY or IGNI TION ON mode.
Press the “MAP” button.
Select . Search for your home.
There are different kinds of methods to
search for your home. ( →P.340)
Select “Enter”.
Select “OK”.
Registration of home is complete.
 Registering home in a different way
→P.367
 Editing the name, location, phone num-
ber and icon
→P.367
 Setting home as the destination
→P.25, 342, 348
*: Entune Premium Audio only
1
1
2
3
4
5
6

23
3. NAVIGATION OPERATION
SIENNA_Navi+MM_OM08021U_(U)
17.08.16 10:05
QUICK GUIDE
1
2. REGISTERING FAVORITE DESTINATIONS*
Vehicles without a smart key system
Turn the engine switch to the
“ACC” or “ON” position.
 Vehicles with a smart key system
Turn the engine switch to AC-
CESSORY or IGNITION ON mode.
Press the “MAP” button.
Select .
Select “New”.
Search for a favorite destination.
There are different kinds of methods to
search for a destination. ( →P.340)
Select “Enter”. Select “OK”.
Registration of favorite destinations is
complete.

Registering favorite destinations in a dif-
ferent way
→P.368
 Editing the name, location, phone num-
ber and icon
→P.369
 Setting favorite destinations as the des-
tination
→P.343, 348
*: Entune Premium Audio only
1
1
2
3
4
5
6
7

24
3. NAVIGATION OPERATION
SIENNA_Navi+MM_OM08021U_(U)
17.08.16 10:05
3. OPERATION FLOW: ROUTE GUIDANCE*
Press the “MAP” button.
Select .
Search for a destination.
There are different kinds of methods to
search for a destination. ( →P.340)
Select “Go”.
Select “OK”.
Selecting routes other than the one recom-
mended. ( →P.351)
Guidance to the destination is displayed
on the screen and can be heard via
voice guidance.
*: Entune Premium Audio only
1
2
3
4
5

25
3. NAVIGATION OPERATION
SIENNA_Navi+MM_OM08021U_(U)
17.08.16 10:05
QUICK GUIDE
1
4. SETTING HOME AS THE DESTINATION*
Vehicles without a smart key system
Turn the engine switch to the
“ACC” or “ON” position.
 Vehicles with a smart key system
Turn the engine switch to AC-
CESSORY or IGNITION ON mode.
Press the “MAP” button.
Select .
Guidance to the destination is displayed
on the screen and can be heard via
voice guidance.
Setting home as the destination in a dif-
ferent way
→P.342
*: Entune Premium Audio only
1
1
2
3

26
SIENNA_Navi+MM_OM08021U_(U)
17.08.16 10:05
4. FUNCTION INDEX
1. FUNCTION INDEX
Map*
 Route guidance*
Displaying mapsPage
Viewing the map screen326
Displaying the current position328
Viewing the current position vicinity map330
Changing the scale328
Changing the map orientation329
Displaying map options operation332
Displaying the estimated travel/arrival time to the destination356
Selecting the map mode332
Displaying traffic information336
Searching for destinationsPage
Searching for the destination340
Changing the search area342
Before starting or during route guidancePage
Starting route guide350
Displaying route options operation362
Viewing the route overview351
Adjusting route guidance volume67
Deleting the destination354
FavoritesPage
Registering favorites list entries368
Marking icons on the map370
*: Entune Premium Audio only

27
4. FUNCTION INDEX
SIENNA_Navi+MM_OM08021U_(U)
17.08.16 10:05
QUICK GUIDE

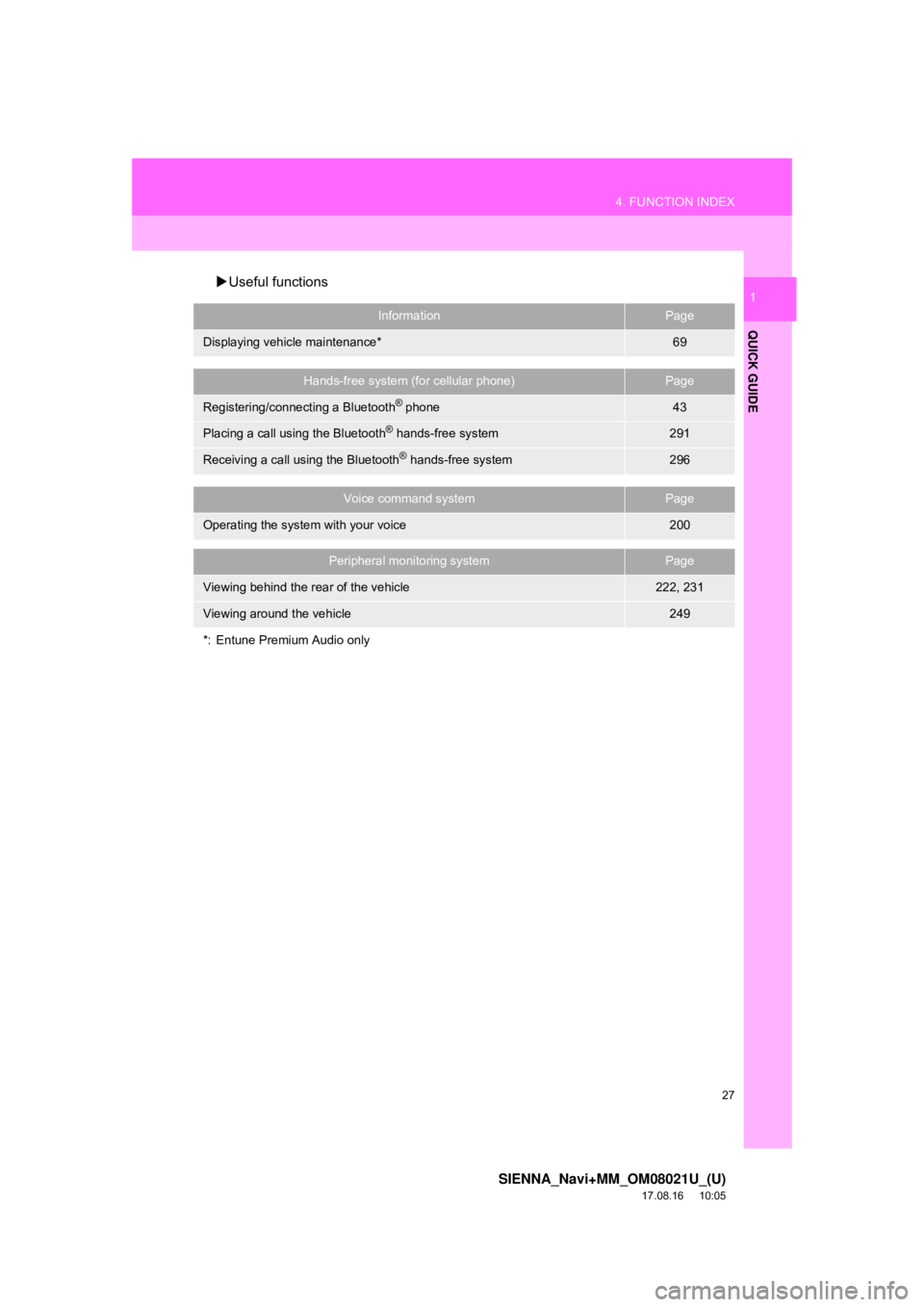

1Useful functions
InformationPage
Displaying vehicle maintenance*69
Hands-free system (for cellular phone)Page
Registering/connecting a Bluetooth® phone43
Placing a call using the Bluetooth® hands-free system291
Receiving a call using the Bluetooth® hands-free system296
Voice command systemPage
Operating the system with your voice200
Peripheral monitoring systemPage
Viewing behind the rear of the vehicle222, 231
Viewing around the vehicle249
*: Entune Premium Audio only

28
SIENNA_Navi+MM_OM08021U_(U)
17.08.16 10:05

2
29
SIENNA_Navi+MM_OM08021U_(U)
17.08.16 10:05
1
2
3
4
5
6
7
8
9
1. INITIAL SCREEN ........................... 30
2. TOUCH SCREEN GESTURES ...... 32
3. TOUCH SCREEN OPERATION .... 33
4. HOME SCREEN OPERATION ...... 35
5. ENTERING LETTERS AND NUMBERS/LIST SCREEN
OPERATION ................................ 36
ENTERING LETTERS AND
NUMBERS .......................................... 36
LIST SCREEN ....................................... 37
6. SCREEN ADJUSTMENT ............... 40
7. LINKING MULTI-INFORMATION DISPLAY AND THE SYSTEM ..... 42
1. REGISTERING/CONNECTING A Bluetooth
® DEVICE .................... 43
REGISTERING A Bluetooth® PHONE
FOR THE FIRST TIME ....................... 43
REGISTERING A Bluetooth
® AUDIO
PLAYER FOR THE FIRST TIME ........ 45
PROFILES ............................................. 46
2. SETTING Bluetooth® DETAILS ... 48
Bluetooth® SETTINGS SCREEN ........... 48
CONNECTING A Bluetooth®
DEVICE ............................................... 49
REGISTERING A Bluetooth
®
DEVICE ............................................... 51
DELETING A Bluetooth
® DEVICE ......... 52
EDITING THE Bluetooth® DEVICE
INFORMATION ................................... 52
SETTING Bluetooth
® SYSTEM ............. 54
3. Wi-Fi® Hotspot.............................. 57
CONNECTING A DEVICE TO THE IN-VEHICLE ACCESS POINT .... 57
CHANGING THE Wi-Fi
® SETTINGS ..... 57
Wi-Fi® FUNCTION OPERATING
HINTS .................................................. 60
1. GENERAL SETTINGS .................. 61
GENERAL SETTINGS SCREEN ........... 61
2. VOICE SETTINGS ......................... 67
VOICE SETTINGS SCREEN ................. 67
3. VEHICLE SETTINGS .................... 68
MAINTENANCE ..................................... 69
VALET MODE ........................................ 71
SETTING DEALER INFORMATION ...... 72
1BASIC INFORMATION BEFORE
OPERATION
2CONNECTIVITY SETTINGS
3OTHER SETTINGS
BASIC FUNCTION

30
SIENNA_Navi+MM_OM08021U_(U)
17.08.16 10:05
1. BASIC INFORMATION BEFORE OPERATION
1. INITIAL SCREEN
Vehicles without a smart key system
When the engine switch is turned to the
“ACC” or “ON” position, the initial screen
will be displayed and the system will begin
operating.
 Vehicles with a smart key system
When the engine switch is turned to AC-
CESSORY or IGNITION ON mode, the ini-
tial screen will be displayed and the
system will begin operating.
 After a few seconds, the caution screen
will be displayed.
 After about 5 seconds or selecting “Con-
tinue” , the caution screen automatically
switches to the next screen.
WA R N I N G
● When the vehicle is stopped with the
engine running, always apply the park-
ing brake for safety.
MAINTENANCE
INFORMATION*
This system reminds users when to re-
place certain parts or components and
shows dealer information (if regis-
tered) on the screen.
When the vehicle reaches a previously
set driving distance or date specified
for a scheduled maintenance check,
the maintenance remainder screen will
be displayed when the system is
turned on.
 The screen goes off if the screen is not
operated for several seconds.
 To prevent the screen from being dis-
played again, select “Do Not Tell Me
Again” .
 To register maintenance information:
→P. 6 9
 If is selected, the registered
phone number can be called.
*: Entune Premium Audio only
