TOYOTA SIENNA 2018 Accessories, Audio & Navigation (in English)

71
3. OTHER SETTINGS
SIENNA_Navi+MM_OM08021U_(U)
17.08.16 10:05
BASIC FUNCTION
2
■EDITING THE LOCATION
1Select “Location” .
2Scroll the map to the desired point
(→P.330) and select “Enter”.
■EDITING PHONE NUMBER
1Select “Phone #” .
2Enter the phone number and select
“OK”.
1Display the vehicle settings screen.
(→P.68)
2Select “Valet Mode” .
3Enter the 4-digit personal code and se-
lect “OK” .
4Enter the same 4-digit personal code
again and select “OK”.
The system will request that you input the
security code again to confirm that you
remember it correctly.
VALET MODE
The security system can be set to on
by entering a security code (4-digit
number).
When set to on, the system will be-
come inoperative once the electrical
power source is disconnected until the
security code is entered.
SETTING THE VALET MODE
 When valet mode activates, the system
stops and a security code (4-digit num-
ber) standby screen is displayed.
(→ P. 7 2 )
INFORMATION
●If the 4-digit personal code is forgotten,
please contact your Toyota dealer.

72
3. OTHER SETTINGS
SIENNA_Navi+MM_OM08021U_(U)
17.08.16 10:05
1Enter the 4-digit personal code and se-
lect “OK” .
1Display the vehicle settings screen.
(→P.68)
2Select “Dealer Info” .
3Select the items to be edited.
IF THE VALET MODE HAS
BEEN ACTIVATED
INFORMATION
●If an incorrect security code (4-digit
number) is entered 6 times, the system
will not accept another security code (4-
digit number) for 10 minutes.
SETTING DEALER
INFORMATION*
Dealer information can be registered in
the system. If the vehicle alert screen
is displayed, selecting the call dealer
button on the screen will call the phone
number registered in the dealer infor-
mation. (
→P.387)
No.FunctionPage
Select to enter the name of
a dealer.73
Select to enter the name of
a dealer member.73
Select to enter the phone
number.73
Select to delete the dealer
information displayed on
the screen.
⎯
*: Entune Audio Plus with DCM only

73
3. OTHER SETTINGS
SIENNA_Navi+MM_OM08021U_(U)
17.08.16 10:05
BASIC FUNCTION
21Select “Edit” next to “Dealer” or “Con-
tact”.
2Enter the name and select “OK”.
1Select “Edit” next to “Phone #”.
2Enter the phone number and select
“OK”.
EDITING DEALER OR
CONTACT NAME
EDITING PHONE NUMBER

74
3. OTHER SETTINGS
SIENNA_Navi+MM_OM08021U_(U)
17.08.16 10:05

3
75
SIENNA_Navi+MM_OM08021U_(U)
17.08.16 10:05
1
2
3
4
5
6
7
8
9

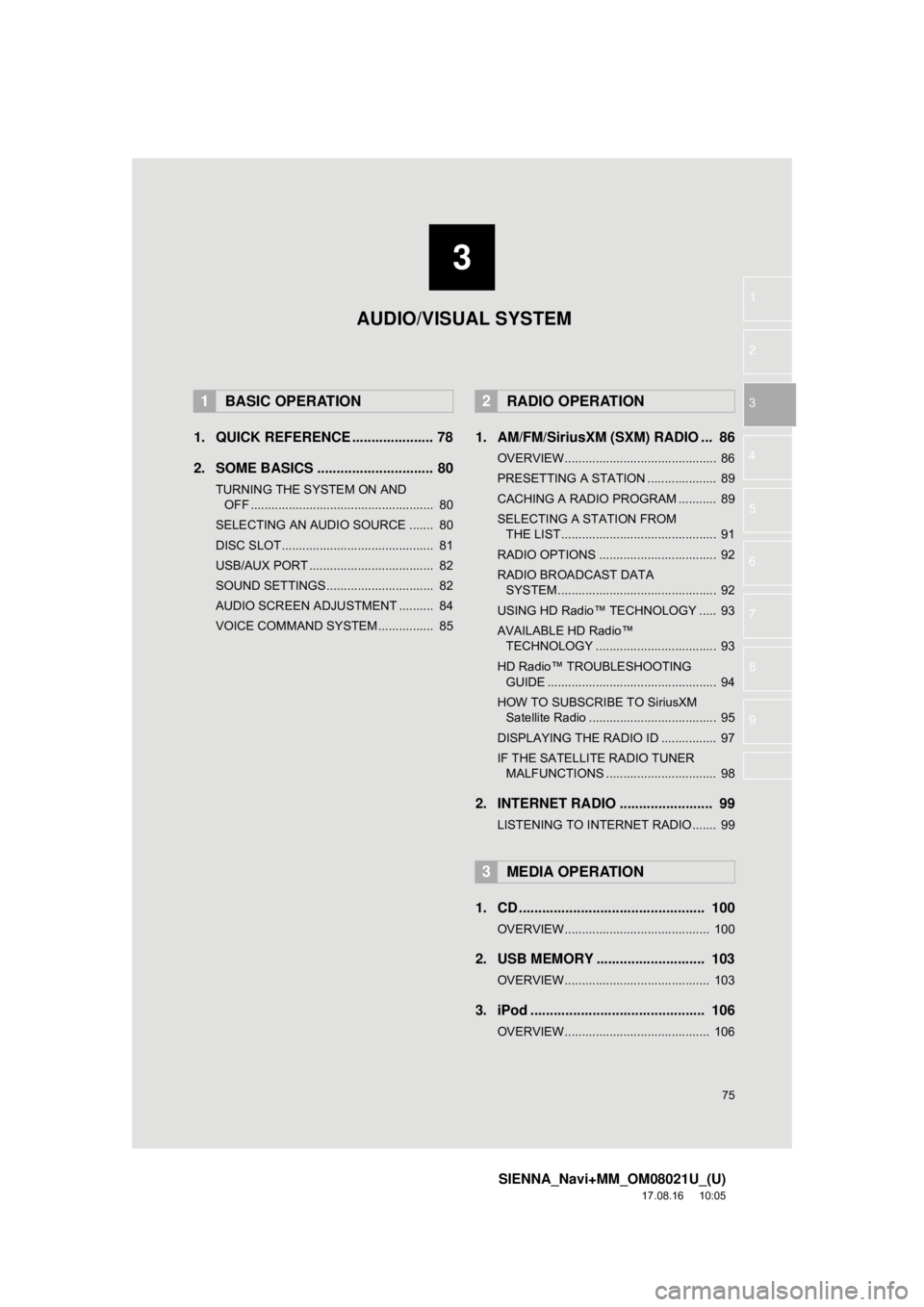

1. QUICK REFERENCE ..................... 78
2. SOME BASICS .............................. 80
TURNING THE SYSTEM ON AND OFF ..................................................... 80
SELECTING AN AUDIO SOURCE ....... 80
DISC SLOT ............................................ 81
USB/AUX PORT .................................... 82
SOUND SETTINGS............................... 82
AUDIO SCREEN ADJUSTMENT .......... 84
VOICE COMMAND SYSTEM ................ 85
1. AM/FM/SiriusXM (SXM) RADIO ... 86
OVERVIEW............................................ 86
PRESETTING A STATION .................... 89
CACHING A RADIO PROGRAM ........... 89
SELECTING A STATION FROM THE LIST ............................................. 91
RADIO OPTIONS .................................. 92
RADIO BROADCAST DATA SYSTEM .............................................. 92
USING HD Radio™ TECHNOLOGY ..... 93
AVAILABLE HD Radio™ TECHNOLOGY ................................... 93
HD Radio™ TROUBLESHOOTING GUIDE ................................................. 94
HOW TO SUBSCRIBE TO SiriusXM Satellite Radio ..................................... 95
DISPLAYING THE RADIO ID ................ 97
IF THE SATELLITE RADIO TUNER MALFUNCTIONS ................................ 98
2. INTERNET RADIO ..... ................... 99
LISTENING TO INTERNET RADIO....... 99
1. CD ................................................ 100
OVERVIEW.......................................... 100
2. USB MEMORY ............................ 103
OVERVIEW.......................................... 103
3. iPod ............................................. 106
OVERVIEW.......................................... 106
1BASIC OPERATION2RADIO OPERATION
3MEDIA OPERATION
AUDIO/VISUAL SYSTEM

76
SIENNA_Navi+MM_OM08021U_(U)
17.08.16 10:05

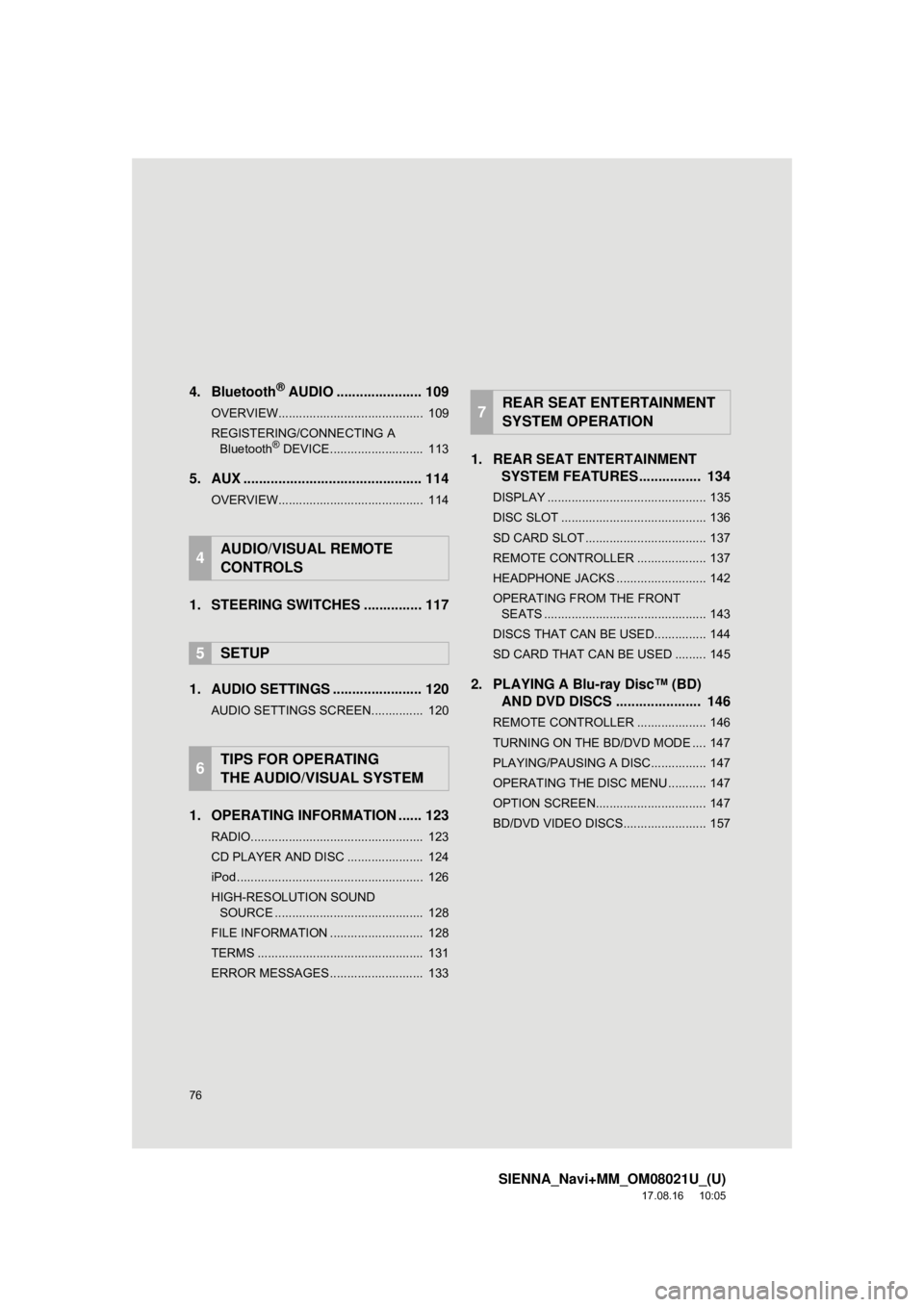

4. Bluetooth® AUDIO ...................... 109
OVERVIEW.......................................... 109
REGISTERING/CONNECTING A
Bluetooth
® DEVICE........................... 113
5. AUX .............................................. 114
OVERVIEW.......................................... 114
1. STEERING SWITCHES ............... 117
1. AUDIO SETTINGS ....................... 120
AUDIO SETTINGS SCREEN............... 120
1. OPERATING INFORMATION ...... 123
RADIO.................................................. 123
CD PLAYER AND DISC ...................... 124
iPod ...................................................... 126
HIGH-RESOLUTION SOUND SOURCE ........................................... 128
FILE INFORMATION ........................... 128
TERMS ................................................ 131
ERROR MESSAGES ........................... 133
1. REAR SEAT ENTERTAINMENT SYSTEM FEATURES .. .............. 134
DISPLAY .............................................. 135
DISC SLOT .......................................... 136
SD CARD SLOT ................................... 137
REMOTE CONTROLLER .................... 137
HEADPHONE JACKS .......................... 142
OPERATING FROM THE FRONT
SEATS ............................................... 143
DISCS THAT CAN BE USED............... 144
SD CARD THAT CAN BE USED ......... 145
2. PLAYING A Blu-ray Disc™ (BD) AND DVD DISCS ...................... 146
REMOTE CONTROLLER .................... 146
TURNING ON THE BD/DVD MODE .... 147
PLAYING/PAUSING A DISC................ 147
OPERATING THE DISC MENU ........... 147
OPTION SCREEN................................ 147
BD/DVD VIDEO DISCS........................ 157
4AUDIO/VISUAL REMOTE
CONTROLS
5SETUP
6TIPS FOR OPERATING
THE AUDIO/VISUAL SYSTEM
7REAR SEAT ENTERTAINMENT
SYSTEM OPERATION

77
SIENNA_Navi+MM_OM08021U_(U)
17.08.16 10:05
1
2
3
4
5
6
7
8
9
3. PLAYING AN AUDIO CD AND MP3/WMA/AAC DISCS ............. 161
REMOTE CONTROLLER .................... 161
CONTROL SCREEN ........................... 161
TURNING ON THE CD MODE ............ 162
SELECTING A TRACK/FILE ............... 162
FAST FORWARDING OR
REWINDING A TRACK/FILE ............ 162
SELECTING A FOLDER ..................... 162
REPEAT PLAY .................................... 162
RANDOM PLAYBACK......................... 162
MP3/WMA/AAC FILES ........................ 163
4. PLAYING AN SD CARD .............. 166
REMOTE CONTROLLER .................... 166
MAIN MENU ........................................ 166
PLAYING/PAUSING A SD CARD MEDIA ............................................... 167
SELECTING A CHAPTER/TRACK/ FILE .................................................. 167
FAST FORWARDING OR REWINDING A CHAPTER/TRACK/
FILE .................................................. 167
PLAYING MUSIC ................................ 167
PLAYING STILL PICTURES ............... 168
PLAYING VIDEO ................................. 170
FORMATTING THE SD CARD ........... 174
DELETING THE BD HISTORY DATA................................................. 174
SD CARD INFORMATION .................. 174
5. USING THE DLNA MODE........... 178
REMOTE CONTROLLER .................... 179
PLAYING/PAUSING A VIDEO/MUSIC ................................... 179
FAST FORWARDING OR REWINDING A TRACK/FILE ............ 179
CONNECTING THE SYSTEM ............. 180
DLNA OPERATION ............................. 181
PLAYING STILL PICTURES................ 181
PLAYING VIDEO ................................. 182
PLAYING MUSIC ................................. 183
STOPPING PLAYBACK ...................... 183
STOP DLNA STANDBY....................... 184
DLNA INFORMATION ......................... 184
6. USING THE Miracast™ MODE ........................................ 185
CONNECTING TO THE SYSTEM ....... 186
Miracast™ OPERATION...................... 186
Miracast™ INFORMATION .................. 186
7. USING THE HDMI MODE ........... 187
REMOTE CONTROLLER .................... 187
USING THE HDMI PORT .................... 187
8. COPYRIGHTS ANDTRADEMARKS .......... ............... 189

78
SIENNA_Navi+MM_OM08021U_(U)
17.08.16 10:05
1. BASIC OPERATION
1. QUICK REFERENCE
Entune Audio
The audio control screen can be reached by the following methods:
From the “AUDIO” button
Press the “AUDIO” button.
From the “MENU” button
Press the “MENU” button, then select “Audio”.

79
1. BASIC OPERATION
SIENNA_Navi+MM_OM08021U_(U)
17.08.16 10:05
AUDIO/VISUAL SYSTEM
3

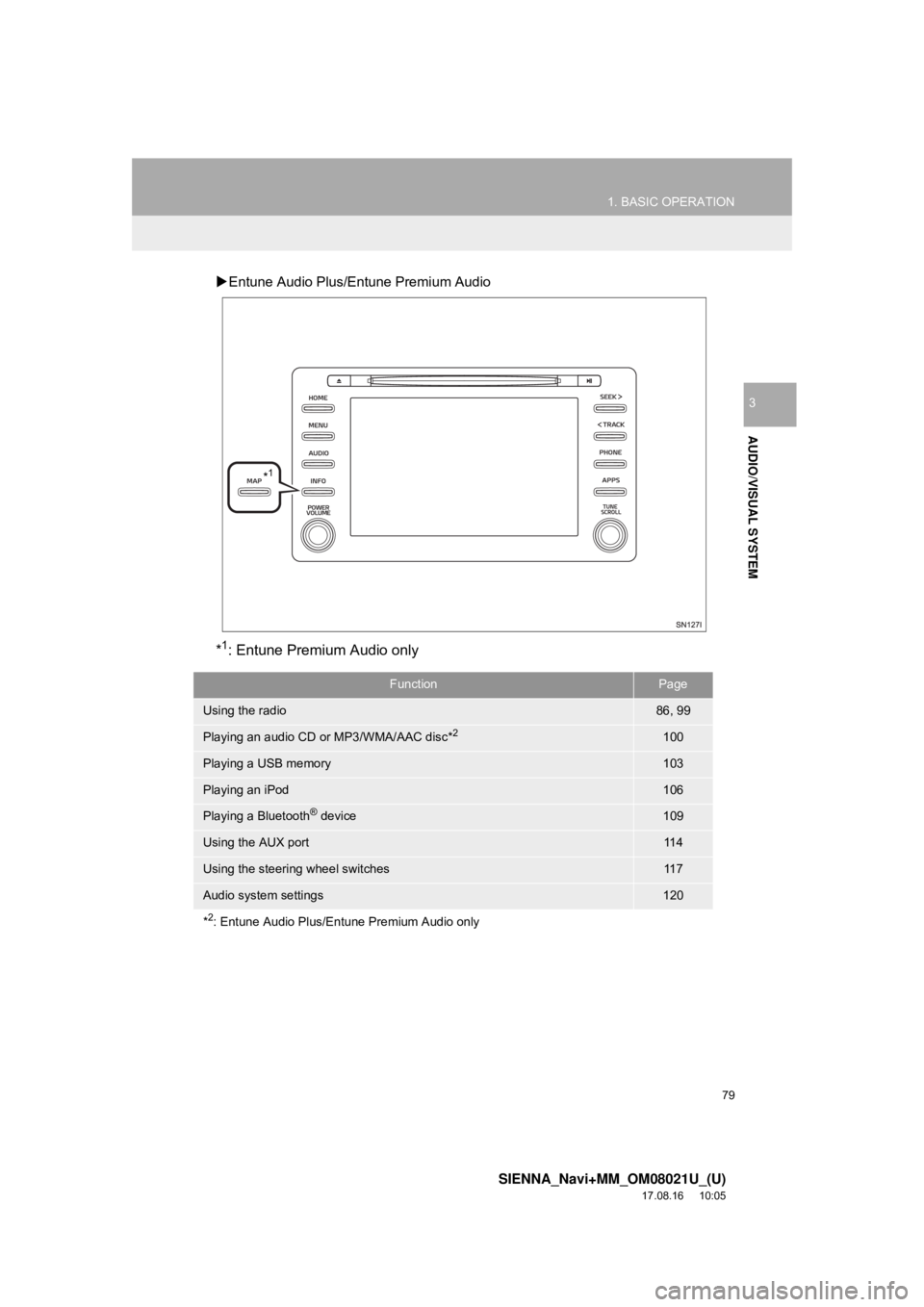

Entune Audio Plus/Entune Premium Audio
*1: Entune Premium Audio only
FunctionPage
Using the radio86, 99
Playing an audio CD or MP3/WMA/AAC disc*2100
Playing a USB memory103
Playing an iPod106
Playing a Bluetooth® device109
Using the AUX port11 4
Using the steering wheel switches11 7
Audio system settings120
*
2: Entune Audio Plus/Entune Premium Audio only
*1

80
1. BASIC OPERATION
SIENNA_Navi+MM_OM08021U_(U)
17.08.16 10:05
2. SOME BASICS
“POWER/VOLUME” knob: Press to turn
the audio/visual system on and off. The
system turns on in the last mode used.
Turn this knob to adjust the volume.
1Press the “AUDIO” button.
2Select “Source” or press “AUDIO”
button again.
3Select the desired source.
This section describes some of the ba-
sic features of the audio/visual system.
Some information may not pertain to
your system.
 Vehicles without a smart key system
Your audio/visual system works when
the engine switch is in the “ACC” or
“ON” position.
Vehicles with a smart key system
Your audio/visual system works when
the engine switch is in ACCESSORY
or IGNITION ON mode.
NOTICE
● To prevent the battery from being dis-
charged, do not leave the audio/visual
system on longer than necessary when
the engine is not running.
CERTIFICATION*
CAUTION:
THIS PRODUCT IS A CLASS Ι LASER
PRODUCT. USE OF CONTROLS OR
ADJUSTMENTS OR PERFORMANCE
OF PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MAY RE-
SULT IN HAZARDOUS RADIATION
EXPOSURE. DO NOT OPEN COVERS
AND DO NOT REPAI R BY YOURSELF.
REFER SERVICING TO QUALIFIED
PERSONNEL.
*: Entune Audio Plus/Entune Premium Audio only
TURNING THE SYSTEM ON
AND OFF
SELECTING AN AUDIO
SOURCE
