TOYOTA SIENNA 2019 Accessories, Audio & Navigation (in English)

391
6. TIPS FOR THE NAVIGATION SYSTEM
SIENNA_Navi+MM_OM08027U_(U)
18.05.08 11:51
NAVIGATION SYSTEM
8
2. MAP DATABASE VERSION AND COVERED AREA
1Select on the map screen.
(P.332)
2Select “Map Data” .
3Check that the map data screen is dis-
played.
MAP INFORMATION
Coverage areas and legal information
can be displayed and map data can be
updated.
No.Information/Function
Map version
Select to display map coverage ar-
eas.
Select to display legal information.
Expiration date of temporary updates
of the map and a route from the Toy-
ota Entune center.
When “” is displayed for the expi-
ration date, the validity period has not
yet been set for the service. The va-
lidity period will be set automatically.
Map updates are available even be-
fore the period is set.
Select to update map.
INFORMATION
● For map data updates, contact your Toy-
ota dealer.
TEMPORARY UPDATES OF
THE MAP* (VEHICLES WITH
DCM)
If the map data has been provided from
the Toyota Entune center for any of the
following areas and the map data in the
system is older than what has been
provided, the displayed map will be up-
dated temporarily:
• Areas around the area displayed on the
map screen
(example: areas around current position)
• Areas around destinations
• Areas along the set route
INFORMATION
● The updated data will temporarily be
saved in the system.
● If temporary update data exceeds the
available memory in the temporary map
cache, the oldest data will be deleted.
● The temporary map data will disappear
when the expiration date has passed.
*: This function is not available in some countries and areas.

392
6. TIPS FOR THE NAVIGATION SYSTEM
SIENNA_Navi+MM_OM08027U_(U)
18.05.08 11:51

9
393
SIENNA_Navi+MM_OM08027U_(U)
18.05.08 11:51
1
2
3
4
5
6
7
8
9

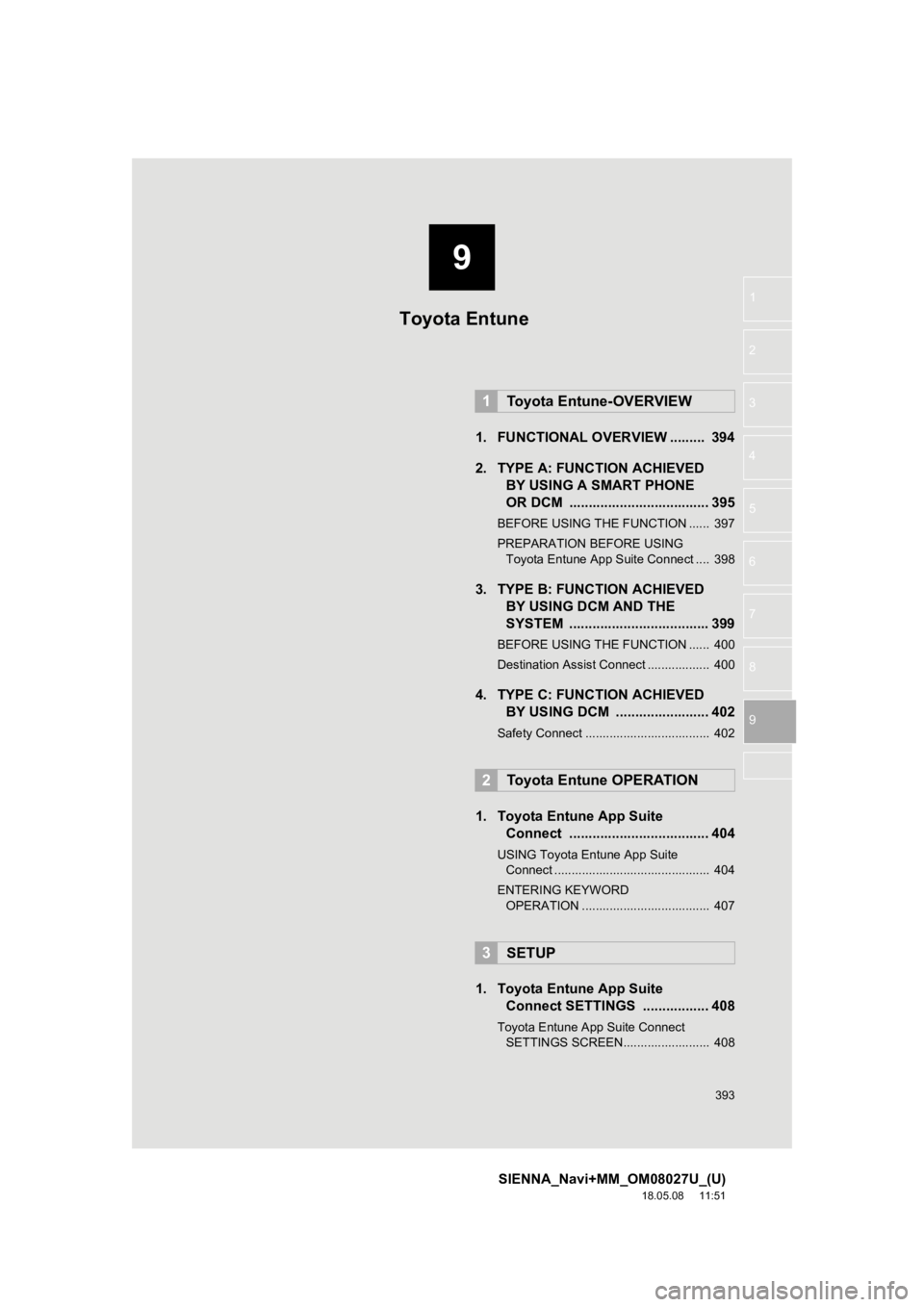

1. FUNCTIONAL OVERVIEW ......... 394
2. TYPE A: FUNCTION ACHIEVED BY USING A SMART PHONE
OR DCM .................................... 395
BEFORE USING THE FUNCTION ...... 397
PREPARATION BEFORE USING
Toyota Entune App Suite Connect .... 398
3. TYPE B: FUNCTION ACHIEVED BY USING DCM AND THE
SYSTEM .................... ................ 399
BEFORE USING THE FUNCTION ...... 400
Destination Assist Connect .................. 400
4. TYPE C: FUNCTION ACHIEVED
BY USING DCM ........................ 402
Safety Connect .................................... 402
1. Toyota Entune App SuiteConnect .................................... 404
USING Toyota Entune App Suite
Connect ............................................. 404
ENTERING KEYWORD OPERATION ..................................... 407
1. Toyota Entune App Suite Connect SETTINGS ................. 408
Toyota Entune App Suite Connect
SETTINGS SCREEN......................... 408
1Toyota Entune-OVERVIEW
2Toyota Entune OPERATION
3SETUP
Toyota Entune

394
SIENNA_Navi+MM_OM08027U_(U)
18.05.08 11:51
1. Toyota Entune-OVERVIEW
1. FUNCTIONAL OVERVIEW
The functions included in Toyota Entune are classified into the following three types.
Type A: Function achieved by using a smart phone or an embedded cellular de-
vice in the vehicle (DCM: Data Communication Module)
Type B: Function achieved by using DCM and the system
Type C: Function achieved by using DCM
Toyota Entune is a service that includes Toyota Entune App Suit
e Connect, Destina-
tion Assist Connect, Dynamic Navigation, Wi-Fi
® Hotspot and Safety Connect.
TypeFunctionPage
Type AToyota Entune App Suite Connect404
Type B
Destination Assist Connect400
Dynamic Navigation348, 360, 391
Wi-Fi® Hotspot58
Type CSafety Connect402
INFORMATION
● These functions are not made available in some countries or are as.
● Availability of functions of the Toyota Entune is dependent on network connection status.

395
1. Toyota Entune-OVERVIEW
SIENNA_Navi+MM_OM08027U_(U)
18.05.08 11:51
Toyota Entune
9
2. TYPE A: FUNCTION ACHIEVED BY USING A SMART PHONE OR DCM
*: via DCM
Of the functions included with Toyota Entune, the Toyota Entune App Suite Con-
nect relies on the use of a smart phone or DCM.
Using a smart phone
 Toyota Entune App Suite Connect enables applicable apps install ed on a smart phone to
be displayed on and operated from the screen via a Bluetooth® and USB.
 Toyota Entune App Suite Connect enables applicable apps install ed on the system to be
displayed on and operated from the screen.
 Via DCM
 Toyota Entune App Suite Connect enables applicable apps install ed on the system to be
displayed on and operated from the screen.
A few settings must be performed before Toyota Entune App Suite Connect can be
used. ( P.398)
*

396
1. Toyota Entune-OVERVIEW
SIENNA_Navi+MM_OM08027U_(U)
18.05.08 11:51
No.NameFunction
Content providerProvides contents to the application server.
Application serverProvides applications to the system or a smart phone.
Smart phone*
Using the Toyota Entune App Suite Connect, communication is
relayed between the system, application server and contents
provider.
ApplicationsDisplay usable content from the content providers on the
screen using the data connection of the connected smart phone
or DCM.
System
Content received, via a smart phone or DCM, from content pro-
vider servers is displayed on the screen. The system is
equipped with an application player to run applications.
*: For known compatible phones, refer to http://www.toyota.com/E ntune/
in the United States,
http://www.toyota.ca/entune
in Canada, and http://www.toyotapr.com/entune in Puerto Rico.

397
1. Toyota Entune-OVERVIEW
SIENNA_Navi+MM_OM08027U_(U)
18.05.08 11:51
Toyota Entune
9
User registration is required to start using
the Toyota Entune App Suite Connect
function. ( P.398)
 Toyota Entune App Suite Connect does
not require an activation fee or monthly
recurring fees.
 Services requiring a separate contract can
also be used.*
*: For details, refer to
http://www.toyota.com/Entune/
or call
1-800-331-4331 in the United States,
http://www.toyota.ca/entune
or call
1-888-869-6828 in Canada, and
http://www.toyotapr.com/entune
or call
1-877-855-8377 in Puerto Rico.
 This function is not made available in
some countries or areas.
 The following personal data can be
deleted and returned to their default set-
tings:
• Downloaded contents
• Radio stations that were listened to
BEFORE USING THE
FUNCTION
The required operations to activate ap-
plications and connect a smart phone
to the system, and the registration
steps for the Toyota Entune App Suite
Connect are explained in this section.
SUBSCRIPTION
AVAILABILITY OF FUNCTION
INFORMATION
●Data usage fees may apply while using
Toyota Entune App Suite Connect func-
tion. Confirm data usage fees before
using this function.
● For details regarding operation of the
Toyota Entune App Suite Connect and
the applications, refer to http://
www.toyota.com/Entune/ in the United
States, http://www.toyota.ca/entune in
Canada, and http://www.toyotapr.com/
entune in Puerto Rico.
● Availability of functions of the Toyota
Entune App Suite Connect service is
dependent on network connection sta-
tus.
INITIALIZING PERSONAL
DATA
The personal data used in applications
can be reset. ( P.69)
INFORMATION
●Once initialized, the data and settings
will be erased. Pay much attention when
initializing the data.

398
1. Toyota Entune-OVERVIEW
SIENNA_Navi+MM_OM08027U_(U)
18.05.08 11:51
Perform the settings in the following order.
In order to use Toyota Entune App Suite
Connect, the following must first be per-
formed:
User registration with the service
( P.398)
 Download the Toyota Entune App Suite
Connect application onto your smart
phone or the system, and login to the
application. ( P.398)
 Register the smart phone, on which the
Toyota Entune App Suite
Connect applica-
tion was installed, with the system.
(  P.398)
 Register a Bluetooth
® phone with the
hands-free system. ( P. 4 3 ) 
Perform user registration at http://
www.toyota.com/Entune/ in the United
States, http://www.toyota.ca/entune in
Canada, and http://www.toyotapr.com/
entune in Puerto Rico, or register within
the Toyota Entune App Suite Connect
application after you download it onto your
smart phone.
1Download the Toyota Entune App
Suite Connect application to your
smart phone or the system.
2Run the Toyota Entune App Suite Con-
nect application on your smart phone
or the system.
3Enter the information required into the
Toyota Entune App Suite Connect ap-
plication. Login to the application.
PREPARATION BEFORE
USING Toyota Entune App
Suite Connect
SETTINGS REQUIRED TO USE
Toyota Entune App Suite
Connect
1User registration
2Download the Toyota Entune App
Suite Connect application to your
smart phone or the system.
3Register the smart phone with the
system.
USER REGISTRATION
REGISTERING THE Toyota
Entune App Suite Connect
APPLICATION
INFORMATION
● Applications can only be used when the
Toyota Entune App Suite Connect appli-
cation has been downloaded to your
smart phone or the system, and the
application is running.
● Toyota Entune App Suite Connect oper-
ational procedures can also be con-
firmed by visiting http://www.toyota.com/
Entune/ in the United States, http://www.toyota.ca/entune in Canada, and
http://www.toyotapr.com/entune in
Puerto Rico.
● If a Toyota Entune App Suite Connect
application is used while iPod audio/
video is being played back, system
operation may become unstable.

399
1. Toyota Entune-OVERVIEW
SIENNA_Navi+MM_OM08027U_(U)
18.05.08 11:51
Toyota Entune
9
3. TYPE B: FUNCTION ACHIEVED BY USING DCM AND THE SYSTEM*
The functionality of Destination Assist Connect, Dynamic Navigation, and Wi-Fi*2
Connect is made possible through the shared work of the DCM and the system.
These are subscription-based telematics services that use Global Positioning Sys-
tem (GPS) data and embedded cellular technology to provide safety and security
as well as convenience features.
These services are available by subscription on select, telematics hardware-
equipped vehicles and supported by the Toyota Entune center, wh ich operates 24
hours a day, 7 days a week.
For details about:
• Dynamic Navigation P.348, 360, 391
•Wi-Fi® Hotspot P. 5 8
*: Vehicles with DCM

400
1. Toyota Entune-OVERVIEW
SIENNA_Navi+MM_OM08027U_(U)
18.05.08 11:51
After you have signed the Telematics Sub-
scription Service Agreement and are
enrolled, you can begin receiving ser-
vices. A variety of subscription terms are
available. Contact your Toyota dealer, or
call 1-800-331-4331, for further subscrip-
tion details. ( P.397)
 These functions are not made available in
some countries or areas.
From the “MENU” button
1Press the “MENU” button.
2Select “Destination” .
BEFORE USING THE
FUNCTION
SUBSCRIPTION
AVAILABILITY OF FUNCTIONS
Destination Assist Connect*
Destination Assist Connect provides
you with live assistance for finding des-
tinations via the Toyota Entune center.
You can request either a specific busi-
ness, address, or ask for help locating
your desired destination by category,
such as restaurants, gas stations,
shopping centers or other Points of In-
terest (POI).
After you tell the agent your choice of
destination, its coordinates are sent
wirelessly to your vehicle’s navigation
system.
INFORMATION
●The hands-free system can not be used
while Destination Assist Connect is
being used.
MAKE A CALL WITH
Destination Assist Connect
*: Entune Premium Audio only
