2-1. Instrument cluster
Warning lights and indica-tors ............................... 92
Gauges and meters (with 4.2-inch display) ........... 97
Gauges and meters (with 7- inch display) .............. 101
Multi-information display .................................. 104
Head-up display .......... 118
Energy monitor/consump- tion screen................. 122

922-1. Instrument cluster
2-1.Instrument cluster

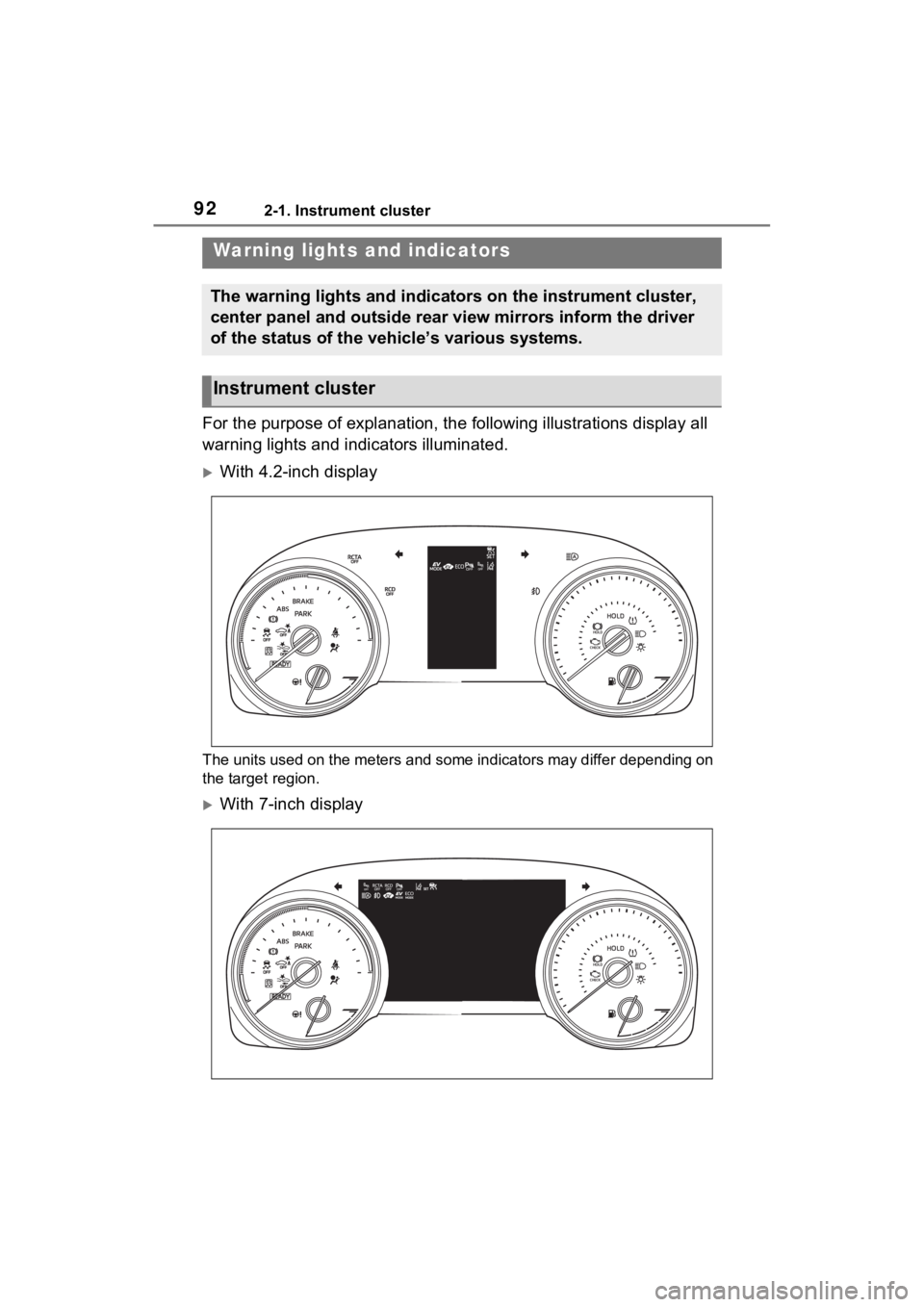

For the purpose of explanation, the following illustrations display all
warning lights and indicators illuminated.
With 4.2-inch display
The units used on the meters and some indicators may differ dep ending on
the target region.
With 7-inch display
Warning lights and indicators
The warning lights and indicators on the instrument cluster,
center panel and outside rear view mirrors inform the driver
of the status of the vehicle’s various systems.
Instrument cluster

932-1. Instrument cluster
2
Vehicle status information and indicators
The units used on the meters and some indicators may differ depending on
the target region.
Warning lights inform the driver
of malfunctions in the indicated
vehicle’s systems.

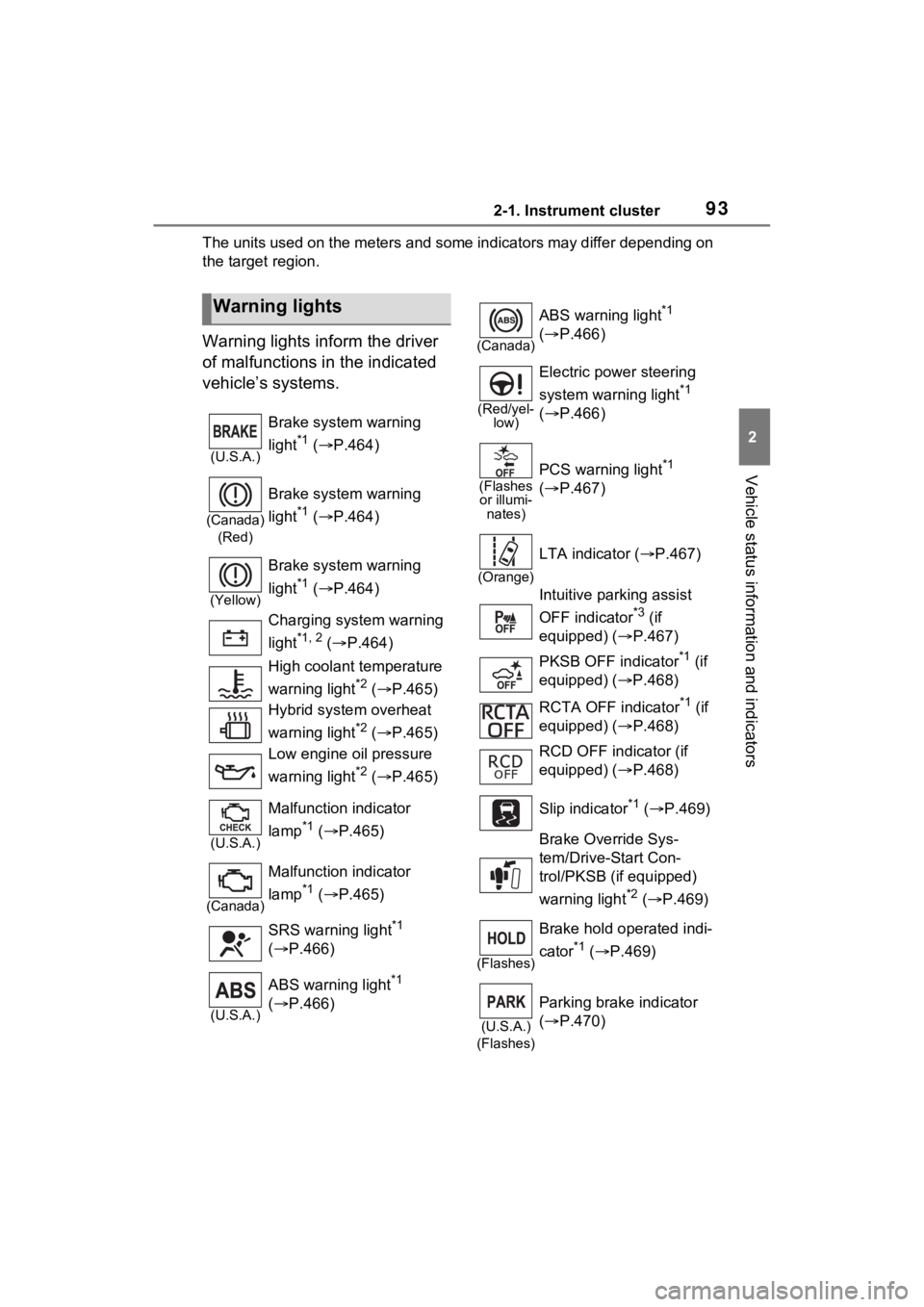

Warning lights
(U.S.A.)
Brake system warning
light
*1 (  P.464)
(Canada)
(Red)
Brake system warning
light
*1 ( P.464)
(Yellow)
Brake system warning
light
*1 ( P.464)
Charging system warning
light
*1, 2 (  P.464)
High coolant temperature
warning light
*2 (  P.465)
Hybrid system overheat
warning light
*2 (  P.465)
Low engine oil pressure
warning light
*2 (  P.465)
(U.S.A.)
Malfunction indicator
lamp
*1 ( P.465)
(Canada)
Malfunction indicator
lamp
*1 ( P.465)
SRS warning light
*1
(  P.466)
(U.S.A.)
ABS warning light*1
(  P.466)
(Canada)
ABS warning light*1
(  P.466)
(Red/yel-
low)
Electric power steering
system warning light
*1
(  P.466)
(Flashes
or illumi- nates)
PCS warning light*1
(  P.467)
(Orange)
LTA indicator ( P.467)
Intuitive parking assist
OFF indicator
*3 (if
equipped) ( P.467)
PKSB OFF indicator
*1 (if
equipped) ( P.468)
RCTA OFF indicator
*1 (if
equipped) ( P.468)
RCD OFF indicator (if
equipped) ( P.468)
Slip indicator
*1 (  P.469)
Brake Override Sys-
tem/Drive-Start Con-
trol/PKSB (if equipped)
warning light
*2 (  P.469)
(Flashes)
Brake hold operated indi-
cator
*1 ( P.469)
(U.S.A.)
(Flashes)
Parking brake indicator
(  P.470)

942-1. Instrument cluster
*1: These lights turn on when the power switch is turned to ON to
indicate that a system check is
being performed. They will turn
off after the hybr id system is on,
or after a few seconds. There
may be a malfunction in a sys-
tem if the light does not come on,
or turn off. Have the vehicle
inspected by your Toyota dealer.
*2: This light illuminates on the multi-informatio n display with a
message.
*3: Intuitive parking assist OFF indi- cator turns on when the power
switch is turned to ON while the
Intuitive parking assist function is
on. It will turn off after a few sec-
onds.
*4: This light illumi nates on the cen-
ter panel.
The indicators inform the driver
of the operating state of the
vehicle’s various systems.
(Canada)
(Flashes)
Parking brake indicator
(  P.470)
Tire pressure warning
light
*1 (  P.470)
Low fuel level warning
light ( P.470)
Seat belt reminder light
(  P.471)
Rear passengers’ seat
belt reminder light
*4
(  P.471)
WARNING
■If a safety system warning
light does not come on
Should a safety system light such
as the ABS and SRS warning light
not come on when you start the
hybrid system, this could mean
that these system s are not avail-
able to help protect you in an acci-
dent, which could result in death
or serious injury. Have the vehicle
inspected by your Toyota dealer
immediately if this occurs.

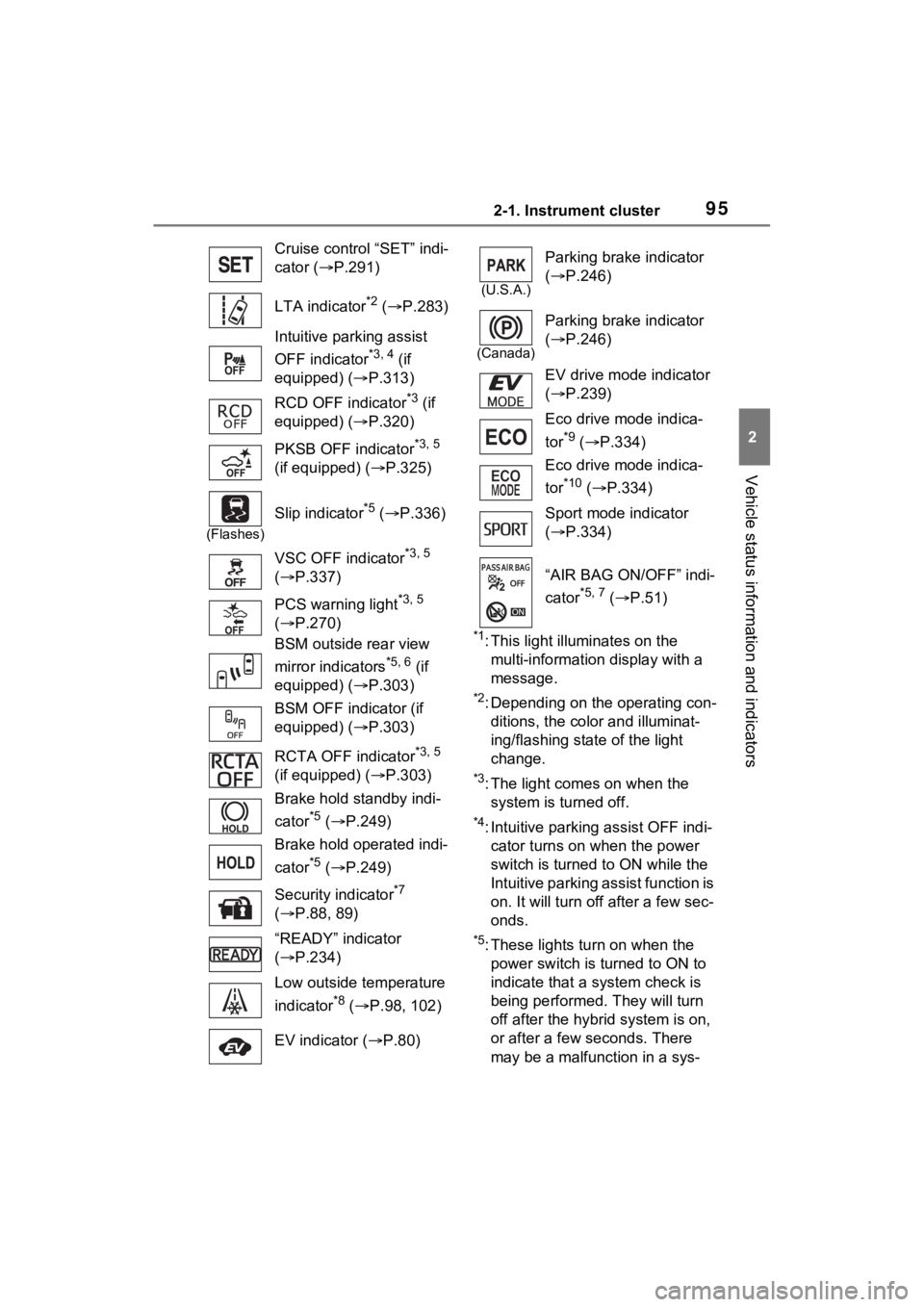

Indicators
Turn signal indicator
(  P.245)
(U.S.A.)
Headlight indicator
( P.251)
(Canada)
Tail light indicator
( P.251)
Headlight high beam indi-
cator ( P.253)
Automatic High Beam
indicator ( P.253)
Fog light indicator (if
equipped) ( P.257)
Smart key system indica-
tor
*1 (  P.234)
Cruise control indicator
(  P.291)
Dynamic radar cruise
control indicator
(  P.291)

952-1. Instrument cluster
2
Vehicle status information and indicators
*1: This light illuminates on the multi-information display with a
message.
*2: Depending on the operating con-ditions, the color and illuminat-
ing/flashing stat e of the light
change.
*3: The light comes on when the system is turned off.
*4: Intuitive parking assist OFF indi-cator turns on wh en the power
switch is turned t o ON while the
Intuitive parking assist function is
on. It will turn off after a few sec-
onds.
*5: These lights tu rn on when the
power switch is turned to ON to
indicate that a system check is
being performed. They will turn
off after the hybrid system is on,
or after a few seconds. There
may be a malfunction in a sys-
Cruise control “SET” indi-
cator (
P.291)
LTA indicator
*2 (  P.283)
Intuitive parking assist
OFF indicator
*3, 4 (if
equipped) ( P.313)
RCD OFF indicator
*3 (if
equipped) ( P.320)
PKSB OFF indicator
*3, 5
(if equipped) ( P.325)
(Flashes)
Slip indicator*5 ( P.336)
VSC OFF indicator
*3, 5
(  P.337)
PCS warning light
*3, 5
(  P.270)
BSM outside rear view
mirror indicators
*5, 6 (if
equipped) ( P.303)
BSM OFF indicator (if
equipped) ( P.303)
RCTA OFF indicator
*3, 5
(if equipped) ( P.303)
Brake hold standby indi-
cator
*5 (  P.249)
Brake hold operated indi-
cator
*5 (  P.249)
Security indicator
*7
(  P.88, 89)
“READY” indicator
(  P.234)
Low outside temperature
indicator
*8 (  P.98, 102)
EV indicator ( P.80)
(U.S.A.)
Parking brake indicator
( P.246)
(Canada)
Parking brake indicator
( P.246)
EV drive mode indicator
(  P.239)
Eco drive mode indica-
tor
*9 (  P.334)
Eco drive mode indica-
tor
*10 (  P.334)
Sport mode indicator
(  P.334)
“AIR BAG ON/OFF” indi-
cator
*5, 7 (  P.51)

962-1. Instrument cluster
tem if the lights do not turn on, or
turn off. Have the vehicle
inspected by your Toyota dealer.
*6: This light illuminates on the out-
side rear view mirrors.
*7: This light illumi nates on the cen-
ter panel.
*8: When the outside temperature is approximately 37°F (3°C) or
lower, the indicator will flash for
approximately 10 seconds, then
stay on.
*9: With 4.2-inch display
*10: With 7-inch display
■BSM (Blind Spot Monitor) out-
side rear view mirror indicators
(if equipped)
In order to confirm operation, the
BSM outside rear view mirror indica-
tors illuminate in the following situa-
tions:
●When the power switch is turned
to ON while the BSM function is
enabled on the screen of the
multi-informat ion display.
●When the BSM function is
enabled on the screen of the
multi-information display while the
power switch is in ON.
If the system is functioning correctly,
the BSM outside rear view mirror
indicators will turn off afte r a few
seconds.
If the BSM outside rear view mirror
indicators do not illuminate or do not
turn off, there may be a malfunction
in the system. If this occurs, have
the vehicle insp ected by your
Toyota dealer.

972-1. Instrument cluster
2
Vehicle status information and indicators
The units used on the meter and display may differ depending on the target
region.
Hybrid System Indicator
Displays the Hybrid System Indicator ( P.98)
Multi-information display
Presents the driver with a variety of driving-related data ( P.104)
Displays warning messages if a malfunction occurs (P.475)
Clock ( P.100)
Speedometer
Displays the vehicle speed
Fuel gauge
Displays the quantity of fu el remaining in the tank
Odometer, trip meter and oil maintenance
Odometer:
Displays the total distance th at the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters “A” and “B” c an be used to record and display different
distances independently.

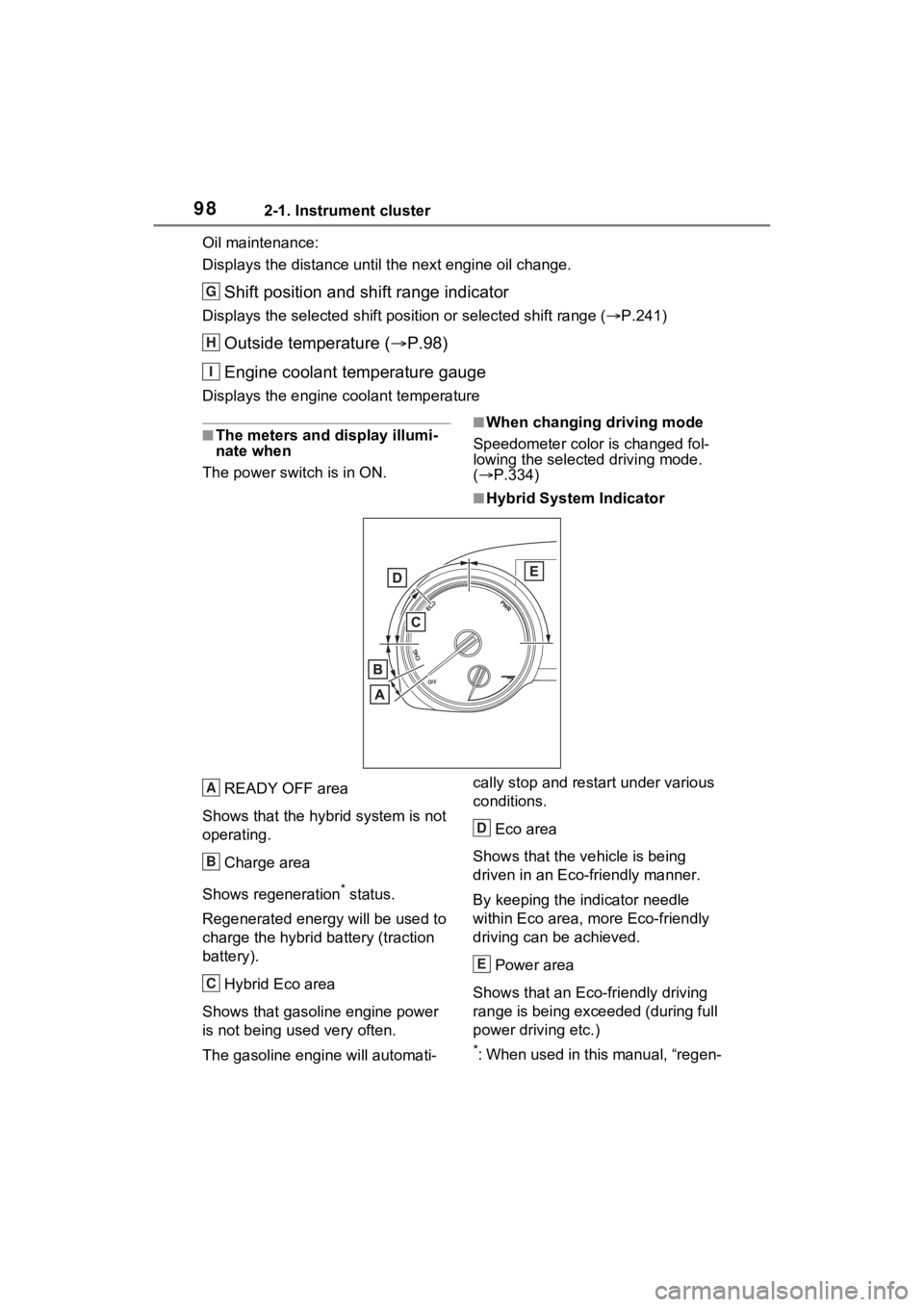

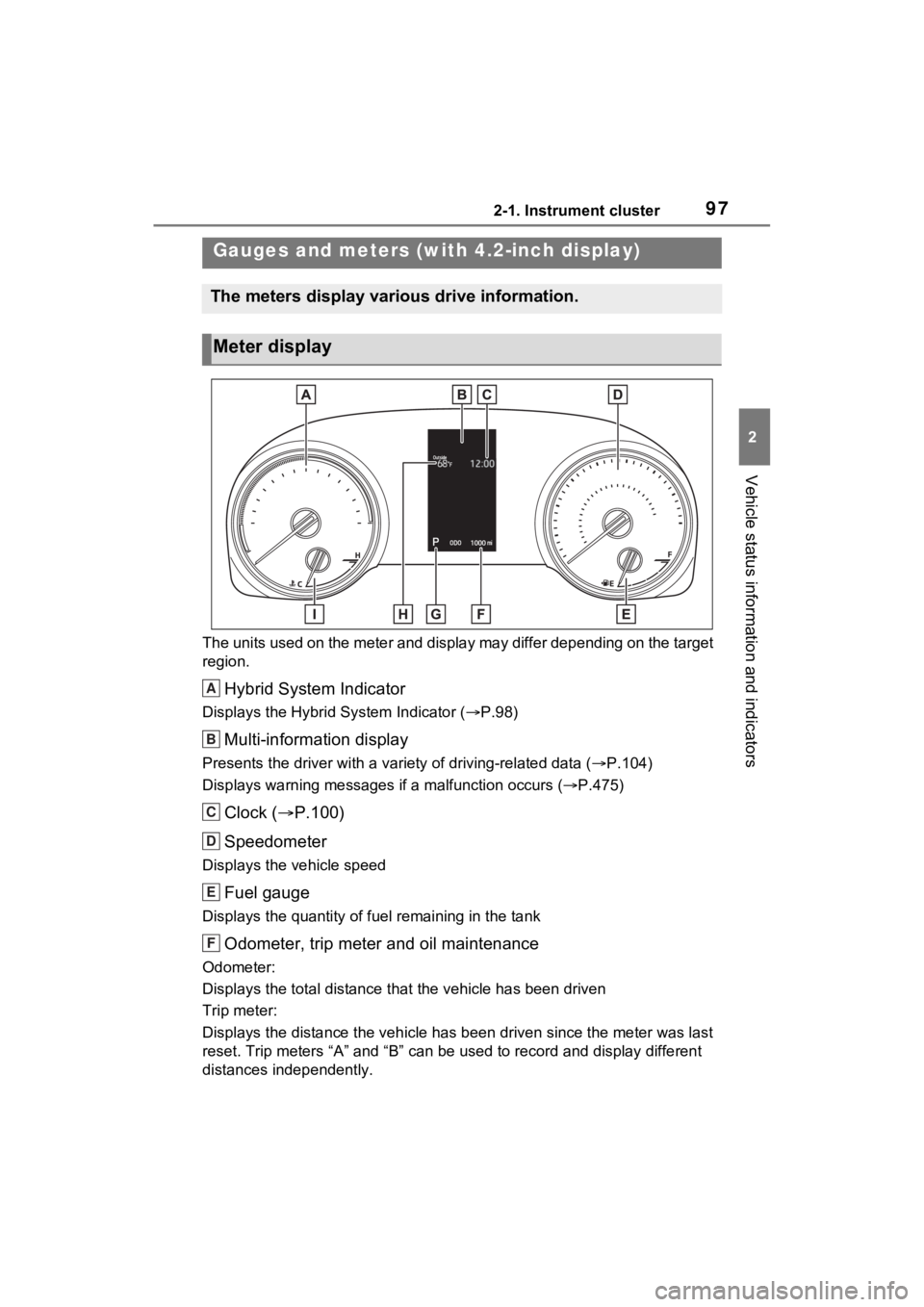

Gauges and meters (w ith 4.2-inch display)
The meters display various drive information.
Meter display
A
B
C
D
E
F

982-1. Instrument cluster
Oil maintenance:
Displays the distance until the next engine oil change.
Shift position and shift range indicator
Displays the selected shift posit ion or selected shift range (P.241)
Outside temperature ( P.98)
Engine coolant temperature gauge
Displays the engine c oolant temperature
■The meters and display illumi-
nate when
The power swit ch is in ON.■When changing driving mode
Speedometer color is changed fol-
lowing the selected driving mode.
(  P.334)
■Hybrid System Indicator
READY OFF area
Shows that the hybrid system is not
operating.
Charge area
Shows regeneration
* status.
Regenerated e nergy will be used to
charge the hybrid battery (traction
battery).
Hybrid Eco area
Shows that gasoline engine power
is not being used very often.
The gasoline engine will automati- cally stop and restart under various
conditions.
Eco area
Shows that the vehicle is being
driven in an Eco-friendly manner.
By keeping the indicator needle
within Eco area, more Eco-friendly
driving can be achieved.
Power area
Shows that an Eco-friendly driving
range is being exceeded (during full
power driving etc.)
*: When used in this manual, “regen-
G
H
I
A
B
C
D
E

992-1. Instrument cluster
2
Vehicle status information and indicators
eration” refers to the conversion of
energy created by the movement
of the vehicle into electrical
energy.
In the following situ ation, the Hybrid
System Indicator does not operate.
●“READY” indicator is not illumi-
nated.
●The shift lever is in a range other
than D or S.
■Outside temperature display
●In the following si tuations, the cor-
rect outside tempe rature may not
be displayed, or the display may
take longer than normal to
change.
• When stopped, or driving at low speeds (less than 12 mph [20
km/h])
• When the outside temperature has changed suddenly (at the
entrance/exit of a garage, tunnel,
etc.)
●When “--” or “E” is displayed, the
system may be malfunctioning.
Take your vehicle to your Toyota
dealer.
●Displays the outside temperature
within the range of -40°F (-40°C)
to 122°F (50°C).
●When the outside temperature is
approximately 37°F (3°C) or
lower, the low outside temperature
indicator will flash for approxi-
mately 10 seconds , then stay on.
■Liquid crystal display
 P.105Switches the items of the odom-
eter, trip meter A, trip meter B
and oil maintenance by pressing
the “ODO TRIP” switch.
When the trip meter is dis-
played, pressing and holding the
switch will reset the trip meter.
WARNING
■The information display at
low temperatures
Allow the interior of the vehicle to
warm up before using the liquid
crystal information display. At
extremely low temperatures, the
display monitor may respond
slowly, and display changes may
be delayed.
For example, there is a lag
between the driver’s shifting and
the new shift range appearing on
the display. This lag could cause
the driver to downshift again,
causing rapid and excessive
engine braking and possibly an
accident resulting in death or
injury.
NOTICE
■To prevent damage to the
engine and its components
The engine may be overheating if
the engine coolant temperature
gauge is in the red zone (“H”). In
this case, immediately stop the
vehicle in a safe place, and check
the engine after it has cooled
completely. ( P.509)

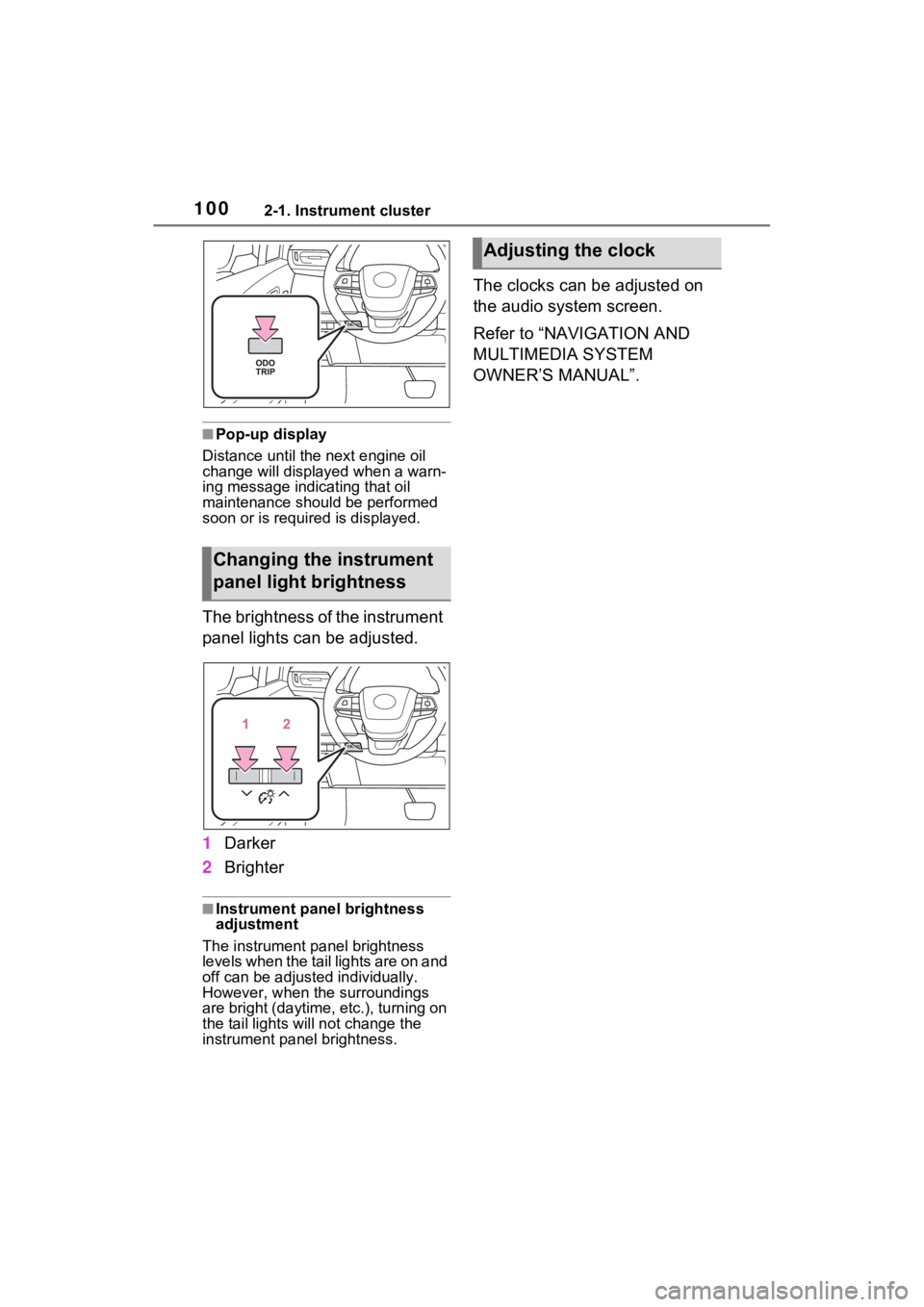

Changing the trip meter
display

1002-1. Instrument cluster
■Pop-up display
Distance until the next engine oil
change will displayed when a warn-
ing message indicating that oil
maintenance should be performed
soon or is required is displayed.
The brightness of the instrument
panel lights can be adjusted.
1 Darker
2 Brighter
■Instrument panel brightness
adjustment
The instrument panel brightness
levels when the tail lights are on and
off can be adjusted individually.
However, when the surroundings
are bright (daytime, etc.), turning on
the tail lights will not chan ge the
instrument panel brightness.
The clocks can be adjusted on
the audio system screen.
Refer to “NAVIGATION AND
MULTIMEDIA SYSTEM
OWNER’S MANUAL”.
Changing the instrument
panel light brightness
Adjusting the clock
