DESTINATION INPUT AND ROUTE GUIDANCE
31
When you touch an arrow facing the desired
point, the map scrolls in that direction. When
you release your finger, scrolling stops.
To set the position of the cursor, touch the
Enterº switch. SETTING THE CURRENT POSITION AS
THE SEARCH POINT
Touch the
Current Positionº switch.
When you touch an arrow facing the desired
point,
the map scrolls in that direction. When
you release your finger, scrolling stops.
To set the position of the cursor, touch the
Enterº switch. SETTING THE SEARCH POINT VIA THE
MAP SCREEN
Touch the
Mapº switch.
When you touch an arrow facing the desired
point,
the map scrolls in that direction. When
you release your finger, scrolling stops.
To set the position of the cursor, touch the
Enterº switch.

DESTINATION INPUT AND ROUTE GUIDANCE
32

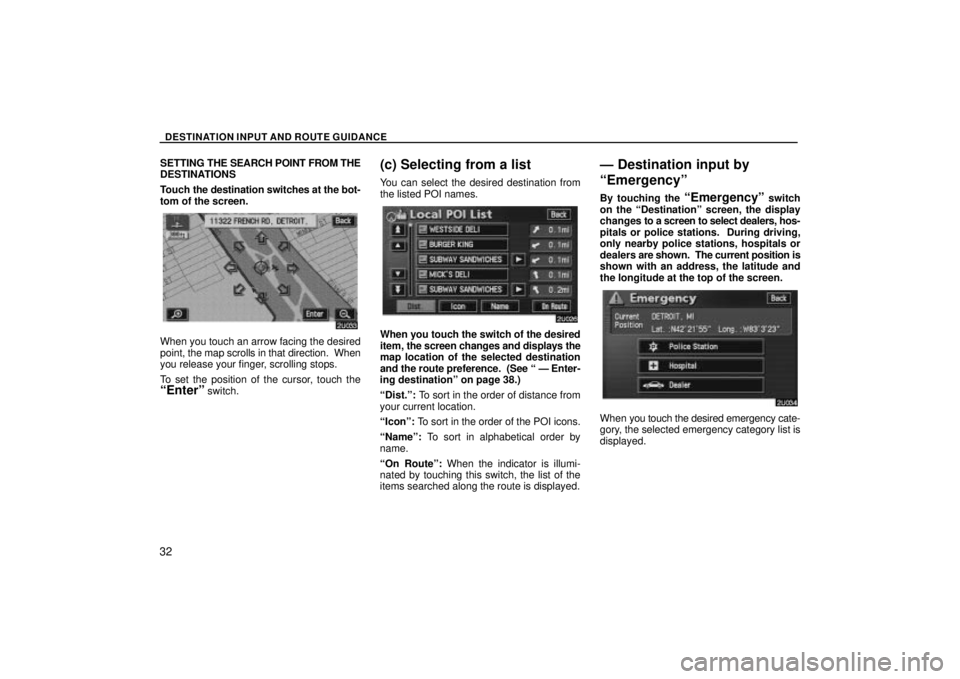

SETTING THE SEARCH POINT FROM THE
DESTINATIONS
Touch the destination switches at the bot-
tom of the screen.
When you touch an arrow facing the desired
point, the map scrolls in that direction. When
you release your finger, scrolling stops.
To set the position of the cursor, touch the
Enterº switch.
(c) Selecting from a list
You can select the desired destination from
the listed POI names.
When you touch the switch of the desired
item, the screen changes and displays the
map location of the selected destination
and the route preference. (See
 Ð Enter-
ing destinationº on page 38.)
Dist.º: To sort in the order of distance from
your current location.
Iconº: To sort in the order of the POI icons.
Nameº: To sort in alphabetical order by
name.
On Routeº: When the indicator is illumi-
nated by touching this switch, the list of the
items searched along the route is displayed.
Ð Destination input by
Emergencyº
By touching the Emergencyº switch
on the Destinationº screen, the display
changes to a screen to select dealers, hos-
pitals or police stations. During driving,
only nearby police stations, hospitals or
dealers are shown. The current position is
shown with an address, the latitude and
the longitude at the top of the screen.

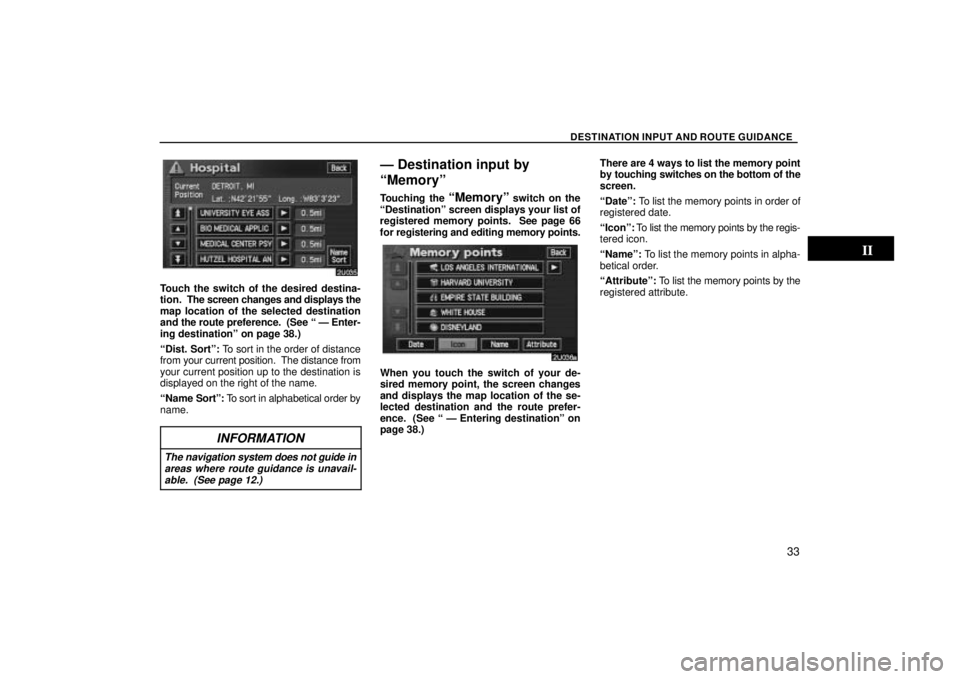

When you touch the desired emergency cate-
gory, the selected emergency category list is
displayed.

DESTINATION INPUT AND ROUTE GUIDANCE
33
Touch the switch of the desired destina-
tion. The screen changes and displays the
map location of the selected destination
and the route preference. (See
 Ð Enter-
ing destinationº on page 38.)
Dist. Sortº: To sort in the order of distance
from your current position. The distance from
your current position up to the destination is
displayed on the right of the name.
Name Sortº: To sort in alphabetical order by
name.
INFORMATION
The navigation system does not guide in areas where route guidance is unavail-able. (See page 12.)
Ð Destination input by
Memoryº
Touching the Memoryº switch on the
Destinationº screen displays your list of
registered memory points. See page 66
for registering and editing memory points.
When you touch the switch of your de-
sired memory point, the screen changes
and displays the map location of the se-
lected destination and the route prefer-
ence. (See  Ð Entering destinationº on
page 38.) There are 4 ways to list the memory point
by touching switches on the bottom of the
screen.
Dateº:
To list the memory points in order of
registered date.
Iconº: To list the memory points by the regis-
tered icon.
Nameº: To list the memory points in alpha-
betical order.
Attributeº: To list the memory points by the
registered attribute.

DESTINATION INPUT AND ROUTE GUIDANCE
34

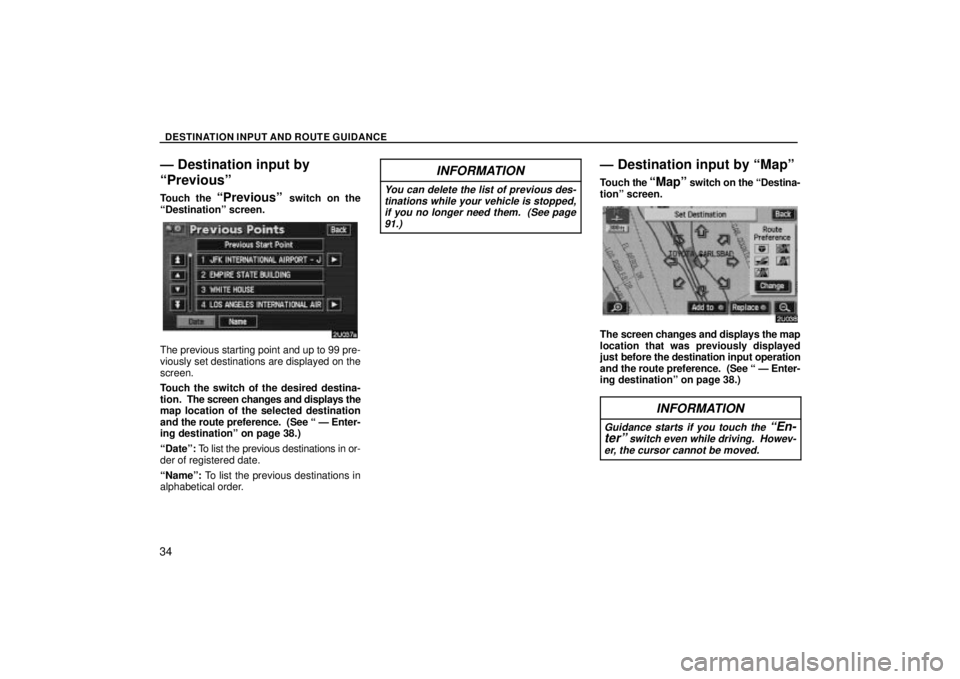

Ð Destination input by
Previousº
Touch the Previousº switch on the
Destinationº screen.
The previous starting point and up to 99 pre-
viously set destinations are displayed on the
screen.
Touch the switch of the desired destina-
tion. The screen changes and displays the
map location of the selected destination
and the route preference. (See  Ð Enter-
ing destinationº on page 38.)
Dateº: To list the previous destinations in or-
der of registered date.
Nameº: To list the previous destinations in
alphabetical order.
INFORMATION
You can delete the list of previous des-
tinations while your vehicle is stopped,if you no longer need them. (See page91.)
Ð Destination input by Mapº
Touch the Mapº switch on the Destina-
tionº screen.
The screen changes and displays the map
location that was previously displayed
just before the destination input operation
and the route preference. (See  Ð Enter-
ing destinationº on page 38.)
INFORMATION
Guidance starts if you touch the En-
terº switch even while driving. Howev-
er, the cursor cannot be moved.

DESTINATION INPUT AND ROUTE GUIDANCE
35

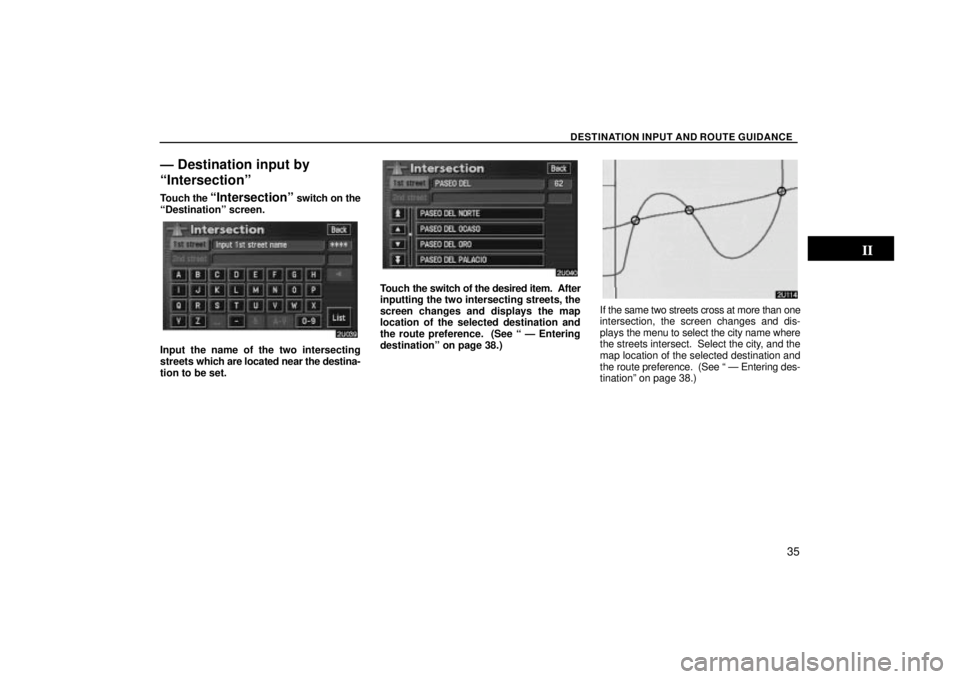

Ð Destination input by
Intersectionº
Touch the Intersectionº switch on the
Destinationº screen.
Input the name of the two intersecting
streets which are located near the destina-
tion to be set.
Touch the switch of the desired item. After
inputting the two intersecting streets, the
screen changes and displays the map
location of the selected destination and
the route preference. (See  Ð Entering
destinationº on page 38.)
If the same two streets cross at more than one
intersection, the screen changes and dis-
plays the menu to select the city name where
the streets intersect. Select the city, and the
map location of the selected destination and
the route preference. (See  Ð Entering des-
tinationº on page 38.)

DESTINATION INPUT AND ROUTE GUIDANCE
36

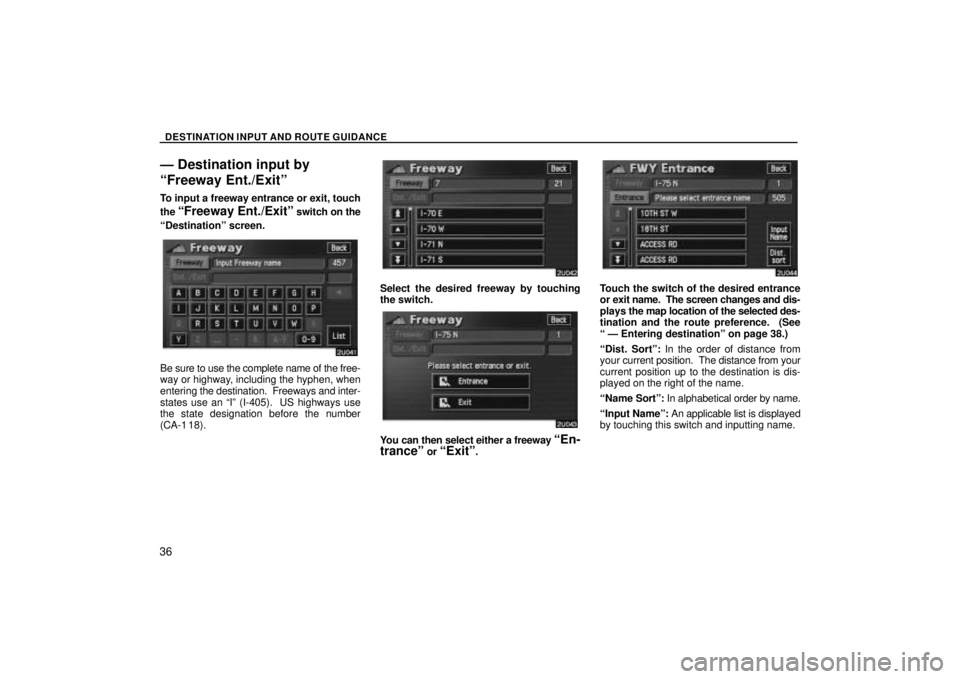

Ð Destination input by
Freeway Ent./Exitº
To input a freeway entrance or exit, touch
the
Freeway Ent./Exitº switch on the
Destinationº screen.
Be sure to use the complete name of the free-
way or highway, including the hyphen, when
entering the destination. Freeways and inter-
states use an Iº (I-405). US highways use
the state designation before the number
(CA-1 18).
Select the desired freeway by touching
the switch.
You can then select either a freeway En-
tranceº or Exitº.
Touch the switch of the desired entrance
or exit name. The screen changes and dis-
plays the map location of the selected des-
tination and the route preference. (See
 Ð Entering destinationº on page 38.)
Dist. Sortº: In the order of distance from
your current position. The distance from your
current position up to the destination is dis-
played on the right of the name.
Name Sortº: In alphabetical order by name.
Input Nameº: An applicable list is displayed
by touching this switch and inputting name.

DESTINATION INPUT AND ROUTE GUIDANCE
37

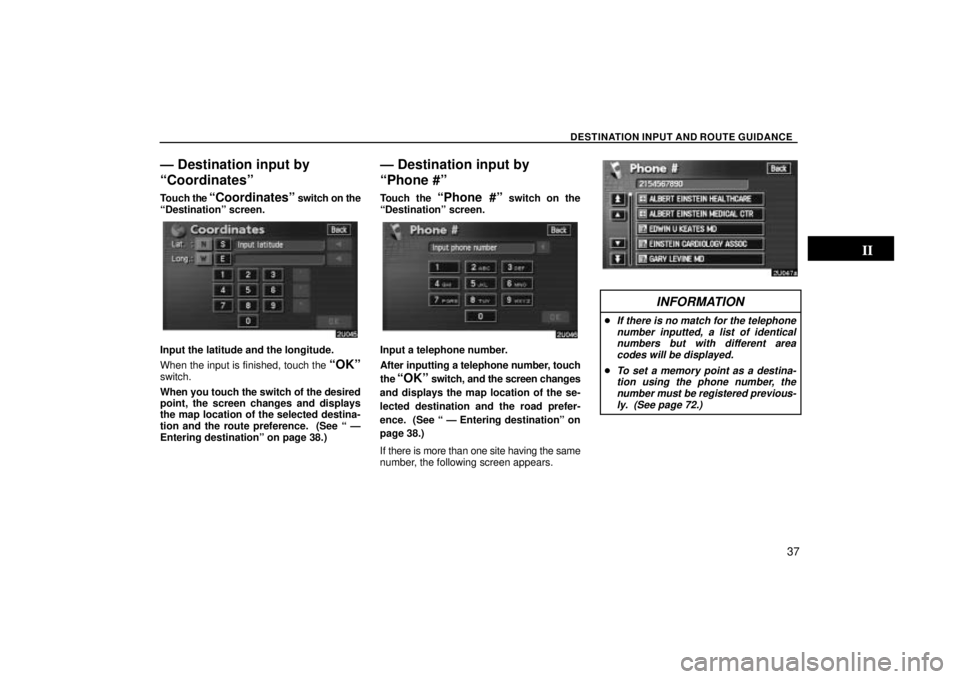

Ð Destination input by
Coordinatesº
Touch the Coordinatesº switch on the
Destinationº screen.
Input the latitude and the longitude.
When the input is finished, touch the
OKºswitch.
When you touch the switch of the desired
point, the screen changes and displays
the map location of the selected destina-
tion and the route preference. (See  Ð
Entering destinationº on page 38.)
Ð Destination input by
Phone #º
Touch the Phone #º switch on the
Destinationº screen.
Input a telephone number.
After inputting a telephone number, touch
the
OKº switch, and the screen changes
and displays the map location of the se-
lected destination and the road prefer-
ence. (See  Ð Entering destinationº on
page 38.)
If there is more than one site having the same
number, the following screen appears.
INFORMATION
If there is no match for the telephone number inputted, a list of identicalnumbers but with different areacodes will be displayed.
To set a memory point as a destina-tion using the phone number, thenumber must be registered previous-ly. (See page 72.)

DESTINATION INPUT AND ROUTE GUIDANCE
38

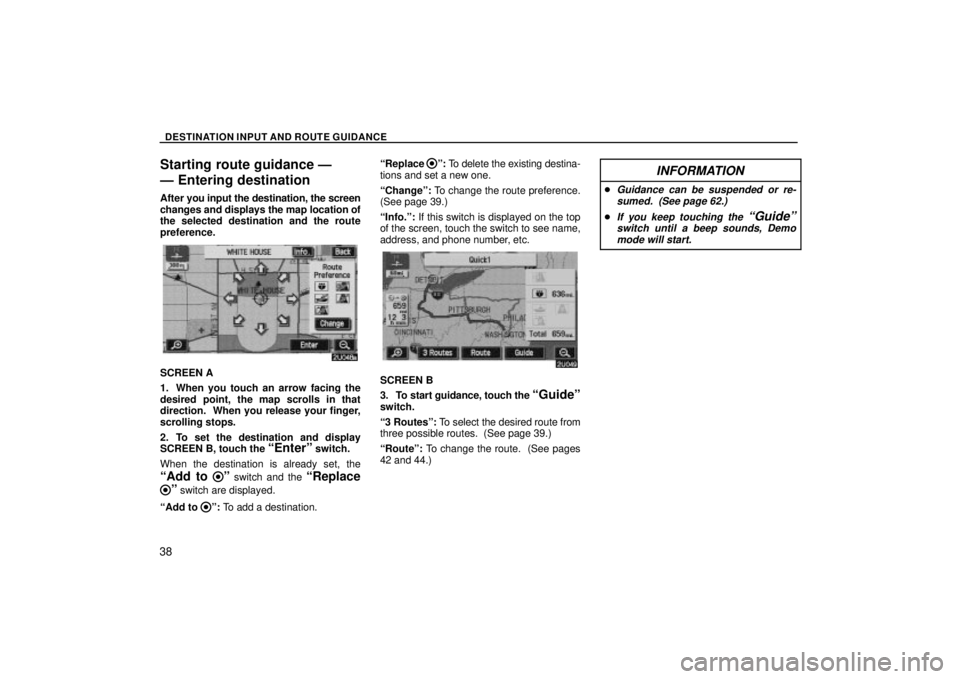

Starting route guidance Ð
Ð Entering destination
After you input the destination, the screen
changes and displays the map location of
the selected destination and the route
preference.
SCREEN A
1. When you touch an arrow facing the
desired point, the map scrolls in that
direction. When you release your finger,
scrolling stops.
2. To set the destination and display
SCREEN B, touch the
Enterº switch.
When the destination is already set, the
Add to º switch and the Replace
º switch are displayed.
Add to
º: To add a destination. Replace
º:
To delete the existing destina-
tions and set a new one.
Changeº: To change the route preference.
(See page 39.)
Info.º: If this switch is displayed on the top
of the screen, touch the switch to see name,
address, and phone number, etc.
SCREEN B
3. To start guidance, touch the
Guideºswitch.
3 Routesº: To select the desired route from
three possible routes. (See page 39.)
Routeº: To change the route. (See pages
42 and 44.)
INFORMATION
Guidance can be suspended or re- sumed. (See page 62.)
If you keep touching the Guideºswitch until a beep sounds, Demomode will start.

DESTINATION INPUT AND ROUTE GUIDANCE
39

To change the route before starting
guidance

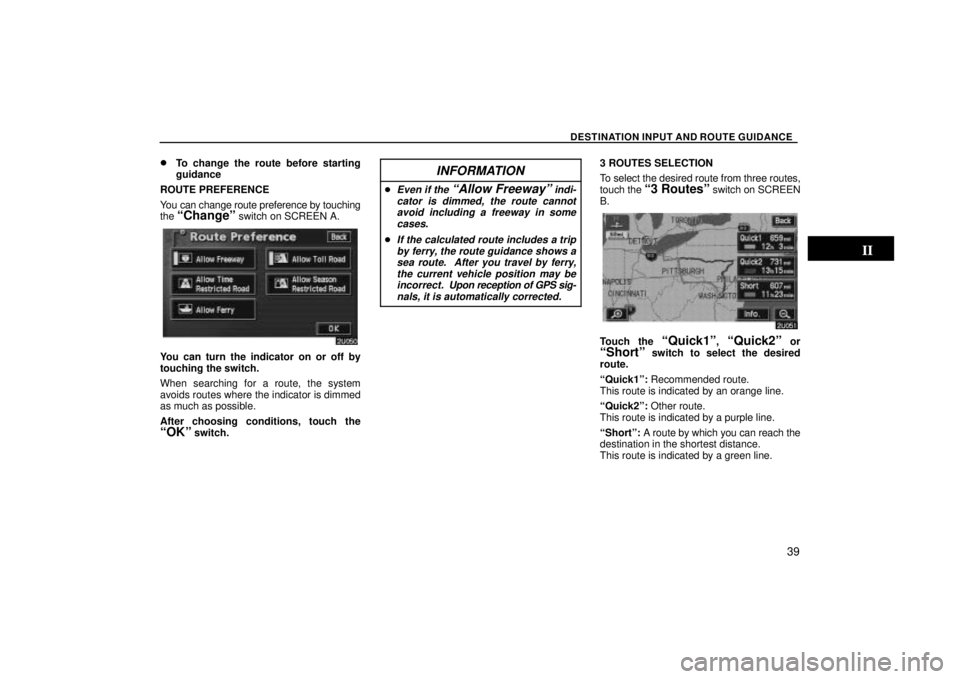

ROUTE PREFERENCE
You can change route preference by touching
the
Changeº switch on SCREEN A.
You can turn the indicator on or off by
touching the switch.
When searching for a route, the system
avoids routes where the indicator is dimmed
as much as possible.
After choosing conditions, touch the
OKº switch.
INFORMATION
Even if the Allow Freewayº indi-
cator is dimmed, the route cannot avoid including a freeway in somecases.
If the calculated route includes a tripby ferry, the route guidance shows asea route. After you travel by ferry,the current vehicle position may beincorrect. Upon reception of GPS sig-
nals, it is automatically corrected.
3 ROUTES SELECTION
To select the desired route from three routes,
touch the
3 Routesº switch on SCREEN
B.
Touch the Quick1º, Quick2º orShortº switch to select the desired
route.
Quick1º: Recommended route.
This route is indicated by an orange line.
Quick2º: Other route.
This route is indicated by a purple line.
Shortº: A route by which you can reach the
destination in the shortest distance.
This route is indicated by a green line.

DESTINATION INPUT AND ROUTE GUIDANCE
40

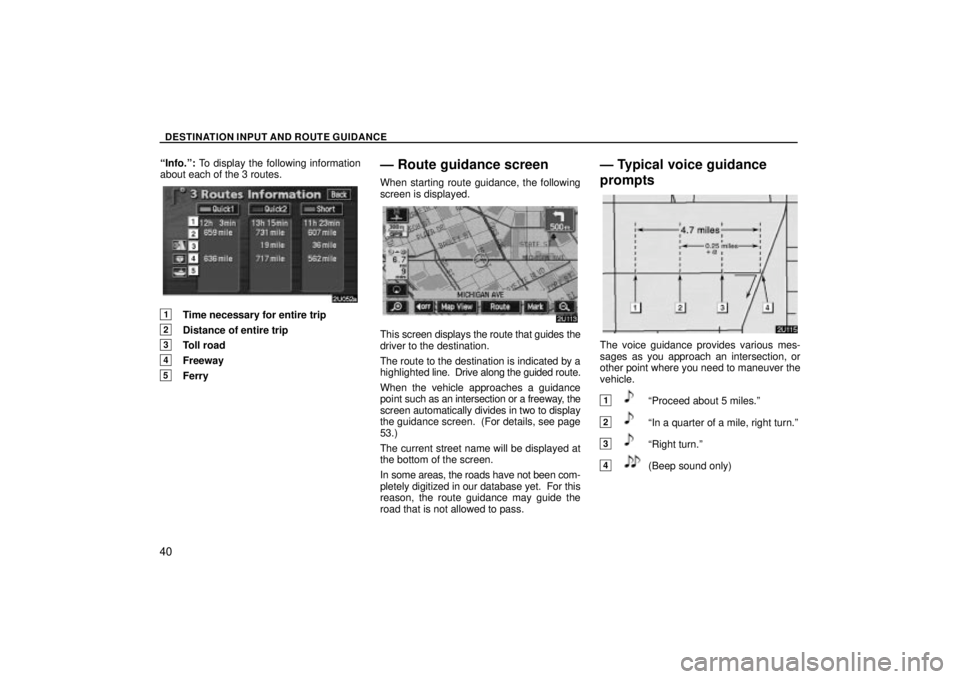

Info.º: To display the following information
about each of the 3 routes.
1Time necessary for entire trip
2Distance of entire trip
3Toll road
4Freeway
5Ferry
Ð Route guidance screen
When starting route guidance, the following
screen is displayed.
This scr een displays the route that guides the
driver to the destination.
The route to the destination is indicated by a
highlighted line. Drive along the guided route.
When the vehicle approaches a guidance
point such as an intersection or a freeway, the
screen automatically divides in two to display
the guidance screen. (For details, see page
53.)
The current street name will be displayed at
the bottom of the screen.
In some areas, the roads have not been com-
pletely digitized in our database yet. For this
reason, the route guidance may guide the
road that is not allowed to pass.
Ð Typical voice guidance
prompts
The voice guidance provides various mes-
sages as you approach an intersection, or
other point where you need to maneuver the
vehicle.
1Proceed about 5 miles.º
2In a quarter of a mile, right turn.º
3Right turn.º
4(Beep sound only)
