TOYOTA SOLARA 2004 (in English) User Guide

’04 Solara_U (L/O 0402)
3
2004 SOLARA from Feb. ’04 Prod. (OM33640U)

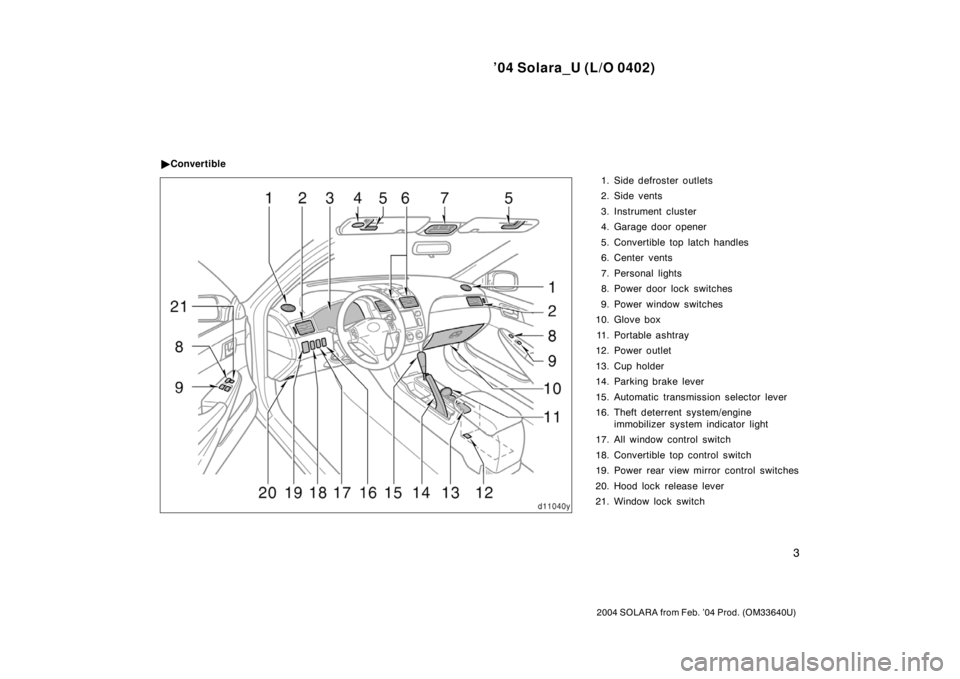

1. Side defroster outlets
2. Side vents
3. Instrument cluster
4. Garage door opener
5. Convertible top latch handles
6. Center vents
7. Personal lights
8. Power door lock switches
9. Power window switches
10. Glove box
11. Portable ashtray
12. Power outlet
13. Cup holder
14. Parking brake lever
15. Automatic transmission selector lever
16. Theft deterrent system/engine
immobilizer system indicator light
17. All window control switch
18. Convertible top control switch
19. Power rear view mirror control switches
20. Hood lock release lever
21. Window lock switch Convertible

’04 Solara_U (L/O 0402)
4
2004 SOLARA from Feb. ’04 Prod. (OM33640U)

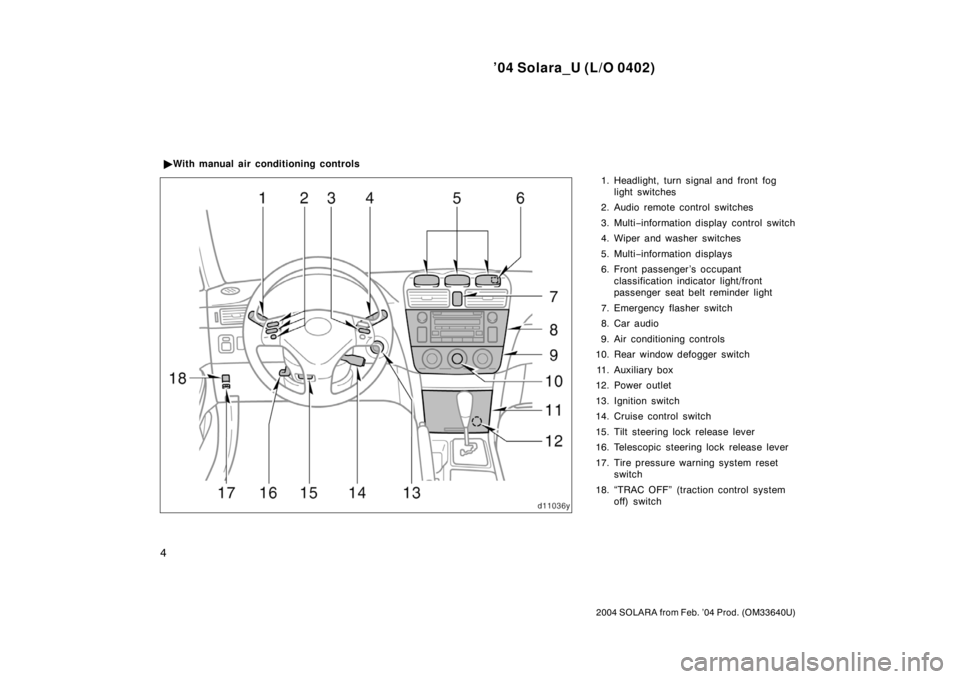

1. Headlight, turn signal and front fog
light switches
2. Audio remote control switches
3. Multi−information display control switch
4. Wiper and washer switches
5. Multi−information displays
6. Front passenger ’s occupant
classification indicator light/front
passenger seat belt reminder light
7. Emergency flasher switch
8. Car audio
9. Air conditioning controls
10. Rear window defogger switch
11. Auxiliary box
12. Power outlet
13. Ignition switch
14. Cruise control switch
15. Tilt steering lock release lever
16. Telescopic steering lock release lever
17. Tire pressure warning system reset
switch
18. “TRAC OFF” (traction control system
off) switch With manual air conditioning controls

’04 Solara_U (L/O 0402)
5
2004 SOLARA from Feb. ’04 Prod. (OM33640U)

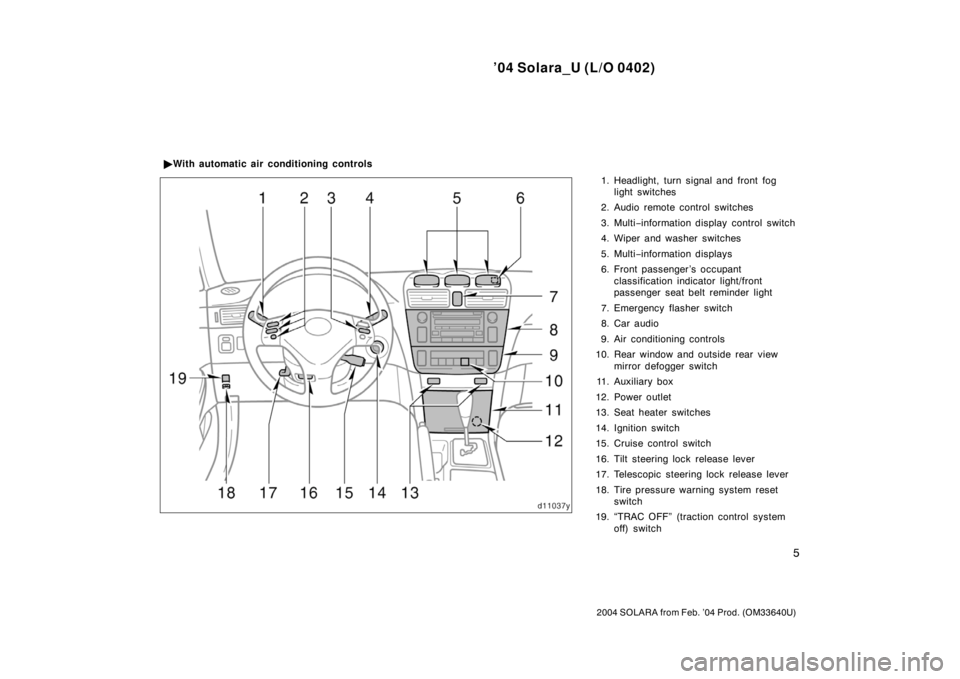

1. Headlight, turn signal and front fog
light switches
2. Audio remote control switches
3. Multi−information display control switch
4. Wiper and washer switches
5. Multi−information displays
6. Front passenger ’s occupant
classification indicator light/front
passenger seat belt reminder light
7. Emergency flasher switch
8. Car audio
9. Air conditioning controls
10. Rear window and outside rear view
mirror defogger switch
11. Auxiliary box
12. Power outlet
13. Seat heater switches
14. Ignition switch
15. Cruise control switch
16. Tilt steering lock release lever
17. Telescopic steering lock release lever
18. Tire pressure warning system reset
switch
19. “TRAC OFF” (traction control system
off) switch With automatic air conditioning controls

’04 Solara_U (L/O 0402)
6
2004 SOLARA from Feb. ’04 Prod. (OM33640U)

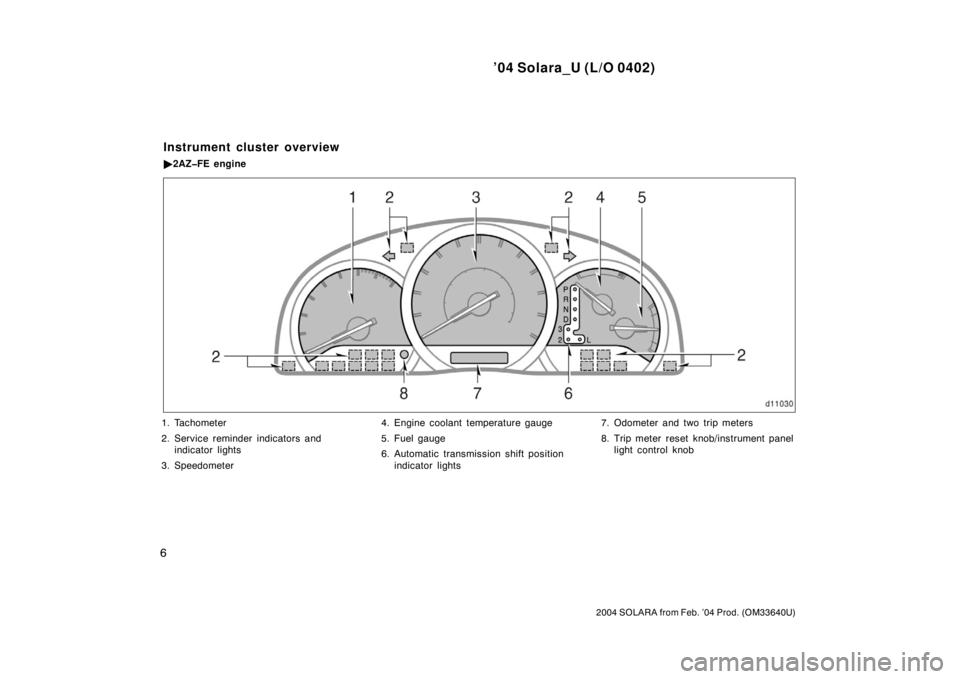

1. Tachometer
2. Service reminder indicators and
indicator lights
3. Speedometer4. Engine coolant temperature gauge
5. Fuel gauge
6. Automatic transmission shift position
indicator lights7. Odometer and two trip meters
8. Trip meter reset knob/instrument panel
light control knob
Instrument cluster overview
2AZFE engine

’04 Solara_U (L/O 0402)
7
2004 SOLARA from Feb. ’04 Prod. (OM33640U)
1. Tachometer
2. Service reminder indicators and
indicator lights
3. Speedometer4. Engine coolant temperature gauge
5. Fuel gauge
6. Automatic transmission shift range
position display7. Automatic transmission shift position
indicator lights
8. Odometer and two trip meters
9. Trip meter reset knob/instrument panel
light control knob 3MZFE engine

’04 Solara_U (L/O 0402)
8
2004 SOLARA from Feb. ’04 Prod. (OM33640U)
Brake system warning light∗
1
Driver ’s seat belt reminder light∗
1
Discharge warning light∗
1
Malfunction indicator lamp∗
1
Low engine oil pressure warning light∗
1
Anti−lock brake system warning light∗
1
Open door warning light∗
1
SRS warning light∗
1
Low windshield washer fluid level warning light∗
1
or or
Front passenger ’s seat belt reminder light∗
1
Low fuel level warning light∗
1
Vehicle stability control system/traction control
system warning light∗
1
Low tire pressure warning light∗
1
Indicator symbols on the instrument panel

’04 Solara_U (L/O 0402)
9
2004 SOLARA from Feb. ’04 Prod. (OM33640U)
Slip indicator light
∗
1: For details, see “Service reminder indicators and warning
buzzers” on page 129 in Section 1−6.
∗
2: If this light flashes, see “Cruise control” on page 155 in Sec-
tion 1−7.
Cruise control indicator light∗
2
Traction control system off indicator light
Turn signal indicator lights
Headlight high beam indicator light Front passenger occupant classification indicator
light
Engine oil replacement reminder light∗
1

’04 Solara_U (L/O 0402)
10
2004 SOLARA from Feb. ’04 Prod. (OM33640U)

’04 Solara_U (L/O 0402)
11
2004 SOLARA from Feb. ’04 Prod. (OM33640U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine immobilizer system14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wireless remote control15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Side doors20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power windows23 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Trunk lid26 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hood28 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Theft deterrent system29 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel tank cap31 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electric moon roof33 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Convertible top35 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 2

’04 Solara_U (L/O 0402)
12
2004 SOLARA from Feb. ’04 Prod. (OM33640U)

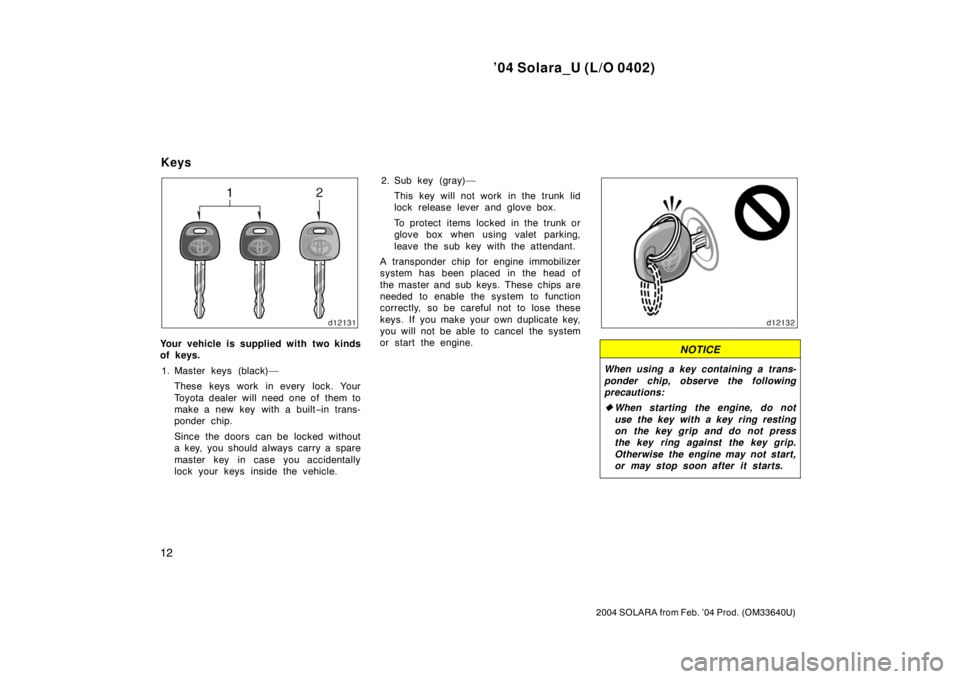

Your vehicle is supplied with two kinds
of keys.
1. Master keys (black)—
These keys work in every lock. Your
Toyota dealer will need one of them to
make a new key with a built−in trans-
ponder chip.
Since the doors can be locked without
a key, you should always carry a spare
master key in case you accidentally
lock your keys inside the vehicle.2. Sub key (gray)—
This key will not work in the trunk lid
lock release lever and glove box.
To protect items locked in the trunk or
glove box when using valet parking,
leave the sub key with the attendant.
A transponder chip for engine immobilizer
system has been placed in the head of
the master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.NOTICE
When using a key containing a trans-
ponder chip, observe the following
precautions:
When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.
Keys
