TOYOTA SOLARA 2007 Accessories, Audio & Navigation (in English)

i
Introduction
Thank you for your purchase of the Navigation System. Please read this manual carefully to ensure proper use. Keep this manual
in your vehicle at all times.
The Navigation System is one of the most technologically advanced vehicle accessories ever developed. The system receives satellite
signals from the Global Positioning System (GPS) operated by the U.S. Department of Defense. Using these signals and other vehicle
sensors, the system indicates your present position and assists in locating a desired destination.
The navigation system is designed to select efficient routes from your present starting location to your destination. The system is also designed
to direct you to a destination that is unfamiliar to you in an efficient manner. The system uses DENSO maps. The calculated routes may not
be the shortest nor the least traffic congested. Your own personal local knowledge or “short cut” may at times be faster than the calculated
routes.
The navigation system’s database includes about 75 Point of Interest categories to allow you to easily select destinations such as restaurants
and banks. If a destination is not in the database, you can enter the street address or a major intersection close to it and the system will guide
you there.
The system will provide both a visual map and audio instructions. The audio instructions will announce the distance remaining and the direction
to turn in approaching an intersection. These voice instructions will help you keep your eyes on the road and are timed to provide enough
time to allow you to maneuver, change lanes or slow down.
Please be aware that all current vehicle navigation systems have certain limitations that may affect their ability to perform properly.
The accuracy of the vehicle’s position depends on the satellite condition, road configuration, vehicle condition or other circumstan-
ces. For more information on the limitations of the system, refer to pages 182 through 183.

ii
Important information about
this manual
For safety reasons, this manual indicates
items requiring particular attention with the
following marks.
CAUTION
This is a warning against anything
which may cause injury to people if the
warning is ignored. You are informed
about what you must or must not do in
order to reduce the risk of injury to
yourself and others.
NOTICE
This is a warning against anything
which may cause damage to the ve-
hicle or its equipment if the warning is
ignored. You are informed about what
you must or must not do in order to
avoid or reduce the risk of damage to
your vehicle and its equipment.
INFORMATION
This provides additional information.
Safety Instruction
To use this system in the safest possible
manner, follow all the safety tips shown be-
low.
This system is intended to assist in reaching
the destination and, if used properly, can do
so. The driver is solely responsible for the
safe operation of your vehicle and the safety
of your passengers.
Do not use any feature of this system to the
extent it becomes a distraction and prevents
safe driving. The first priority while driving
should always be the safe operation of the
vehicle. While driving, be sure to observe all
traffic regulations.Prior to the actual use of this system, learn
how to use it and become thoroughly familiar
with it. Read the entire Navigation System
Owner’s Manual to make sure you under-
stand the system. Do not allow other people
to use this system until they have read and
understood the instructions in this manual.
For your safety, some functions may become
inoperable when driving. Unavailable
touch−screen buttons are dimmed. Only
when the vehicle is not moving, can the des-
tination and route selection be done.
CAUTION
For safety, the driver should not
operate the navigation system while
he/she is driving. Insufficient
attention to the road and traffic may
cause an accident.
While driving, be sure to obey the
traffic regulations and maintain
awareness of the road conditions. If
a traffic sign on the road has been
changed, route guidance may
provide wrong information such as
the direction of a one way street.

iii While driving, listen to the voice instructions
as much as possible and glance at the
screen briefly and only when it is safe. How-
ever, do not totally rely on voice guidance.
Use it just for reference. If the system cannot
determine the current vehicle position cor-
rectly, there is a possibility of incorrect, late,
or non−voice guidance.
The data in the system may occasionally be
incomplete. Road conditions, including driv-
ing restrictions (no left turns, street closures,
etc.) frequently change. Therefore, before
following any instruction from the system,
look to see whether the instruction can be
done safely and legally.
This system cannot warn about such things
as the safety of an area, condition of streets,
and availability of emergency services. If un-
sure about the safety of an area, do not drive
into it. Under no circumstances is this
system a substitute for the driver’s per-
sonal judgement.
Use this system only in locations where it is
legal to do so. Some states/provinces may
have laws prohibiting the use of video and
navigation screens next to the driver.

iv
1Northup or headingup symbol
This symbol indicates a map view with
north−up or heading−up. Touching this sym-
bol changes the map orientation. 18. . . . . .
2Scale indicator
This figure indicates the map scale. 15. . .
3“INFO” button
Push this button to display the “Information”
screen. 3, 92, 95, 102, 144, 146. . . . . . . . .
4Zoom out touchscreen button
Touch this button to reduce the map scale.
15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5“Mark”
Touch this button to register the current posi-
tion or the cursor position as a memory point.
10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6“Route”
Touch this button to change the route.
51, 54 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7“Map View”
Touch this button to browse information
about guidance route, to set the Points of In-
terest to be displayed on the screen, or to re-
cord the route. 57, 59, 61. . . . . . . . . . . . . .
Quick guide —
— Overview buttons and guidance screen

v
8“DISPLAY” button
Push this button to display the “Display”
screen. 143. . . . . . . . . . . . . . . . . . . . . . . . . . .
9“OFF”
Touch this button to obtain a broader view.
Some of the buttons on the screen are not
displayed. They are displayed again by
touching “ON”.84. . . . . . . . . . . . . . . . .
10Zoom in touchscreen button
Touch this button to magnify the map scale.
15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11Foot print map touchscreen button
Touch this button to display the foot print
map and the building information. 16. . . . .
12“MAP/VOICE” button
Push this button to repeat a voice guidance,
cancel one touch scroll, start guidance, and
display the current position. 9, 50. . . . . . . .
13“DEST” button
Push this button to display the “Destination”
screen. ix, x, 20, 21. . . . . . . . . . . . . . . . . . . .
14Screen configuration touchscreen
button
Touch this button to change the screen
mode. 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
15“MENU” button
Push this button to display the “Menu”
screen. vi, vii, 64. . . . . . . . . . . . . . . . . . . . . .
16Distance and time to destination
Displays the distance, the estimated travel
time to the destination, and the estimated ar-
rival time at the destination. 50. . . . . . . . . .
17“GPS” mark (Global Positioning
System)
Whenever the vehicle is receiving signals
from the GPS, this mark is displayed.
182 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18Speech command system indicator
The microphone is shown by pushing the
speech command switch. The speech com-
mand system can be operated while this in-
dicator is shown. 141. . . . . . . . . . . . . . . . . .

vi
0U5053a

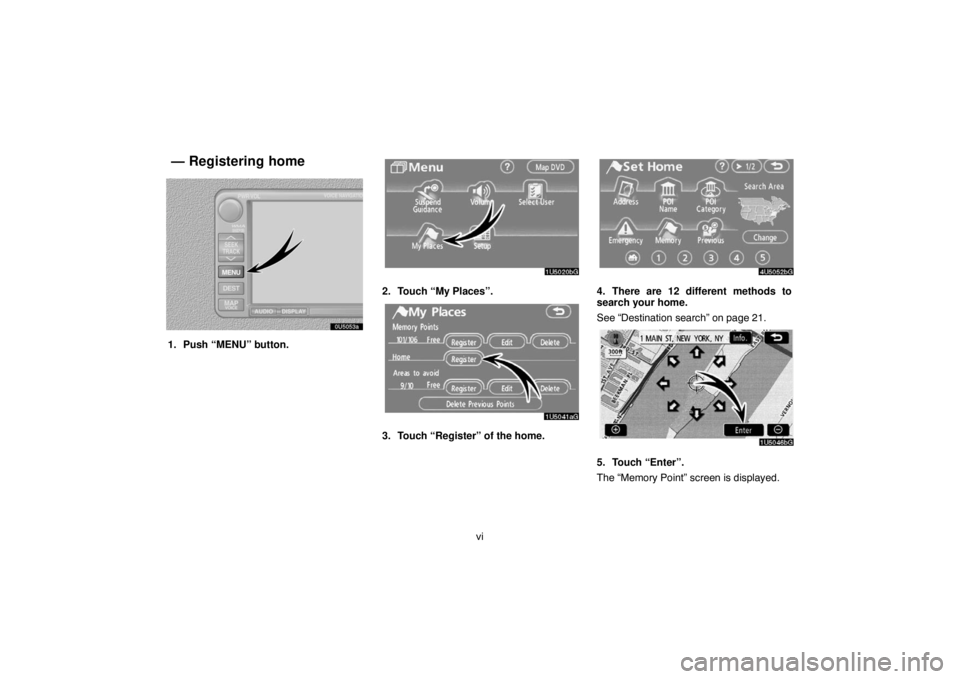

1. Push “MENU” button.
2. Touch “My Places”.
3. Touch “Register” of the home.
4. There are 12 different methods to
search your home.
See “Destination search” on page 21.
5. Touch “Enter”.
The “Memory Point” screen is displayed.
— Registering home

vii
6. Touch “OK”.
Registration of home is complete.
You can change the icon, quick access,
name, location and phone number. (See “ —
Editing memory points” on page 72.)
0U5053a

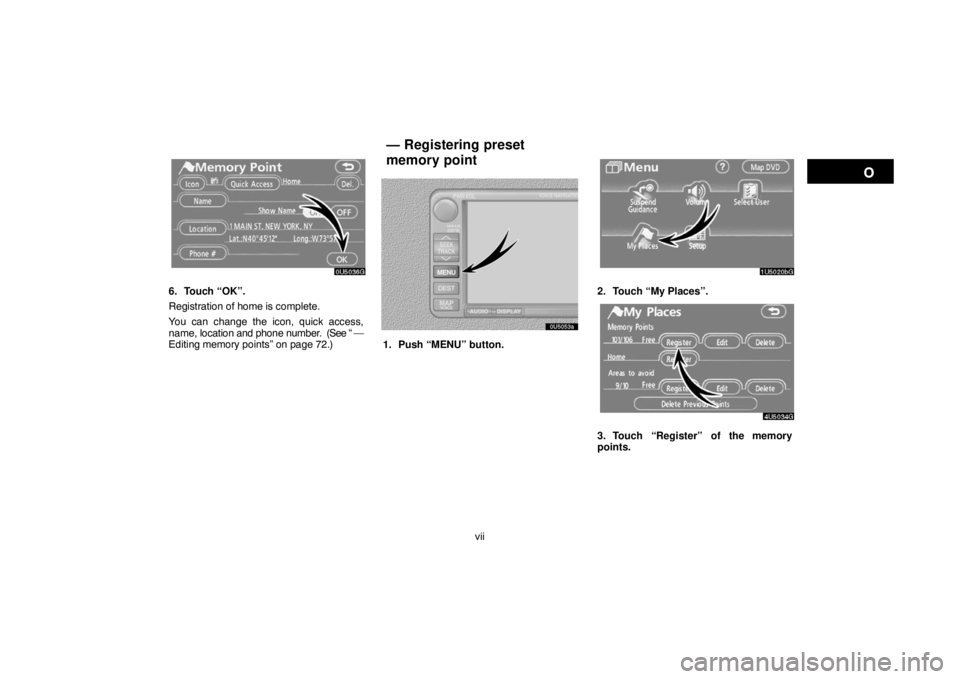

1. Push “MENU” button.
2. Touch “My Places”.
3. Touch “Register” of the memory
points.
— Registering preset
memory point

viii
4. There are 13 different methods to
search preset memory point.
See “Destination search” on page 21.
5. Touch “Enter”.
The “Memory Point” screen is displayed.
6. Touch “Quick Access”.
7. Touch one of preset buttons 1 to 5.
8. Touch “OK”.
Registration of preset memory point is com-
plete.
You can change the icon, quick access,
name, location and phone number. (See “ —
Editing memory points” on page 72.)

ix
0U5054a
1. Push “DEST” button.
2. There are 13 different methods to
search destinations.
See “Destination search” on page 21.
3. Touch “Enter”.
The navigation system performs a search
for the route.
4. Touch “Guide”, and start driving.
Routes other than the one recommended
can also be selected. (See “Starting route
guidance” on page 40.)
5. Guidance to the destination is given
via voice and on the guidance screen.
— Operation flow: guiding
the route

x
0U5054a
1. Push “DEST” button.
2. Touch .
The
can be used if your home has been
registered. (To register “Home”, see “ —
Registering home” on page 76.)
3. Touch “Enter”.
The navigation system performs a search
for the route.
4. Touch “Guide”, and start driving.
Routes other than the one recommended
can also be selected. (See “Starting route
guidance” on page 40.)
5. Guidance to the destination is given
via voice and on the guidance screen.
— Setting home as the
destination
