TOYOTA SOLARA 2007 Owners Manual (in English)
Manufacturer: TOYOTA, Model Year: 2007, Model line: SOLARA, Model: TOYOTA SOLARA 2007Pages: 14, PDF Size: 1.33 MB
Page 1 of 14
MN 00452-PRG07-SOL
Printed in USA 5/06
2007
Pocket Reference Guide
Customer Experience Center
1-800-331-4331
Page 2 of 14
2007
Camry Solara
!A word about safe vehicle operations This Pocket Reference Guideis a summary of
basic vehicle operations. It contains brief
descriptions of fundamental operations so you
can locate and use the vehicle’s main
equipment quickly and easily.
The Pocket Reference Guideis not intended
as a substitute for theOwner’s Manual
located in your vehicle’s glove box. We
strongly encourage you to review theOwner’s
Manual and supplementary manuals so you
will have a better understanding of your
vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota
Motor Sales, U.S.A., Inc. wish you many years
of satisfied driving in your new Camry Solara.
This Pocket Reference Guideis not a full
description of Camry Solara operations.
Every Camry Solara owner should review
the Owner’s Manualthat accompanies this
vehicle.
Pay special attention to the boxed
information highlighted in yellow
throughout the Owner’s Manual. Each box
contains safe operating instructions to
help you avoid injury or equipment
malfunction.
All information in this Pocket Reference
Guideis current at the time of printing.
Toyota reserves the right to make changes
at any time without notice.
Page 3 of 14
1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
INDEX
ItemPage no.
OVERVIEWEngine maintenance8Fuel tank door release and cap 6
Hood release 7Indicator symbols 4-5Instrument cluster 4Instrument panel 2-3Keyless entry16Light control-Instrument panel 7
Trunk release lever 7
FEATURES/OPERATIONSAir Conditioning/Heating 18Audio 16-17Auto lock functions19Automatic transmission9Clock 15Convertible top operation 15Cruise control 14Cup holders 15Door locks 11Garage door opener (HomeLink®)317Lights2&turn signals12-13Multi-information display 11Moonroof 13Parking brake9Power outlets 19Seat adjustments-Front 10Seat adjustments-Rear 10Seats-Head restraints 10Te l e p h o n e controls (Bluetooth®)14Te l e s c o p i c and tilt steering wheel 11Windows 19
Windshield wiper & washer13
SAFETY AND EMERGENCY FEATURESSeat belts 20Seat belt hangers 20Spare tire & tools 21Tire Pressure Wa r n i n g System reset 20
Trunk-Internal release 21
1Programmable by customer. Refer to the Owner’s
Manual for instructions and more information.
2Visit your Toyota dealer for information on customizing
this feature.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
Page 4 of 14
3
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
2
OVERVIEW
Steering wheel audio control
Te l e p h o n e controls1
Multi-information display switch
Speech command button1,2
Cruise control
Headlight, turn signal and front fog light controls
Wiper and washer controls
Multi-information displays
Front passenger occupant classification indicator
light/front passenger seat belt reminder light
Emergency flasher switch
Audio system or navigation system with integrated
audio system
1,2
Air Conditioning controlsRear window and outside rear view mirror
defogger switch
1
Auxiliary boxes
12V DC Power outlet
AUX adapter
Seat heater switches
1
Ignition switch
Tilt steering lock release
Te l e s c o p i c steering lock release
Tire Pressure Wa r n i n g System reset switch
“TRAC OFF” (Tr a c t i o n Control “OFF”)
1If equipped2For details, refer to the “Navigation System
Owner’s Manual.”
Instrument panel
Steering wheel controlsWith manual Air
Conditioning controls
With automatic Air
Conditioning controls
Page 5 of 14
45
OVERVIEW
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Driver seat belt reminder1
(Alarm will sound if speed is over 12 mph.)
Front passenger seat belt reminder1
(Alarm will sound if speed is over 12 mph.) Brake system warning
1
Charging system warning1
Low engine oil pressure warning1
Anti-lock Brake System warning1
Malfunction/Check Engine indicator1
1For details, refer to “Service reminder indicators and
warning buzzers,” Section 1-6, 2007 Owner’s Manual.2If this light flashes, refer to “Cruise control,” Section
1-7, 2007 Owner’s Manual.
When the anti-lock brake system (ABS) function is in
action, you may feel the brake pedal pulsating and
hear a noise. In this situation, to let the anti-lock
brake system work for you, just hold the brake pedal
down more firmly. Do not pump the brake as this will
result in reduced braking
performance.

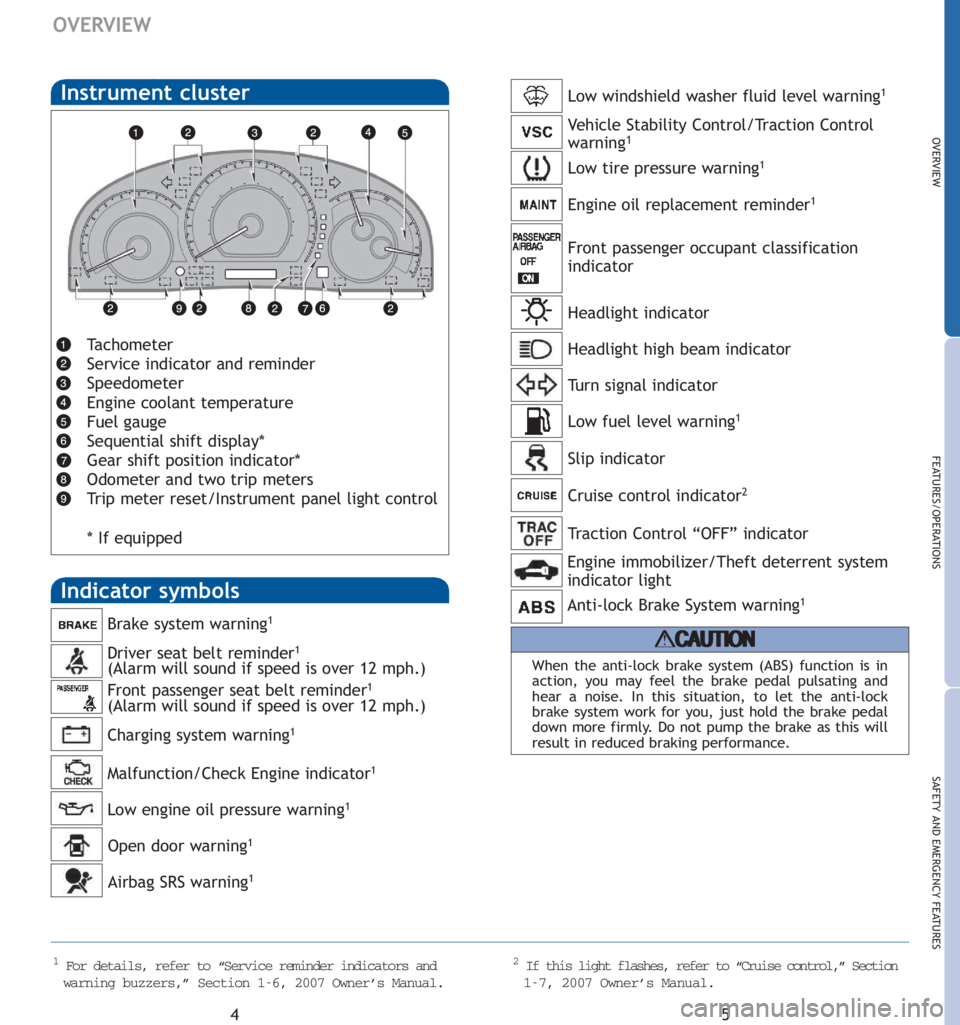

Indicator symbols
Open door warning1
Low windshield washer fluid level warning1
Engine oil replacement reminder1
Headlight indicator
Tu r n signal indicator
Low fuel level warning1
Headlight high beam indicator
Cruise control indicator
2
Slip indicator
Airbag SRS warning
1
Vehicle Stability Control/Traction Control
warning1
Tachometer
Service indicator and reminder
Speedometer
Engine coolant temperature
Fuel gauge
Sequential shift display*
Gear shift position indicator*
Odometer and two trip meters
Tr i p meter reset/Instrument panel light control
*If equipped
Instrument cluster
Low tire pressure warning1
Front passenger occupant classification
indicator
Engine immobilizer/Theft deterrent system
indicator light
Tr a c t i o n Control “OFF” indicator
Page 6 of 14
7
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
6
OVERVIEW
Fuel tank door release and cap
Tr u n k release lever
Hood release
Driver seat
Pull up
Pull up latch
and raise
hood
Pull
Tu r n
Store
NOTE:Tighten until one click is heard. If the cap is
not tightened enough, Check Engine “ ” indicator
may illuminate.
Keyless entry
NOTE:After unlocking, if a door is not opened within 60
seconds, all doors will relock for safety.
Unlocking operation
Tr u n k lid operationAlarm operation
Beep sound can be switched “ON” or “OFF.” Refer to
the Owner’s Manualfor more details.
Push ONCE: Driver door
TWICE: All doorsLocking operation
Push and holdPush and hold
With the knob turned fully clockwise, instrument
panel lights will not dim when the headlights are
turned on.
Note: This is also the trip meter reset button.
Refer to the Owner’s Manualfor more details.
Light control-Instrument panel
Brightness
control
+
-
Driver seat
Pull up
Tu r n to
activate/deactivate
trunk release lever*
*Master/Black key only
Page 7 of 14
9
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
8
OVERVIEWFEATURES/OPERATIONS
Engine maintenance
4 cylinder (2AZ-FE) engine
6cylinder(3MZ-FE) engine
Power steering fluid reservoir
Engine oil filler cap
Engine oil level dipstick
Windshield washer fluid tank
Engine coolant reservoir
Note: Regularly scheduled maintenance, including
oil changes, will help extend the life of
your vehicle and maintain performance.
Please refer to the “Owner’s Warranty
I
nformation Booklet,” “Scheduled
Maintenance Guide” or “Owner’s Manual
Supplement.”
Automatic Transmission (if equipped)
Park1
Reverse
Neutral
Drive
P
R
N
D
N
S“S” mode
“S” position:
+:Upshift (Push and release)
-:Downshift (Pull and release)
“S” (Sequential) mode
Downshifting increases power going uphill, or
provides engine braking downhill. For best fuel
economy during normal driving conditions, always
drive with the shift lever in the “D” position. Push shift lever to the left from “D” position.
1The ignition switch must be ON, and the brake
pedal depressed to shift from “Park.”
Auto lock functions
Automatic door locks can be programmed to operate
in 3 different modes, or turned OFF.
-Doors lock when shifting from Park.*
-Doors unlock when shifting into Park.*
-Doors unlock when the ignition switch is turned
from ON to ACC or LOCK and driver’s door is
opened.
*Automatic transmission only
Refer to the O
wner’s Manualfor more details.
Parking brake
Pull
(2) Push
Set
Release
(1) Pull slightly
(3) Lower
“S”“D”
Page 8 of 14
11
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
10
FEATURES/OPERATIONS
Seat adjustments-Front
Manual SeatPower Seat
Position
Cushion angle
Height crank (driver side only)
Seatback angle and lock release
Lumbar support (driver side only)
Position and height
Seatback lock release
Seat adjustments-Rear (hardtop only)
Lock
(1) Unlock(2) Pull up (3) Fold down
Seats-Head restraints
Lock release buttonLock release button
FrontRear*
Multi-information display
Push “DISP” to change information in the following
succession.
(1) Current gas mileage (MPG)
(2) Average gas mileage (AV G / M P G)
(3) Miles left on remaining fuel (RANGE/MI)
(4) Average vehicle speed from engine start (AV G / M PH)
(5) Running time from engine start (E/T)
Door locks
Unlock
Lock Driver side Passenger side
UnlockLock
Telescopic and tilt steering wheel
Note: Do not attempt to adjust while the vehicle
is in motion.
Lock release lever Lock release lever
Angle Length
NOTE:Ensure seat is locked back into place.
*Hardtop only
Page 9 of 14
13
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
12
FEATURES/OPERATIONS
Lights & turn signals
Headlights
-Daytime Running Light system (DRL) Automatically
turns on the headlights at a reduced intensity.
-Automatic light cut off system Will automatically
turn lights off after a delay of thirty (30) seconds,
or the lock switch on remote may be pushed.
High beam flasher
Low beam
Headlights
DRL OFF
Parking lights
AUTO
High beam
Tu r n signals
Right turn
Lane change
Lane change
Left turn
Front fog lights
Tu r n
Front fog lights come on only when the headlights
are on low beam.
Headlight beam level control (if equipped)
Higher number will lower the beam.
Up
Down
Up
Down
HardtopConvertible
Up
Down
Windshield wiper & washer
Adjust interval
Pull to wash and wipe
Single wipe
Interval wipe
Slow
Fast
Moonroof (if equipped)
Sliding operationTilting operation
Open
CloseTilt
Close
Recommended driving
position to minimize wind
noise.
NOTE:If battery is disconnected, the moonroof
needs to be reinitialized. Refer to the Owner’s
Manualfor more details.
Page 10 of 14
15
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
14
FEATURES/OPERATIONS

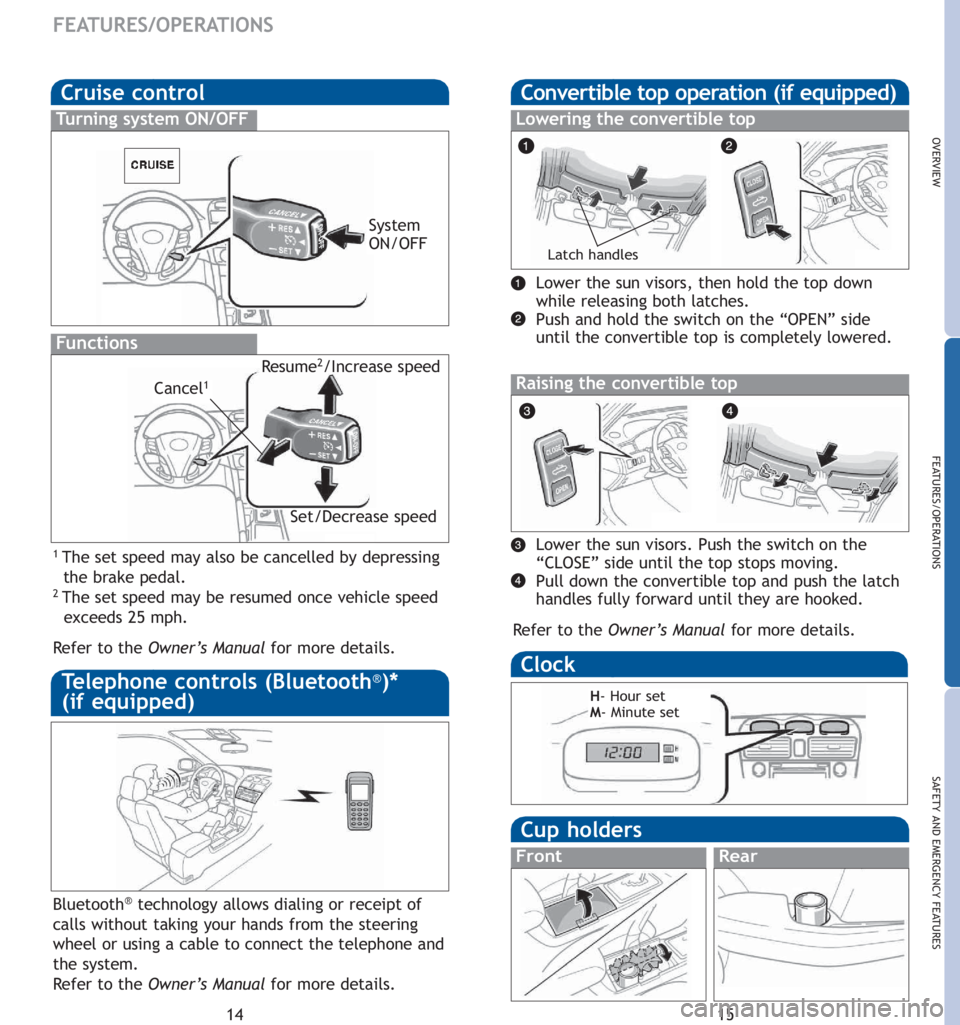

Cruise control
1The set speed may also be cancelled by depressing
the brake pedal.
2The set speed may be resumed once vehicle speed
exceeds 25 mph.
Turning system ON/OFF
Functions
Resume2/Increase speed
Set/Decrease speed
Cancel1
Refer to the Owner’s Manualfor more details.
System
ON/OFF
Lowering the convertible top
Convertible top operation (if equipped)
Lower the sun visors, then hold the top down
while releasing both latches.
Push and hold the switch on the “OPEN” side
until the convertible top is completely lowered.
Raising the convertible top
Lower the sun visors. Push the switch on the
“CLOSE” side until the top stops moving.
Pull down the convertible top and push the latch
handles fully forward until they are hooked.
Refer to the Owner’s Manualfor more details.
Latch handles
Bluetooth®technology allows dialing or receipt of
calls without taking your hands from the steering
wheel or using a cable to connect the telephone and
the system.
Refer to the Owner’s Manualfor more details.
Telephone controls (Bluetooth®)*
(if equipped)
Cup holders
Clock
H-Hour set
M- Minute set
FrontRear
