TOYOTA SOLARA 2007 Accessories, Audio & Navigation (in English)

50
The system announces the approach to the fi-
nal destination.
1“Your destination is ahead.”
2“You have arrived at your destina-
tion. The route guidance is now
finished.”
INFORMATION
If the system cannot determine the
current vehicle position correctly (in
cases of poor GPS signal reception),
the voice guidance may be made ear-
ly or delayed.
If you did not hear the voice guidance
command, push the “MAP/VOICE”
button to hear it again.
To adjust the voice guidance volume,
see “Volume” on page 67.
Distance and time to
destination
When the vehicle is on the guidance route,
the distance and the estimated travel/arrival
time to the destination are displayed. When
the vehicle is not on the guidance route, the
distance and the direction of the destination
are displayed.
When driving on the guidance route and more
than one destination is set, the distance and
the estimated travel/arrival time from the cur-
rent position to each destination are dis-
played.

51 1. Touch this button to display the follow-
ing screen.
2. Touch the number button to display
the desired destination.
The distance, the estimated travel time and
the estimated arrival time from the current
position to the selected destination are dis-
played.
Estimated travel time is dis-
played.
Estimated arrival time is dis-
played.
To switch to estimated arrival
time.
To switch to estimated travel
time.
Displayed while driving off the
guidance route. The destina-
tion direction is indicated by
an arrow.
INFORMATION
When the vehicle is on the guidance
route, the distance measured along the
route is displayed. Travel time and arriv-
al time is calculated based on the set ve-
hicle speed information. (See page 82.)
However, when the vehicle is not on the
guidance route, the distance is the linear
distance between the current position
and the destination.
Setting and deleting
destination —
— Adding destinations
Adding destinations and searching again for
the routes can be done.
1. Touch “Route”.
2. Touch “Add”.

52 3. Input an additional destination in the
same way as the destination search. (See
“Destination search” on page 21.)
4. Touch the desired “Add” to determine
the arrival order of the additional destina-
tion.
— Reordering destinations
When more than one destination is set, you
can change the arrival order of the destina-
tions.
1. Touch “Route”.
2. Touch “Reorder”.
3. Select the destination in the order of
arrival by touching the destination button.
Reordered number of arrival is displayed on
the right side of the screen.
Touching “Undo” will cancel each selected
order number from the previously input num-
ber.
4. After selecting the destinations, touch
“OK”.
The system searches for the guidance route
again, and displays the entire route. Even if
“OK” is not touched, the entire route is dis-
played automatically within a few seconds
when the order is fixed.

53
— Deleting destinations
A set destination can be deleted.
1. Touch “Route”.
2. Touch “Delete”.When more than one destination is set, a list
will be displayed on the screen.
3. Touch the destination for deletion.
“Delete All”: To delete all destinations on the
list.
A message appears to confirm the request to
delete.4. To delete the destination(s), touch
“Yes”.
If “Yes” is touched, the data cannot be recov-
ered.
If “No” is touched, the previous screen will re-
turn.
5. If more than one destination is set,
touch “OK” after deleting the destination-
s.
The system searches for the guidance route
again, and displays the entire route.

54
Setting route —
— Search condition
You can designate the route conditions of the
route to the destination.
1. Touch “Route”.
2. Touch “Search Condition”.
3. Touch “Quick”, “Quick1”, “Quick2” or
“Short” and touch “OK”.
The entire route from the starting point to the
destination is displayed.
“Guide”: To start guidance.
“Route”: To change a route. (See pages 51
and 54.)
— Detour setting
While the route guidance is operating, you
can change the route to detour around a sec-
tion of the route where a delay is caused by
road repairs, or an accident, etc.
1. Touch “Route”.
2. Touch “Detour”.

55
3. Select the button below to select the
desired detour distance.
“1 mile (km)”, “3 miles (km)” or “5 miles
(km)”: Touch one of these buttons to start the
detour process. After detouring, the system
returns to the original guidance route.
“Whole Route”: By touching this button, the
system will calculate an entire new route to
the destination.
This picture shows an example of how the
system would guide around a delay caused
by a traffic jam.
1This position indicates the location of a
traffic jam caused by road repairs or an
accident.
2This route indicates the detour sug-
gested by the system.
INFORMATION
When your vehicle is on a freeway, the
detour distance selections are 5, 15,
and 25 miles (km).
The system may not be able to calcu-
late a detour route depending on the
selected distance and surrounding
road conditions.
— Route preference
A number of choices are provided on the con-
ditions which the system uses to determine
the route to the destination.
1. Touch “Route”.
2. Touch “Route Preference” to change
the conditions that determine the route to
the destination.

56
3. Select the desired route preference by
touching the button.
When searching for a route, the system will
avoid routes when the indicator is off.
4. After choosing the desired route pref-
erence, touch “OK”.
— Starting route from
adjacent road
You can start the route guidance from the ad-
jacent road.
(ex. When route guidance is set on the free-
way, but the vehicle is driven parallel along
the freeway.)
1. Touch “Route”.
2. Touch “Start from Adjacent Road”.
When there is no adjacent road, this button
will not be displayed.

57
Map view —
— Display POI icons
Points of Interest such as gas stations and
restaurants can be displayed on the map
screen. You can also set their location as a
destination and use them for route guidance.
1. Touch “Map View”.
2. Touch “Display POI Icon” to display a
particular type of Point of Interest on the
screen.
A screen with a limited choice of Points of In-
terest will be displayed. (To change the dis-
played POI, see page 85.)
Selecting POIs to be displayed
Up to 5 categories of icons can be displayed
on the screen.
Touch the desired Point of Interest catego-
ry to display POI location symbols on the
map screen.
By selecting the desired POI category and
then touching “OK”, the selected POI icons
are displayed on the map screen.
To turn off the Points of Interest icon on the
map screen, touch “Delete”.
“Other POIs”: If the desired Point of Interest
can not be found on the limited choice screen,
touch this button.
“Local POI List”: When searching for the
nearest Point of Interest, touch this button.
Then choose one of the categories. The sys-
tem will list the points within 20 miles (32 km).
(See page 58.)

58 Touch “Other POIs” on the “Display POI
icons” screen.
When a Point of Interest category is selected
from either the limited list or the complete list,
the screen will display symbols of those loca-
tions on the map screen.
Select the desired POI categories.
The selected category icon appears on the
top left of the screen.
By selecting the desired POI category and
then touching “OK”, the selected POI icons
are displayed on the map screen.
If the desired POI category is not on the
screen, touch “List All Categories” to list all
POI categories.
Select the desired POI categories from the
list.
The selected category icon appears on the
top left of the screen.
By selecting the desired POI category and
then touching “OK”, the selected POI icons
are displayed on the map screen.
To return to the POI category selection
screen, touch “More”.

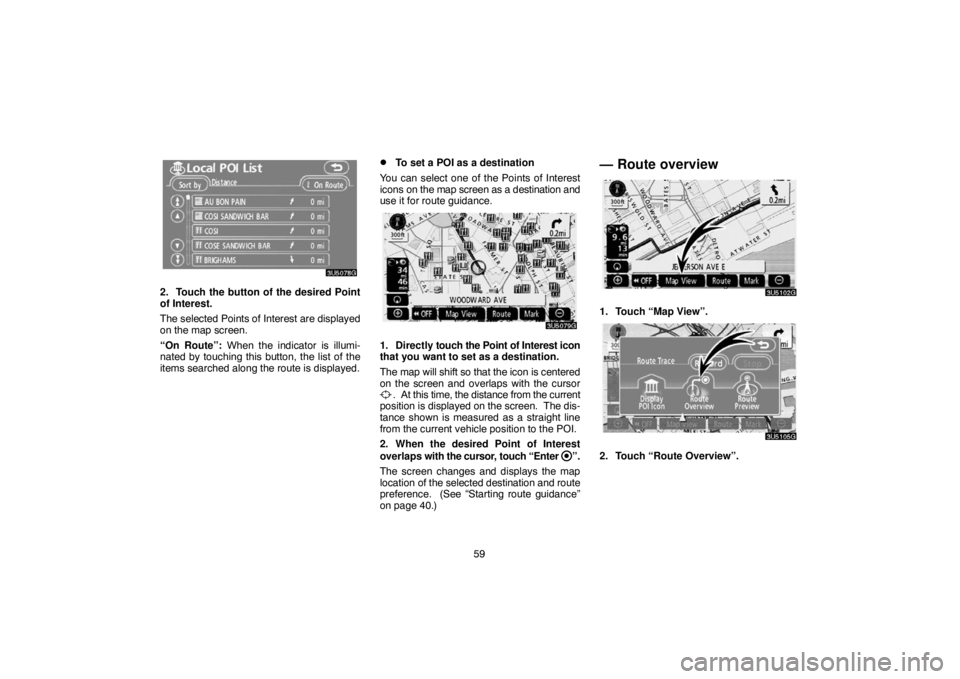

To display the local POI list
Points of Interest that are within 20 miles (32
km) of the current position will be listed from
among the selected categories.
1. Touch “Local POI List” on the “Display
POI icons” screen.

59
2. Touch the button of the desired Point
of Interest.
The selected Points of Interest are displayed
on the map screen.
“On Route”: When the indicator is illumi-
nated by touching this button, the list of the
items searched along the route is displayed.
To set a POI as a destination
You can select one of the Points of Interest
icons on the map screen as a destination and
use it for route guidance.
1. Directly touch the Point of Interest icon
that you want to set as a destination.
The map will shift so that the icon is centered
on the screen and overlaps with the cursor
. At this time, the distance from the current
position is displayed on the screen. The dis-
tance shown is measured as a straight line
from the current vehicle position to the POI.
2. When the desired Point of Interest
overlaps with the cursor, touch “Enter
”.
The screen changes and displays the map
location of the selected destination and route
preference. (See
“Starting route guidance”
on page 40.)
— Route overview
1. Touch “Map View”.
2. Touch “Route Overview”.
