TOYOTA SOLARA 2007 (in English) User Guide

4

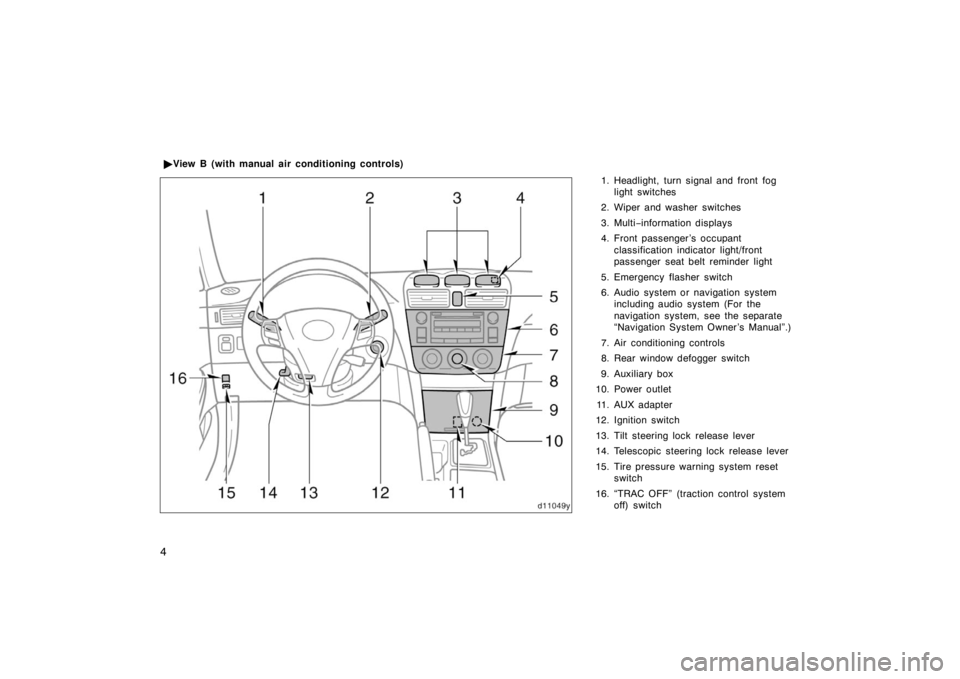

1. Headlight, turn signal and front foglight switches
2. Wiper and washer switches
3. Multi −information displays
4. Front passenger ’s occupant classification indicator light/front
passenger seat belt reminder light
5. Emergency flasher switch
6. Audio system or navigation system including audio system (For the
navigation system, see the separate
“Navigation System Owner ’s Manual”.)
7. Air conditioning controls
8. Rear window defogger switch
9. Auxiliary box
10. Power outlet
11. AUX adapter
12. Ignition switch
13. Tilt steering lock release lever
14. Telescopic steering lock release lever
15. Tire pressure warning system reset switch
16. “TRAC OFF” (traction control system off) switch

View B (with manual air conditioning controls)

5
1. Headlight, turn signal and front foglight switches
2. Wiper and washer switches
3. Multi −information displays
4. Front passenger ’s occupant classification indicator light/front
passenger seat belt reminder light
5. Emergency flasher switch
6. Audio system or navigation system including audio system (For the
navigation system, see the separate
“Navigation System Owner ’s Manual”.)
7. Air conditioning controls
8. Rear window and outside rear view mirror defogger switch
9. Auxiliary box
10. Power outlet 11. AUX adapter
12. Seat heater switches
13. Ignition switch
14. Tilt steering lock release lever
15. Telescopic steering lock release lever
16. Tire pressure warning system reset switch
17. “TRAC OFF” (traction control system off) switch

View B (with automatic air conditioning controls)

6
1. Audio remote control switches
2. Telephone switch
3. Multi−information display control switch
4. Speech command switch
5. Cruise control switch
Steering switches overview

7

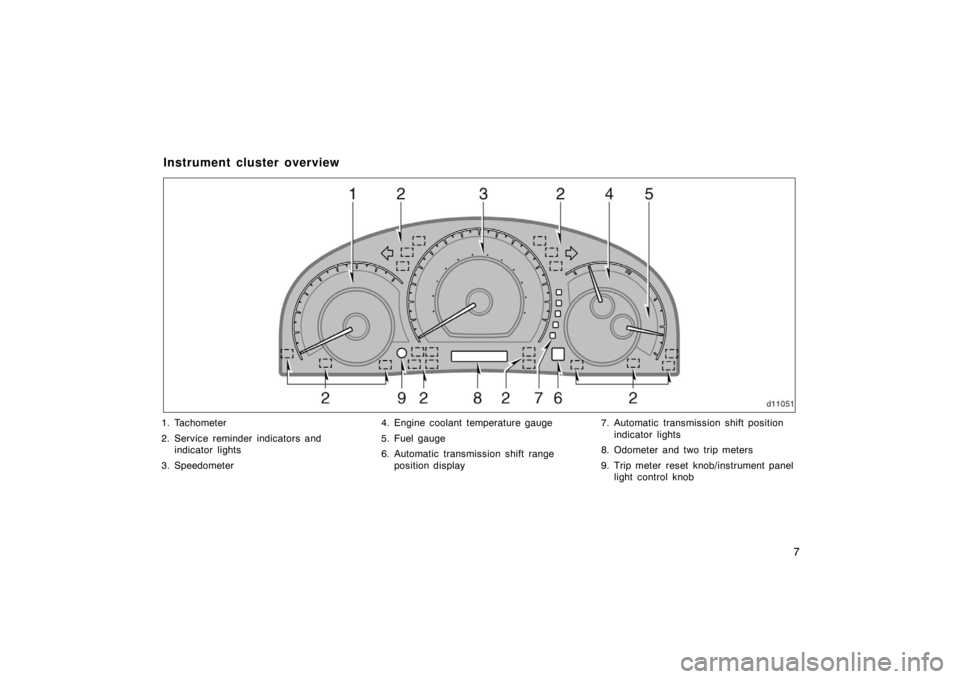

1. Tachometer
2. Service reminder indicators andindicator lights
3. Speedometer 4. Engine coolant temperature gauge
5. Fuel gauge
6. Automatic transmission shift range
position display 7. Automatic transmission shift position
indicator lights
8. Odometer and two trip meters
9. Trip meter reset knob/instrument panel light control knob
Instrument cluster overview

8
Brake system warning light∗1
Driver ’s seat belt reminder light∗1
Charging system warning light∗1
Malfunction indicator lamp∗1
Low engine oil pressure warning light∗1
Anti −lock brake system warning light∗
1
Open door warning light∗1
SRS warning light∗1
Low windshield washer fluid level warning light∗1
or
or
Front passenger ’s seat belt reminder light∗
1
Low fuel level warning light∗1
Vehicle stability control system/traction control
system warning light∗1
Tire pressure warning light∗1
Engine oil replacement reminder light∗1
Engine immobilizer/theft deterrent system
indicator light
Indicator symbols on the instrument panel

9
Slip indicator light
∗1: For details, see “Service reminder indicators and warning
buzzers” on page 133 in Section 1 −6.
∗
2: If this light flashes, see “Cruise control” on page 162 in Sec-
tion 1 −7.
Cruise control indicator light∗
2
Traction control system off indicator light
Turn signal indicator lights
Headlight high beam indicator light Front passenger occupant classification indicator
light
Headlight indicator light
Tail light indicator light

10

11
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . .
Engine immobilizer system 14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wireless remote control 16
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Side doors 21
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Power windows 24
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Trunk lid 28
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Hood 30
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Theft deterrent system 30
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Fuel tank cap 32
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Electric moon roof 34
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Convertible top 36
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
SECTION 1 2

12

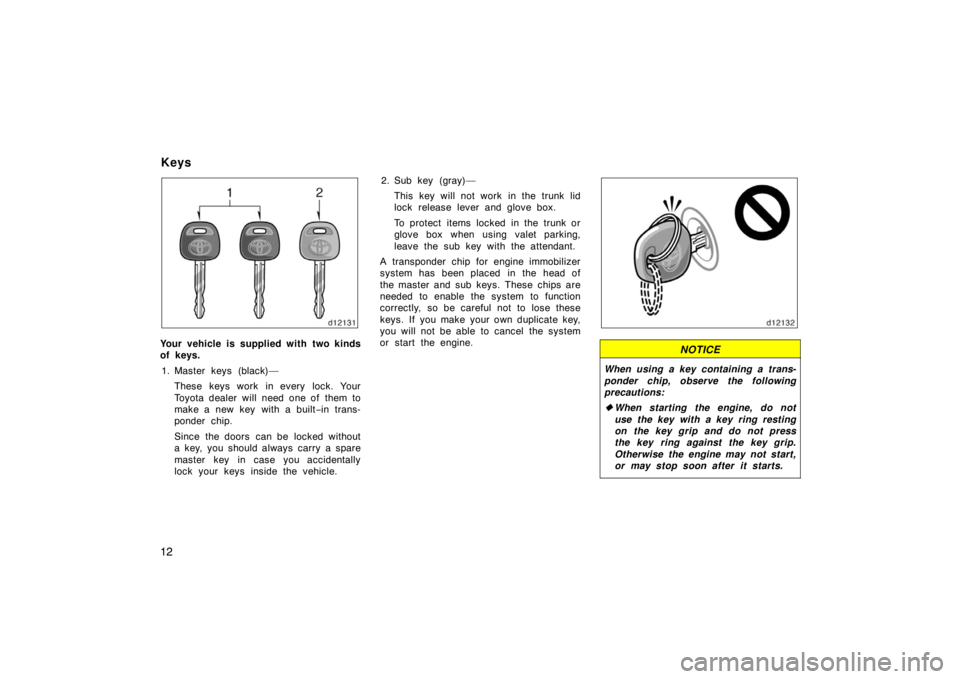

Your vehicle is supplied with two kinds
of keys.1. Master keys (black)— These keys work in every lock. Your
Toyota dealer will need one of them to
make a new key with a built −in trans-
ponder chip.
Since the doors can be locked without
a key, you should always carry a spare
master key in case you accidentally
lock your keys inside the vehicle. 2. Sub key (gray)—
This key will not work in the trunk lid
lock release lever and glove box.
To protect items locked in the trunk or
glove box when using valet parking,
leave the sub key with the attendant.
A transponder chip for engine immobilizer
system has been placed in the head of
the master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.NOTICE
When using a key containing a trans-
ponder chip, observe the following
precautions:
 When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.
Keys

13

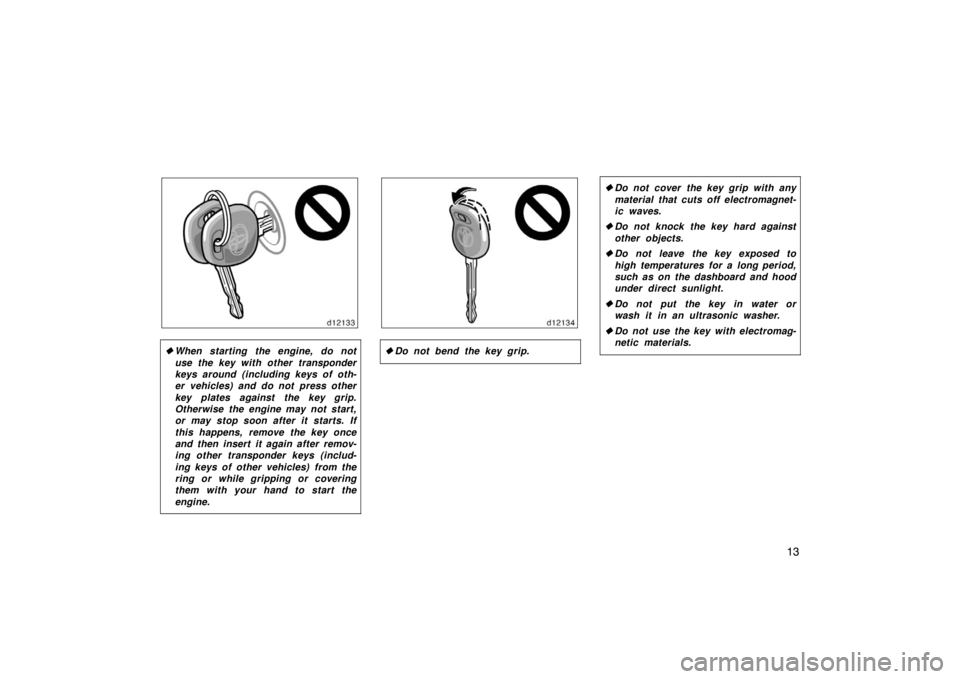

When starting the engine, do not
use the key with other transponder
keys around (including keys of oth-
er vehicles) and do not press other
key plates against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts. If
this happens, remove the key once
and then insert it again after remov-
ing other transponder keys (includ-
ing keys of other vehicles) from the
ring or while gripping or covering
them with your hand to start the
engine.Do not bend the key grip.
Do not cover the key grip with any
material that cuts off electromagnet-
ic waves.
 Do not knock the key hard against
other objects.
 Do not leave the key exposed to
high temperatures for a long period,
such as on the dashboard and hood
under direct sunlight.
 Do not put the key in water or
wash it in an ultrasonic washer.
 Do not use the key with electromag-
netic materials.
