TOYOTA SOLARA 2007 Owners Manual (in English)

214
INFORMATION
The phone numbers registered in
the phone book can be retrieved.
The system does not recognize that
the voice tag is not registered in
the registered cellular phone. For
details about voice tags, see “To
add entry” on page 203.
A shortcut to [Dial by name] is
available. Push the talk switch and
say [Dial XXX (name you want to
dial)].
To dial by Number1. Push the talk switch and say [Dial by Number].
[Dial by number. Please push the talk
switch and say the number.] is heard and
[Dial by Num] is displayed. 2. Push talk switch and say the dial num- ber.
[Push the off −hook switch to dial. Other-
wise, push the talk switch and say dial,
go back, or delete.] is heard.
To dial the number, do the one of the
following:
Push the off −hook switch.
Push the talk switch and say [Dial].
Turn the “AUDIO CONTROL” knob until
[Dial] is displayed and push the knob.
If the number exceeds 24 digits, the sys-
tem may not function properly.
INFORMATION
The system can recognize single
digits from zero to nine, #(pound),
*(star), and +(plus). Numbers that
are ten or greater are not recog-
nized.
To speed up input, it is a good idea
to group all digits into a continuous
string. However, you can enter each
digit individually or group digits to-
gether in preferred string lengths.
The display corresponding to each op-
eration appears on the screen as fol-
lows:
Input operation—
You say: [Nine, nine, five]
Voice output: [995 push the offhook
switch to dial. Otherwise, push the
talk switch and say dial, go back, or
delete.]
Display: [995]
You say: [Seven, three, four]
Voice output: [734 push the offhook
switch to dial. Otherwise, push the
talk switch and say dial, go back, or
delete.]

215
Display: [995734]
Repeat the above procedure until the
entire number that you want to dial is
input.
Go back operation—
You say: [Go back]
Voice output: [Go back, the last num-
bers entered have been removed.
Push the talk switch and continue
adding numbers otherwise say dial,
go back, or delete.]
Display: [995]
Repeating the above operation deletes
the last digits in reverse order of in-
put.
Delete operation—
You say: [Delete]
Voice output: [Deleted. The entire
number to dial has been deleted.
Please push the talk switch and say
the number.]
Display: [Dial by Num]
The display will return to the initial
screen that allows a number to be
input.Cancel operation—
Do either one of the following:
Push the onhook switch at anytime
during the operation.
Push the talk switch and say [Can-
cel] after the beep at anytime dur-
ing the operation except while a call
is connected.
When receiving a phone call, a ring tone
is audible and the system changes into
the telephone mode.
When receiving a phone call, the display
is as follows. The display differs depend-
ing on whether or not the vehicle is in
motion.
When the vehicle is stopped:
Number, name, or [Incoming] is displayed.
When the vehicle is in motion:
[Incoming] is displayed.
Do either one of the following:
Pushing the off−hook switch allows you
to talk on the phone.
Pushing the on −hook switch refuses
the call.
To adjust the ring volume, push “+” or “ −”
on the steering volume controls. Volume
adjustment cannot be done using the au-
dio system.
Repeatedly pushing “ −” on the steering
volume controls mutes the ring.
When receiving an international phone
call, the name of the party may not be
displayed correctly depending on the cellu-
lar phone.
—Receiving a p hone call

216
To transfer a call to the phone:
The received call can be transferred from
the hands−free system to the cellular
phone that is connected to Bluetooth . For
details, refer to the user’s guide for the
cellular phone. While talking on the phone, the display is
as follows. The display differs depending
on whether or not the vehicle is in motion.
When the vehicle is stopped:
Number is displayed.
When the vehicle is in motion:
[Talking] is displayed.
When the call is finished, push the on
−
hook switch.
In the following situations, your voice may
not reach the party.
Talk alternately with the other party on
the phone. If you talk at the same
time, the voice may not reach each
other. (It is not a malfunction.)
Keep the volume of receiving voice
down. Otherwise, echo is coming up.
When you talk on the phone, speak
clearly towards the microphone.
When driving on a rough road.
When driving at high speeds.
When the window is open.
When the air conditioning vents face
the microphone.
When the sound of the air conditioning
fan is loud.
The microphone can be muted by pushing
the talk switch and say [Mute]. To transfer a call from the phone:
Pushing the off
−hook switch while talking
on the cellular phone that is connected to
Bluetooth  allows you to talk hands −free.
A call can also be transferred by pushing
the talk switch and say [Call transfer].
To transfer a call to the phone:
The call can be transferred from the
hands −free system to the phone that is
connected to Bluetooth . For details, refer
to the user’s guide for the cellular phone.
—Talking on the phone

217
OPERATION OF INSTRUMENTS AND
CONTROLS
Air conditioning system
Manual air conditioning systemControls 218
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Air flow selector settings 221
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating tips 221
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Automatic air conditioning system Controls 224
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Air flow selector settings 228
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating tips 228
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Side vents 231
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Air conditioning filter 231
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
SECTION 1 9

218

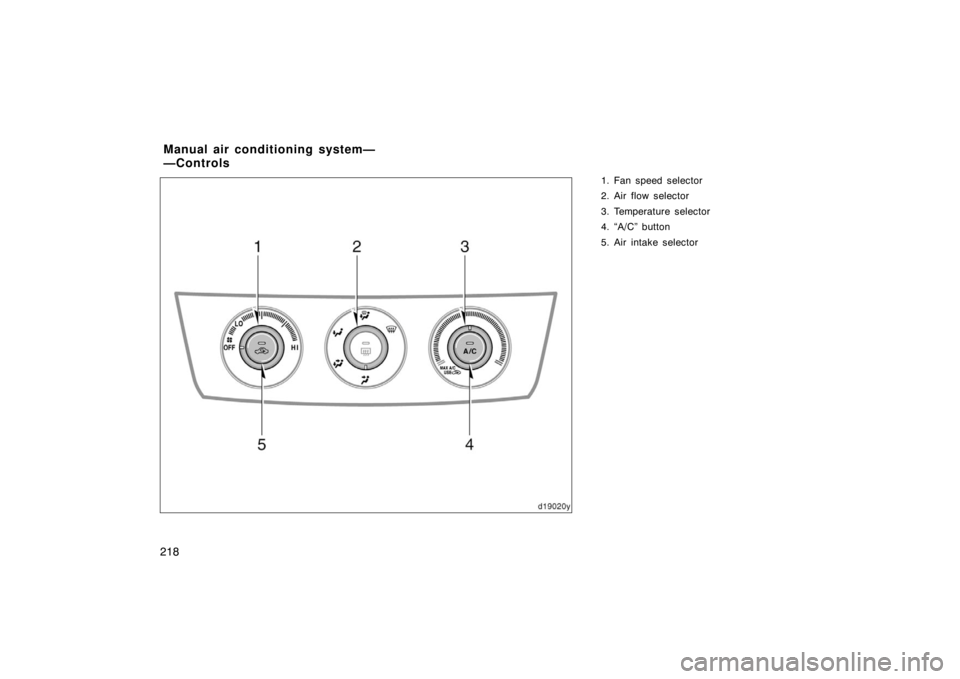

1. Fan speed selector
2. Air flow selector
3. Temperature selector
4. “A/C” button
5. Air intake selector
Manual air conditioning system—
—Controls

219
Fan speed selector
Turn the knob to adjust the fan speed—to
the right to increase, to the left to de-
crease.
Temperature selector
Turn the knob to adjust the temperature—
to the right to warm, to the left to cool.

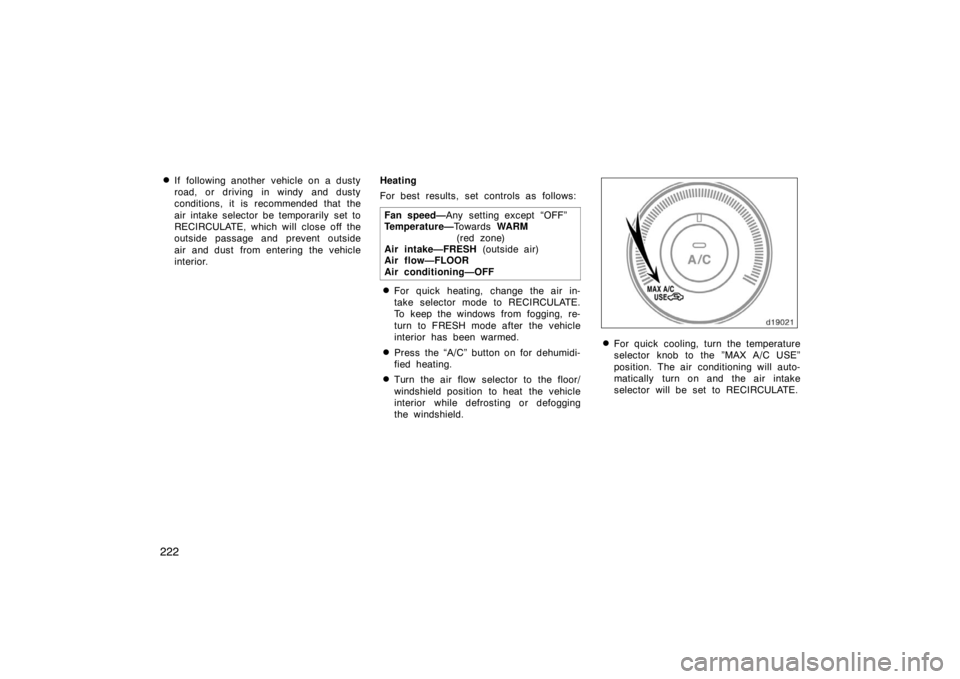

“MAX A/C USE” position—Turning the tem-
perature selector knob to the “MAX A/C
USE” position turns on the air conditioning
and sets the air intake selector to RECIR-
CULATE for quick cooling.

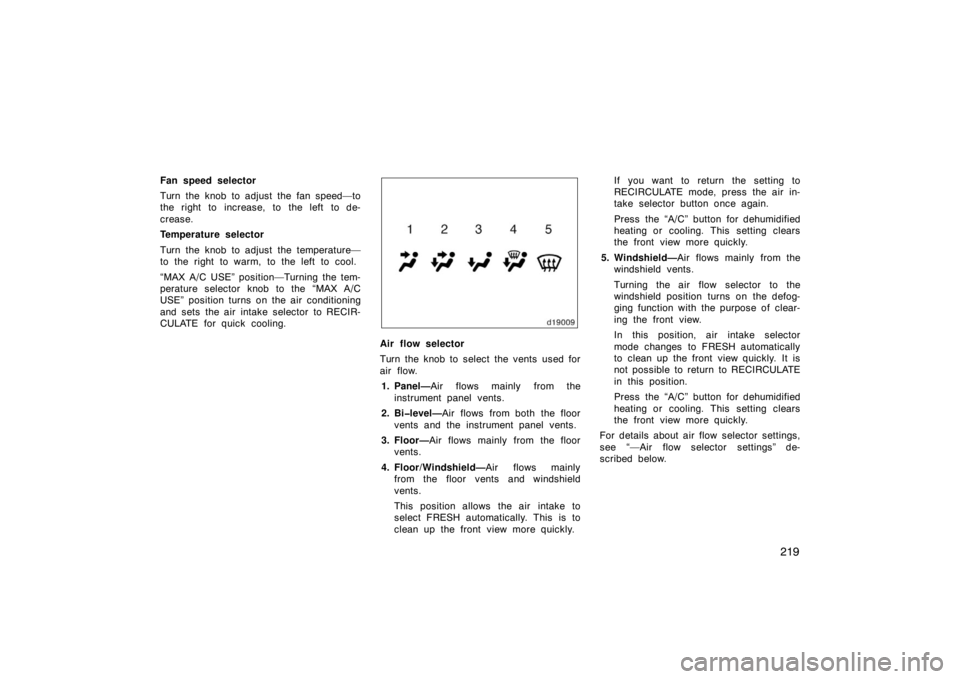

Air flow selector
Turn the knob to select the vents used for
air flow.1. Panel— Air flows mainly from the
instrument panel vents.
2. Bilevel— Air flows from both the floor
vents and the instrument panel vents.
3. Floor— Air flows mainly from the floor
vents.
4. Floor/Windshield— Air flows mainly
from the floor vents and windshield
vents.
This position allows the air intake to
select FRESH automatically. This is to
clean up the front view more quickly. If you want to return the setting to
RECIRCULATE mode, press the air in-
take selector button once again.
Press the “A/C” button for dehumidified
heating or cooling. This setting clears
the front view more quickly.
5. Windshield— Air flows mainly from the
windshield vents.
Turning the air flow selector to the
windshield position turns on the defog-
ging function with the purpose of clear-
ing the front view.
In this position, air intake selector
mode changes to FRESH automatically
to clean up the front view quickly. It is
not possible to return to RECIRCULATE
in this position.
Press the “A/C” button for dehumidified
heating or cooling. This setting clears
the front view more quickly.
For details about air flow selector settings,
see “—Air flow selector settings” de-
scribed below.

220

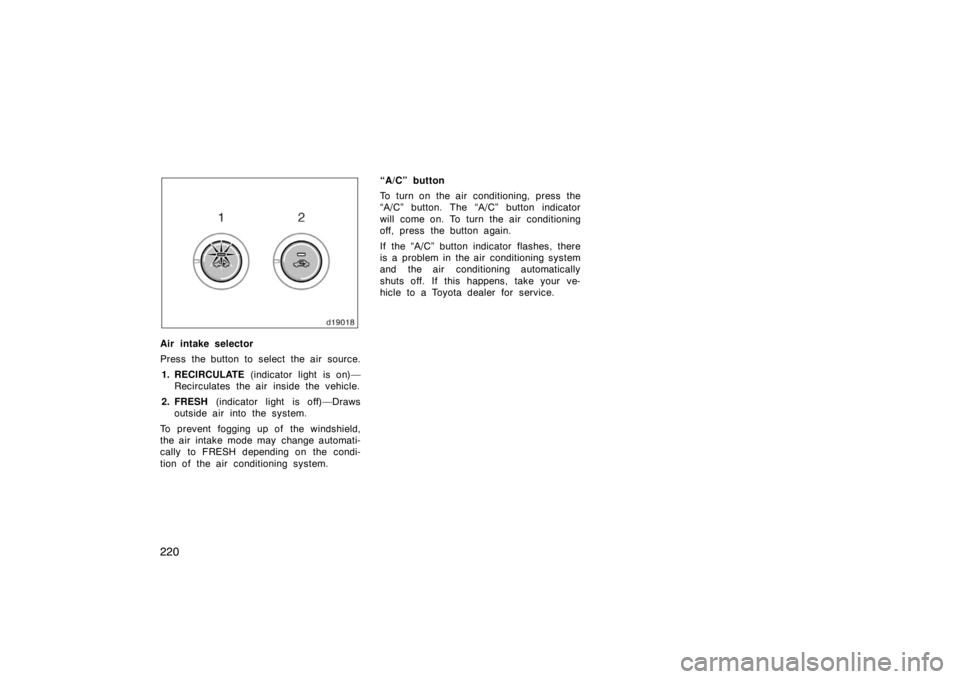

Air intake selector
Press the button to select the air source.1. RECIRCULATE (indicator light is on)—
Recirculates the air inside the vehicle.
2. FRESH (indicator light is off)—Draws
outside air into the system.
To prevent fogging up of the windshield,
the air intake mode may change automati-
cally to FRESH depending on the condi-
tion of the air conditioning system. “A/C” button
To turn on the air conditioning, press the
“A/C” button. The “A/C” button indicator
will come on. To turn the air conditioning
off, press the button again.
If the “A/C” button indicator flashes, there
is a problem in the air conditioning system
and the air conditioning automatically
shuts off. If this happens, take your ve-
hicle to a Toyota dealer for service.

221

To cool off your Toyota after it has
been parked in the hot sun, drive with
the windows open for a few minutes.
This vents the hot air, allowing the air
conditioning to cool the interior more
quickly.
Make sure the air intake grilles in front
of the windshield are not blocked (by
leaves or snow, for example).
On humid days, do not blow cold air
on the windshield. The windshield could
fog up because of the difference in air
temperature on the inside and outside
of the windshield.
Keep the area under the front seats
clear to allow air to circulate through-
out the vehicle.
On cold days, set the fan speed to
high for a minute to help clear the
intake ducts of snow or moisture. This
can reduce the amount of fogging on
the windows.
When driving on dusty roads, close all
windows. If dust thrown up by the ve-
hicle is still drawn into the vehicle after
closing the windows, it is recommended
that the air intake selector be set to
FRESH and the fan speed selector to
any setting except “OFF”.

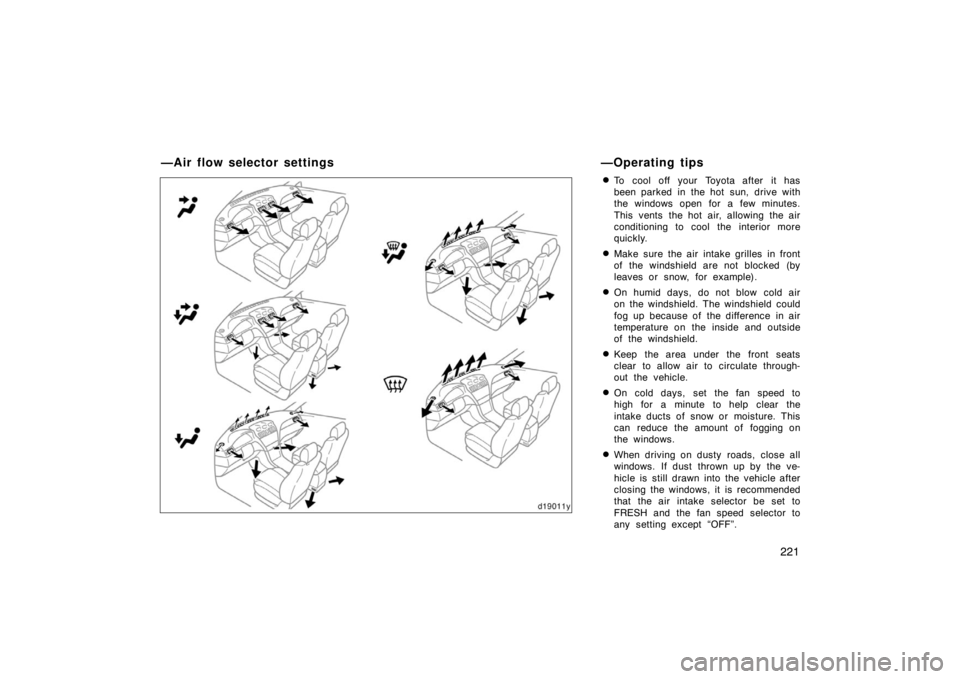

—Air flow selector settings—Operating tips

222
If following another vehicle on a dusty
road, or driving in windy and dusty
conditions, it is recommended that the
air intake selector be temporarily set to
RECIRCULATE, which will close off the
outside passage and prevent outside
air and dust from entering the vehicle
interior.
Heating
For best results, set controls as follows:
Fan speed— Any setting except “OFF”
Temperature— To w a r d s WARM
(red zone)
Air intake—FRESH (outside air)
Air flow—FLOOR
Air conditioning—OFF
For quick heating, change the air in-
take selector mode to RECIRCULATE.
To keep the windows from fogging, re-
turn to FRESH mode after the vehicle
interior has been warmed.
Press the “A/C” button on for dehumidi-
fied heating.
Turn the air flow selector to the floor/
windshield position to heat the vehicle
interior while defrosting or defogging
the windshield.
For quick cooling, turn the temperature
selector knob to the ”MAX A/C USE”
position. The air conditioning will auto-
matically turn on and the air intake
selector will be set to RECIRCULATE.

223
Air conditioning
For best results, set controls as follows:Fan speed— Any setting except “OFF”
Temperature— To w a r d s COLD
(blue zone)
Air intake—FRESH (outside air)
Air flow—PANEL
Air conditioning—ON
Ventilation
For best results, set controls as follows:
Fan speed— Any setting except “OFF”
Temperature— To w a r d s COLD
(blue zone)
Air intake—FRESH (outside air)
Air flow—PANEL
Air conditioning—OFF
Defogging
The inside of the windshield
For best results, set controls as follows:
Fan speed— Any setting except “OFF”
Temperature— To w a r d s WARM
(red zone) to heat;
COLD (blue zone) to
cool
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
Turning the air flow selector to the wind-
shield position turns on the defogging
function with the purpose of clearing the
front view.
When turning the air flow selector to the
windshield position, the air intake selector
mode changes to FRESH automatically to
clean up the front view quickly. It is not
possible to return to RECIRCULATE in
this position.
Press the “A/C” button for dehumidified
heating or cooling. This setting clears the
front view more quickly.
On humid days, do not blow cold air
on the windshield—the difference be-
tween the outside and inside tempera-
tures could make the fogging worse. Defrosting
The outside of the windshield
For best results, set controls as follows:
Fan speed— Any setting except “OFF”
Temperature— To w a r d s WARM
(red zone)
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
Turning the air flow selector to the wind-
shield position turns on the defrosting
function with the purpose of clearing the
front view.
When turning the air flow selector to the
windshield position, the air intake selector
mode changes to FRESH automatically to
clean up the front view quickly. It is not
possible to return to RECIRCULATE in
this position.
Press the “A/C” button for dehumidified
heating. This setting clears the front view
more quickly.
To heat the vehicle interior while de-
frosting the windshield, choose
floor/windshield air flow.
