TOYOTA SOLARA 2007 (in English) User Guide

17
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
16
FEATURES/OPERATIONS

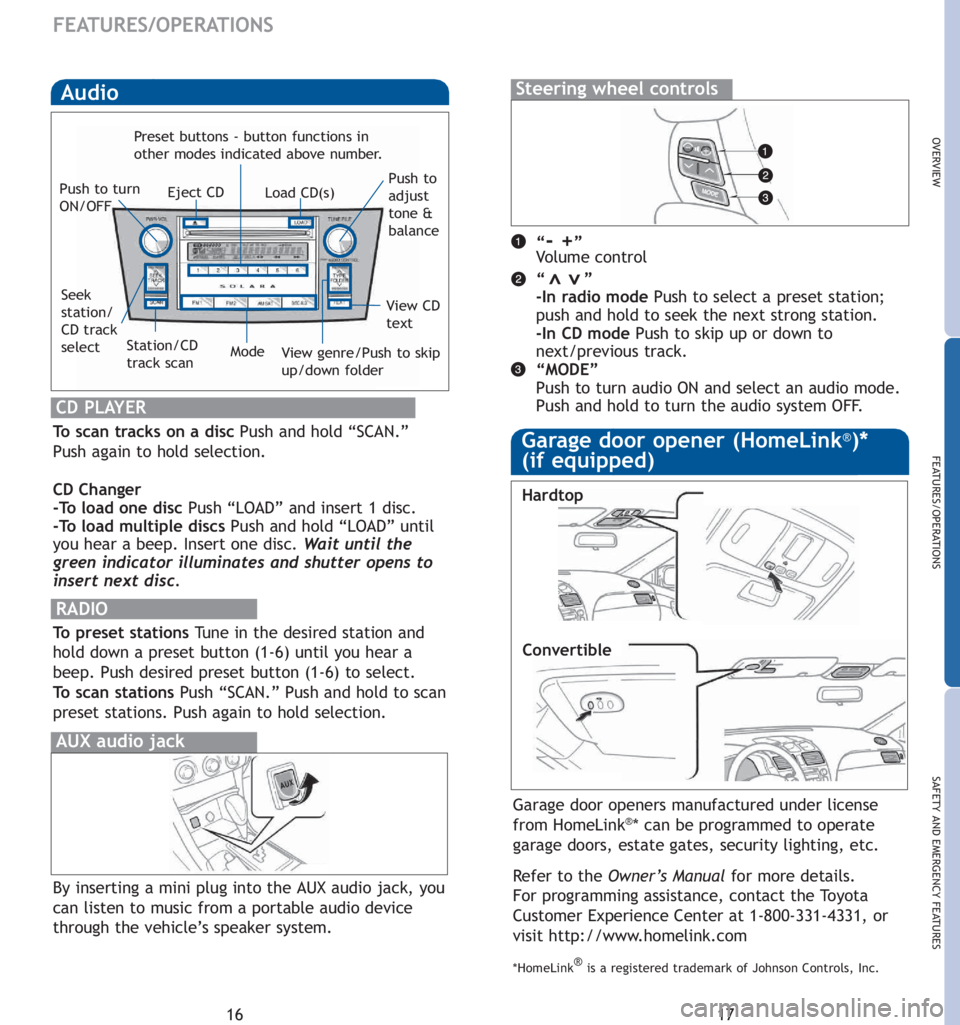

Audio
To scan tracks on a disc Push and hold “SCAN.”
Push again to hold selection.
CDChanger
-To load one disc Push “LOAD” and insert 1 disc.
-To load multiple discs Push and hold “LOAD” until
you hear a beep. Insert one disc. Wait until the
green indicator illuminates and shutter
opens to
insert next disc.
RADIO
To preset stations Tune in the desired station and
hold down a preset button (1-6) until you hear a
beep. Push desired preset button (1-6) to select.
To scan stations Push “SCAN.” Push and hold to scan
preset stations. Push again to hold selection.
Steering wheel controls
“-+”
Vo l u m e control
“”
-In radio modePush to select a preset station;
push and hold to seek the next strong station.
-In CD modePush to skip up or down to
next/previous track.
“MODE”
Push to turn audio ON and select an audio mode.
Push and hold to turn the audio system OFF.
>>
CD PLAYER
By inserting a mini plug into the AUX audio jack, you
can listen to music from a portable audio device
through the vehicle’s speaker system.
AUX audio jack
Load CD(s) Eject CD Push to turn
ON/OFFPush to
adjust
tone &
balance
Seek
station/
CD track
select
View genre/Push to skip
up/down folder Mode Preset buttons - button functions in
other modes indicated above number.
Station/CD
track scan
View CD
text
Garage door openers manufactured under license
from HomeLink®*can be programmed to operate
garage doors, estate gates, security lighting, etc.
Refer to the Owner’s Manualfor more details.
For programming assistance, contact the To y o t a
Customer Experience Center at 1-800-331-4331, or
visit http://www.homelink.com
*HomeLink®
is a registered trademark of Johnson Controls, Inc.
Garage door opener (HomeLink®)*
(if equipped)
Hardtop
Convertible

19
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
18
FEATURES/OPERATIONS

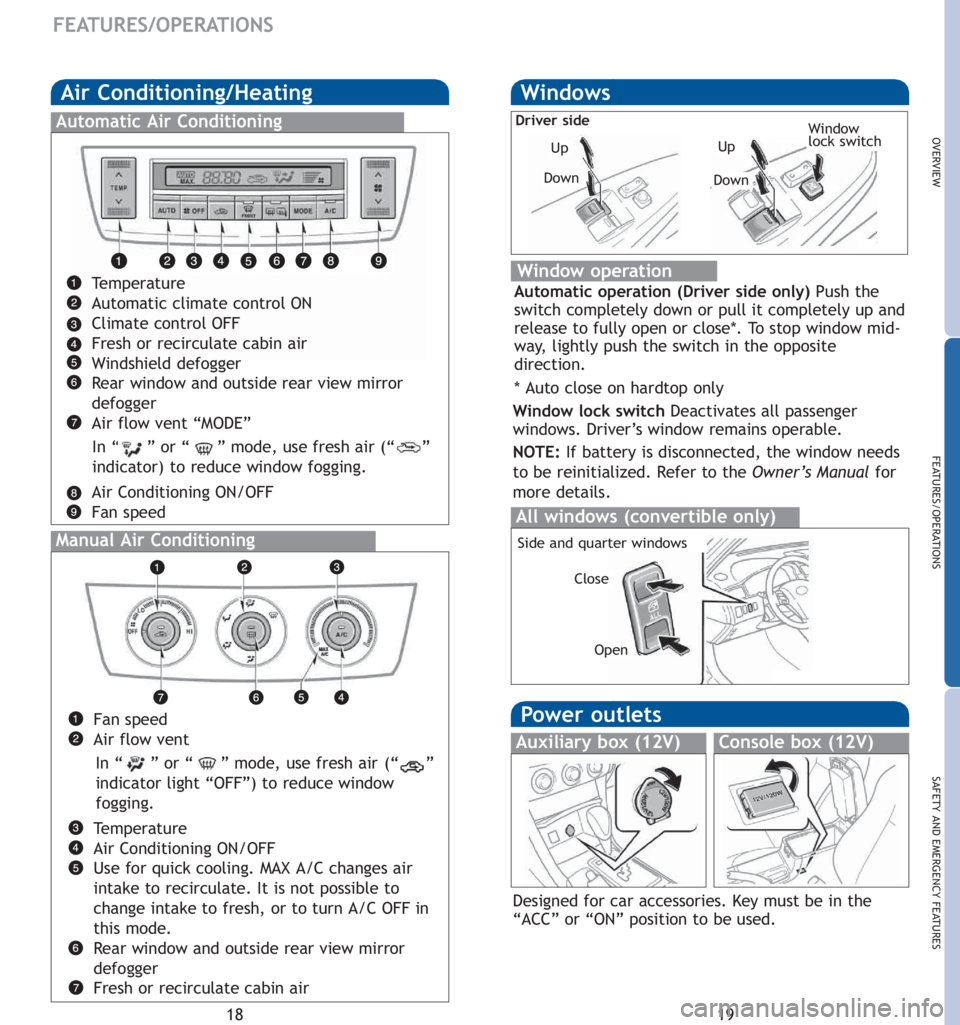

Air Conditioning/Heating
Manual Air Conditioning
Automatic Air Conditioning
Temperature
Automatic climate control ON
Climate control OFF
Fresh or recirculate cabin air
Windshield defogger
Rear window and outside rear view mirror
defogger
Air flow vent “MODE”
Air Conditioning ON/OFF
Fan speed
In “ ” or “ ” mode, use fresh air (“ ”
indicator)to reduce window fogging.
Fan speed
Air flow vent
Temperature
Air Conditioning ON/OFF
Use for quick cooling. MAX A/C changes air
intake to recirculate. It is not possible to
change intake to fresh, or to turn A/C OFF in
this mode.
Rear window and outside rear view mirror
defogger
Fresh or recirculate cabin air
In “ ” or “ ” mode, use fresh air(“ ”
indicator light “OFF”) to reduce window
fogging.
Power outlets
Auxiliary box (12V)Console box (12V)
Designed for car accessories. Key must be in the
“ACC” or “ON” position to be used.
Windows
Window operation
Automatic operation (Driver side only) Push the
switch completely down or pull it completely up and
release to fully open or close*. To stop window mid-
way, lightly push the switch in the opposite
direction.
*Auto close on hardtop only
Window
lock switch
Up Driver side
Down
Up
Down
All windows (convertible only)
Side and quarter windows
Close
Open
NOTE:If battery is disconnected, the window needs
to be reinitialized. Refer to the Owner’s Manualfor
more details.
Window lock switch Deactivates all passenger
windows. Driver’s window remains operable.

20
SAFETY AND
EMERGENCY FEATURES
Keep as low on
hips as possible
Take up
slack
To o high

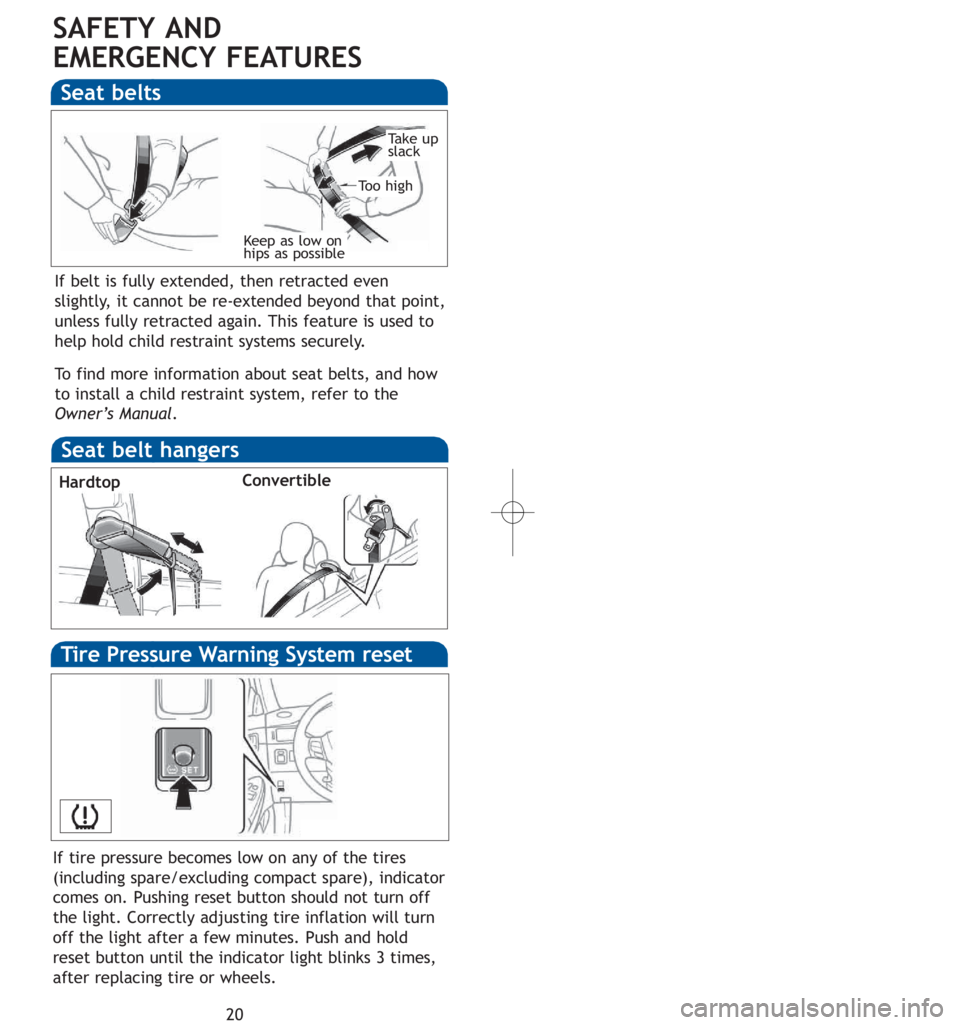

Seat belts
If belt is fully extended, then retracted even
slightly, it cannot be re-extended beyond that point,
unless fully retracted again. This feature is used to
help hold child restraint systems securely.
To find more information about seat belts, and how
to install a child restraint system, refer to the
Owner’s Manual.
Tire Pressure Warning System reset
If tire pressure becomes low on any of the tires
(including spare/excluding compact spare), indicator
comes on. Pushing reset button should not turn off
the light. Correctly adjusting tire inflation will turn
off the light after a few minutes. Push and hold
reset button until the indicator light blinks 3 times,
after replacing
tire or wheels.
Seat belt hangers
HardtopConvertible

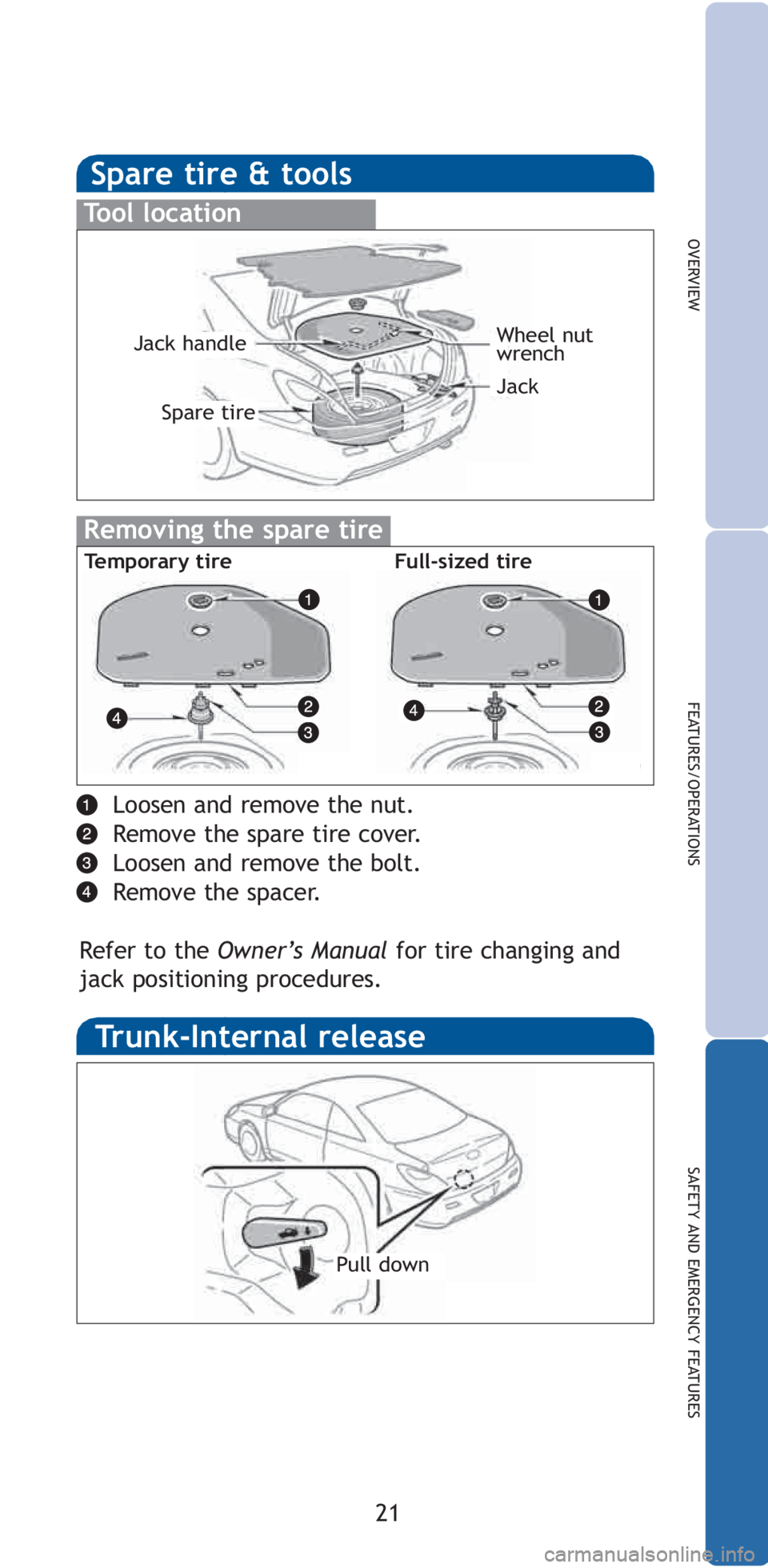

Spare tire & tools
Tool location
Removing the spare tire
21
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Loosen and remove the nut.
Remove the spare tire cover.
Loosen and remove the bolt.
Remove the spacer.
Refer to the Owner’s Manualfor tire changing and
jack positioning procedures.
Trunk-Internal release
Pull down
Wheel nut
wrench
JackJack handle
Spare tire
Temporary tireFull-sized tire
