headlights TOYOTA SOLARA 2007 Owners Manual (in English)

7
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
6

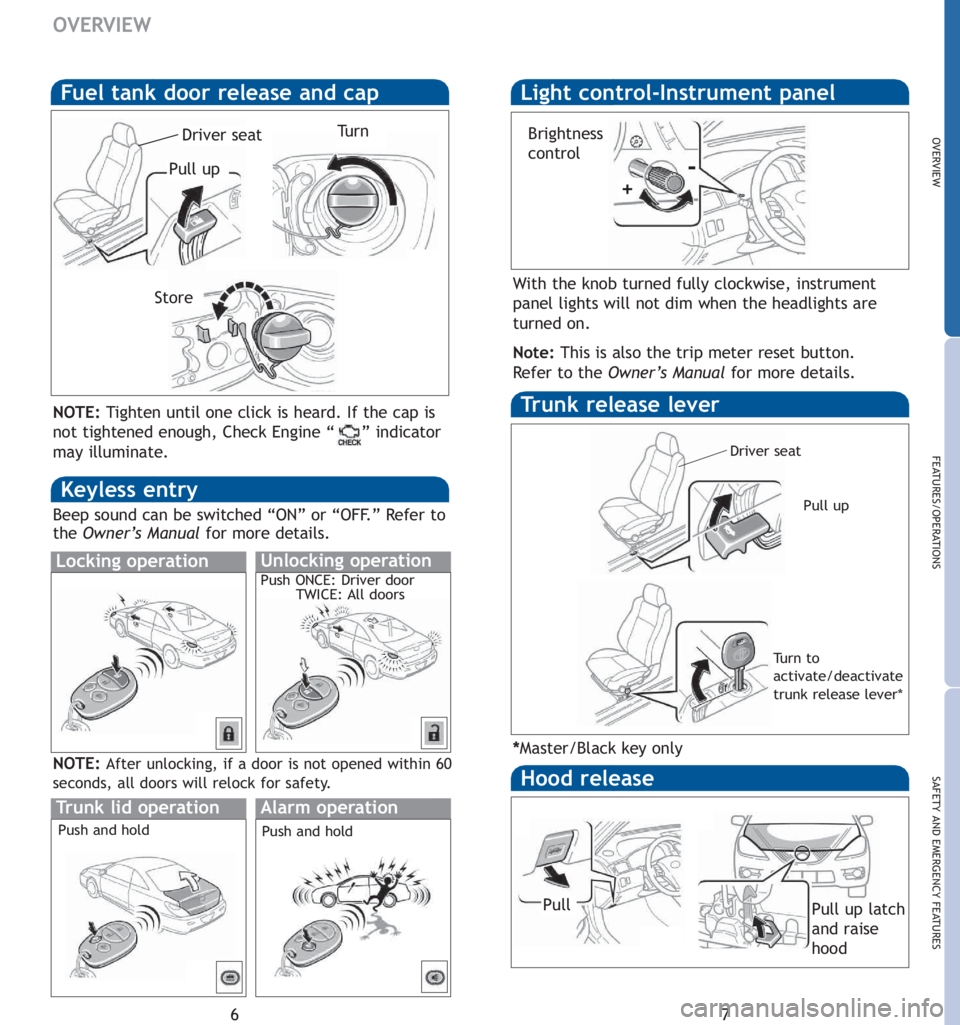

OVERVIEW
Fuel tank door release and cap
Tr u n k release lever
Hood release
Driver seat
Pull up
Pull up latch
and raise
hood
Pull
Tu r n
Store
NOTE:Tighten until one click is heard. If the cap is
not tightened enough, Check Engine “ ” indicator
may illuminate.
Keyless entry
NOTE:After unlocking, if a door is not opened within 60
seconds, all doors will relock for safety.
Unlocking operation
Tr u n k lid operationAlarm operation
Beep sound can be switched “ON” or “OFF.” Refer to
the Owner’s Manualfor more details.
Push ONCE: Driver door
TWICE: All doorsLocking operation
Push and holdPush and hold
With the knob turned fully clockwise, instrument
panel lights will not dim when the headlights are
turned on.
Note: This is also the trip meter reset button.
Refer to the Owner’s Manualfor more details.
Light control-Instrument panel
Brightness
control
+
-
Driver seat
Pull up
Tu r n to
activate/deactivate
trunk release lever*
*Master/Black key only

13
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
12

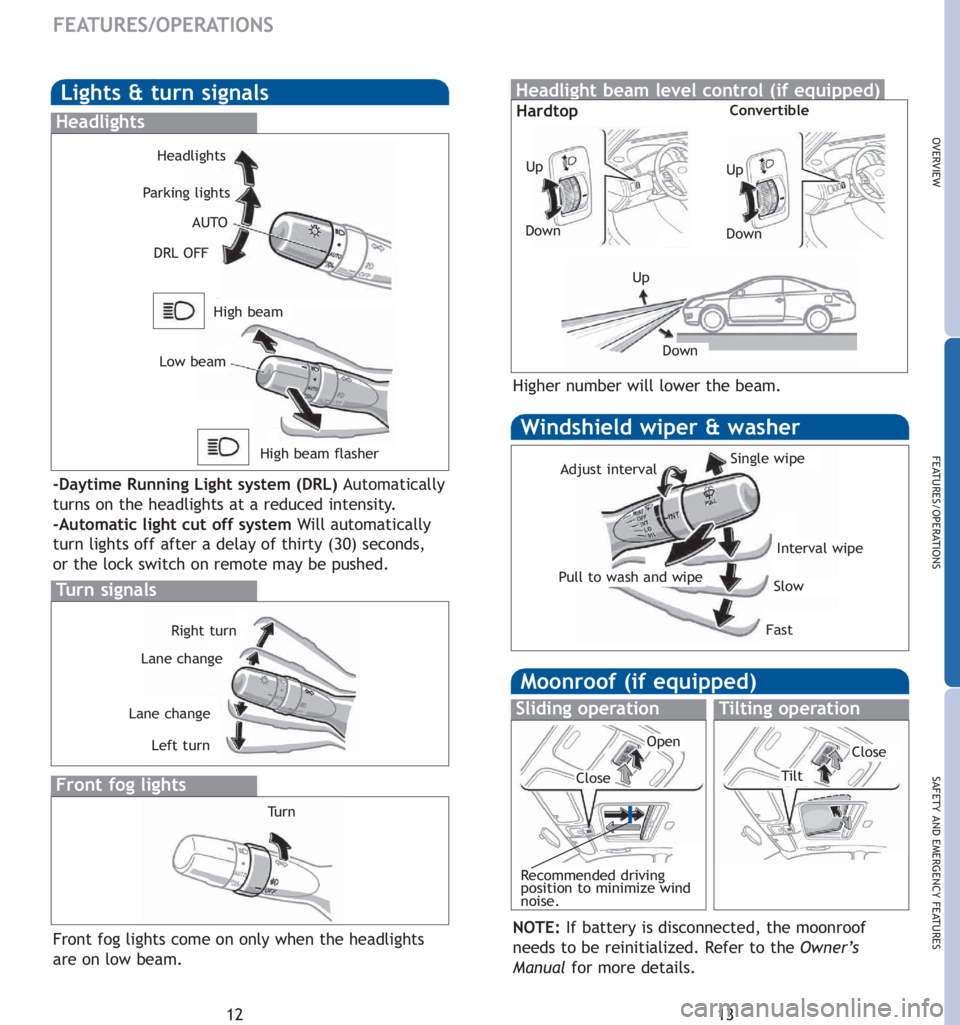

FEATURES/OPERATIONS
Lights & turn signals
Headlights
-Daytime Running Light system (DRL) Automatically
turns on the headlights at a reduced intensity.
-Automatic light cut off system Will automatically
turn lights off after a delay of thirty (30) seconds,
or the lock switch on remote may be pushed.
High beam flasher
Low beam
Headlights
DRL OFF
Parking lights
AUTO
High beam
Tu r n signals
Right turn
Lane change
Lane change
Left turn
Front fog lights
Tu r n
Front fog lights come on only when the headlights
are on low beam.
Headlight beam level control (if equipped)
Higher number will lower the beam.
Up
Down
Up
Down
HardtopConvertible
Up
Down
Windshield wiper & washer
Adjust interval
Pull to wash and wipe
Single wipe
Interval wipe
Slow
Fast
Moonroof (if equipped)
Sliding operationTilting operation
Open
CloseTilt
Close
Recommended driving
position to minimize wind
noise.
NOTE:If battery is disconnected, the moonroof
needs to be reinitialized. Refer to the Owner’s
Manualfor more details.
