power steering TOYOTA SOLARA 2007 Owners Manual (in English)

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
INDEX
ItemPage no.
OVERVIEWEngine maintenance8Fuel tank door release and cap 6
Hood release 7Indicator symbols 4-5Instrument cluster 4Instrument panel 2-3Keyless entry16Light control-Instrument panel 7
Trunk release lever 7
FEATURES/OPERATIONSAir Conditioning/Heating 18Audio 16-17Auto lock functions19Automatic transmission9Clock 15Convertible top operation 15Cruise control 14Cup holders 15Door locks 11Garage door opener (HomeLink®)317Lights2&turn signals12-13Multi-information display 11Moonroof 13Parking brake9Power outlets 19Seat adjustments-Front 10Seat adjustments-Rear 10Seats-Head restraints 10Te l e p h o n e controls (Bluetooth®)14Te l e s c o p i c and tilt steering wheel 11Windows 19
Windshield wiper & washer13
SAFETY AND EMERGENCY FEATURESSeat belts 20Seat belt hangers 20Spare tire & tools 21Tire Pressure Wa r n i n g System reset 20
Trunk-Internal release 21
1Programmable by customer. Refer to the Owner’s
Manual for instructions and more information.
2Visit your Toyota dealer for information on customizing
this feature.
3HomeLink®is a registered trademark of Johnson Controls, Inc.

3
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
2
OVERVIEW
Steering wheel audio control
Te l e p h o n e controls1
Multi-information display switch
Speech command button1,2
Cruise control
Headlight, turn signal and front fog light controls
Wiper and washer controls
Multi-information displays
Front passenger occupant classification indicator
light/front passenger seat belt reminder light
Emergency flasher switch
Audio system or navigation system with integrated
audio system
1,2
Air Conditioning controlsRear window and outside rear view mirror
defogger switch
1
Auxiliary boxes
12V DC Power outlet
AUX adapter
Seat heater switches
1
Ignition switch
Tilt steering lock release
Te l e s c o p i c steering lock release
Tire Pressure Wa r n i n g System reset switch
“TRAC OFF” (Tr a c t i o n Control “OFF”)
1If equipped2For details, refer to the “Navigation System
Owner’s Manual.”

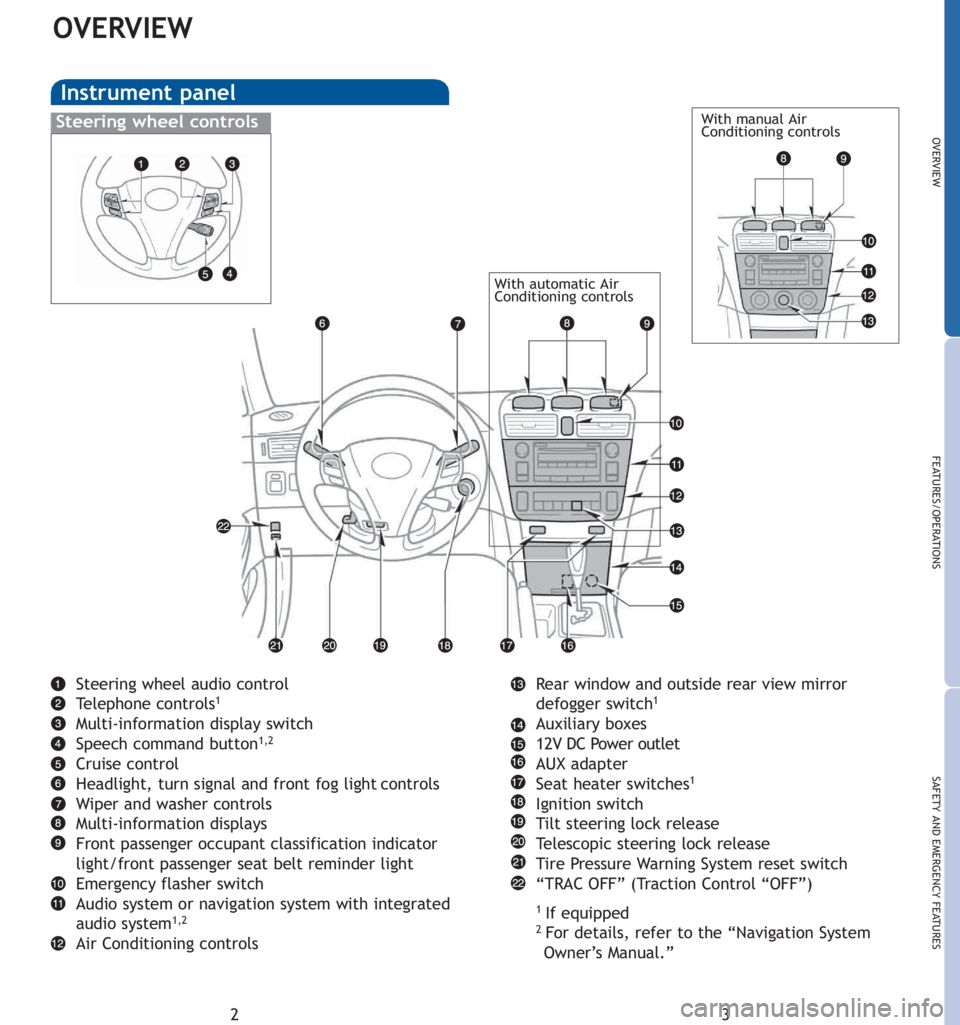

Instrument panel
Steering wheel controlsWith manual Air
Conditioning controls
With automatic Air
Conditioning controls

9
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
8
OVERVIEWFEATURES/OPERATIONS

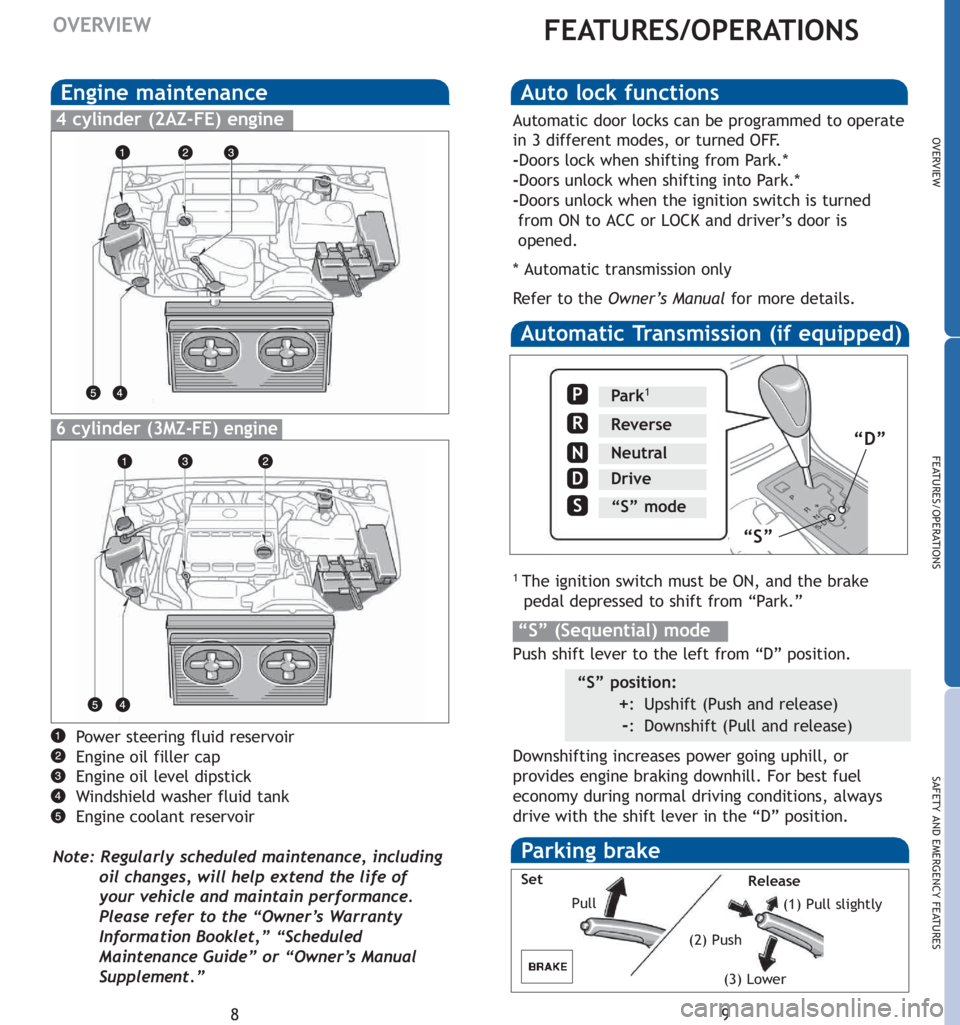

Engine maintenance
4 cylinder (2AZ-FE) engine
6cylinder(3MZ-FE) engine
Power steering fluid reservoir
Engine oil filler cap
Engine oil level dipstick
Windshield washer fluid tank
Engine coolant reservoir
Note: Regularly scheduled maintenance, including
oil changes, will help extend the life of
your vehicle and maintain performance.
Please refer to the “Owner’s Warranty
I
nformation Booklet,” “Scheduled
Maintenance Guide” or “Owner’s Manual
Supplement.”
Automatic Transmission (if equipped)
Park1
Reverse
Neutral
Drive
P
R
N
D
N
S“S” mode
“S” position:
+:Upshift (Push and release)
-:Downshift (Pull and release)
“S” (Sequential) mode
Downshifting increases power going uphill, or
provides engine braking downhill. For best fuel
economy during normal driving conditions, always
drive with the shift lever in the “D” position. Push shift lever to the left from “D” position.
1The ignition switch must be ON, and the brake
pedal depressed to shift from “Park.”
Auto lock functions
Automatic door locks can be programmed to operate
in 3 different modes, or turned OFF.
-Doors lock when shifting from Park.*
-Doors unlock when shifting into Park.*
-Doors unlock when the ignition switch is turned
from ON to ACC or LOCK and driver’s door is
opened.
*Automatic transmission only
Refer to the O
wner’s Manualfor more details.
Parking brake
Pull
(2) Push
Set
Release
(1) Pull slightly
(3) Lower
“S”“D”

11
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
10
FEATURES/OPERATIONS

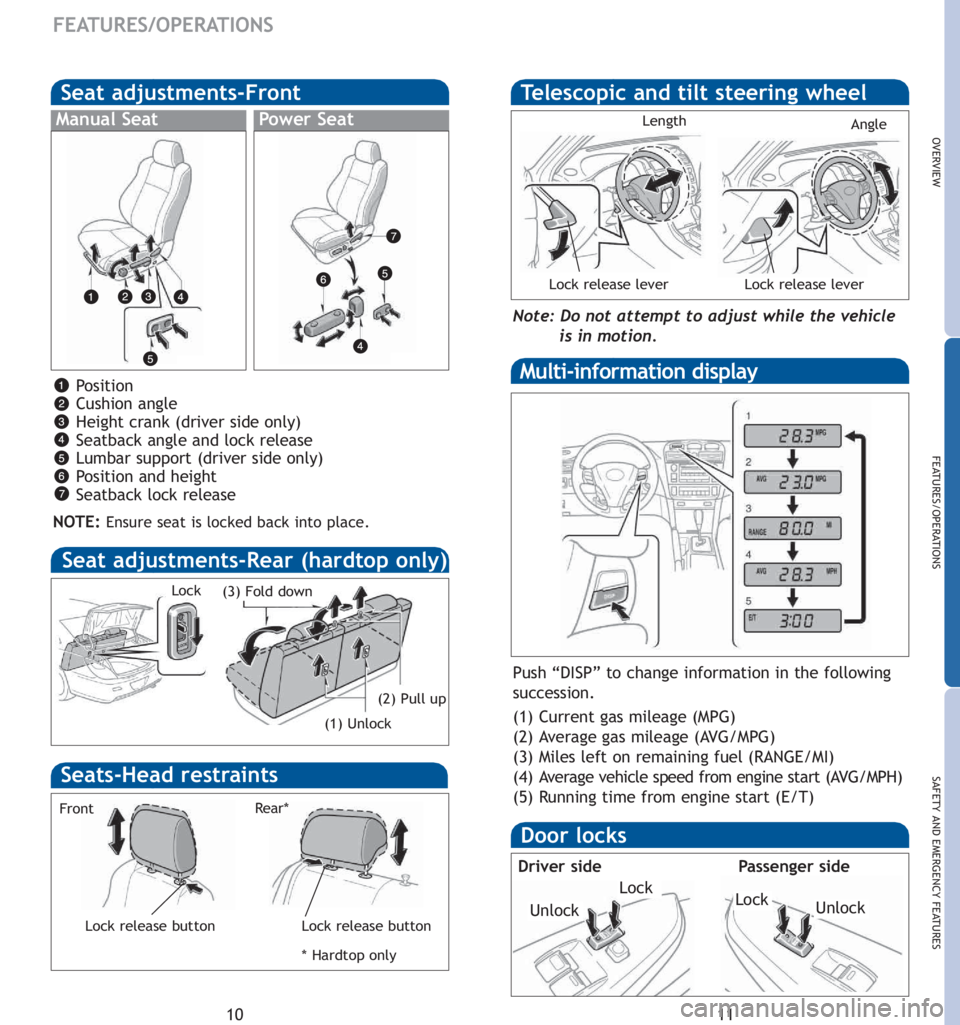

Seat adjustments-Front
Manual SeatPower Seat
Position
Cushion angle
Height crank (driver side only)
Seatback angle and lock release
Lumbar support (driver side only)
Position and height
Seatback lock release
Seat adjustments-Rear (hardtop only)
Lock
(1) Unlock(2) Pull up (3) Fold down
Seats-Head restraints
Lock release buttonLock release button
FrontRear*
Multi-information display
Push “DISP” to change information in the following
succession.
(1) Current gas mileage (MPG)
(2) Average gas mileage (AV G / M P G)
(3) Miles left on remaining fuel (RANGE/MI)
(4) Average vehicle speed from engine start (AV G / M PH)
(5) Running time from engine start (E/T)
Door locks
Unlock
Lock Driver side Passenger side
UnlockLock
Telescopic and tilt steering wheel
Note: Do not attempt to adjust while the vehicle
is in motion.
Lock release lever Lock release lever
Angle Length
NOTE:Ensure seat is locked back into place.
*Hardtop only
