TOYOTA SOLARA 2008 Owners Manual (in English)

’08 Solara_U (L/O 0802)
193
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
1. Volume control switch
To increase the volume: Push “+”.
To decrease the volume: Push “ −”.
When driving at 80 km/h (50 mph) or
more, the volume automatically increases
without switch adjustment. When your
speed falls below 70 km/h (43 mph), the
volume automatically returns to its original
level.
Voice guidance volume cannot be changed
by pushing the volume control switch on
the steering wheel. 2. Onhook switch
When the hands −free system is on, push-
ing the on −hook switch turns the hands −
free system off.
Pushing and holding the talk switch ends
the speech command system.
3. Offhook switch
Pushing the off −hook switch turns the
hands −free system on.
When receiving a call, pushing the off −
hook switch allows you to talk on the
phone.
4. Talk switch
Pushing the talk switch turns the hands −
free system on and initiates the speech
command system. 5. Microphone
The microphone is used when talking on
the phone or using the speech command
system.

’08 Solara_U (L/O 0802)
194
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

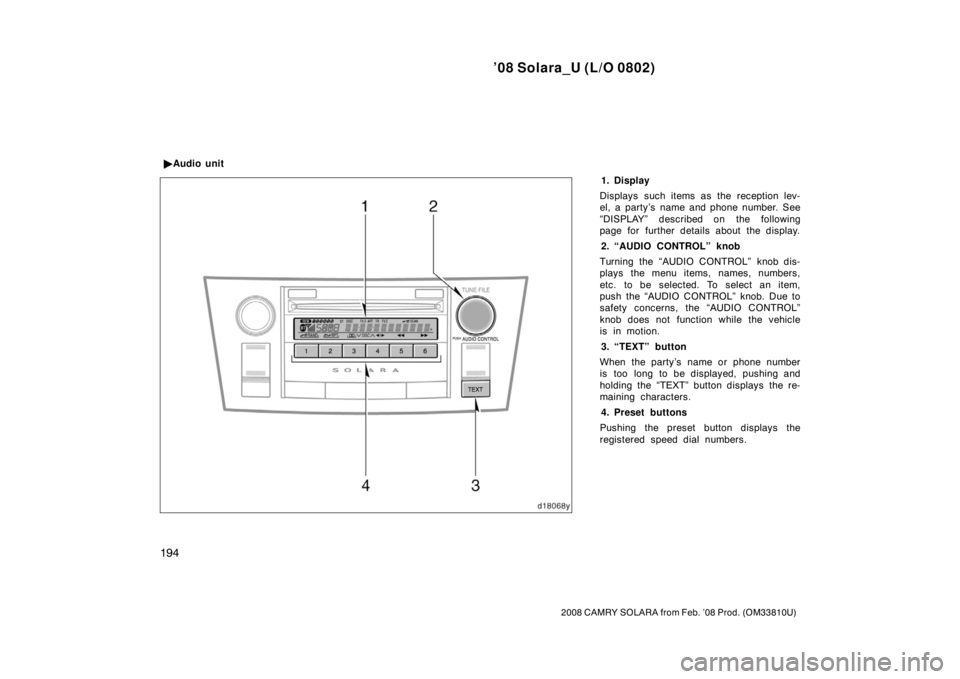

1. Display
Displays such items as the reception lev-
el, a party’s name and phone number. See
“DISPLAY” described on the following
page for further details about the display.
2. “AUDIO CONTROL” knob
Turning the “AUDIO CONTROL” knob dis-
plays the menu items, names, numbers,
etc. to be selected. To select an item,
push the “AUDIO CONTROL” knob. Due to
safety concerns, the “AUDIO CONTROL”
knob does not function while the vehicle
is in motion.
3. “TEXT” button
When the party’s name or phone number
is too long to be displayed, pushing and
holding the “TEXT” button displays the re-
maining characters.
4. Preset buttons
Pushing the preset button displays the
registered speed dial numbers.

Audio unit

’08 Solara_U (L/O 0802)
195
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

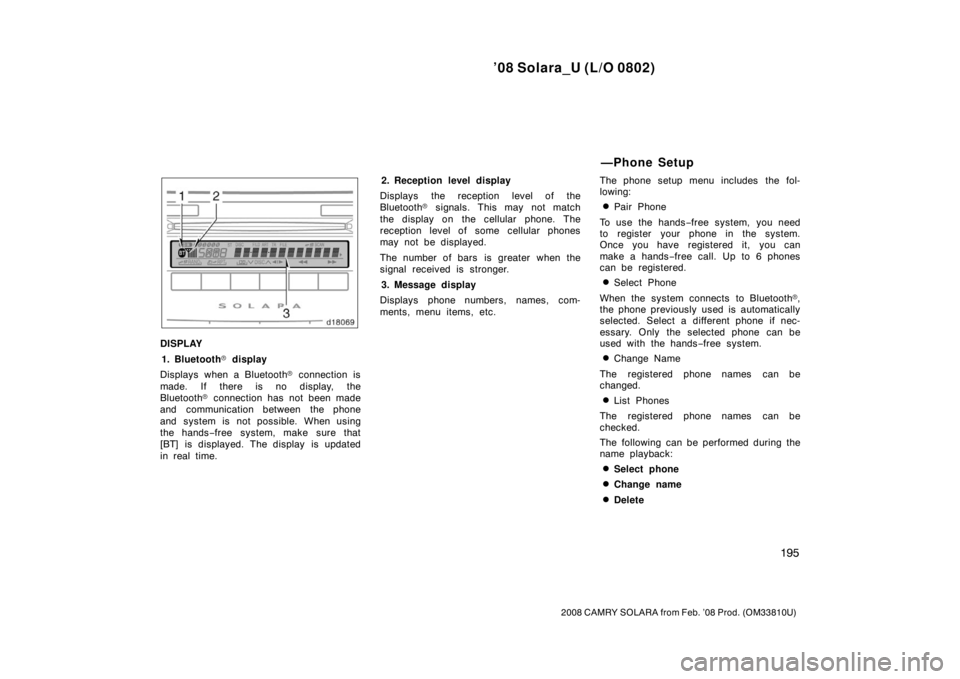

DISPLAY1. Bluetooth  display
Displays when a Bluetooth  connection is
made. If there is no display, the
Bluetooth  connection has not been made
and communication between the phone
and system is not possible. When using
the hands −free system, make sure that
[BT] is displayed. The display is updated
in real time. 2. Reception level display
Displays the reception level of the
Bluetooth  signals. This may not match
the display on the cellular phone. The
reception level of some cellular phones
may not be displayed.
The number of bars is greater when the
signal received is stronger.
3. Message display
Displays phone numbers, names, com-
ments, menu items, etc. The phone setup menu includes the fol-
lowing:
Pair Phone
To use the hands −free system, you need
to register your phone in the system.
Once you have registered it, you can
make a hands −free call. Up to 6 phones
can be registered.
Select Phone
When the system connects to Bluetooth ,
the phone previously used is automatically
selected. Select a different phone if nec-
essary. Only the selected phone can be
used with the hands −free system.
Change Name
The registered phone names can be
changed.
List Phones
The registered phone names can be
checked.
The following can be performed during the
name playback:
Select phone
Change name
Delete
—Phone Setup

’08 Solara_U (L/O 0802)
196
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
Set PassKey
The passkey can be c hanged. A 4 to 8
digit code can be input as a pa sskey.
Delete
The registered phones can be deleted.
To enter the phone setup menu 1. Push the off −hook switch to turn the
hands −free system on.
2. Follow voice guidance instructions, or turn the “AUDIO CONTROL” knob until
[Setup] is displayed and push the knob.
[Setup. Please push the talk switch and
say security, or phone setup.] is heard.
3. Follow voice guidance instructions, or turn the “AUDIO CONTROL” knob until
[Phone Setup] is displayed and push
the knob.
[Phone setup. Push the talk switch and
say pair phone, select phone, change
name, list phones, set pa sskey or delete.]
is heard.
[XXX (phone name) already selected.] is
heard and the phone name is displayed.
If no phone has been registered, the sys-
tem may not function properly. To pair phones
1. Push the talk switch and say [Pair phone], or turn the “AUDIO CONTROL”
knob until [Pair Phone] is displayed
and push the knob.
[Pair. Push the talk switch and say a
name for the phone.] is heard. 2. Follow voice guidance instructions, or turn the “AUDIO CONTROL” knob until
[Record Name] is displayed, push the
knob and say the desired phone name.
[Push the talk switch and say confirm.
Otherwise, say go back.] is heard. 3. Follow voice guidance instructions, or turn the “AUDIO CONTROL” knob until
[Confirm] is displayed and push the
knob.
[XXX (desired phone name) Ready for
phone pairing. Please use the phone to
connect it to the hands −free system. The
passkey for the p hone is....] is heard.
After “HANDS FREE” is displayed, a pass-
key
∗ is displayed and [Searching.] is
heard.
4. Input the displayed passkey into the phone. [The phone is paired and ready for use.
Returning to the main menu.] is heard and
[Paired] is displayed.
The system may not function in the follow-
ing cases:
If 6 phones have already been regis-
tered.
If the vehicle is moving.
If the system cannot communicate with
the phone.
∗: Passkey is a password r
equired to reg-
ister a phone to the system.
INFORMATION
To use the handsfree system, you
need to register your phone in the
system. Once you have registered
it, you can make a handsfree call.
Up to 6 phones can be registered.
For the operation of the phone, see
the manual that comes with your
cellular phone.
The passkey can be changed. See
page 199 for changing the passkey.

’08 Solara_U (L/O 0802)
197
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
To select a phone1. Push the talk switch and say [Select phone], or turn the “AUDIO CONTROL”
knob until [Select Phone] is displayed
and push the knob.
[Select phone. Push the talk switch and
say the phone name or say list phones.]
is heard. 2. Follow voice guidance instructions, or turn the “AUDIO CONTROL” knob until
the desired phone name is displayed
and push the knob.
When the phone is selected by a voice
command:
[XXX (phone name) Push the talk switch
and say confirm. Otherwise, say go back.]
is heard and the phone name is displayed.
Follow voice guidance instructions, or turn
the “AUDIO CONTROL” knob until [Con-
firm] is displayed and push the knob.
[XXX selected. Returning to the phone
setup.] is heard. When the phone is selected by using
the knob:
[XXX selected. Returning to the phone
setup.] is heard.
The system may not function in the follow-
ing cases:
If the phone is not found.
If the system does not recognize the
voice command.
To change a name
1. Push the talk switch and say [Change name], or turn the “AUDIO CONTROL”
knob until [Change Name] is displayed
and push the knob.
[Change name. Push the talk switch and
say the phone name to change.] is heard. 2. Follow voice guidance instructions, or turn the “AUDIO CONTROL” knob until
the phone name that you want to
change is displayed and push the
knob.

’08 Solara_U (L/O 0802)
198
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
When the phone is selected by a voice
command:
[XXX (phone name) Push the talk switch
and say confirm. Otherwise, say go back.]
is heard and the phone name is displayed.1. Follow voice guidance instructions, or turn the “AUDIO CONTROL” knob until
[Confirm] is displayed and push the
knob.
[Push the talk switch and say a new
name.] is heard. 2. Follow voice guidance instructions, or turn the “AUDIO CONTROL” knob until
[Record Name] is displayed, push the
knob and say the desired phone name.
[XXX Push the talk switch and say con-
firm. Otherwise, say go back.] is heard. 3. Follow voice guidance instructions, or turn the “AUDIO CONTROL” knob until
[Confirm] is displayed and push the
knob.
[Name changed. Returning to the phone
setup.] is heard and [Changed] is dis-
played. When the phone is selected by using
the knob:
[XXX Push the talk switch and say con-
firm. Otherwise, say go back.] is heard
and the phone name is displayed.
1. Follow voice guidance instructions, or turn the “AUDIO CONTROL” knob until
[Confirm] is displayed and push the
knob.
[Push the talk switch and say a new
name.] is heard. 2. Follow voice guidance instructions, or turn the “AUDIO CONTROL” knob until
[Record Name] is displayed, push the
knob and say the desired phone name.
[XXX Push the talk switch and say con-
firm. Otherwise, say go back.] is heard. 3. Follow voice guidance instructions, or turn the “AUDIO CONTROL” knob until
[Confirm] is displayed and push the
knob.
[Name changed. Returning to the phone
setup.] is heard and [Changed] is dis-
played. The system may not function in the follow-
ing cases:
If no phone has been registered.
If the system does not recognize the
voice command.
To list phones 1. Push the talk switch and say [List phones], or turn the “AUDIO CON-
TROL” knob until [List Phones] is dis-
played and push the knob.
[List phones. To select a name, push the
talk switch during the name playback.] is
heard. 2. Follow voice guidance instructions.
[Push the talk switch and say select
phone, change name, or delete.] is heard.
Select one of the following:

’08 Solara_U (L/O 0802)
199
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
Select phone
Push the talk switch and say [Select
phone], or turn the “AUDIO CONTROL”
knob until [Select Phone] is displayed and
push the knob.
For further details on selecting a phone,
see page 197.
Change name
Push the talk switch and say [Change
name], or turn the “AUDIO CONTROL”
knob until [Change Name] is displayed
and push the knob.
For further details on changing a name,
see page 197.
Delete
Push the talk switch and say [Delete], or
turn the “AUDIO CONTROL” knob until
[Delete] is displayed and push the knob.
For further details on deleting a phone,
see page 200.
If no phone has been registered, the sys-
tem may not function properly.To set a passkey
1. Push the talk switch and say [Set passkey], or turn the “AUDIO CON-
TROL” knob until [Set Passkey] is dis-
played and push the knob.
[Set Passkey. The passkey is required for
the phone pairing process. Push the talk
switch and say a new passkey.] is heard
and passkey is displayed. 2. Follow voice guidance instructions, or turn the “AUDIO CONTROL” knob to
select a number.
When using a voice command:
[XXXX (new pa sskey) Push the talk switch
and say confirm. Otherwise, continue add-
ing numbers, or say go back or delete.]
is heard and the new passkey is dis-
played.
Follow voice guidance instructions, or turn
the “AUDIO CONTROL” knob until
[Confirm] is displayed and push the knob.
[Passkey chan ged. Returning to the phone
setup.] is heard. When using the knob:
1. Turn the “AUDIO CONTROL” knob to select a number. Push the “AUDIO
CONTROL” knob to set.
2. When the passkey is set, push the “AUDIO CONTROL” knob.
[Passkey cha nged. Returning to the phone
setup.] is heard.
The system does not function in the fol-
lowing cases:
If the passkey has less than 4 digits.
If the passkey has more than 8 digits.

’08 Solara_U (L/O 0802)
200
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
To delete a phone1. Push the talk switch and say [Delete], or turn the “AUDIO CONTROL” knob
until [Delete] is displayed and push the
knob.
[Delete. Push the talk switch and say the
phone name to delete.] is heard. 2. Follow voice guidance instructions, or turn the “AUDIO CONTROL” knob until
the phone name you want to delete is
displayed and push the knob.
When using a voice command:
[XXX (desired phone name) Push the talk
switch and say confirm. Otherwise, say go
back.] is heard and the phone name is
displayed.
Follow voice guidance instructions, or turn
the “AUDIO CONTROL” knob until [Con-
firm] is displayed and push the knob.
[Deleted. Returning to the phone setup.] is
heard and $ [Deleted]$ is displayed.
When using the knob:
[Deleted. Returning to the phone setup.] is
heard and [Deleted] is displayed. The system may not function in the follow-
ing cases:
If no phone has been registered.
If the system does not recognize the
voice command.
The security menu includes the following:
Set PIN (Personal Identification Num-
ber)
The PIN can be set or changed.
Phone book lock
The phone book can be locked.
When the phone book is locked, the fol-
lowing functions cannot be used:
Dial by name
Redial
Callback
Speed Dial
PhoneBook
Phone book unlock
The locked phone book can be unlocked.
—Security

’08 Solara_U (L/O 0802)
201
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
To enter the security menu1. Push the off −hook switch to turn the
hands −free system on.
2. Follow voice guidance instructions, or turn the “AUDIO CONTROL” knob until
[Setup] is displayed and push the knob.
[Setup. Please push the talk switch and
say security, or phone setup.] is heard.
3. Follow voice guidance instructions, or turn the “AUDIO CONTROL” knob until
[Security] is displayed and push the
knob.
[Security. Push the talk switch and say
set PIN, phone book lock, or phone book
unlock.] is heard. To set a PIN
Push the talk switch and say [Set PIN],
or turn the “AUDIO CONTROL” knob until
[Set PIN] is displayed and push the knob.
[There is no PIN number set. Please reg-
ister a PIN number. Please push the talk
switch and say a four
−digit PIN number.]
is heard. When using a voice command:
1. Push the talk switch and say a new PIN number.
2. Follow voice guidance instructions, or turn the “AUDIO CONTROL” knob until
[Confirm] is displayed and push the
knob.
[The PIN number has been set. Returning
to the security.] is heard and [Completed]
is displayed.
When using the knob:
1. Turn the “AUDIO CONTROL” knob to select a number. Push the “AUDIO
CONTROL” knob to set.
2. Repeat the above procedure until the entire four −digit number is set.
3. When the PIN is set, push the “AUDIO CONTROL” knob.
4. Follow voice guidance instructions, or turn the “AUDIO CONTROL” knob until
[Confirm] is displayed and push the
knob.
[The PIN number has been set. Returning
to the security.] is heard and [Completed]
is displayed.

’08 Solara_U (L/O 0802)
202
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
If the PIN is to be changed:
[There is a PIN number in place. Push the
talk switch and say the correct PIN num-
ber.] is heard and [Current PIN?] is dis-
played.1. Follow voice guidance instructions, or use the “AUDIO CONTROL” knob to
input the current PIN number.
[Please push the talk switch and say a
four −digit PIN number.] is heard.
2. Push the talk switch and say new PIN number.
[The PIN number has been set. Returning
to the security.] is heard and [Completed]
is displayed.
If the current number is not correct, the
system does not function properly. To lock the phone book
1. Push the talk switch and say [Phone book lock], or turn the “AUDIO CON-
TROL” knob until [Phbk Lock] is dis-
played and push the knob.
[There is a PIN number in place. Push the
talk switch and say the correct PIN num-
ber.] is heard and [Current PIN?] is dis-
played. 2. Follow voice guidance instructions, or turn the “AUDIO CONTROL” knob to
select a number. When using a voice command:
[XXXX (PIN number) Push the talk switch
and say confirm. Otherwise, say go back.]
is heard and PIN number is displayed.
Follow voice guidance instructions, or turn
the “AUDIO CONTROL” knob until
[Confirm] is displayed and push the knob.
[PIN number accepted. The phone book is
now locked. Returning to the main menu.]
is heard and [Locked] is displayed.
When using the knob:
1. Turn the “AUDIO CONTROL” knob to select a number. Push the “AUDIO
CONTROL” knob to set.
2. When the PIN number is set, push the “AUDIO CONTROL” knob.
[XXXX Push the talk switch and say con-
firm. Otherwise, say go back.] is heard
and PIN number is displayed. 3. Follow voice guidance instructions, or turn the “AUDIO CONTROL” knob until
[Confirm] is displayed and push the
knob.
[PIN number accepted. The phone book is
now locked. Returning to the main menu.]
is heard and [Locked] is displayed.
