’08 Solara_U (L/O 0802)
223
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
To cool off your Toyota after it has
been parked in the hot sun, drive with
the windows open for a few minutes.
This vents the hot air, allowing the air
conditioning to cool the interior more
quickly.
Make sure the air intake grilles in front
of the windshield are not blocked (by
leaves or snow, for example).
On humid days, do not blow cold air
on the windshield. The windshield could
fog up because of the difference in air
temperature on the inside and outside
of the windshield.
Keep the area under the front seats
clear to allow air to circulate through-
out the vehicle.
On cold days, set the fan speed to
high for a minute to help clear the
intake ducts of snow or moisture. This
can reduce the amount of fogging on
the windows.
When driving on dusty roads, close all
windows. If dust thrown up by the ve-
hicle is still drawn into the vehicle after
closing the windows, it is recommended
that the air intake selector be set to
FRESH and the fan speed selector to
any setting except “OFF”.

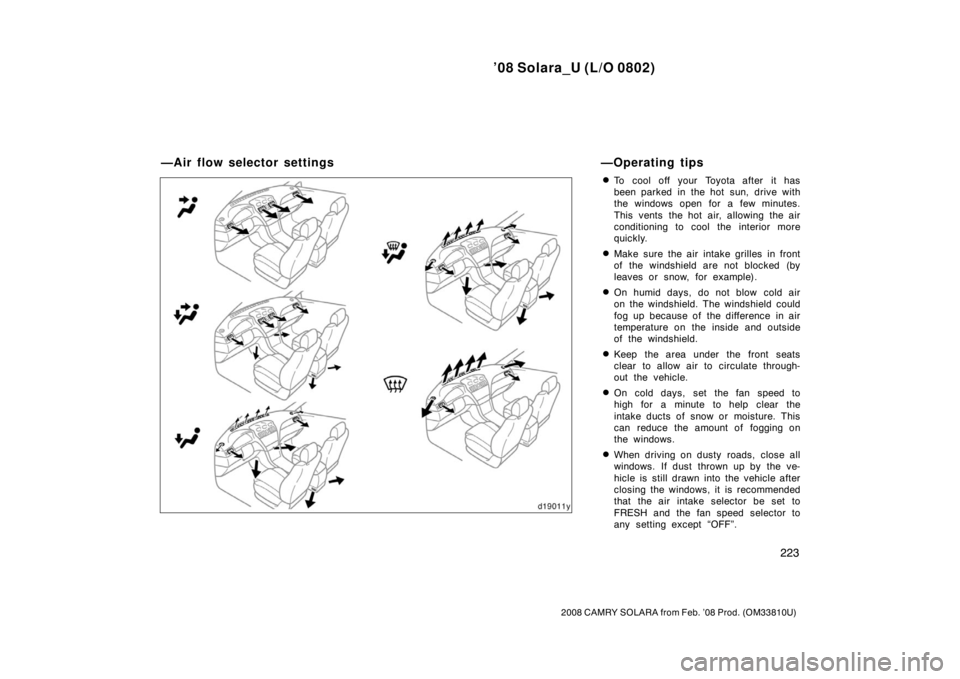

—Air flow selector settings—Operating tips

’08 Solara_U (L/O 0802)
224
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
If following another vehicle on a dusty
road, or driving in windy and dusty
conditions, it is recommended that the
air intake selector be temporarily set to
RECIRCULATE, which will close off the
outside passage and prevent outside
air and dust from entering the vehicle
interior.Heating
For best results, set controls as follows:
Fan speed— Any setting except “OFF”
Temperature— To w a r d s WARM
(red zone)
Air intake—FRESH (outside air)
Air flow—FLOOR
Air conditioning—OFF
For quick heating, change the air in-
take selector mode to RECIRCULATE.
To keep the windows from fogging, re-
turn to FRESH mode after the vehicle
interior has been warmed.
Press the “A/C” button on for dehumidi-
fied heating.
Turn the air flow selector to the floor/
windshield position to heat the vehicle
interior while defrosting or defogging
the windshield.
For quick cooling, turn the temperature
selector knob to the ”MAX A/C USE”
position. The air conditioning will auto-
matically turn on and the air intake
selector will be set to RECIRCULATE.

’08 Solara_U (L/O 0802)
225
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
Air conditioning
For best results, set controls as follows:Fan speed— Any setting except “OFF”
Temperature— To w a r d s COLD
(blue zone)
Air intake—FRESH (outside air)
Air flow—PANEL
Air conditioning—ON
Ventilation
For best results, set controls as follows:
Fan speed— Any setting except “OFF”
Temperature— To w a r d s COLD
(blue zone)
Air intake—FRESH (outside air)
Air flow—PANEL
Air conditioning—OFF
Defogging
The inside of the windshield
For best results, set controls as follows:
Fan speed— Any setting except “OFF”
Temperature— To w a r d s WARM
(red zone) to heat;
COLD (blue zone) to
cool
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
Turning the air flow selector to the wind-
shield position turns on the defogging
function with the purpose of clearing the
front view.
When turning the air flow selector to the
windshield position, the air intake selector
mode changes to FRESH automatically to
clean up the front view quickly. It is not
possible to return to RECIRCULATE in
this position.
Press the “A/C” button for dehumidified
heating or cooling. This setting clears the
front view more quickly.
On humid days, do not blow cold air
on the windshield—the difference be-
tween the outside and inside tempera-
tures could make the fogging worse. Defrosting
The outside of the windshield
For best results, set controls as follows:
Fan speed— Any setting except “OFF”
Temperature— To w a r d s WARM
(red zone)
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
Turning the air flow selector to the wind-
shield position turns on the defrosting
function with the purpose of clearing the
front view.
When turning the air flow selector to the
windshield position, the air intake selector
mode changes to FRESH automatically to
clean up the front view quickly. It is not
possible to return to RECIRCULATE in
this position.
Press the “A/C” button for dehumidified
heating. This setting clears the front view
more quickly.
To heat the vehicle interior while de-
frosting the windshield, choose
floor/windshield air flow.

’08 Solara_U (L/O 0802)
226
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

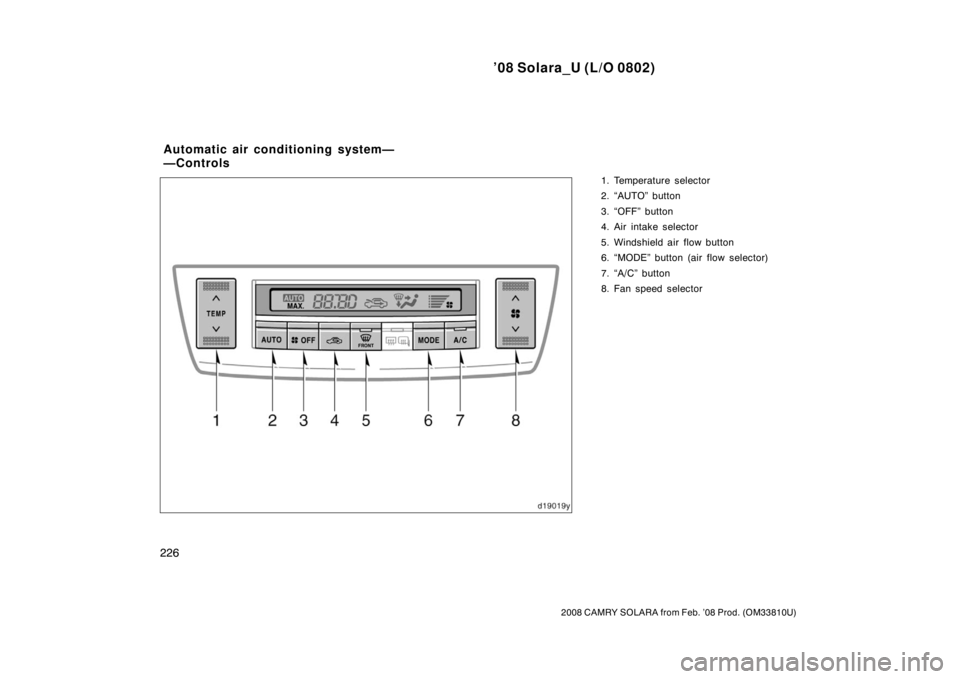

1. Temperature selector
2. “AUTO” button
3. “OFF” button
4. Air intake selector
5. Windshield air flow button
6. “MODE” button (air flow selector)
7. “A/C” button
8. Fan speed selector
Automatic air conditioning system—
—Controls

’08 Solara_U (L/O 0802)
227
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
“AUTO” button
For automatic operation of the air condi-
tioning, press the “AUTO” button. “AUTO”
will appear on the display to show that
the automatic operation mode has been
selected.
In the automatic operation mode, the air
conditioning selects the most suitable fan
speed, air flow, air intake and on−off of
the air conditioning according to the tem-
perature.
When you press the “AUTO” button with
the air intake mode at FRESH, internal
circulation may be applied for maximum
cooling.
You may use manual controls if you want
to select your own settings.
Fan speed selector
Push the “ ” (increase) or “ ” (decrease)
side of the button to adjust the fan speed.
In automatic operation, you do not have
to adjust the fan speed unless you desire
another fan speed mode. Temperature selector
To increase the temperature, press the
“
 ” side, to decrease it, press the “ ”
side.
“MAX. COLD” appears when you adjust to
maximum cooling, and “MAX. HOT” when
you adjust to maximum warming.
The temperature display changes between
“  C” and “ F” when the unit of the multi −
information display is changed. (For de-
tails, see “Multi −information displays” on
page 238 in Section 1 −10.)
“OFF” button
Push the button to turn off the air condi-
tioning system.
“MODE” button (air flow selector)
Push the “MODE” button to select the
vents used for air flow.
In automatic operation, you do not have
to select the air flow unless you desire

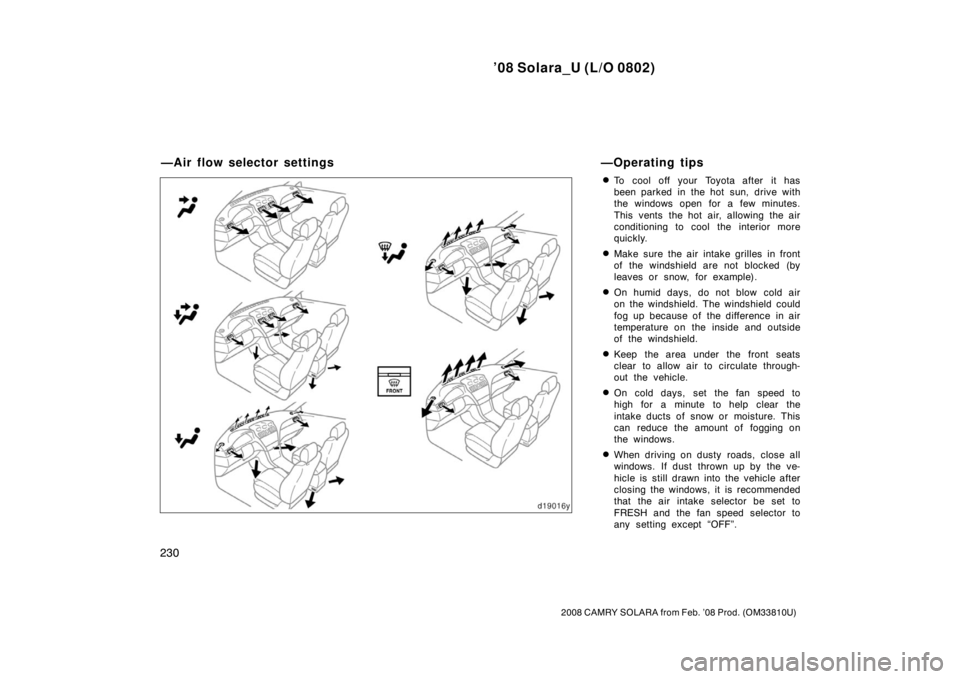

another air flow mode. 1. Panel— Air flows mainly from the
instrument panel vents.
2. Bilevel— Air flows from both the floor
vents and the instrument panel vents.
3. Floor— Air flows mainly from the floor
vents.
4. Floor/Windshield— Air flows mainly
from the floor vents and windshield
vents.

’08 Solara_U (L/O 0802)
228
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
This position allows the air intake to
select FRESH automatically. This is to
clean up the front view more quickly.
If you want to return the setting to
RECIRCULATE mode, press the air in-
take selector button once again.
Press the “A/C” button for dehumidified
heating or cooling. This setting clears
the front view more quickly.Windshield air flow button
When this button is pressed, air flows
mainly from the windshield vents and
turns on the defogging function with the
purpose of clearing the front view.
Pressing this button once again returns
the air flow mode to the last one used.
This button allows the air intake to select
FRESH automatically. This is to clean up
the front view more quickly. It is not pos-
sible to return to RECIRCULATE in this
mode.
Press the “A/C” button for dehumidified
heating or cooling. This setting clears the
front view more quickly.
For details about air flow selector settings,
see “—Air flow selector settings” de-
scribed below.
Air intake selector
Press the button to select the air source.
1. RECIRCULATE— Recirculates the air in-
side the vehicle.
2. FRESH— Draws outside air into the
system.
To prevent fogging up of the windshield,
the air intake mode may change automati-
cally to FRESH depending on the condi-
tion of the air conditioning system.

’08 Solara_U (L/O 0802)
229
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
“A/C” button
To turn on the air conditioning, press the
“A/C” button. The “A/C” button indicator
will come on. To turn the air conditioning
off, press the button again.
If the “A/C” button indicator flashes, there
is a problem in the air conditioning system
and the air conditioning automatically
shuts off. If this happens, take your ve-
hicle to a Toyota dealer for service.

’08 Solara_U (L/O 0802)
230
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
To cool off your Toyota after it has
been parked in the hot sun, drive with
the windows open for a few minutes.
This vents the hot air, allowing the air
conditioning to cool the interior more
quickly.
Make sure the air intake grilles in front
of the windshield are not blocked (by
leaves or snow, for example).
On humid days, do not blow cold air
on the windshield. The windshield could
fog up because of the difference in air
temperature on the inside and outside
of the windshield.
Keep the area under the front seats
clear to allow air to circulate through-
out the vehicle.
On cold days, set the fan speed to
high for a minute to help clear the
intake ducts of snow or moisture. This
can reduce the amount of fogging on
the windows.
When driving on dusty roads, close all
windows. If dust thrown up by the ve-
hicle is still drawn into the vehicle after
closing the windows, it is recommended
that the air intake selector be set to
FRESH and the fan speed selector to
any setting except “OFF”.
—Air flow selector settings—Operating tips

’08 Solara_U (L/O 0802)
231
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
If following another vehicle on a dusty
road, or driving in windy and dusty
conditions, it is recommended that the
air intake selector be temporarily set to
RECIRCULATE, which will close off the
outside passage and prevent outside
air and dust from entering the vehicle
interior.Heating
For best results, set controls as follows:
For automatic operation—
Press in the “AUTO” button.
Temperature— To the desired
temperature
Air intake—FRESH (outside air)
Air conditioning—OFF
For manual operation—
Fan speed— To the desired fan speed
Temperature— To w a r d s WARM
Air intake—FRESH (outside air)
Air flow—FLOOR
Air conditioning—OFF
For quick heating, select recirculated
air for a few minutes. To keep the
windows from fogging, select fresh af-
ter the vehicle interior has been war-
med.
Press the “A/C” button on for dehumidi-
fied heating.
Choose floor/windshield air flow to heat
the vehicle interior while defrosting or
defogging the windshield. Air conditioning
For best results, set controls as follows:
For automatic operation—
Press in the “AUTO” button.
Temperature— To the desired
temperature
Air intake—FRESH (outside air)
Air conditioning—ON
For manual operation—
Fan speed— To the desired fan speed
Temperature— To w a r d s COLD
Air intake—FRESH (outside air)
Air flow—PANEL
Air conditioning—ON
For quick cooling, select recirculated
air for a few minutes.

’08 Solara_U (L/O 0802)
232
2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)
Ventilation
For best results, set controls as follows:
For automatic operation—Press in the “AUTO” button.
Temperature— Towards low temperature
Air intake—FRESH (outside air)
Air conditioning—OFF
For manual operation—
Fan speed— To the desired fan speed
Temperature— To w a r d s COLD
Air intake—FRESH (outside air)
Air flow—PANEL
Air conditioning—OFF
Defogging and defrosting
—The inside of the windshield
For best results, set controls as follows:
—For automatic operation
Temperature— To w a r d s high temperature
to heat; low temperature
to cool
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
—For manual operation
Fan speed— To the desired fan speed
Temperature— To w a r d s high temperature
to heat; low temperature
to cool
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
Pressing the windshield air flow button
turns on the defogging function with the
purpose of clearing the front view.
When pressing the windshield air flow but-
ton, the air intake selects FRESH auto-
matically. This is to clean up the front
view more quickly. It is not possible to
return to RECIRCULATE in this mode. Press the “A/C” button for dehumidified
heating or cooling. This setting clears the
front view more quickly.
On humid days, do not blow cold air
on the windshield—the difference be-
tween the outside and inside tempera-
tures could make the fogging worse.
—The outside of the windshield
For best results, set controls as follows:
—For automatic operation
Temperature— Towards high temperature
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
—For manual operation
Fan speed— To the desired fan speed
Temperature— Towards high temperature
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
Pressing the windshield air flow button
turns on the defrosting function with the
purpose of clearing the front view.
When pressing the windshield air flow but-
ton, the air intake selects FRESH auto-
matically. This is to clean up the front
view more quickly. It is not possible to
return to RECIRCULATE in this mode.
