(e) Torque the nut of the tilt No.2 bolt side.
Torque: 15 NVm (150 kgfVcm, 11 ftVlbf)
(f) Torque the nut of the memory bolt side.
Torque: 5.9 NVm (60 kgfVcm, 52 in.Vlbf)
(g) Install the spacer and a new E±ring.
13. INSTALL TILT LEVER RIGHT RETAINER
(a) Torque the nut.
Torque: 15 NVm (150 kgfVcm, 11 ftVlbf)
(b) Install a new E±ring.
14. INSTALL TURN SIGNAL BRACKET
(a) Apply sealant to 2 or 3 threads of the 2 bolts.
Sealant:
Part No. 08833±00080, THREE BOND 1344, LOCTITE
242 or equivalent.
(b) Torque the 2 bolts.
Torque: 8.8 NVm (90 kgfVcm, 78 in.Vlbf)
15. INSTALL 3 TENSION SPRINGS
16. INSTALL COMPRESSION SPRING
(a) Install the 2 bushings to the spring.
(b) Apply sealant to 2 or 3 threads of the torx screw.
Sealant:
Part No. 08833±00080, THREE BOND 1344, LOCTITE
242 or equivalent.
(c) Using a torx socket wrench, torque the screw.
Torque: 6.4 NVm (65 kgfVcm, 56 in.Vlbf)
17. INSTALL COLUMN PROTECTOR AND WIRING HARNESS
CLAMP
Tighten the 2 screws.
18. INSTALL COLUMN UPPER BRACKET
Tighten the 2 new tapered±head bolts until the bolt head
breaks off.
19. INSTALL COLUMN LOWER COVER
Tighten the clamp.
20. INSTALL SHAFT THRUST STOPPER AND SLIDING YOKE
(a) Align the matchmarks on the yoke and main shaft.
(b) Torque the bolt.
Torque: 35 NVm (360 kgfVcm, 26 ftVlbf)
21. INSTALL INTERMEDIATE SHAFT
Temporarily tighten the bolt.
22. CHECK TILT OPERATION SR±20
± STEERINGTILT STEERING COLUMN

STEERING COLUMN INSTALLATION
1. INSTALL STEERING COLUMN ASSEMBLY
(a) Torque the 4 column assembly set nuts.
Torque: 25 NVm (260 kgfVcm, 19 ftVlbf)
(b) Install the brake pedal return spring.
(c) Align the matchmarks on the intermediate shaft and control
valve shaft.
(d) Torque the bolt A.
Torque: 35 NVm (360 kgfVcm, 26 ftVlbf)
(e) Torque the bolt B.
Torque: 35 NVm (360 kgfVcm, 26 ftVlbf)
2. INSTALL COMBINATION SWITCH
(a) Tighten the 4 screws.
(b) Connect the 4 connectors and airbag connector.
3. INSTALL THESE PARTS:
(See page BO±45)
(a) Register No.2 duct
(b) Finish panel lower LH
(c) Finish panel lower
(d) Cluster finish panel center
(e) Cluster finish panel LH
(f) Cluster finish panel RH
(g) Cluster finish panel
(h) Console panel upper
4. INSTALL UPPER AND LOWER COLUMN COVER
Tighten the 5 screws.
5. CENTER SPIRAL CABLE
(a) Check that the front wheels are facing straight ahead.
(b) Turn the spiral cable counterclockwise by hand until it
becomes harder to turn the cable.
(c) Then rotate the spiral cable clockwise about 3 turns to align
the red mark.
HINT: The spiral cable will rotate about 3 turns to either left
or right of the center.
6. INSTALL STEERING WHEEL
(a) Align the matchmarks on the wheel and main shaft.
(b) Torque the wheel set nut.
Torque: 35 NVm (360 kgfVcm, 26 ftVlbf)
(c) Connect the connector.
± STEERINGTILT STEERING COLUMNSR±21

7. INSTALL STEERING WHEEL PAD
(a) Connect the airbag connector.
(b) Install the pad after confirming that the circumference groove
of the torx screw is caught on the screw case.
(c) Using a torx socket wrench, torque the 2 screws.
Torque: 7.1 NVm (72 kgfVcm, 62 inVlbf)
NOTICE:
wMake sure the pad is installed to the specified torque.
wIf the pad has been dropped, or there are cracks, dents or
other defects in the case or connector, replace the pad
with a new one.
wWhen installing the pad, take care that the wiring does
not interfere with other parts and is not pinched between
other parts.
8. CHECK STEERING WHEEL CENTER POINT SR±22
± STEERINGTILT STEERING COLUMN

POWER STEERING VANE PUMP
COMPONENTS
2JZ±GE:
± STEERINGPOWER STEERING VANE PUMPSR±23

COMPONENTS
2JZ±GTE:
SR±24± STEERINGPOWER STEERING VANE PUMP

COMPONENTS
± STEERINGPOWER STEERING VANE PUMPSR±25

POWER STEERING VANE PUMP
REMOVAL
1. REMOVE ENGINE UNDER COVER
Remove the 10 screws.
2. REMOVE BATTERY
3. 2JZ±GTE:
REMOVE AIR HOSE NO.5
4. 2JZ±GTE:
DISCONNECT OIL RESERVOIR TO PUMP HOSE
NOTICE: Take care not to spill fluid on the A/C compres-
sor rotor.
5. 2JZ±GE:
DISCONNECT RETURN TUBE
NOTICE: Take care not to spill fluid on the A/C compres-
sor rotor.
6. 2JZ±GTE:
REMOVE VANE PUMP PULLEY
Using SST to stop the pulley rotating, remove the nut.
SST 09960±10010
7. REMOVE PRESSURE FEED TUBE
Using a spanner (24 mm) to hold the pressure port union, re-
move the union bolt and gasket.
8. REMOVE PS VANE PUMP ASSEMBLY
Remove the 2 bolts.
POWER STEERING VANE PUMP
DISASSEMBLY
NOTICE: When using a vise, do not overtighten it.
1. 2JZ±GE:
REMOVE VANE PUMP PULLEY
Using SST to stop the pulley rotating, remove the nut.
SST 09960±10010 SR±26
± STEERINGPOWER STEERING VANE PUMP

2. MEASURE PS VANE PUMP ROTATING TORQUE
(a) Check that the shaft rotates smoothly without abnormal
noise.
(b) Temporarily install the pulley set nut, and using a torque
wrench, check the pump rotating torque.
Rotating torque: 0.2 NVm (2.5 kgfVcm, 2.2 in.Vlbf) or less
3. 2JZ±GE:
REMOVE OIL RESERVOIR
(a) Remove the 3 bolts.
(b) Remove the O±ring from the reservoir.
4. 2JZ±GTE:
REMOVE SUCTION PORT UNION
(a) Remove the bolt.
(b) Remove the O±ring from the union.
5. REMOVE PRESSURE PORT UNION, FLOW CONTROL
VALVE AND SPRING
Remove the O±ring from the union.
6. REMOVE REAR HOUSING
Remove the 2 bolts.
7. REMOVE CAM RING, ROTOR AND 10 VANE PLATES
NOTICE: Take care to not drop the vane plates.
8. REMOVE 2 STRAIGHT PINS
9. REMOVE GASKET
10. REMOVE VANE PUMP SHAFT WITH BEARING
(a) Using snap ring pliers, remove the snap ring from the front
housing.
(b) Wind vinyl tape on the serrated part of the shaft.
(c) Using a press, press out the shaft with the bearing.
11. REMOVE SIDE REAR PLATE AND WAVE WASHER
(a) Using a plastic hammer, tap the rear housing on the shaded
area until the plate and washer come off.
(b) Remove the 2 O±ring from the rear housing.
± STEERINGPOWER STEERING VANE PUMPSR±27

POWER STEERING VANE PUMP
INSPECTION AND REPLACEMENT
NOTICE: When using a vise, do not overtighten it.

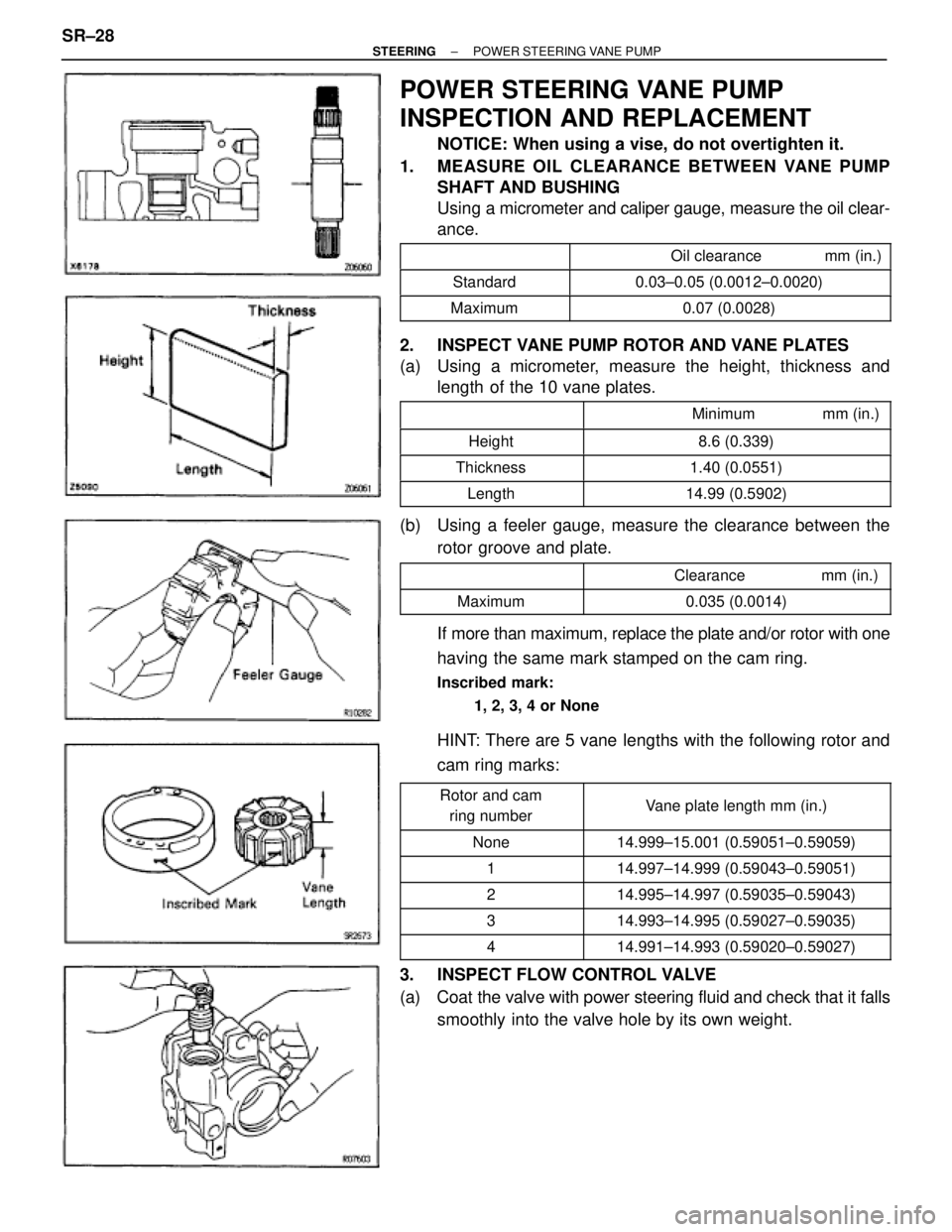

1. MEASURE OIL CLEARANCE BETWEEN VANE PUMP
SHAFT AND BUSHING
Using a micrometer and caliper gauge, measure the oil clear-
ance.
   Oil clearance mm (in.)
 Standard 0.03±0.05 (0.0012±0.0020)
 Maximum 0.07 (0.0028)
2. INSPECT VANE PUMP ROTOR AND VANE PLATES
(a) Using a micrometer, measure the height, thickness and
length of the 10 vane plates.
   Minimum mm (in.)
 Height

 8.6 (0.339)
 Thickness 1.40 (0.0551)
 Length 14.99 (0.5902)
(b) Using a feeler gauge, measure the clearance between the
rotor groove and plate.
   Clearance mm (in.)
 Maximum 0.035 (0.0014)
If more than maximum, replace the plate and/or rotor with one
having the same mark stamped on the cam ring.
Inscribed mark:
1, 2, 3, 4 or None
HINT: There are 5 vane lengths with the following rotor and
cam ring marks:

 Rotor and cam
ring number
 Vane plate length mm (in.)
 None 14.999±15.001 (0.59051±0.59059) 1 14.997±14.999 (0.59043±0.59051)
2

14.995±14.997 (0.59035±0.59043)
 3

 14.993±14.995 (0.59027±0.59035)
 4 14.991±14.993 (0.59020±0.59027)
3. INSPECT FLOW CONTROL VALVE
(a) Coat the valve with power steering fluid and check that it falls
smoothly into the valve hole by its own weight. SR±28
± STEERINGPOWER STEERING VANE PUMP

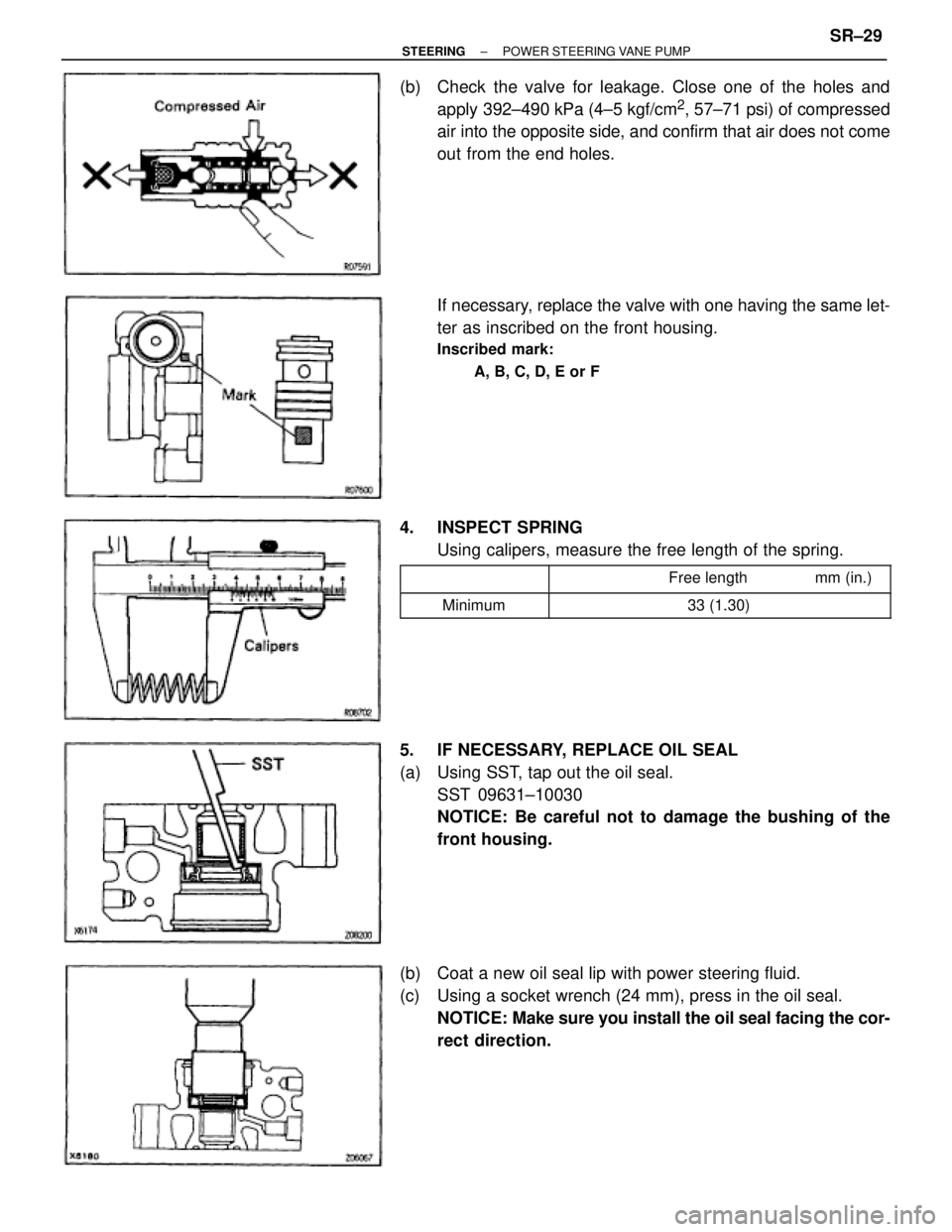

(b) Check the valve for leakage. Close one of the holes and
apply 392±490 kPa (4±5 kgf/cm
2, 57±71 psi) of compressed
air into the opposite side, and confirm that air does not come
out from the end holes.
If necessary, replace the valve with one having the same let-
ter as inscribed on the front housing.
Inscribed mark:
A, B, C, D, E or F
4. INSPECT SPRING
Using calipers, measure the free length of the spring.
   Free length mm (in.) Minimum 33 (1.30)
5. IF NECESSARY, REPLACE OIL SEAL
(a) Using SST, tap out the oil seal.
SST 09631±10030
NOTICE: Be careful not to damage the bushing of the
front housing.
(b) Coat a new oil seal lip with power steering fluid.
(c) Using a socket wrench (24 mm), press in the oil seal.
NOTICE: Make sure you install the oil seal facing the cor-
rect direction.
± STEERINGPOWER STEERING VANE PUMPSR±29
