UPPER SUSPENSION ARM

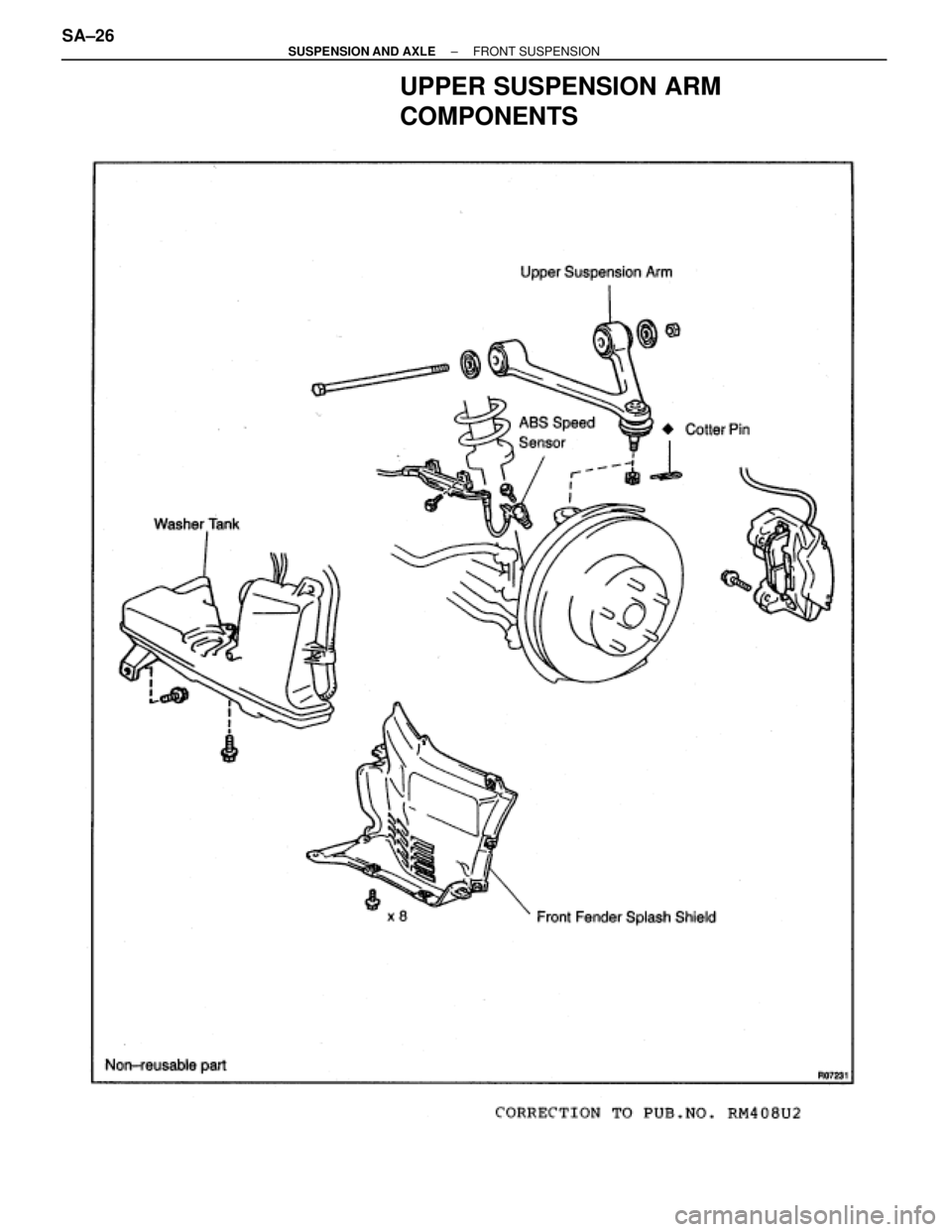

COMPONENTS
SA±26± SUSPENSION AND AXLEFRONT SUSPENSION

UPPER SUSPENSION ARM REMOVAL
Installation is in the reverse order of removal.
INSTALLATION HINT: After installation, check ABS speed
sensor signal and front wheel alignment.
(See page BR±62 and SA±4)
1. REMOVE FRONT WHEEL
Torque: 103 NVm (1,050 kgfVcm, 76 ftVlbf)
2. REMOVE DISC BRAKE CALIPER
(a) Remove the 2 bolts and brake caliper from the steering
knuckle.
Torque: 118 NVm (1,200 kgfVcm, 87 ftVlbf)
(b) Support the brake caliper securely.
3. DISCONNECT ABS SPEED SENSOR AND WIRE
HARNESS CLAMP
(a) Remove the bolt and disconnect the speed sensor from the
steering knuckle.
Torque: 8 NVm (80 kgfVcm, 69 in.Vlbf)
(b) Remove the 3 bolts and wire harness clamp to prevent the
wire harness being damaged when removing or installing the
through bolt.
4. DISCONNECT UPPER SUSPENSION ARM
(a) Remove the cotter pin and the nut.
Torque: 103 NVm (1,050 kgfVcm, 76 ftVlbf)
(b) Using SST, disconnect the upper suspension arm from the
steering knuckle.
SST 09628±62011
5. REMOVE FRONT FENDER SPLASH SHIELD
6. LH side only:
MOVE WASHER TANK
(a) Remove the 2 washer tank set bolts.
(b) Move the washer tank away from the body.
± SUSPENSION AND AXLEFRONT SUSPENSIONSA±27

7. REMOVE UPPER SUSPENSION ARM
(a) Remove the bolt and nut.
Torque: 164 NVm (1,670 kgfVcm, 121 ftVlbf)
INSTALLATION HINT: After stabilizing the suspension
torque the nut.
(b) Remove the upper suspension arm.
UPPER BALL JOINT INSPECTION
INSPECT BALL JOINT FOR ROTATION CONDITION
(a) As shown, flip the ball joint stud back and forth 5 times before
installing the nut.
(b) Using a torque wrench, turn the nut continuously one turn
every 2±4 seconds and take the torque reading on the 5th
turn.
Torque (turning):
1.0±3.4 NVm (10±35 kgfVcm, 9±30 in.Vlbf)
If not within specification, replace the upper suspension arm.
Corrected 6/21/01 ± MH SA±28
± SUSPENSION AND AXLEFRONT SUSPENSION

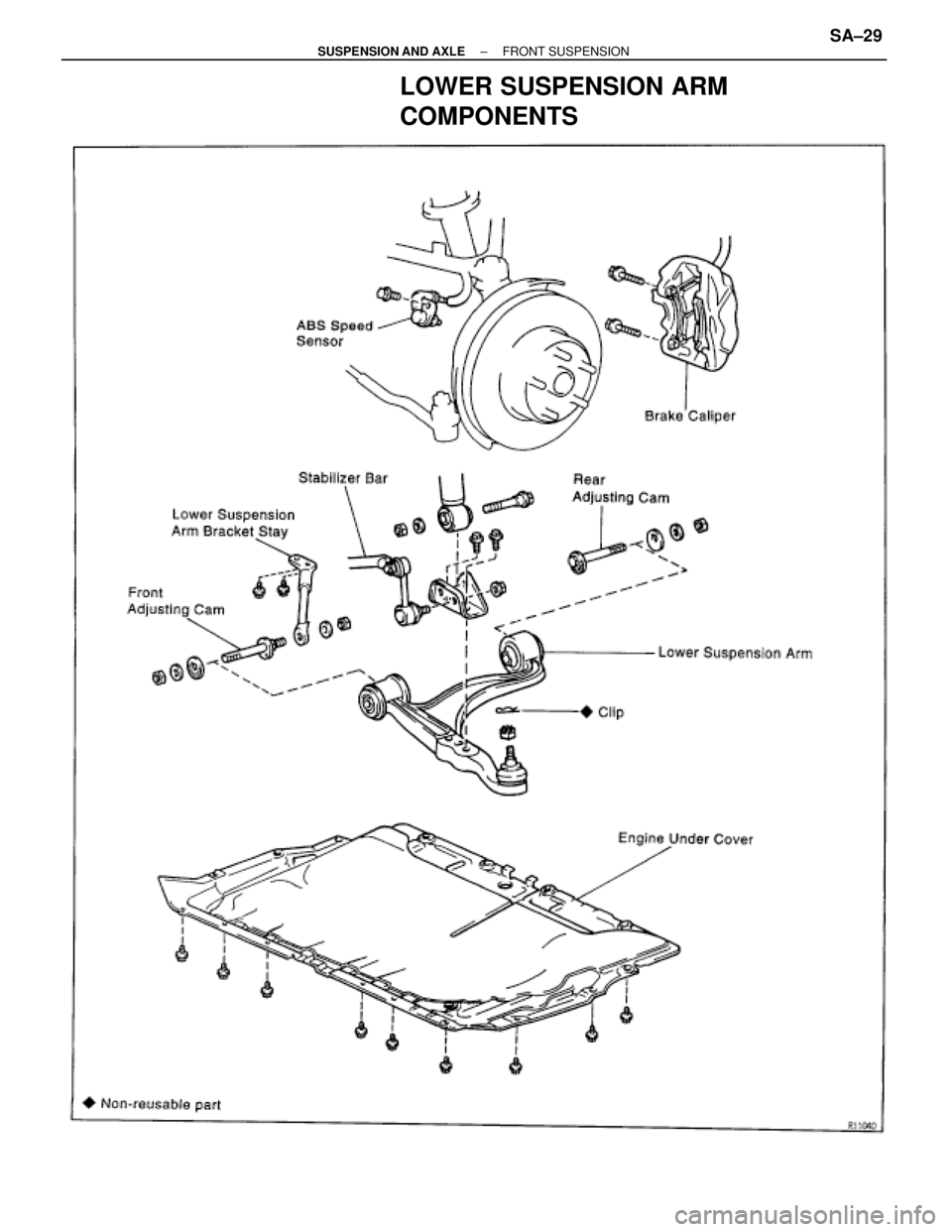

LOWER SUSPENSION ARM
COMPONENTS
± SUSPENSION AND AXLEFRONT SUSPENSIONSA±29

LOWER SUSPENSION ARM REMOVAL
Installation is in the reverse order of removal.
INSTALLATION HINT: After installation, check front wheel
alignment.
(See page SA±4)
1. REMOVE FRONT WHEEL
Torque: 103 NVm (1,050 kgfVcm, 76 ftVlbf)
2. REMOVE ENGINE UNDER COVER
3. REMOVE BRAKE CALIPER
(a) Remove the 2 bolts and brake caliper from the steering
knuckle.
Torque: 118 NVm (1,200 kgfVcm, 87 ftVlbf)
(b) Support the brake caliper securely.
4. DISCONNECT STABILIZER BAR LINK FROM LOWER
SUSPENSION ARM
Remove the nut and disconnect the link from the arm.
Torque: 74 NVm (750 kgfVcm, 54 ftVlbf)
HINT: If the ball joint stud turns together with the nut, use a
hexagon wrench to hold the stud.
5. DISCONNECT STEERING KNUCKLE
(a) Remove the clip and nut.
Torque: 125 NVm (1,270 kgfVcm, 92 ftVlbf)
(b) Using SST, disconnect the steering knuckle from the lower
suspension arm.
SST 09628±62011
6. REMOVE LOWER SUSPENSION ARM
(a) Remove the bolt, nut and disconnect the lower suspension
arm from the shock absorber.
Torque: 143 NVm (1,460 kgfVcm, 106 ftVlbf)
INSTALLATION HINT: After stabilizing the suspension,
torque the nut. SA±30
± SUSPENSION AND AXLEFRONT SUSPENSION

(b) Remove the nut, 2 bolts and the front lower arm bracket stay.
Torque:
Bolt: 44 NVm (450 kgfVcm, 33 ftVlbf)
Nut: 59 NVm (600 kgfVcm, 43 ftVlbf)
INSTALLATION HINT: Before installing the lower arm bracket
stay, adjust front wheel alignment.
(c) Before loosening the adjusting cam, place matchmarks on
the front and rear adjusting cams and subframe.
(d) Remove the nuts, adjusting cams and lower suspension arm.
Torque: 226 NVm (2,300 kgfVcm, 166 ftVlbf)
INSTALLATION HINT: After stabilizing the suspension,
torque the nuts.
7. REMOVE SHOCK ABSORBER BRACKET FROM LOWER
SUSPENSION ARM
Remove the 2 bolts and bracket from the lower arm.
Torque: 52 NVm (530 kgfVcm, 38 ftVlbf)
LOWER BALL JOINT INSPECTION
INSPECT BALL JOINT FOR ROTATION CONDITION
(a) As shown, flip the ball joint stud back and forth 5 times before
installing the nut.
(b) Using torque wrench, turn the nut continuously one turn
every 2±4 seconds and take the torque reading on the 5th
turn.
Torque (turning):
1.0±3.4 NVm (10±35 kgfVcm, 9±30 in.Vlbf)
If not within specification, replace the lower suspension arm.
± SUSPENSION AND AXLEFRONT SUSPENSIONSA±31

STABILIZER BAR

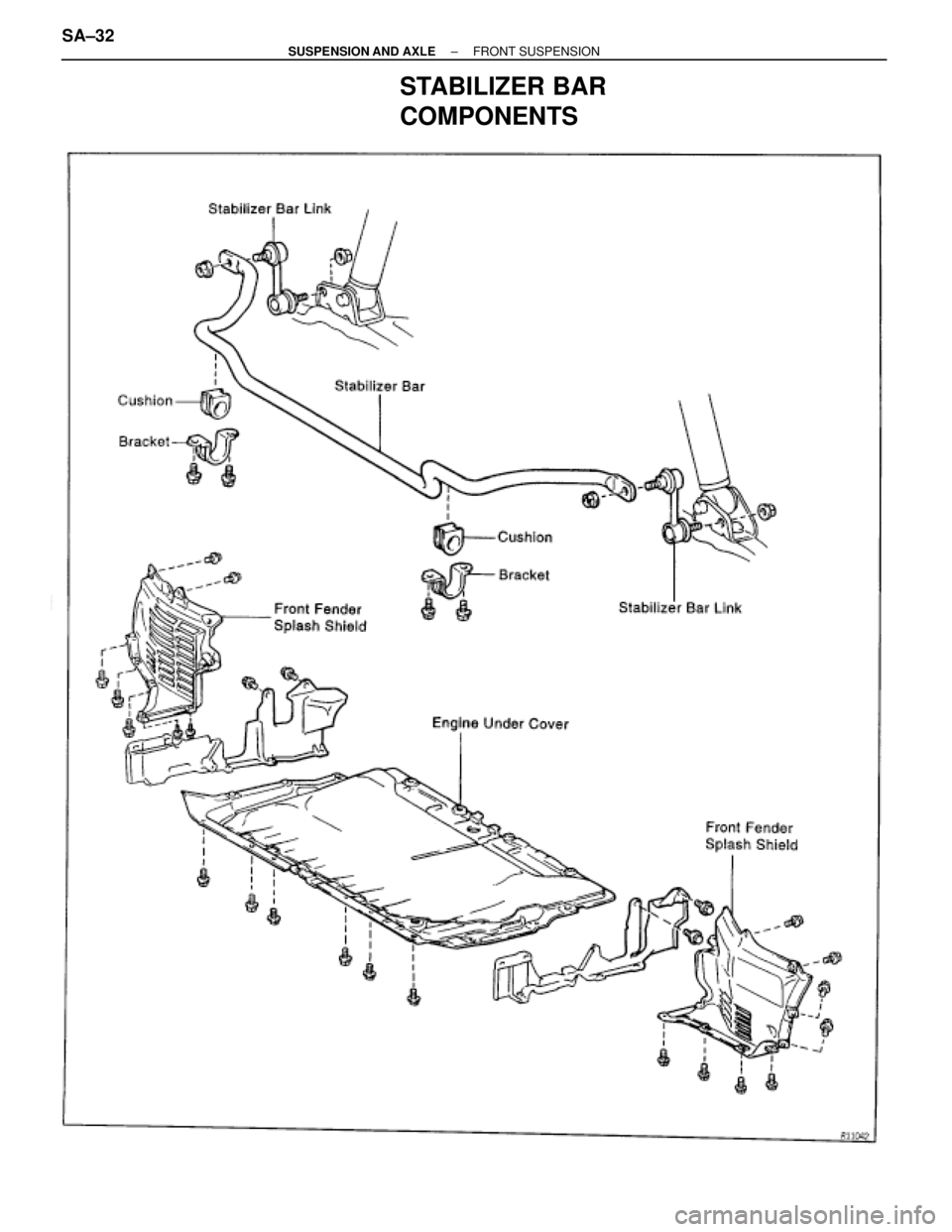

COMPONENTS
SA±32± SUSPENSION AND AXLEFRONT SUSPENSION

STABILIZER BAR AND LINK REMOVAL
Installation is in the reverse order of removal.

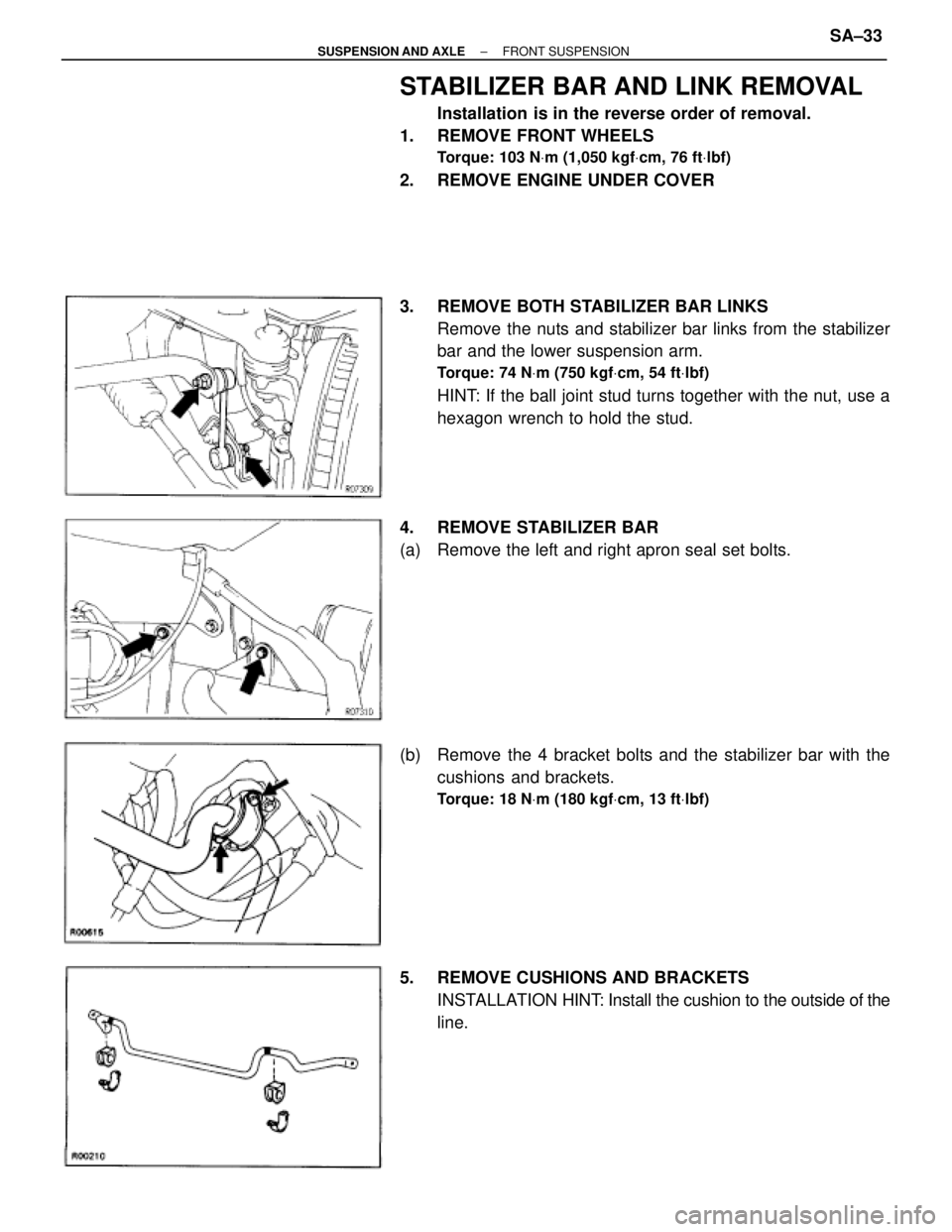

1. REMOVE FRONT WHEELS
Torque: 103 NVm (1,050 kgfVcm, 76 ftVlbf)
2. REMOVE ENGINE UNDER COVER
3. REMOVE BOTH STABILIZER BAR LINKS
Remove the nuts and stabilizer bar links from the stabilizer
bar and the lower suspension arm.
Torque: 74 NVm (750 kgfVcm, 54 ftVlbf)
HINT: If the ball joint stud turns together with the nut, use a
hexagon wrench to hold the stud.
4. REMOVE STABILIZER BAR
(a) Remove the left and right apron seal set bolts.
(b) Remove the 4 bracket bolts and the stabilizer bar with the
cushions and brackets.
Torque: 18 NVm (180 kgfVcm, 13 ftVlbf)
5. REMOVE CUSHIONS AND BRACKETS
INSTALLATION HINT: Install the cushion to the outside of the
line.
± SUSPENSION AND AXLEFRONT SUSPENSIONSA±33

STABILIZER BAR LINK INSPECTION

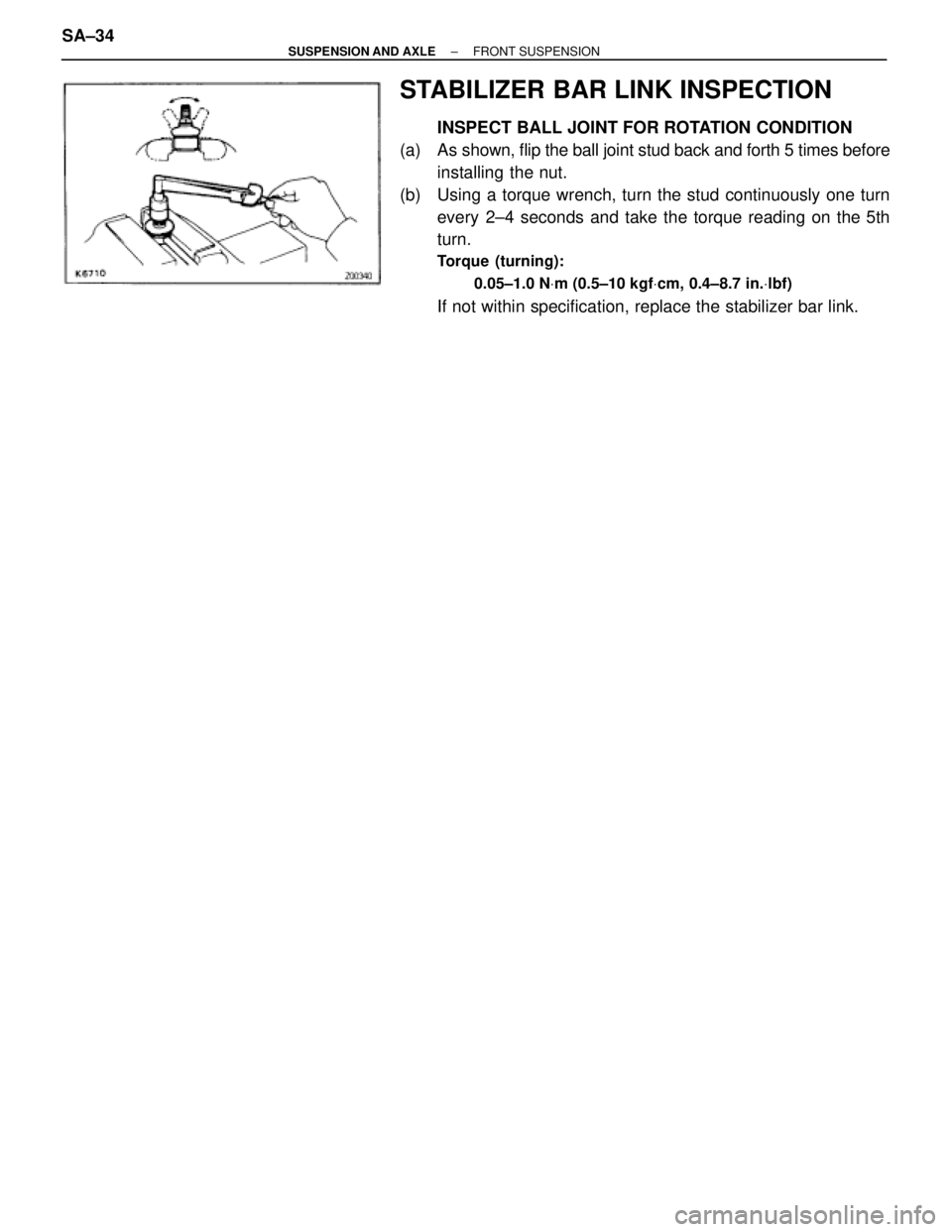

INSPECT BALL JOINT FOR ROTATION CONDITION
(a) As shown, flip the ball joint stud back and forth 5 times before
installing the nut.
(b) Using a torque wrench, turn the stud continuously one turn
every 2±4 seconds and take the torque reading on the 5th
turn.
Torque (turning):
0.05±1.0 NVm (0.5±10 kgfVcm, 0.4±8.7 in.Vlbf)
If not within specification, replace the stabilizer bar link. SA±34
± SUSPENSION AND AXLEFRONT SUSPENSION

REAR AXLE HUB
PREPARATION

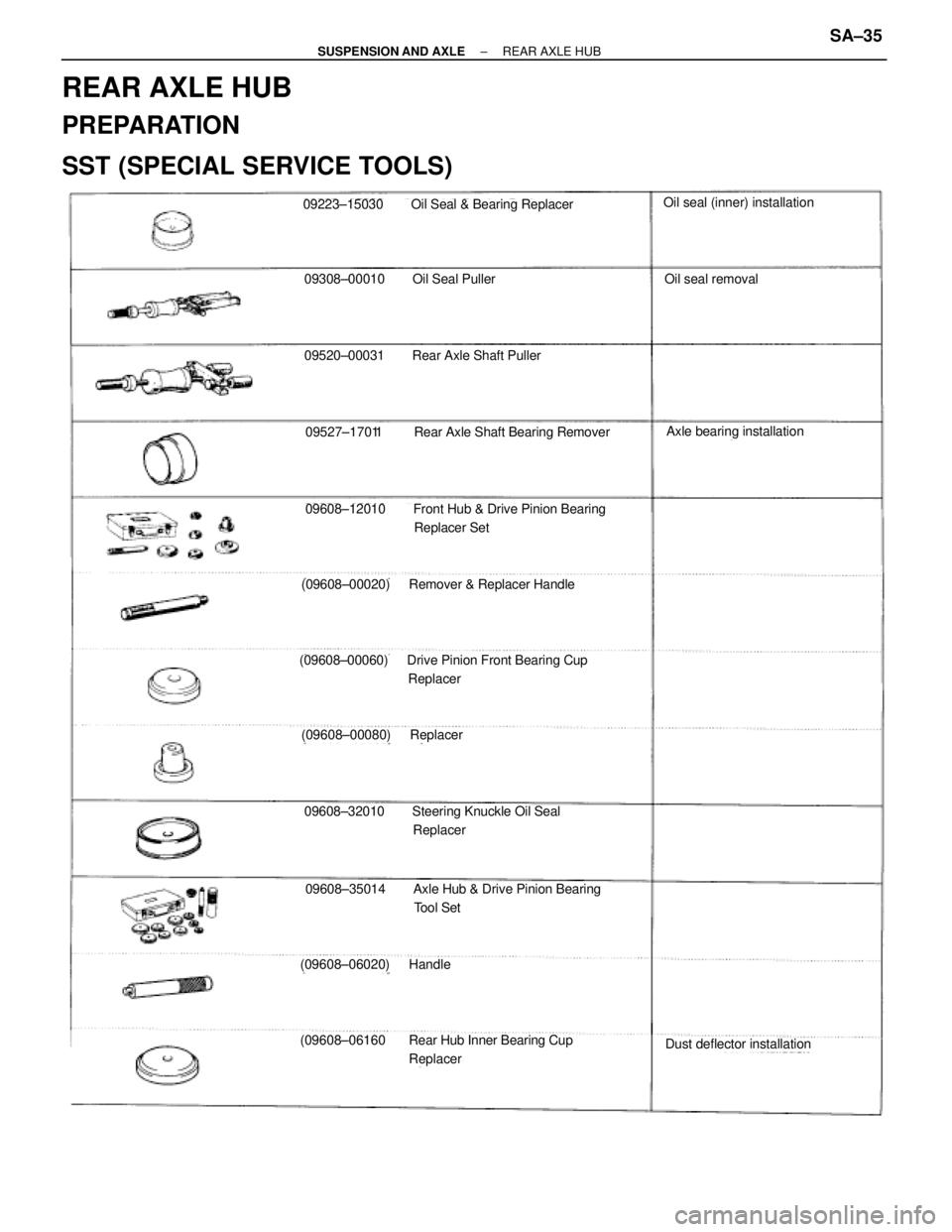

SST (SPECIAL SERVICE TOOLS)
09223±15030 Oil Seal & Bearing ReplacerOil seal (inner) installation
09308±00010 Oil Seal PullerOil seal removal
09520±00031 Rear Axle Shaft Puller
09527±17011 Rear Axle Shaft Bearing RemoverAxle bearing installation
09608±12010 Front Hub & Drive Pinion Bearing
Replacer Set
(09608±00020) Remover & Replacer Handle
(09608±00060) Drive Pinion Front Bearing Cup
Replacer
(09608±00080) Replacer
09608±32010 Steering Knuckle Oil Seal
Replacer
09608±35014 Axle Hub & Drive Pinion Bearing
Tool Set
(09608±06020) Handle
(09608±06160 Rear Hub Inner Bearing Cup
ReplacerDust deflector installation
± SUSPENSION AND AXLEREAR AXLE HUBSA±35
