(See page EG±9).

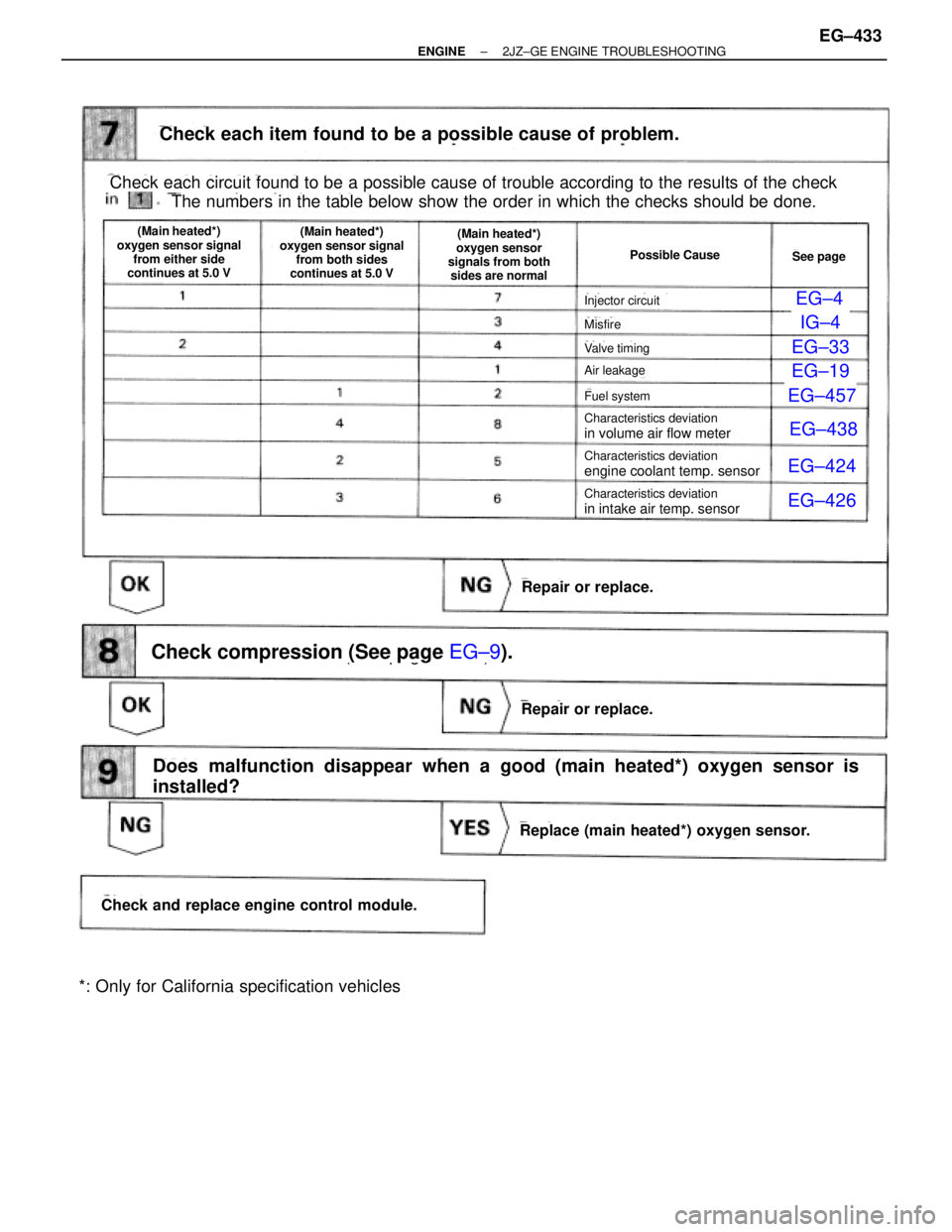

Check each item found to be a possible cause of problem.
Repair or replace.
Check each circuit found to be a possible cause of trouble according to the results of the check
The numbers in the table below show the order in which the checks should be done.
(Main heated*)
oxygen sensor signal
from either side
continues at 5.0 V
Possible Cause
Injector circuit
Misfire
Valve timing
Air leakage
Fuel system
Characteristics deviation
in volume air flow meter
Characteristics deviation
in volume air flow meter
Characteristics deviation
engine coolant temp. sensor
(Main heated*)
oxygen sensor signal
from both sides
continues at 5.0 V(Main heated*)
oxygen sensor
signals from both
sides are normal
See page
Characteristics deviation
in intake air temp. sensor
Repair or replace.
Replace (main heated*) oxygen sensor.
Check and replace engine control module.
Does malfunction disappear when a good (main heated*) oxygen sensor is
installed?
Check compression (See page EG±9).
*: Only for California specification vehicles
± ENGINE2JZ±GE ENGINE TROUBLESHOOTINGEG±433

DTC 27 Sub Heated Oxygen Sensor Circuit (Only for California spec.)
CIRCUIT DESCRIPTION
The sub heated oxygen sensor is installed on the exhaust pipe. Its construction and operation is the same as
the main heated oxygen sensor on page EG±419.
 DTC No. Diagnostic Trouble Code Detecting Condition Trouble Area








(1) Open or short in heater circuit of sub
heated oxygen sensor for 0.5 sec. or more





Open or short in heater circuit of sub heated
oxygen sensor

Sub heated oxygen sensor heater

ECM









27









(2) Main heated oxygen sensor signal is 0.45 V
or more and sub heated oxygen sensor
signal is 0.45 V or less under conditions (a)
~ (c):
(2 trip detection logic)*
(a) Engine coolant temp.: 805C (1765F)
or more
(b) Engine speed: 1,500 rpm or more
(c) Accel. pedal: Fully depressed for 2
sec. or more









Open or short in sub heated oxygen sensor
circuit

Sub heated oxygen sensor

ECM
*: See page EG±397. EG±434
± ENGINE2JZ±GE ENGINE TROUBLESHOOTING

CIRCUIT DESCRIPTION (Cont'd)
DIAGNOSTIC TROUBLE CODE DETECTION DRIVING PATTERN
Purpose of the driving pattern.
(a) To simulate diagnostic trouble code detecting condition after diagnostic trouble code is recorded.
(b) To check that the malfunction is corrected when the repair is completed confirming that diagnostic
trouble code is no longer detected.
(1) Disconnect the EFI No.1 fuse (30A) for 10 sec. or more, with IG switch OFF.
Initiate test mode (Connect terminal TE2 and E1 of data link connector 2 with
IG switch OFF).
(2) Start the engine and warm up with all ACC switch OFF.
(3) Deive the vehicle at 80 ~ 88 km/h (50 ~ 55 mph) for 10 min. or more.
(4) Stop at a safe place and idle the engine for 2 min. or less.
(5) Accelerate to 96 km/h (60 mph) with the throttle valve fully open.
HINT: If a malfunction exists, the malfunction indicator lamp will light up during step (5).
NOTICE: If the conditions in this test are not strictly followed, detection of the malfunction
will not be possible.
Malfunction: Open or Short in Sub Heated Oxygen Sensor
± ENGINE2JZ±GE ENGINE TROUBLESHOOTINGEG±435

(See page EG±404)
INSPECTION PROCEDURE
HINT: When other codes are output in addition to 27 at the same time, check the circuits for other codes
first.

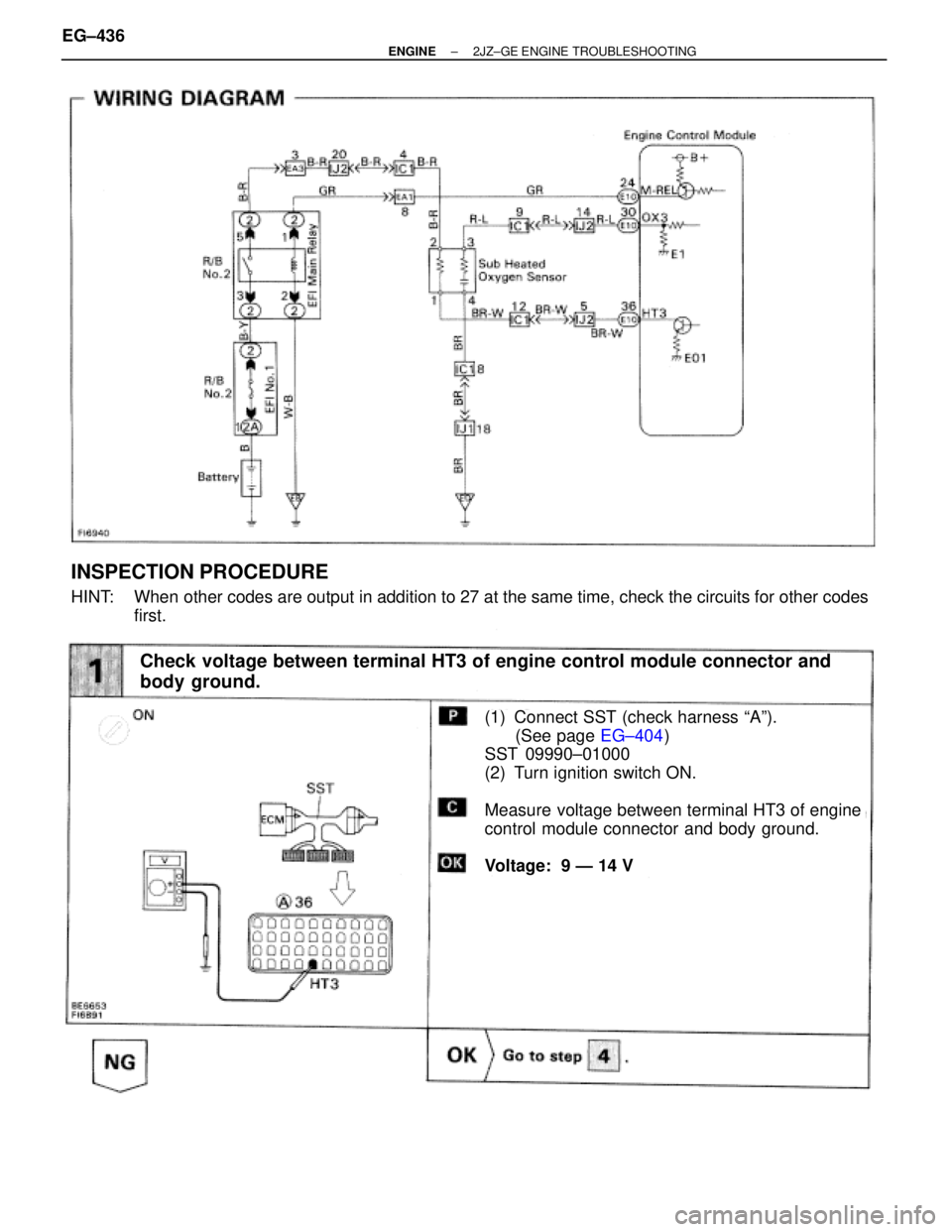

Check voltage between terminal HT3 of engine control module connector and
body ground.
(1) Connect SST (check harness ªAº).
(See page EG±404)
SST 09990±01000
(2) Turn ignition switch ON.
Measure voltage between terminal HT3 of engine
control module connector and body ground.
Voltage: 9 Ð 14 V EG±436
± ENGINE2JZ±GE ENGINE TROUBLESHOOTING

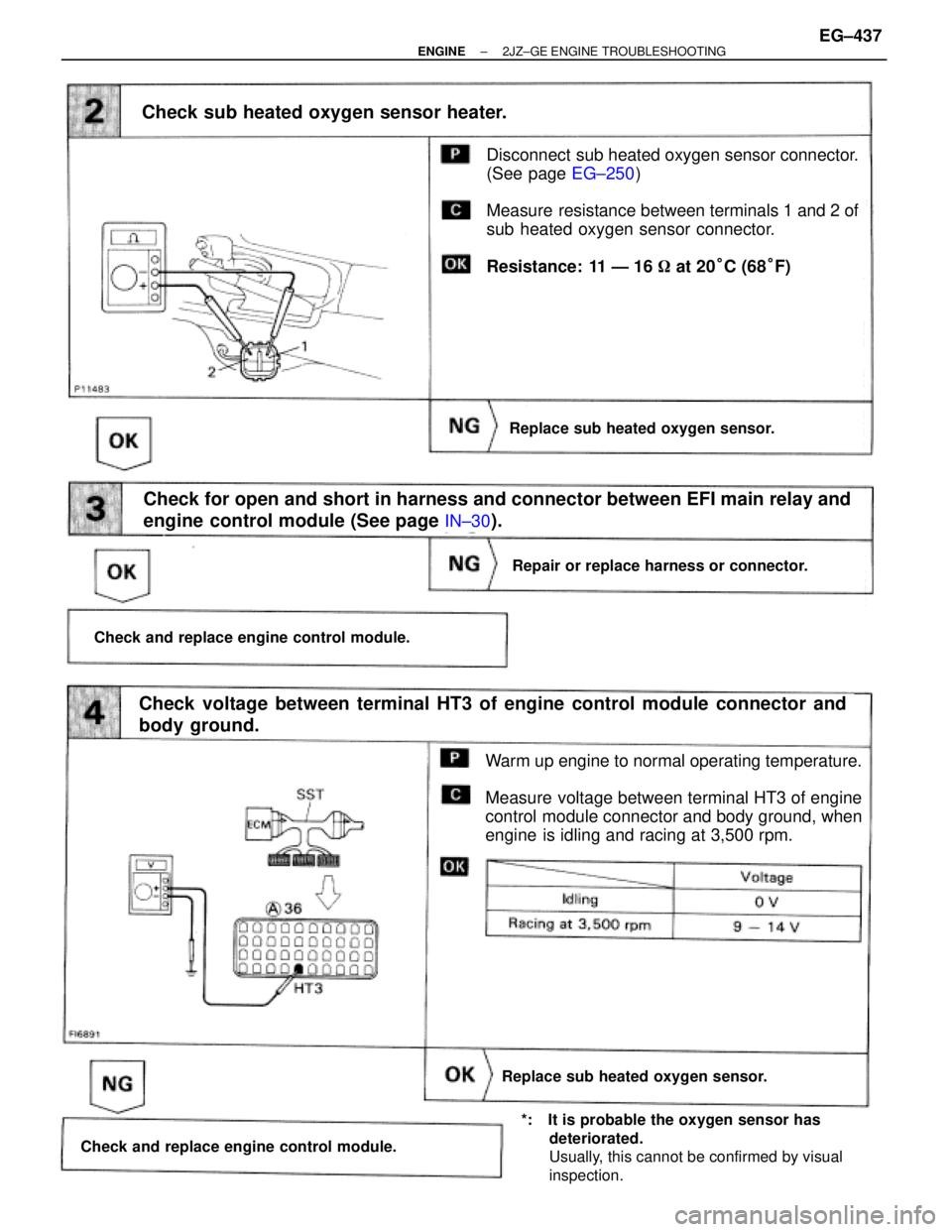

Check sub heated oxygen sensor heater.
Disconnect sub heated oxygen sensor connector.
(See page EG±250)
Measure resistance between terminals 1 and 2 of
sub heated oxygen sensor connector.
Resistance: 11 Ð 16
at 20°C (68°F)
Check for open and short in harness and connector between EFI main relay and
engine control module (See page
IN±30).
Replace sub heated oxygen sensor.
Repair or replace harness or connector.
Check and replace engine control module.
Check voltage between terminal HT3 of engine control module connector and
body ground.
Warm up engine to normal operating temperature.
Measure voltage between terminal HT3 of engine
control module connector and body ground, when
engine is idling and racing at 3,500 rpm.
Replace sub heated oxygen sensor.
Check and replace engine control module.
*: It is probable the oxygen sensor has
deteriorated.
Usually, this cannot be confirmed by visual
inspection.
± ENGINE2JZ±GE ENGINE TROUBLESHOOTINGEG±437

DTC 31 Volume Air Flow Meter Circuit

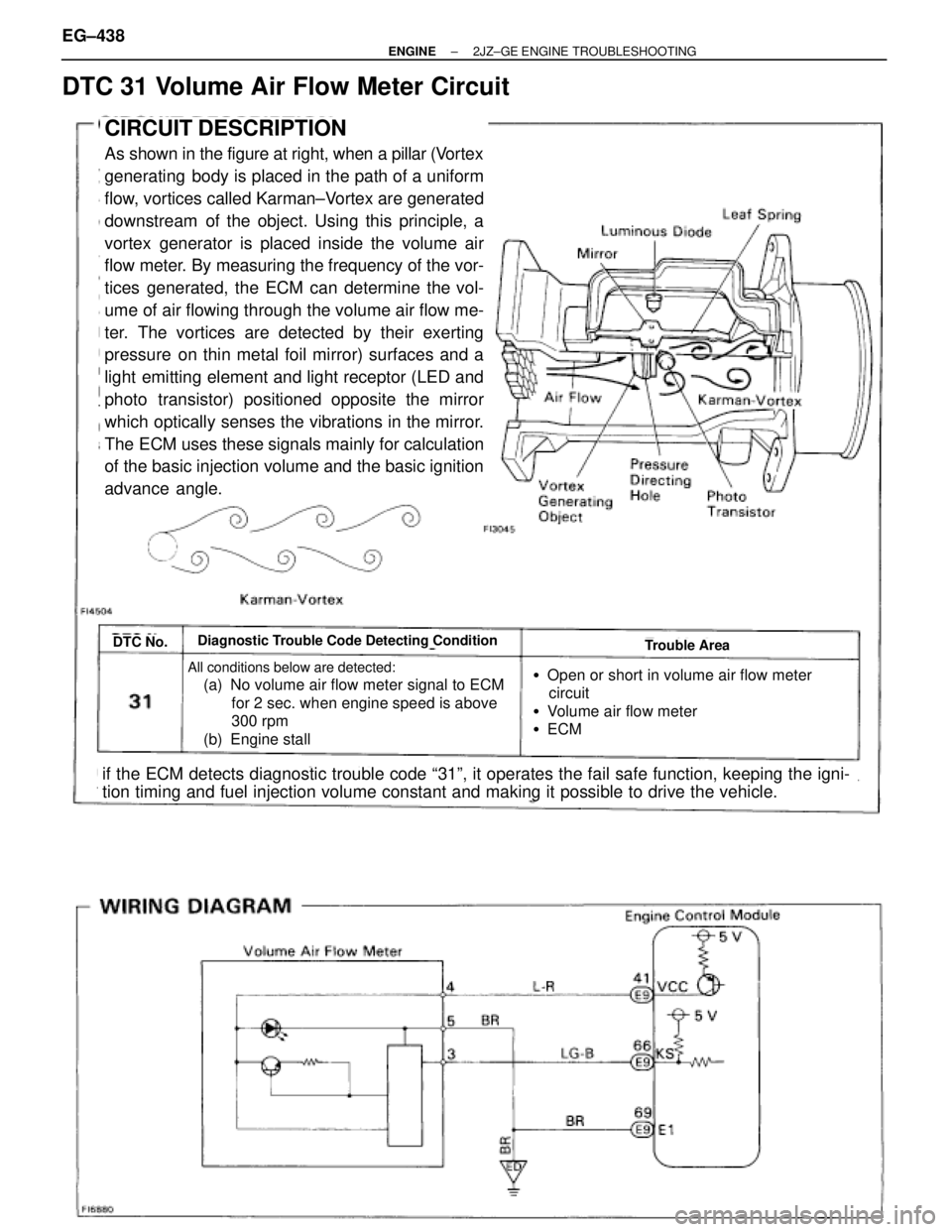

CIRCUIT DESCRIPTION
As shown in the figure at right, when a pillar (Vortex
generating body is placed in the path of a uniform
flow, vortices called Karman±Vortex are generated
downstream of the object. Using this principle, a
vortex generator is placed inside the volume air
flow meter. By measuring the frequency of the vor-
tices generated, the ECM can determine the vol-
ume of air flowing through the volume air flow me-
ter. The vortices are detected by their exerting
pressure on thin metal foil mirror) surfaces and a
light emitting element and light receptor (LED and
photo transistor) positioned opposite the mirror
which optically senses the vibrations in the mirror.
The ECM uses these signals mainly for calculation
of the basic injection volume and the basic ignition
advance angle.
DTC No.Diagnostic Trouble Code Detecting ConditionTrouble Area
All conditions below are detected:
(a) No volume air flow meter signal to ECM
for 2 sec. when engine speed is above
300 rpm
(b) Engine stall
Open or short in volume air flow meter
circuit

Volume air flow meter

ECM
if the ECM detects diagnostic trouble code ª31º, it operates the fail safe function, keeping the igni-
tion timing and fuel injection volume constant and making it possible to drive the vehicle. EG±438
± ENGINE2JZ±GE ENGINE TROUBLESHOOTING

INSPECTION PROCEDURE
(See page EG±404)

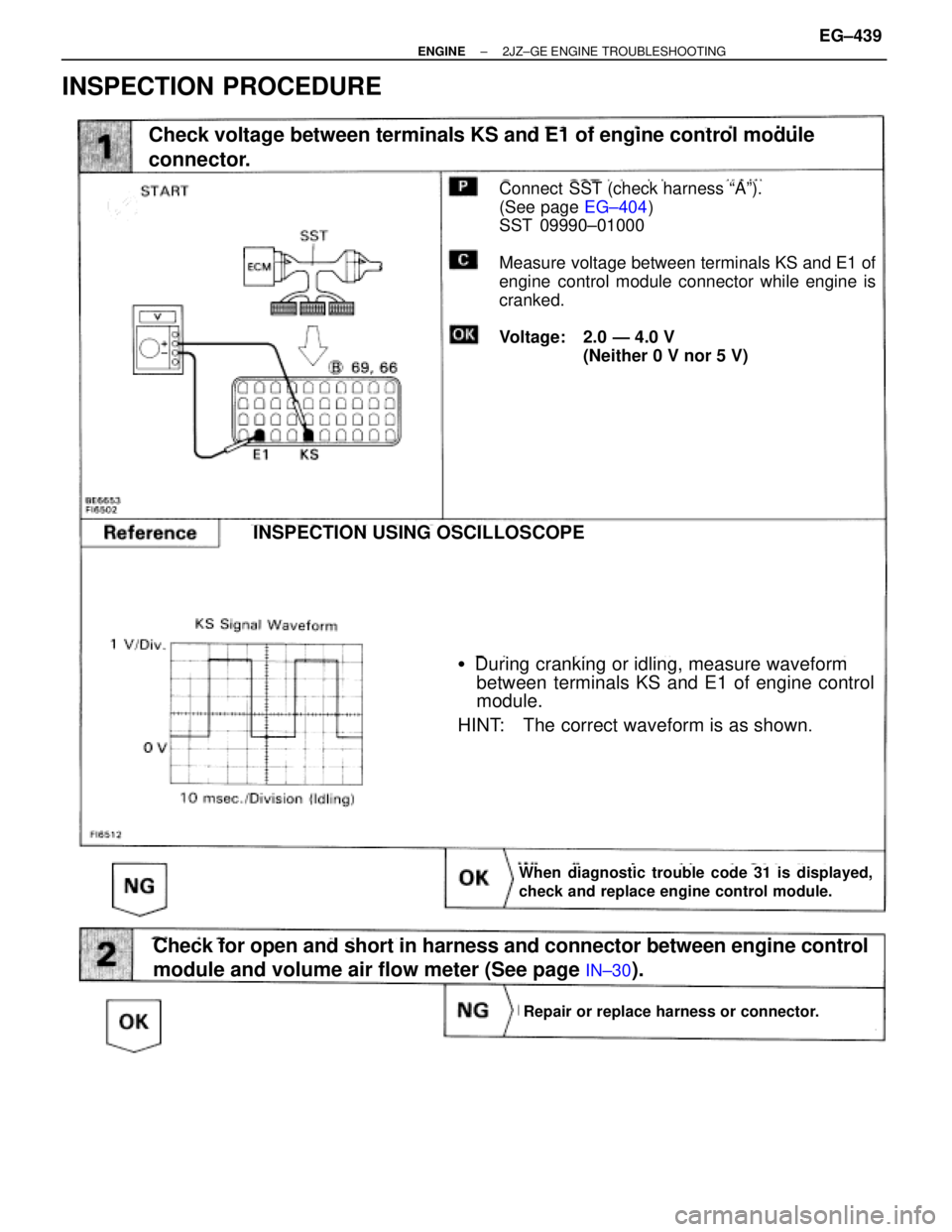

Check voltage between terminals KS and E1 of engine control module
connector.
Connect SST (check harness ªAº).
(See page EG±404)
SST 09990±01000
Measure voltage between terminals KS and E1 of
engine control module connector while engine is
cranked.
Voltage: 2.0 Ð 4.0 V
(Neither 0 V nor 5 V)
INSPECTION USING OSCILLOSCOPE
Check for open and short in harness and connector between engine control
module and volume air flow meter (See page
IN±30).
When diagnostic trouble code 31 is displayed,
check and replace engine control module.
Repair or replace harness or connector.

During cranking or idling, measure waveform
between terminals KS and E1 of engine control
module.
HINT: The correct waveform is as shown
.
± ENGINE2JZ±GE ENGINE TROUBLESHOOTINGEG±439

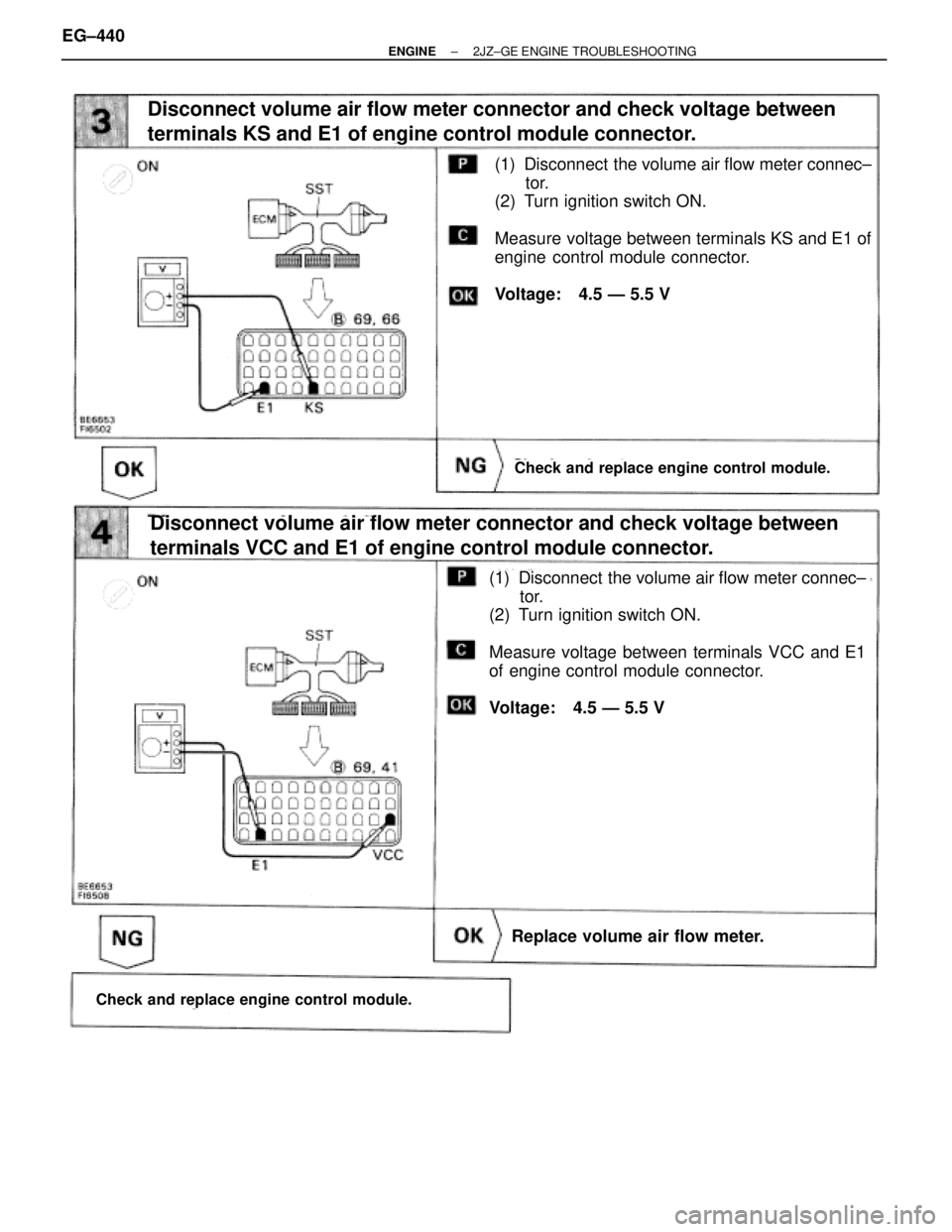

Disconnect volume air flow meter connector and check voltage between
terminals KS and E1 of engine control module connector.
(1) Disconnect the volume air flow meter connec±
tor.
(2) Turn ignition switch ON.
Measure voltage between terminals KS and E1 of
engine control module connector.
Voltage: 4.5 Ð 5.5 V
(1) Disconnect the volume air flow meter connec±
tor.
(2) Turn ignition switch ON.
Measure voltage between terminals VCC and E1
of engine control module connector.
Voltage: 4.5 Ð 5.5 V
Disconnect volume air flow meter connector and check voltage between
terminals VCC and E1 of engine control module connector.
Check and replace engine control module.
Replace volume air flow meter.
Check and replace engine control module.
EG±440± ENGINE2JZ±GE ENGINE TROUBLESHOOTING

DTC 35 Barometric Pressure Sensor Circuit
CIRCUIT DESCRIPTION
The BARO sensor is built into the ECM. This is a semiconductor pressure sensor with properties which cause
its electrical resistance to change when stress is applied to the sensor's crystal (silicon) (piezoelectric effect).
This sensor is used to detect the atmospheric (absolute) pressure and outputs corresponding electrical signals.
Fluctuations in the air pressure cause changes in the intake air density, which can cause deviations in the air±
fuel ratio. The signals from BARO sensor are used to make corrections for these fluctuations. If the ECM detects
diagnostic trouble code º35º, the fail safe function operates and the atmospheric pressure is set at a constant
101.3 kPa (760 mmHg, 29.92 in.Hg).
 DTC No. Diagnostic Trouble Code Detecting Condition Trouble Area
35

Open or short in BARO sensor circuit for 0.5


ECM 35  Oen or short in BARO sensor circuit for 0.5
sec. or more
ECM

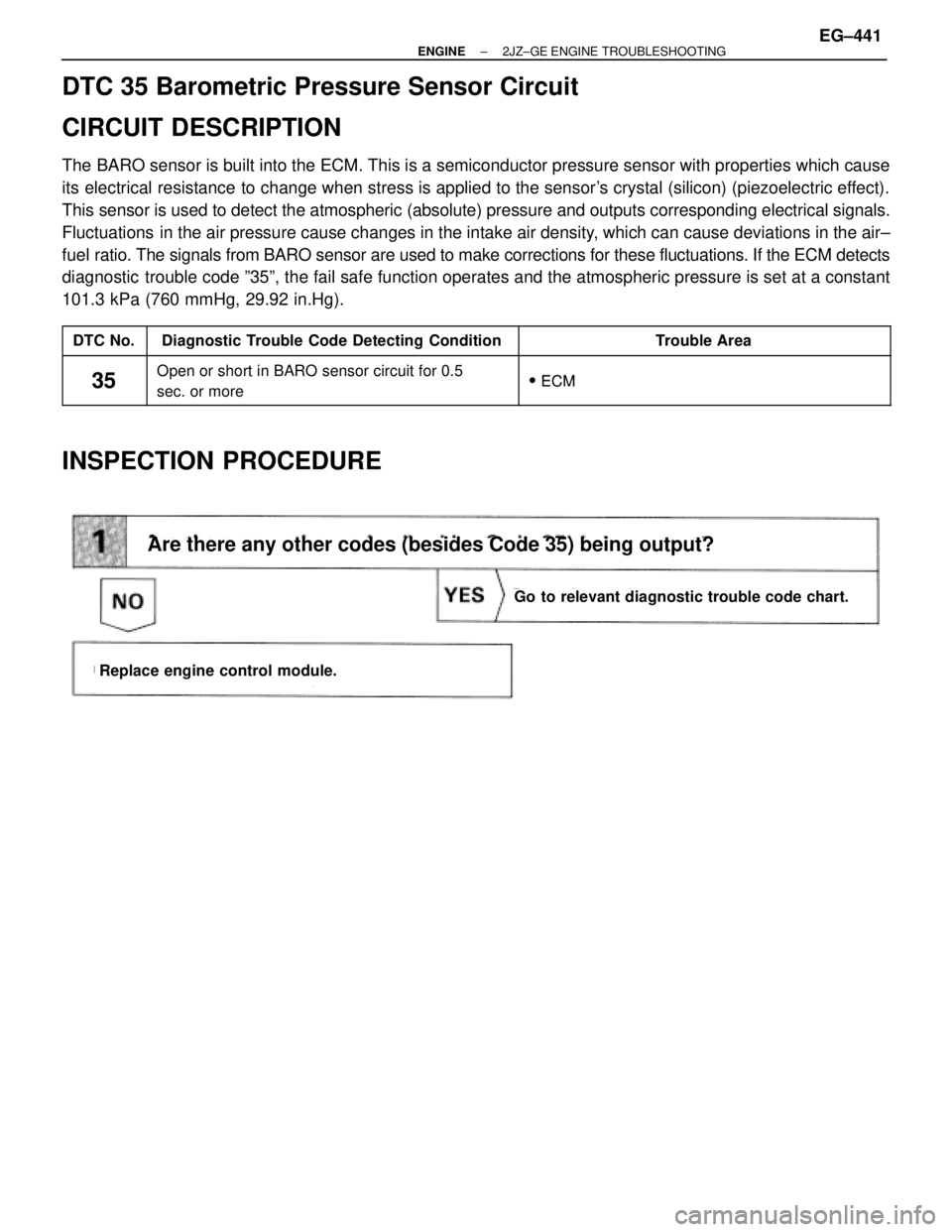

INSPECTION PROCEDURE
Are there any other codes (besides Code 35) being output?
Go to relevant diagnostic trouble code chart.
Replace engine control module.
± ENGINE2JZ±GE ENGINE TROUBLESHOOTINGEG±441

DTC 41 Throttle Position Sensor Circuit

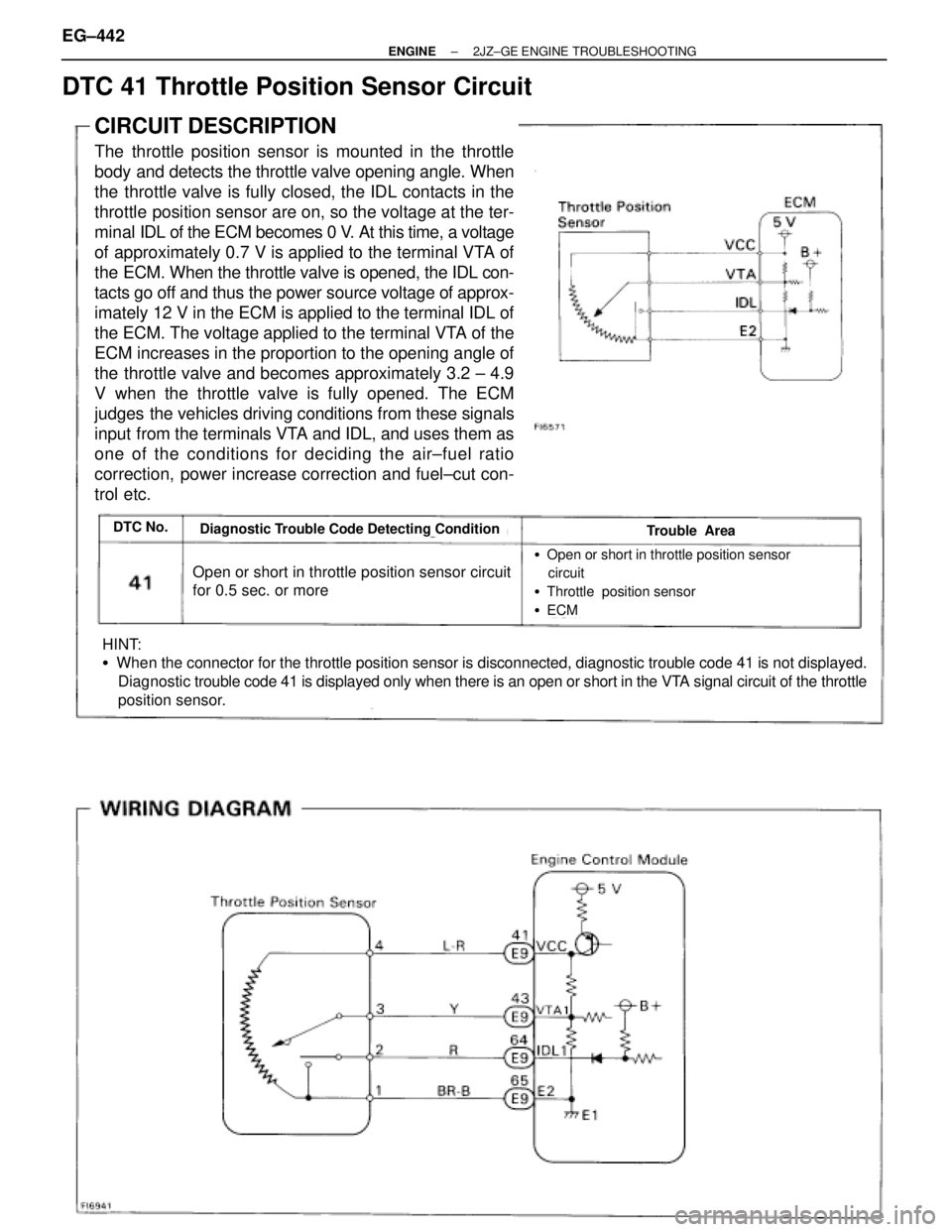

CIRCUIT DESCRIPTION
The throttle position sensor is mounted in the throttle
body and detects the throttle valve opening angle. When
the throttle valve is fully closed, the IDL contacts in the
throttle position sensor are on, so the voltage at the ter-
minal IDL of the ECM becomes 0 V. At this time, a voltage
of approximately 0.7 V is applied to the terminal VTA of
the ECM. When the throttle valve is opened, the IDL con-
tacts go off and thus the power source voltage of approx-
imately 12 V in the ECM is applied to the terminal IDL of
the ECM. The voltage applied to the terminal VTA of the
ECM increases in the proportion to the opening angle of
the throttle valve and becomes approximately 3.2 ± 4.9
V when the throttle valve is fully opened. The ECM
judges the vehicles driving conditions from these signals
input from the terminals VTA and IDL, and uses them as
one of the conditions for deciding the air±fuel ratio
correction, power increase correction and fuel±cut con-
trol etc.
Diagnostic Trouble Code Detecting ConditionDTC No.Trouble Area

Open or short in throttle position sensor
circuit

Throttle position sensor

ECM
Open or short in throttle position sensor circuit
for 0.5 sec. or more
HINT:

When the connector for the throttle position sensor is disconnected, diagnostic trouble code 41 is not displayed.
Diagnostic trouble code 41 is displayed only when there is an open or short in the VTA signal circuit of the throttle
position sensor.
