Page 531 of 2543

TOYOTA SUPRA 1995  Service Repair Manual EVALUATION
If N "D or N "R time lag is longer than specified:
 Problem Possible cause


Page 532 of 2543

TOYOTA SUPRA 1995  Service Repair Manual HYDRAULIC TEST
MEASURE LINE PRESSURE
NOTICE:
wDo the test at normal operating fluid temp. 50±805C (122±1765F)
wThe line pressure test should always be carried out in pairs. One technician should obs

Page 533 of 2543

TOYOTA SUPRA 1995  Service Repair Manual SPECIFIED LINE PRESSURE
Line pressure:
 Condition D position     kPa (kgf/cm2 psi) R position    kPa (kgf/cm2, psi)

Page 534 of 2543

TOYOTA SUPRA 1995  Service Repair Manual MEASURE ACCUMULATOR BACK PRESSURE
NOTICE:
wDo the test at normal operating fluid temp. 50±805C (122±1765F).
wBe careful to prevent the oil pressure gauge hose from interfering with the exhaust pipe.

Page 535 of 2543

TOYOTA SUPRA 1995  Service Repair Manual (f)  Fully apply the parking brake and chock the 4 wheels.
(g)  Start the engine and check idling speed.
(h)  Keep your left foot pressed firmly on the brake pedal and shift into D position.
(i)  Meas

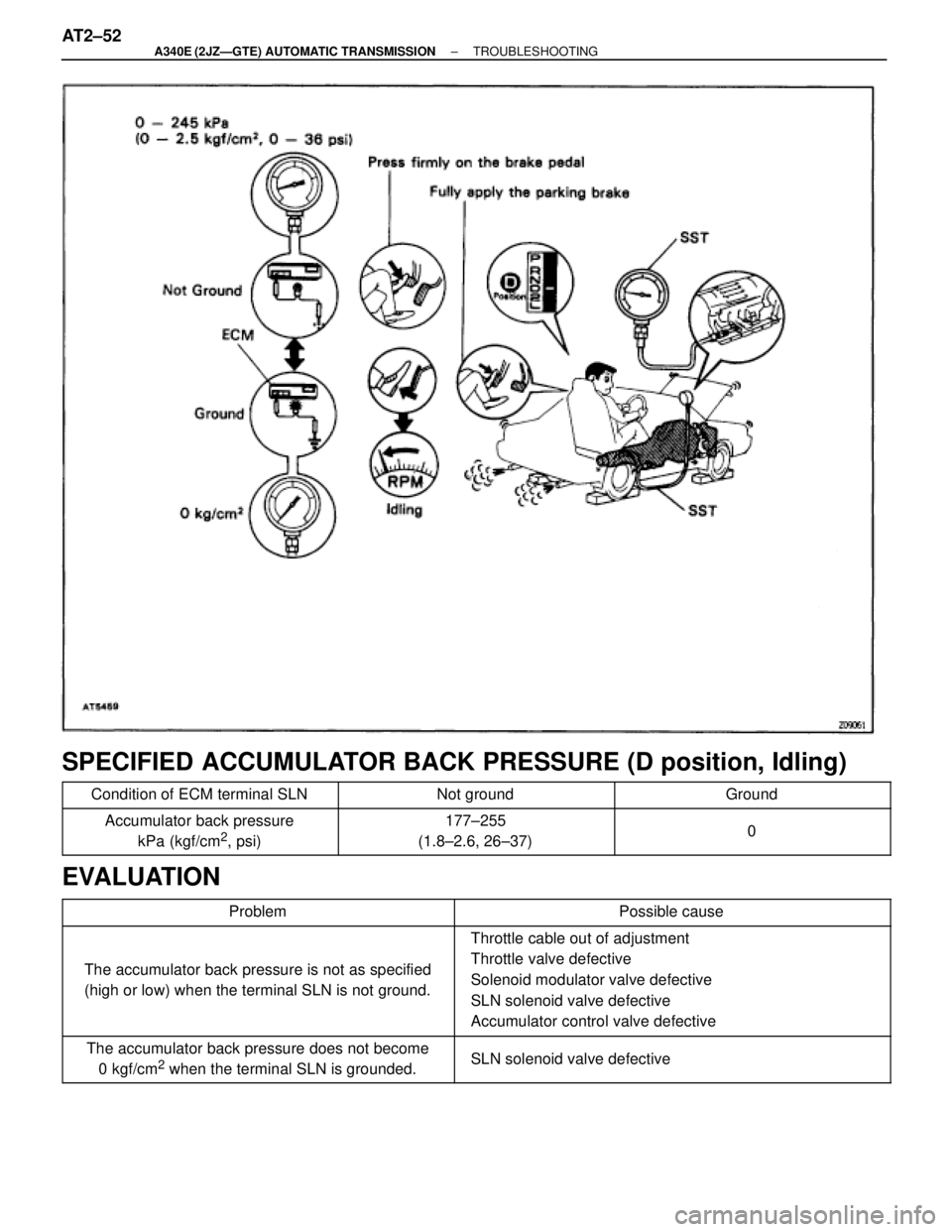

Page 536 of 2543

TOYOTA SUPRA 1995  Service Repair Manual SPECIFIED ACCUMULATOR BACK PRESSURE (D position, Idling)
 Condition of ECM terminal SLN Not ground Ground


Page 537 of 2543

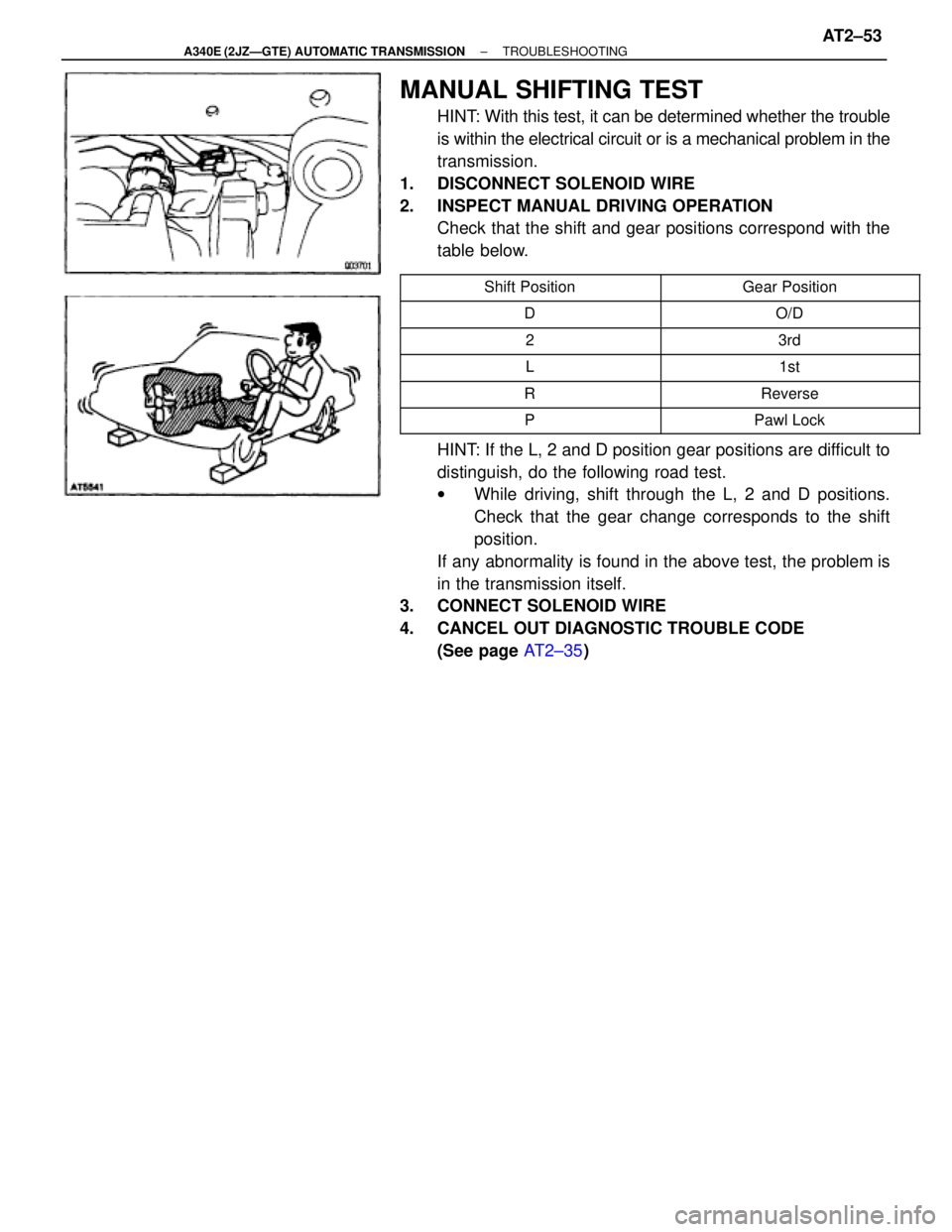

TOYOTA SUPRA 1995  Service Repair Manual MANUAL SHIFTING TEST
HINT: With this test, it can be determined whether the trouble
is within the electrical circuit or is a mechanical problem in the
transmission.
1.  DISCONNECT SOLENOID WIRE
2.  IN

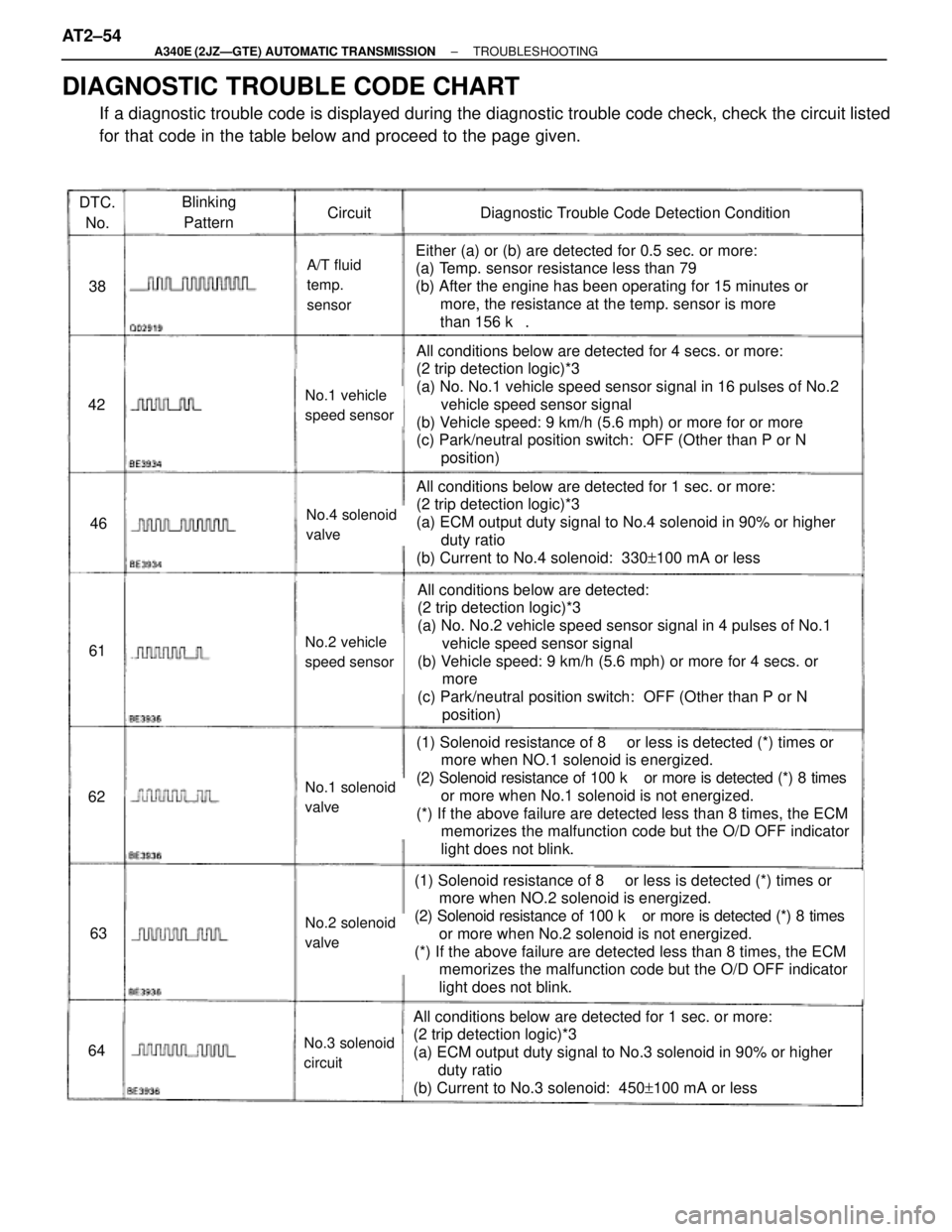

Page 538 of 2543

TOYOTA SUPRA 1995  Service Repair Manual DTC.
No.Blinking
PatternCircuitDiagnostic Trouble Code Detection Condition
38
42
46
61
62
63
64
A/T fluid
temp.
sensor
No.1 vehicle
speed sensor
No.4 solenoid
valve
No.2 vehicle
speed sensor
No.1 sole

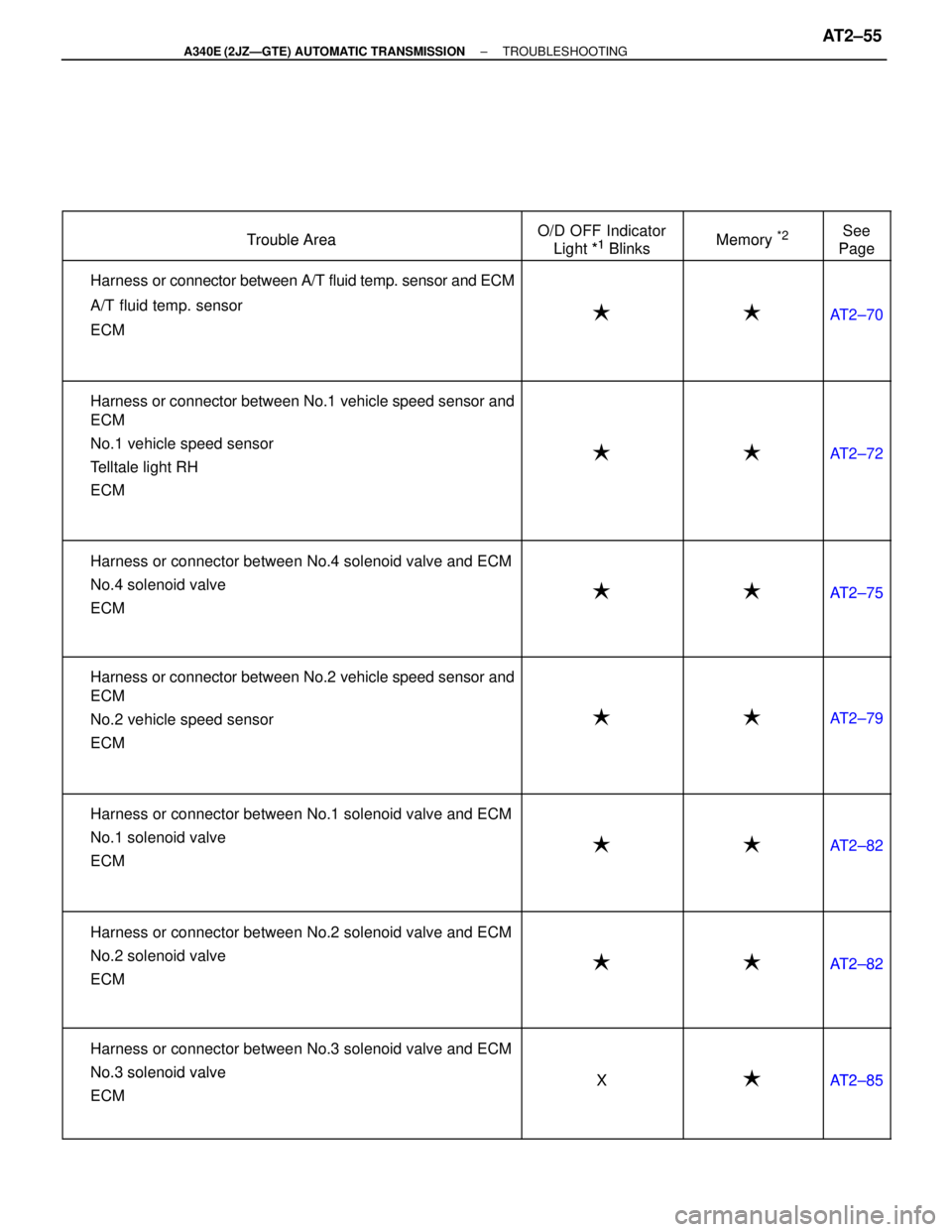

Page 539 of 2543

TOYOTA SUPRA 1995  Service Repair Manual
 Trouble Area

 O/D OFF Indicator
Light *1Blinks

 Memory *2

 See
Page

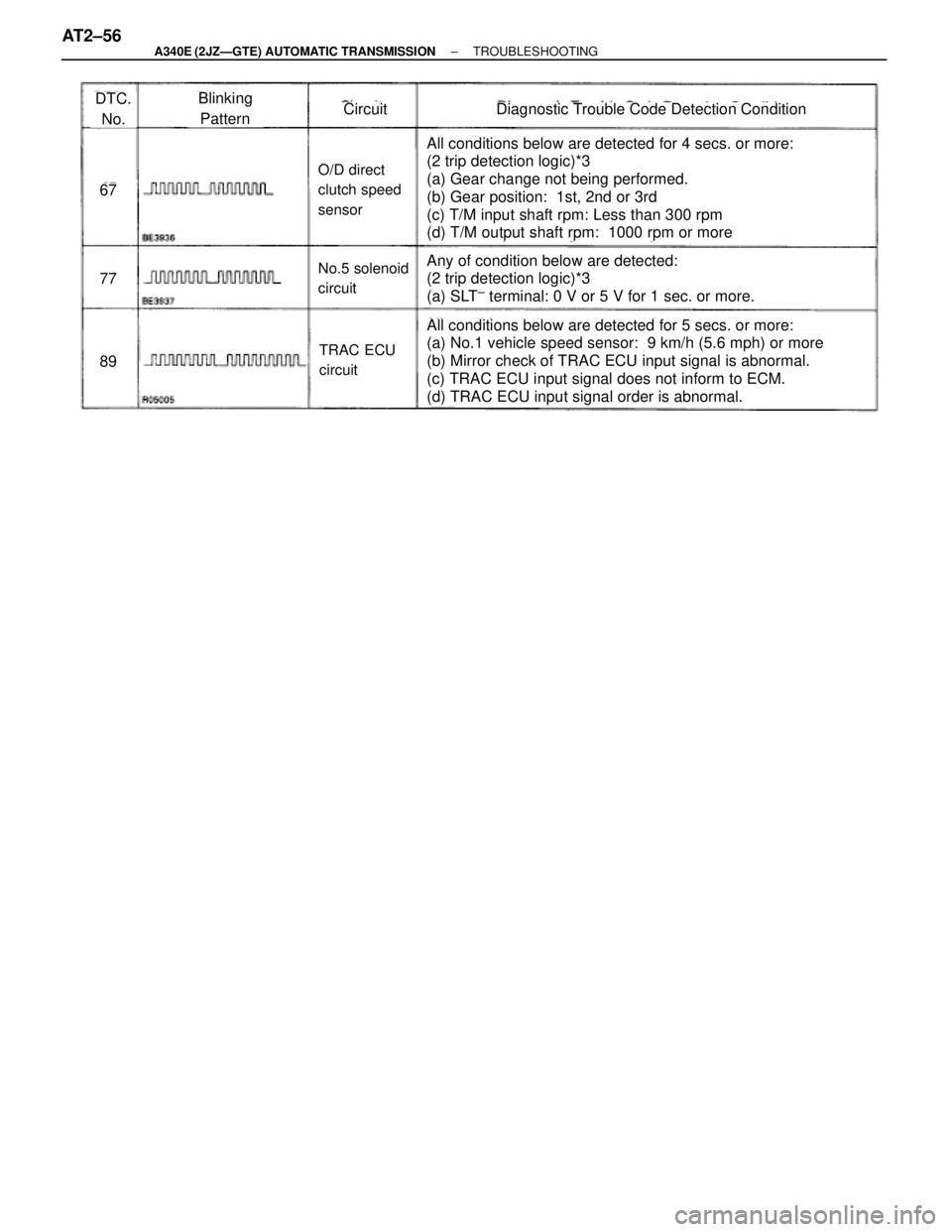

Page 540 of 2543

TOYOTA SUPRA 1995  Service Repair Manual DTC.
No.Blinking
PatternCircuitDiagnostic Trouble Code Detection Condition
67
77
89
O/D direct
clutch speed
sensor
No.5 solenoid
circuit
TRAC ECU
circuit
All conditions below are detected for 4 secs.
