TOYOTA SUPRA 2021 Owners Manual (in English)

1614-1. CONTROLS
Supra Owner’s Manual_U (from Mar. ’20
Prod.)
4
CONTROLS
Press and hold the button on the
turn signal lever.
The sensitivity of the Automatic
high-beam can be adjusted.
The setting can only be per-
formed when the vhicle is sta-
tionary. The drive-ready state
must be switched on and the
light must be turned off. Pull the turn signal lever for
approximately 10 seconds. The
system responds more sensi-
tively.
A vehicle message is displayed.
Pull the turn signal lever again
for approx. 10 seconds. The
sensitivity of the Automatic
high-beam is reset to the factory
settings.
The Automatic high-beam can-
not serve as a substitute for the
driver's personal judgment of
when to use the high beams. In
situation that require this, there-
fore switch off manually.
The system is not fully functional
in the following situations, and
driver intervention may be nec-
essary:

In very unfavorable weather
conditions, such as fog or
heavy precipitation.
 When detecting poorly-lit road
users such as pedestrians,
cyclists, horseback riders and
wagons; when driving close to
train or ship traffic; or at ani-
mal crossings.
 In tight curves, on hilltops or
in depressions, in crossing
Deactivating
Sensitivity of the Auto-
matic high-beam
General information
WA R N I N G
If adjustments have been made or
the sensitivity ha s been modified,
oncoming traffic may be momen-
tarily blinded. There is a risk of an
accident. If adjustments have
been made and the sensitivity has
been modified, make sure that
oncoming traffic is not momentar-
ily blinded. Switch off the high
beams manually if required.
Functional requirements
Adjusting the sensitivity
Resetting the sensitivity
System limits

1624-1. CONTROLS
Supra Owner’s Manual_U (from Mar. ’20
Prod.)
traffic or half-obscured
oncoming traffic on highways.
 In poorly-lit towns and cities
or in the presence of highly
reflective signs.
 When the windshield in front
of the interior mirror is fogged
over, dirty or covered with
stickers, etc.
The parking lights or low beams
must be switched on to adjust
the brightness.
Depending on the equipment
version, interior lights, footwell
lights and door entry lighting are
automatically controlled. To switch off permanently: press
the button and hold for approx. 3
seconds.
Instrument lighting
Functional requirement
Settings
Adjust the brightness
with the thumbwheel.
Interior lights
General information
Overview
Buttons in the vehicle
Interior lights
Reading lights
Switching the interior
lights on/off
Press the button.
Switching the reading
lights on/off
Press the button.

1634-1. CONTROLS
Supra Owner’s Manual_U (from Mar. ’20
Prod.)
4
CONTROLS
This chapter describes all stan-
dard, country-specific and
optional features offered with
the series. It also describes fea-
tures and functions that are not
necessarily available in your
vehicle, e.g., due to the selected
options or country versions. This
also applies to safety-related
functions and systems. When
using these functions and sys-
tems, the applicable laws and
regulations must be observed.
Safety
Vehicle features and
options

1644-1. CONTROLS
Supra Owner’s Manual_U (from Mar. ’20
Prod.)
1Knee airbag
2 Front airbag, driver
3 Front airbag, front passenger
4 Curtain shield airbag
5 Side airbag
Front airbags help protect the
driver and the front passenger
by responding to frontal impacts
in which safety belts alone
would not provide adequate pro-
tection.
In the event of a side impact, the
side airbag protects the side of
the body in the chest, lap, and
head area. The knee airbag protects the
legs in the event of a frontal
impact.
The curtain shield airbag sup-
ports the head in the event of a
side-on crash.
Airbags
Front airbags
Side airbagKnee airbag
Curtain shield airbag

1654-1. CONTROLS
Supra Owner’s Manual_U (from Mar. ’20
Prod.)
4
CONTROLS
Airbags are not triggered in
every impact situation, for
instance in less severe acci-
dents.
 Keep a distance from the air-
bags.
 Always grasp the steering
wheel on the steering wheel
rim. Hold your hands at the 3
o'clock and 9 o'clock posi-
tions, to keep the risk of injury
to your hands or arms as low
as possible when the airbag is
triggered.
 Make sure that the front pas-
senger is sitting correctly, i.e.,
keeps his or her feet and legs
in the floor area and does not
support them on the dash-
board.
 Make sure that occupants keep their heads away from
the side airbag.
 There should be no addi-
tional persons, animals or
objects between an airbag
and a person.
 Dashboard and windshield on
the front passenger side must
stay clear - do not attach
adhesive labels or coverings
and do not attach brackets or
cables, for instance for GPS
devices or mobile phones.
 Do not apply adhesive materi-
als to the airbag cover panels,
do not cover them or modify
them in any way.
 Do not use the cover of the
front airbag on the front pas-
senger side as a storage
area.
 D o n o t a t t a c h s l i p c o v e r s , s e a t
cushions or other objects to
the front passenger seat that
are not specifically suited for
seats with integrated side air-
bags.
 Do not hang pieces of cloth-
ing, such as jackets, over the
backrests.
 Never modify either the indi-
vidual components or the wir-
ing in the airbag system. This
also applies to steering wheel
covers, the dashboard, and
the seats.
 Do not remove the airbag sys-
tem.
Protective effect
General information
Information on optimum
effect of the airbags
WA R N I N G
If the seat positi on is incorrect or
the deployment area of the air-
bags is impaired, the airbag sys-
tem cannot provide protection as
intended and ma y cause addi-
tional injuries due to triggering.
There is a risk o f injuries or dan-
ger to life. Follow the information
on achieving the optimum protec-
tive effect of the airbag system.

1664-1. CONTROLS
Supra Owner’s Manual_U (from Mar. ’20
Prod.)
Even when you follow all
instructions very closely, injury
from contact with the airbags
cannot be fully ruled out in cer-
tain situations.
The ignition and inflation noise
may lead to short-term and, in
most cases, temporary hearing
impairment in sensitive occu-
pants.
Vehicle modifications for a per-
son with disabilities may affect
the air bag system; contact the
Toyota dealer for further infor-
mation.
Warnings and information on the
airbags are also found on the
sun visors.Have the system checked.
The airbags are not designed to
be used in place of the seat
belts.
The SRS front airbags and SRS
knee airbags are designed to
supplement the seat belts, not
Functional readiness of
the airbag system
Safety information
WA R N I N G
Individual components can be hot
after triggering of the airbag sys-
tem. There is a risk of injury. Do
not touch individual components.
WA R N I N G
Improperly executed work can
lead to failure, malfunction or
unintentional triggering of the air-
bag system. In the case of a mal-
function, the airbag system might
not trigger as intended despite the
accident severity. There is a risk
of injuries or danger to life. Have
the airbag system checked,
repaired, dismantled and
scrapped by your Toyota dealer.
Display in the instrument
cluster
When drive-ready state is
switched on, the warning
light in the instrument
cluster lights up briefly and
thereby indicates the func-
tion readiness of the entire
airbag system and the belt
tensioners.
Malfunction
 Warning light does not
come on when
drive-ready state is
switched on.
 The warning light lights
up continuously.
SRS front airbag/SRS knee
airbag

1674-1. CONTROLS
Supra Owner’s Manual_U (from Mar. ’20
Prod.)
4
CONTROLS
be used in place of them, to
increase their effectiveness as
an occupant protection device.
SRS is an acrony m for Supplemen-
tal Restraint System
In the event of a collision, the
seat belts restrain the occupants
in their seats, but if the impact of
the collision is especially
severe, there is danger of an
occupant’s head and chest con-
tacting the steering wheel, dash-
board and windshield. In this
case, the SRS front airbags and
SRS knee airbags deploy
(inflate), instantly creating an air
cushion to help reduce the
impact on the occupants and
restrain them from contacting
the steering wheel, etc. with
their head, chest and knees.
The SRS front air bags and SRS
knee airbags deploy only when
an impact exceeding a certain
threshold is detected. In a colli-
sion, even if the impact is
severe enough to cause the
vehicle body to deform, the SRS
airbags may not deploy if the
impact of the collision is suffi-
ciently dispersed by the crash
structures of the vehicle body. If
the force of the collision does
not cause the airbags to deploy,
the seatbelts will protect the
occupants.
When an airbag deploys, as it
will inflate nearly instantly, it may
impact an occupant and cause an injury, or the loud noise emit-
ted by ignition or deployment
may cause temporary partial
loss of hearing. Also, as an air-
bag and nearby parts will be
extremely hot after the airbag
deploys, touching them may
cause burns. For these reasons,
deployment of the airbags is not
entirely risk free. Therefore, in
order to reduce this risk, the air-
bags are designed to only
deploy when additional reduc-
tion of the impact applied to the
occupants in a collision is nec-
essary.
WA R N I N G
Wear the seatbelt correctly and sit
with the correct posture.
If you sit with your head too close
to the steering wheel, when the
SRS front airbag deploys, it may
apply a very large impact to your
body. Sit in the driver

1684-1. CONTROLS
Supra Owner’s Manual_U (from Mar. ’20
Prod.)
When the vehicle is involved in
a frontal collision which exceeds
a threshold equivalent to collid-
ing with a concrete wall which
does not move or deform
When an impact which exceeds
a threshold is applied to the
vehicle at an angle of 30
degrees or less of the front left
WA R N I N G
Do not position the passenger

1694-1. CONTROLS
Supra Owner’s Manual_U (from Mar. ’20
Prod.)
4
CONTROLS
or right corner of the vehicle (A)
When an impact which exceeds
a threshold is applied to the
underside of the vehicle
When the vehicle collides with a
curb
When the vehicle falls into a
deep hole or ditch When the vehicle is jumped and
lands hard
When the vehicle is involved in
a frontal collision with parked
vehicle with approximately the
same mass
When the vehicle is involved in
an underride collision with a
truck
The SRS front airbags and
SRS knee airbags may
deploy when
The threshold for the SRS
front airbags and SRS knee
airbags to deploy will
increase considerably when

1704-1. CONTROLS
Supra Owner’s Manual_U (from Mar. ’20
Prod.)

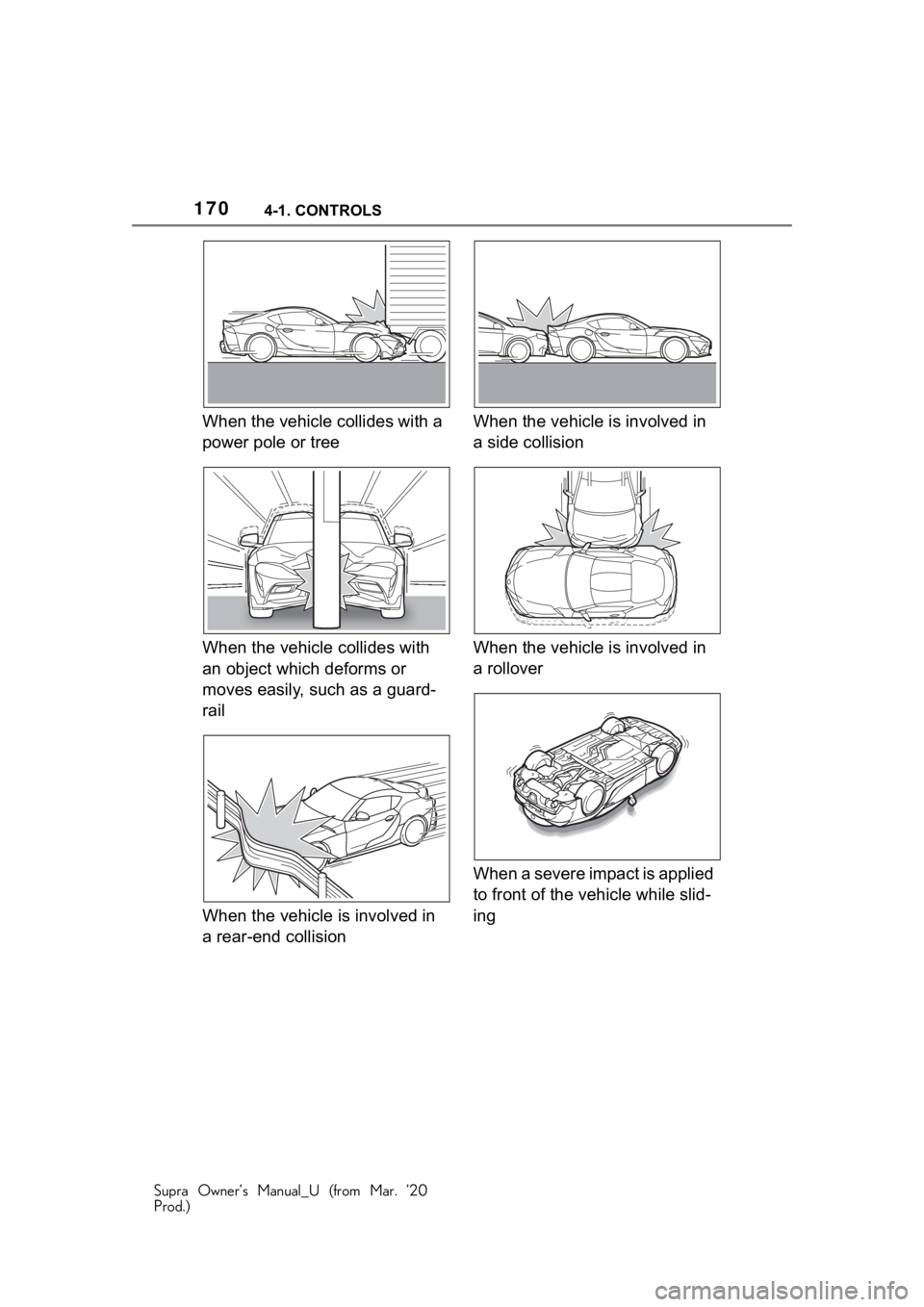

When the vehicle collides with a
power pole or tree
When the vehicle collides with
an object which deforms or
moves easily, such as a guard-
rail
When the vehicle is involved in
a rear-end collisionWhen the vehicle is involved in
a side collision
When the vehicle is involved in
a rollover
When a severe impact is applied
to front of the vehicle while slid-
ing
