TOYOTA SUPRA 2021 Warranties & Maintenance Guides (in English)

40
■Check installation of driver’s floor mat
■Inspect and adjust all fluid levels1
■Inspect wiper blades
■Replace brake fluid
■
Replace engine oil and oil filter3
■
Visually inspect brake linings/drums and brake pads/discs4
Dealer Service verification:
Date:Mileage:
■Check installation of driver’s floor mat
■Inspect and adjust all fluid levels1
■Inspect engine air filter2
■
Inspect radiator, condenser and/or intercooler
■Inspect wiper blades
■
Replace cabin air filter
■Replace engine oil and oil filter3
■
Visually inspect brake linings/drums and brake pads/discs4


Dealer Service verification:
Date:Mileage:
■Check installation of driver’s floor mat
■Inspect and adjust all fluid levels1
■Inspect wiper blades
■Replace brake fluid
■
Replace engine oil and oil filter3
■
Visually inspect brake linings/drums and brake pads/discs4
60,000 miles or 72 months
50,000 miles or 60 months
70,000 miles or 84 months
Dealer Service verification:
Date:Mileage:
Maintenance Log
MAINTENANCE LOG
MAINTENANCE

41
80,000 miles or 96 months
■Check installation of driver’s floor mat
■Inspect and adjust all fluid levels1
■
Inspect radiator, condenser and/or intercooler
■Inspect wiper blades
■Perform road test
■
Replace cabin air filter
■Replace engine air filter
■Replace engine oil and oil filter3
■Replace spark plugs5
■Reset tire pressure settings in central information display (CID)
■
Visually inspect brake linings/drums and brake pads/discs4
Inspect the following:
_Brake lines and hoses
_Coolant level and coolant composition
_Heater/air conditioning blower motor
_
Horn, headlight flashers and hazard warning flashers
_Lighting system
_Mobility system6
_Seat belts
Dealer Service verification:
Date:Mileage:
_Steering linkage and boots
_tires
_
vehicle underbody and all other visible components
_ Warning triangle
_Wiper and washer system
1 inspect sealed transmissions, transfer cases and differentials for signs of leakage. if any leakage from a sealed component is suspected, it is recommended that you have the sealed component inspected by a toyota dealer. inspect power steering fluid (if equipped) and brake fluid level/condition. inspect engine and inverter (if equipped) coolant level/condition/freezing point. Your dealer may recommend services (Dealer-recommended Maintenance) based on inspection results.2 Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten the life of the engine air filter and may require replacement. 3 replace the engine oil and oil filter when the engine oil warning light appears, even if 12 months have not passed or when driven less than 10,000 miles since the last oil change. reset maintenance reminder light if oil was changed.4 replace brake pads when the brake warning light appears.5 Maintenance services of spark plugs are required under the terms of the emissions control Warranty.6 check the sealant container expiration date during inspection. replace the sealant container with a new one before the expiration date. refer to the

42
■
■Check installation of driver

43
120,000 miles or 144 months
■Check installation of driver’s floor mat
■Inspect and adjust all fluid levels1
■
Inspect radiator, condenser and/or intercooler
■Inspect wiper blades
■Perform road test
■
Replace cabin air filter
■Replace engine air filter
■Replace engine oil and oil filter3
■Replace spark plugs5
■Reset tire pressure settings in central information display (CID)
■
Visually inspect brake linings/drums and brake pads/discs4
Inspect the following:
_Brake lines and hoses
_Coolant level and coolant composition
_Heater/air conditioning blower motor
_
Horn, headlight flashers and hazard warning flashers
_Lighting system
_Mobility system6
_Seat belts
Dealer Service verification:
Date:Mileage:
1 inspect sealed transmissions, transfer cases and differentials for signs of leakage. if any leakage from a sealed component is suspected, it is recommended that you have the sealed component inspected by a toyota dealer. inspect power steering fluid (if equipped) and brake fluid level/condition. inspect engine and inverter (if equipped) coolant level/condition/freezing point. Your dealer may recommend services (Dealer-recommended Maintenance) based on inspection results.2 Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten the life of the engine air filter and may require replacement. 3 replace the engine oil and oil filter when the engine oil warning light appears, even if 12 months have not passed or when driven less than 10,000 miles since the last oil change. reset maintenance reminder light if oil was changed.4 replace brake pads when the brake warning light appears.5 Maintenance services of spark plugs are required under the terms of the emissions control Warranty.6 check the sealant container expiration date during inspection. replace the sealant container with a new one before the expiration date. refer to the

44

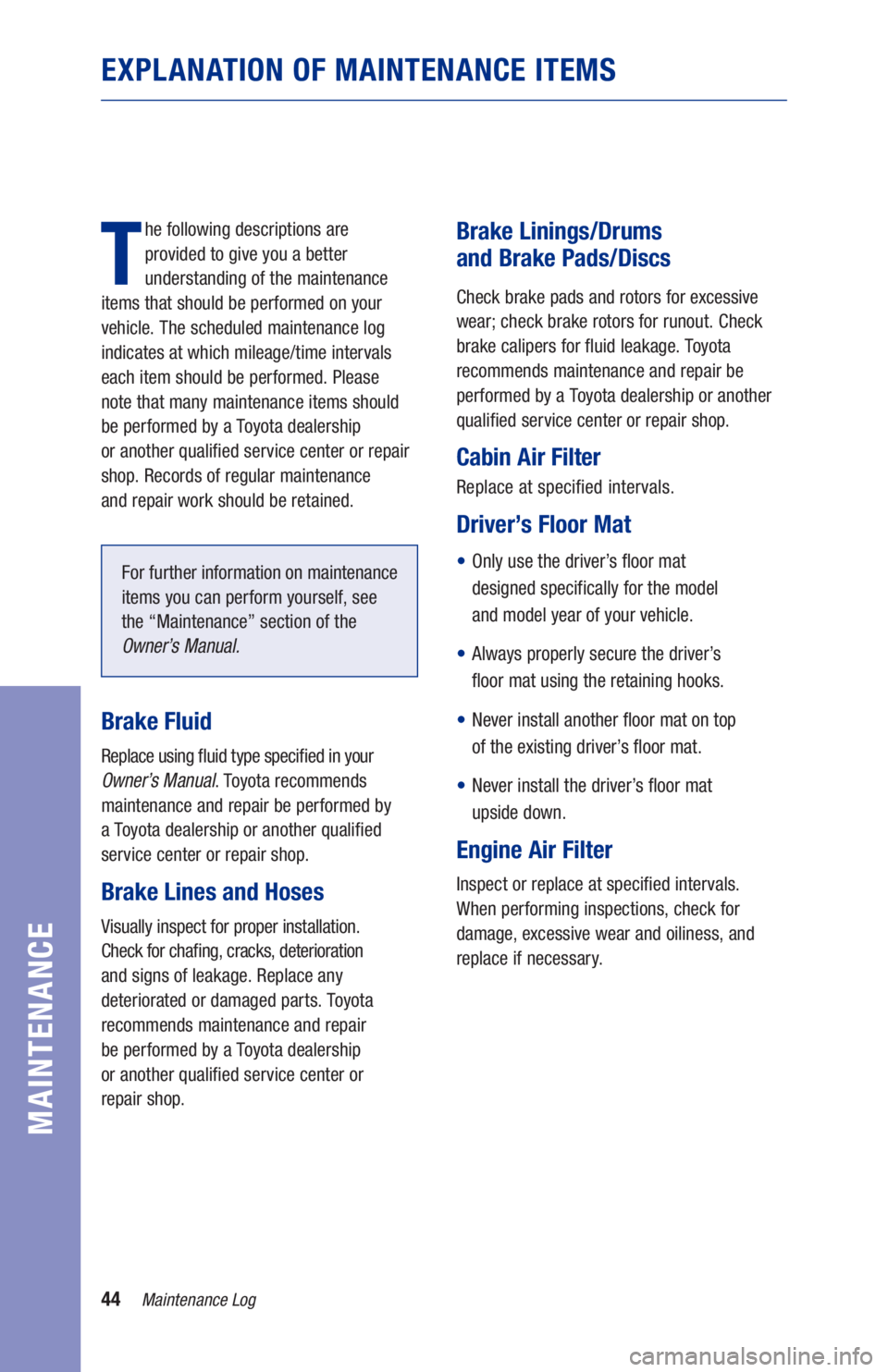

EXPLANATION OF MAINTENANCE ITEMS
T
he following descriptions are
provided to give you a better
understanding of the maintenance
items that should be performed on your
vehicle. The scheduled maintenance log
indicates at which mileage/time intervals
each item should be performed. Please
note that many maintenance items should
be performed by a Toyota dealership
or another qualified service center or repair
shop. Records of regular maintenance
and repair work should be retained.

For further information on maintenance
items you can perform yourself, see
the “Maintenance” section of the
Owner’s Manual.
Brake Fluid
Replace using fluid type specified in your
Owner’s Manual. Toyota recommends
maintenance and repair be performed by
a Toyota dealership or another qualified
service center or repair shop.
Brake Lines and Hoses
Visually inspect for proper installation.
Check for chafing, cracks, deterioration
and signs of leakage. Replace any
deteriorated or damaged parts. Toyo t a
recommends maintenance and repair
be performed by a Toyota dealership
or another qualified service center or
repair shop.
Brake Linings/Drums
and Brake Pads/Discs
Check brake pads and rotors for excessive
wear; check brake rotors for runout. Check
brake calipers for fluid leakage. Toyo t a
recommends maintenance and repair be
performed by a Toyota dealership or another
qualified service center or repair shop.
Cabin Air Filter
Replace at specified intervals.
Driver’s Floor Mat
•
Only use the driver’s floor mat
designed specifically for the model
and model year of your vehicle.
•
Always properly secure the driver’s
floor mat using the retaining hooks.
•
Never install another floor mat on top
of the existing driver’s floor mat.
•
Never install the driver’s floor mat
upside down.
Engine Air Filter
Inspect or replace at specified intervals.
When performing inspections, check for
damage, excessive wear and oiliness, and
replace if necessary.
Maintenance Log
MAINTENANCE

45
EXPLANATION OF MAINTENANCE ITEMS


Engine Coolant
Check the coolant levels and coolant
composition of both coolant reservoirs
and refill as needed. Inspect hoses and
connections for corrosion and leaks. Toyota
recommends maintenance and repair be
performed by a Toyota dealership or another
qualified service center or repair shop.
For further details, refer to the “Operating
materials” section of the Owner’s Manual. Engine Oil and Oil Filter
Replace the oil filter and drain and refill
the engine oil at specified intervals. For
recommended oil grade and viscosity,
refer to the Owner’s Manual.
NOTE: Your vehicle is certified with Toyota
Genuine Motor Oil SN 0W-20 C5. Replace
the oil filter and drain and refill the engine oil
every 12 months or 10,000 miles, or when the
oil maintenance reminder appears, whichever
comes first. Toyota recommends you have
your Toyota dealer change the engine oil.
Lighting System
Check that all exterior and interior lights are
operational. The manufacturer of your vehicle
recommends work on the lighting system,
including bulb replacement, be performed by
your Toyota dealer.



R o a d Te s t
While driving the vehicle, check for proper
operation of engine, transmission, brakes
and steering. Also check the parking brake,
and check for ab
normal noise or vibration
from any part of the vehicle.
Spark Plugs
Replace at specified intervals. Install
new plugs of the same type as originally
equipped. Toyota recommends maintenance
and repair be performed by a Toyota
dealership or another qualified service
center or repair shop.
Maintenance Log
MAINTENANCE

46
EXPLANATION OF MAINTENANCE ITEMS



Steering Linkage and Boots
With the vehicle stopped, check for
excessive freeplay in the steering wheel.
Inspect the linkage for bending and
damage and the dust boots for deterioration,
cracks and damage. Replace any damaged
parts. Toyota recommends maintenance and
repair be performed by a Toyota dealership
or another qualified service center or
repair shop.
Tires
Check tire pressure and check tires for
damage and uneven wear. If the vehicle
is equipped with a spare tire, check the
condition and pressure of the spare.
Washer System
Check windshield wiper and washer nozzle
positions. For further details, refer to the
“Driving” section of the Owner’s Manual.
Wiper Blades
The wiper blades should not show any
signs of cracking, splitting, wear,
contamination or deformation. The
wiper blades should clear the windshield
without streaking or skipping.
Maintenance Log
MAINTENANCE

47
VEHICLE IDENTIFICATION
Model
In-service date
Selling dealership
Key number
Body style
Mileage at delivery
Selling dealership phone number
Vehicle Identification Number
Maintenance Log
MAINTENANCE

48
NOTES
Maintenance Log
MAINTENANCE

49
NOTES
Maintenance Log
MAINTENANCE
