Page 341 of 372

TOYOTA SUPRA 2023 Owners Manual 3416-1. REFERENCE
6
REFERENCE
*1: Vehicles with manual transmission
*2: Vehicles with automatic transmission
Observe further information on fuel quality, refer to page 300.
Weights
2.0 models
Approved

3416-1. REFERENCE
6
REFERENCE
*1: Vehicles with manual transmission
*2: Vehicles with automatic transmission
Observe further information on fuel quality, refer to page 300.
Weights
2.0 models
Approved gross vehicle weightlbs/kg3770 / 1710
Loadlbs/kg430 / 195
Approved front axle loadlbs/kg1819 / 825
Approved rear axle loadlbs/kg2006 / 910
3.0 and 3.0 Premium models
Approved gross vehicle weightlbs/kg3990 / 1810*1
4001 / 1815*2
Loadlbs/kg553 / 251*1
542 / 246*2
Approved front axle loadlbs/kg1907 / 865
Approved rear axle loadlbs/kg2127 / 965
Capacities
Fuel tank, approx.US gal/liters13.7 / 52
Engine
ModelB46B20O1B58B30O1
Ty p e
4-cylinder in line, 4-cycle,
gasoline (with turbo-
charger)6-cylinder in line, 4-cycle,
gasoline (with turbo-
charger)
Bore and stroke3.23  3.72 in. (82.0  94.6
mm)3.23  3.72 in. (82.0  9 4 . 6
mm)
Displacement121.93 cu. in. (1998 cm3)182.95 cu. in. (2998 cm3)

Page 342 of 372

TOYOTA SUPRA 2023 Owners Manual 3426-1. REFERENCE
See the further information on engine oil grade, refer to page 301.
Vehicles without LSD (Limited Slip Differential)
Vehicles with LSD (Limited Slip Differential)
Engine oil
Ga

3426-1. REFERENCE
See the further information on engine oil grade, refer to page 301.
Vehicles without LSD (Limited Slip Differential)
Vehicles with LSD (Limited Slip Differential)
Engine oil
Gasoline Engine
Toyota Genuine Motor Oil SN 0W-20 C5 for GR Toyota Supra
BMW Longlife-17 FE+ 0W-20
Cooling system
Coolant typeAntifreeze and Corrosion Inhibitor Frostox HT-12
Manual transmission
Fluid typeManual Transmission Fluid MTF-LT-5
Automatic transmission
Fluid typeAutomatic Gearbox Oil ATF 3+
Differential
Oil type and viscosityHypoid Axle Oil G3
Oil type and viscosityHypoid Axle Oil G4
Brakes
Fluid typeBrake Fluid DOT 4, Low Viscosity

Page 343 of 372

TOYOTA SUPRA 2023 Owners Manual 3436-1. REFERENCE
6
REFERENCE
The following note is for all
radio-based Components of the
vehicle and the vehicle inte-
grated information systems and
communication devices:
The radio-based compone

3436-1. REFERENCE
6
REFERENCE
The following note is for all
radio-based Components of the
vehicle and the vehicle inte-
grated information systems and
communication devices:
The radio-based components of
this vehicle are in accordance
with the basic requirements and
the rest relevant provisions of
the Directive 2014/53 / EU. Fur-
ther information is available
from your Toyota dealer.

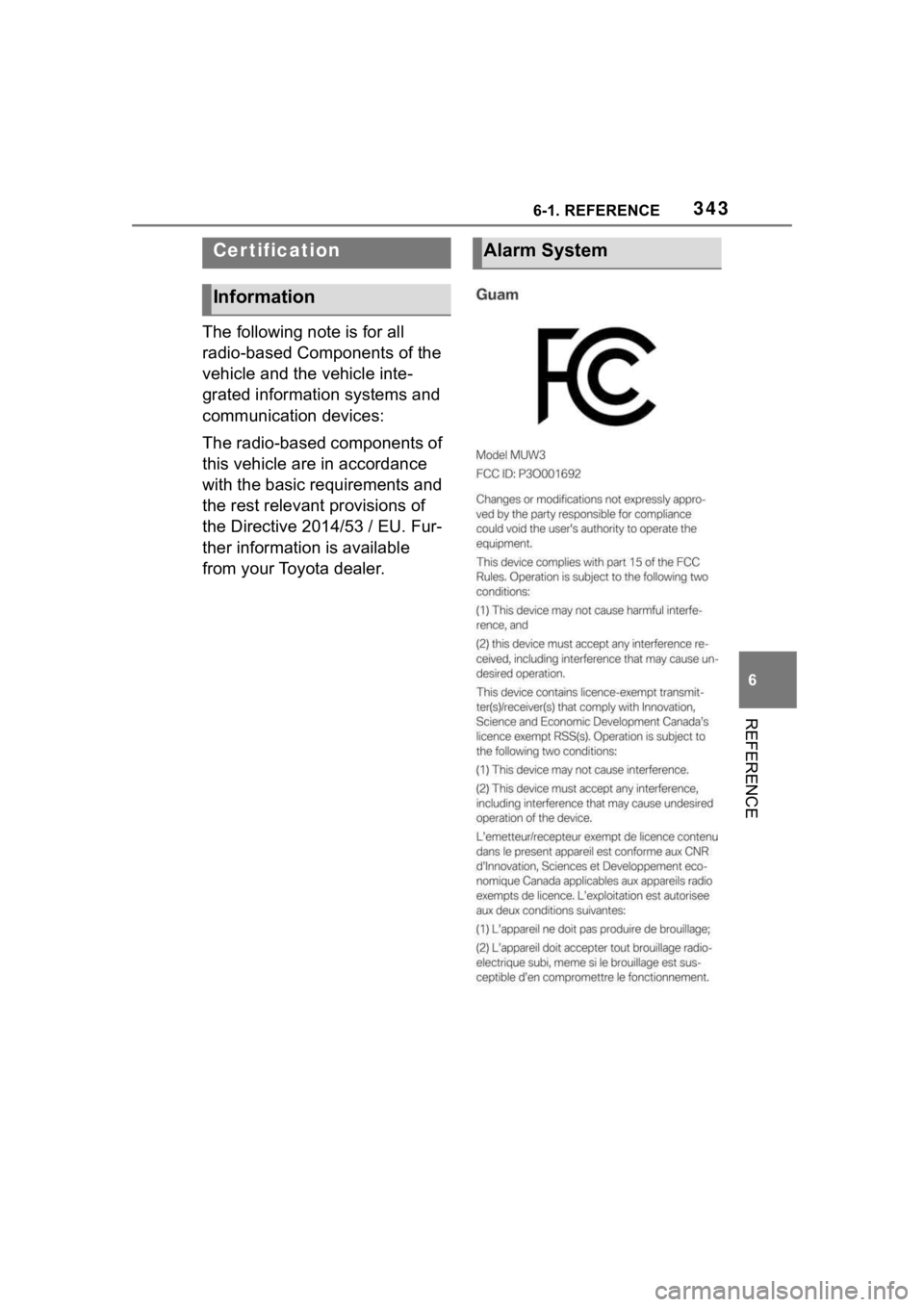

Cer tification
Information
Alarm System
