TOYOTA TACOMA 2005 Owners Manual (in English)

812005 TACOMA from Mar. ’05 Prod. (OM35862U)
LS13139a
The front passenger occupant classifi-
cation indicator light indicates the ac-
tuation of the front passenger airbag
and side airbag on the front passenger
seat.
The indicator light will indicate “OFF”
when the ignition switch is in the “ON”
position with the condition 2 in the table
shown below.If the front passenger occupant classifica-
tion system determines that a person of
adult size sits in the front passenger seat
but the “OFF” indicator is illuminated, one
of the following is likely to have occurred:
A rear passenger lifts the front passen-
ger seat cushion with their legs.
Objects are placed under the front pas-
senger seat.
The front passenger seatback is in
contact with the rear seat or the back
wall.
To ensure the system correctly detects an
adult sitting in the front passenger seat,
make sure the above do not occur.
Make sure that the “ON” indicator illumi-
nated when an adult is seated in the front
passenger seat. If the “OFF” indicator is
illuminated, ask the passenger to sit up
straight, well back in the seat, and with
the seat belt worn correctly. If the “OFF”
indicator still remains illuminated, either
ask the passenger to move to the rear
seat, or if that is not possible, move the
front passenger seat fully rearward. The front passenger occupant classifi-
cation indicator light will indicate “ON”
and “OFF” when the ignition key is
turned to the “ON” position. After
about four seconds, it will go off. After
that, the front passenger occupant clas-
sification system operates and judges
whether to indicate “ON” or “OFF”.

822005 TACOMA from Mar. ’05 Prod. (OM35862U)
LS13140
The SRS warning light will come on
and front passenger occupant classifi-
cation indicator light will indicate
“OFF” if there is a malfunction in the
front passenger occupant classification
system.

832005 TACOMA from Mar. ’05 Prod. (OM35862U)
Condition and operation in the front passenger occupant classification system
Regular and access cab modelsCondition detected bythe front passenger
occupant classification system
Passenger
airbag on −off
switch position
Indicator/warning lightDevices
Front passenger
occupant
classification
indicator light
SRS warning
light
Front
passenger ’s seat belt
reminder light
Front passenger
airbag
Front
passenger ’s seat belt
pretensioner
1. Adult∗ 1“AUTO”“ON”OffFlashing∗4ActivatedActivated“OFF”“OFF”Deactivated
2. Child∗2 or child
restraint system∗ 3
“AUTO”“OFF”OffFlashing∗4DeactivatedActivated“OFF”
3. Unoccupied“AUTO”Not illuminatedOffOffDeactivated“OFF”“OFF”
4. There is a
malfunction in the
system“AUTO”
“OFF”OnOffDeactivatedActivated“OFF”
∗1: The system judges a person of adult size as an adult. When a smaller adult sits in the front passenger seat, the system may
recognize him/her as a child depending on his/her physique and posture.
∗2: When a larger child who has outgrown a child restraint system sits in the front passenger seat, the system may recognize him/h er
as an adult depending on his/her physique or posture.

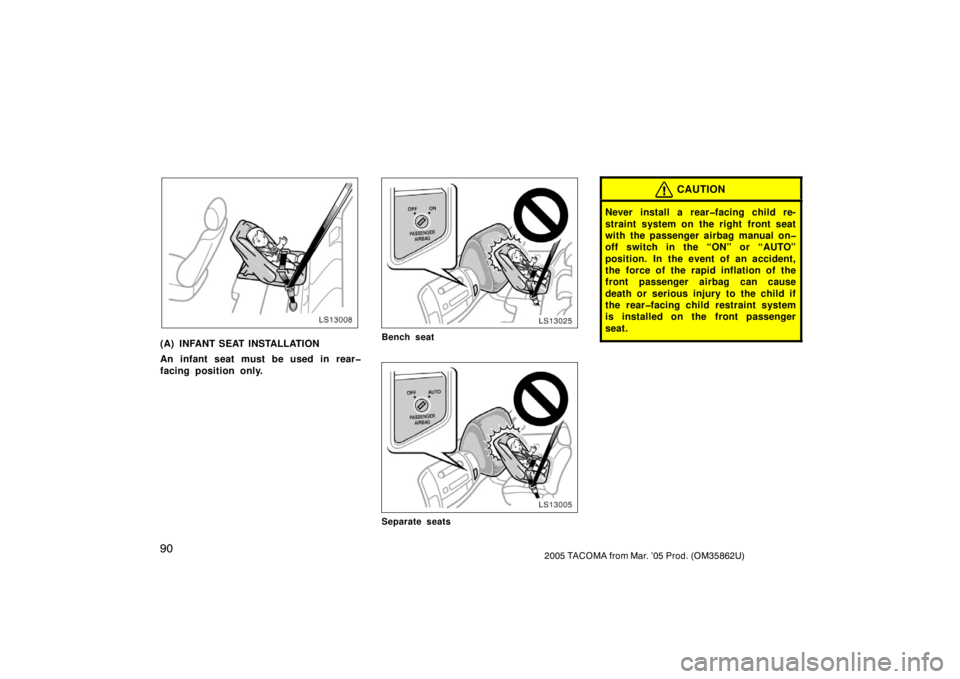

∗ 3: Never install a rear −facing child restraint system on the front passenger seat. A forward −facing child restraint system should only be
installed on the front passenger seat when it is unavoidable. (See “Child restraint” on page 86 in this Section as for installi ng the
child restraint system.)
∗ 4: In the event the front passenger does not wear a seat belt.

842005 TACOMA from Mar. ’05 Prod. (OM35862U)
Condition and operation in the front passenger occupant classification system
Double cab modelsCondition detected bythe front passenger
occupant classification system
Indicator/warning lightDevices
Front
passenger occupant
classification
indicator light
SRS warning light
Front
passenger ’s seat belt
reminder lightFront
passenger airbagSide airbag
on the front passenger seatCurtain shield
airbag in the front
passenger
sideFront
passenger ’s seat belt
pretensioner
1. Adult∗ 1“ON”OffFlashing∗4Activated
2. Child∗2 or child
restraint system∗ 3“OFF”OffFlashing∗4Deactivated
Activated
Activated
3. UnoccupiedNot
illuminatedOffOffDeactivatedDeactivated
4. There is a malfunction in the
system
“OFF”OnOffDeactivatedActivated
∗1: The system judges a person of adult size as an adult. When a smaller adult sits in the front passenger seat, the system may
recognize him/her as a child depending on his/her physique and posture.
∗2: When a larger child who has outgrown a child restraint system sits in the front passenger seat, the system may recognize him/h er
as an adult depending on his/her physique or posture.
∗ 3: Never install a rear −facing child restraint system on the front passenger seat. A forward −facing child restraint system should only be
installed on the front passenger seat when it is unavoidable. (See “Child restraint” on page 86 in this Section as for installi ng the
child restraint system.)
∗ 4: In the event the front passenger does not wear a seat belt.

852005 TACOMA from Mar. ’05 Prod. (OM35862U)

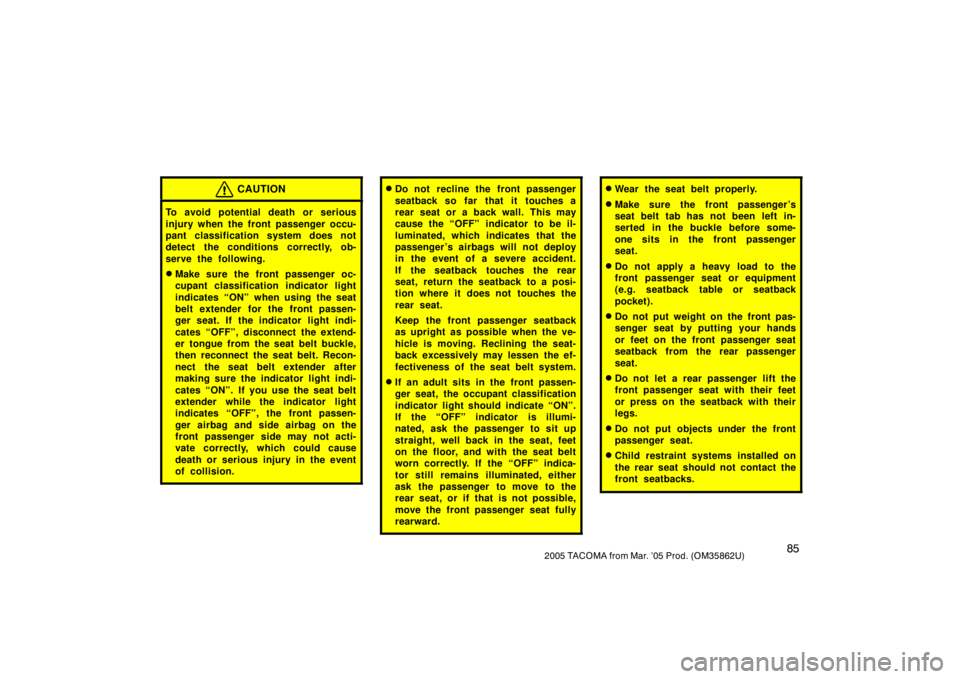

CAUTION
To avoid potential death or serious
injury when the front passenger occu-
pant classification system does not
detect the conditions correctly, ob-
serve the following.
Make sure the front passenger oc-
cupant classification indicator light
indicates “ON” when using the seat
belt extender for the front passen-
ger seat. If the indicator light indi-
cates “OFF”, disconnect the extend-
er tongue from the seat belt buckle,
then reconnect the seat belt. Recon-
nect the seat belt extender after
making sure the indicator light indi-
cates “ON”. If you use the seat belt
extender while the indicator light
indicates “OFF”, the front passen-
ger airbag and side airbag on the
front passenger side may not acti-
vate correctly, which could cause
death or serious injury in the event
of collision.
Do not recline the front passenger
seatback so far that it touches a
rear seat or a back wall. This may
cause the “OFF” indicator to be il-
luminated, which indicates that the
passenger ’s airbags will not deploy
in the event of a severe accident.
If the seatback touches the rear
seat, return the seatback to a posi-
tion where it does not touches the
rear seat.
Keep the front passenger seatback
as upright as possible when the ve-
hicle is moving. Reclining the seat-
back excessively may lessen the ef-
fectiveness of the seat belt system.
If an adult sits in the front passen-
ger seat, the occupant classification
indicator light should indicate “ON”.
If the “OFF” indicator is illumi-
nated, ask the passenger to sit up
straight, well back in the seat, feet
on the floor, and with the seat belt
worn correctly. If the “OFF” indica-
tor still remains illuminated, either
ask the passenger to move to the
rear seat, or if that is not possible,
move the front passenger seat fully
rearward.
Wear the seat belt properly.
Make sure the front passenger ’s
seat belt tab has not been left in-
serted in the buckle before some-
one sits in the front passenger
seat.
Do not apply a heavy load to the
front passenger seat or equipment
(e.g. seatback table or seatback
pocket).
Do not put weight on the front pas-
senger seat by putting your hands
or feet on the front passenger seat
seatback from the rear passenger
seat.
Do not let a rear passenger lift the
front passenger seat with their feet
or press on the seatback with their
legs.
Do not put objects under the front
passenger seat.
Child restraint systems installed on
the rear seat should not contact the
front seatbacks.

862005 TACOMA from Mar. ’05 Prod. (OM35862U)

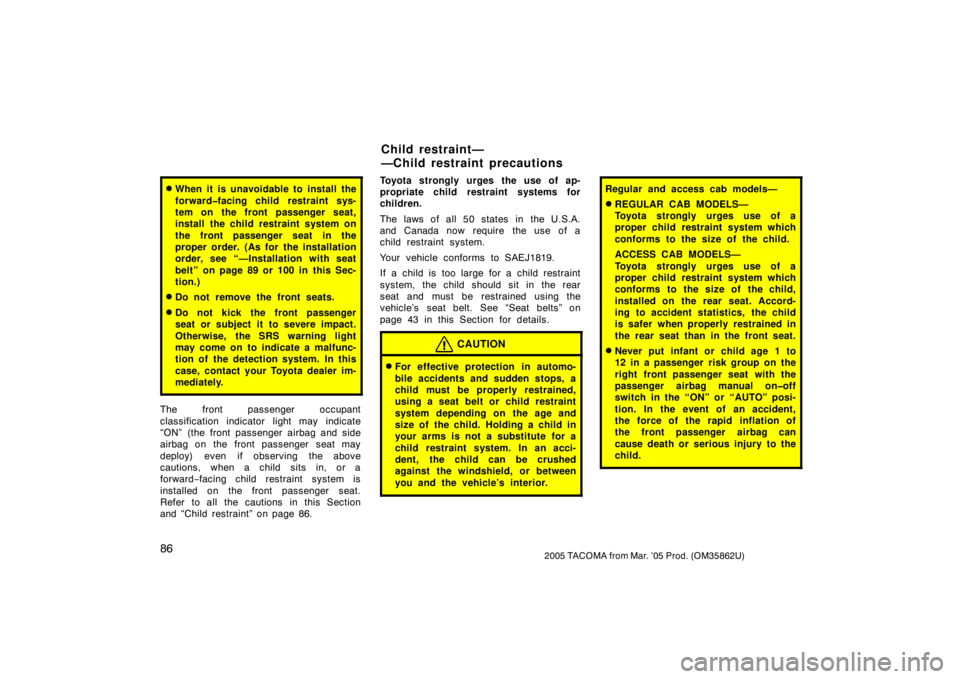

When it is unavoidable to install the
forwardfacing child restraint sys-
tem on the front passenger seat,
install the child restraint system on
the front passenger seat in the
proper order. (As for the installation
order, see “—Installation with seat
belt” on page 89 or 100 in this Sec-
tion.)
Do not remove the front seats.
Do not kick the front passenger
seat or subject it to severe impact.
Otherwise, the SRS warning light
may come on to indicate a malfunc-
tion of the detection system. In this
case, contact your Toyota dealer im-
mediately.
The front passenger occupant
classification indicator light may indicate
“ON” (the front passenger airbag and side
airbag on the front passenger seat may
deploy) even if observing the above
cautions, when a child sits in, or a
forward−facing child restraint system is
installed on the front passenger seat.
Refer to all the cautions in this Section
and “Child restraint” on page 86. Toyota strongly urges the use of ap-
propriate child restraint systems for
children.
The laws of all 50 states in the U.S.A.
and Canada now require the use of a
child restraint system.
Your vehicle conforms to SAEJ1819.
If a child is too large for a child restraint
system, the child s
hould sit in the rear
seat and must be restrained using the
vehicle’s seat belt. See “Seat belts” on
page 43 in this Section for details.
CAUTION
For effective protection in automo-
bile accidents and sudden stops, a
child must be properly restrained,
using a seat belt or child restraint
system depending on the age and
size of the child. Holding a child in
your arms is not a substitute for a
child restraint system. In an acci-
dent, the child can be crushed
against the windshield, or between
you and the vehicle’s interior.
Regular and access cab models—
REGULAR CAB MODELS—
Toyota strongly urges use of a
proper child restraint system which
conforms to the size of the child.
ACCESS CAB MODELS—
Toyota strongly urges use of a
proper child restraint system which
conforms to the size of the child,
installed on the rear seat. Accord-
ing to accident statistics, the child
is safer when properly restrained in
the rear seat than in the front seat.
Never put infant or child age 1 to
12 in a passenger risk group on the
right front passenger seat with the
passenger airbag manual onoff
switch in the “ON” or “AUTO” posi-
tion. In the event of an accident,
the force of the rapid inflation of
the front passenger airbag can
cause death or serious injury to the
child.
Child restraint—
—Child restraint precautions

872005 TACOMA from Mar. ’05 Prod. (OM35862U)

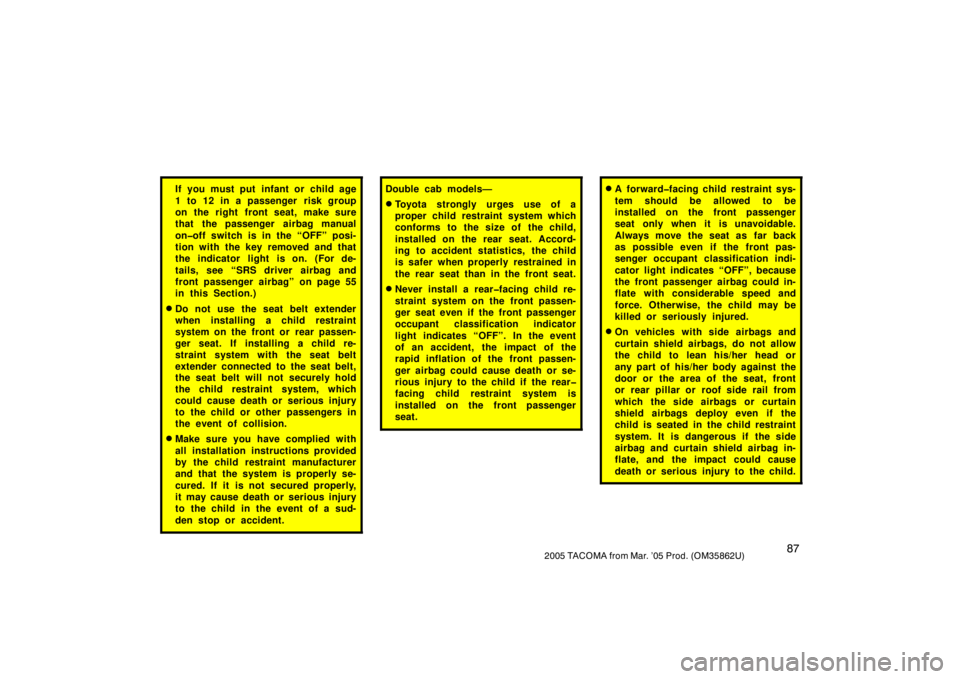

If you must put infant or child age
1 to 12 in a passenger risk group
on the right front seat, make sure
that the passenger airbag manual
onoff switch is in the “OFF” posi-
tion with the key removed and that
the indicator light is on. (For de-
tails, see “SRS driver airbag and
front passenger airbag” on page 55
in this Section.)
Do not use the seat belt extender
when installing a child restraint
system on the front or rear passen-
ger seat. If installing a child re-
straint system with the seat belt
extender connected to the seat belt,
the seat belt will not securely hold
the child restraint system, which
could cause death or serious injury
to the child or other passengers in
the event of collision.
Make sure you have complied with
all installation instructions provided
by the child restraint manufacturer
and that the system is properly se-
cured. If it is not secured properly,
it may cause death or serious injury
to the child in the event of a sud-
den stop or accident.
Double cab models—
Toyota strongly urges use of a
proper child restraint system which
conforms to the size of the child,
installed on the rear seat. Accord-
ing to accident statistics, the child
is safer when properly restrained in
the rear seat than in the front seat.
Never install a rearfacing child re-
straint system on the front passen-
ger seat even if the front passenger
occupant classification indicator
light indicates “OFF”. In the event
of an accident, the impact of the
rapid inflation of the front passen-
ger airbag could cause death or se-
rious injury to the child if the rear
facing child restraint system is
installed on the front passenger
seat.
A forwardfacing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible even if the front pas-
senger occupant classification indi-
cator light indicates “OFF”, because
the front passenger airbag could in-
flate with considerable speed and
force. Otherwise, the child may be
killed or seriously injured.
On vehicles with side airbags and
curtain shield airbags, do not allow
the child to lean his/her head or
any part of his/her body against the
door or the area of the seat, front
or rear pillar or roof side rail from
which the side airbags or curtain
shield airbags deploy even if the
child is seated in the child restraint
system. It is dangerous if the side
airbag and curtain shield airbag in-
flate, and the impact could cause
death or serious injury to the child.

882005 TACOMA from Mar. ’05 Prod. (OM35862U)
Do not use the seat belt extender
when installing a child restraint
system on the front or rear passen-
ger seat. If installing a child re-
straint system with the seat belt
extender connected to the seat belt,
the seat belt will not securely hold
the child restraint system, which
could cause death or serious injury
to the child or other passengers in
the event of collision.
Make sure you have complied with
all installation instructions provided
by the child restraint manufacturer
and that the system is properly se-
cured. If it is not secured properly,
it may cause death or serious injury
to the child in the event of a sud-
den stop or accident.
A child restraint system for a small
child or baby must itself be properly
restrained on the seat with the lap por-
tion of the lap/shoulder belt. You must
carefully consult the manufacturer ’s
instructions which accompany the child
restraint system.
To provide proper restraint, use a child
restraint system following the manufactur-
er ’s instructions about the appropriate age
and size of the child for the child restraint
system.
Install the child restraint system correctly
following the instructions provided by its
manufacturer. General directions are also
provided under the following illustrations.
The child restraint system should be
installed on the rear seat if your vehicle
is equipped with rear seats. According to
accident statistics, the child is safer when
properly restrained in the rear seat than
in the front seat.
When not using the child restraint system,
keep it secured with the seat belt or place
it somewhere other than the passenger
compartment. This will prevent it from in-
juring passengers in the event of a sud-
den stop or accident.Child restraint systems are classified into
the following 3 types depending on the
child’s age and size.
(A) Infant seat
(B) Convertible seat
(C) Booster seat
Install the child restraint system following
the instructions provided by its manufac-
turer.
Your vehicle has anchor brackets for se-
curing the top strap of a child restraint
system.
For instructions about how to use the an-
chor bracket, see “—Using a top strap” on
page 110, 113 or 116 in this Section.
The child restraint lower anchorages
approved for your vehicle may also be
used. See “—Installation with child
restraint lower anchorages” on page 118,
121 or 125 in this Section.
—Child restraint system
—Types of child restraint
system

892005 TACOMA from Mar. ’05 Prod. (OM35862U)

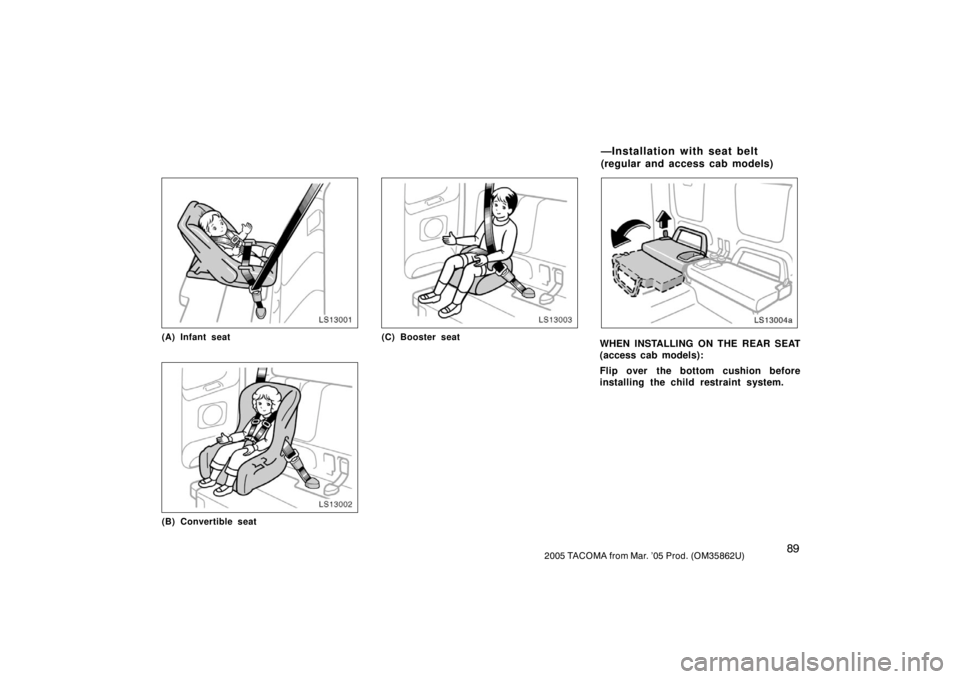

LS13001
(A) Infant seat
LS13002
(B) Convertible seat
LS13003
(C) Booster seat
LS13004a
WHEN INSTALLING ON THE REAR SEAT
(access cab models):
Flip over the bottom cushion before
installing the child restraint system.
—Installation with seat belt
(regular and access cab models)

902005 TACOMA from Mar. ’05 Prod. (OM35862U)
LS13008
(A) INFANT SEAT INSTALLATION
An infant seat must be used in rear
facing position only.
LS13025
Bench seat
LS13005
Separate seats
CAUTION
Never install a rearfacing child re-
straint system on the right front seat
with the passenger airbag manual on
off switch in the “ON” or “AUTO”
position. In the event of an accident,
the force of the rapid inflation of the
front passenger airbag can cause
death or serious injury to the child if
the rearfacing child restraint system
is installed on the front passenger
seat.
