TOYOTA TACOMA 2005 Owners Manual (in English)

2212005 TACOMA from Mar. ’05 Prod. (OM35862U)
To cool off your Toyota after it has
been parked in the hot sun, drive with
the windows open long enough for the
hot air to escape. This operation allows
the air conditioning to cool the interior
more quickly.
Make sure the air intake grilles in front
of the windshield are not blocked (by
leaves or snow, for example).
On humid days, do not blow cold air
on the windshield. The windshield could
fog up because of the difference in air
temperature on the inside and outside
of the windshield.
Keep the area under the front seats
clear to allow air to circulate through-
out the vehicle.
On cold days, set the fan speed to
high for a minute to help clear the
intake ducts of snow or moisture. This
can reduce the amount of fogging on
the windows.
When driving on dusty roads, close all
windows. If dust thrown up by the ve-
hicle is still drawn into the vehicle after
closing the windows, it is recommended
that the air intake selector be set to
FRESH and the fan speed selector to
any setting except “OFF”.

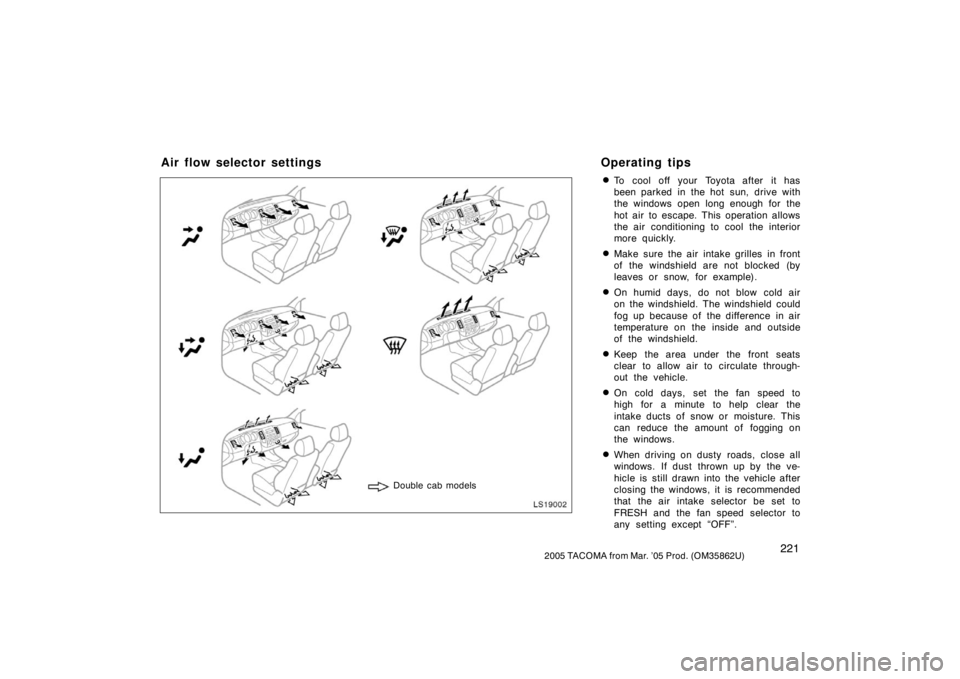

Air flow selector settingsOperating tips
LS19002
Double cab models

2222005 TACOMA from Mar. ’05 Prod. (OM35862U)
If following another vehicle on a dusty
road, or driving in windy and dusty
conditions, it is recommended that the
air intake selector be temporarily set to
RECIRCULATE, which will close off the
outside passage and prevent outside
air and dust from entering the vehicle
interior.Heating
For best results, set controls to:
Fan speed— Any setting except “OFF”
Temperature— Towards red zone
Air intake—FRESH (outside air)
Air flow—FLOOR
Air conditioning—OFF
For quick heating, select recirculated
air for a few minutes. To keep the
windows from fogging, select fresh af-
ter the vehicle interior has been
warmed.
Press the “A/C” button on for dehumidi-
fied heating.
Choose floor/windshield air flow to heat
the vehicle interior while defrosting or
defogging the windshield. Air conditioning
For best results, set controls to:
Fan speed— Any setting except “OFF”
Temperature— Towards blue zone
Air intake—FRESH (outside air)
Air flow—PANEL
Air conditioning—ON
For most effective cooling, move the
air intake selector to recirculate.
Ventilation
For best results, set controls to:
Fan speed— Any setting except “OFF”
Temperature— Towards blue zone
Air intake—FRESH (outside air)
Air flow—PANEL
Air conditioning—OFF

2232005 TACOMA from Mar. ’05 Prod. (OM35862U)
Defogging
Condition: Moisture is on the inside of the
windshield.
For best results, set controls to:Fan speed— Any setting except “OFF”
Temperature— Towards red zone to heat;
blue zone to cool
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
Turning the air flow selector to the wind-
shield or floor/windshield position turns on
the defogging function with the purpose of
clearing the windshield.
When turning the air flow selector to wind-
shield or floor/windshield position, air in-
take selector mode changes to FRESH
automatically to clear the windshield
quickly. If you want to return the setting
to RECIRCULATE mode, press the air in-
take selector button once again. However,
if the air flow selector is in the windshield
position, it is not possible to return to
RECIRCULATE.
Vehicles with “A/C” button—
Press the “A/C” button for dehumidified
heating or cooling. This setting clears the
front view more quickly.
On humid days, do not blow cold air
on the windshield—the difference be-
tween the outside and inside tempera-
tures could make the fogging worse.
Defrosting
Condition: Moisture is on the outside of
the windshield.
For best results, set controls to:
Fan speed— Any setting except “OFF”
Temperature— Towards red zone
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
Turning the air flow selector to the wind-
shield or floor/windshield position turns on
the defrosting function with the purpose of
clearing the windshield.
When turning the air flow selector to wind-
shield or floor/windshield position, air in-
take selector mode changes to FRESH
automatically to clear the windshield
quickly. If you want to return the setting
to RECIRCULATE mode, press the air in-
take selector button once again. However,
if the air flow selector is in the windshield
position, it is not possible to return to
RECIRCULATE. Vehicles with “A/C” button—
Press the “A/C” button for dehumidified
heating or cooling. This setting clears the
front view more quickly.
To heat the vehicle interior while de-
frosting the windshield, choose floor/
windshield air flow.

2242005 TACOMA from Mar. ’05 Prod. (OM35862U)
LS19004
OpenCloseOpen
Close
1. Side vents
2. Center vents
If air flow control is not satisfactory, check
the instrument panel vents. The instrument
panel vents may be opened or closed as
shown.
LS19005
1. Side vents
2. Center vents
You can change air flow direction by turn-
ing the instrument panel vents.
Instrument panel vents

2252005 TACOMA from Mar. ’05 Prod. (OM35862U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Accessory meter226
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Clock 231
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Cigarette lighter 231
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Power outlet 231
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Glove box 236
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Garage door opener box 236
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Auxiliary boxes 239
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Rear console box 241
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Cup holders 241
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Bottle holders 243
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Storage boxes 244
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Flashlight holder 244
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Seatback table 245
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Cargo net hooks 245
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Grocery bag hooks 246
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Deck hooks 246
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Deck rails 246
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Floor mat 249
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
SECTION 1 10

2262005 TACOMA from Mar. ’05 Prod. (OM35862U)
Accessory meter—
LS10034
1. “E/M” button
2. Compass
3. Outside temperature displayOperate the accessory meter with the
ignition switch on.
When the ignition switch is turned to
“ON”, the last previously used mode dis-
played just before the ignition switch is
turned off will appear.
When the instrument panel lights are
turned on, the brightness of the display
will be reduced.
“E/M” button
This button is used to switch between
English/U.S. Customary System and
metric units of the outside temperature
display.
Every time you push this button, the dis-
play toggles through the following informa-
tion.
1. Compass and outside temperature ( F)
2. Compass and outside temperature ( C)
3. Display off (no compass)
The display variations are as follows;
IndicationOutside
temperature
English/U.S. Customary
System (E) F
Metric (M)C
The initial mode will be English/U.S. Cus-
tomary System units, however, if the unit
is switched to metric and the ignition
switch is off, it will display metric units
when the ignition switch is turned to “ON”.
—Before using the accessory
meter

2272005 TACOMA from Mar. ’05 Prod. (OM35862U)
LS10035
The outside temperature display indi-
cates the outside air temperature. The
displayed value is updated.
To set the unit, push the “E/M” button
until the desired unit display appears.
The displayed temperature ranges from
−30 C ( −22 F) up to 50 C (122 F).
If an abnormality exists in the connection
of the outside air temperature sensor,
“ −− C” (“ −−F”) will appear on the display.
If “ −−C” (“ −−F”) appears on the display,
contact your Toyota dealer.
There may be a case that “−− C” (“ −−F”)
appears momentarily when the ignition is
quickly turned to “ON”. It is normal if it
goes out soon.
—Compass
LS10036
The compass indicates the direction
that the vehicle is heading. In the
above case, it shows that the vehicle is
heading west.
The direction display is updated every 2
seconds.
Displays
Directions
N
NE E
SE
S
SW W
NWNorth
Northeast East
Southeast
South
Southwest West
Northwest
The compass may not show the correct
direction in the following conditions:
The vehicle is stopped immediately af-
ter turning.
The compass does not adjust while the
vehicle is stopped.
The ignition switch is turned off imme-
diately after turning.
The vehicle is on an inclined surface.
The vehicle is in a place where the
earth’s magnetic field is subject to in-
terference by artificial magnetic fields
(underground parking, under a steel
tower, between buildings, roof parking,
near a crossing, near a large vehicle,
etc.).
The vehicle is magnetized. (There is a
magnet or a metal object on or near
the roof.)
The battery has been disconnected.
If the deviation is small, the compass
works to calibrate the direction automati-
cally while the vehicle is in motion.
For additional precision or for complete
calibrating, see “CALIBRATING THE
COMPASS” below.
—Outside temperature display

2282005 TACOMA from Mar. ’05 Prod. (OM35862U)
If the direction is not indicated or the
system does not operate properly, contact
your Toyota dealer.
LS10037

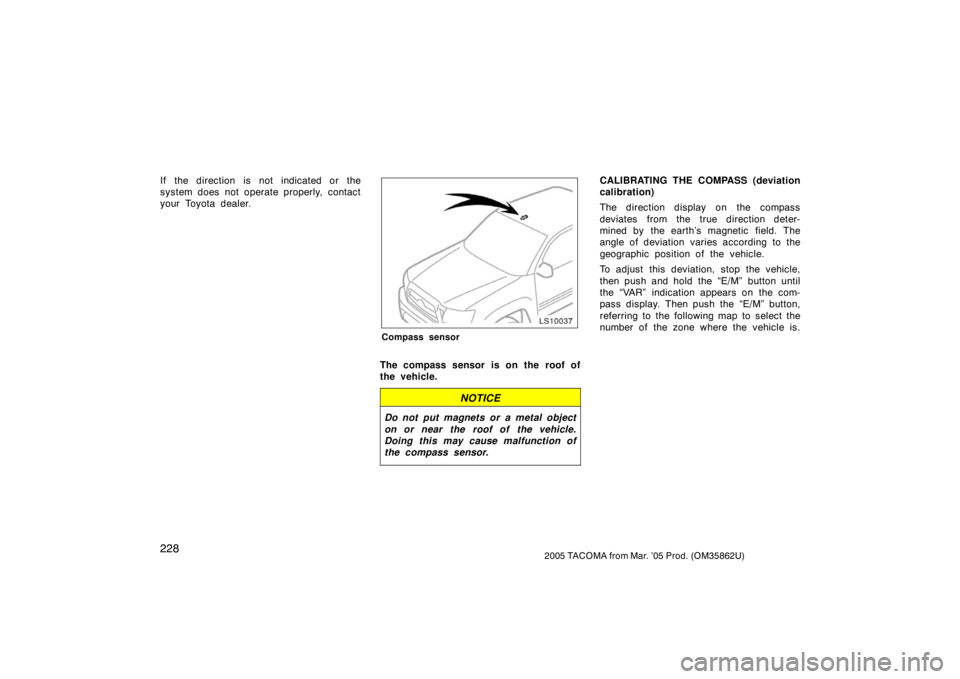

Compass sensor
The compass sensor is on the roof of
the vehicle.
NOTICE
Do not put magnets or a metal object
on or near the roof of the vehicle.
Doing this may cause malfunction of
the compass sensor.
CALIBRATING THE COMPASS (deviation
calibration)
The direction display on the compass
deviates from the true direction deter-
mined by the earth’s magnetic field. The
angle of deviation varies according to the
geographic position of the vehicle.
To adjust this deviation, stop the vehicle,
then push and hold the “E/M” button until
the “VAR” indication appears on the com-
pass display. Then push the “E/M” button,

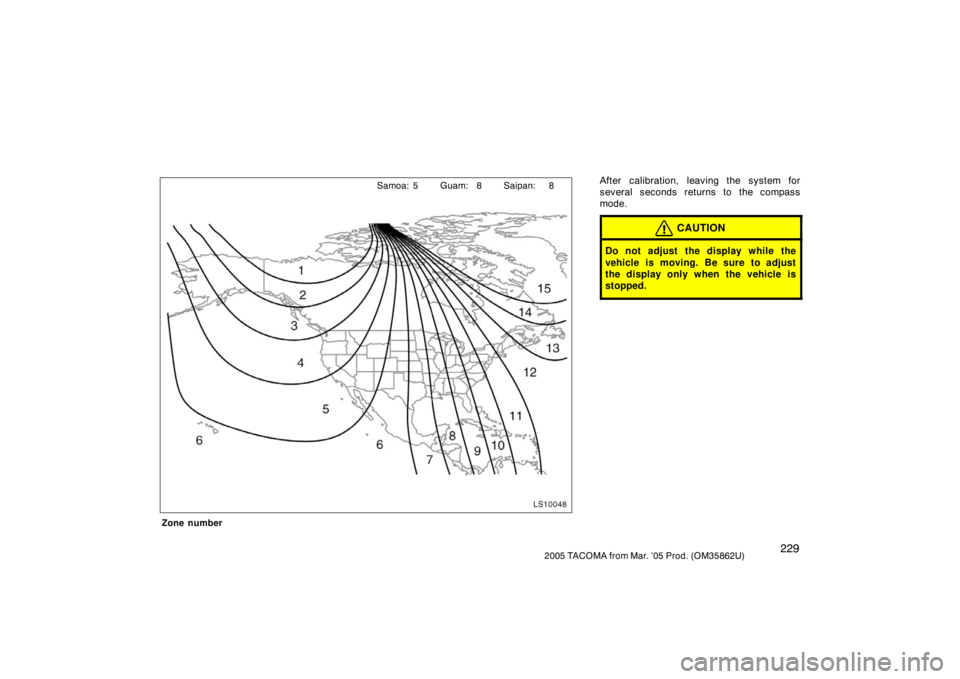

referring to the following map to select the
number of the zone where the vehicle is.

2292005 TACOMA from Mar. ’05 Prod. (OM35862U)
Zone number
After calibration, leaving the system for
several seconds returns to the compass
mode.
CAUTION
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.
LS10048
Samoa: 5 Guam: 8 Saipan: 8

2302005 TACOMA from Mar. ’05 Prod. (OM35862U)
LS10038a
CALIBRATING THE COMPASS (circling
calibration)
Sometimes the direction display on the
compass may not change after a turn. To
rectify this, stop the vehicle and push and
hold the “E/M” button until the “CAL” indi-
cation appears on the compass display.
(At this time, the compass display is
locked in “N”.)
LS10039
Drive the vehicle in a circle at 8 km/h (5
mph) or less. If there is not enough space
to drive in a circle, drive around the
block.
When the “CAL” indication goes off and
the compass returns to the normal mode,
calibration is complete.
If calibration cannot be performed because
of the magnetized vehicle etc., take your
vehicle to Toyota dealer.Perform circling calibration just after
you have purchased your Toyota. And
then always perform circling calibration
after the battery has been removed, re-
placed or disconnected.
Do not perform circling calibration of
the compass in a place where the
earth’s magnetic field is subject to in-
terference by artificial magnetic fields
(underground parking, under a steel
tower, between buildings, roof parking,
near a crossing, near a large vehicle,
etc.).
During calibration, do not operate elec-
tric systems (moon roof, power win-
dows, etc.) as they may interfere with
the calibration.
CAUTION
When doing the circling calibration,
be sure to secure a wide space,
and watch out for people and ve-
hicles in the neighborhood. Do not
violate any local traffic rules while
performing circling calibration.
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.
