OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
Instrument cluster overview 7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Indicator symbols on the instrument panel 8
. . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 1
Page 12 of 422
22006 TACOMA from Jan.’06 Prod. (OM35871U)
1. Side vents
2. Instrument cluster
3. Center vents
4. Glove box
5. Automatic transmission selector leveror manual transmission gear shift lever
6. Cup holders
7. Tire pressure warning system reset switch
8. Auxiliary box
9. Hood lock release lever
10. Parking brake pedal (automatic transmission)
Instrument panel overview
Bench seat
LS11001b
Page 13 of 422
32006 TACOMA from Jan.’06 Prod. (OM35871U)
1. Side vents
2. Instrument cluster
3. Center vents
4. Garage door opener box or accessorymeter
5. Personal lights
6. Auxiliary boxes
7. Power door lock switches
8. Power window switches
9. Glove box
10. Automatic transmission selector lever
11. Rear console box
12. Bottle holders
13. Cup holders
14. Tire pressure warning system reset switch
15. Hood lock release lever
16. Parking brake pedal
17. Window lock switch
Separate seats with automatic transmission
LS11002b
Page 14 of 422
42006 TACOMA from Jan.’06 Prod. (OM35871U)
1. Side vents
2. Instrument cluster
3. Center vents
4. Garage door opener box or accessorymeter
5. Personal lights
6. Auxiliary boxes
7. Power door lock switches
8. Power window switches
9. Glove box
10. Rear console box
11. Bottle holders
12. Cup holders
13. Manual transmission gear shift lever
14. Tire pressure warning system reset switch
15. Hood lock release lever
16. Window lock switch
Separate seats with manual transmission
LS11003b
Page 15 of 422
52006 TACOMA from Jan.’06 Prod. (OM35871U)
1. Front fog light switch
2. Rear differential lock switch or “AUTOLSD” switch
3. Power outlet main switch
4. Instrument panel light control dial
5. Headlight and turn signal switches
6. Audio remote control switches
7. Wiper and washer switches
8. Front drive control switch knob
9. Audio system
10. Clock
11. Engine immobilizer system indicator light
12. Front passenger ’s seat belt reminder light
13. Front passenger occupant classification indicator lights or passenger airbag on −
off indicator lights
14. Passenger airbag off switch
15. Air conditioning controls
16. Power outlet
17. Emergency flasher switch
18. Cigarette lighter
19. Parking brake lever (manual transmission)
LS11004a
Page 16 of 422
62006 TACOMA from Jan.’06 Prod. (OM35871U)
20. Cruise control switch
21. Ignition switch
22. Clutch start cancel switch
23. “DAC” switch
24. Power rear view mirror control switches
Page 17 of 422
72006 TACOMA from Jan.’06 Prod. (OM35871U)
LS11005a
1. Tachometer
2. Speedometer
3. Odometer and two trip meters4. Service reminder indicators and
indicator lights
5. Engine coolant temperature gauge
6. Fuel gauge 7. Trip meter reset knob
8. Shift position indicator lights (automatic
transmission)

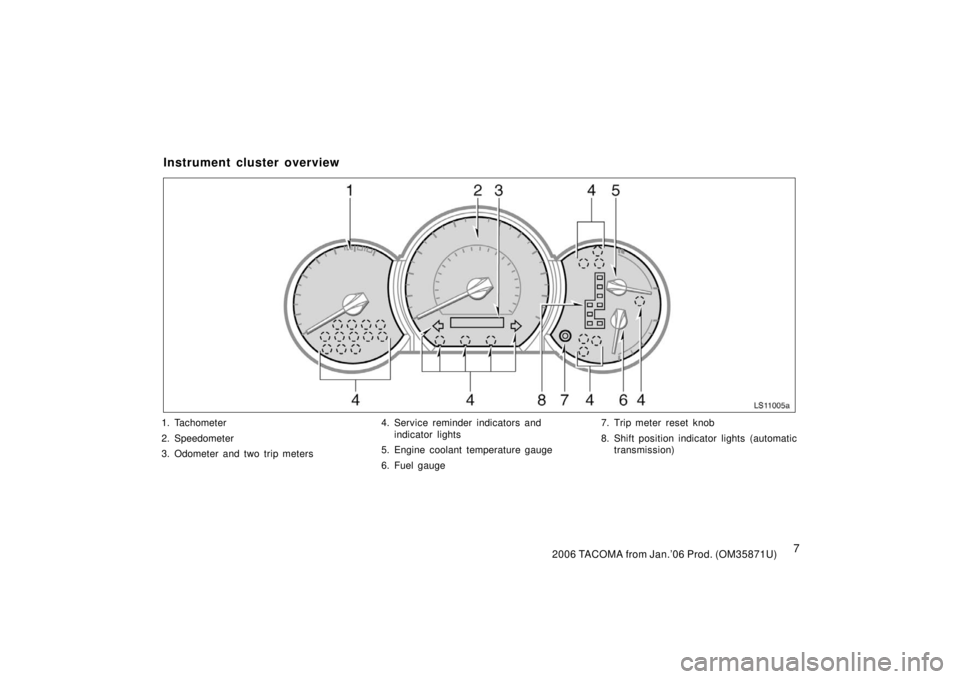

Instrument cluster overview
Page 18 of 422
82006 TACOMA from Jan.’06 Prod. (OM35871U)
Driver ’s seat belt reminder light∗1
Low engine oil pressure warning light∗1
Brake system warning light∗1
Charging system warning light∗1
Malfunction indicator lamp∗1
Anti −lock brake system warning light∗
1
SRS warning light∗1
or
Vehicle stability control system warning
light∗1
Traction control system warning light∗1
“AUTO LSD” system warning light∗1
Downhill assist control system warning
light∗1
Hill −start assist control system warning
light∗ 1
Front passenger ’s seat belt reminder light∗1
Front passenger occupant classification
indicator light or passenger airbag on −off
indicator light
Engine oil replacement reminder light∗ 1
(for vehicles sold in U.S.A.)
Open door warning light∗ 1
Indicator symbols on the instrument panel
Page 19 of 422
92006 TACOMA from Jan.’06 Prod. (OM35871U)
∗1: For details, see “Service reminder indicators and warning
buzzers” on page 151 in Section 1− 6.
∗
2: If this light flashes, see “Cruise control” on page 199 in
Section 1 −7.
∗
3: If this light flashes, see “Four −wheel drive system” on page
175 in Section 1− 7.
∗
4: If this light flashes, see “Rear differential lock system” on
page 191 in Section 1 −7.
Cruise control indicator light
∗
2
Rear differential lock indicator light∗4
Four −wheel drive indicator light∗
3
Slip indicator light
Vehicle stability control system off indicator light
“AUTO LSD” indicator lightHeadlight high beam indicator light
Turn signal indicator lightsEngine immobilizer system indicator light
∗
1
Automatic transmission fluid temperature
warning light∗1
Headlight low beam indicator light
Tail light indicator light
Automatic transmission indicator lights
(5 −speed)
Automatic transmission indicator lights
(4 −speed)
Low speed four −wheel drive indicator light∗
3
Downhill assist control system indicator light
Low tire pressure warning light∗1
Page 20 of 422
