TOYOTA TACOMA 2006 Owners Manual (in English)

2012006 TACOMA from Jan.’06 Prod. (OM35871U)
Under certain circumstances, the cruise
control is temporarily cancelled:
When vehicle speed falls below 40
km/h (25 mph)
When vehicle stability control is acti-
vated
When vehicle speed drops 16 km/h (10
mph) below the set speed, the cruise con-
trol is cancelled and the set speed is
erased from memory.
The “CRUISE” indicator light remains on
to indicate that the system is still in op-
eration.
To turn the cruise control off, press the
“ON −OFF” button. Make sure the
“CRUISE” indicator light is off.
If the cruise control automatically cancels
out other than for the above cases, have
your vehicle checked by your Toyota deal-
er at the earliest opportunity.
RESUMING THE CRUISE CONTROL
If the cruise control is temporarily can-
celled, the cruising speed can be resumed
by pushing the lever up in the “+ RES”
direction.
Vehicle speed must be above 40 km/h (25
mph). RESETTING TO A FASTER SPEED
Push the lever up in the “+RES” direction
and hold it. Release the lever when the
desired speed is attained. While the lever
is held up, the vehicle will gradually gain
speed.
However, a faster way to reset is to ac-
celerate the vehicle and then push the
lever down in the “−
SET” direction.
RESETTING TO A SLOWER SPEED
Push the lever down in the “ −SET” direc-
tion and hold it. Release the lever when
the desired speed is attained. While the
lever is held down, the vehicle speed will
gradually decrease.
However, a faster way to reset is to de-
press the brake pedal and then push the
lever down in the “− SET” direction.
On vehicles with automatic transmission,
even if you downshift from “D” to “4”
(5 −speed automatic transmission) or “3”
(4 −speed automatic transmission), with the
cruise control on, engine braking will not
be enabled because the cruise control is
not cancelled. To decrease the vehicle
speed, reset to a slower speed with the
cruise control lever or depress the brake
pedal. If you use the brake pedal, cruise
control is cancelled. CRUISE CONTROL FAILURE WARNING
If the “CRUISE” indicator light flashes
when using the cruise control, press the
“ON
−OFF” button to turn the system off
and then press it again to turn it on.
If any of the following conditions then oc-
curs, there is some trouble in the cruise
control system.
The indicator light does not come on.
The indicator light flashes again.
The indicator light goes out after it
comes on.
If this is the case, contact your Toyota
dealer and have your vehicle inspected.

2022006 TACOMA from Jan.’06 Prod. (OM35871U)
LS17022
To crank the engine without depressing
the clutch pedal, push the switch with
the ignition on.
The switch stays on as long as the igni-
tion is on. And it will automatically turn off
when the ignition is off. An indicator light
will illuminate to indicate the system is
operating.
This switch cancels the clutch start sys-
tem, which is designed to keep the starter
motor from operating if the clutch pedal is
not depressed all the way down.
The switch allows the vehicle to be driven
out of difficult situations by cranking the
engine with the clutch engaged.Never use the switch for normal engine
starting. Be sure to follow the starting
procedure instructed in “How to start the
engine” on page 298 in Section 3.
Clutch start cancel switch

2032006 TACOMA from Jan.’06 Prod. (OM35871U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Audio system
Reference204
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Using your audio system 205
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Audio remote controls 223
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Audio system operating hints 224
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 8

2042006 TACOMA from Jan.’06 Prod. (OM35871U)
LS18001
Type 1: AM·FM radio/compact disc player
(with compact disc changer controller)
LS18003
Type 2: AM·FM radio/compact disc player
with changer
LS18005
Type 3: AM·FM radio/compact disc player
with changer
Reference

2052006 TACOMA from Jan.’06 Prod. (OM35871U)
This section describes some of the basic
features on Toyota audio systems. Some
information may not pertain to your sys-
tem.
Your audio system works when the ignition
key is in the “ACC” or “ON” position.
TURNING THE SYSTEM ON AND OFF
Push “PWR·VOL” to turn the audio system
on and off.
Push “AM”, “FM1·2”, “FM1”, “FM2”, “DISC”
or “LOAD” to turn on that function without
pushing “PWR·VOL”. To turn on the com-
pact disc player, a compact disc must be
loaded in the player.
You can turn on the compact disc player
by inserting a compact disc.
You can turn off the compact disc player
by ejecting the compact disc. If the audio
system was previously off, then the entire
audio system will be turned off when you
eject the compact disc. If the radio was
previously on, it will come on again.
SWITCHING BETWEEN FUNCTIONS
Push “AM”, “FM1·2”, “FM1”, “FM2”, “DISC”
or “LOAD” if the system is already on but
you want to switch from one function to
another.TONE AND BALANCE
For details about your system’s tone and
balance controls, see the description of
your own system.
Tone
How good an audio program sounds to
you is largely determined by the mix of
the treble, midrange (type 3), and bass
levels. In fact, different kinds of music
and vocal programs usually sound better
with different mixes of treble, midrange
and bass.
Balance
A good balance of the left and right stereo
channels and of the front and rear sound
levels is also important.
Keep in mind that if you are listening to
a stereo recording or broadcast, changing
the right/left balance will increase the vol-
ume of one group of sounds while de-
creasing the volume of another.
YOUR RADIO ANTENNA
To remove an antenna, carefully turn it
counterclockwise.
YOUR COMPACT DISC PLAYER
(type 1)
When you insert a disc, gently push it in
with the label side up. The player will play
from track 1 through to the end of the
disc. Then it will play from track 1 again.
NOTICE
Never try to disassemble or oil any
part of the compact disc player. Do
not insert anything other than com-
pact discs into the slot.
8 cm (3 in.) compact disc singles
Your compact disc player does not need
an adaptor to play compact disc singles.
Compact disc singles are about 8 cm (3
in.) in diameter
−smaller than standard
discs.
After you eject a compact disc single, do
not insert a standard 12 cm (4.7 in.) disc
until “DISC” disappears from the display.
Using your audio system—
—Some basics

2062006 TACOMA from Jan.’06 Prod. (OM35871U)
NOTICE
Do not use an adaptor for compact
disc singles—it could cause tracking
errors or interfere with the ejection of
compact discs.
YOUR COMPACT DISC PLAYER WITH
CHANGER (type 2 and type 3)
When you insert a disc, push the “LOAD”
button, wait for the load/eject status light
to turn green, then gently push the disc
in with the label side up. This compact
disc player can store up to six discs. The
player will play from track 1 through to
the end of the disc. Then it will play from
track 1 of the next disc.
The player is intended for use with 12 cm
(4.7 in.) discs only.
LS18007
NOTICE
Do not stack up two discs for in-
sertion, or it will cause damage to
the compact disc changer. Insert
only one compact disc into slot at
a ti me.
 Never try to disassemble or oil any
part of the compact disc player. Do
not insert anything other than com-
pact discs into the slot.

2072006 TACOMA from Jan.’06 Prod. (OM35871U)
Details of specific buttons, controls and
features are described in the alphabetical
list that follows.
—Controls and features

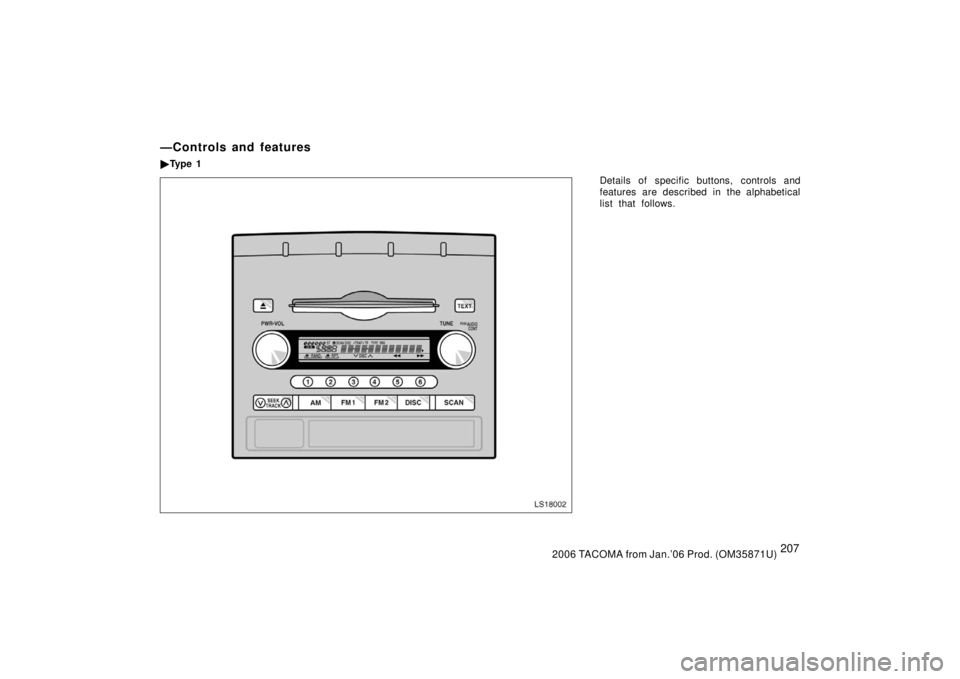

Ty p e 1
LS18002

2082006 TACOMA from Jan.’06 Prod. (OM35871U)
1 2 3 4 5 6 (Preset buttons)
These buttons are used to preset and
tune in radio stations.
To preset a station to a button: Tune in
the desired station. (See “TUNE” or
“SEEK”.) Push and hold down the button
until you hear a beep—this will set the
station to the button. The preset button
number will appear on the display.
To recall a preset station: Push the button
for the station you want. The button num-
ber and station frequency will appear on
the display.
These systems can store one AM and two
FM stations for each button. (The display
will show “AM”, “FM1” or “FM2” when you
push “AM”, “FM1” or “FM2” button.)
(Eject button)
Push the compact disc eject button to
eject a compact disc.
(Reverse/Fastforward button)
Push and hold “
” (preset button 6) or
“
” (preset button 5) to fast forward or
reverse within a compact disc. When you
release the button, the compact disc play-
er will resume playing.
AM
Push the “AM” button to turn on the radio
and select the AM band. “AM” will appear
on the display.
AUDIO CONTROL (Tone and sound bal-
ance adjustment function)
Each time you push the “AUDIO
CONTROL” knob, the mode changes. To
adjust the tone and balance, turn the
knob.
BAS: Adjusts low −pitched tones. The dis-
play ranges from −5 to 5.
TRE: Adjusts high −pitched tones. The dis-
play ranges from −5 to 5.
FAD: Adjusts the sound balance between
the front and rear speakers. The display
ranges from F7 to R7.
BAL: Adjusts the sound balance between
the right and left speakers. The display
ranges from L7 to R7. DISC (Compact disc)
Push the “DISC” button to play a compact
disc.
When the audio system is set into com-
pact disc operation, the display shows the
track, or track and disc number currently
being played.
Error messages
If the player malfunctions, your audio sys-
tem will display following error messages.
“WAIT”:
The compact disc player unit
may be too hot. Allow the player to cool
down.
“ERROR 1”: The disc may be dirty, dam-
aged or inserted incorrectly (up −side
down). Clean the disc and re −insert it.
“NO DISC”: The compact disc changer of
separate unit is empty. Insert a disc.
“ERROR 3”: There is a problem inside
the system. Eject the disc or magazine.
Set the disc or magazine again.
“ERROR 4”: Over−current. Ask your
Toyota dealer to inspect.
“CD OPEN”: The compact disc changer
lid of separate unit is open. Close the
compact disc changer lid.

2092006 TACOMA from Jan.’06 Prod. (OM35871U)
If the malfunction still exists, take your
vehicle to your Toyota dealer.
 DISC
With compact disc changer only—
Use these buttons to select a disc you
want to listen to.
Push “ ” (preset button 3) or “ ” (preset
button 4) until the number of the disc you
want to listen appears on the display.
FM1 FM2
Push the “FM1” or “FM2” button to turn on
the radio and select the FM band. “FM1”
or “FM2” will appear on the display. This
system allows you to set twelve FM sta-
tions, two for each of the preset button.
PWR·VOL (Power and Volume)
Push “PWR·VOL” to turn the audio system
on and off. Turn “PWR·VOL” to adjust the
volume. RAND (Random)
There are two random features—you can
either listen to the tracks on one compact
disc in random order, or listen to the
tracks on all the compact discs in the
magazine in random order.
To play the tracks on one disc in random
order:
Quickly push and release “RAND” (preset
button 1). “
” will appear on the
display and the player will perform the
tracks on the disc you are listening to in
random order. To turn off the random fea-
ture, push this button again.
With compact disc changer only—
To play all the tracks in the magazine in
random order:
Push and hold “RAND” (preset button 1)
until you hear a beep. “
” will ap-
pear on the display and the player will
perform all the tracks on all the discs in
the magazine in random order. To turn off
the random feature, push this button
again. RPT (Repeat)
There are two repeat features—You can
either replay a disc track or a whole com-
pact disc.
Repeating a track:
Quickly push and release “RPT” (preset
button 2) while the track is playing.
“
” will appear on the display. When
the track ends, it will automatically replay.
To turn off the repeat feature, push this
button again.
With compact disc changer only—
Repeating a disc:
Push and hold “RPT” (preset button 2)
until you hear a beep. “
” will ap-
pear on the display. The player will repeat
all the tracks on the disc you are listening
to. When the disc ends, the player will
automatically go back to the first track on
the disc and replay. To turn off the repeat
feature, push this button again.

2102006 TACOMA from Jan.’06 Prod. (OM35871U)
SCAN
Radio
You can either scan all the frequencies on
a band or scan only the preset stations
for that band.
To scan the preset stations:
Push and hold the “SCAN” button until
you hear a beep. The radio will tune in
the next preset station up the band, stay
there for 5 seconds, and then move to the
next preset station. To stop scanning,
push this button again.
To scan all the frequencies:
Quickly push and release the “SCAN” but-
ton. The radio will find the next station up
the station band, stay there for 5 seconds,
and then scan again to the next station.
To stop scanning, push this button again.Compact disc player
There are two scan features—you can ei-
ther scan the tracks on a specific disc or
scan the first tracks of all the discs in the
magazine.
Scanning the tracks on a disc:
Quickly push and release the “SCAN” but-
ton. “SCAN” will appear on the display
and the player will scan all the tracks on
the disc you are listening to. To stop
scanning, push this button again. If the
player scanned all the tracks on the disc,
it will stop scanning.
With compact disc changer only—
Scanning the first tracks of all the discs
in the magazine:
Push the “SCAN” button until you hear a
beep. “
·SCAN” will appear on the dis-
play and the player will scan the first
track of the next disc. To stop scanning,
push this button again. If the player has
scanned all the di scs, it will stop scan-
ning. SEEK/TRACK (Seeking/Track up/down)
Radio
In the seek mode, the radio finds and
plays the next station up or down the
station band.
To seek the next station, quickly push and
release “
” or “ ” side of the “SEEK/
TRACK” button. Do this again to find the
station after that.
Compact disc player
Use this button to skip up or down to a
different track.
Push “ ” or “ ” side of the “SEEK/
TRACK” button until the number of the
track you want to listen to appears on the
display. If you want to return to the begin-
ning of the current track, quickly push the
down side of the button one time.
